AZ489FT3804Astro XTS 5000 Digital Portable Radio

ASTRO ® XTS TM 5000 Digital Portable Radio Model III User Guide ASTRO ® XTS ™ 5000 Digital Portable Radio, Model III Quick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupati onal use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81087C79) to ensure compliance with RF energy exposure limits. Write your radio’s programmed features on the dotted lines. Radio On/OffZones/ChannelsReceive/TransmitSend Emergency Alarm Send Emergency CallSend Silent Emergency Alarm Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n 16-Position Select Knob _ _ _ _ _ _ _ Speaker/Mic Top Button _ _ _ _ _ _ _ Concentric Switch_ _ _ _ _ _ Display Keypad Menu Select ButtonsApp Button (for future use) Top Side Button_ _ _ _ _ _ _On/Off/Volume Knob Side Button 1_ _ _ _ _ _ _Side Button 2_ _ _ _ _ _ _ PTT Button 3-Position Switch _ _ _ _ _ _ _ 4-Way Navigation ButtonHome Button 1On - On/Off/Volume knob clockwise. 2Off - On/Off/Volume knob counterclockwise. 1 Zone - Zone switch to desired zone. 2 Channel - Channel switch to desired channel. 1 Radio on and select zone/channel. 2 Listen for a transmission. - or -Press and hold Volume Set button. - or -Press Monitor button and listen for activity. 3 Adjust volume, if necessary. 4Press PTT to transmit; release to receive. Radio on and press Emergency button. Display shows current zone/channel, andEMERGENCY . Red LED lights; you hear short, medium-pitched tone. Note: To exit emergency at any time, press and hold Emergency button. When acknowledgment is received, you hear four beeps; alarm ends; radio exits emer-gency. 1 Radio on and press Emergency button. Note: To exit emergency at any time, press and hold Emergency button. 2 Press and hold PTT . Announce your emergency into the microphone. 3 Release PTT to end call. 4 Press and hold Emergency button to exit emergency. 1 Radio on and press Emergency button. Display does not change; you see no LED; you hear no tone. Note: To exit emergency at any time, press and hold Emergency button. 2 Silent emergency continues until you: • Press and hold Emergency button to exit emergency state. - or - • Press and release PTT to exit silent emergency and enter regular emergency (alarm, call, or alarm with call). Display Status Symbols Menu Entries (Use With Menu Navigation) m Receiving an individual call p The radio is in the view or program mode; On Steady = view mode; Flashing = program mode s Received signal strength for the current site (trunking only). The more stripes in the symbol, the stronger the signal. b Flashes when the battery is low. r You are talking directly to another radio or through a repeater; On = direct; Off = repeater C This channel is being monitored. c Your radio is in secure operation; On = secure operation; Off = clear operation; Flashing = receiving an encrypted voice call T The radio is scanning a scan list S Priority 1 Channel during scan S Priority 2 Channel during scan Entry Menu Selection Page BATT Smart Battery 16 CALL Private Call /Selective Call 59/63 CHAN Select a Channel 22 CLCK Set the Time and Date 95 DIR Repeater/Direct 74 ERAS Key Zeroization 82 KEY Key Selection 79 KSET Keyset Selection 80 LOGF Radio Lock 31 MUTE Keypad Mute 32 NAME Text Select 42 NUM Number Select 41 Entry Menu Selection Page PAGE Call Alert Page 67 PHON Phone 55 PROG Editing 41 PSWD Password 30 PWR TX Power Level 27 REKY Rekey Request 85 RPGM Reprogram Request 88 SCAN Scan On/Off 51 SITE Site Lock/Unlock 92 STS Status Call 72 TGRP Talkgroup Call 70 VIEW View a List 40 ZONE Select a Zone 21 Menu Navigation U to find Menu Entry D , or E , or F directly below Menu Entry to select h to exit V or U to scroll through sub-list D , or E , or F directly below Menu Entry to select ASTRO ® XTS ™ 5000 Digital Portable Radio Model III User Guide 68P81094C27-B Motorola, Inc. 8000 West Sunrise Blvd. Ft. Lauderdale, FL 33322 Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81087C79) to ensure compliance with RF energy exposure limits. Computer Software Copyrights The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. Documentation Copyrights No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola. …

Text truncated - open the document above for the full version.

English Product Safety and RF Exposure The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. For radios that have been approved as intrinsically safe, read the instructions and information on intrinsic safety on page 9 of this booklet. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n

68P81087C79-F © Motorola, Inc. 2002. Commercial, Government and Industrial Solutions Sector 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 06/02. All Rights Reserved. 2 English Federal Communications Commission (FCC) Regulat ions The FCC has established limits for safe exposure to radio frequency (RF) emissions from portable two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before portable two-way radios can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness of RF exposure can be accomplished by the use of labels, information and instructions in manuals or safety booklets, or by appropriate means. Your Motorola two-way radio has an RF exposure information label in the battery compartment. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE:The approved, supplied batteries for this radio are rated for a 5-5-90 duty cycle (5% talk–5% listen–90% standby), even though this radio complies with FCC occupational exposure limits at duty cycles of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 3 English • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” Compliance and Control Guidelines and Operating Instructions for Portable Two-Way Radios To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: •Transmit no more than 50% of the time. To transmit (talk), push the Push- To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). •Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least one to two inches (2.5 to 5 centimeters) away from the lips. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. 4 English •For body-worn operation, always place the radio in a Motorola-approved clip, holder, holster, case, or body harness for this product. Using non– Motorola-approved accessories may result in exposure levels which exceed the FCC’s occupational/controlled environment RF exposure limits. •If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, ensure the antenna and the radio are kept one inch (2.5 centimeters) from the body when transmitting. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. •Use only Motorola-approved supplied or replacement antennas, batteries, and accessories. Use of non–Motorola-approved antennas, batteries and accessories may exceed FCC RF exposure guidelines. For a list of Motorola- approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/portables/xts5000.shtml For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . 5 English Electromagnetic Interference/Compatibility NOTE:Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conf…

Text truncated - open the document above for the full version.

Applicant: Motorola Inc. FCC ID: AZ489FT3804 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BSEECornell University MSEE Cornell University 2) 7 years experience in the development, testing and certification of Land Mobile Communications Products NAME: George Sarkees SIGNATURE:/s/ George Sarkees DATE: 25 June 2002 POSITION: Senior Staff Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Jacob Marvin SIGNATURE:/s/ Jacob Marvin DATE: 25 June 2002 POSITION: Engineering Manager EXHIBIT 2

FCC ID: AZ489FT3804 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. Date: 25 th June 2002 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3804. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power of 1-6.6 Watt (30-38.2 dBm) operating within the following frequency ranges: 136 - 174 MHz. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed, contact Mike Ramnath at (954) 723- 5793 or Fax (954) 723-4794 if you require any additional information. Sincerely, /s/ Mike Ramnath Mike Ramnath FCC Liaison Email: [email protected] EXHIBIT 13

FCC ID: AZ489FT3804 Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 Page: 13-2 REQUEST FOR CONFIDENTIALITY 25th June 2002 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Type Acceptance of Transmitter with FCC ID: AZ489FT3804. Gentlemen; Motorola is requesting that Exhibit 4 (Circuit Description), Exhibit 5 (Schematic Diagrams), and Exhibit 10 (Semiconductor/Active Device List) not be made routinely available for public inspection. Motorola is in the process of licensing the technology and has a number of Patent applications pending. Please mark Exhibit 4, 5 and 10 as Confidential. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath FCC Liaison Email: [email protected]

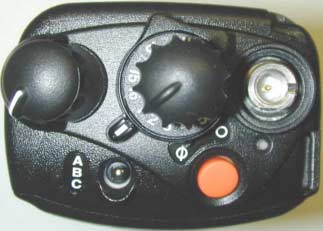

Applicant: Motorola Inc. FCC ID: AZ489FT3804 EXTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. Front view. 3A 2. Back view with battery. 3B 3. Back view (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F EXHIBIT 3 Applicant: Motorola Inc. FCC ID: AZ489FT3804 FRONT VIEW EXHIBIT 3A Applicant: Motorola Inc. FCC ID: AZ489FT3804 BACK VIEW WITH BATTERY EXHIBIT 3B Applicant: Motorola Inc. FCC ID: AZ489FT3804 BACK VIEW (FCC LABELS) EXHIBIT 3C Applicant: Motorola Inc. FCC ID: AZ489FT3804 SIDE VIEW (RIGHT) EXHIBIT 3D Applicant: Motorola Inc. FCC ID: AZ489FT3804 SIDE VIEW (LEFT) EXHIBIT 3E Applicant: Motorola Inc. FCC ID: AZ489FT3804 TOP VIEW EXHIBIT 3F

Applicant: Motorola Inc. FCC ID: AZ489FT3804 IDENTIFICATION LABEL LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the IC label on the device. Label Attached Below. See Attached Drawing. Applicant: Motorola Inc. FCC ID: AZ489FT3804 EXHIBIT 1 Applicant: Motorola Inc. FCC ID: AZ489FT3804 GENERAL INFORMATION I.Production Plans -- Pursuant 2.1033 (c) Quantity production is planned. II.Application References -- Pursuant 2.1061 Reference is made to the following Motorola "Application References" 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. 3. Plantation, Florida Antenna Range. III.Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. Necessary Bandwidth Computation for 8K10F1E Emission Designator The FCC Rule & Regulations Part 2, §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth sufficient to ensure that transmission of information at the rate and with the quality required for the system employed. §2.202(c) lists four methods of determining the necessary bandwidth, including the use of formulas in §2.202(g), and measurement in cases where the other methods of §2.202(c) do not apply. It is felt that while these formulas apply well to voice and many older digital modulation systems, the formulas do not apply to the high performance digital modulation employed in the system submitted for Certification because of difficulties determining representative values for the factors K and M. We have, therefore, used the measurement criteria of §2.202(c)(4). The value cited, 8K10, is the bandwidth that contains 99% of the total transmitted power. The 99% value was chosen because §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth. In turn, §2.202(b) defines Occupied Bandwidth as the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers radiated are each equal to 0.5% of the total mean power radiated by a given emission, i.e., contains 99% of the total transmitted power. IV.Applicable References: • Reference Certification FCC ID: AZ489FT3804 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards • FCC Federal Regulations Part 47 Sec. 2.1033 – 2.1055 • FCC Federal Regulations Part 90 Sec. 90.210 Applicant: Motorola Inc. FCC ID: AZ489FT3804 EXHIBIT 1A

Applicant: Motorola Inc. FCC ID: AZ489FT3804 INTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Vocon board with Shields (Top). 9E 6. Vocon board without Shields (Top). 9F 7. Vocon board (Bottom). 9G EXHIBIT 9 Applicant: Motorola Inc. FCC ID: AZ489FT3804 RF board with Shields (Top) EXHIBIT 9A Applicant: Motorola Inc. FCC ID: AZ489FT3804 RF board without Shields (Top) EXHIBIT 9B Applicant: Motorola Inc. FCC ID: AZ489FT3804 RF board with Shields (Bottom) EXHIBIT 9C Applicant: Motorola Inc. FCC ID: AZ489FT3804 RF board without Shields (Bottom) EXHIBIT 9D Applicant: Motorola Inc. FCC ID: AZ489FT3804 Vocon board with Shields (Top) EXHIBIT 9E Applicant: Motorola Inc. FCC ID: AZ489FT3804 Vocon board without Shields (Top) EXHIBIT 9F Applicant: Motorola Inc. FCC ID: AZ489FT3804 Vocon board (Bottom)) EXHIBIT 9G

Applicant: Motorola Inc. FCC ID: AZ489FT3804 Description I. Transmitter Technical Characteristics -- Pursuant 2.1033 (c) A. RF Power Output 1 – 6.6 Watt (Variable Power) B. Frequency Range 136 - 174 MHz C. Frequency Stability 0.00020 % D. Emissions 11K0F3E, 16K0F3E, 8K10F1D, 8K10F1E, 20K0F1E E. Spurious Emissions - 75 dBc F. DC Voltage and Current into 7.5 Volts the final RF amplifier stage/stages 1.94 Amps II. Transmitter Application: This transmitter is primarily intended for use as a hand-held portable radio. The transmitter is characterized by the following features, options and accessories. A. Power Supply Available Ni-Cad Battery X , Mercury Battery , Alkaline Battery X , AC , Lead Acid Battery , Ni-MH Battery X ,Li-Ion X B. Antenna Available 1. Helical X , Telescopic , Whip , Dipole , Dribble External , External . C. Squelch Types Available 1. Carrier Squelch X . 2. Tone "Private Line" X . 3. Digital "Private Line" X . D. Microphone - Control 1. Remote Speaker Microphone X 2. Wireline control . E. Maximum Transmit Channel Capability 512 . F. Housing The transmitter will be housed in the housing shown in the accompanying photographs. G. Other Options 1. Single Tone Encoder 2. Multiple Single Tone Encoder 3. Touch Code Encoder 4. Unit ID Encoder X 5. EMS Telemetry Encoder 6. Time out Timer X 7. Voice Encryption X 8. Digital Signaling X 9. Sel-Call Decode X 10. Trunking X 11. Conventional X 12. Digital Voice X _ EXHIBIT 12

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report (Part 1 of 2) Attention: Federal Communication Commission Date of Report: June 25, 2002 Report Revision: Rev. O Device Manufacturer: Motorola Device Model: H18KEH9PW7AN Device Description: VHF 1-6 Watts Digital Handheld Transceiver Test Period: Test Engineer: Author: 4/30/02 –6/12/02 Stephen Whalen Sr. Test En gineer Michael Sailsman EME Regulatory Affairs Liaison Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. /s/ Ken Enger 6/27/02 ____________________________________________________________ _________________________ Senior Resource Manager, Product Safety and EME Director Date Approved Form-SAR-Rpt-B9 Page 1 of 25 TABLE OF CONTENTS 1.0 Introduction 2.0 Reference Standards and Guidelines 3.0 Description of Test Sample 3.1 Test Signal 3.2 Test Output Power 4.0 Description of Test Equipment 4.1 Description of S.A.R. Measurement System 4.2 Description of Phantom 4.2.1 Body Phantom 4.3 Simulated Tissue Properties 4.3.1 Type of Simulated Tissue 4.3.2 Simulated Tissue Composition 4.4 Test condition 5.0 Description of Test Procedures 5.1 Device Test Positions 5.1.1 Abdomen 5.1.2 2.5 cm Face and abdomen 5.2 Probe Scan Procedures 6.0 Measurement Uncertainty 7.0 S.A.R. Test Results 7.1 S.A.R. results at the abdomen 7.2 Peak S.A.R. location 8.0 Conclusion Form-SAR-Rpt-B9 Page 2 of 25 TABLE OF CONTENTS (Cont.) Appendix A: Power Slump Data/Shortened S.A.R. Scan Appendix B: Data Results Appendix C: Dipole System Performance Check Results Appendix D: Calibration Certificates Appendix E: Illustration of Body-worn Accessories Appendix F: Justification for not testing accessory options REVISION HISTORY Date Revision Comments 6/25/02 O Initial release 6/27/02 A Report split into part 1 and 2 to meet FCC’s file size requirements Form-SAR-Rpt-B9 Page 3 of 25 1.0 Introduction This report details the utilization, test setup, test equipment, and test results of the Specific Absorption Rate (S.A.R.) measurements performed at the CGISS EME Test Lab for FCC ID: AZ489FT3804. The applicable exposure environment is Occupational/Controlled. The test results included herein represent the highest S.A.R. levels applicable to this product and clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8.0 mW/g per the requirements of 47 CFR 2.1093(d). 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and international standards and guidelines. • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Terminal frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Terminal communications (Electromagnetic Radiation - Human Exposure) Standard 2001 • ANATEL, Brazil Regulatory Authority, Resolution 256 (April 11, 2001) "additional requirements for SMR, cellular and PCS product certification." Form-SAR-Rpt-B9 Page 4 of 25 3.0 Description of Test Sample The portable handheld transceiver, FCC ID: AZ489FT3804, operates using traditional simplex two-way radio transmission protocol. The intended use is by professionals in public safety agencies such as police, fire and medical emergency response. The intended operating positions are “at the face” with the microphone 1 to 2 inches from the mouth or “at the abdomen” secured to the user’s belt. Audio and PTT operation while the radio is at the abdomen is accomplished by means of optional remote accessories that connect to the side of the radio. The maximum transmit duty cycle is a conservative 50% and is controlled by the user via the PTT function. FCC ID: AZ489FT3804 is capable of operating in the 136 to 174 MHz band. The rated power is 1 to 6 watts with a maximum output capability of 6.6watts as defined by the upper limit of the production line final test station. Form-SAR-Rpt-B9 Page 5 of 25 FCC ID: AZ489FT3804 is offered with the following options and accessories: Batteries NNTN4435AR 1800 mAh NiMH smart non-FM NTN8294B 1525 mAh NiCad high capacity NTN8295A 1525 mAh NiCad high capacity FM Intrinsically Safe NTN8297A 1525 mAh NiCad high capacity FM Intrinsically Safe, Rugged NTN8299B 1750 mAh NiMH ultra capacity FM Intrinsically Safe NTN8923A 1800 mAh NiMH ultra capacity NTN8610B 1650 mAh LiIon NTN9177A Battery Holder, Clamshell Black NTN9183A Battery Holder, Clamshell Orange, same as NTN9177 HNN9031A 1525 mAh NiCad smart HNN9032A 1525 mAh NiCad smart FM Intrinsically Safe NTN9533A 2400 mAh LiIon smart RNN4006AR 3000 mAh NiMH RNN4007AR 3000 mAh NiMH FM Intrinsically Safe NNTN4436AR 1750 mAh NiMH smart FM Antennas: NAD6563 8.0” Helical Wideband 136-174 MHz ¼ wave -6.5 dBi NAD6566 7.6” Helical 136–151 MHz ¼ wave -9.2 dBi NAD6567 7.0” Helical 151–162 MHz ¼ wave -8.3 dBi NAD6568 6.5” Helica 162–174 MHz ¼ wav -6.4 dBi Body-Worn Accessories NTN8040B 3” Swivel Belt Loop NTN8460A Public Safety Belt Clip – metal NTN8266B 2 ¼” Belt Clip Kit NTN8725A Nylon Carry Case with T Strap NTN9179A Hi Activity D Clip (NTN9212A) & Belt Loop (NTN9213A)Combo NTN9212A Swivel D Clip, High Activity NTN9213A 2.5” Belt Loop, High Activity D Clip NTN8381C Carrying Case, High Activity, Includes 3” swivel Belt loop and T Strap. NiCad or NiMH NTN9184A Case, Carry with Belt loop for Clamshell Batt NTN8382B Case w…

Text truncated - open the document above for the full version.

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report (Part 2 of 2) Attention: Federal Communication Commission Date of Report: June 25, 2002 Report Revision: Rev. O Device Manufacturer: Motorola Device Model: H18KEH9PW7AN Device Description: VHF 1-6 Watts Digital Handheld Transceiver FCC ID: AZ489FT3804 Test Period: Test Engineer: Author: 4/30/02 –6/12/02 Stephen Whalen Sr. Test Engineer Michael Sailsman EME Regulatory Affairs Liaison Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. /s/ Ken Enger 6/27/02 ____________________________________________________________ _________________________ Senior Resource Manager, Product Safety and EME Director Date Approved APPENDIX A Power Slump Data/Shortened S.A.R. Scan Form-SAR-Rpt-B9 Page 26 of 82 Form-SAR-Rpt-B9 Page 27 of 82 Shortened Scan of Highest S.A.R. Configuration FCC ID: AZ489FT3804; SN: 002; Test Date: 06/11/02 Motorola CGISS EME Lab Run #: Ab_R1_020611-03 TX Freq: 162 MHz Sim Tissue Temp: 20.8 (Celsius) 6 minute scan Start Power: 6.33 W End Power: 6.12 W - Accessories - Antenna:NAD6568A Battery Kit: NTN8294B Carry: None Audio Acc. NMN6251A, PSM; NTN8327A, Adapter - Comments- Flat Phantom ; Device Section; Position: (90°,90°); Probe: ET3DV6 - SN1547; ConvF(7.90,7.90,7.90); Probe cal date: 11/16/01; Crest factor: 1.0; FCC Body_156MHz: σ = 0.79 mho/m ε = 59.4 ρ = 1.00 g/cm3; DAE3: 401-V1 DAE Cal Date: 10/15/01 Cube 5x5x7: SAR (1g): 8.90 mW/g, SAR (10g): 4.28 mW/g, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0; SAR (1g): 8.90 mW/g, SAR (10g): 4.28 mW/g Form-SAR-Rpt-B9 Page 28 of 82 APPENDIX B Data Results Form-SAR-Rpt-B9 Page 29 of 82 FCC ID: AZ489FT3804; Test Date: 05/03/02 Motorola CGISS EME Laboratory Run #: Ab_R1_020503-04 Model #: H18KEH9PW7AN Model III SN:50 TX Freq: 156 MHz Sim Tissue Temp: 22.1 (Celsius) - Accessories - Antenna:NAD6563 Battery Kit: NTN9533A Carry: belt clip NTN8266B Audio Acc. NMN6191C RSM - Comments- Flat Phantom; Device Section; Position: (90°,0°); Probe: ET3DV6 - SN1547; ConvF(7.90,7.90,7.90); Probe cal date: 11/16/01; Crest factor: 1.0; FCC Body_156MHz: σ = 0.83 mho/m ε = 60.0 ρ = 1.00 g/cm3; DAE3: 401-V1 DAE Cal Date: 10/15/01 Cube 7x7x7: SAR (1g): 0.925 mW/g, SAR (10g): 0.642 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 154.5, 34.5, 4.0 Form-SAR-Rpt-B9 Page 30 of 82 FCC ID: AZ489FT3804; Test Date: 05/08/02 Motorola CGISS EME Laboratory Run #: Ab_R1_020508-04 Model #: H18KEH9PW7AN Model III SN:50 TX Freq: 143 MHz Sim Tissue Temp: 21.8 (Celsius) - Accessories - Antenna:NAD6566A Battery Kit: NTN8294B Carry: belt clip NTN8266B Audio Acc. NMN6191C RSM - Comments- Flat Phantom Phantom; Device Section; Position: (90°,0°); Probe: ET3DV6 - SN1547; ConvF(7.90,7.90,7.90); Probe cal date: 11/16/01; Crest factor: 1.0; FCC Body_156MHz: σ = 0.82 mho/m ε = 59.9 ρ = 1.00 g/cm3; DAE3: 401-V1 DAE Cal Da…

Text truncated - open the document above for the full version.
