AZ489FT3820PORTABLE 2-WAY RADIO

Motorola, the Stylized M Logo, and all other trademarks indicated as such herein are Trademarks of Motorola,Inc. Reg. U.S. Pat. & Tm. Off. © 2007 Motorola, Inc. All rights reserved. CONTENTS English 1 CONTENTS Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 5Package Contents . . . . . . . . . . . . . . . . . . . . . .5Batteries and Chargers Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . 7Operational Safety Guidelines. . . . . . . . . . . . .8FCC Licensing Information . . . . . . . . . . . . 9Interference Information . . . . . . . . . . . . . . . . .9Radio Overview . . . . . . . . . . . . . . . . . . . . . 11Parts of the Radio . . . . . . . . . . . . . . . . . . . . .11 On/Off/Volume Knob. . . . . . . . . . . . . . . .12Channel Selector Knob . . . . . . . . . . . . . .12Accessory Connector . . . . . . . . . . . . . . .12Model Label . . . . . . . . . . . . . . . . . . . . . .12Microphone . . . . . . . . . . . . . . . . . . . . . . .12Antenna. . . . . . . . . . . . . . . . . . . . . . . . . .12 LED Indicator . . . . . . . . . . . . . . . . . . . . . 12Side Buttons . . . . . . . . . . . . . . . . . . . . . 12The Lithium-Ion (Li-Ion) Battery . . . . . . . 12 Battery Features. . . . . . . . . . . . . . . . . . . . . . 14 About the Li-Ion Battery . . . . . . . . . . . . . 14Battery Recycling and Disposal . . . . . . . 15Installing the Lithium-Ion (Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 16Removing the Lithium-Ion (Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 16Alkaline Battery Pack (Optional Accessory) . . . . . . . . . . . . . . . . . . . . . . . 17Installing Alkaline Batteries . . . . . . . . . . 17Removing Alkaline Batteries . . . . . . . . . 17Attaching and Removing Antenna . . . . . 18Attaching the Antenna . . . . . . . . . . . . . . 18Removing the Antenna . . . . . . . . . . . . . 18Installing Spring Action Belt Clip . . . . . . 19Power Supply, Adaptor and Drop-in Tray Charger . . . . . . . . . . . . . . . . . . . . . 19Battery Life Information . . . . . . . . . . . . . 20Alkaline Battery Life . . . . . . . . . . . . . . . . 21Charging the Battery . . . . . . . . . . . . . . . 22 CONTENTS English 2Getting Started . . . . . . . . . . . . . . . . . . . . . 29Turning radio ON/OFF. . . . . . . . . . . . . . . . . .29Adjusting Volume . . . . . . . . . . . . . . . . . . . . .29Selecting a Channel . . . . . . . . . . . . . . . . . . .29Talking and Monitoring . . . . . . . . . . . . . . . . .29Receiving a Call . . . . . . . . . . . . . . . . . . . . . .30Talk Range . . . . . . . . . . . . . . . . . . . . . . . . . .30Radio LED Indicators . . . . . . . . . . . . . . . . . .32Hands-Free Use/VOX . . . . . . . . . . . . . . . . . .33 With Compatible VOX Accessories. . . . .33Setting VOX Sensitivity . . . . . . . . . . . . . .34Microphone Gain. . . . . . . . . . . . . . . . . . .34Battery Save . . . . . . . . . . . . . . . . . . . . . .34Reset to Factory Defaults . . . . . . . . . . . .34End of Transmission Tone (Roger Beep Tone) . . . . . . . . . . . . . . . . . . . . . . .35 Programming Features . . . . . . . . . . . . . . . 36Programming Mode. . . . . . . . . . . . . . . . . . . .36 Learning to Read the Values the Radio Signals You . . . . . . . . . . . . . . . . .36Entering Programming Mode . . . . . . . . .39Reading Frequencies Values . . . . . . . . .39 Reading CTCSS/DPL Values . . . . . . . . 40Reading Auto-Scan Values . . . . . . . . . . 41Programming Frequencies, Codes and Auto-Scan . . . . . . . . . . . . . . . . . . . . . . . 41Programming Mode FAQ . . . . . . . . . . . . 42 Programming Values Example. . . . . . . . . . . 43 Example of Programming a Frequency . 43Example of Programming a Code . . . . . 44Example of Programming Auto-Scan . . 45 Other Programming Features . . . . . . . . . . . 46 Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46Editing Scan List . . . . . . . . . . . . . . . . . . 47Nuisance Channel Delete . . . . . . . . . . . 47 CPS (Computer Programming Software) . . . 48 Bandwidth Select . . . . . . . . . . . . . . . . . . 49Time-Out Timer . . . . . . . . . . . . . . . . . . . 49Power Select . . . . . . . . . . . . . . . . . . . . . 49Battery Type Setting . . . . . . . . . . . . . . . 49Call Tones . . . . . . . . . . . . . . . . . . . . . . . 49Scramble L. . . . . . . . . . . . . . . . . . . . . . . 50Reverse Burst . . . . . . . . . . . . . . . . . . . . 50 Cloning Radios . . . . . . . . . . . . . . . . . . . . . . . 51 CONTENTS English 3 Cloning with a Multi Unit Charger (MUC) . . . . . . . . . . . . . . . . . . . . . . . . . . .51Cloning Radio using the Radio to Radio (R2R) Cloning Cable (Optional Accessory). . . . . . . . . . . . . . . .53Cloning using the CPS (Computer Programming Software) . . . . . . . . . . . . .55 Troubleshooting . . . . . . . . . . . . . . . . . . . . 56Use and Care . . . . . . . . . . . . . . . . . . . . . . . 60Frequency and Code Charts . . . . . . . . . . 61RDX VHF Frequencies Chart . . . . . . . . . . . .61RDV2020 - VHF Default Frequencies Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Making XTN Compatible with RDX Radios - Quick Instructions . . . . . . . . . . . . . .64RDV5100 - VHF Default Frequencies Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65RDX UHF Frequencies Chart . . . . . . . . . . . .66RDU2020 - UHF Default Frequencies Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70RDU4100 - UHF Default Frequencies Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 CTCSS and PL/DPL Codes . . . . . . . . . . . . . 72Programming Customized Frequencies on 4W/5W RDX models . . . . . . . . . . . . . . . . 75Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 76Accessories . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

FCC ID: AZ489FT3820 Date: 1 st November 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Extended Frequencies for Transmitter with FCC ID: AZ489FT3820 Dear Sir or Madam: Motorola Inc. herein requests grant for extended frequencies within the range of FCC Rule Part 90 for the 5 Watt VHF Portable 2-way radio identified by FCC ID: AZ489FT3820. The transmitter is designed to operate in the 146 to 174 MHz band and we request the grant for that contigious range. The transmitter will also be marketed to elements of the US Federal Government (NTIA), exported to Canada and other international markets. For the United States market, the radios will be programmed on authorized frequencies that are licensed by the FCC. This transmitter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. The transmitter programming is the responsibility of authorized dealers and service agents. Sincerely, /s/ Mike Ramnath (signed) Mgr, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT3820 G&PS 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA 1 st November 2007 Authorization and Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia. MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3820. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits its application for Certification of the subject transmitter. This transmitter is primarily intended for use as a VHF portable radio with capabilities for clear communications with a transmit output power of 2 and 5 Watt (Nominal). Model description is as follows: RDV5100 VHF display, and non-display models with removable antennas. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit’s normally accessible external controls. Enclosed is a complete Type Acceptance Application. Contact me (954) 723-5793, if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mgr, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT3820 EXTERNAL PHOTOGRAPHS: 1 Front view of Radio 2 Rear view of Radio with battery cover. 3 Rear view of radio without battery cover. EXHIBIT 3 FCC ID: AZ489FT3820 EXHIBIT 3-A FCC ID: AZ489FT3820 EXHIBIT 3-B FCC ID: AZ489FT3820 EXHIBIT 3-C

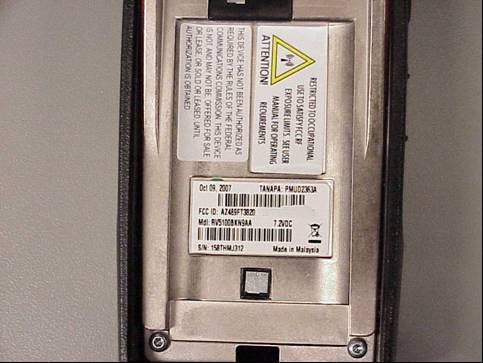

FCC ID: AZ489FT3820 IDENTIFICATION LABEL LOCATION X See the attached Photograph, and Exhibit 3-D for the location of the Label on the device. Back of Radio Back of Radio under Belt Clip Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase. TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/ inch. The label is laser etched into the Urethane paint, exposing the Nickel plating on the Zamak casting substrate. Since no adhesive is required, the label is permanent and tamper- proof. (** - NOTE- The label attached below is a paper polyester film laminate, as described above. This is just for sample purposes, as the actual label is laser etched into the casting) MARKINGS (TEXT) See Photograph, Exhibit 1. EXHIBIT 1 FCC ID: AZ489FT3820 GENERAL INFORMATION I. Production Plans—Pursuant 2.983 (c). Quantity production is planned. II. Application References -- Pursuant 2.1061 Reference is made to the following Motorola “Application References” 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ Rules. EXHIBIT 1A

FCC ID: AZ489FT3820 EXHIBIT 3-C

FCC ID: AZ489FT3820 INTERNAL PHOTOGRAPHS: Printed Circuit Board 1. Component side. (Front) 2. Reverse side. (Rear) EXHIBIT 9 FCC ID: AZ489FT3820 EXHIBIT 9-A FCC ID: AZ489FT3820 EXHIBIT 9-B

FCC ID: AZ489FT3820 Test Report MEASUREMENT EXHIBIT NUMBER OF PAGES I RF Power Output 6A 1 II Audio Response 6B 1 A. 5 Watt 12.5kHz / 25kHz III Modulation Limiting 6C 1 A. 5 Watt 12.5kHz / 25kHz I V Occupied Bandwidth 6D 1-4 5 V Spurious Emission Radiated A. TX Vertical / Horizontal 6E 1-4 4 B. Conducted 6E 5-10 5 VI Frequency Stability 2 A. Temperature 6F 1 B. Frequency vs. Voltage 5W 6F 2 VII Transient Frequency Behavior 6G1-4 4 EXHIBIT 6 FCC ID: AZ489FT3820 RF POWER OUTPUT DATA The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. 2.0 Watts Frequency 151.8800MHz Measured Conducted RF output* 2.02 Watts Normal DC Voltage 7.80 Volts Normal DC Current 745 milli amps Primary Supply Voltage 7.80 Volts 5.0 Watts Frequency 151.7000MHz Measured Conducted RF output* 4.780 Watts Normal DC Voltage 7.80 Volts Normal DC Current .979 mAmps Primary Supply Voltage 7.80 Volts 5.25 Watts Frequency 151.7000MHz Measured Conducted RF output* 5.25 Watts Max DC Voltage 8.40 Volts Max DC Current 1.2 Amps Primary Supply Voltage 7.80 Volts *Note: RF Conducted output power measured at 7.80Volts EXHIBIT 6A FCC ID: AZ489FT3820 Audio Response Tx Audio Response (RDV5100 VHF 5W, 12.5kHz chsp) -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 100100010000 Audio Freq (Hz) deviation ratio (dB) Data LL UL Tx Audio Response (RDV5100 VHF 5W 25kHz chsp) -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 100100010000 Audio Freq (Hz) deviation ratio (dB) Data LL UL EXHIBIT 6B FCC ID: AZ489FT3820 MODULATION LIMITING Modulation Lim iting (RDV5100 VHF 5W 12.5kHz chsp) 0 500 1000 1500 2000 2500 3000 -25-20-15-10-50510152025 input leve l (dB) Deviation (Hz) 300Hz 1kHz 3kHz UL Modulation Lim iting(RDV5100 VHF 5W, 25k Hz chs p) 0 1000 2000 3000 4000 5000 6000 -25-20-15-10-50510152025 input level (dB) Deviation (Hz) 300Hz 1kHz 3kHz UL EXHIBIT 6C FCC ID: AZ489FT3820 OCCUPIED BANDWIDTH DATA 5Watt 12.5 / 2kHzkHz Channel Spacing EXHIBIT 6D-1 2500 Hz Audio Modulation Emission Type: 11K0F3E Specification Mask D, 90.210 – 12.5 kHz EXHIBIT 6D-2 2500 Hz Audio Modulation Emission Type: 16K0F3E Specification Mask B, 90.210 – 25 kHz EXHIBIT 6D-3 2500 Hz & 77Hz Tone “PL” Modulation Emission Type: 11K0F3E Specification Mask D, 90.210 – 12.5 kHz EXHIBIT 6D-4 2500 Hz & 77Hz Tone “PL” Modulation Emission Type: 16K0F3E Specification Mask B, 90.210 – 25 kHz CARSON’S RULE: 11K0F3E BW= 2(M+D) BW=2 (3 kHz maximum modulation frequency +2.5 kHz deviation) BW=2 (5.5) BW= 11K0 CARSON’S RULE: 16K0F3E BW= 2(M+D) BW=2 (3 kHz maximum modulation frequency +5 kHz deviation) BW=2 (8) BW= 16K0 EXHIBIT 6D FCC ID: AZ489FT3820 5- Watt 12.5 kHz Mask D, Rule Part: 90.210 Emission Type: 11K0F3E Side band Spe ctrum 2.5k with no PL (RDV5100 VHF HIPWR , 5W, 12.5k Hz chs p, Vs up=7.8V ) span 110kHz, res bw=100Hz, video bw=1kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 35.00 151.5750151.5850151.5950151.6050151.6150151.6250151.6350151.6450151.6550151.6650151.6750 frequency (MHz) Power (dBm), 10dB/div unmodulated 2.5kHz tone SPECS EXHIBIT 6D-1 FCC ID: AZ489FT3820 5- Watt 25 kHz Mask B, Rule Part: 90.210 Emission Type: 16K0F3E Side band Spe ctrum 2.5k no PL (RDV5100 VHF HIPWR , 5W 25k Hz chs p ) span 110kHz, res BW=100Hz, video BW=1kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 35.00 151.5750151.5800151.5850151.5900151.5950151.6000151.6050151.6100151.6150151.6200151.6250151.6300151.6350151.6400151.6450151.6500151.6550151.6600151.6650151.6700151.6750 frequency (MHz) Power (dBm), 10dB/div unmodulated 2.5kHz tone SPECS EXHIBIT 6D-2 FCC ID: AZ489FT3820 5- Watt 12.5 kHz 2500 Hz & 77Hz Tone “PL” Modulation Mask D, Rule Part: 90.210 Emission Type: 11K0F3E Sideband Spectrum 2.5k with PL (RDV5100 VHF HIPWR , 5W, 12.5k Hz chs p, Vs up=7.8V ) span 110kHz, res bw=100Hz, video bw=1kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 35.00 151.5750151.5850151.5950151.6050151.6150151.6250151.6350151.6450151.6550151.6650151.6750 frequency (MHz) Power (dBm), 10dB/div unmodulated 2.5kHz tone SPECS EXHIBIT 6D-3 FCC ID: AZ489FT3820 5- Watt 25 kHz 2500 Hz & 77Hz Tone “PL” Modulation Mask B, Rule Part: 90.210 Emission Type: 16K0F3E Side band Spe ctrum 2.5k with PL (RDV5100 VHF HIPWR , 5W, 25k Hz chs p ) span 110kHz, res bw=100Hz, video bw=1kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 35.00 151.5750151.5800151.5850151.5900151.5950151.6000151.6050151.6100151.6150151.6200151.6250151.6300151.6350151.6400151.6450151.6500151.6550151.6600151.6650151.6700151.6750 frequency (MHz) Power (dBm), 10dB/div unmodulated 2.5kHz tone SPECS EXHIBIT 6D-4 FCC ID: AZ489FT3820 2 Watt/ 12.5kHz Motorola Inc. Transmit Radiated Spurious Emissions :RDV5100 Tx Power: 2 Watts 146 MHz Frequency (MHz)FCC Failing Limit (dBm) Horizontal Measured Emission Equiv. Pw r Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pw r Into Ideal Dipole (dBm) 292.0000 -20-70.55-66.91 438.0000-20** 584.0000-20** 730.0000-20** 876.0000-20** 1022.0000-20** 1168.0000-20** 1314.0000-20** 1460.0000-20** RDV5100 Tx Power: 2 Watts 150.8 MHz Frequency (MHz)FCC Failing Limit (dBm) Horizontal Measured Emission Equiv. Pw r Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pw r Into Ideal Dipole (dBm) 301.6000 -20-70.79-72.73 452.4000-20** 603.2000-20** 754.0000-20** 904.8000-20** 1055.6000-20** 1206.4000-20** 1357.2000-20** 1508.0000-20** * Indicates the spurious emission could not be detected due to noise limitations or ambients. The data presented here was taken using the substitution method as found in the TIA/EIA-603 document. Motorola Plantation EMC Lab – Test Performed by: Curt Mc Lennan FCC Registration: 91932 / Industry Canada: IC3679A-1 FCC ID:AZ489FT3820 Transmit Radiated Spurious Emissions: August 24, 2007 Channel Spacing…
