AZ489FT3829Intergrated Bluetooth in 2-way Portable Radio

English Product Safety and RF Energy Exposure Booklet for Portable Two-Way Radios The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ALSO READ THE OPERATIONAL INSTRUCTIONS FOR SAFE USAGE. FOR RADIOS THAT HAVE BEEN APPROVED AS INTRINSICALLY SAFE, READ THE INSTRUCTIONS AND INFORMATION ON INTRINSIC SAFETY ON PAGE 10 OF THIS BOOKLET. C a u t i o n © 2007 – 2009 by Motorola, Inc. All rights reserved. 06/09 1301 E. Algonquin Rd., Schaumburg, IL 60196-1078, U.S.A. *6881095C98* 6881095C98-E *NNTN7223B* NNTN7223B 6881095C98-E.book Page 1 Monday, June 22, 2009 11:27 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two- way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-E.book Page 2 Monday, June 22, 2009 11:27 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission (FCC) Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-E.book Page 3 Monday, June 22, 2009 11:27 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • Institute of Electrical and Electronic Engineers (IEEE) C95.1-2005 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard, 2003 • ANATEL ANNEX to Resolution No. 303 of July 2, 2002 "Regulation of limitation of exposure to electrical, magnetic and electromagnetic fields in the radio frequency range between 9 KHz and 300 GHz" and "Attachment to resolution # 303 from July 2, 2002" 6881095C98-E.book Page 4 Monday, June 22, 2009 11:27 PM 5 English RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ens…

Text truncated - open the document above for the full version.

APX™ Two-Way Radios APX 6000User GuideModel 1 English mASTRO ® APX™ 6000 Series Digital Portable RadiosQuick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits. Radio Controls Radio On/OffZones and Channels Receiving and TransmittingSending an Emergency Alarm To exit emergency at any time, press and hold the Emergency button. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. !  2-Position Concentric Switch__________ Microphone Accessory Connector • On – On/Off/Volume knob clockwise. • Off – On/Off/Volume knob counterclockwise. • Zone – Zone switch to desired zone. • Channel – Channel switch to desired channel. Top Display Bluetooth Pairing Indicator Main Speaker Microphone Battery Side Button 2__________ 16-Position Select Knob __________ On/Off/Volume Control Knob Side Button 1__________ PTT Button Top Side (Select) Button__________ Antenna 1 Select zone/channel. 2 Listen for a transmission.ORPress and hold Volume Set button. ORPress Monitor button and listen for activity. 3 Adjust volume, if necessary. 4 Press the PTT button to transmit; release to receive. 1 Press the Emergency button. 2 The display shows EMERGNCY and the current zone/channel. A short, medium-pitched tone sounds, and the LED rapidly blinks red. 3 When acknowledgment is received, you hear four beeps; alarm ends; and radio exits emergency. *PMLN5715A* PMLN5715A © 2010 by Motorola, Inc. All Rights Reserved. 11/101301 E. Algonquin Rd., Schaumburg,IL 60196-1078, U.S.A. Top (Orange) Button__________ 3-Position A/B/C Switch __________ English Sending an Emergency Call To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Call To exit emergency at any time, press and hold the Emergency button. Display Status Icons 1 Press the Emergency button. 2 Press and hold the PTT button. Speak clearly into the microphone. 3 Release the PTT button to end call. 4 Press and hold Emergency button to exit emergency. 1 Press the Emergency button. 2 The display does not change; the LED does not light up, and there is no tone. 3 Silent emergency continues until you:Press and hold the Emergency button to exit emergency state.ORPress and release the PTT button to exit the Silent Emergency Alarm mode and enter regular dispatch or Emergency Call mode. Blinks when the battery is low.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio to radio communication or connected through a repeater.On = Direct Off = Repeater This channel is being monitored.L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority-Two Channel during scan. The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On steady = View mode Blinking = Program mode U vV O M H OR L i j k m Basic Zone Bank 1A = Radio is in Zone 1. B = Radio is in Zone 2. C = Radio is in Zone 3. Basic Zone Bank 2D = Radio is in Zone 4. E = Radio is in Zone 5. F = Radio is in Zone 6. Enhanced Zone BankA = Contains Zone 1, Zone 2 and Zone 3, B = Contains Zone 4, Zone 5 and Zone 6, C = Contains Zone 7, Zone 8 and Zone 9, ...X = Contains Zone 70, Zone 71 and Zone 72, Y = Contains Zone 73, Zone 74 and Zone 75. Bluetooth is ready.Bluetooth is connected to the device. A or B or C D or E or F A , B , C ... ... x or y b a Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola, Inc.Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: APX 6000 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity English ii Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Contents English iii ContentsThis User Guide contains all the informatio …

Text truncated - open the document above for the full version.

Applicant: Motorola Inc. FCC ID: AZ489FT3829 Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BSEE, Purdue University 2) 15 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Carlos Camps SIGNATURE: /s/ Carlos Camps (signed) DATE: 1 October 2010 POSITION: Engineering Section Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Chris Ganio SIGNATURE: /s/ Chris Ganio (signed) DATE: 1 October 2010 POSITION: Engineering Manager EXHIBIT 2

FCC ID: AZ489FT3829 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED Date: 11 th November 2010 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3829. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] FCC ID: AZ489FT3829 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. EXHIBIT 13b

FCC ID: AZ489FT3829 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 29 th November 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification. Gentlemen: The APX6000 Portable 2-Way radio with Bluetooth was designed to operate in the frequency bands 136-174 MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Motorola is requesting that the FCC lists the frequencies 136-174 MHz under FCC Rule Parts 80 and 90 on the FCC Grant For the FCC’s Rule Parts 80 and 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Equipment programming is the responsibility of Authorized Service Personnel. Per the FCC-OET KDB Publication 634817 guidance, the grantee acknowledges that a device operating on unauthorized frequencies is a violation of the FCC Rules. Frequency Range (MHz) Part 90 Part 80 Federal Grant Notes Emission Designator Rule Part 80 & 90 136-150.8 x EF, BE 8K10F1D/F1E/F1W, 11/16K0F3E, 20K0F1E 150.8-161.6250 x x EF, BE “”” 161.6250-161.7750* EF, BE “”” 161.7750-173.4 x “” “” 173.4-174 x “” “” 2402-2480 (Part 15) *Canada Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected] Exhibit 13c

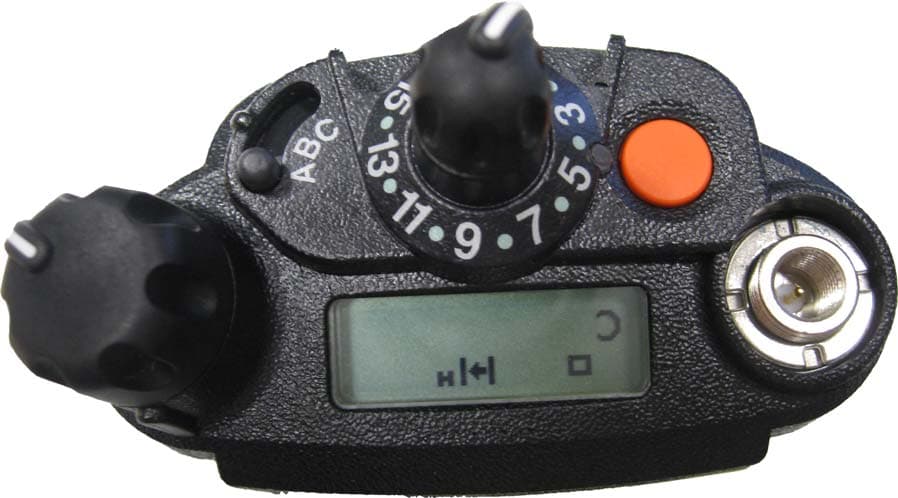

Applicant: Motorola FCC ID: AZ489FT3829 External Photographs The following photographs are attached. Exhibit 1. Front view. 3A 2. Back view with battery. 3B 3. Front view (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F EXHIBIT 3 Applicant: Motorola FCC ID: AZ489FT3829 FRONT VIEW EXHIBIT 3A Applicant: Motorola FCC ID: AZ489FT3829 BACK VIEW WITH BATTERY EXHIBIT 3B Applicant: Motorola FCC ID: AZ489FT3829 FRONT VIEW (FCC LABELS) EXHIBIT 3C Applicant: Motorola FCC ID: AZ489FT3829 SIDE VIEW (RIGHT) EXHIBIT 3D Applicant: Motorola FCC ID: AZ489FT3829 SIDE VIEW (LEFT) EXHIBIT 3E Applicant: Motorola FCC ID: AZ489FT3829 TOP VIEW EXHIBIT 3F

Applicant: Motorola FCC ID: AZ489FT3829 Identification Label LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. EXHIBIT 1 Applicant: Motorola FCC ID: AZ489FT3829 General Information I. Production Plans Quantity production is planned. II. Application References Reference is made to the following Motorola "Application References" 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. 3. Plantation, Florida Antenna Range. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. IV. Applicable References: • Reference Certification FCC ID: AZ489FT3824 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards • CFR 47 Rule Part 2, 15, 80 and 90 EXHIBIT 1A

Applicant: Motorola Inc. FCC ID: AZ489FT3829 Internal Photographs The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Vocon board with Shields (Top). 9E 6. Vocon board without Shields (Top). 9F 7. Vocon board with Shields (Bottom). 9G 8. Vocon board without Shields (Bottom). 9H 9. Expander board with Shields (Top). 9I 10. Expander board without Shields (Top). 9J 11. Expander board with Shields (Bottom). 9K 12. Expander board without Shields (Bottom). 9L EXHIBIT 9 Applicant: Motorola Inc. FCC ID: AZ489FT3829 RF board with Shields (Top) EXHIBIT 9A Applicant: Motorola Inc. FCC ID: AZ489FT3829 RF board without Shields (Top) EXHIBIT 9B Applicant: Motorola Inc. FCC ID: AZ489FT3829 RF board with Shields (Bottom) EXHIBIT 9C Applicant: Motorola Inc. FCC ID: AZ489FT3829 RF board without Shields (Bottom) Applicant: Motorola Inc. FCC ID: AZ489FT3829 Vocon board with Shields (Top) EXHIBIT 9E Applicant: Motorola Inc. FCC ID: AZ489FT3829 Vocon board without Shields (Top) EXHIBIT 9F Applicant: Motorola Inc. FCC ID: AZ489FT3829 Vocon board with shields board (Bottom) EXHIBIT 9G Applicant: Motorola Inc. FCC ID: AZ489FT3829 Vocon board without shields board (Bottom) EXHIBIT 9H Applicant: Motorola Inc. FCC ID: AZ489FT3829 Expander board with shields board (Bottom) EXHIBIT 9I Applicant: Motorola Inc. FCC ID: AZ489FT3829 Expander board without shields board (Bottom) Applicant: Motorola Inc. FCC ID: AZ489FT3829 EXHIBIT 9J Expander board with shields board (Bottom) Applicant: Motorola Inc. FCC ID: AZ489FT3829 EXHIBIT 9K Expander board without shields board (Bottom) Bluetooth IC: NL500 Bluetooth antenna contacts Applicant: Motorola Inc. FCC ID: AZ489FT3829 EXHIBIT 9L Speaker bracket with Bluetooth Antenna Element Bluetooth antenna element

SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 1 of 9 TESTING CERT # 2518.01 Exhibit 7B: SAR Test Report Photographs Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 11/15/10 SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 2 of 9 Report Revision History Date Revision Comments 11/12/10 O Initial release SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 3 of 9 1.0 Highest SAR Test Position per body location 1.1 Body DUT w/ antenna NAR6593A, battery PMNN4403A and belt clip HLN6875A with carry holder PMLN5709A against the phantom without audio cable attachment. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A 0 56 123 1.2 Face DUT w/ front side separated 2.5cm from phantom with antenna NAR6593A and battery PMNN4403A. Same position used for BT assessment at the face. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A 25 34 40 2.5cm SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 4 of 9 1.3 Head Not applicable. 1.4 Hand Not applicable. 2.0 Other SAR tested positions at the body 2.1 Body worn DUT w/ antenna NAR6593A, battery PMNN4403A, audio cable RMN5058A, and belt clip HLN6875A against the phantom. Similar position for other audios HMN4104A and PMLN5275A. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A <1 45 98 DUT w/ antenna NAR6593A, battery PMNN4403A, audio cable RMN5058A, and belt clip NTN8266B against the phantom. Similar position for other audio accessories HMN4104A and PMLN5275A. Same position used for BT assessment at the body with and with out audio accessory attached. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A 8 27 45 SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 5 of 9 2.2 Front Side against phantom Not applicable. 2.3 Back side against phantom Not applicable. 2.4 Front 2.5cm separation DUT w/ front side separated 2.5cm from phantom: antenna NAR6593A, battery PMNN4403A, audio cable RMN5058A. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A 25 35 40 2.5 Antenna 2.5cm separation DUT w/ back of DUT facing phantom and antenna at 2.5cm from the phantom with antenna NAR6593A, battery PMNN4403A, audio cable RMN5058A. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A 22 25 25 2.6 Back 2.5cm separation Not applicable due to peak SAR is on antenna. 2.5cm 2.5cm SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 6 of 9 3.0 Other SAR tested position at the face 3.1 Back of DUT at 2.5cm separation DUT w/ back of DUT separated 2.5cm from phantom with antenna NAR6593A, battery PMNN4403A. Same position used for BT assessment at the face. Separation Distances (mm) Antenna kit # @ bottom surface of the DUT @ antenna’s base @ antenna’s tip NAR6593A 29 43 55 4.0 Other SAR tested positions at the head 4.1 Left ear touch Not applicable. 4.2 Left ear tilt Not applicable. 4.3 Right ear touch Not applicable. 4.4 Right ear tilt Not applicable. 5.0 Other SAR tested positions at the hand 5.1 Left side Not applicable. 5.2 Right side Not applicable. 5.3 Top side Not applicable. 5.4 Bottom side Not applicable. 5.5 Back side Not applicable. 2.5cm SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 7 of 9 6.0 DUT and Accessory Photos The purpose of these photos is to illustrate the offered antenna and belt clip accessories. 6.1 Antenna dimension and photo: Refers to 6.2 “Body worn accessories” section, there is only one antenna offered for this product. Antenna Kit # Length (mm) Diameter (mm) NAR6593A 200 14.5 6.2 Body worn accessories DUT Back View Belt Clip NTN8266B Battery PMNN4403A DUT Side View Belt Clip NTN8266B Battery PMNN4403A DUT Back View Belt Clip HLN6875A Battery PMNN4403A DUT Side View Belt Clip HLN6875A Battery PMNN4403A SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 8 of 9 6.3 DUT with audio accessory DUT Front View w/ Headset RMN5058A DUT Back View Belt Clip HLN6875A and carry holder PMLN5709A Battery PMNN4403A DUT Side View Belt Clip HLN6875A and carry holder PMLN5709A Battery PMNN4403A SR8455/8397/8396 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 9 of 9 6.4 Tested audio accessories 6.5 DUT Dimensions: Height (mm) Width (mm) Depth (mm) Radio only (w/o battery) 139.7 75.7 / 60.2 40.5 / 34.7 Radio with battery PMNN4403A 146.3 75.7 / 60.2 41.8 / 34.7 The following figure represent the sample of the device’s dimensions. Note: H = Height; W = Width; D = Depth W1 = (Width @ Top) / (Width @ PTT) D2 = (Depth @ Bottom) / (Depth @ PTT) PMLN5275A Headset HMN4104A RSM

SR8455/8397/8396 EMS EME Form-SAR-Rpt-Rev. 10.03 Page 1 of 96 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 12/09/10 Report Revision: A Report ID: SAR rpt_H98KGD9PW5AN (MNUD1002A)_ H98KGH9PW7AN (MNUD1006A)_Rev.A 101209_SR8455/8397/8396 * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Responsible Engineer: Michael Sailsman (Senior Staff Eng.) Report Author: Michael Sailsman (Senior Staff Eng.) Date/s Tested: 6/6/10 – 6/30/10; 8/27/10-10/27/10 Manufacturer/Location: Motorola, Schaumburg Sector/Group/Div.: G&PS Date submitted for test: 6/7/10 & 8/6/10 DUT Description: 136-174 MHz 1-6W 6.25kHz/12.5kHz /25kHz, Basic Top and Dual Display Models. Capable of digital and analog FM transmission. Also capable of TDMA transmission and BT Test TX mode(s): CW (PTT); BT Max. Power output: 6.6 Watts (VHF); not to exceed 10.0mW(BT) Nominal Power: 6.0 Watts (VHF); 10mW(BT) Tx Frequency Bands: 136-174 MHz (VHF); 2.402-2.480 GHz (BT) Signaling type: FM and TDMA; FHSS(BT) Model(s) Tested: H98KGD9PW5AN(MNUD1001A), H98KGD9PW5AN (MNUD1002A), H98KGH9PW7AN (MNUD1006A) Model(s) Certified: H98KGD9PW5AN (MNUD1002A), H98KGH9PW7AN (MNUD1006A) Serial Number(s): NUD1002A0052, NUD1002A0039, NUD1002A0068, NUD1006A0181 Classification: Occupational/Controlled FCC ID: AZ489FT3829; Rule part 90 (150.8-173.4 MHz); Rule part 15 (2402-2480MHz) IC: 109U-89FT3829 Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 12/09/10 Certification Date: 12/09/10 Certification No.: SR8455/8397/8396 EMS EME Form-SAR-Rpt-Rev. 10.03 Page 2 of 96 Part 1 of 2 1.0 Introduction..............................................................................................................4 2.0 Abbreviations / Definitions......................................................................................4 3.0 Referenced Standards and Guidelines .....................................................................4 4.0 SAR Limits ..............................................................................................................5 5.0 SAR Result Scaling Methodology...........................................................................6 6.0 Description of Device Under Test (DUT) ...............................................................6 7.0 Optional Accessories and Test Criteria ...................................................................7 7.1 Antennas ......................................................................................................7 7.2 Batteries .......................................................................................................7 7.3 Body worn Accessories ...............................................................................7 7.4 Audio Accessories .......................................................................................8 8.0 Description of Test System......................................................................................8 8.1 Description of Robotics/Probes/Readout Electronics..................................8 8.2 Description of Phantom(s) ...........................................................................9 8.2.1 Dual Flat Phantom ...........................................................................9 8.2.2 SAM Phantom..................................................................................9 8.2.3 Elliptical Phantom ...........................................................................9 8.3 Description of Simulated Tissue..................................................................9 9.0 Additional Test Equipment ....................................................................................10 10.0 SAR Measurement System Verification................................................................11 10.1 Equivalent Tissue Test Results ..................................................................11 10.2 System Check Test Results........................................................................13 11.0 Environmental Test Conditions .............…
