AZ489FT3830Portable 2-Way Radio

APX™ TWO-WAY RADIOSAPX 3000USER GUIDE APX2000_M1_Front_Cover.fm Page 1 Tuesday, February 19, 2013 10:59 AM APX_3000_M1.book Page 2 Tues day, June 4, 2013 5:17 PM English mASTRO ® APX™ 3000 Digital Portable RadiosQuick Reference Card RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios ATTENTION! This radio is restricted to Occupational use only. Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. Radio Controls Turning Radio On/OffControl Buttons for Channels, Zone or Volume * MFB can be programmed to Top, Top Side and Middle Side button. It can be configured to support two features out of Volume, Channel or Zone mode. Making a Call You may hear Channel Voice Announcement upon entering channel or zone mode if preprogrammed. Sending an Emergency Alarm ***Default emergency button press timer is set to 1 second. This timer is programmable, see page 40 in the user guide for details. To exit emergency at any time, press and hold the Emergency button. Top Button*_______________Up Arrow Button**____________ Antenna Top Side Button*______________ Middle Side Button*______________Down Arrow Button**____________On/Off Switch IMPORTANT! You must connect a speaker microphone, earpiece or headset to hear the audio indicators; and a GCAI DRSM to see the strings and icons of your radio. • On – Push the On/Off Switch downwards. You see a Green Dot. • Off – Push the On/Off Switch upwards. • Multi-Functional Button (MFB)* – To toggle between Volume , Channel or Zone mode. • Up Arrow Button ** – To increase volume; to toggle the channels or zones up. Side Connector Cover Battery Connector Transmit/Receive LED BatteryBluetooth Pairing Spot Bluetooth LED • Down Arrow Button ** – To decrease volume; to toggle the channels or zones down. 1 Press the Multi-Functional Button* to the desirable channel or zone mode. 2 Press the Up/Down Arrow Button to change the channel/zone. 3 Adjust volume, if necessary. 4 Press the PTT button to transmit; release to receive. 1 Press and release the Emergency button***. 2 When acknowledgment is received, you hear four beeps; alarm ends; and radio exits emergency. *PMLN6407B* PMLN6407B MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdin gs, LLC and are used under license. All other trademarks are the property of their respective owners. © 2012–2013 by Motorola Solutions, Inc. All Rights Reserved. 0 6/13. 1303 East Algonquin Road., Schaumburg, Illinois 60196, U.S.A. APX_3000_M1.book Page 3 Tues day, June 4, 2013 5:17 PM English Sending an Emergency Call To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Alarm To exit emergency at any time, press and hold the Emergency button. LED Indicator Bluetooth Pairing with Mission Critical Wireless PodAudio indications incl ude alert tones and Voice Announcement (feature enabled via CPS). Bluetooth Pairing with Mission Critical Wireless Remote Control Unit (RCU) PMLN6233_ Discreet Missi on Critical Wireless RCU is recommended to use with your APX 3000 as it provides additional functionality to this radio. Connecting to Display Remote Speaker Microphone (DRSM)Only DRSM supports the APX 3000 display capability. 1 Press the Emergency button. 2 Press and hold the PTT button. Speak clearly with the microphone near your mouth. 3 Release the PTT button to end call. 4 Press and hold Emergency button to exit emergency. 1 Press the Emergency button. 2 The LED does not light up, and there is no tone. 3 Silent emergency continues until you press and hold the Emergency button to exit emergency state.ORPress and release the PTT button to exit the Silent Emergency Alarm mode and enter regular dispatch or Emergency Call mode. Solid red Radio is transmitting. Blinking red Radio is transmitting at low battery condition. Rapid blinking red Power-Up failure. Solid green Radio has completed power up. Blinking blue (3 Blinks) Bluetooth is powering On/Off. Slow blinking blue Bluetooth is ready to pair.Rapid blinking blue for two seconds Bluetooth fails to connect or disconnect from a device. Solid blue for two seconds Bluetooth device is connected or disconnected. Solid blue Bluetooth error. Blinking blue at heartbeat pace Radio is connected with at least one Bluetooth accessory device. 1 To hear audio indications, plug the earpiece into the Wireless Pod. ORTo function as a Standalone PTT Device, remove the earpiece. 2 Power on both your radio and Pod. 3 Ensure the Bluetooth feature of your radio and Pod are enabled. Ensure the Pod is in pairing mode. 4 Place the Bluetooth pairing spot of your Pod within one inch from the Bluetooth pairing spot on your radio. 1 Verify that both your radio and your RCU are powered ON and in pairing mode. 2 To enter pairing mode on your RCU, press and hold the Trunk button while powering up the RCU. 3 Place the Bluetooth pairing spot on your RCU within one inch of the Bluetooth pairing spot on your radio. 4 Radio LED turns solid blue for two seconds and then blinking blue at heartbeat pace to indicate connection is successfully established. 1 Turn off your Radio. 2 Align and attach the RSM’s connector to your radio’s side connector. 3 Secure by tightening the screw on the lower end of the connector. APX_3000_M1.book Page 4 Tues day, June 4, 2013 5:17 PM Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: 1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: APX 3000 conforms to t…

Text truncated - open the document above for the full version.

Preparing Your Radio for Use English 15 Strapping the Antenna onto Your Body Procedure:1 Position the spacers along the antenna to maintain 0.5 inch (1.27cm) from your body. 2 The spacer can be cut into individual segment per method shown below. • To improve radio performance, secure the antenna as shown in picture below. Ensure the spacer is upright when strapping it to the body. !  Radio Flexible Antenna Spacers  Segment APX_3000_M1.book Page 15 Tuesday, June 4, 2013 5:17 PM Identifying Radio Controls English 16 The table below shows number of spacer segments for different antenna bands.*One spacer comes with five segments. 3 Use surgical tape or straps to fasten the spacer to the body with the methods below. Identifying Radio ControlsTake a moment to review the following:Radio Parts and Controls. . . . . . . . . . . . . . . . . . . . . . . page 17Programmable Features . . . . . . . . . . . . . . . . . . . . . . . page 18 Assignable Radio Functions. . . . . . . . . . . . . . . . . . . page 18Assignable Settings or Utility Functions . . . . . . . . . . page 19 Accessing the Preprogrammed Functions . . . . . . . . . . page 19 Multi-Functional Button (MFB) . . . . . . . . . . . . . . . . . page 19 Using Push-To-Talk (PTT) Button† . . . . . . . . . . . . . . . page 20 Antenna Frequency Band Number of spacers provided* Number of spacer segments 700 / 800 MHz 15 UHF 312 VHF 27 Spacer Tape Antenna Flat surface on the human body Spacer Strap Antenna Flat surface on the human body APX_3000_M1.book Page 16 Tuesday, June 4, 2013 5:17 PM Identifying Radio Controls English 17 Radio Parts and Controls Transmit/Receive LED 12 Top Button* 1 On/Off Switch 2 Middle Side Button* 4 Battery 13 Battery Connector * These radio controls/buttons are programmable. Top Side Button* 3 14 Bluetooth Pairing Spot Antenna 8 Up Arrow Button* 5 Down Arrow Button* 6 Connector Cover 9 Bluetooth LED 10 11 Battery Latch 7 APX_3000_M1.book Page 17 Tuesday, June 4, 2013 5:17 PM Identifying Radio Controls English 18 Programmable Features Any reference in this manual to controls that are “preprogrammed” means that a q ualified radio technician must use your radio’s programming software to assign a feature to a control.Your dealer can program the programmable buttons as shortcuts to radio functions or preset channels/groups depending on the duration of a button press: • Press – Pressing and releasing rapidly. • Long press – Pressing and holding for the preprogrammed duration (between 0.25 seconds and 3.75 seconds). • Hold down – Keeping the button pressed. Assignable Radio Functions Bluetooth On/Off – Allows you to turn on/off the Bluetooth. Bluetooth Audio Reroute – Allows you to toggle the audio route from your radio to Remote Speaker Microphone or Bluetooth headset.Bluetooth Headset PTT – Keys up your Bluetooth Headset's microphone. For APX3000, this feature can be configured to key up Bluetooth Headset’s microphone, or GCAI’s accessory’s microphone when Bluetooth Headset’s microphone is not available. Bluetooth – Clear All Bluetooth Pairing – Allows you to clear all pairing information for Bluetooth. This is accessed by a long press of the Bluetooth On/Off Button.Call Response – Allows you to answer a private call. Channel Up and Down – Toggles the channel up and down. Emergency – Depending on the programming, initiates or cancels an emergency alarm or call.Internet Protocol – Displays the Internet Pr otocol (IP) address, device name and status of your radio.Man Down Clear – Clears the alarm of Man Down mode which was triggered when your radio achieves or passes a tilt angle threshold or a combination of the angle threshold and a motion sensitivity level.Mode Change – Toggles to selected channel or zone preprogrammed to your radio.Mode Select – Long-press programs a button with your radio's current zone and channels; then once programmed, the short press of that button jumps your radio to the programmed zone and channel.Monitor (Conventional Only) – Monitors a selected channel for all radio traffic until function is disabled.Nuisance Delete – Temporarily removes an unwanted channel, except for priority channels or the designated transmit channel, from the scan list.  APX_3000_M1.book Page 18 Tuesday, June 4, 2013 5:17 PM Identifying Radio Controls English 19 One Touch 1 – Launches a specific fe ature with one single button-press. Rekey Request – Notifies the dispatcher you require a new encryption key.Reprogram Request (Trunking Only) – Notifies the dispatcher you want a new dynamic regrouping assignment.Scan – Toggles scan on or off. Secure Transmission Select (Conventional and Trunking) – Toggles the Secure Transmission On or Off when the Secure/Clear Strapping fields is set to “Select” for your radio’s current channel, and when your radio is model/option capable. Talkaround/Direct (Conventional Only) – Toggles between using a repeater and communicatin g directly with another radio. Tx Inhibit – Inhibits transmission. User – Automatically registers with the server. Volume Up and Down – Toggles volume level up and down. Zone Up and Down – Toggles zone up and down. Assignable Settings or Utility Functions Light/Flip – Press the button to toggle the display backlight on or off.Controls Lock – Locks or unlocks the programmable buttons. Voice Announcement – Audibly indicates the current feature mode, Zone or Channel you has just assigned.Voice Mute – Toggles voice mute on or off. Accessing the Preprogrammed Functions You can access various radio functions through a short or long press of the relevant programmable buttons. Multi-Functional Button (MFB) This button control enables you to select the features which the Up and Down Arrow Button can adjust. All the programmable buttons can be preprogrammed as MFB. The features available for MFB are:Volume Change – To enable the Up or Down Arrow Button to change the volume of your speaker or headset. Press the Up or Down Arrow Button to increase or decrease the volume level …

Text truncated - open the document above for the full version.

English RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS APX3000 Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. ATTENTION! Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. *68012007006* 68012007006-A *PMLN6300A* PMLN6300A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2012 Motorola Solutions, Inc. All rights reserved. 68012007006-A_Covert_SafetyManual.fm Page 1 Thursday, November 22, 2012 11:29 AM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 68012007006-A_Covert_SafetyManual.fm Page 2 Thursday, November 22, 2012 11:29 AM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 68012007006-A_Covert_SafetyManual.fm Page 3 Thursday, November 22, 2012 11:29 AM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. 68012007006-A_Covert_SafetyManual.fm Page 4 Thursday, November 22, 2012 11:29 AM 5 English Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). NOTE:RF exposures decrease with increasing distance from the antenna. • Body Worn Operation. When worn on the body, always …

Text truncated - open the document above for the full version.

FCC ID: AZ489FT3830 Motorola Solutions Inc, 8000 West Sunrise Blvd., Plantation, FL 33322. EXHIBIT 13A SHEET 1 Date: May 20, 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3830, APX3000 VHF (136 -174 MHz) 5W Rated Power, 5.9W Max Power. Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: 136 - 174 MHz: 1-5.0 Watts (Nominal) To aid equipment authorization in foreign countries which accept United States FCC Grant for equipment authorization, Motorola Solutions is requesting that the FCC lists 136-174 MHz on the FCC Grant for equipment authorization. We are requesting Certification under Part 80, 90.210 and 90.210(e) of the Commission’s Rules to allow operation of this equipment in 136-174 MHz. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. In addition, this transmitter is intended for work-related occupational use only under Part 90 of the FCC rules. Additionally, the radio is equipped with a Bluetooth transmitter capable of clear communication with fixed power operating within the following frequency ranges: 2.402-2.480 GHz: 5-10 mW The Bluetooth transmitter complies with the requirements of FCC Part 15 subpart C. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

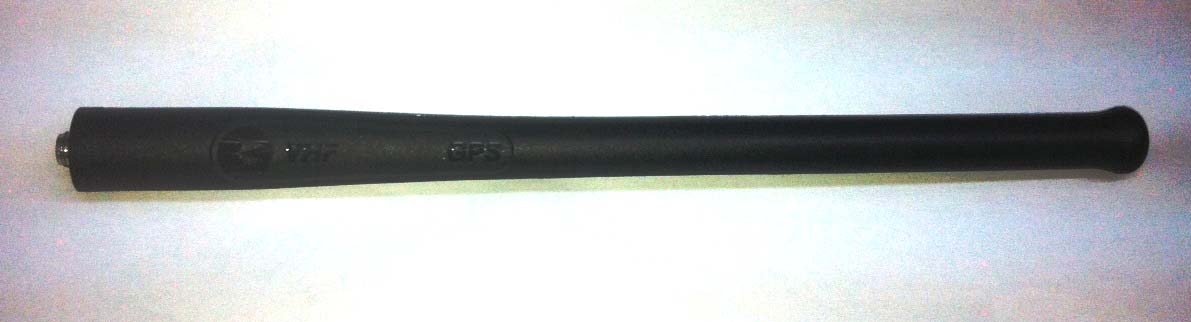

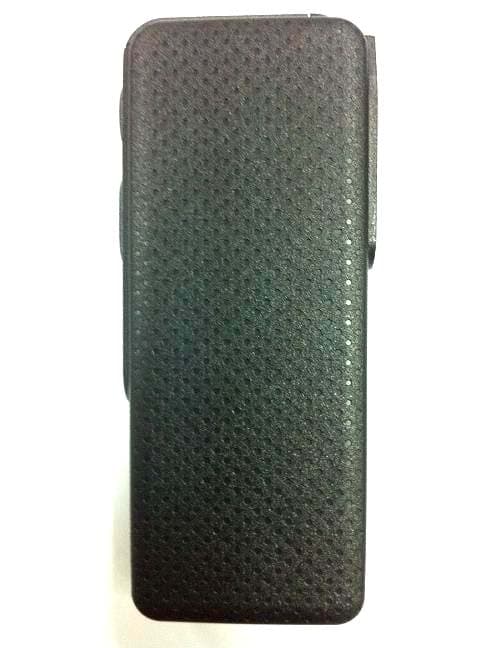

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View 3B 3. Back View (FCC label location) 3C 4. Side view (Right) 3D 5. Side view (Left) 3E 6. Top view (Controls) 3F 7. Antennas 3G Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 2 OF 8 Exhibit 3A – Back View with Battery Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 3 OF 8 Exhibit 3B – Front View Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 4 OF 8 Exhibit 3C – Back View (FCC Label) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 5 OF 8 Exhibit 3D – Side View (RIGHT) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 6 OF 8 Exhibit 3E – Side View (LEFT) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 7 OF 8 Exhibit 3F – Top View Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 3 SHEET 8 OF 8 No Antenna type Kit No. Colour Code Length (cm) 1 VHF Whip NAR6593A Black 19 2 VHF Flexible PMAD4125A Black 43.635 Exhibit 3G – VHF Antennas 1 2

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 1 SHEET 1 OF 1 Identification Label LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure Sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. FCC IC Label

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 9 SHEET 1 OF 5 EXHIBIT 9 Internal Photographs The following photographs are attached. Exhibit 1. RF board without & with Shields (Top). 9A 2. RF board without & with Shields (Bottom). 9B 3. RF board with chassis and housing (front side). 9C 4. RF Board with chassis and housing (back side). 9D Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 9A SHEET 2 OF 5 RF board without & with Shields (Top) Bluetooth Antenna Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 9B SHEET 3 OF 5 RF board without & with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 9C SHEET 4 OF 5 RF board with chasis and housing (front side ) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT3830 / IC: 109U-89FT3830 EXHIBIT 9D SHEET 5 OF 5 Chassis and Housing (back side)

FCC ID: AZ489FT3830/ IC: 109U-89FT3830 SR 11156 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 50 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 4/23/2013 Report Revision: O Report ID: SR11156 APX3000 VHF Rev O 130423 Responsible Engineer: Stephen C. Whalen (Principal Staff EME Test Engineer) Report Author: Stephen C. Whalen (Principal Staff EME Test Engineer), Kim Uong (Principal Staff EME Test Engineer) Date/s Tested: 02/04/13, 02/05/13, 3/20/13 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: AESS – Astro Engineering Subscriber Solutions Date submitted for test: 01/10/13 DUT Description: 136-174MHz, 5.0W rated power, 6.25kHz/12.5kHz/25kHz, capable of digital and analog FM transmission. Also capable of TDMA and Bluetooth transmissions Test TX mode(s): CW (PTT); CW (Bluetooth) Max. Power output: 5.9W (136-174 MHz); 10mW (Bluetooth) Nominal Power: 5.0W (136-174 MHz); 10mW (Bluetooth) Tx Frequency Bands: 136-174 MHz; 2402-2480 MHz (Bluetooth) Signaling type: FM, TDMA, FHSS (Bluetooth) Model(s) Tested: H59KGD9PW4AN Model(s) Certified: H59KGD9PW4AN Serial Number(s): 536TNX0256, 536TNX0271 Classification: Occupational/Controlled FCC ID: AZ489FT3830; Rule Part 90 (150.8-173.4 MHz); Rule Part 15 (2402 – 2480 MHz) Results outside FCC bands are not applicable for FCC compliance demonstration. IC: 109U-89FT3830; (138-174 MHz) * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 4/23/2013 Certification Date: 4/23/2013 Certification No.: L1130415P FCC ID: AZ489FT3830/ IC: 109U-89FT3830 SR 11156 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 50 Part 1 of 2 1.0 Introduction ................................................................................................................................. 4 2.0 Abbreviations / Definitions ......................................................................................................... 4 3.0 Referenced Standards and Guidelines ........................................................................................ 4 4.0 SAR Limits ................................................................................................................................. 5 5.0 SAR Result Scaling Methodology .............................................................................................. 6 6.0 Description of Device Under Test (DUT) .................................................................................. 6 7.0 Optional Accessories and Test Criteria....................................................................................... 7 7.1 Antennas ......................................................................................................................... 7 7.2 Batteries .......................................................................................................................... 7 7.3 Body worn Accessories ................................................................................................... 8 7.4 Audio Accessories .......................................................................................................... 8 8.0 Description of Test System ....................................................................................................... 10 8.1 Descriptions of Robotics/Probes/Readout Electronics ................................................. 10 8.2 Description of Phantom(s) ............................................................................................ 11 8.3 Description of Simulated Tissue ................................................................................... 11 9.0 Additional Test Equipment ....................................................................................................... 12 10.0 SAR Measurement System Verification ................................................................................... 13 10.1 Equivalent Tissue Test Results ..................................................................................... 13 10.2 System Check Test Results ........................................................................................... 14 11.0 Environmental Test Conditions ................................................................................................ 14 12.0 DUT Test Methodology ............................................................................................................ 15 12.1 Measurements .....................................................................................................…
