M Models RMU2080 & RMV2080 CONTENTS English 1 CONTENTS Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Introduction . . . . . . . . . . . . . . . . . . . . . . . . .5Package Contents. . . . . . . . . . . . . . . . . . . . . .5Batteries and Chargers Safety Information . . . . . . . . . . . . . . . . . . . .7Operational Safety Guidelines. . . . . . . . . . . . .8FCC Licensing Information . . . . . . . . . . . . .9Interference Information . . . . . . . . . . . . . . . . .9Radio Overview . . . . . . . . . . . . . . . . . . . . .11Parts of the Radio . . . . . . . . . . . . . . . . . . . . .11 On/Off/Volume Knob. . . . . . . . . . . . . . . .12Channel Selector Knob. . . . . . . . . . . . . .12Accessory Connector . . . . . . . . . . . . . . .12Model Label . . . . . . . . . . . . . . . . . . . . . .12Microphone . . . . . . . . . . . . . . . . . . . . . . .12Antenna. . . . . . . . . . . . . . . . . . . . . . . . . .12 LED Indicator. . . . . . . . . . . . . . . . . . . . . 12Side Buttons . . . . . . . . . . . . . . . . . . . . . 12The Lithium-Ion (Li-Ion) Battery. . . . . . . 12 Battery Features. . . . . . . . . . . . . . . . . . . . . . 14 About the Li-Ion Battery. . . . . . . . . . . . . 14Battery Recycling and Disposal. . . . . . . 15Installing the Lithium-Ion (Li-Ion) Battery. . . . . . . . . . . . . . . . . . . . 16Removing the Lithium-Ion (Li-Ion) Battery. . . . . . . . . . . . . . . . . . . . 16 Power Supply, Adaptor and Drop-in Tray Charger. . . . . . . . . . . . . . . 19 Battery Life Information . . . . . . . . . . . . . 20 Charging the Battery . . . . . . . . . . . . . . . 22 CONTENTS English 2 Getting Started . . . . . . . . . . . . . . . . . . . . . .29Turning radio ON/OFF. . . . . . . . . . . . . . . . . .29Adjusting Volume . . . . . . . . . . . . . . . . . . . . .29Selecting a Channel . . . . . . . . . . . . . . . . . . .29Talking and Monitoring . . . . . . . . . . . . . . . . .29Receiving a Call . . . . . . . . . . . . . . . . . . . . . .30Talk Range . . . . . . . . . . . . . . . . . . . . . . . . . .30Radio LED Indicators . . . . . . . . . . . . . . . . . .32Hands-Free Use/VOX . . . . . . . . . . . . . . . . . .33 With Compatible VOX Accessories. . . . .33Setting VOX Sensitivity. . . . . . . . . . . . . .34Microphone Gain. . . . . . . . . . . . . . . . . . .34Battery Save . . . . . . . . . . . . . . . . . . . . . .34Reset to Factory Defaults . . . . . . . . . . . .34End of Transmission Tone (Roger Beep Tone) . . . . . . . . . . . . . . . . .35 Programming Features . . . . . . . . . . . . . . .36Programming Mode. . . . . . . . . . . . . . . . . . . .36 Learning to Read the Values the Radio Signals You . . . . . . . . . . . . . .36Entering Programming Mode . . . . . . . . .39Reading Frequencies Values . . . . . . . . .39 Reading CTCSS/DPL Values . . . . . . . . 40Reading Auto-Scan Values . . . . . . . . . . 41 Programming Frequencies, Codes, Auto-Scan an Active Channels . . . . . . . 41 Programming Mode FAQ. . . . . . . . . . . . 42 Programming Values Example. . . . . . . . . . . 43 Example of Programming a Frequency. . . . . . . . . . . . . . . . . . . . . . 43Example of Programming a Code . . . . . . . . . . . . . . . . . . . . . . . . . . 44Example of Programming Auto-Scan . . . . . . . . . . . . . . . . . . . . . . . 45 Other Programming Features . . . . . . . . . . . 46 Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46Editing Scan List . . . . . . . . . . . . . . . . . . 47Nuisance Channel Delete . . . . . . . . . . . 47 CPS (Computer Programming Software). . . 48 Time-Out Timer . . . . . . . . . . . . . . . . . . . 49Power Select . . . . . . . . . . . . . . . . . . . . . 49Battery Type Setting . . . . . . . . . . . . . . . 49Call Tones . . . . . . . . . . . . . . . . . . . . . . . 49Scramble . . . . . . . . . . . . . . . . . . . . . 50Reverse Burst . . . . . . . . . . . . . . . . . . . . 50 CONTENTS English 3 Cloning Radios . . . . . . . . . . . . . . . . . . . . . . .51 Cloning with a Multi Unit Charger (MUC) . . . . . . . . . . . . . . . .51Cloning Radio using the Radio to Radio (R2R) Cloning Cable (Optional Accessory) . . . . . . . . . .53Cloning using the CPS (Computer Programming Software) . . . . . . . . . . . . .55 Troubleshooting . . . . . . . . . . . . . . . . . . . . .56Use and Care . . . . . . . . . . . . . . . . . . . . . . .60Frequency and Code Charts . . . . . . . . . . .61RDX VHF Frequencies Chart . . . . . . . . . . . .61RDV2020 - VHF Default Frequencies Chart . . . . . . . . . . . . . .63RDV5100 - VHF Default Frequencies Chart . . . . . . . . . . . . . .64RDX UHF Frequencies Chart . . . . . . . . . . . .65RDU2020 - UHF Default Frequencies Chart . . . . . . . . . . . . . .69RDU4100 - UHF Default Frequencies Chart . . . . . . . . . . . . . .70 CTCSS and PL/DPL Codes . . . . . . . . . . . . . 71Programming Customized Frequencies on 4W/5W RDX models . . . . . . . . . . . . . . . . 75Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . . . . . . 76Accessories . . . . . . . . . . . . . . . . . . . . . . . . 80Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . 80Audio Accessories . . . . . . . . . . . . . . . . . . . . 80Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80Carry Accessories . . . . . . . . . . . . . . . . . . . . 81Power Supplies AC Pin Adaptors. . . . . . . . . 81Software Applications. . . . . . . . . . . . . . . . . . 81Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 81Power Supplies . . . . . . . . . . . . . . . . . . . . . . 82RDX Series™ Features Summary . . . . . . 83Programmable Buttons Chart . . . . . . . . . 93Icons Chart . . . . . . . . . . . . . . . . . . . . . . . . 94 SAFETY English 4 SAFETY PRODUCT SAFETY AND RFEXPOSURE COMPLIANCE ATTENTION! This radio is restricted to occupational use only to satisfy …

Text truncated - open the document above for the full version.

FCC ID: AZ489FT3832 EXHIBIT 13A SHEET 1 May 30 th , 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3832, RMV2080. Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: Model RMV2080, 150.8 - 170 MHz: 1-2.0 Watts We are requesting Certification under Part 90 of the Commission’s Rules to allow operation of this equipment. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. In addition, this transmitter is intended for work-related occupational use only under Part 90 of the FCC rules. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT3832 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED May 30 th , 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3832. Dear Sir or Madam: Motorola Solutions Inc is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola Solutions considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely , Mike Ramnath Manager, Regulatory Compliance Email: [email protected] EXHIBIT 13b

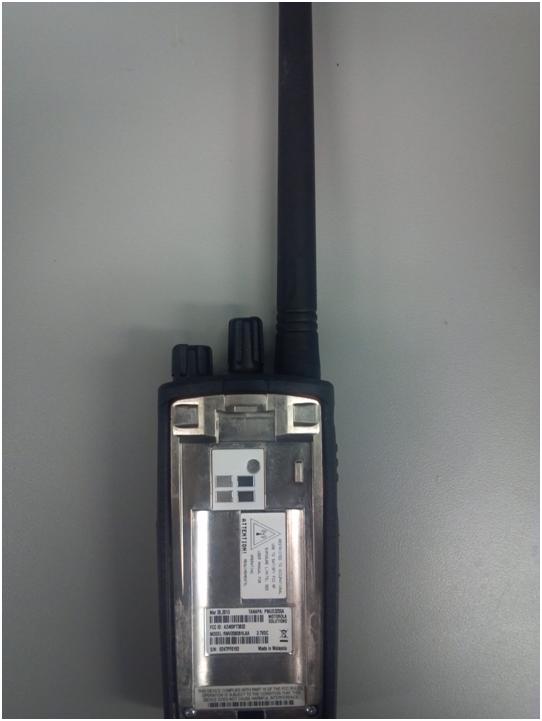

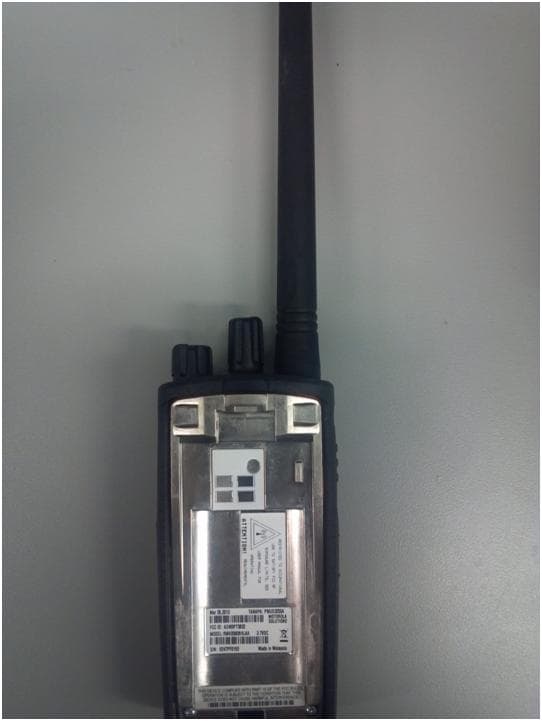

FCC ID: AZ489FT3832 EXTERNAL PHOTOGRAPHS: 1 Front view of Radio 2 Rear view of radio without battery cover. 3 Battery View 4 Magnified view of FCC Label. EXHIBIT 3 FCC ID: AZ489FT3832 Front view EXHIBIT 3-A FCC ID: AZ489FT3832 Rearview EXHIBIT 3-B FCC ID: AZ489FT3832 Battery View EXHIBIT 3-C FCC ID: AZ489FT3832 Magnified view of FCC Label EXHIBIT 3-D

FCC ID: AZ489FT3832 IDENTIFICATION LABEL LOCATION X See the attached Photograph, and Exhibit 3-D for the location of the Label on the device. Back of Radio Back of Radio under Belt Clip Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase. TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/ inch. The label is laser etched into the Urethane paint, exposing the Nickel plating on the Zamak casting substrate. Since no adhesive is required, the label is permanent and tamper-proof. (** - NOTE- The label attached below is a paper polyester film laminate, as described above. This is just for sample purposes, as the actual label is laser etched into the casting) MARKINGS (TEXT) See Photograph, Exhibit 1. EXHIBIT 1 FCC ID: AZ489FT3832 GENERAL INFORMATION I. Production Plans—Pursuant 2.983 ( c ). Quantity production is planned. II. Application References Reference is made to the following Motorola “Application References” 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ Rules. EXHIBIT 1A

FCC ID: AZ489FT3832 INTERNAL PHOTOGRAPHS: Printed Circuit Board 1. Front 2. Rear EXHIBIT 9 FCC ID: AZ489FT3832 Front EXHIBIT 9-A FCC ID: AZ489FT3832 Rear EXHIBIT 9-B

English RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. *6881095C98* 6881095C98-H *NNTN7223E* NNTN7223E MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2007 – 2012 Motorola Solutions, Inc. All rights reserved. ATTENTION! 6881095C98-H_SafetyP_Eng.fm Page 1 Tuesday, July 24, 2012 1:43 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-H_SafetyP_Eng.fm Page 2 Tuesday, July 24, 2012 1:43 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-H_SafetyP_Eng.fm Page 3 Tuesday, July 24, 2012 1:43 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. 6881095C98-H_SafetyP_Eng.fm Page 4 Tuesday, July 24, 2012 1:43 PM 5 English Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • In front of the face. Hold the radio in a vertical position with the microphone (and other parts of the radio including the antenna) at least one inch (2.5 centimeters) away from the n…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 42 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 4/22/2013 Report Revision: O Report ID: SR11013 PMUD3255A VHF Rev O 130422 Responsible Engineer: Michael Sailsman( Senior Staff EME Engineer) Report Author: Michael Sailsman (Senior Staff EME Engineer) Date/s Tested: 3/8/13 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: Radio Product & Accessories Date submitted for test: 3/1/13 DUT Description: RMV2080 VHF BRUS, 8Ch,Non-Display, Fixed Antenna, 2.0Watts, Black, Li-Ion Test TX mode(s): CW (PTT) Max. Power output: 2.0 W Nominal Power: 1.0-1.9 W Tx Frequency Bands: 150.8MHz - 170MHz Signaling type: FM Model(s) Tested: PMUD3255A Model(s) Certified: PMUD3255A Serial Number(s): 024TPD0046, 024TPD0073 Classification: Occupational/Controlled FCC ID: AZ489FT3832; Rule Part 90 (150.8-170MHz) * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 4/22/2013 Certification Date: 4/22/2013 Certification No.: L1130323 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 42 Part 1 of 2 1.0 Introduction ................................................................................................................................. 4 2.0 Abbreviations / Definitions ......................................................................................................... 4 3.0 Referenced Standards and Guidelines ........................................................................................ 4 4.0 SAR Limits ................................................................................................................................. 5 5.0 SAR Result Scaling Methodology .............................................................................................. 6 6.0 Description of Device Under Test (DUT) .................................................................................. 6 7.0 Optional Accessories and Test Criteria....................................................................................... 6 7.1 Antennas ......................................................................................................................... 7 7.2 Batteries .......................................................................................................................... 7 7.3 Body worn Accessories ................................................................................................... 7 7.4 Audio Accessories .......................................................................................................... 7 8.0 Description of Test System ......................................................................................................... 8 8.1 Descriptions of Robotics/Probes/Readout Electronics ................................................... 8 8.2 Description of Phantom(s) .............................................................................................. 9 8.3 Description of Simulated Tissue ..................................................................................... 9 9.0 Additional Test Equipment ....................................................................................................... 10 10.0 SAR Measurement System Verification ................................................................................... 10 10.1 Equivalent Tissue Test Results ..................................................................................... 10 10.2 System Check Test Results ........................................................................................... 11 11.0 Environmental Test Conditions ................................................................................................ 12 12.0 DUT Test Methodology ............................................................................................................ 12 12.1 Measurements ............................................................................................................... 12 12.2 DUT Configuration(s) ................................................................................................... 12 12.3 DUT Positioning Procedures ........................................................................................ 12 12.3.1 Body ............................................................................................................... 12 12.3.2 Head .........................................................................................…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 14 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 4/22/2013 Report Revision: O Report ID: SR11013 PMUD3255A VHF Rev O 130422 Responsible Engineer: Michael Sailsman( Senior Staff EME Engineer) Report Author: Michael Sailsman (Senior Staff EME Engineer) Date/s Tested: 3/8/13 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: Radio Product & Accessories Date submitted for test: 3/1/13 DUT Description: RMV2080 VHF BRUS, 8Ch,Non-Display, Fixed Antenna, 2.0Watts, Black, Li-Ion Test TX mode(s): CW (PTT) Max. Power output: 2.0 W Nominal Power: 1.0-1.9 W Tx Frequency Bands: 150.8MHz - 170MHz Signaling type: FM Model(s) Tested: PMUD3255A Model(s) Certified: PMUD3255A Serial Number(s): 024TPD0046, 024TPD0073 Classification: Occupational/Controlled FCC ID: AZ489FT3832; Rule Part 90 (150.8-170MHz) * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. Results outside FCC bands are not applicable for FCC compliance demonstration. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 4/22/2013 Certification Date: 4/22/2013 Certification No.: L1130323 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 14 APPENDIX D System Check Scans FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 3 of 14 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 4 of 14 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 5 of 14 APPENDIX E DUT Scans (Shortened Scan and Highest SAR configurations) FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 6 of 14 Shortened Scan Result Table 17 Shortened scan reflect highest SAR producing configuration; approximate run time is 7 minutes. Representative full scan run time was 21 minutes. “Shortened” scan max calculated SAR using SAR drift: 1-g Avg. = 0.228 mW/g; 10-g Avg. = 0.174 mW/g. Zoom scan max calculated SAR using SAR drift (see part 1 table 16): 1-g Avg. = 0.227 mW/g; 10-g Avg. = 0.172mW/g. FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 7 of 14 Body - Highest SAR Configuration Result Table 14 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 8 of 14 Face - Highest SAR Configuration Result Table 16 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 9 of 14 APPENDIX F DUT Scans - FCC Part 90 (150.8-170 MHz band) FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 10 of 14 Assessments at the Body with Body worn PMLN6455A Table 14 Assessment at the Body with other audio accessories Assessment per “KDB 643646 D01 Body SAR Test Consideration for Audio Accessories without Built-in Antenna; Sec 1, A. when overall < 4.0 W/kg, SAR tested for that audio accessory is not necessary.” This was applicable to all remaining accessories. FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 11 of 14 Assessment at the Face Table 17 FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 12 of 14 APPENDIX G DUT Supplementary Data (Power slump) FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 13 of 14 APPENDIX H DUT Test Position Photos Photos available in Exhibit 7B FCC ID: AZ489FT3832 SR 11013 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 14 of 14 APPENDIX I DUT, Body worn and audio accessories Photos Photos available in Exhibit 7B

FCC ID: AZ489FT3832 TEST SET- UP PROCEDURES Except where otherwise stated, all measurements are made following the Electronic Industries Association (EIA) Minimum Standard for Portable/Personal Land Mobile Communications FM or PM Equipment 25-1000 MHz-(TIA/EIA-603). This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application. 1. RF Power Output X 2. Audio Response X 3. Low Pass Filter Response X 4. Modulation Limiting X 5. Occupied Bandwidth X 6. Radiated Spurious Emissions X 7. Conducted Spurious Emissions N/A 8. Frequency Stability X 9. Transient Frequency Behavior X EXHIBIT 7 FCC ID: AZ489FT3832 TEST EQUIPMENT LIST Pursuant To FCC Rules 2.999 Calibration Due Date 1. Spectrum Analyzer A. HP 8590A 14-MAR-2014 2. RF Signal Generators A. HP 8657B 05-MAR-2014 A. WEINSCHEL M1418 3. Dipole Antenna Set A. Singer DM-105A series Cal. Not Required B. EMCO Model 3120 Cal. Not Required 4. RF Power Meters A. Agilent E4416A 08-AUG-2013 B. E9321A Power Sensor 08-AUG-2013 C. 20 dB High Power Pad 08-AUG-2013 5. Monitor Receivers A. HP RF Comm Test System, HP8920B 05-OCT- 2013 6. Tenny Temperature Chamber Cal. Not Required 7. Audio Analyzer A. HP8903B 22-FEB-2014 8. AC/DC Voltmeters A. HP34401A Digital Multimeter 11-MAR-2014 9. HP8901B Modulation Analyzer 29-MAR-2014 EXHIBIT 7 FCC ID: AZ489FT3832 RF POWER OUTPUT Pursuant to FCC Rules 2.985 (a) Method of Measurement The RF power output is measured with the value of voltage and current specified in Exhibit 3 as required by 2.983(d) (5). A 50 ohm RF attenuator of proper power rating was used as a load for making these measurements. For Transmitter having output impedance other than 50 ohm, a suitable matching network is placed between the transmitter and the load. The power measurements are made using a Hewlett Packard series HP 436A power meter and a 30 dB attenuator or a HP 437B power meter. AUDIO FREQUENCY RESPONSE Pursuant FCC Rules 2.987 (a) Method of Measurement Operate the transmitter under standard test conditions and monitor the output with a frequency deviation meter or calibrated test receiver. With 1000 Hz sine wave audio input applied through a dummy microphone circuit, adjust the audio input to give 30% of full rated system deviation Maintaining constant deviation, vary the input frequency from 100 to 5000 Hz, and observe the level necessary to maintain a constant 30% modulation. Minimum Standard The audio frequency response shall not vary more than +1 or -3 dB from 300 to 3000 Hz as referenced to 1000 Hz level (with the exc…
