AZ489FT4826Portable Radio

GP328 Professional Two-Way Radio Motorola Inc. FCC ID: AZ489FT4826 EXHIBIT 12 English 2-YEAR LIMITED WARRANTY FOR RADIOS We thank you for purchasing our Motorola radios. These radios are manufactured according to the highest quality standards set and are backed by Motorola’s two (2) year warranty. The rechargeable Motorola supplied batteries have a one (1) year warranty. Kindly approach your dealer for more information.Motorola warrants its radios and batteries against defects in material and workmanship under normal use and service for the period stated above.Motorola recommends that you use Motorola supplied accessories and batteries in connection with the radio. We would also advise you against attempting any modifications or repairs or any other form of unauthorised service to your radio. Should you have any queries, please contact: Singapore - Telephone/Fax: (65) 3810408&9/2871068Beijing - Telephone/Fax: (86-10) 68437222/68438195 Please see next page for more information.Fill in the details of your radio below for your own reference:Model Name/No.:Serial Number:Date of Purchase:Dealer Name:Address:Telephone: #WarisPopUser.book Page 1 27, May 1998, 2:06 PM English LIMITED WARRANTY MOTOROLA RADIO PRODUCTS Limited Warranty This express limited warranty covers the Product manufactured by MOTOROLA Radio Products Group and applies to any warranty alre ady mentioned. MOTOROLA assumes no obligations or liability for additions or modifications to this warranty unless specifically mad e in writing and signed by an authorised officer of MOTOROLA.MOTOROLA cannot be responsible in any way for any ancillary equipment not furnished by MOTOROLA which is attached to or used inconnection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each system which may use the Product is unique, MOTOROLA disclaims liability for range, coverage, or op eration of the system as a whole under this warranty.This warranty sets forth the full extent of MOTOROLA’S responsibilities regarding the Product. Repair, replacement or refund of the purchase price, at MOTOROLA’S option, is the sole and exclusive remedy of purchaser/user of the Product. THIS WARRANTY IS GIVENIN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIEDWARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXCLUDED . IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OFUSE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL ORCONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCHMAY BE DISCLAIMED BY LAW.Notwithstanding anything contained herein, MOTOROLA shall not be liable for any of the following situations:A) Defects or damage resulting from use of the Product in other than its normal and customary manner.B) Defects or damage from misuse, accident, water, liquid or neglect.C) Defects or damage from improper or unauthorised testing, operation, maintenance, service, repair, installation, alteration, m odification, or adjustment. D) Product which has had the serial number removed or made illegible.E) A Product which, due to illegal or unauthorized alteration of the software/firmware in the Product, does not function in acco rdance with Motorola’s published specifications or the FCC type acceptance labeling in effect for the Product at the time the Product was i nitially distributed from Motorola. F) Scratches or other cosmetic damage to Product surfaces that does not affect the operation of the Product.MOTOROLA shall have no liability whatsoever with respect to any claim of patent infringement which is based upon the combinatio n of the Product or parts furnished hereunder with software, apparatus or devices not furnished by MOTOROLA, nor will MOTOROLA have anyliability whatsoever for the use of ancillary equipment or software not furnished by MOTOROLA which is attached to or used in connection with the Product.HOW TO GET WARRANTY SERVICE: Provide proof of purchase and deliver or send the Product item, transportation and insuranceprepaid to an authorized warranty service location. Warranty service will be provided by Motorola through one of its authorized warranty service locations. If you contact the company that sold you the Product, it can facilitate your obtaining warranty service. You can also call Motorola for assistance: 65-3810408/9 (Singapore) or 86-10-68437222 (Beijing). #WarisPopUser.book Page 2 27, May 1998, 2:06 PM 1 Contents English CONTENTS CONTENTS Radio Overview . . . . . . . . . . . . . . . . . . . . 3 Parts of the Radio. . . . . . . . . . . . . . . . . . . . . . . . 3 On/Off/Volume Knob . . . . . . . . . . . . . . . . . 4Channel Selector Knob. . . . . . . . . . . . . . . . . 4Programmable Buttons . . . . . . . . . . . . . . . . . 4Push-to-Talk (PTT) Button . . . . . . . . . . . . . 6Microphone . . . . . . . . . . . . . . . . . . . . . . . . . 6Keypad Keys (for keypad radios only) . . . . 7Programmable Buttons Audio Indicators . . . 7 Getting Started . . . . . . . . . . . . . . . . . . . . . 9 Battery Information . . . . . . . . . . . . . . . . . . . . . . 9 Battery Status . . . . . . . . . . . . . . . . . . . . . . . . 9Charging your Battery . . . . . . . . . . . . . . . . . 9 Accessory Information. . . . . . . . . . . . . . . . . . . 10 Attaching the Battery . . . . . . . . . . . . . . . . . 10Removing the Battery . . . . . . . . . . . . . . . . 10Attaching the Antenna . . . . . . . . . . . . . . . . 11Removing the Antenna. . . . . . . . . . . . . . . . 11Attaching the Belt Clip. . . . . . . . . . . . . . . . 11Removing the Belt Clip . . . . . . . . . . . . . . . 12 Turning the Radio On or Off . . . . . . . . . . . . . . 12Adjusting the Radio’s Volume. . . . . . . . . . . . . 12Selecting a Radio Channel . . . . . .…

Text truncated - open the document above for the full version.

Motorola Inc. FCC ID: AZ489FT4826 LIST OF EXHIBITS DESCRIPTIONEXHIBITFCC REFERENCE l.Certification of Data12.907 llIdentification label information22.983-(f) llI.General Information3 1. Production Plans2.981-(c) 2. Application References2.1061 3. Data Submittal Procedures 4. Similar Applications lV.Description4 1. Technical Characteristics2.983-(d)-1,2,3,4,5 2. Application V.Function of Semiconductor or52.983-(d)-6 other Active Devices Vl.Circuits Diagrams62.983-(d)-7 Vll.Tune-up Procedure72.983-(d)-9 Vlll.Circuit Description82.983-(d)-10,11 1. Frequency Stabilizing 2. Modulation Limiting 3. Post Limiter Filter 4. Harmonic Suppression 5. Power Limiting 6. Modulation Techniques lX. Measured Data2.983-(e) 1. Data Index9 2. RF Power Output9A2.985 (a) 3. Modulation Characteristics2.987 (a) a) Audio Response9B b) Low Pass Filter Response9C c) Modulation Limiting9D 4. Occupied Bandwidth9E2.989 5. Conducted Spurious Emissions9F2.991 6. Radiated Spurious Emissions9G2.993 7. Frequency Stability (Temp. & Supply Volt)9H & 9J2.995 8. Transient Frequency Behavior9K2.2.19(EIA/TIA SP-2218) 9. Test Equipment Used9L 10. Method Of Measurements 9M X.Identification (Nameplate)10 Xl.Photograph(s)112.983-(g) Xll.User Manual (Basic Operation ) 12 1. GP328 2. GP338 Motorola Inc. FCC ID: AZ489FT4826 EXHIBIT 1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: I have received a Beng (Hons) degree from Brighton Polytechnic, Brighton, UK. I have more tan 10 years of Design and Development experience in the field of two-way radio communication. NAME: Ang Eng Teong SIGNATURE: ET Ang DATE: 5th. June 1998 POSITION: Engineering Group Leader I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME : Ong Kheok Chin SIGNATURE : KC Ong DATE : 5th. June 1998 POSITION : Engineering Manager Motorola Inc. FCC ID: AZ489FT4826 EXHIBIT 2 IDENTIFICATION LABEL LOCATION XSee The Attached Photograph or Sketch Back Of Radio Back Of Radio Under Belt Clip TYPE The label is a paper polyester firm laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 inches/oz. MARKINGS (TEXT) See The Attached Photograph XRefer to Exhibit 10 See Attached Drawing Motorola Inc. FCC ID: AZ489FT4826 EXHIBIT 5 GENERAL INFORMATION l.Production Plans -- Pursuant 2.981 Quantity production is planned ll.Application References -- Pursuant 2.1061 Reference is made to the following Motorola “Application References” 1. Portable Products and their application 2. Portable Products Transmitter Modulations Methods 3. Motorola Penang Open Area Test Site lll.Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ Rules. lVSimilar, currently Type Accepted Transmitter, FCC ID: AZ489FT4826 Motorola Inc. FCC ID: AZ489FT4826 EXHIBIT 5 DESCRIPTION l.Transmitter Technical Characteristics -- Pursuant 2.983 (d) a. RF Power Output :1- 4 Watt Variable Power b. Transmit Frequency Range :403 - 470 MHz c. Receive Frequency Range :403 - 470 MHz d. Frequency Stability :2.5 PPM e. Emissions16K0F3E & 11K0F3E f. Spurious Emissions25 uW g. DC Voltage and Current into7.5 VDC the final RF amplifier stage/stages1.5 A 2.Transmitter Application This transmitter is primarily intended for use in a portable environment. It is characterized by the following features, options, and accessories. a. Power Supply Available : i. NiCd Rechargeable Low Capacity Battery ii. NiCd Rechargeable High Capacity Battery iii. Alkaline Battery iv. NiMH Rechargeable Ultra High Battery v. Lithium Ion Battery b. Antenna Available : i. Helical Antenna ii. Whip antenna c. Squelch Type Available : i. Carrier Squelch ii. Tone “Private Line” iii. Digital “Private Line” iv. DTMF v. MDC vi. Quick Call II d. Microphone - Control : I. Handset/Palm Microphone e. Maximum Transmit Channel Capability : i. 16 Channel (GP328 model) ii. 128 Channel (GP338 model) f. Housing : i. The transmitter will be housed in the housing shown in the accompanying photographs g. Other Options : i. Time out Timer h. The minimum voltage for the micro-P to operate is 3.3V. Motorola Inc. FCC ID: AZ489FT4826 EXHIBIT 5 FUNCTION OF RF SEMICONDUCTORS AND OTHER ACTIVE DEVICES SCHEMATICPARTCIRCUITOPERATINGINDUSTRY KEYNUMBERAPPLICATION FREQUENCYEQUIVALENT CR10148-80973Z02ANTENNA SWITCH403-470 MhzMA4PH261 CR10248-02245J41ANTENNA SWITCH403-470 MhzHSMP3820 CR10551-85963A15POWER AMPLIFIER 403-470 Mhz LM50 CR201 48-02233J09SYNTHESIZER16.8 MhzIMN10 CR203 48-62824C03TX VCO FREQ430-470 Mhz1SV232 CR24148-05649Q13RX. VCO355-425 Mhz1SV228 CR242 & CR24348-62824C01RX. VCO355-425 Mhz1SV229 CR25148-02245J22TX. VCO403-470 Mhz1T363 CR301 & CR30248-62824C01RX. SYSTEM403-470 Mhz1SV229 CR30348-80154K03ESD PROTECTIONDCMMBD353 CR304 & CR30548-62824C01RX. SYSTEM403-470 Mhz1SV229 CR30648-02245J42MIXER403-470 MhzHPSM2827 CR30848-02245J41AGCDCHSMP3820 CR31048-62824C012ND OSCILLATOR90.2 Mhz1SV229 CR411,CR412 & CR41348-02245J47REVERSE CURRENT DCRB471E PROTECTION CR44048-13833C02REVERSE CURRENTDCMMBD6100 PROTECTION CR50148-80107R01REVERSE CURRENTDCBYD17D PROTECTION CR50348-05729G49LEDDCBRPY1204W D30048-13833C02REVERSE CURRENT DCMMBD6100 PROTECTION Q11048-02245J55POWER AMPLIFIER403-470 MhzPRF1507 Q111,Q210,Q260,Q261 &48-02245J50DC SWITCHDCUMC5N Q417 Q24148-05218N63VCO OSCILLATOR403-470 MhzBFQ67W Q30148-02245J44RF AMPLIFIER403-470 MhzHP415 Q30248-02245J44IF AMPLIFIER45.1 MhzHP415 Q31048-13827A07BUFFER AMPLIFIER403-470 MhzMMBR941 Q31148-02245J04DC SWITCHDCBCX71K Q315,Q505 & Q31648-80214G02DC SWITCHDCMMBT3904 Q32048-05218N632ND OSCILLATOR90.2 MhzBFQ67W Q400 & Q41648-09579E18DC SWITCHDCTP0101T Q40348-80214G02DC SWITCHDCMMBT3904 Q405 & Q41048-02245J54DC SWITCHDCUMG5 Q50258-80159R…

Text truncated - open the document above for the full version.

FCC ID:AZ489FT4826 ______________________________________________________________________________ Radio Products Group 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5000 Date: June 10, 1998. Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Type Acceptance of Transmitter with FCC ID: AZ489FT4826. Attention: George Tannahill, Frank Coperich Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Type Acceptance of the subject transmitter. This transmitter is primarily intended for use in a portable radio application with capabilities for communications with a transmit power of 4 Watt. The Power is variable 25% of the value listed (1-4 Watt). The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Type Acceptance Application. Contact me (954) 723-5793 if you require any additional information. Sincerely, Mike Ramnath FCC Liaison Fax (954) 723-4794

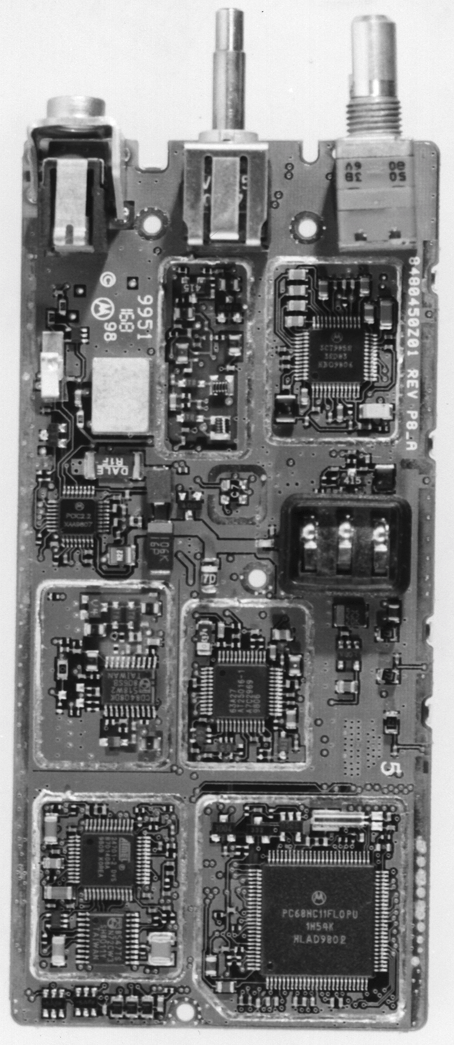

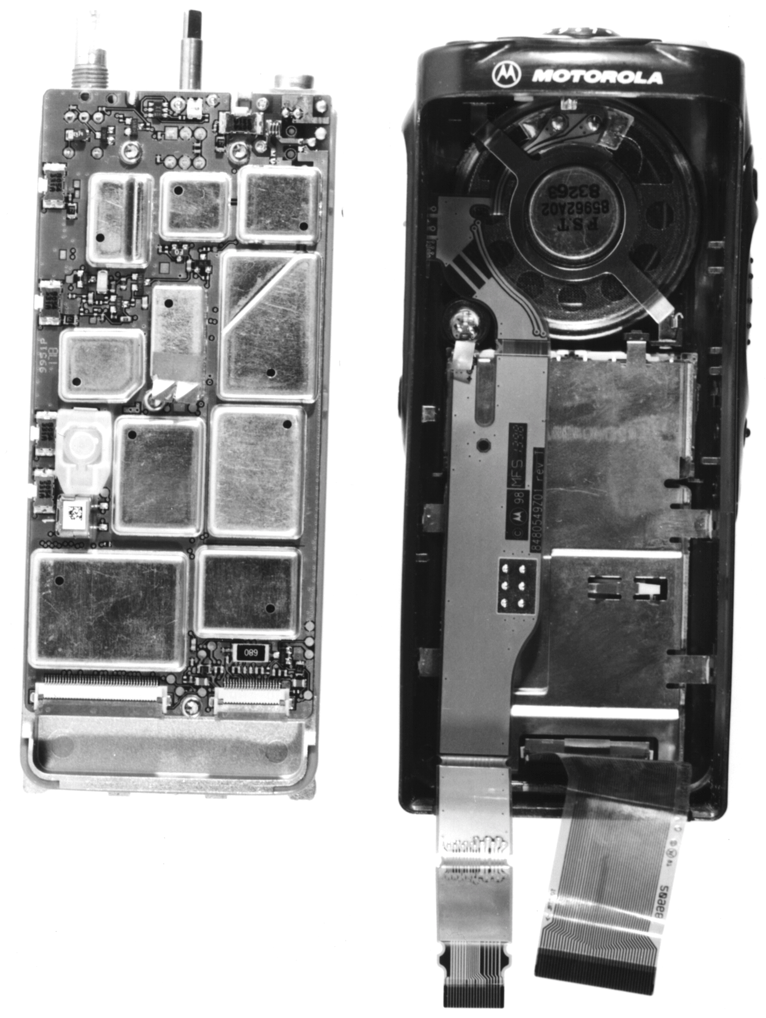

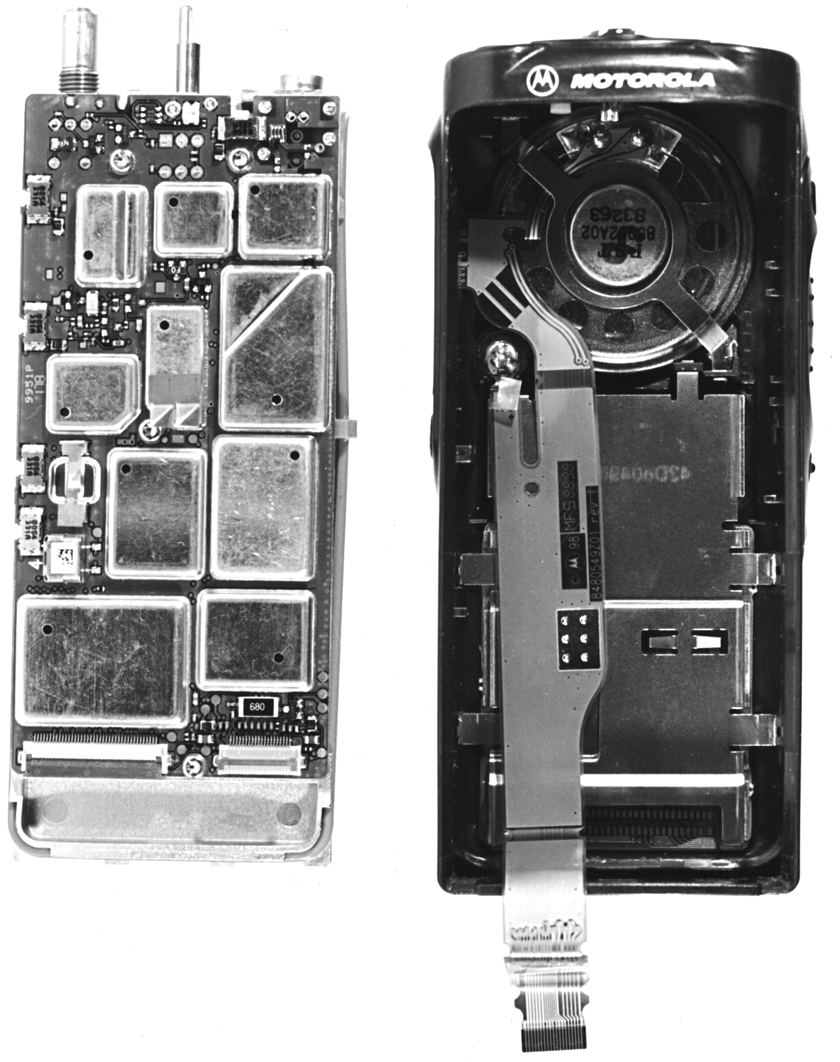

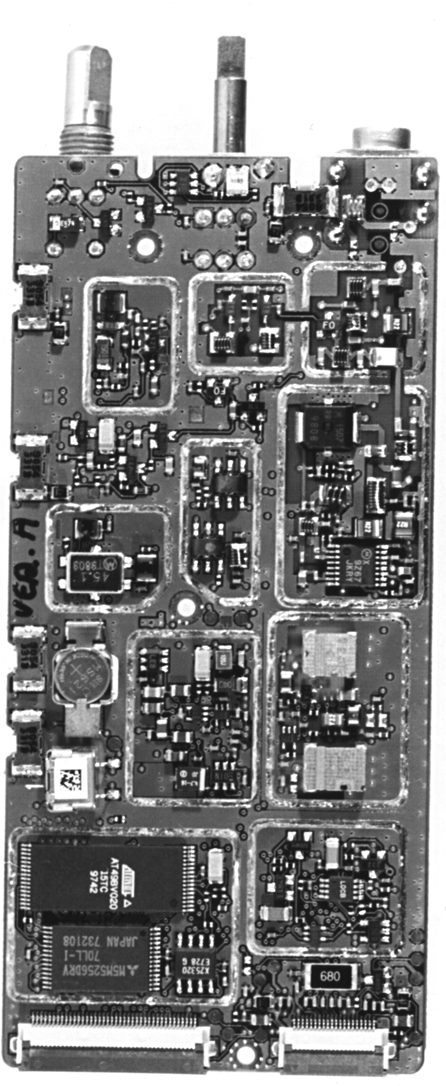

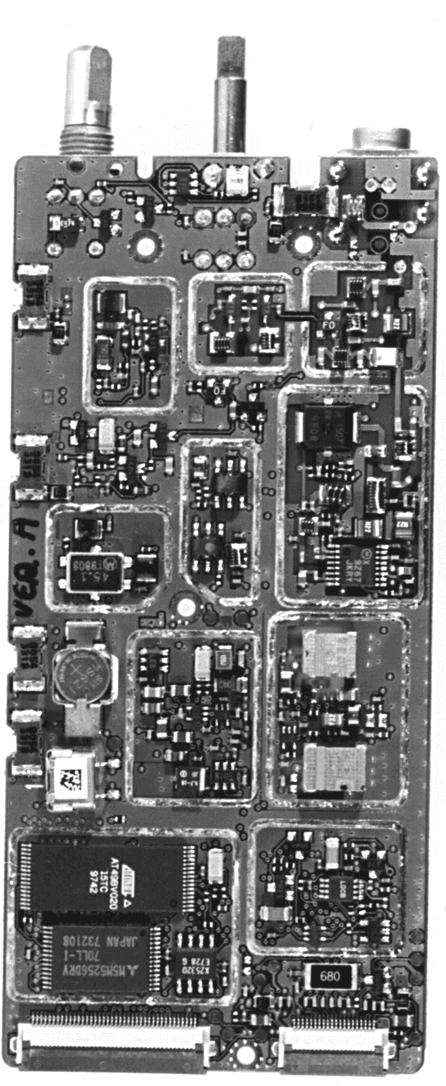

Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 10 Identification (Nameplate) Information A Nameplate of the type presented below will be affixed to every transmitter. It will be placed at the recess which is located at the battery chamber of the rear cover. Model : AZH25RDH9AA6 (GP338) Model : AZH25RDC9AA3 (GP328) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11 Index To Photographs 1EXHIBIT 11-A Front View ( GP328) 2EXHIBIT 11-BFront View ( GP338) 3EXHIBIT 11-CBack View (GP328 & GP338) 4EXHIBIT 11-DTop View (GP328 & GP338) 5EXHIBIT 11-E View Of Battery Contact & FCC Label Location (GP328 & GP338) 6EXHIBIT 11-FView with The Front Housing Open Up (GP328) 7EXHIBIT 11-GView with The Front Housing Open Up (GP338) 8EXHIBIT 11-HView with The Back Casting Open Up (GP328 & GP338) 9EXHIBIT 11-ITop (Front Housing) Side Of RF/Controller Board With Shields Removed (GP328 & GP338) 10EXHIBIT 11-JBottom (Casting) Side Of RF/Controller Board With Shields Removed (GP328 & GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-A Front View (GP328) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-B Front View (GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-C Back View (GP328 & GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-D Top View (GP328 & GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-E View Of Battery Contact & FCC Label Location (GP328 & GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-F View With Front Housing Open up (GP328) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-G View With Front Housing Open up (GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-H View With Back Casting Open up (GP328 & GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-I Top (Front Housing) Side Of RF/Controller Board With Shields Removed. (GP328 & GP338) Motorola Inc.FCC ID : AZ489FT4826 EXHIBIT 11-J Bottom (Casting) Side Of RF/Controller Board With Shields Removed. (GP328 & GP338)

Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9 SUBMITTED MEASURED DATA AND METHOD OF MEASUREMENT MEASUREMENTEXHIBITNUMBER OF PAGES IRF Power Output9A 1 IIAudio Response9B 2 IIILow Pass Filter Response9C 2 IVModulation Limiting9D 2 V Occupied Bandwidth9E 9 VIConducted Spurious Emissions9F 4 VIIRadiated Spurious Emissions9G 4 VIIIFrequency Stability A. Temperature9H 1 B. Supply Voltage9J 1 IXTransient Frequency Behavior9K4 X Test Equipment Used9L1 XI Method Of Measurement9M 3 Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9A RF Power Output - Measured Data The supply voltage to the transmitter was set to 7.5 volts DC. The RF output power was measured with the indicated voltage and current applied into the final RF amplifying device. HIGH - POWER SETTING, FREQUENCY 403.985 MHz. Measured RF Output Power :4.46 WATTS Measured DC Voltage :7.27 VOLTS Measured DC Current :111 AMP Measured DC Input Power : 8.07 WATTS HIGH - POWER SETTING, FREQUENCY 436.985 MHz. Measured RF Output Power : 4.59 WATTS Measured DC Voltage :7.17 VOLTS Measured DC Current :1.16 AMP Measured DC Input Power : 8.32 WATTS HIGH - POWER SETTING, FREQUENCY 469.985 MHz. Measured RF Output Power :4.45 WATTS Measured DC Voltage :7.16 VOLTS Measured DC Current :1.19 AMP Measured DC Input Power : 8.52 WATTS LOW - POWER SETTING, FREQUENCY 403.985 MHz. Measured RF Output Power :1.18 WATTS Measured DC Voltage :7.38 VOLTS Measured DC Current :0.77 AMP Measured DC Input Power : 5.68 WATTS LOW - POWER SETTING, FREQUENCY 436.985 MHz. Measured RF Output Power :1.20 WATTS Measured DC Voltage :7.36 VOLTS Measured DC Current :0.615 AMP Measured DC Input Power : 4.53 WATTS LOW- POWER SETTING, FREQUENCY 469.985MHz. Measured RF Output Power :1.24 WATTS Measured DC Voltage :7.36 VOLTS Measured DC Current :0.599 AMP Measured DC Input Power : 4.41 WATTS Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9B -1 MOTOROLA INC. TRANSMITTER AUDIO RESPONSE CHARACTERISTIC MODULATION LEVEL vs. AUDIO FREQUENCY =============================================================================== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Frequency: 436.985Mhz Channel Spacing: 25KHz -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 10.0 15.0 100.01000.010000.0100000.0 Audio Frequency in Hz Modulation L evel in dB Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9B-2 MOTOROLA INC. TRANSMITTER AUDIO RESPONSE CHARACTERISTIC MODULATION LEVEL vs. AUDIO FREQUENCY =============================================================================== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Frequency: 436.985Mhz Channel Spacing: 12.5KHz -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 10.0 15.0 100.01000.010000.0100000.0 Audio Frequency in Hz Modulation Level in dB Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9C-1 MOTOROLA INC. TRANSMITTER POST - LIMITER ROLL OFF RESPONSE FILTER OUTPUT vs. AUDIO FREQUENCY ================================================================================= Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Frequency : 436.985Mhz Channel Spacing : 25KHz -100.00 -80.00 -60.00 -40.00 -20.00 0.00 20.00 100.001000.0010000.00100000.00 Audio Frequency in Hz dB Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9C-2 MOTOROLA INC. TRANSMITTER POST - LIMITER ROLL OFF RESPONSE FILTER OUTPUT vs. AUDIO FREQUENCY ================================================================================= Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Frequency : 436.985Mhz Channel Spacing : 12.5KHz -100.00 -80.00 -60.00 -40.00 -20.00 0.00 20.00 100.001000.0010000.00100000.00 Audio Frequency in Hz dB Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9D-1 MOTOROLA INC. CARRIER SQUELCH AUDIO INPUT LEVEL vs. DEVIATION ================================================================================== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Frequency : 436.985Mhz Channel Spacing : 25 KHz 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 -20-15-10-5 0 5 101520 Audio Input Level (dB) Deviation in Hz 1000HZ 300HZ 3000HZ Li mi t Spec lim it: 5Khz Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9D-2 MOTOROLA INC. CARRIER SQUELCH AUDIO INPUT LEVEL vs. DEVIATION ================================================================================== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Frequency : 436.985Mhz Channel Spacing : 12.5KHz 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 -20-15-10-505101520 Audio Input Level (dB) Deviation in Hz 10 0 0 HZ 300HZ 3000HZ Li mi t Spec lim it: 2. 5Khz Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9E-1 Necessary Bandwidth Calculations: Employing Carson’s rule for the FM modulation, the necessary bandwidth calculations for 5 and 2.5 kHz deviation systems are as follows. i) For a 5 kHz Deviation System BW = 2(M+D) = 2(3 +5) = 2(8) = 16 kHz. Emission Designator 16K0F3E (Voice) ii) For a 2.5 kHz Deviation System BW = 2(M+D) = 2(3 +2.5) = 2(5.5) = 11 kHz. Emission Designator 11K0F3E (Voice) Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9E-1 MOTOROLA INC. OCCUPIED BANDWIDTH ( 2500 HZ AUDIO MODULATION ONLY) ================================================================================= Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi 25Khz Channel Spacing. -100. -90. -80. -70. -60. -50. -40. -30. -20. -10. 0. dB CENTER FREQUENCY(MHz):436.985 RESOLUTION BANDWIDTH(HZ):300 VIDEO BANDWIDTH(kHZ):300 SPAN(kHZ):100 SWEEP TIME(SEC):3 SCALE(DB/):10 REF LEVEL(dBm)5.8 ATTEN (dB)30 Note: Emission Mask B Motorola Inc. FCC ID : AZ489FT4826 EXHIBIT 9E-2 MOTOROLA INC. OCCUPIED BANDWIDTH ( 2500 HZ AUDIO & PL TONE MODULATION) ================================================================================== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi. 25Khz Channel Spacing -100. -90. -80. -70. -60. -50. -40. -…

Text truncated - open the document above for the full version.

MOTOROLA INCFCC ID:AZ489FT4826 EXHIBIT 9K TRANSIENT FREQUENCY BEHAVIOR ============================================================================ ====== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Power : 4W at 436.985Mhz. Channel Spacing : 12.5KHz Switch - On Condition ATN CPL OFS MTB DLY SMP DAT TIM ATN CPL OFS MTB DLY SMP DAT TIM B 31 m V -2.34 mV 10 ms -78.4 ms 4096 06/11/9 8 10:07:31 t 2 = 25ms t = on t 1= 10ms +12.5KHz -12.5KHz -6.25KHz +6.25KHz FC C Limit: +2KHz FC C Limit: -2KHz MOTOROLA INCFCC ID:AZ489FT4826 EXHIBIT 9K TRANSIENT FREQUENCY BEHAVIOR ============================================================================ ====== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Power : 4W at 436.985Mhz. Channel Spacing : 12.5KHz Switch - Off Condition ATN CPL OFS MTB DLY SMP DAT TIM ATN CPL OFS MTB DLY SMP DAT TIM B 31 m V -2.34 mV 10 ms -723.2 ms 4096 06/11/9 8 10:34:47 t = off t 3 +12.5KHz -12.5KHz -6.25KHz +6.25KHz FC C Limit: +2KHz FC C Limit: -2KHz MOTOROLA INCFCC ID:AZ489FT4826 EXHIBIT 9K TRANSIENT FREQUENCY BEHAVIOR ============================================================================ ====== Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Power : 1W at 436.985Mhz. Channel Spacing : 12.5KHz Switch - On Condition ATN CPL OFS MTB DLY SMP DAT TIM ATN CPL OFS MTB DLY SMP DAT TIM B 31 m V -2.34 mV 10 ms -78.4 ms 4096 06/11/9 8 10:15:53 t 2 = 25ms t 1= 10ms t = on +12.5KH -12.5KHz -6.25KHz +6.25KHz FC C Limit: +2KHz FC C Limit: -2KHz MOTOROLA INCFCC ID:AZ489FT4826 EXHIBIT 9K TRANSIENT FREQUENCY BEHAVIOR ============================================================================ Xmtr Type : AZ489FT4826 Log Page : --- Date : 1st. June 1998 Signature : SF Ooi Power : 1W at 436.985Mhz. Channel Spacing : 12.5KHz Switch - Off Condition ATN CPL OFS MTB DLY SMP DAT TIM ATN CPL OFS MTB DLY SMP DAT TIM B 31 m V -2.34 mV 10 ms -723.2 ms 4096 06/11/9 8 10:27:27 t = off t 3 +12.5KHz -12.5KHz -6.25KHz +6.25KHz FC C Limit: +2KHz FC C Limit: -2KHz
