MOTOROLA INC FCC ID: AZ489FT4828 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BSEE University of Miami MSECE University of Miami 2) 3 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Ramon Ponce SIGNATURE: DATE: September 08, 1998 POSITION: Senior RF Development Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Dan Marks SIGNATURE: DATE:September 08, 1998 POSITION: Engineering Manager EXHIBIT 2

MOTOROLA INC.FCC ID: AZ489FT4828 SCHEMATIC DIAGRAMS The following schematic diagrams will be similar to those that appear in the final service manual. 1.RF Board (Exhibit 1-6). 2.Vocon Board (Exhibit 7-10) Note: See Rfschem.pdf and Voconschem.pdf documents to view RF and Vocon board schematics respectively. EXHIBIT 4

MOTOROLA INC.FCC ID: AZ489FT4828 CIRCUIT DESCRIPTION A general description of the overall circuit is covered in the instruction manual. This section provides the description of circuits required by subpart 2.983 of the Commissions’ rules. Circuits not described in the manual are covered in this exhibit. The following are included: 1.Means for Carrier Frequency Generation and Stabilization4A 2.Means for Modulation Limiting and Low Pass Filter4B 3.Means for Harmonic Suppression4C 4.Means for Power Limiting4D EXHIBIT 4 MOTOROLA INC.FCC ID: AZ489FT4828 CARRIER FREQUENCY GENERATION AND STABILIZATION Circuit Description: The carrier frequency is generated using a fractional-N frequency synthesizer. This consists of a phase-locked loop circuit with a voltage controlled oscillator (VCO) whose output is fed back to a programmable divider chain. The divide ratios are determined from information stored in the memory ICs and bussed to the synthesizer via a microcomputer. The microcomputer extracts the data for the division ratios as determined by the system select switch or by loading data stored in the memory ICs. Using a time averaged algorithm a combination of divide ratios are used so that the reference frequency can be a much higher value than the value of the frequency resolution. Modulation occurs by a combination of directly coupling the modulation signal to the low pass filter in the loop and by processing the digitized analog modulation signal to alter the divider values. A temperature compensated crystal oscillator, operating at 16.8 MHz and stable to 2.0 parts per million over temperature extremes is used for the frequency reference. The 16.8 MHz reference is further divided into one of three reference frequencies which is compared to the divided down VCO output in a phase detector which in turn provides a DC steering voltage back to the VCO. A Block diagram of the VCO/Synthesizer system is shown below. EXHIBIT 4A MODULATION LIMITING AND LOW PASS FILTERING MOTOROLA INC.FCC ID: AZ489FT4828 Circuit Description: The pre-emphasis, modulation limiting and low pass filtering of this transmitter are accomplished in the Digital Signal Processor IC (U602) using software implementations of digital filters. Analog audio is digitized in the DSP Support IC (U603) and then transferred to the DSP (U602) where it is pre-emphasized and scaled. Sub-audible tones and audio frequency signaling information is generated in the DSP, scaled, and summed with audio. The combined signal is then filtered using a low pass filter. Signals are then returned to the DSP Support IC (U603) and converted to analog signals. The limited, filtered audio is then fed through digitally programmable attenuators to the modulation ports on the synthesizer module. Digital mode modulation is similar, except no pre- emphasis or summing is required. A block diagram of the limiting and low pass filtering is shown below. EXHIBIT 4B HARMONIC SUPPRESSION CIRCUIT MOTOROLA INC.FCC ID: AZ489FT4828 Circuit Description: Attenuation for harmonics is provided by a low pass filter between the Antenna Switch and the Antenna port. The filter is composed of 7 elements: 5 capacitors and 2 inductors. Circuit Diagram: EXHIBIT 4C POWER LIMITING The transmitter automatic level control (ALC) circuit consists of the following functional blocks. MOTOROLA INC.FCC ID: AZ489FT4828 AR1 Power Amplifier (PA) DC1 Directional coupler D1RF detector U1Power Control IC (PCIC) DC1 AR1 D1 To Antenna Switch Modulated RF from Synthesizer C1 R1 U1 D/A #1 Figure 1 - Transmitter ALC Block Diagram Power amplifier (PA) AR1 amplifies the modulated radio frequency (RF) signal to the rated output power level of the radio. The PA gain is adjustable by means of a control voltage signal (Vctrl) from the Power Control IC (PCIC). Increasing Vctrl increases the PA gain. Directional coupler DC1 couples a fixed fraction of the PA forward power into detector D1. The output of detector D1 is a DC voltage (Vdet) with an amplitude proportional to the PA forward power. At the PCIC (U1) signal Vdet connects to the inverting input of an operational amplifier. Internal D/A converter (D/A#1) is programmed to a reference voltage (Vref) which is proportional to the output power set point. Constants of proportionality are computed by the factory tuning procedure for each radio over the range of powers and frequencies, and stored in the radio’s internal non- volatile memory. Vref connects to the non-inverting input of the op-amp. The ALC loop is levelled when Vdet is equal to Vref. PCIC maintains Vctrl at the voltage required to level the loop. Loop transient response is determined by time constants which are set by the PCIC internal programmable resistor R1 and external capacitor C1. Thus the transmitter ALC maintains a constant power level over all radio operating conditions. Accuracy is determined by the linearity of DC1 and D1, and the settabillity of D/A#1. EXHIBIT 4D

FCC ID:AZ489FT4828 ______________________________________________________________________________ Radio Products Group 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5000 Date: September 14, 1998 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Type Acceptance of Transmitter with FCC ID: AZ489FT4828. Attention: Frank Coperich, George Tannahill. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Type Acceptance of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power of 1-5 Watt (30-37 dBm). The subject transmitter complies with Section 9.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Type Acceptance application is enclosed, contact Mike Ramnath at (954)723-5793 or Fax (954)723-4794 if you require any additional information. Sincerely, Mike Ramnath FCC Liaison EXHIBIT 13

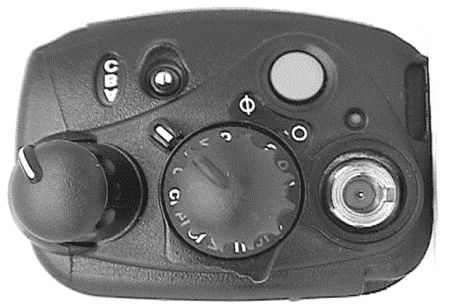

MOTOROLA INC.FCC ID: AZ489FT4828 EXTERNAL PHOTOGRAPHS The following photographs are attached. 1.Front view. 2.Back view with battery. 3.Back view (FCC Label location). 4.Side view (Right). 5.Side view (Left). 6.Top view (Controls). EXHIBIT 3 MOTOROLA INC.FCC ID: AZ489FT4828 FRONT VIEW EXHIBIT 3-1 MOTOROLA INC.FCC ID: AZ489FT4828 BACK VIEW WITH BATTERY EXHIBIT 3-2 MOTOROLA INC.FCC ID: AZ489FT4828 BACK VIEW (FCC LABEL) EXHIBIT 3-3 MOTOROLA INC.FCC ID: AZ489FT4828 SIDE VIEW (RIGHT) EXHIBIT 3-4 MOTOROLA INC.FCC ID: AZ489FT4828 SIDE VIEW (LEFT) EXHIBIT 3-5 MOTOROLA INC.FCC ID: AZ489FT4828 TOP VIEW EXHIBIT 3-6

MOTOROLA INC FCC ID: AZ489FT4828 IDENTIFICATION LABEL LOCATION See The Attached Photograph Or Sketch X Back Of Radio Back Of Radio Under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See The Attached Photograph Label Attached Below. See Attached Drawing. EXHIBIT 1 MOTOROLA INC FCC ID: AZ489FT4828 GENERAL INFORMATION 1. Production Plans -- Pursuant 2.981 (c) Quantity production is planned. II. Application References -- Pursuant 2.1061 Reference is made to the following Motorola "Application References" 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. 3. Boynton Beach Antenna Range. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. Necessary Bandwidth Computation for 8K10F1E Emission Designator The FCC Rule & Regulations Part 2, §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth sufficient to ensure that transmission of information at the rate and with the quality required for the system employed. §2.202(c) lists four methods of determining the necessary bandwidth, including the use of formulas in §2.202(g), and measurement in cases where the other methods of §2.202(c) do not apply. It is felt that while these formulas apply well to voice and many older digital modulation systems, the formulas do not apply to the high performance digital modulation employed in the system submitted for type acceptance because of difficulties determining representative values for the factors K and M. We have, therefore, used the measurements criteria of §2.202(c)(4). The value cited, 8K10, is the bandwidth that contains 99% of the total transmitted power. The 99% value was chosen because §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth. In turn, §2.202(b) defines Occupied Bandwidth as the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers radiated are each equal to 0.5% of the total mean power radiated by a given emission, i.e., contains 99% of the total transmitted power. IV. Applicable References: Reference Type Acceptance FCC ID: AZ489FT4821 EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards FCC Federal Regulations Part 47 Sec. 2.983-2.999 FCC Federal Regulations Part 90 Sec.90.210 EXHIBIT 1a

MOTOROLA INC.FCC ID: AZ489FT4828 INTERNAL PHOTOGRAPHS The following photographs are attached. 1.RF board (Top). 2.RF board (Bottom). 3.Vocon board (Top). 4.Vocon board (Bottom). EXHIBIT 9 MOTOROLA INC.FCC ID: AZ489FT4828 RF BOARD (TOP VIEW) EXHIBIT 9-1 MOTOROLA INC.FCC ID: AZ489FT4828 RF BOARD (BOTTOM VIEW) EXHIBIT 9-2 MOTOROLA INC.FCC ID: AZ489FT4828 VOCON BOARD (TOP VIEW) EXHIBIT 9-3 MOTOROLA INC.FCC ID: AZ489FT4828 VOCON BOARD (BOTTOM VIEW) EXHIBIT 9-4

MOTOROLA INC FCC ID: AZ489FT4828 DESCRIPTION I.Transmitter Technical Characteristics -- Pursuant 2.983 (d) A. RF Power Output1 - 5 Watt (Variable) B. Frequency Range450-520 MHz C. Frequency Stability 0.00020 % D. Emissions 16K0F3E,11K0F3E,8K10F1E,8K10F1D, 20K0F1E E. Spurious Emissions - 75 dBc F. DC Voltage and Current into 7.5 Volts the final RF amplifier stage/stages 2.0Amps II.Transmitter Application : This transmitter is primarily intended for use as a hand-held portable radio. The transmitter is characterized by the following features, options and accessories. A. Power Supply Available Ni-Cad Battery x , Mercury Battery , Alkaline Battery ,AC , Lead Acid Battery , Ni-MH Battery x ,Li-Ion x B. Antenna Available 1. Helical x , Telescopic , Whip x , Dipole Dribble External , External . C. Squelch Types Available 1. Carrier Squelch x . 2. Tone "Private Line" x . 3. Digital "Private Line" x D. Microphone - Control 1. Handset/Palm Microphone x 2..Wireline control x . E. Maximum Transmit Channel Capability 250 . F. Housing The transmitter will be housed in the housing shown in the accompanying photographs. G. Other Options 1. Single Tone Encoder x 2. Multiple Single Tone Encoder 3. Touch Code Encoder 4. Unit ID Encoder x 5. EMS Telemetry Encoder 6. Time out Timer x 7. Voice Encryption x 8. Digital Signaling x ______ 9. Sel-Call Decode x ______ 10. Trunking x 11. Conventional x 12. Digital Voice x ______ EXHIBIT 12

MOTOROLA INC.FCC ID: AZ489FT4828 Function of RF Semiconductors & Other Active Devices Schematic DesignatorDeviceCircuit KeyMotorolaTypeApplicationSource U1057W50ICRF AmpMotorola U3057W52ICMixerMotorola Q4018N55ICIF AmpPhilips Y20163A22ModuleRef. OscillatorMotorola U20363A27ICSynthesizerMotorola U20250U54ICVCO/BufferMotorola U10263A89ICRF PA DriverMotorola Q10485Y59ModuleRFPAMotorola U10465B01ICPower ControlMotorola U10357W85ICA/D-D/AMotorola COMMENTS: The Motorola designators are special code numbers for active devices used in Motorola radios. These devices are either identical or derived from the device family listed under Source, by the manufacturer or are proprietary to Motorola. Service people do not have access to any cross-references or given any information on proprietary devices and are prevented from making unauthorized substitution. EXHIBIT 10-1 MOTOROLA INC.FCC ID: AZ489FT4828 TUNE-UP PROCEDURE The following Tune-up procedure is similar to what will appear in the final service manual enclosed. A universal side connector is required for the following tuning procedure. A list of the universal side connector pins is shown below. Universal Side Connector Pins LHDATA/BOOT_DOUT/ KEYFAIL* SB9600_BUSY RS232_DOUT/BOOT_DIN 1 13 OPT_SEL1 OPT_SEL2 EXT_MIC RTSBIN* RS232_DIN CTSOUT* OPTB+/BOOT_SEL/VPP 2 12 EXT_SPKR GND SPKR_COM Transmitter Alignment Procedure STEPPROCEDURE 1. Connect radio to Radio Interface Box (RIB box) using radio accessory connector and connect RIB box to computer. 2. Connect radio antenna port to Modulation Analyzer. 3. Power up radio and all equipment. 4. From the Main Menu in RSS (Radio Service Software) enter the Transmit Alignment Menu by pressing F2-F2. The following alignments may be adjusted by pressing the relevant function key. 5. TX Power (F3)- a.Key radio by pressing F6. b.Adjust TX power using the up-down arrows. c.De-Key the radio by pressing F6. d.Save new value to the codeplug by pressing F8. e. Repeat for other power levels and channels. EXHIBIT 10-2 f.Proceed to Reference Oscillator warp by pressing F10-F2. MOTOROLA INC.FCC ID: AZ489FT4828 6. Reference Oscillator (F2)- a.Key radio by pressing F6. b.Adjust Reference Oscillator frequency to the selected mode customer frequency, as indicated on the customer information sheet, to within +/-100 Hz. The frequency counter must use a frequency reference known to have a frequency stability of 0.10 PPM or better. c.De-Key the radio by pressing F6. d.Save new value to the codeplug by pressing F8. e.Proceed to the TX Deviation Balance Menu by pressing F10-F4. 7. TX Deviation Balance (F4)- a.Key radio by pressing F4. b.Measure the deviation and record the value. c.De-Key the radio by pressing F4. d.Key radio by pressing F6. e.Use the up-down arrows to adjust the deviation to within +/-2% of the value recorded in Step 7.b. above. f.Save new values to the codeplug by pressing F8. g.Repeat for other channels. Proceed to TX Deviation Limit Menu by pressing F10-F5. 8. TX Deviation Limit (F5)- a.Key radio by pressing F6. b.Adjust the deviation using the up-down arrows to a value between 2.750 and 2.820 kHz. c.Save new values to the codeplug by pressing F8. d. Repeat for other channels. EXHIBIT 10-3

MOTOROLA INC FCC ID: AZ489FT4828 RF EXPOSURE INFORMATION: In accordance with 47 CFR 2.1093 (c ), this transmitter has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093 (d). EXHIBIT 11
