1 English CONTENTS Computer Software Copyrights . . . . . . . . . . 3 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Safety and General Information . . . . . . . . . 5 RF Operational Characteristics . . . . . . . 5Exposure To Radio Frequency Energy . 5 Portable Radio Operation and EME Exposure . . . . . . . . . . . . . . . . . . . 6 Antenna Care . . . . . . . . . . . . . . . . . . . . . 6Two-Way Radio Operation. . . . . . . . . . . 6Body-Worn Operation . . . . . . . . . . . . . . 6Data Operation. . . . . . . . . . . . . . . . . . . . 6Approved Accessories . . . . . . . . . . . . . . 7 Electromagnetic Interference/Compatibility . . . . . . . . . . . . . . . . . . . . . . . . 7Safety and General . . . . . . . . . . . . . . . . . . . 8Operational Warnings . . . . . . . . . . . . . . . . . 8Operational Cautions . . . . . . . . . . . . . . . . . 9Intrinsically Safe Radio Information. . . . . . 10 FMRC Approved Equipment . . . . . . . . 10Repair of FMRC Approved Products . . 11 Radio Overview . . . . . . . . . . . . . . . . . . . . 15 Parts of the Radio . . . . . . . . . . . . . . . . . . . 15 On/Off/Volume Knob . . . . . . . . . . . . . . 16Channel Selector Knob . . . . . . . . . . . . 16Push-to-Talk (PTT) Button . . . . . . . . . 16Microphone . . . . . . . . . . . . . . . . . . . . . 16LED Indicator. . . . . . . . . . . . . . . . . . . . 16Programmable Buttons . . . . . . . . . . . . 16 Indicator Tones. . . . . . . . . . . . . . . . . . . . . 18Audio Indicators for ProgrammableButtons . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Improved Audio Features . . . . . . . . . . . . . 19 Low Level Expansion (LLE). . . . . . . . . 19Companding . . . . . . . . . . . . . . . . . . . . 19 Getting Started . . . . . . . . . . . . . . . . . . . . 21 Battery Information . . . . . . . . . . . . . . . . . . 21 Battery Care and Tips . . . . . . . . . . . . . 21Charging your Battery . . . . . . . . . . . . . 22Battery Status . . . . . . . . . . . . . . . . . . . 22 Accessory Information . . . . . . . . . . . . . . . 24 Attaching the Battery . . . . . . . . . . . . . . 24Removing the Battery . . . . . . . . . . . . . 24Attaching the Antenna . . . . . . . . . . . . . 25Removing the Antenna . . . . . . . . . . . . 25Attaching the Side Connector Cover . . 26 Turning The Radio On or Off . . . . . . . . . . 26Adjusting the Radio’s Volume. . . . . . . . . . 27Selecting a Radio Channel . . . . . . . . . . . . 27 CONTENTS User Guide Guide de l ́usager *6881093C98* 68P81093C98-O Motorola, the stylized M logo are trademarks of Motorola, Inc.® Reg. U.S. Patent & Trademark Office. All other product orservice names are the property of their respective owners.© 2001 Motorola, Inc. All rights reserved. Printed in U.S.A.Motorola, le logo stylisé M sont des marques de commerce deMotorola, Inc. MD Marque déposée. U.S. Patent & TrademarkOffice. Tous les autres noms de produits ou servicesappartiennent à leurs propriétaires respectifs.© 2001 Motorola, Inc. Tous droits réservés. Imprimé aux États-Unis. EX500 2 English CONTENTS Sending a Call . . . . . . . . . . . . . . . . . . . . . 27Receiving a Call . . . . . . . . . . . . . . . . . . . . 27 Radio Call Information . . . . . . . . . . . . . . 29 Receiving a Selective Call . . . . . . . . . . . . 29Receiving a Call Alert™ Page . . . . . . . . . 29Emergency Alarms . . . . . . . . . . . . . . . . . . 29Talkaround . . . . . . . . . . . . . . . . . . . . . . . . 30Squelch. . . . . . . . . . . . . . . . . . . . . . . . . . . 30Power Level . . . . . . . . . . . . . . . . . . . . . . . 31 Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Starting or Stopping a Scan Operation . . . 33Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . 33Deleting a Nuisance Channel . . . . . . . . . . 33Adding a Deleted Nuisance Channel back to the Scan List . . . . . . . . . . . . . . . . . . . . . . . 34Scan Channel Discovery Alert . . . . . . . . . 34Scan List Member Priority . . . . . . . . . . . . 34 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 37 Limited Warranty . . . . . . . . . . . . . . . . . . . 37 Accessories . . . . . . . . . . . . . . . . . . . . . . 41 Carry Cases . . . . . . . . . . . . . . . . . . . . . . . 41Remote Speaker Microphones . . . . . . . . . 41Earpieces . . . . . . . . . . . . . . . . . . . . . . . . . 41 Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 41Chargers . . . . . . . . . . . . . . . . . . . . . . . . . 41Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 42 3 English CONTENTS COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. 4 English CONTENTS NOTES 5 English SAFETY SAFETY AND GENERAL INFORMATION IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATIONREAD THIS INFORMATION BEFORE USING YOUR MOTOROLA TWO-WAY RADIO The information provided in this document supersedes the general safety information contained in user guides published prior to October 2000. For information regarding radio use in a hazardous atmosphere refer to the Factory Mutual (FM) ma…

Text truncated - open the document above for the full version.

MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 1 of 1 EXHIBIT 2 FCC Part 90 Certification Certification of Data CERTIFICATION OF DATA 1.1 Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: I have received a Bachelors of Science in Electrical Engineering from the University of Illinois at Chicago in May of 1997. Name: Miguel Paz Signature: Miguel Paz (signed) Date: May 16, 2001 Position: Product Development Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: Name: Mohammed Azanor Signature: Mohammed Azanor (Signed) Date: May 16, 2001 Position: Development Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: Name: Johnathan Kirby Monroe Signature: John K. Munroe (signed) Date: May 16, 2001 Position: EMC Engineer

MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 1 of 2 EXHIBIT 4 FCC Part 90 Certification Circuit Description 1) Means for Frequency Stabilization Frequency stability is maintained by a referenced oscillator/programmable temperature compensation circuit located in the frequency synthesizer IC U201. The oscillator is a Colpitts design with an amplifier in the IC. The 68.8 MHz crystal FL201. varactor and feedback capacitors are external circuitry. A control voltage applied to the varactor via the programmable compensation circuit maintains the frequency stability to within +/-2.5ppm over temperature. Frequency tuning, also from the programmable compensation circuit, has 128 steps of resolution. 2) Means for Limiting Modulation Modulation limiting is accomplished within the custom IC, U404. The limiting action itself occurs at the rails (i.e., 3.3V and ground). Using an opamp with feedback, very hard limiting is obtained. The limited modulation signal is then input through a low-pass splatter filter then to an electronic attenuator within U404 in order to adjust for variations in modulation sensitivities of the frequency synthesizer. The electronic attenuator is controlled by the radio's micro-processor, U409. To keep the deviation constant over the RF frequency range & channel bandwidth, the microcomputer adds the proper correction factor to the attenuator. 3) Means for Attenuation of Higher Audio Frequencies The output of the limiter is applied to a low-pass splatter filter. The filter is a fifth-order switched capacitor filter with the roll off corner located at 3000 Hz. The output of the low- pass filter is input to the electronic attenuator before routing to the modulator. 4) Means for Attenuation of Spurious Emissions The harmonic filter consists of C104, L102, C103, L101 and C102. The design of the harmonic filter for UHF is that of a modified Zolotarev design. It has been optimized for efficiency of the power module. This type of filter has the advantage that it can give a greater attenuation in the stop-band for a given ripple level. The harmonic filter insertion loss is typically less than 1.2dB. . 5) Means for Limiting Output Power The transmitter uses the Power Control IC (PCIC), U102 to regulate the power output of the radio. The current to the final stage of the power module is supplied through R101, which provides a voltage proportional to the current drain. This voltage is then fedback to the Automatic Level Control (ALC) within the PCIC to regulate the output power of the transmitter. The PCIC has internal digital to analog converters (DACs) which provide the reference voltage of the control loop. The reference voltage level is programmable through the SPI line of the PCIC. There are resistors and integrators within the PCIC, and external capacitors (C133, C134 and C135) in controlling the transmitter rising and falling time. These are necessary in reducing the power splatter into adjacent channels. CR105 and its associated components are part of the temperature cut back circuitry. It senses the printed circuit board temperature around the transmitter circuits and output a DC voltage to the PCIC. If the DC voltage produced exceeds the set threshold in the PCIC, the transmitter output power will be reduced so as to reduce the transmitter temperature MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 2 of 2 EXHIBIT 4 FCC Part 90 Certification Circuit Description 6) Means Modulation Techniques. The transmitter is capable of the following types of modulation: i) Voice 300Hz to 3KHz ii) Modulation of PL (Private Line) - Direct FM tone modulation of 67 Hz to 250.3 Hz at 15% of full system deviation. iii) Modulation of DPL (Digital Private Line) - Direct FM modulation at 134 BPS at 15% of full system deviation. iv) Modulation of DTMF tones at nominally 60% of full system deviation. Direct FM of PL or DPL is generated by a 6-bit D/A converter contained within U404. The frequency-determining clock signal is generated by the radio microcomputer. The modulation signal is processed through a five pole switched capacitor filter. The output of the filter is input to the electronic attenuator circuit. The microcomputer adjusts the attenuator to compensate for modulation sensitivity variations of the synthesizer & channel bandwidth ensuring 15% of full system deviation for PL and DPL. DTMF tones are generated by the audio processing IC, U404. The tones are routed and processing IC, U404. The tones are routed and processed in the same manner as the voice signals.

FCC ID: AZ489FT4845 Global Technology Development Group 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5000 Date: May 17, 2001 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4845. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits its’ application for Certification of the subject transmitter. This transmitter is primarily intended for use in a portable radio application with capabilities for clear communications with a transmit power of 1.0—4.6 Watt. The Power is variable 22% of the value listed. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Certification application. Contact me at (954) 723-5793 if you require any additional information. Sincerely, Mike Ramnath(signed) FCC Liaison Email: [email protected] Fax (954) 723-4794

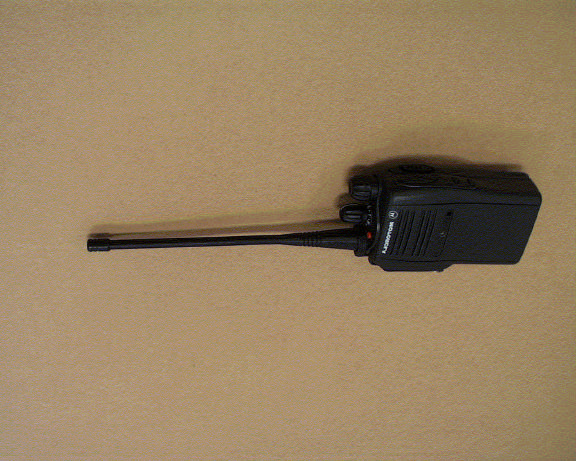

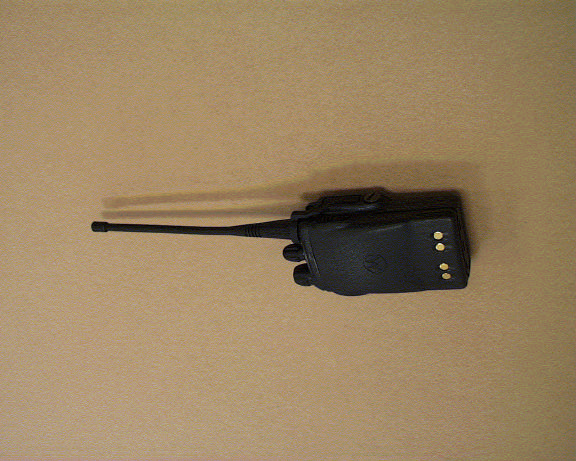

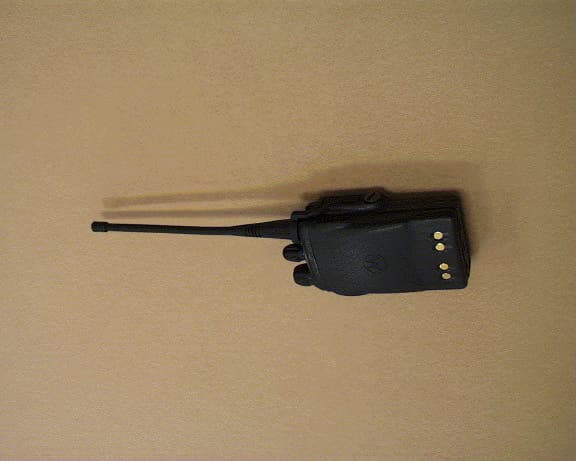

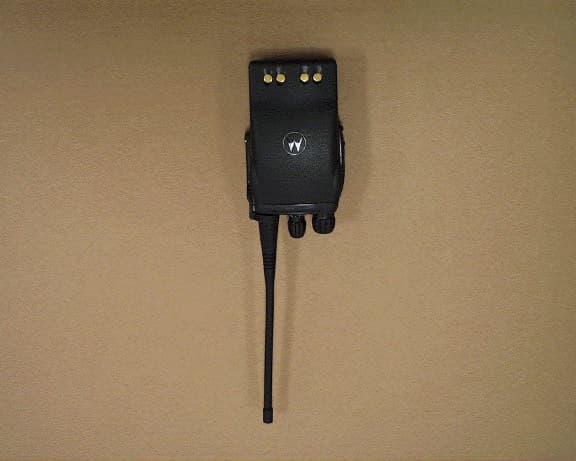

MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 1 of 4 EXHIBIT 3 FCC Part 90 Certification External Photographs EXHIBIT 3 External Photographs 1. Back Side of Radio 2. Back Side 3D 3. Front of Radio 3D 4. Radio without Antenna, Top View Figure 1. Back Side of Radio MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 2 of 4 EXHIBIT 3 FCC Part 90 Certification External Photographs Figure 2. Back Side 3D MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 3 of 4 EXHIBIT 3 FCC Part 90 Certification External Photographs Figure 3. Front of Radio 3D MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 4 of 4 EXHIBIT 3 FCC Part 90 Certification External Photographs Figure 4. Radio without antenna, top view.

MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 1 of 3 EXHIBIT 1 FCC Part 90 Certification Identification Label & General Information LIST OF EXHIBITS DESCRIPTION EXHIBIT FCC REFERENCE I Identification label information & 1A 2.1033 (c) (11) General Information 2.1031 & 2.1061 . 1. Production Plans 1B 2. Application References 3. Data Submittal Procedures ll. Certification Of Data 2 2.907 III External Photographs 3 2.1033 (c) (12) IV Block Diagrams or Circuit Descriptions 4 2.1033 (c) 1. Frequency Stabilization 2. Modulation Limiting 3. Attenuation Of Higher Audio Frequencies 4. Attenuation Of Spurious Emissions 5. Limiting Output Power 6. Modulation Techniques V Schematic Diagrams 5 2.1033 (c) (10) VI Test Report 6 1. Data Index 6 Test report 2. RF Output Data 6A 2.1046 3. Modulation Characteristics 2.1047 a) Audio Response 6B Test Report b) Low Pass Filter Response 6C c) Modulation Limiting 6D 4. Occupied Bandwidth 6E 2.1049 5. Conducted Spurious Emissions 6F 2.1051 6. Radiated Spurious Emissions 6G 2.1053 7. Frequency Stability (Temp. & Supply Voltage) 6H & 6I 2.1055 8. Transient Frequency Behavior 6 J 90.214 VII Test Set-Up Procedures 7 a) Test Equipment Used b) Method Of Measurements c) Emission Designator Information VIII Instruction Manual 8 2.1033 (c) (3) IX Internal Photographs 9 2.1033 (c) (12) X Parts List & Tune-Up Procedures 10A & 10B 2.1033 (c) (9) XI RF Exposure Information 11 2.1093 (c) and (d) XII Operation Description 12 2.1033(c) 10 a) Technical Characteristics 2.1033 (c) b) Application XIII Cover Letter 13 2.1033(c) 10 MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 2 of 3 EXHIBIT 1 FCC Part 90 Certification Identification Label & General Information Location: See attached photograph Type: The label is a paper polyester firm laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 inches/oz. Markings: Label attached below EXHIBIT 1A: FCC ID LABEL FORMAT MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 3 of 3 EXHIBIT 1 FCC Part 90 Certification Identification Label & General Information GENERAL INFORMATION I Production Plans – Pursuant 2.1033 Quantity production is planned II Application References – Pursuant 2.1061 Application is made to the following Motorola “Application References” 1. Portable Products and their application 2. Portable Products Transmitter Modulation Methods 3. Motorola Plantation Antenna Range III Data submittal procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules.

MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 1 of 1 EXHIBIT 12 FCC Part 90 Certification Operational Data OPERATIONAL DESCRIPTION 1. Transmitter Technical Characteristics -- Pursuant 2.983 (d) a. RF Power Out: 1-- 4.6 Watt (Variable Power) b. Transmit Frequency Range: 450-520 MHz c. Receive Frequency Range: 450-520 MHz d. Frequency Stability: 2.5 PPM e. Emissions 11K0F3E, 16K0F3E f. DC Voltage and Current into 7.5 VDC the final RF amplifier stage/stages 1.46 Amps 2. Transmitter Application This transmitter is primarily intended for use in a portable environment. The following features, options, and accessories characterize the Transmitter: a. Power Supply Available: i. LiIon Rechargeable Low Capacity Battery ii. LiIon Rechargeable High Capacity Battery iii. NiMH Rechargeable Battery b. Antenna Available: i. Helical Antenna ii. Whip antenna c. Squelch Type Available: i. Carrier Squelch ii. Tone “Private Line” iii. Digital “Private Line” iv. DTMF v. MDC vi. Quick Call II d. Microphone - Control: I. Handset/Palm Microphone e. Maximum Transmit Channel Capability: i. 16 Channel f. Housing: i. The transmitter will be housed in the housing shown in the accompanying photographs g. Other Options: i. Time out Timer

MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 1 of 3 EXHIBIT 10A FCC Part 90 Certification Power Tuning Procedure 1.1 EXHIBIT 10A 1.2 Transmit Power Tuning Power tuning is performed using Motorola Professional Radio Tuning Software available to Motorola Technical Field Representatives. There are 2 variations of Transmit Power Tuning; they are High Power and Low Power Tuning. Note: When checking the RF power output of the radio with a test set, always use a pad of at least 30dB attached to the radio end of the RF cable. This will avoid an RF mismatch and ensure a stable RF reading that will not change with varying lengths of connecting cable. Transmit High Power level for Professional portable radios RF Band (MHz)High Power (W) VHF (136-174)5.2 - 5.7 UHF Band 1 (403-470)4.2 - 4.6 UHF Band 2 (450-527)4.2 - 4.5 To perform Transmit High Power Tuning, do the following:- 1. Under the Tx Align menu, select Transmit Power, then select High. 2. Press PTT Toggle. This will key the radio up at F1. 3. Adjust the high power level to be as defined by country power level specifications by moving the slider/spin control or keying in values in the edit control (press ENTER to confirm your selection after typing in the softpot value). 4. Press PTT Toggle to dekey the radio, go to the next frequency point by selecting the slider, typing in the edit control box (press ENTER to confirm selection after typing in the softpot value) or toggling the softpot value using the spin control. 5. Press PTT Toggle again to key up the radio at the selected frequency point. 6. Repeat steps 3-5 for (F2-F7). 7. Press Program to store the softpot values into the radio’s codeplug. 8. Exit the Transmit High Power function. 9. If the radio uses only high power channels, proceed to adjust modulation. If low power channels are used, perform Transmit Low Power Tuning as defined below. MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 2 of 3 EXHIBIT 10A FCC Part 90 Certification Power Tuning Procedure Transmit Low Power level for Professional portable radios RF Band (MHz)Low Power (W) VHF (136-174)1.1 - 1.3 UHF Band 1 (403-470)1.1 - 1.45 UHF Band 2 (450-527)1.1 - 1.45 To perform Transmit Low Power Tuning, do the following:- 1. Under the Tx Align menu, select Transmit Power, then select Low. 2. Press PTT Toggle. This will key the radio up at F1. 3.Adjust the power level to be as defined by country power level specifications by moving the slider/spin control or keying in values in the edit control (press ENTER to confirm your selection after typing in the softpot value). 4.Press PTT Toggle to dekey the radio, go to the next frequency point by selecting the slider, typing in the edit control box (press ENTER to confirm your selection) or toggling the softpot value using the spin control. 5. Press PTT Toggle again to key up the radio at the selected frequency point. 6. Repeat steps 3-5 for (F2-F7). 7. Press Program to store the softpot values into the radio’s codeplug. 8. Exit the Transmit Low Power function 1..1 PA Bias Tuning IMPORTANT: Tuning must be performed for both High and Low power for UHF and VHF radios. 1. Ensure that the radio’s antenna output is terminated in a 50 Ohm load. This is to prevent self destruction of the PA. 2. Under Tx Align, select PA Bias, select High Power. 3. Measure/read the dc current drawn by the radio (specifications will vary from radio to radio). Call this X. This value should typically range from 70-100mA or 0.07-0.1A. 4. Press Toggle Voltage to enable the PA control voltage edit box/spin control. 5. Increase the Voltage softpot value and measure/read the current from the meter. Call the new value Y. MOTOROLA INC. FCC ID: AZ489FT4845 Applicant: Motorola Inc. Page 3 of 3 EXHIBIT 10A FCC Part 90 Certification Power Tuning Procedure 6. Increase Y until Y - X is within the range given for PA current in table below. 7. Press Toggle Voltage again to disable the PA control voltage edit box/spin control. 8. Press Toggle Bias 1 in order to enable the PA Bias softpot. 9. Increase the softpot value to obtain Z until Z - Y is within the range for Bias Current as indicated in the table below. 10. Press Toggle Bias 1 again to disable the PA Bias softpot. 11. Program the Bias softpot into the radio’s codeplug by pressing Program. 12. Exit the PA Bias High Power function. 13. Under Tx Align, select PA Bias, Low Power. 14. Repeat steps 3-11. 15. Exit the PA Bias Low Power function. UHF B2 PA Current Bias Current 450-527 30mA-45mA 600mA-700mA

4-52 UHF Band 2, Circuit Board/Schematic Diagrams and Parts List C4242311049A5910UF C4262113743L09470 pF C427 2113743L09 470 pF C4282113743M240.1uF C429 2113743M24 0.1uF C4302113928N01 0.1uF C431 2113743L09 470 pF C4332113743L410.01uF C435 2113743M24 0.1uF C4402113743G264.7uF C441 2113743L09 470 pF C4422113743E2010uF C443 2113928N01 0.1uF C4442113743L09470 pF C445 2113743L09 470 pF C4472113928N010.1uF C448 2113928N01 0.1uF C4492113743L09470 pF C451 2113743M08 0.022uF C4522113743B291.00 uF C453 2113743L09 470 pF C4562113743L09470 pF C471 2113743L09 470 pF C4722113743L09470 pF C473 2113743L09 470 pF C4752113743H1410.0uF C476 2113928D08 10uF C4792113928N01 0.1uF C480 2113928D08 10uF C4812113928N01 0.1uF C490 2113743L09 470 pF C4912113743L09470 pF C492 2113743L09 470 pF C4932113743L09470 pF C494 2113743L09 470 pF C4952113743L09470 pF C496 2113743L09 470 pF C4972113743L09470 pF C502 2311049A05 0.47uF C5032113743N50100pF C505 2113743N50 100pF C5112113743N50100pF C512 2113743N50 100pF C5132113743N50100pF C514 2113743N50 100pF C5202113743L410.01uF C521 2113743L41 0.01uF C5222113743L410.01uF C523 2113743L41 0.01uF C5252113743N50100pF Circuit Ref Motorola Part No. Description C526 2113743N50 100pF C5272113743N50100pF C528 2113743N50 100pF C5292113743N50100pF C530 2113743N50 100pF C5312113743N50100pF C532 2113743N50 100pF C5332113743N50100pF C534 2113743N50 100pF C5352113743N50100pF C536 2113743N50 100pF C5372113743N50100pF C538 2113743N50 100pF C5392113743N50100pF C540 2113743N50 100pF C5412113743N50100pF C542 2113743N50 100pF C5432113743N50100pF C544 2113743N50 100pF C5452113743N50100pF C546 2113743N50 100pF C5472113743N50100pF C548 2113743N50 100pF C5492113743N50100pF C550 2113743N50 100pF C5512113743N50100pF C552 2113743N50 100pF C5532113743N50100pF C555 2113743N50 100pF C7012113743L09 470 pF C702 2113743L09 470 pF C7032113743L09 470 pF C704 2113743L09 470 pF C7052113743L09 470 pF C706 2113743L09 470 pF C7072113743L09 470 pF C708 2113743L09 470 pF C7092113743L09 470 pF C710 2113743L09 470 pF C7112113743L09 470 pF C712 2113743L09 470 pF C7132113743L09 470 pF C714 2113743L09 470 pF C7152113743L09 470 pF C716 2113743L09 470 pF C7172113743L09 470 pF C718 2113743L09 470 pF C7212113743L09 470 pF C722 2113743L09 470 pF C7232113743L09 470 pF C724 2113743L09 470 pF Circuit Ref Motorola Part No. Description C7262113743L09470 pF C727 2113743L09 470 pF C7282113743L09470 pF C729 2113743L09 470 pF C7302113743L09470 pF C731 2113743L09 470 pF CR1014880973Z02Pin Diode CR102 4802245J41 Pin Diode CR1055185963A15Temperature Sense CR201 4802233J09 Triple Diode CR2034862824C03Varactor CR241 4805649Q13 Dual Varactor CR2424862824C01Varactor CR243 4862824C01 Varactor CR2514862824C01Varactor CR301 4862824C01 Varactor CR3024862824C01Varactor CR303 4880154K03 Dual Common Anode-Cath- ode CR3044862824C01Varactor CR305 4862824C01 Varactor CR3064802245J42Ring Quad Diode CR308 4802245J41 Pin Diode CR3104862824C01Varactor CR411 4802245J47 Schottky Diode CR4124802245J62Schottky Diode CR413 4802245J62 Schottky Diode CR4404813833C02Dual Diode Common Cathode CR501 4880107R01 Rectifier CR5034805729G49Led Red/Yel E101 2484657R01 Ferrite Bead F5016580542Z01FUSE 3A FL201 4805875Z04 16.8Mhz Xtal FL3014802245J43Xtal Filter 45.1 Mhz H101 2680499Z01 Heat Spreader J1010985613Z01JACK,RF J102 0280519Z02 NUT, ANTENNA J2000905505Y0420 PINS CONNECTOR J400 0902042P03 40 Pins Connector J4030909059E0420 Pins Connector L101 2460591B28 13.37nH L1022460591B2813.37nH L104 2460591B48 15.22nH L1052462587N22390 nH L106 2460591A19 8.71nH L1072479990G0133.47nH L108 2479990A01 4.22nH L1122462587N4212 nH L113 2413926H09 5.6nH L1142462587N4212nH L115 2462587N22 391 nH Circuit Ref Motorola Part No. Description L1162479990C0216.28nH L117 2409154M17 22.0nH L1602413926H1415.0nH L201 2462587Q20 2.2uH L2022462587Q20 2.2uH L203 2462587Q20 2.2uH L2322462587P2512uH L241 2462587V41 390 nH L2422462587V26 22 nH L243 2460593C03 Teflon Resonator L2512462587V41390 nH L253 2460593C03 Teflon Resonator L2612462587V2939 nH L271 2462587V27 27 nH L2732462587V2518 nH L281 2462587V41 390 nH L2822462587V41 393 nH L301 2479990B01 11.03nH L3022479990B0111.03nH L303 2462587V26 23 nH L3042462587V37180 nH L305 2462587V23 12 nH L3062479990B0111.03nH L307 2479990B01 11.03nH L3092479990C0216.28nH L310 2462587V36 150nH L3112462587N65750 nH L314 2462587N72 2.2 uH L3252480646Z202.20uH L330 2462587N64 680 nH L3312480646Z202.20uH L332 2462587N53 100 nH L3402462587V41394 nH L400 2462587Q42 390NH L4012462587Q42390NH L410 2462587Q42 390NH L4112462587Q42390NH L505 2462587Q42 390nH P1003905643V01Gnd Contact Finger PB501 4070354A01 Tactile, Pushbutton PB5024070354A01Tactile, Pushbutton PB504 4070354A01 Tactile, Pushbutton PB5054070354A01Tactile, Pushbutton PCB 6404104G02 UHFB2 PCB PANEL PCB RF8404102G02UHFB2 RF PCB PCB Ctrl8404051G07 UHFB2 Controller PCB Q1104813828A09RF Power FET Q11 1 4802245J50 Dual NPN/PNP Q2104802245J50Dual NPN/PNP Q241 4805218N63 NPN Q2604802245J50Dual NPN/PNP Circuit Ref Motorola Part No. Description UHF Band 2, Circuit Board/Schematic Diagrams and Parts List 4-53 * Motorola Depot Servicing only Q261 4802245J50 Dual NPN/PNP Q301 4802245J44 NPN Q302 4802245J44 NPN Q315 4880214G02 NPN Q320 4805218N63 NPN Q400 4809579E18 MOSFET P-CHAN Q403 4813824A17 TSTR MMBT3906 Q405 4802245J54 Dual NPN Q410 4802245J54 Dual NPN Q417 4802245J50 Dual NPN/PNP Q502 5180159R01 Dual NPN Q505 4880214G02 NPN R101 0662057A34 240 R102 0680539Z01 POWER METAL STRIP RESISTORS R104 0662057N15 47K R106 0662057M26 10 R108 0662057M92 5.6K R109 0662057N30 200K R110 0662057M61 300 R112 0662057M61 300 R120 0662057N14 43K R130 0662057M98 10K R131 0662057N05 18K R132 0662057N33 270K R136 0662057N47 1M R161 0662057M57 200 R170 0662057A34 240 R171 0662057N14 43K R172 0662057A32 200 R173 0662057N29 180K R175 0662057B59 3 R176 0662057B59 3 R191 0662057C01 0 R201 0662057N21 82K R202 0662057N23 100K R204 0662057N15 47K R231 0662057M52 120 R232 0662057M69 620 R233 0662057M68 560 R241 0662057M32 18 R242 0662057M52 120 R243 06…

Text truncated - open the document above for the full version.

Form SAR-Rpt-B Page 1 of 26 Certificate Number 1449-02 ELECTROMAGNETIC EXPOSURE (EME) TESTING LABORATORY 8000 West Sunrise Blvd. Fort-Lauderdale, Florida S.A.R. TEST REPORT FCC ID: AZ489FT4845 PMUE1701A May 11, 2001 Tested and Prepared By: Stephen C. Whalen Sr. EME Engineer Reviewed and Approved By: Ken Enger Sr. Resource Manager Product Safety and EME Lab Director Form SAR-Rpt-B Page 2 of 26 TABLE OF CONTENTS 1.0 Introduction 2.0 Reference Standards and Guidelines 3.0 Description of Test Sample 3.1 Test Signal 3.2 Test Output Power 4.0 Description of Test Equipment 4.1 Description of SAR Measurement System 4.2 Description of Phantom 4.2.1 Flat Body Phantom 4.3 Simulated Tissue Properties 4.3.1 Type of Simulated Tissue 4.3.2 Simulated Tissue Composition 5.0 Description of Test Procedure 5.1 Description of Test Positions 5.2 Probe Scan Procedures 6.0 Measurement Uncertainty 7.0 SAR Test Results 8.0 Conclusion Form SAR-Rpt-B Page 3 of 26 TABLE OF CONTENTS (Cont.) Appendix A: Data Results Appendix B: Dipole Validation Data Result Appendix C: Measurement Probe Calibration Certificate Appendix D: Illustrations of Body-worn Accessories REVISION HISTORY Date Revision Comments 11 May 2001 O Original release Form SAR-Rpt-B Page 4 of 26 1.0 Introduction This report details the test setup, test equipment, and test results of the Specific Absorption Rate (SAR) measurement performed at CGISS EME laboratory for the Portable Radio Product, model number PMUE1701A (FCC ID: AZ489FT4845). 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and international standards and guidelines. • United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Editi…
