AZ489FT4857XTS 5000 Low Power Portable Radio

ASTRO ® XTS ™ 5000 Digital Portable Radio, Model III Quick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupati onal use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81095C98) to ensure compliance with RF energy exposure limits. Write your radio’s programmed features on the dotted lines. Radio On/OffZones/ChannelsReceive/TransmitSend Emergency Alarm Send Emergency CallSend Silent Emergency Alarm Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n 16-Position Select Knob _ _ _ _ _ _ _ Speaker/Mic Top Button _ _ _ _ _ _ _ Concentric Switch_ _ _ _ _ _ Display Keypad Menu Select ButtonsApp Button (for future use) Top Side Button_ _ _ _ _ _ _On/Off/Volume Knob Side Button 1_ _ _ _ _ _ _Side Button 2_ _ _ _ _ _ _ PTT Button 3-Position Switch _ _ _ _ _ _ _ 4-Way Navigation ButtonHome Button 1On - On/Off/Volume knob clockwise. 2Off - On/Off/Volume knob counterclockwise. 1 Zone - Zone switch to desired zone. 2 Channel - Channel switch to desired channel. 1 Radio on and select zone/channel. 2 Listen for a transmission. - or -Press and hold Volume Set button. - or -Press Monitor button and listen for activity. 3 Adjust volume, if necessary. 4Press PTT to transmit; release to receive. Radio on and press Emergency button. Display shows current zone/channel, andEMERGENCY . Red LED lights; you hear short, medium-pitched tone. Note: To exit emergency at any time, press and hold Emergency button. When acknowledgment is received, you hear four beeps; alarm ends; radio exits emer-gency. 1 Radio on and press Emergency button. Note: To exit emergency at any time, press and hold Emergency button. 2 Press and hold PTT . Announce your emergency into the microphone. 3 Release PTT to end call. 4 Press and hold Emergency button to exit emergency. 1 Radio on and press Emergency button. Display does not change; you see no LED; you hear no tone. Note: To exit emergency at any time, press and hold Emergency button. 2 Silent emergency continues until you: • Press and hold Emergency button to exit emergency state. - or - • Press and release PTT to exit silent emergency and enter regular emergency (alarm, call, or alarm with call). Display Status Symbols Menu Entries (Use With Menu Navigation) m Receiving an individual call p The radio is in the view or program mode; On Steady = view mode; Flashing = program mode s Received signal strength for the current site (trunking only). The more stripes in the symbol, the stronger the signal. b Flashes when the battery is low. r You are talking directly to another radio or through a repeater; On = direct; Off = repeater C This channel is being monitored. c Your radio is in secure operation; On = secure operation; Off = clear operation; Flashing = receiving an encrypted voice call T The radio is scanning a scan list S Priority 1 Channel during scan S Priority 2 Channel during scan Entry Menu Selection Page BATT Smart Battery 16 CALL Private Call /Selective Call 59/63 CHAN Select a Channel 22 CLCK Set the Time and Date 95 DIR Repeater/Direct 74 ERAS Key Zeroization 82 KEY Key Selection 79 KSET Keyset Selection 80 LOGF Radio Lock 31 MUTE Keypad Mute 32 NAME Text Select 42 NUM Number Select 41 Entry Menu Selection Page PAGE Call Alert Page 67 PHON Phone 55 PROG Editing 41 PSWD Password 30 PWR TX Power Level 27 REKY Rekey Request 85 RPGM Reprogram Request 88 SCAN Scan On/Off 51 SITE Site Lock/Unlock 92 STS Status Call 72 TGRP Talkgroup Call 70 VIEW View a List 40 ZONE Select a Zone 21 Menu Navigation U to find Menu Entry D , or E , or F directly below Menu Entry to select h to exit V or U to scroll through sub-list D , or E , or F directly below Menu Entry to select ASTRO ® XTS ™ 5000 Digital Portable Radio Model III User Guide 68P81094C27-C Motorola, Inc. 8000 West Sunrise Blvd. Ft. Lauderdale, FL 33322 Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81095C98) to ensure compliance with RF energy exposure limits. Computer Software Copyrights The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. Documentation Copyrights No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola. Disclaimer The information in this document is carefully examine…

Text truncated - open the document above for the full version.

English Product Safety and RF Exposure The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. For radios that have been approved as intrinsically safe, read the instructions and information on intrinsic safety on page 9 of this booklet. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n

68P81087C79-F © Motorola, Inc. 2002. Commercial, Government and Industrial Solutions Sector 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 06/02. All Rights Reserved. 2 English Federal Communications Commission (FCC) Regulat ions The FCC has established limits for safe exposure to radio frequency (RF) emissions from portable two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before portable two-way radios can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness of RF exposure can be accomplished by the use of labels, information and instructions in manuals or safety booklets, or by appropriate means. Your Motorola two-way radio has an RF exposure information label in the battery compartment. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE:The approved, supplied batteries for this radio are rated for a 5-5-90 duty cycle (5% talk–5% listen–90% standby), even though this radio complies with FCC occupational exposure limits at duty cycles of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 3 English • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” Compliance and Control Guidelines and Operating Instructions for Portable Two-Way Radios To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: •Transmit no more than 50% of the time. To transmit (talk), push the Push- To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). •Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least one to two inches (2.5 to 5 centimeters) away from the lips. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. 4 English •For body-worn operation, always place the radio in a Motorola-approved clip, holder, holster, case, or body harness for this product. Using non– Motorola-approved accessories may result in exposure levels which exceed the FCC’s occupational/controlled environment RF exposure limits. •If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, ensure the antenna and the radio are kept one inch (2.5 centimeters) from the body when transmitting. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. •Use only Motorola-approved supplied or replacement antennas, batteries, and accessories. Use of non–Motorola-approved antennas, batteries and accessories may exceed FCC RF exposure guidelines. For a list of Motorola- approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/portables/xts5000.shtml For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . 5 English Electromagnetic Interference/Compatibility NOTE:Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conf…

Text truncated - open the document above for the full version.

Applicant: MOTOROLA INC FCC ID: AZ489FT4857 EXHIBIT 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) MSEE Oklahoma State University MBA Oklahoma State University 2) 8 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Stephen L. Kersten SIGNATURE: DATE: 29 th July 2003 POSITION: Senior Staff Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Daniel Marks SIGNATURE: DATE: 29 th July 2003 POSITION: Engineering Manager

FCC ID: AZ489FT4857 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA. Date: 30 th July 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4857. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power that is adjustable from 20 mWatts to 2.8 Watts within the following frequency ranges: 380 - 470 MHz. The intended use of this transmitter includes applications covered in CFR Title 47, Parts 80 and 90. Please note that this transmitter is identical to the currently certified transmitter under FCC ID: AZ489FT4855. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed, contact Mike Ramnath at (954) 723-5793 or Fax (954) 723-4794 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath FCC Liaison Email: [email protected] EXHIBIT 13

FCC ID: AZ489FT4857 Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 REQUEST FOR CONFIDENTIALITY 29th July 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4857. Gentlemen; Motorola is requesting that Exhibit 4 (Circuit Description), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Semiconductor/Active Device List) and Exhibit 12 not be made routinely available for public inspection. Motorola considers the information in these exhibits to be trade scerets, pursuant to CFR 47 Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibit 4, 5, 10 and 12 as Confidential. Contact me at (954) 723-5793 if you require any additional information. Sincerely, /s/ Mike Ramnath(signed) FCC Liaison Email: [email protected]

Applicant: Motorola Inc. FCC ID: AZ489FT4857 IDENTIFICATION LABEL LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. EXHIBIT 1 Applicant: Motorola Inc. FCC ID: AZ489FT4857 GENERAL INFORMATION I. Production Plans -- Pursuant 2.1033 (c) Quantity production is planned. II. Application References -- Pursuant 2.1061 Reference is made to the following Motorola "Application References" 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. 3. Plantation, Florida Antenna Range. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. Necessary Bandwidth Computation for 8K10F1E Emission Designator The FCC Rule & Regulations Part 2, §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth sufficient to ensure that transmission of information at the rate and with the quality required for the system employed. §2.202(c) lists four methods of determining the necessary bandwidth, including the use of formulas in §2.202(g), and measurement in cases where the other methods of §2.202(c) do not apply. It is felt that while these formulas apply well to voice and many older digital modulation systems, the formulas do not apply to the high performance digital modulation employed in the system submitted for Certification because of difficulties determining representative values for the factors K and M. We have, therefore, used the measurement criteria of §2.202(c)(4). The value cited, 8K10, is the bandwidth that contains 99% of the total transmitted power. The 99% value was chosen because §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth . In turn, §2.202(b) defines Occupied Bandwidth as the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers radiated are each equal to 0.5% of the total mean power radiated by a given emission, i.e., contains 99% of the total transmitted power. IV. Applicable References: • Reference Certification FCC ID: AZ489FT4855 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards • FCC Federal Regulations Part 47 Sec. 2.1033 – 2.1055 • FCC Federal Regulations Part 90 Sec. 90.210 EXHIBIT 1A

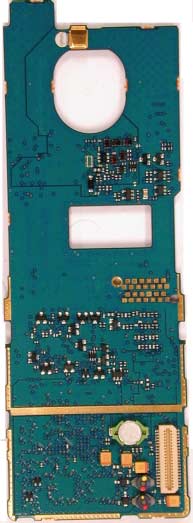

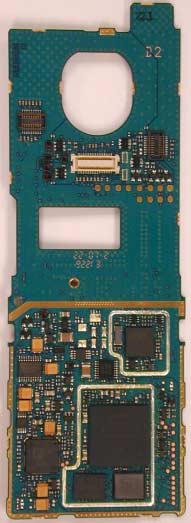

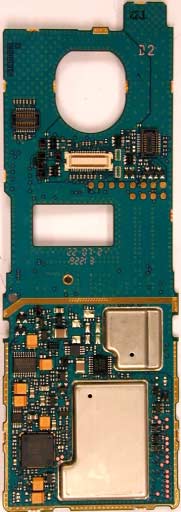

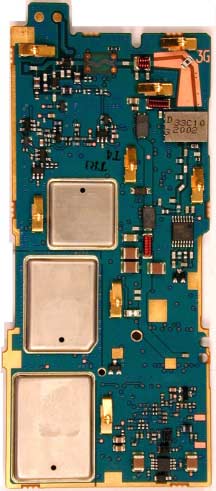

Applicant: Motorola Inc. FCC ID: AZ489FT4857 INTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Vocon board with Shields (Top). 9E 6. Vocon board without Shields (Top). 9F 7. Vocon board (Bottom). 9G EXHIBIT 9 Applicant: Motorola Inc. FCC ID: AZ489FT4857 RF board with Shields (Top) EXHIBIT 9A Applicant: Motorola Inc. FCC ID: AZ489FT4857 RF board without Shields (Top) EXHIBIT 9B Applicant: Motorola Inc. FCC ID: AZ489FT4857 RF board with Shields (Bottom) EXHIBIT 9C Applicant: Motorola Inc. FCC ID: AZ489FT4857 RF board without Shields (Bottom) EXHIBIT 9D Applicant: Motorola Inc. FCC ID: AZ489FT4857 Vocon board with Shields (Top) EXHIBIT 9E Applicant: Motorola Inc. FCC ID: AZ489FT4857 Vocon board without Shields (Top) EXHIBIT 9F Applicant: Motorola Inc. FCC ID: AZ489FT4857 Vocon board (Bottom)) EXHIBIT 9G

Applicant: Motorola Inc. FCC ID: AZ489FT4857 Confidentiality Requested Function of RF Semiconductors & Other Active Devices Part Number Ref. Des. Application Description 4802197J83 D101 Tx forward power detector On Semiconductor MBD330DWT1 dual Schottky diode 4802197J83 D102 Tx reverse power detector On Semiconductor MBD330DWT1 dual Schottky diode 4802245J68 Y200 Reference oscillator 1.5 PPM TEW TTS12V2 16.8 MHZ temperature compensated VCXO 4805218N63 Q502 VCO for second LO Philips BFQ67W RF transistor 4805585Q19 Q401 Receiver LNA Philips BFS 520 RF transistor 4805656W24 D701 Antennas switch Microsemi UPP9401 PIN diode 4805656W24 D702 Antennas switch Microsemi UPP9401 PIN diode 4805793Y01 Q301 VCO, 351.65-396.65 MHz NEC NE68519 NPN Transistor 4805793Y01 Q302 VCO, 306.65-351.65MHz NEC NE68519 NPN Transistor 4805793Y01 Q303 VCO, 425-470 MHz NEC NE68519 NPN Transistor 4805793Y01 Q304 VCO, 380-425 MHz NEC NE68519 NPN Transistor 5105462G78 U4 Memory Xicor X25160 Serial EEPROM 16K 5105750U54 U300 VCO buffer amp Motorola VCO BUFFER IC 5185130C65 U102 TX driver amplifier Motorola VHF/UHF/800 MHZ LDMOS driver amplifier 5185130C91 U470 RX down converter mixer Infineon PMB2335 RF MIXER 5185368C19 U105 A to D converter for built-in- test Texas Instruments TLV1544I QUAD 10 BIT A/D converter IC 5185368C83 U203 TX modulator D to A converter Analog Devices AD5320BRT 12 BIT DAC 5185633C44 Q107 TX power amplifier Motorola MODULE 800 MHZ RING 5185765B26 U104 Transmitter ALC Motorola IC PWR CTRL IN MOS20 5185963A15 U103 Temperature sensor National Instruments LM50C temperature sensor 5185963A27 U202 Frequency synthesizer Atmel AT25016 FracN IC 5185963A60 U106 ALC voltage summer National Instruments LMC7101BIM5X OP AMP 5185963A85 U500 Receiver back-end IC Analog Devices AD9874 IF digitizing subsystem ABACUS III-LP 5186358E01 U201 Reference oscillator buffer amplifier. National Instruments CLC450 analog OP-amp 9185130D01 FL200 TX modulation low pass filter Maxim MAX7414 switched capacitor filter COMMENTS: The Motorola designators are special code numbers for active devices used in Motorola radios. These devices are either identical or derived from the device family listed under Source, by the manufacturer or are proprietary to Motorola. Service people do not have access to any cross-references or given any information on proprietary devices and are prevented from making unauthorized substitution. EXHIBIT 10-1 Applicant: Motorola Inc. FCC ID: AZ489FT4857 TUNE-UP PROCEDURE The following Tune-up procedure is similar to what will appear in the final service manual enclosed. A universal side connector is required for the following tuning procedure. A list of the universal side connector pins is shown below. Universal Side Connector Pins 1 13 LHDATA/BOOT_DOUT/ KEYFAIL* SB9600_BUSY USB+/RS232_DOUT/BOOT_DIN OPT_SEL1 OPT_SEL2 EXT_MIC RTSBIN* USB-/RS232_DIN CTSOUT* OPTB+/BOOT_SEL/VPP 2 12 EXT_SPKR GND SPKR_COM Setup Procedures 1. Connect radio to the computer using the RS232 or USB cable. 2. Connect radio antenna port to Modulation Analyzer. 3. Power up radio and all equipment. 4. Launch the XTS 5000 radio tuner software and click on the “read device” icon. A window will open with a list of the various parameters that may be tuned on this radio. Double click on the parameter to be tuned and follow the instructions below Transmitter Alignment Procedure Reference Oscillator 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Measure the radio's transmit RF frequency with the service monitor. 3. Adjust the softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the measured value is as close as possible to the frequency displayed on the screen. 4. Click on the “Program All” button to save to the tuned value to the radio. EXHIBIT 10-2 Applicant: Motorola Inc. FCC ID: AZ489FT4857 Transmitter Power 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Measure the transmit power of the radio with the service monitor. 3. Adjust softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the required power is indicated on the service monitor. 4. Repeat the above process for all frequencies and power settings (high, mid and low). 5. Click on the "Program All" button to save the tuned values in the radio. Tx Deviation Balance 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Click on the "PTT Tone: Low" button. 3. Measure the transmitted signal deviation of the radio with a service monitor. 4. Click on the "PTT Tone: High" button. 5. Adjust softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the measured deviation when using the high tone is a close as possible to that observed when using the low tone. 6. Repeat the above process for all frequencies. 7. Click on the "Program All" button to save the tuned values in the radio. Tx Deviation Limit 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Measure the transmitted signal deviation of the radio with a service monitor. 3. Adjust softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the measured deviation is as close as possible to 2.83KHz. 4. Repeat the above process for all frequencies. 5. Click on the "Program All" button to save the tuned values in the radio. EXHIBIT 10-3 Applicant: Motorola Inc. FCC ID: AZ489FT4857 Receiver Alignments Procedures Front End Filter 1. Apply an RF signal with no modulation at -95dBm on the current operating frequency. 2. Adjust the softpot value by manipulating the slider bar, incrementing the “New Softpot Value”…

Text truncated - open the document above for the full version.

MOTOROLA INC FCC ID: AZ489FT4857 EXHIBIT 11 RF EXPOSURE INFORMATION In accordance with 47 CFR 2.1093 (c), this transmitter has been subjected to routine environmental evaluation for RF exposure and is compliant with the limits specified in 47 CFR 2.1093 (d). The low power XTS 5000 is a portable UHF transmitter with 20 mWatt to 2.8 Watt, variable power. This product is a derivative product of the currently approved XTS5000, 1--5 Watt variable power with FCC ID: AZ489FT4855. Both radios are identical except for software change and two capacitor changes to the PA line-up. The low power XTS5000 will exhibit lower SAR performance due to its lowered Output Power. Spot checks were done on the worst-case SAR configurations and the results confirmed that there were no SAR degradation. Based on sound engineering judgment and the above discussion, the low power XTS5000 is compliant with the FCC Occupational/Controlled RF Exposure Limit of 8.0 W/Kg per the requirements of 47 CFR 2.1093(d).

Applicant: Motorola Inc. FCC ID: AZ489FT4857 EXHIBIT 7 Measurement Procedure And Test Equipment Used Except where otherwise stated, all measurements are made following the Electronic Industries Association (EIA) Minimum Standard for Portable/Personal Land Mobile Communications FM or PM Equipment 25-1000 MHz-(EIA/TIA-603). This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application. 1. Test Equipment List x 2. RF Power Output Data x 3. Audio Frequency Response x 4. Audio Low Pass Filter Response x 5. Modulation Limiting x 6. Occupied Bandwidth x 7. Radiated Spurious Emissions x 8. Conducted Spurious Emissions x 9. Frequency Stability (Temp/Volt) x 10. Transient Frequency Behavior x Applicant: Motorola Inc. FCC ID: AZ489FT4857 EXHIBIT 7 Test Equipment List Pursuant To FCC Rules 2.947 (d) 1. HP 8566A Spectrum Analyzer. 2. Rohde & Schwarz FSEA Spectrum Analyzer. 3. HP 8657B RF Signal Generator. 4. Rohde & Schwarz SMP22 Signal Generator. 5. HP 8624B Signal Generator 6. Antenna Set: A. A.H. Systems, Inc. SAS-200/571 (0.7-18GHz). B. EMCO 3143 (< 1GHz). C. Watkins Johnson 272 (> 1 GHz). D. Schaffner-Chase CBL6112B Bilog (30MHz – 3GHz). 7. Agilent E4419B RF Power Meter. 8. HP 8901B Modulation Analyzer. 9. Agilent E4492B ESA-E Series Spectrum Analyzer 10. Agilent 35670A Dynamic Signal Analyzer 11. Tenney (Model TJR) Temperature Chamber. 12. HP 6033A System DC Power Supply. 13. HP 8903B Audio Analyzer. 14. HP 34401A Digital Multimeter. 15. Tektronics TDS-7054 Oscilloscope. 16. HP 8902A Measuring Receiver. 17. Rohde & Schwarz ESI26 Receiver / Analyzer 18. Narda Model 3020A Bi-Directional Coupler 19. MiniCircuits 15542 ZAPD-21 Combiner 20. Weinschel Model 33 30dB attenuator 21. Weinschel Model WA1426-4 RF Terminating load. Applicant: Motorola Inc. FCC ID: AZ489FT4857 EXHIBIT 7 RF Power Output Pursuant to FCC Rules 2.1046 (a) Method of Measurement The RF power output is measured with the transmitter adjusted in accordance with the tune-up procedure outlined in Exhibit 10 to give the value of voltage and current as specified in Exhibit 12 as required by 2.1033(c) (8). A 50-ohm RF attenuator of proper power rating was used as a load for making these measurements. The power measurements are made using an Agilent series E4419B RF power meter and 30 dB attenuator. Audio Frequency Response Pursuant FCC Rules 2.1047 (a) Method of Measurement Operate the transmitter under standard test conditions and monitor the output with a frequency deviation meter or calibrated test receiver. With 1000 Hz sine wave audio input applied through a dummy microphone circuit, adjust the audio input to give 20% of full rated system deviation. Maintaining a constant input voltage, vary the input frequency from 300 to 3000 Hz, and observe the deviation. Minimum Standard The audio frequency response shall not vary more than +1 or -3 dB from 300 to 3000 Hz from a true 6 dB per octave pre-emphasis characteristic as referenced to 1000 Hz level, with the exception of a permissible 6 dB/octave roll off below 500 Hz. Equivalent to TIA/EIA 603 Section 5.2.6.2 mask. Audio Low Pass Filter Response Pursuant FCC Rules 2.1047 (a) Method of Measurement A Dynamic Signal Analyzer is used to sweep the response from 1kHz to 25kHz. The source of the analyzer is connected to the AUDIO IN port of the radio interface box. The audio input level is adjusted to produce a standard test modulation. The transmitter is operated under standard test conditions and the output of the Switch Cap Filter is monitored, with the post limiter low pass filter within the lineup. The output is connected to channel 2 of the analyzer and referenced to its input signal. A sinusoidal sweep from 1K to 25KHz will produce the frequency response of the low pass filter during TX mode. FCC Limits -- Per applicable rule parts. 450 to 869 MHz & VHF Marine. Frequencies between 3 kHz and 20 kHz shall be attenuated greater than the attenuation at 1 kHz by 60 1og 10 (f/3) dB. Frequencies above 20 kHz shall be attenuated at least 50 dB. Applicant: Motorola Inc. FCC ID…
