AZ489FT4861SSE 5000 Protable Radio

SSE 5000 Portable Radio Quick Guide 6881094C16-O Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to ocupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits. Radio Control Top Radio On/Off: •ON: Turn the On/Off/Volume knob clockwise. •OFF: Turn the On/Off/Volume knob counter-clockwise. Mode/Channel Selection: •MODE: To g g l e t h e Mode Select switch to A, B, C, D, E or F (see the mode/channel map). •CHANNEL: Turn the Channel Select knob to your desired channel (see the mode/channel map). Display Backlight/Flip: •BACKLIGHT: Press the Display button. •FLIP: Press and hold the Display button for 2 seconds. Volume: •RAISE: Turn the On/Off/Volume knob clockwise. •LOWER: Turn the On/Off/Volume knob counter-clockwise. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n On/Off/Volume Knob Channel Select Knob Transmit/ Receive Indicator Display Button Mode Select Switch 6881094C16-O Radio Side Buttons Transmit/Receive: •TRANSMIT: Press the PTT button. •RECEIVE: Release the PTT button. Monitoring: •CARRIER SQUELCH: Press the Monitor button. •OPEN SQUELCH: Press and hold the Monitor button for 2 seconds. Secure Operation: ON/OFF: Press the Secure button. Scan: •ON/OFF: Press the Scan button. •NUISANCE CHANNEL DELETE: Press and hold the Scan button for 2 seconds. •NUISANCE CHANNEL RESTORE: Press the Scan button to turn scan off, then press it again to turn scan back on. Monitor Button PTT Button Secure Button Scan Button SSE 5000 Portable Radio Quick Guide 6881094C16-O Display Icons Alert Tones LED Indications • Solid red – Transmitting • Flashing red – Low battery • Solid green – Incoming call alert page or selective call • Flashing green – Channel is busy • Double flashing green – Incoming secure call Low battery (2 high tones) Button press (1 medium tone) Call received (2 medium tones) Page received (4 medium tones) TOT warning or invalid button press (1 low tone) TOT limit or invalid mode (long low tone) P H A MAN Z3 P H A MAN Z3 6881094C16-O Mode/Channel Map Mode ChannelABC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 6881094C16-O Mode ChannelDEF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 SSE 5000 Portable Radio Quick Guide 6881094C16-O Accessory Installation Antenna: •ATTACH: With the radio turned off, twist the antenna clock- wise onto the connector on the top of the radio. •REMOVE: With the radio turned off, twist the antenna counter-clockwise to remove it from the radio. Battery: •ATTACH: With the radio turned off, align the baseplate on the bottom of the radio with the groove on the top of the battery, and slide the battery toward the latch until it clicks into place. •REMOVE: With the radio turned off, slide the battery latch up and hold it while sliding the battery away from the latch. Belt Clip: •ATTACH: With the battery removed, hook the top of the belt clip into the slot near the top of the radio in the back. Press the bottom of the belt clip into the slot near the base of the radio until it clicks into place. •REMOVE: With the battery removed, use a small, flat-bladed screwdriver to disengage the locking tab on the bottom of the belt clip from the base of the radio. Lift the belt clip up and away from the radio. Location of antenna connector

English Product Safety and RF Exposure for Portable Two-Way Radios The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. For radios that have been approved as intrinsically safe, read the instructions and information on intrinsic safety on page 9 of this booklet. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n © Motorola, Inc. 2002. Commercial, Government and Industrial Solutions Sector 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 07/02. All Rights Reserved.

68P81095C98-O 2 English Federal Communication Commission (FCC) Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from portable two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before portable two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/ controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by the use of labels, or by education and training through appropriate means, such as information and instructions in user manuals or safety booklets. Your Motorola two-way radio has an RF exposure information label in the battery compartment. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty cycle (5% talk–5% listen–90% standby), even though this radio complies with FCC occupational exposure limits at usage factors of up to 50% talk. 3 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” Compliance and Control Guidelines and Operating Instructions for Portable Two-Way Radios To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: •Transmit no more than 50% of the time. To transmit (talk), push the Push- To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). 4 English •Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least one to two inches (2.5 to 5 centimeters) away from the lips. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. •For body-worn operation, always place the radio in a Motorola-approved clip, holder, holster, case, or body harness for this product. Using non– Motorola-approved accessories may result in exposure levels which exceed the FCC’s occupational/controlled environment RF exposure limits. •If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, ensure the antenna and the radio are kept one inch (2.5 centimeters) from the body when transmitting. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. •Use only Motorola-approved supplied or replacement antennas, batteries, and accessories. Use of non–Motorola-approved antennas, batteries and accessories may exceed FCC RF exposure guidelines. For a list of Motorola- approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/twowayradio.shtml For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . 5 English Electromagnetic Interference/Compatibility NOTE:Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured …

Text truncated - open the document above for the full version.

Applicant: MOTOROLA INC FCC ID: AZ489FT4861 EXHIBIT 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) MSEE Florida State University MSEE Georgia Institute of Technology 2) 6 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Sean Cadogan SIGNATURE: DATE: 25 July 2003 POSITION: Senior Staff Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Steven Thomson SIGNATURE: DATE: 25 July 2003 POSITION: Engineering Manager

FCC ID: AZ489FT4861 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA. Date: 29 th July 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4861. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power that is adjustable from 2 Watts to 5.0 Watts within the following frequency ranges: 450 - 488 MHz. The intended use of this transmitter includes applications covered in CFR Title 47, Parts 80 and 90. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed, contact Mike Ramnath at (954) 723-5793 or Fax (954) 723-4794 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath FCC Liaison Email: [email protected] EXHIBIT 13

FCC ID: AZ489FT4861 Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 REQUEST FOR CONFIDENTIALITY 29th July 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4861. Gentlemen; Motorola is requesting that Exhibit 4 (Circuit Description), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Semiconductor/Active Device List) and Exhibit 12 not be made routinely available for public inspection. Motorola considers the information in these exhibits to be trade scerets, pursuant to CFR 47 Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibit 4, 5, 10 and 12 as Confidential. Contact me at (954) 723-5793 if you require any additional information. Sincerely, /s/ Mike Ramnath(signed) FCC Liaison Email: [email protected]

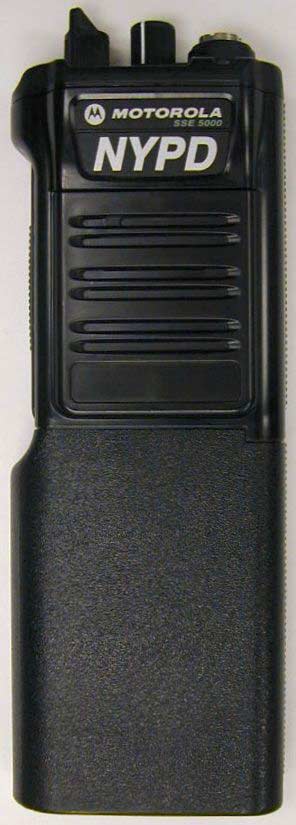

Applicant: Motorola Inc. FCC ID: AZ489FT4861 EXTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. Front view. 3A 2. Back view (FCC label location). 3B 3. Side view (Right). 3C 4. Side view (Left). 3D 5. Top view (Controls). 3E EXHIBIT 3 Applicant: Motorola Inc. FCC ID: AZ489FT4861 FRONT VIEW EXHIBIT 3A Applicant: Motorola Inc. FCC ID: AZ489FT4861 BACK VIEW (FCC LABELS) EXHIBIT 3B Applicant: Motorola Inc. FCC ID: AZ489FT4861 SIDE VIEW (RIGHT) EXHIBIT 3C Applicant: Motorola Inc. FCC ID: AZ489FT4861 SIDE VIEW (LEFT) EXHIBIT 3D Applicant: Motorola Inc. FCC ID: AZ489FT4861 TOP VIEW EXHIBIT 3E

Applicant: Motorola Inc. FCC ID: AZ489FT4861 IDENTIFICATION LABEL LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. EXHIBIT 1 Applicant: Motorola Inc. FCC ID: AZ489FT4861 GENERAL INFORMATION I. Production Plans -- Pursuant 2.1033 (c) Quantity production is planned. II. Application References -- Pursuant 2.1061 Reference is made to the following Motorola "Application References" 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. 3. Plantation, Florida Antenna Range. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. Necessary Bandwidth Computation for 8K10F1E Emission Designator The FCC Rule & Regulations Part 2, §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth sufficient to ensure that transmission of information at the rate and with the quality required for the system employed. §2.202(c) lists four methods of determining the necessary bandwidth, including the use of formulas in §2.202(g), and measurement in cases where the other methods of §2.202(c) do not apply. It is felt that while these formulas apply well to voice and many older digital modulation systems, the formulas do not apply to the high performance digital modulation employed in the system submitted for Certification because of difficulties determining representative values for the factors K and M. We have, therefore, used the measurement criteria of §2.202(c)(4). The value cited, 8K10, is the bandwidth that contains 99% of the total transmitted power. The 99% value was chosen because §2.202(b) defines Necessary Bandwidth as the minimum value of the occupied bandwidth . In turn, §2.202(b) defines Occupied Bandwidth as the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers radiated are each equal to 0.5% of the total mean power radiated by a given emission, i.e., contains 99% of the total transmitted power. IV. Applicable References: • Reference Certification FCC ID: AZ489FT3804 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards • FCC Federal Regulations Part 47 Sec. 2.1033 – 2.1055 • FCC Federal Regulations Part 90 Sec. 90.210 EXHIBIT 1A

Applicant: Motorola Inc. FCC ID: AZ489FT4861 INTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Vocon board with Shields (Top). 9E 6. Vocon board without Shields (Top). 9F 7. Vocon board (Bottom). 9G EXHIBIT 9 Applicant: Motorola Inc. FCC ID: AZ489FT4861 RF board with Shields (Top) EXHIBIT 9A Applicant: Motorola Inc. FCC ID: AZ489FT4861 RF board without Shields (Top) EXHIBIT 9B Applicant: Motorola Inc. FCC ID: AZ489FT4861 RF board with Shields (Bottom) EXHIBIT 9C Applicant: Motorola Inc. FCC ID: AZ489FT4861 RF board without Shields (Bottom) EXHIBIT 9D Applicant: Motorola Inc. FCC ID: AZ489FT4861 Vocon board with Shields (Top) EXHIBIT 9E Applicant: Motorola Inc. FCC ID: AZ489FT4861 Vocon board without Shields (Top) EXHIBIT 9F Applicant: Motorola Inc. FCC ID: AZ489FT4861 Vocon board (Bottom)) EXHIBIT 9G

Applicant: Motorola Inc. FCC ID: AZ489FT4861 Confidentiality Requested Function of RF Semiconductors & Other Active Devices Ref. Des. Application Description D101 Tx forward power detector On Semiconductor MBD330DWT1 dual Schottky diode Y200 Reference oscillator 1.5 PPM TEW TTS12V2 16.8 MHZ temperature compensated VCXO Q502 VCO for second LO Philips BFQ67W RF transistor Q430 Receiver LNA Philips BFS 520 RF transistor D701 Antenna switch Microsemi UPP9401 PIN diode D702 Antenna switch Microsemi UPP9401 PIN diode D601 Antenna switch Microsemi UPP9401 PIN diode D602 Antenna switch Microsemi UPP9401 PIN diode Q211 VCO, 450-488 MHz NEC NE68519 NPN Transistor Q215 VCO, 376-414MHz NEC NE68519 NPN Transistor U4 Memory Xicor X25160 Serial EEPROM 16K U250 VCO buffer amp Motorola VCO BUFFER IC U102 TX driver amplifier Motorola VHF/UHF/800 MHZ LDMOS driver amplifier U470 RX down converter mixer Infineon PMB2335 RF MIXER U105 A to D converter for built-in-test Texas Instruments TLV1544I QUAD 10 BIT A/D converter IC U203 TX modulator D to A converter Analog Devices AD5320BRT 12 BIT DAC Q107 TX power amplifier Motorola MODULE 800 MHZ RING U104 Transmitter ALC Motorola IC PWR CTRL IN MOS20 U103 Temperature sensor National Instruments LM50C temperature sensor U202 Frequency synthesizer Atmel AT25016 FracN IC U500 Receiver back-end IC Analog Devices AD9874 IF digitizing subsystem ABACUS III-LP U201 Reference oscillator buffer amplifier. National Instruments CLC450 analog OP-amp FL200 TX modulation low pass filter Maxim MAX7414 switched capacitor filter COMMENTS: The Motorola designators are special code numbers for active devices used in Motorola radios. These devices are either identical or derived from the device family listed under Source, by the manufacturer or are proprietary to Motorola. Service people do not have access to any cross-references or given any information on proprietary devices and are prevented from making unauthorized substitution. EXHIBIT 10-1 Applicant: Motorola Inc. FCC ID: AZ489FT4861 TUNE-UP PROCEDURE The following Tune-up procedure is similar to what will appear in the final service manual enclosed. A universal side connector is required for the following tuning procedure. A list of the universal side connector pins is shown below. Universal Side Connector Pins 9 654 321 78 111210 SSE 5000 Accessory Connector Pin Assignments EXT_SPKR_NEGEXT_SPKRLHDATA EXT_MICCTSOUTLHBUSY OPT_SELOPT_B+/VPPRTSIN/KEYFAIL 1-WIRERS232_DOUT/USB_D+RS232_DIN/USB_D- Setup Procedures 1. Connect radio to the computer using the RS232 or USB cable. 2. Connect radio antenna port to Modulation Analyzer. 3. Power up radio and all equipment. 4. Launch the XTS 5000 radio tuner software and click on the “read device” icon. A window will open with a list of the various parameters that may be tuned on this radio. Double click on the parameter to be tuned and follow the instructions below Applicant: Motorola Inc. FCC ID: AZ489FT4861 Transmitter Alignment Procedure Reference Oscillator 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Measure the radio's transmit RF frequency with the service monitor. 3. Adjust the softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the measured value is as close as possible to the frequency displayed on the screen. 4. Click on the “Program All” button to save to the tuned value to the radio. EXHIBIT 10-2 Transmitter Power 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Measure the transmit power of the radio with the service monitor. 3. Adjust softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the required power is indicated on the service monitor. 4. Repeat the above process for all frequencies and power settings (high, mid and low). 5. Click on the "Program All" button to save the tuned values in the radio. Tx Deviation Balance 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Click on the "PTT Tone: Low" button. 3. Measure the transmitted signal deviation of the radio with a service monitor. 4. Click on the "PTT Tone: High" button. 5. Adjust softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Softpot Value” spin box until the measured deviation when using the high tone is a close as possible to that observed when using the low tone. 6. Repeat the above process for all frequencies. 7. Click on the "Program All" button to save the tuned values in the radio. Tx Deviation Limit 1. Click on the “PTT Toggle” button to make the radio transmit. 2. Measure the transmitted signal deviation of the radio with a service monitor. 3. Adjust softpot value by manipulating the slider bar, incrementing the “New Softpot Value” spin box, or directly entering the desired value into the “New Applicant: Motorola Inc. FCC ID: AZ489FT4861 Softpot Value” spin box until the measured deviation is as close as possible to 2.83KHz. 4. Repeat the above process for all frequencies. 5. Click on the "Program All" button to save the tuned values in the radio.

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 1 of 2 Date of Report: May 15, 2003 Report Revision: Rev. O Manufacturer: Motorola Product Description: Portable 450-488 MHz 2-5W No keypad, w/ top mounted display FCC ID: AZ489FT4861 Device Model: H10SDD9PW6AN Form-SAR-Rpt-Rev. 1.00 Page 1 of 19 Test Period: 4/23/03 – 5/01/03 EME Technician: Ed Church EME Engineer: Deanna Zakharia Elect. Principle Staff Eng. Author: Michael Sailsman Global EME Regulatory Affairs Liaison Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on File 5/16/03 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. TABLE OF CONTENTS Part 1 of 2 1.0 Introduction 2.0 Reference Standards and Guidelines 3.0 Description of Test Sample 3.1 Test Signal 3.2 Test Output Power 4.0 Description of Test Equipment 4.1 Description of S.A.R Measurement System 4.2 Description of Phantom 4.2.1 Flat Phantom 4.2.2 SAM phantom 4.3 Simulated Tissue Properties 4.3.1 Type of Simulated Tissue 4.3.2 Simulated Tissue Composition 4.4 Test condition 5.0 Description of Test Procedure 5.1 Device Test Positions 5.1.1 Abdomen 5.1.2 Head 5.1.3 Face 5.2 Test Position Photographs 5.3 Probe Scan Procedures 6.0 Measurement Uncertainty 7.0 S.A.R. Test Results 7.1 S.A.R. results 7.2 Peak S.A.R. location 7.3 Highest S.A.R. results calculation methodology 8.0 Conclusion Part 2 of 2 Appendix A: Power Slump Data/Shortened scan Appendix B: Data Results Appendix C: Dipole System Performance Check Results Appendix D: Calibration Certificates Appendix E: Illustration of Body-worn Accessories Appendix F: Accessories and options test status and separation distances Form-SAR-Rpt-Rev. 1.00 Page 2 of 19 REVISION HISTORY Date Revision Comments 4/15/03 O Initial Prototype results Form-SAR-Rpt-Rev. 1.00 Page 3 of 19 1.0 Introduction This report details the utilization, test setup, test equipment, and updated test results of the Specific Absorption Rate (S.A.R.) measurements performed at the CGISS EME Test Lab for model number H10SDD9PW6AN, FCC ID: AZ489FT4861. The applicable exposure environment is Occupational/Controlled. The test results included herein represent the highest S.A.R. levels applicable to this product and clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8.0 mW/g per the requirements of 47 CFR 2.1093(d). 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and international standards and guidelines. • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Terminal frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Terminal communications (Electromagnetic Radiation - Human Exposure) Standard 2001 • ANATEL, Brazil Regulatory Authority, Resolution 256 (April 11, 2001) "additional requirements for SMR, cellular and PCS product certification." Form-SAR-Rpt-Rev. 1.00 Page 4 of 19 3.0 Description of Test Sample The portable handheld transceiver, FCC ID: AZ489FT4861, operates using continuous carrier Frequency Modulation (FM) utilizing conventional analog voice, trunked analog voice, tone PL or C4FM digital modulation. The intended operating positions are “at the face” with the microphone 1 to 2 inches from the mouth, and “at the abdomen” by means of the offered body-worn accessories. Audio and PTT operation while the radio is at the abdomen is accomplished by means of optional remote accessories that connect to the radio. This device will be marketed to and used by employees solely for work-related operations, such as public safety agencies, e.g. police, fire and emergency medical. User training is the responsibility of these agencies, who can be expected to employ the usage instructions, safety information and operational cautions set forth in the user's manual, instructional sessions or other means. Motorola also makes available to its customers training classes on the proper use of two-way radios and wireless data devices. FCC ID: AZ489FT4861 is capable of operating in the 450-488 MHz band. The rated power is 2-5 watts with a maximum output capability of 5 watts as defined by the upper limit of the production line final test station. Form-SAR-Rpt-Rev. 1.00 Page 5 of 19 FCC ID: AZ489FT4861 is offered with the following options and accessories: Antenna 8505247K06 Whip 403-512 MHz ½ wave antenna; -0.5 dBi 8505309N10 Helical “Stubby” 440-470 MHz antenna (PSM); -5 dBi Batteries NTN4595D 1800mAh NiCd NTN4596D 1800mAh FM NiCd Battery NTN4992C NiCd Hazmat battery HNN9033B Impres NiCd battery HNN9034B Impres FM NiCd battery Body-worn Accessories NNTN4709A Belt clip 4205633T01 Belt Loop NTN5644ASP01 Carry case NMN6158A Back swivel mic clip NTN5574ASP02 NYPD T-strap Audio attachments NMN6129B Public safety microphone NMN6225B RSM ZMN6032A Surveillance kit 2 piece speaker mic ZMN6038A Surveillance kit 2 piece speaker mic (extra loud) NTN5664D Surveillance adaptor 3.1 Test Signal Test Signal mode: Test ModeX Base Station Simulator Transm…

Text truncated - open the document above for the full version.

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 2 of 2 Date of Report: May 15, 2003 Report Revision: Rev. O Manufacturer: Motorola Product Description: Portable 450-488 MHz 2-5W No keypad, w/ top mounted display FCC ID: AZ489FT4861 Device Model: H10SDD9PW6AN Form-SAR-Rpt-Rev. 2.00 Page 1 of 35 Test Period: 4/23/03 – 5/01/03 EME Technician: Ed Church EME Engineer: Deanna Zakharia Elect. Principle Staff Eng. Author: Michael Sailsman Global EME Regulatory Affairs Liaison Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on File 5/16/03 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. APPENDIX A Power Slump Data/Shortened Scan Form-SAR-Rpt-Rev. 2.00 Page 2 of 35 DUT Power versus time Data Form-SAR-Rpt-Rev. 2.00 Page 3 of 35 Shortened Scan Results All scans presented in APPENDIX B reflect the shortest test time (7 minutes) assessment possible with this product. See section 5.0 for details. Form-SAR-Rpt-Rev. 2.00 Page 4 of 35 APPENDIX B Data Results Form-SAR-Rpt-Rev. 2.00 Page 5 of 35 FCC ID: AZ48FT4861; Test Date: 4/29/03 Motorola CGISS EME Laboratory RUN #: Ab-R3-030429-03 MODEL #: H10SDD9PW6AN S…

Text truncated - open the document above for the full version.
