Model CLP1010, CLP1040, and CLP1060 (with Bluetooth® Wireless Technology) User Guide CLP Series Two-Way Radio TM Document CopyrightsNo duplication or distribution of this document or any portion thereof s hall take place without the express written permission of Motorola. No part of this m anual may be reproduced, distributed, or transmitted in any form or by any means, electr onic or mechanical, for any purpose without the express written permission of Motorola.DisclaimerThe information in this document is carefully exam ined, and is believed to be entirely reliable. However, no responsibility is assumed for i naccuracies. Furthermore, Motorola re serves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit descr ibed herein; nor does it cover any license under its patent rights nor the rights of others. CONTENTS i CONTENTSComputer Software Copyrights . . . . . . . . . iiiRadio Frequency (RF) Exposure Safety Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . iv Product Safety and RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . iv FCC Licensing Information . . . . . . . . . . . . .vInterference Information . . . . . . . . . . . . . . . . . vIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . .1Radio Overview . . . . . . . . . . . . . . . . . . . . . . .2Radio Controls. . . . . . . . . . . . . . . . . . . . . . . . .2Getting Started . . . . . . . . . . . . . . . . . . . . . . . .3Install The Battery . . . . . . . . . . . . . . . . . . . . . .3 Connecting a Wired Audio Accessory. . . .4 Connecting a Bluetooth Wireless Accessory (Select Models Only) . . . . . . . . . . . . . . . . . . . .5 Add Bluetooth Headset (Initial Pairing) . . . . . . . . . . . . . . . . . . . . . .5Reconnect to Last Connected Bluetooth Headset . . . . . . . . . . . . . . . . . .5 Erase Bluetooth Headset History and Add Bluetooth Headset . . . . . . . . . . . 5Turning the Radio On and Off . . . . . . . . . 6Adjusting the Volume . . . . . . . . . . . . . . . . 6Installing and Removing the Swivel Belt Clip Holster . . . . . . . . . . . . . . 6 Transmitting and Receiving . . . . . . . . . . . . . . 7Operation with Menu Settings . . . . . . . . . . . . 8 Selecting a Channel. . . . . . . . . . . . . . . . . 9Monitoring a Channel. . . . . . . . . . . . . . . 10Scanning . . . . . . . . . . . . . . . . . . . . . . . . 10Dynamic Talkaround Scan (*) . . . . . . . . 11Sending Call Tone (enabled through CPS) . . . . . . . . . . . . . . . . . . . . . 11Mute Feature (*). . . . . . . . . . . . . . . . . . . 11Talk Permit Tone (*). . . . . . . . . . . . . . . . 11 Battery and Charger Features. . . . . . . . . . 12Battery Features. . . . . . . . . . . . . . . . . . . . . . 12 About the Li-Ion Battery . . . . . . . . . . . . . 12Battery Recycling and Disposal . . . . . . . 13Removing the Lithium-Ion (Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 14 CONTENTS ii Power Supply, Adapter and Drop-in Tray Charger. . . . . . . . . . . . . . . . . . . . . .14Charging the Battery . . . . . . . . . . . . . . . .15Charging the Bluetooth Headset. . . . . . .18Checking Battery Status . . . . . . . . . . . . .19 Batteries and Chargers Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . .20 Operational Safety Guidelines . . . . . . . .21 Programming The Radio Through the CPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Downloading the (Customer Programming Software) CPS . . . . . . . . .22 Radio Cloning . . . . . . . . . . . . . . . . . . . . . . .25Cloning Radio Settings . . . . . . . . . . . . . . . . .25Cloning Instructions. . . . . . . . . . . . . . . . . . . .25 Cloning Radios using the CLP Series Cloning Cable Kit P/N HKKN4026 (optional accessory) . . . . . . . . . . . . . . . .25Cloning Radios using the CLP Series Multi-Unit Charger (MUC) Kit P/N HKPN4007 (optional accessory) . . .28 Advanced Radio Configuration (*) . . . . . . 29 Entering Advanced Radio Configuration Mode . . . . . . . . . . . . . . . . 29 CLP Repeater Capability: Working with RPX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30CLP Repeater Capability . . . . . . . . . . . . . . . 30Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 30Troubleshooting . . . . . . . . . . . . . . . . . . . . . 32Use and Care . . . . . . . . . . . . . . . . . . . . . . . 36Radio Frequency and Code Charts . . . . . 37Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 41Accessories . . . . . . . . . . . . . . . . . . . . . . . . 46Audio Accessories . . . . . . . . . . . . . . . . . . . . 46Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46Carry Accessories . . . . . . . . . . . . . . . . . . . . 46Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 47Programming Cables . . . . . . . . . . . . . . . . . . 47 COMPUTER SOFTWARE COPYRIGHTS iii COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implic ation, estoppels, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by ope…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT4900 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) B.S.E.E. University of Miami. 2) M.E University of Florida. 3) 10 years of Design and Development experience in the field of two-way radio communications. Name: Wayne Phang Signature: /s/ Wayne Phang (signed) Date: 1 st December 2010 Position: Lead Electrical Dev. Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: Name: Lorenzo Cruger Signature:/s/ Lorenzo Cruger (signed) Date: 1 st December 2010 Position: Engineering Manager EXHIBIT 2

EXHIBIT 13B SHEET 1 FCC ID:AZ489FT4900 REQUEST FOR CONFIDENTIALITY Date: 22nd December 2010 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia. MD 21046 Subject: Application for Certification of Transmitter with IC: 109U-89FT4900 Dear Sir / Madam, Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List ), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT4900 Motorola 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 22 nd December 2010. Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia. MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4900. Gentlemen: Motorola, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is primarily intended to be use in a portable radio application with capabilities for clear communications with transmit output power of 1.0 Watts (Nominal) and 1.1 Watts (Max Power) CLP UHF model. Model description is as follows, 6 channels with fixed internal antenna, and no-Display with Bluetooth capabilities. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit’s normally accessible external controls. Enclosed is a complete Certification Application. Contact me (954) 723-5793, if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mgr, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT4900 EXTERNAL PHOTOGRAPHS: 1 Front view of Radio 2 Rear view of radio without battery cover. 3 Magnified view of Label EXHIBIT 3 FCC ID: AZ489FT4900 Front view EXHIBIT 3-A FCC ID: AZ489FT4900 Rearview EXHIBIT 3-B FCC ID: AZ489FT4900 Magnified Label EXHIBIT 3-C

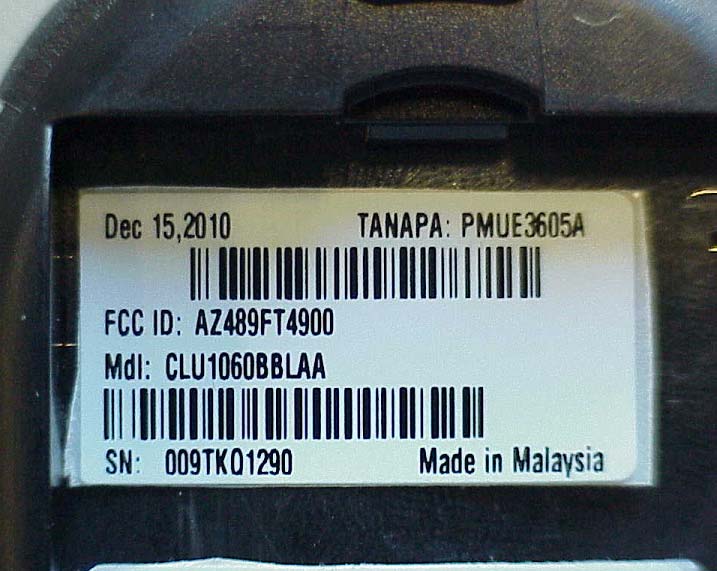

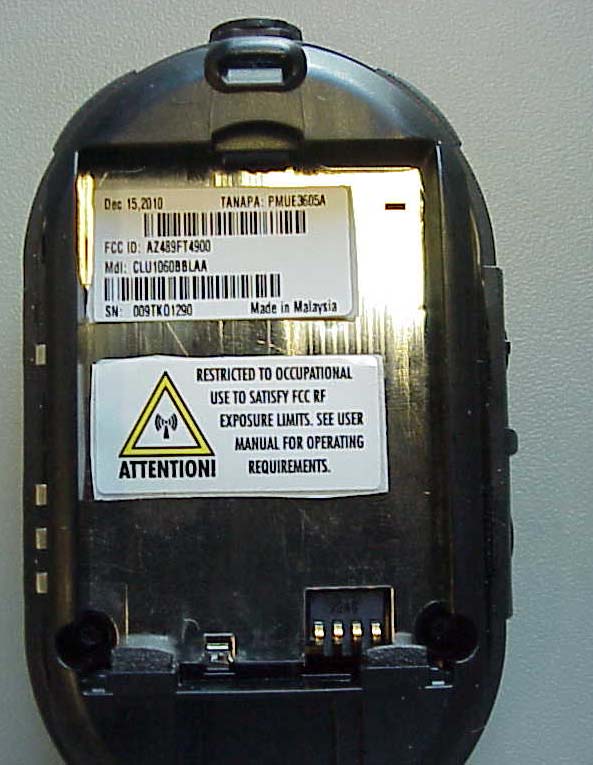

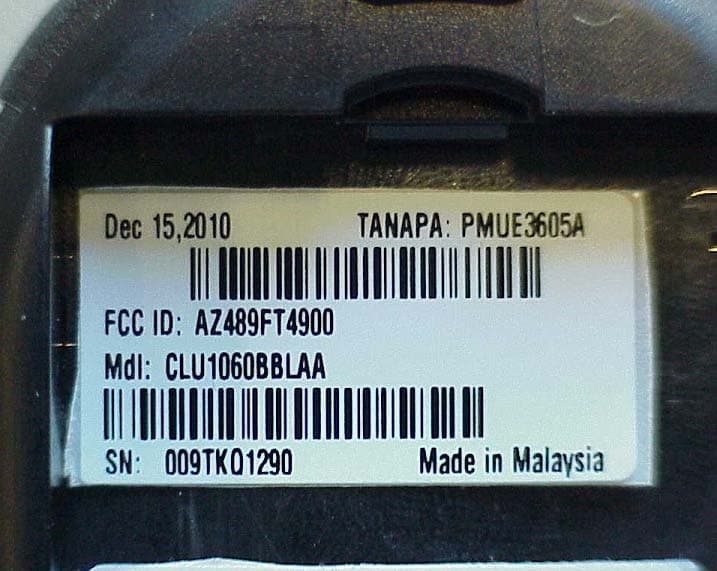

FCC ID: AZ489FT4900 IDENTIFICATION LABEL LOCATION X See the attached Photograph, and Exhibit 3-D for the location of the Label on the device. Back of Radio Back of Radio under Belt Clip Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase. TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/ inch. The label is laser etched into the Urethane paint, exposing the Nickel plating on the Zamak casting substrate. Since no adhesive is required, the label is permanent and tamper-proof. (** - NOTE- The label attached below is a paper polyester film laminate, as described above. This is just for sample purposes, as the actual label is laser etched into the casting) MARKINGS (TEXT) See Photograph, Exhibit 1. EXHIBIT 1 FCC ID: AZ489FT4900 GENERAL INFORMATION I. Production Plans—Pursuant 2.983 (c). Quantity production is planned. II. Application References Reference is made to the following Motorola “Application References” 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ Rules. EXHIBIT 1A

FCC ID: AZ489FT4900 INTERNAL PHOTOGRAPHS: Printed Circuit Board 1 Component (Front side) 2 Board W/BT board detached 3 Components (Rear) EXHIBIT 9 FCC ID: AZ489FT4900 CLP W/BT Board attached. EXHIBIT 9-A FCC ID: AZ489FT4900 CLP Board W/BT board detached EXHIBIT 9-B FCC ID: AZ489FT4900 CLP Rear View EXHIBIT 9-C

FCC ID: AZ489FT4900 Test Report MEASUREMENT EXHIBIT NUMBER OF PAGES I RF Power Output 6A 1 Ii Audio Response 6B 1 A. 1Watt 12.5kHz / 25kHz III Modulation Limiting 6C 1 A. 1 Watt 12.5kHz / 25kHz IV Occupied Bandwidth 6D 1-4 5 V Radiated Spurious Emission 1Watt A. TX Vertical / Horizontal 6E 1-4 4 VI Frequency Stability 2 A. Temperature 6F 1 B. Frequency vs. Voltage 6F 2 VII Transient Frequency Behavior 6G1-4 4 VIII Bluetooth Characteristics 6H1-10 10 IX Bluetooth Emissions 6I 56 X Bluetooth Emissions Test setup 6J 8 EXHIBIT 6 FCC ID: AZ489FT4900 RF POWER OUTPUT DATA The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. Frequency 464.5500 MHz Measured Conducted RF output* 0.502 Watts/1.01 Watts Normal DC Voltage 3.70 Volts Normal DC Current 850 ma/ 520ma Primary Supply Voltage 3.80 Volts *Note: RF Conducted output power measured at 3.80Volts EXHIBIT 6A FCC ID: AZ489FT4900 Audio Response 12.5 kHz/25kHz Tx Audio Response (Black Diam ond UHF 1W, Rev A, 12.5kHz chsp) -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 100100010000 Audio Freq (Hz) deviation ratio (dB) Data LL UL 12.5 kHz Tx Audio Response (Black Diam ond UHF, Rev A, 25kHz chsp) -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 100100010000 Audio Freq (Hz) deviation ratio (dB) Dat a LL UL 25 kHz EXHIBIT 6B FCC ID: AZ489FT4900 MODULATION LIMITING 12.5 kHz/ 25 kHz Modulation Limiting (Black Diamond UHF 1W, Rev A, 12.5kHz chsp) 0 500 1000 1500 2000 2500 -25-20-15-10-50510152025 input le ve l (dB) Deviation (Hz) 300Hz 1kHz 3kHz UL 12.5 kHz Modulation Limiting(Black Diamond UHF 1W, Rev A, 25kHz chsp) 0 1000 2000 3000 4000 5000 6000 -25-20-15-10-50510152025 input level (dB) Deviation (Hz) 300Hz 1kHz 3kHz UL 25 kHz EXHIBIT 6C FCC ID: AZ489FT4900 OCCUPIED BANDWIDTH DATA 1 Watt 12.5 / 25 kHz Channel Spacing EXHIBIT 6D-1 2500 Hz Audio Modulation Emission Type: 11K0F3E Specification Mask D, 90.210 – 12.5 kHz EXHIBIT 6D-2 2500 Hz Audio Modulation Emission Type: 16K0F3E Specification Mask B, 90.210 – 25 kHz EXHIBIT 6D-3 2500 Hz & 77 Hz Tone “PL” Modulation Emission Type: 11K0F3E Specification Mask D, 90.210 – 12.5 kHz EXHIBIT 6D-4 2500 Hz & 77 Hz Tone “PL” Modulation Emission Type: 16K0F3E Specification Mask B, 90.210 – 25 kHz CARSON’S RULE: 11K0F3E BW= 2(M+D) BW=2 (3 kHz maximum modulation frequency +2.5 kHz deviation) BW=2 (5.5) BW= 11K0 CARSON’S RULE: 16K0F3E BW= 2(M+D) BW=2 (3 kHz maximum modulation frequency +5 kHz deviation) BW=2 (8) BW= 16K0 EXHIBIT 6D FCC ID: AZ489FT4900 1- Watt 12.5 kHz Mask D, Rule Part: 90.210 Emission Type: 11K0F3E Sideband Spectrum 2.5kHz tone mod -no PL (Black Diamond UHF Re v A 1W, 12.5k Hz chs p ) span 110kHz, res bw==100Hz, video bw=3kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 449.9450449.9500449.9550449.9600449.9650449.9700449.9750449.9800449.9850449.9900449.9950450.0000450.0050450.0100450.0150450.0200450.0250450.0300450.0350450.0400450.0450450.0500450.0550 frequency (MHz) Power (dBm) unmodulated 2.5kHz tone SPECS EXHIBIT 6D-1 FCC ID: AZ489FT4900 1- Watt 25 kHz Mask B, Rule Part: 90.210 Emission Type: 16K0F3E Sideband Spectrum 2.5kHz tone mod no PL (Black Diamond UHF Rev A , 1W, 25kHz chsp ) span 110kHz, res BW=100Hz, video BW=3kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 449.9450449.9500449.9550449.9600449.9650449.9700449.9750449.9800449.9850449.9900449.9950450.0000450.0050450.0100450.0150450.0200450.0250450.0300450.0350450.0400450.0450450.0500450.0550 frequency (MHz) Power (dBm) unmodulated 2.5kHz tone SPECS EXHIBIT 6D-2 FCC ID: AZ489FT4900 1- Watt 12.5 kHz 2500 Hz & 77Hz Tone “PL” Modulation Mask D, Rule Part: 90.210 Emission Type: 11K0F3E Sideband Spectrum 2.5kHz tone mod with PL (Black Diamond UHF Rev A , 1W, 12.5kHz chs p ) span 110kHz, res bw=300Hz, v ideo bw=3kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 449.9450449.9500449.9550449.9600449.9650449.9700449.9750449.9800449.9850449.9900449.9950450.0000450.0050450.0100450.0150450.0200450.0250450.0300450.0350450.0400450.0450450.0500450.0550 frequency (MHz) Power (dBm) unmodulated 2.5kHz tone SPECS EXHIBIT 6D-3 FCC ID: AZ489FT4900 1- Watt 25 kHz 2500 Hz & 77Hz Tone “PL” Modulation Mask B, Rule Part: 90.210 Emission Type: 16K0F3E Sideband Spectrum 2.5kHz tone mod with PL (Black Diamond UHF Rev A , 1W, 25k Hz chs p ) span 110kHz, res BW=100Hz, video BW=3kHz -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 10.00 15.00 20.00 25.00 30.00 449.9450449.9500449.9550449.9600449.9650449.9700449.9750449.9800449.9850449.9900449.9950450.0000450.0050450.0100450.0150450.0200450.0250450.0300450.0350450.0400450.0450450.0500450.0550 frequency (MHz) Power (dBm) unmodulated 2.5kHz tone SPECS EXHIBIT 6D-4 FCC ID: AZ489FT4900 1 Watt Motorola Inc. Transmit Radiated Spurious Emissions: CLP Battery-BT90 Bluetooth Head Set Tx Power: 1 Watts 450 MHz Frequency (MHz)FCC Failing Limit (dBm) Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) 900.0000 -20-45.59-49.41 1350.0000-20-59.21-55.85 1800.0000-20-57.15-59.06 2250.0000-20-52.67-51.80 2700.0000-20-60.72-57.22 3150.0000-20** 3600.0000-20-61.56-60.82 4050.0000-20-60.35-57.35 4500.0000-20** CLP Battery-BT90 Bluetooth Head Set Tx Power: 1 Watts 460 MHz Frequency (MHz)FCC Failing Limit (dBm) Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) 920.0000 -20** 1380.0000-20-58.47-55.01 1840.0000-20-48.16-40.53 2300.0000-20-50.98-53.28 2760.0000-20-55.08-50.75 3220.0000-20-63.23-58.80 3680.0000-20-47.42-48.94 4140.0000-20-60.39* 4600.0000-20-54.65-53.30 * Indicates the spurious emission could not be detected due to noise limitations or ambients. The data presented here was taken using the substitution method …

Text truncated - open the document above for the full version.

FCC ID: AZ489FT4900 TEST SET- UP PROCEDURES Except where otherwise stated, all measurements are made following the Electronic Industries Association (EIA) Minimum Standard for Portable/Personal Land Mobile Communications FM or PM Equipment 25-1000 MHz-(TIA/EIA-603). This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application. 1. RF Power Output X 2. Audio Response X 3. Low Pass Filter Response X 4. Modulation Limiting X 5. Occupied Bandwidth X 6. Radiated Spurious Emissions X 7. Conducted Spurious Emissions __N/A 8. Frequency Stability X 9. Transient Frequency Behavior X 10. Bluetooth Measured data X EXHIBIT 7 FCC ID: AZ489FT4900 TEST EQUIPMENT LIST Pursuant To FCC Rules 2.999 1. Spectrum Analyzer A. HP 8591E B. HP 8566 C. HP35665A 2. RF Signal Generators A. HP 8665 B. HP 8642 C. HP 8656 3. RF Millivoltmeter A. Boonton 4200 B. Boonton 4210 4. RF Loads A. WEINSCHEL M1418 5. Dipole Antenna Set A. Singer DM-105A series B. EMCO Model 3120 6. RF Power Meters A. HP 436A B. 8482B Power Sensor C. 30 dB High Power Pad 7. Monitor Receivers A. Motorola Comm Syst Analyzer B. HP8901 8. Tenny Temperature Chamber 9. Frequency Counters a. HP 5385A 10. Audio Analyzer a. HP8903B 11. AC/DC Voltmeters a. Fluke8012A Digital Multimeter 12. HP8901B Modulation Analyzer EXHIBIT 7 FCC ID: AZ489FT4900 RF POWER OUTPUT Pursuant to FCC Rules 2.985 (a) Method of Measurement The RF power output is measured with the value of voltage and current specified in Exhibit 3 as required by 2.983(d) (5). A 50 ohm RF attenuator of proper power rating was used as a load for making these measurements. For Transmitter having output impedance other than 50 ohm, a suitable matching network is placed between the transmitter and the load. The power measurements are made using a Hewlett Packard series HP 436A power meter and a 30 dB attenuator or a HP 437B power meter. AUDIO FREQUENCY RESPONSE Pursuant FCC Rules 2.987 (a) Method of Measurement Operate the transmitter under standard test conditions and monitor the output with a frequency deviation meter or calibrated test receiver. With 1000 Hz sine wave audio input applied through a dummy microphone circuit, adjust the audio input to give 30% of full rated system deviation Maintaining constant deviation, vary the input frequency from 100 to 5000 Hz, and observe the level necessary to maintain a constant 30% modulation. Minimum Standard The audio frequency response shall not vary more than +1 or -3 dB from 300 to 3000 Hz as referenced to 1000 Hz level (with the exception of a permissible 6 dB/octave roll off from 2500 to 3000 Hz) POST LIMITER FILTER FREQUENCY RESPONSE Pursuant FCC Rules 2.987 (a) EXHIBIT 7 FCC ID: AZ489FT4900 FCC Limits —Per applicable rule parts. A. 25 to 450 MHz Frequencies between 3 kHz and 15 kHz shall be attenuated greater than the attenuation at 1 kHz by 40 log 10 (f/3) dB. Frequencies above 15 kHz shall be attenuated 28 dB. B. 450 to 866 MHz Frequencies between 3 kHz and 20 kHz shall be attenuated greater than the attenuation at 1 kHz by 60 1og 10 (f/3) dB. Frequencies above 20 kHz shall be attenuated at least 50 dB. MODULATION LIMITING Pursuant FCC Rules 2.987 (a) Method of Measurement The transmitter shall be adjusted for full rated system deviation. Adjust the audio input for 60% of rated system deviation at 1000 Hz. Using this level as a reference (0 dB) vary the audio input level from the reference to a level 20 dB above it for modulation frequencies of 300, 1000 and 3000 Hz. Record the system deviation obtained as a function of the input level. FCC Limits Minimum Standard - The transmitter modulation must not exceed rated system deviation at any audio frequency input or reasonable change in input level. OCCUPIED BANDWIDTH Pursuant to FCC Rules 2.989 Method of Measurement Data on occupied bandwidth is presented in the form of a spectrum analyzer photograph, which illustrates the transmitter sidebands. A photograph is taken of the unmodulated carrier, for reference, to which is superimposed the sideband display generated by modulating the carrier with a 2500 Hz tone at a level 16 dB greater than that required to produce 50 percent modulation. If tone or digital coded squelch is indicated, photographs using both the 2500 Hz tone and the indicated squelch signal are used to modulate the transmitter. During these measurements, the instantaneous Deviation Control is set for a maximum of +2.5 kHz. EXHIBIT 7 FCC ID: AZ489FT4900 FCC Limits - Per Applicable Rule Parts. Measured Data: On any frequency removed from the assigned frequency up to 5.625 kHz, the spec is 0 dB. On any frequency removed from the assigned frequency from 5.625 kHz up to and including 12.5 kHz, the spec is at least 7.27(fd-2.88 kHz) dB down. On any frequency removed from the assigned frequency by more than 12.5 kHz, the spec is at least 50+10log(P) dB (mean output power in watts) or 70 decibels whichever is the lesser attenuation. RADIATED SPURIOUS EMISSIONS Pursuant to FCC Rules 2.993 Test Site: The site, located at Plantation, Florida in a region, which is reasonably free from RF interference and has been approved by the Commission for Spurious Measurements. The equipment is placed on the turntable and then placed in normal operation using the intended power source. A broadband receiving antenna located 15 ft. from the transmitter picks up any signal radiated from the transmitter and its operation accessories. The antenna is adjustable in height and can by horizontally and vertically polarized. A spectrum analyzer covering the necessary frequency range is used to detect and measure any radiation picked up by the antenna. CONDUCTED SPURIOUS EMISSIONS Pursuant to FCC Rule 2.991 Method of Measurement: The transmitter is terminated into a 50 ohm load and interfaced with a spectrum analyzer, which allows the spurious emission level relative to the carrier level to be measured di…

Text truncated - open the document above for the full version.

SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 1 of 7 TESTING CERT # 2518.01 Exhibit 7B: SAR Test Report Photographs Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Deanna Zakharia – Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 12/21/2010 SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 2 of 7 Date Revision Comments 12/21/10 O Initial release SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 3 of 7 1.0 Highest SAR Test Position per body location 1.1 Body DUT without audio cable, battery HKNN4014A (SNN5819B) with magnetic holster HKLN4433A against the phantom with internal fixed antenna. Separation Distances (mm) Antenna @ bottom surface of the DUT @ antenna's base @ top surface of the DUT Fixed (Internal) 4 0 4 1.2 Face Not Applicable. 1.3 Head Not Applicable. 1.4 Hand Not Applicable. SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 4 of 7 2.0 Other SAR tested positions at the body 2.1 Body worn DUT with audio cable HKLN4435A, battery HKNN4014A (SNN5819B) with magnetic holster HKLN4433A against the phantom with internal fixed antenna. Similar position for other audios HKLN4437A and HKLN4455A. Separation Distances (mm) Antenna @ bottom surface of the DUT @ antenna's base @ top surface of the DUT Fixed (Internal) 4 0 4 DUT with audio cable HKLN4435A, battery HKNN4014A (SNN5819B) with swivel belt holster HKLN4438A against the phantom with internal fixed antenna. Similar position for other battery HKNN4013A (SNN5826B) and other audios HKLN4437A and HKLN4455A. Separation Distances (mm) Antenna @ bottom surface of the DUT @ antenna's base @ top surface of the DUT Fixed (Internal) 14 18-15 19 SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 5 of 7 DUT without audio cable, battery HKNN4014A (SNN5819B) with swivel belt holster HKLN4438A against the phantom with internal fixed antenna. Similar position for other battery HKNN4013A (SNN5826B). Separation Distances (mm) Antenna @ bottom surface of the DUT @ antenna's base @ top surface of the DUT Fixed (Internal) 14 18-15 19 2.2 Back side against phantom Not Applicable. 2.3 Front 2.5cm separation Not Applicable. 2.4 Back 2.5cm separation Not Applicable. 2.5 Antenna 2.5cm separation Not Applicable. 2.6 Public Safety Microphone (PSM) Not Applicable. 3.0 Other SAR tested position at the face 3.1 Front 2.5cm separation Not Applicable. 4.0 Other SAR tested positions at the head 4.1 Left ear touch Not Applicable. 4.2 Left ear tilt Not Applicable. A B SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 6 of 7 4.3 Right ear touch Not Applicable. 4.4 Right ear tilt Not Applicable. 5.0 Other SAR tested positions at the hand 5.1 Left side Not Applicable. 5.2 Right side Not Applicable. 5.3 Top side Not Applicable. 5.4 Bottom side Not Applicable. 5.5 Back side Not Applicable. 6.0 DUT and Accessory Photos The purpose of these photos is to illustrate the offered body-worn carry accessory(ies). The sample that was used in the following photos represents the product used to obtain the results presented herein. 6.1 Tested Body worn accessories DUT Back View Magnetic holster HKLN4433A DUT Front View Swivel belt holster HKLN4438A DUT Side View Swivel belt holster HKLN4438A DUT Back View Swivel belt holster HKLN4438A SR8951 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 7 of 7 7.0 Simultaneous Transmission Considerations – Pursuant to FCC KDB 648474 Practice 6.6cm Bluetooth Ant. UHF Ant. 7.1 Simultaneous Transmission Device Exclusion Per FCC KDB 648474 BT testing is not required. a) BT max power (2.5mW) < 12mW (Pref @ 2.45GHz) b) Antenna separation distance (6.6cm) is greater than 2.5cm.
