AZ489FT4902PORTABLE 2-WAY RADIO

Model CLP1010, CLP1040, and CLP1060 (with Bluetooth® Wireless Technology) User Guide CLP Series Two-Way Radio TM Document CopyrightsNo duplication or distribution of this document or any portion thereof s hall take place without the express written permission of Motorola. No part of this m anual may be reproduced, distributed, or transmitted in any form or by any means, electr onic or mechanical, for any purpose without the express written permission of Motorola.DisclaimerThe information in this document is carefully exam ined, and is believed to be entirely reliable. However, no responsibility is assumed for i naccuracies. Furthermore, Motorola re serves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit descr ibed herein; nor does it cover any license under its patent rights nor the rights of others. CONTENTS i CONTENTSComputer Software Copyrights . . . . . . . . . iiiRadio Frequency (RF) Exposure Safety Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . iv Product Safety and RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . iv FCC Licensing Information . . . . . . . . . . . . .vInterference Information . . . . . . . . . . . . . . . . . vIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . .1Radio Overview . . . . . . . . . . . . . . . . . . . . . . .2Radio Controls. . . . . . . . . . . . . . . . . . . . . . . . .2Getting Started . . . . . . . . . . . . . . . . . . . . . . . .3Install The Battery . . . . . . . . . . . . . . . . . . . . . .3 Connecting a Wired Audio Accessory. . . .4 Connecting a Bluetooth Wireless Accessory (Select Models Only) . . . . . . . . . . . . . . . . . . . .5 Add Bluetooth Headset (Initial Pairing) . . . . . . . . . . . . . . . . . . . . . .5Reconnect to Last Connected Bluetooth Headset . . . . . . . . . . . . . . . . . .5 Erase Bluetooth Headset History and Add Bluetooth Headset . . . . . . . . . . . 5Turning the Radio On and Off . . . . . . . . . 6Adjusting the Volume . . . . . . . . . . . . . . . . 6Installing and Removing the Swivel Belt Clip Holster . . . . . . . . . . . . . . 6 Transmitting and Receiving . . . . . . . . . . . . . . 7Operation with Menu Settings . . . . . . . . . . . . 8 Selecting a Channel. . . . . . . . . . . . . . . . . 9Monitoring a Channel. . . . . . . . . . . . . . . 10Scanning . . . . . . . . . . . . . . . . . . . . . . . . 10Dynamic Talkaround Scan (*) . . . . . . . . 11Sending Call Tone (enabled through CPS) . . . . . . . . . . . . . . . . . . . . . 11Mute Feature (*). . . . . . . . . . . . . . . . . . . 11Talk Permit Tone (*). . . . . . . . . . . . . . . . 11 Battery and Charger Features. . . . . . . . . . 12Battery Features. . . . . . . . . . . . . . . . . . . . . . 12 About the Li-Ion Battery . . . . . . . . . . . . . 12Battery Recycling and Disposal . . . . . . . 13Removing the Lithium-Ion (Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 14 CONTENTS ii Power Supply, Adapter and Drop-in Tray Charger. . . . . . . . . . . . . . . . . . . . . .14Charging the Battery . . . . . . . . . . . . . . . .15Charging the Bluetooth Headset. . . . . . .18Checking Battery Status . . . . . . . . . . . . .19 Batteries and Chargers Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . .20 Operational Safety Guidelines . . . . . . . .21 Programming The Radio Through the CPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Downloading the (Customer Programming Software) CPS . . . . . . . . .22 Radio Cloning . . . . . . . . . . . . . . . . . . . . . . .25Cloning Radio Settings . . . . . . . . . . . . . . . . .25Cloning Instructions. . . . . . . . . . . . . . . . . . . .25 Cloning Radios using the CLP Series Cloning Cable Kit P/N HKKN4026 (optional accessory) . . . . . . . . . . . . . . . .25Cloning Radios using the CLP Series Multi-Unit Charger (MUC) Kit P/N HKPN4007 (optional accessory) . . .28 Advanced Radio Configuration (*) . . . . . . 29 Entering Advanced Radio Configuration Mode . . . . . . . . . . . . . . . . 29 CLP Repeater Capability: Working with RPX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30CLP Repeater Capability . . . . . . . . . . . . . . . 30Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 30Troubleshooting . . . . . . . . . . . . . . . . . . . . . 32Use and Care . . . . . . . . . . . . . . . . . . . . . . . 36Radio Frequency and Code Charts . . . . . 37Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 41Accessories . . . . . . . . . . . . . . . . . . . . . . . . 46Audio Accessories . . . . . . . . . . . . . . . . . . . . 46Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46Carry Accessories . . . . . . . . . . . . . . . . . . . . 46Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 47Programming Cables . . . . . . . . . . . . . . . . . . 47 COMPUTER SOFTWARE COPYRIGHTS iii COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implic ation, estoppels, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by ope…

Text truncated - open the document above for the full version.

English Product Safety and RF Energy Exposure Booklet for Portable Two-Way Radios BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ALSO READ THE OPERATIONAL INSTRUCTIONS FOR SAFE USAGE. FOR RADIOS THAT HAVE BEEN APPROVED AS INTRINSICALLY SAFE, READ THE INSTRUCTIONS AND INFORMATION ON INTRINSIC SAFETY ON PAGE 10 OF THIS BOOKLET. C a u t i o n © 2007 – 2010 by Motorola, Inc. All rights reserved. 09/10 1301 E. Algonquin Rd., Schaumburg, IL 60196-1078, U.S.A. *6881095C98* 6881095C98-F *NNTN7223B* NNTN7223B 6881095C98-F_SafetyP_Eng.fm Page 1 Tuesday, September 28, 2010 4:26 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-F_SafetyP_Eng.fm Page 2 Tuesday, September 28, 2010 4:26 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission (FCC) Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-F_SafetyP_Eng.fm Page 3 Tuesday, September 28, 2010 4:26 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. • FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 • Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. 6881095C98-F_SafetyP_Eng.fm Page 4 Tuesday, September 28, 2010 4:26 PM 5 English RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. Guidelines: • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. • DO NOT use this device if the operational requirements described herein are not met. Operating Instructions • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radi…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT4902 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) B.S.E.E. University of Miami. 2) M.E University of Florida. 3) 10 years of Design and Development experience in the field of two-way radio communications. Name: Wayne Phang Signature: /s/ Wayne Phang (signed) Date: 1 st December 2010 Position: Lead Electrical Dev. Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: Name: Lorenzo Cruger Signature:/s/ Lorenzo Cruger (signed) Date: 1 st December 2010 Position: Engineering Manager EXHIBIT 2

EXHIBIT 13B SHEET 1 FCC ID: AZ489FT4902 REQUEST FOR CONFIDENTIALITY 22 nd December 2010 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia. MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4902 Dear Sir / Madam, Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List ), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT4902 Motorola 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 22 nd December 2010. Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia. MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4902. Gentlemen: Motorola, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is primarily intended for use in a portable radio application with capabilities for clear communications with output power of 1.0 Watts (Nominal) and 1.1 Watts (Max Power). Model description is as follows, 4 channels with a fixed internal antenna, and no-display. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit’s normally accessible external controls. Enclosed is a complete Certification Application. Contact me (954) 723-5793 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mgr, Regulatory Compliance Email: [email protected]

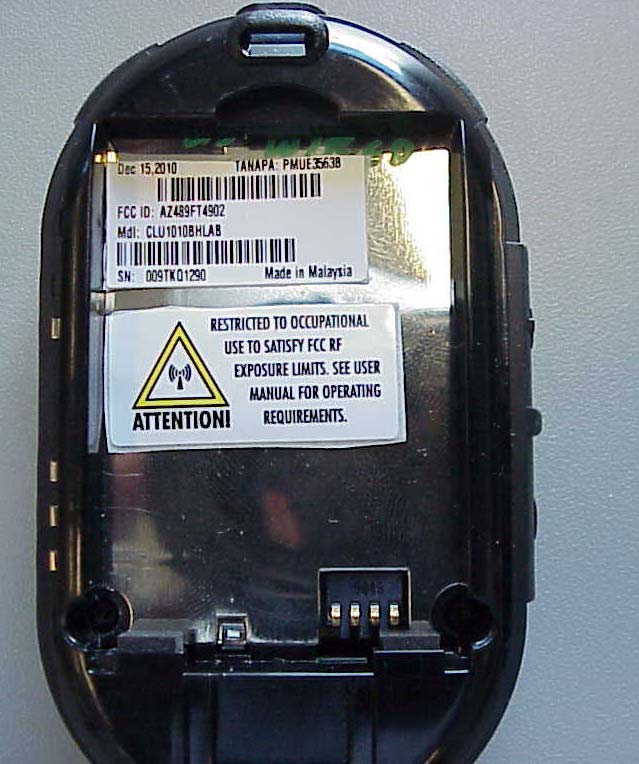

FCC ID: AZ489FT4902 EXTERNAL PHOTOGRAPHS: 1 Front view of Radio 2 Rear view of radio without battery cover. 3 Magnified view of FCC Label. EXHIBIT 3 FCC ID: AZ489FT4902 Front view EXHIBIT 3-A FCC ID: AZ489FT4902 Rearview EXHIBIT 3-B FCC ID: AZ489FT4902 Magnified view of FCC and IC Labels EXHIBIT 3-C

FCC ID: AZ489FT4902 IDENTIFICATION LABEL LOCATION X See the attached Photograph, and Exhibit 3-D for the location of the Label on the device. Back of Radio Back of Radio under Belt Clip Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase. TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/ inch. The label is laser etched into the Urethane paint, exposing the Nickel plating on the Zamak casting substrate. Since no adhesive is required, the label is permanent and tamper-proof. (** - NOTE- The label attached below is a paper polyester film laminate, as described above. This is just for sample purposes, as the actual label is laser etched into the casting) MARKINGS (TEXT) See Photograph, Exhibit 1. EXHIBIT 1 FCC ID: AZ489FT4902 GENERAL INFORMATION I. Production Plans—Pursuant 2.983 (c). Quantity production is planned. II. Application References Reference is made to the following Motorola “Application References” 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ Rules. \ EXHIBIT 1A FCC ID: AZ489FT4902

FCC ID: AZ489FT4902 INTERNAL PHOTOGRAPHS: Printed Circuit Board 1. Components (Front side) 2. Components (Rear) EXHIBIT 9 FCC ID: AZ489FT4902 EXHIBIT 9-A FCC ID: AZ489FT4902 EXHIBIT 9-B

SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 42 TESTING CERT # 2518.0 1 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Enterprise Mobility Solutions EME Test Laboratory Date of Report: 12/22/10 Report Revision: O Report ID: SAR rpt_PMUE3564A_CLP_Rev O _101222 SR9161 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Responsible Engineer: Deanna Zakharia – Senior Resource Mgr. DUT Photo (Re fe r t o E xh ib it 7B ) DUT Photo (Re fe r t o E xh ib it 7B ) Report Author: Deanna Zakharia – Senior Resource Mgr. Date/s Tested: 12/20/10-12/21/10 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: EMS Date submitted for test: 12/20/10 DUT Description: CLP1040A , UHF, 4 channels, Non-Display, Fixed Antenna, 1 Watt, Black, Lithium Ion. Test TX mode(s): CW (PTT) Max. Power output: 1.1W Nominal Power: 1.0W Tx Frequency Bands: 450-470MHz Signaling type: FM Model(s) Tested: PMUE3564A * Refer to section 15 of part 1 for highest SAR summary results. Model(s) Certified: PMUE3564A Serial Number(s): 134TLGF913 Classification: Occupational/ Controlled FCC ID: AZ489FT4902; Rule Part 90 IC ID: 109U-89FT4902 The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2W/kg averaged over 10 grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia – Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 12/22/2010 Certification Date: 12/22/2010 Certification No.: L1101259 SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 2 of 42 Part 1 of 2 1.0 Introduction.........................................................................................4 2.0 Abbreviations / Definitions.................................................................4 3.0 Referenced Standards and Guidelines ................................................4 4.0 SAR Limits .........................................................................................5 5.0 SAR Result Scaling Methodology ......................................................5 6.0 Description of Device Under Test (DUT) ..........................................6 7.0 Optional Accessories and Test Criteria ..............................................6 7.1 Antennas ....................................................................................6 7.2 Batteries .....................................................................................6 7.3 Body worn Accessories .............................................................6 7.4 Audio Accessories .....................................................................7 8.0 Description of Test System.................................................................7 8.1 Description of Robotics/Probes/Readout Electronics................7 8.2 Description of Phantom(s) .........................................................8 8.2.1 Dual Flat Phantom .........................................................8 8.2.2 SAM Phantom................................................................8 8.2.3 Elliptical Phantom..........................................................8 8.3 Description of Simulated Tissue ................................................8 9.0 Additional Test Equipment .................................................................9 10.0 SAR Measurement System Verification .............................................9 10.1 Equivalent Tissue Test Results ................................................10 10.2 System Check Test Results ......................................................10 11.0 Environmental Test Conditions ........................................................11 12.0 DUT Test Methodology ....................................................................11 12.1 Measurements ..........................................................................11 12.2 DUT Configuration(s)..............................................................11 12.3 Device Positioning Procedures ................................................11 12.3.1 Body .............................................................................11 12.3.2 Face ..............................................................................11 12.3.3 Head .............................................................................12 12.4 DUT Test Channels..................................................................12 12.5 DUT Test Plan .........................................................................12 12.5.1 General Test Flowchart................................................13 13.0 DUT Test Data ..................................................................................14 13.1 Assessments at the Body (CW mode) – CLP Magnetic holster HKLN4433A with offered audio accessories ..........................14 13.2 Assessments at the Body (CW mode) – CLP Magnetic holster HKLN4433A for other frequencies .........................................15 1…

Text truncated - open the document above for the full version.

SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 17 TESTING CERT # 2518.0 1 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Enterprise Mobility Solutions EME Test Laboratory Date of Report: 12/22/10 Report Revision: O Report ID: SAR rpt_PMUE3564A_CLP_Rev O _101222 SR9161 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Responsible Engineer: Deanna Zakharia – Senior Resource Mgr. DUT Photo (Re fe r t o E xh ib it 7B ) DUT Photo (Re fe r t o E xh ib it 7B ) Report Author: Deanna Zakharia – Senior Resource Mgr. Date/s Tested: 12/20/10 – 12/21/10 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: EMS Date submitted for test: 12/20/10 DUT Description: CLP1040A , UHF, 4 channels, Non-Display, Fixed Antenna, 1 Watt, Black, Lithium Ion. Test TX mode(s): CW (PTT) Max. Power output: 1.1W Nominal Power: 1.0W Tx Frequency Bands: 450-470MHz Signaling type: FM Model(s) Tested: PMUE3564A * Refer to section 15 of part 1 for highest SAR summary results. Model(s) Certified: PMUE3564A Serial Number(s): 134TLGF913 Classification: Occupational/ Controlled FCC ID: AZ489FT4902; Rule Part 90 IC ID: 109U-89FT4902 The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2W/kg averaged over 10 grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia – Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 12/22/2010 Certification Date: 12/22/2010 Certification No.: L1101259 SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 2 of 17 Appendix D Test System Verification Scans The SAR result indicated on the Manufacture’s Calibrated certificate for dipole D450V2 SN 1001 was not used due to the following: -- The IEEE1528-2003 section 8.2 System Check states the following which is consistent with FCC OET-65 Supplement C guidelines. “The system check must be performed using the specified tissue-equivalent liquid and at a chosen fixed frequency that is within ± 10% of the compliance test mid-band frequency. System checks are performed prior to compliance tests and the results must always be within ± 10% of the target value corresponding to the test frequency, liquid, and the source used.” -- SPEAG calibration certificates indicate that the allowed tolerance for this dipole is higher than +/- 10% (e.g. 5.05 +/- 18.1% at k=2 for the D450V2 S/N 1001). -- The allowed tolerance for the probes is also higher than +/- 10% (e.g. 13.3% at k=2 at 450MHz for the probe being used to assess this product). Due to probe, dipole and system tolerances noted above, the lab averages dipole results across multiple probes to establish a set of averaged targets for each dipole using the following procedure: • The System Validation was conducted per IEEE1528-2003 and IEC62209-2 Edition 1.0 2010-03 standards using the simulated head tissue and multiple probes that are available and applicable for the dipole under test to verify the System Validation. Results for this dipole are within the measurement system uncertainty of the reference SAR values indicated within the IEC62209-2 Edition 1.0 2010-03 when using flat phantom with 2mm thickness is used. These results then are averaged and used as the target for the daily system performance check when the simulated head tissue is used. • The dipole targets for the body are set immediately following the same process noted above. Since there is no standard referencing the SAR values for the System Validation using the simulated body tissue, the compliant System Validation results using the simulated head tissue are used to justify the use of the System Validation results using the simulated body tissue due to the same setup except for the simulated tissue type. The targets set in this report were conducted following the above process. Note that the targets set for the tested dipoles, when using the simulated head tissue, meets the requirement for the system validation per IEEE1528-2003 and the latest draft of IEC62209-2 (10/3/08) IEC62209-2 Edition 1.0 2010-03 standards. The difference between these results and the results from the manufacture’s dipole calibration certificates are 9.7% for D450V2 S/N 1001 dipole which are well within the measurement uncertainty of the measurement system at k=2. To assess the isotropic characteristics of the measurement probe, a probe rotation was performed using the "Rotation (1D)" function in the DASY software with a measured isotropy tolerance of +/- 0.5dB. SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 3 of 17 SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 4 of 17 SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 5 of 17 SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 6 of 17 SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 7 of 17 Appendix E DUT Scans (Shortened Scan and Highest SAR configurations) SR9161 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 8 of 17 Shortened Scan Result (Section 13.5, Table 17) Shorten scan reflect the highest SAR pr…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT4902 Test Report MEASUREMENT EXHIBIT NUMBER OF PAGES I RF Power Output 6A 1 II Audio Response 6B 1 A. 1Watt 12.5kHz / 25kHz III Modulation Limiting 6C 1 A. 1 Watt 12.5kHz / 25kHz I V Occupied Bandwidth 6D 1-4 5 V Radiated Spurious Emission 1Watt A. TX Vertical / Horizontal 6E 1-4 4 VI Frequency Stability 2 A. Temperature 6F 1 B. Frequency vs. Voltage 6F 2 VII Transient Frequency Behavior 6G1-4 4 EXHIBIT 6 \ FCC ID: AZ489FT4902 RF POWER OUTPUT DATA The RF power output was measured with the indicated voltage applied to and current into the final RF amplifying device. Frequency 464.5500 MHz Measured Conducted RF output* 0.502 Watts/1.0 Watts Normal DC Voltage 3.70 Volts Normal DC Current 850 ma/ 520ma Primary Supply Voltage 3.80 Volts *Note: RF Conducted output power measured at 3.80Volts EXHIBIT 6A FCC ID: AZ489FT4902 Audio Response 12.5 kHz/25 kHz 12.5 kHz Tx Audio Response (Black Diam ond UHF, Rev A, 25kHz chsp) -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 100100010000 Audio Freq (Hz) d…
