AZ489FT4905Portable 2-Way Radio

APX 4000 User Guide Model 3 68012004058-A English mASTRO ® APX™ 4000 Series Digital Portable RadiosQuick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68012004065) to ensure compliance with RF energy exposure limits. Radio Controls Radio On/OffZones and Channels Receiving and TransmittingSending an Emergency Alarm * Default emergency button press timer is set to 1 second. This timer is programmable, see page 66 in the user guide for details.To exit emergency at any time, press and hold the Emergency button. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n Battery Multi Function Knob (MFK)*:Primary Feature:_________________Secondary Feature:_________________ Accessory Connector Microphone Antenna • On – Press and hold the MFK until the display lights up. • Off – Press and hold the MFK until you see Power off? , then press Menu Select button below Yes . • Zone – Zone scroll to desired zone. • Channel – Channel scroll to desired channel. Data Feature Button Side Button 1__________ Side Button 2__________PTT Button MicrophoneTop Lightbar IndicatorTop Side (Select) Button__________ Main Speaker Main Display Top (Orange) Button___________ Bluetooth Pairing Indicator LED Keypad Menu Select Buttons 4-Way Navigation Button Home Button 1 Select zone/channel. 2 Listen for a transmission.ORPress and hold Volume Set button. ORPress Monitor button and listen for activity. 3 Adjust volume, if necessary. 4 Press the PTT button to transmit; release to receive. 1 Press and hold the Emergency button. 2 The display shows Emergency and the current zone/channel. You hear a short, medium-pitched tone, and the LED blinks momentary red. 3 When acknowledgment is received, you hear four beeps; alarm ends; and radio exits emergency. *PMLN6070A* PMLN6070A ©2011 by Motorola Solutions, Inc. All Rights Reserved. 10/111303 East Algonquin Road, Schaumburg,Illinois 60196, U.S.A. English Sending an Emergency Call To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Call To exit emergency at any time, press and hold the Emergency button. Display Status Icons 1 Press the Emergency button. 2 Press and hold the PTT button. Speak clearly into the microphone. 3 Release the PTT button to end call. 4 Press and hold Emergency button to exit emergency. 1 Press the Emergency button. 2 The display does not change; the LED does not light up, and there is no tone. 3 Silent emergency c ontinues until you: Press and hold the Emergency button to exit emergency state.ORPress and release the PTT button to exit the Silent Emergency Alarm mode and enter regular dispatch or Emergency Call mode. Receiving a call or data.Transmitting a call or data. u t Blinks when the battery is low.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio to radio communication or connected through a repeater.On = Direct Off = Repeater This channel is being monitored.L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority-Two Channel during scan. 8 v O M H OR . i j The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call.On = Location feature enabled, and location signal available. Off = Location feature disabled. Blinking = Location feature enabled, but location signal unavailable.On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin.Data activity is present.Bluetooth is ready.Bluetooth is connected to the device. k m l G no b a Menu Navigation < or > to Menu Entry. { , | , or } directly below Menu Entry to select. H to exit. U or D to scroll through sub-list. { , | , or } directly below Menu Entry to select. Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: 1303, East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: APX 4000 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this device complies with Part 15 of the FC C Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity English ii Note: This equipment has been tested and found to comply with the li mits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provi de reasonable protection against harmful interference in a residential installation. This equipment generates, us es and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference wi ll not occur in a particular installation. If this equipment does cause harm…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT4905 EXHIBIT 13A SHEET 1 Date: 19 th October, 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4905, APX4000. Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency range: 380 - 470 MHz: 1-5.0 Watts (Nominal) To aid equipment authorization in foreign countries which accept United States FCC Grant for equipment authorization, Motorola is asking the FCC to list on the FCC Grant the following frequencies: 380-470 MHz. We are requesting Certification under Part 15, 90 and 90.210 of the Commission’s Rules to allow operation of this equipment. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Additionally, the radio is equipped with a Bluetooth transmitter capable of clear communication with fixed power operating within the following frequency ranges: 2.402-2.480 GHz: 10mW (Nominal) The Bluetooth transmitter complies with the requirements of FCC Part 15 subpart C. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT4905 EXHIBIT 13B SHEET 1 REQUEST FOR CONFIDENTIALITY Date: 19 th October 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for Transmitter with FCC ID:AZ489FT4905 Dear Sir / Madam, Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected]

FCC ID: AZ489FT4905 EXHIBITS 13C _________________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 24 th October 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification. Gentlemen: The APX4000 Portable 2-Way radio was designed to operate in the frequency band 380-470 MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Motorola is requesting that the FCC lists the frequencies 380-470 MHz under FCC Rule Parts 90 on the FCC Grant. For the FCC’s Rule Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, “as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Federa l Grant Notes Emission Designator Rule Part 90 380- 406* x EF, BE 11K0F3E, 8K10F1D, 8K10F1E, 8K10F1W 406.1-454 x EF, BE “”” 454- 456* EF, BE “”” 456-470 x EF, BE “”” * Canada Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Email: [email protected]

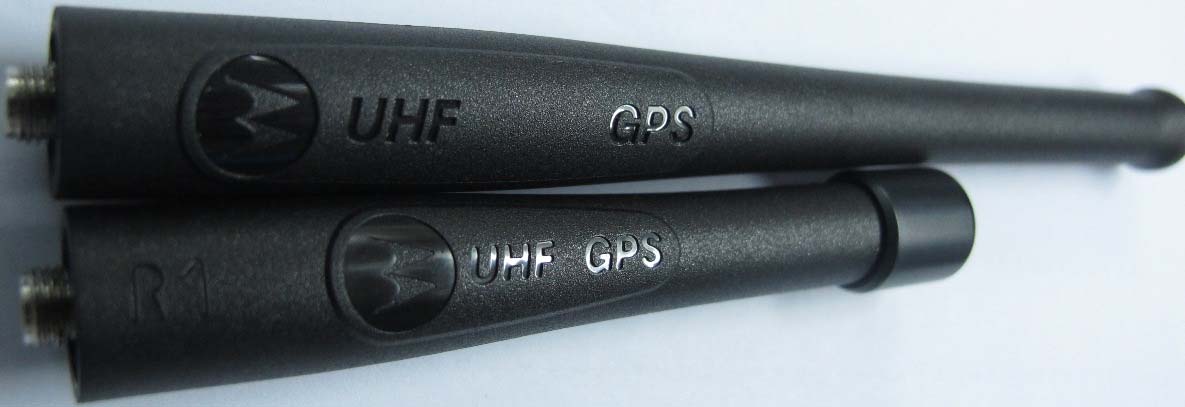

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View with Display and Keypad. 3B 3. Back View (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F 7. Antennas 3G Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 2 OF 8 BACK VIEW WITH BATTERY EXHIBIT 3A Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 3 OF 8 FRONT VIEW WITH DISPLAY AND KEYPAD EXHIBIT 3B Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 4 OF 8 BACK VIEW (FCC LABELS) EXHIBIT 3C Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 5 OF 8 SIDE VIEW (RIGHT) EXHIBIT 3D Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 6 OF 8 SIDE VIEW (LEFT) EXHIBIT 3E Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 7 OF 8 TOP VIEW EXHIBIT 3F Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 3 SHEET 8 OF 8 UHF1 Antennas Sales Model Number Regional Name Plate Description Super Tanapa H51QDF9PW6AN MUE3783 APX4000 APX4000 380-470 MHz 5W M2 Limited Keypad H51QDH9PW7AN MUE3775 APX4000 APX4000 380-470 MHz 5W M3 Full Keypad

Applicant: MotorolaSolutionsInc.FCC ID: AZ489FT4905 EXHIBIT 1 SHEET 1 OF 1 Identification Label LOCATION See the Attached Photograph or Sketch XBack of Radio Back of Radio under Belt Clip TYPE XThe label is a paper polyester film laminate with a pressure Sensitiveadhesive backing. The adhesive is a permanent type acrylic withminimumpeel strength of 40 oz/inch. MARKINGS (TEXT) XSee the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. FCC IC Label Model 3 Full Keypad Applicant: MotorolaSolutionsInc.FCC ID: AZ489FT4905 EXHIBIT 1 SHEET 1 OF 1 FCC IC Label Model 2 Limited Keypad

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 1 OF 7 EXHIBIT 9 Internal Photographs The following photographs are attached. Exhibit 1. RF board without & with Shields (Top). 9A 2. RF board without & with Shields (Bottom). 9B 3. Keypad Board without shield (Bottom). 9C 4. Keypad Board with Shields (Bottom). 9D 5. Keypad Board (Top). 9E 6. RF board with chassis and housing (front side). 9F 7. RF Board with chassis and housing (back side). 9G Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 2 OF 7 EXHIBIT 9A RF board without & with Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 3 OF 7 EXHIBIT 9B RF board without & with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 4 OF 7 EXHIBIT 9C Keypad board without Shields (Bottom) EXHIBIT 9D Keypad board with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 5 OF 7 EXHIBIT 9E Keypad Board (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 6 OF 7 EXHIBIT 9F RF board with chassis and housing (front side) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4905 EXHIBIT 9 SHEET 7 OF 7 EXHIBIT 9G Chassis and Housing (back side)

SR9750 Motorola Solutions EME Form-SAR-Rpt-Rev. 11.0 Page 1 of 68 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 9/8/2011 Report Revision: O Report ID: SR9750 APX4000 U1 BT 1of 2 Rev O 110908 Responsible Engineer: Michael Sailsman (Senior Staff Eng.) Report Author: Michael Sailsman (Senior Staff Eng.) Date/s Tested: 7/26/11-8/25/11 Manufacturer/Location: Penang Sector/Group/Div.: GTDG Date submitted for test: 7/19/11 DUT Description: 380 - 470MHz 3-5.7W 6.25K/12.5K/25K, Single Display Model full keypad. Capable of digital and analog FM transmission. Also capable of TDMA transmission. This radio is Bluetooth equipped. Test TX mode(s): CW (PTT); BT (CW) Max. Power output: 5.7 W (UHF); 10mW (BT) Nominal Power: 5.0 W (UHF); 10mW (BT) Tx Frequency Bands: 380-470 MHz (UHF); 2.402-2.480 GHz (BT) Signaling type: FM; FHSS(BT) Model(s) Tested: H51QDH9PW7AN (MUE3775) Model(s) Certified: H51QDH9PW7AN (MUE3775) Serial Number(s): 426TMM0405 Classification: Occupational/Controlled FCC ID: AZ489 FT4905; Rule part 90 (406.1-470 MHz); Rule part 15 (2402-2480MHz) IC: 109U-89FT4905 * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 9/8/2011 Certification Date: L1110905P Certification No.: 9/8/2011 SR9750 Motorola Solutions EME Form-SAR-Rpt-Rev. 11.0 Page 2 of 68 Part 1 of 2 1.0 Introduction ..............................................................................................................4 2.0 Abbreviations / Definitions ......................................................................................4 3.0 Referenced Standards and Guidelines .....................................................................4 4.0 SAR Limits ..............................................................................................................5 5.0 SAR Result Scaling Methodology ...........................................................................5 6.0 Description of Device Under Test (DUT) ...............................................................6 7.0 Optional Accessories and Test Criteria ...................................................................7 7.1 Antennas ......................................................................................................7 7.2 Batteries .......................................................................................................7 7.3 Body worn Accessories ...............................................................................7 7.4 Audio Accessories .......................................................................................8 8.0 Description of Test System ....................................................................................10 8.1 Descriptions of Robotics/Probes/Readout Electronics ..............................10 8.2 Description of Phantom(s) .........................................................................11 8.2.1 Dual Flat Phantom .........................................................................11 8.2.2 SAM Phantom ................................................................................11 8.2.3 Elliptical Phantom ..........................................................................11 8.3 Description of Simulated Tissue ................................................................11 9.0 Additional Test Equipment ....................................................................................12 10.0 SAR Measurement System Verification ................................................................13 10.1 Equivalent Tissue Test Results ..................................................................13 10.2 System Check Test Results ........................................................................15 11.0 Environmental Test Conditions .............................................................................16 12.0 DUT Test Methodology .........................................................................................16 12.1 Measurements ............................................................................................16 12.2 DUT Configuration(s) ................................................................................16 12.3 DUT Positioning Procedures ....................................................................16 12.3.1 Body ............................................................................................17 12.3.2 Head ............................................................................................17 12.3.3 Face ...................…

Text truncated - open the document above for the full version.

SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 1 of 51 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 9/8/11 Report Revision: O Report ID: SR9750 APX4000 U1 BT 1of 2 Rev O 110908 Responsible Engineer: Michael Sailsman (Senior Staff Eng.) Report Author: Michael Sailsman (Senior Staff Eng.) Date/s Tested: 7/26/11-8/25/11 Manufacturer/Location: Penang Sector/Group/Div.: GTDG Date submitted for test: 7/19/11 DUT Description: 380 - 470MHz 3-5.7W 6.25K/12.5K/25K, Single Display Model full keypad. Capable of digital and analog FM transmission. Also capable of TDMA transmission. This radio is Bluetooth equipped. Test TX mode(s): CW (PTT); BT (CW) Max. Power output: 5.7 W (UHF); 10mW (BT) Nominal Power: 5.0 W (UHF); 10mW (BT) Tx Frequency Bands: 380-470 MHz (UHF); 2.402-2.480 GHz (BT) Signaling type: FM; FHSS(BT) Model(s) Tested: H51QDH9PW7AN (MUE3775) Model(s) Certified: H51QDH9PW7AN (MUE3775) Serial Number(s): 426TMM0405 Classification: Occupational/Controlled FCC ID: AZ489FT4905; Rule part 90 (406.1-470 MHz); Rule part 15 (2402-2480MHz) IC: 109U-89FT4905 * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 9/8/2011 Certification Date: L1110905P Certification No.: 9/8/2011 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 2 of 51 Appendix D Test System Verification Scans The SAR result indicated on the Manufacture’s Calibrated certificates for dipoles D2450V2 S/N 704, D450V2 S/N 1002 were not used due to the following: -- The IEEE1528-2003 and the FCC OET-65 Supplement C, System Verification section recommends that the measured 1-g SAR should be within 10% of the expected target values specified for the specific phantom and RF source used in the system verification measurement. -- SPEAG calibration certificate indicates that the allowed tolerance for these dipoles are higher than +/- 10% (e.g. up to 5.01 +/-18.1% at k=2 for the D450V2 S/N 1002 and 53.4 +/- 17.0% at k=2 for D2450V2 S/N 704). -- The allowed tolerances for the probes are also higher than +/- 10% (e.g. 13.4.0% k=2 at 450 MHz and 12% k=2 at 2450MHz for the probes being used to assess this product). Due to probe, dipole and system tolerances noted above, the lab averages dipole results across multiple probes to establish a set of averaged targets for each dipole using the following procedure: • The System Validation was conducted per IEEE1528-2003 and IEC62209-2 Edition 1.0 2010-03 standards using the simulated head tissue and multiple probes that are available and applicable for the dipole under test to verify the System Validation. Results for this dipole are within the measurement system uncertainty of the reference SAR values indicated within IEC62209-2 Edition 1.0 2010-03 when using flat phantom with 2mm thickness is used. These results then are averaged and used as the target for the daily system performance check when the simulated head tissue is used. • The dipole targets for the body are set immediately following the same process noted above. Since there is no standard referencing the SAR values for the System Validation using the simulated body tissue, the compliant System Validation results using the simulated head tissue are used to justify the use of the System Validation results using the simulated body tissue due to the same setup except for the simulated tissue type. The targets set in this report were conducted following the above process. Note that the targets set for the tested dipoles, when using the simulated head tissue, meets the requirement for the system validation per IEEE1528-2003, IEC62209-2 Edition 1.0 2010-03 standards, and the difference between these results and the results from the manufacture’s dipole calibration certificates are up to -6.39% for 450 MHz dipole and 3.50% for 2450 MHz dipole which are well within the measurement uncertainty of the measurement system at k=2. To assess the isotropic characteristics of the measurement probe, a probe rotation was performed using the "Rotation (1D)" function in the DASY software with a measured isotropy tolerance of +/- 0.5dB. SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 3 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 4 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 5 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 6 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 7 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 8 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 9 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 10 of 51 SR9750 EMS EME Form-SAR-Rpt-Rev. 11.0 Page 11 of 51 SR9750 EMS EME Form-SAR-R…

Text truncated - open the document above for the full version.

SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 1 of 15 TESTING CERT # 2518.01 Exhibit 7B: SAR Test Report Photographs Motorola Solutions Inc EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 9/8/2011 SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 2 of 15 Report Revision History Date Revision Comments 9/8/11 O Initial release SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 3 of 15 1.0 Highest SAR Test Position per body location 1.1 Body DUT w/ antenna FAF5259A with offered battery NNTN8128A and body worn accessory PMLN7008A against the phantom. No audio attached. Same position was used for the other offered antenna (see table below), battery and audios. Antenna kit # Separation Distances (mm) @ bottom surface of the DUT @ antenna’s base @ antenna’s tip FAF5259A 6 29 37 PMAE4065A 6 29 43 SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 4 of 15 1.2 Face DUT w/ front side separated 2.5cm from phantom with antenna PMAE4065A and battery NNTN8129A Same position used for the other offered antenna (see table below) and battery Antenna kit # Separation Distances (mm) @ bottom surface of the DUT @ antenna’s base @ antenna’s tip FAF5259A 25 43 47 PMAE4065A 25 43 54 1.3 Head Not applicable. 1.4 Hand Not applicable. 2.5cm SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 5 of 15 2.0 Other SAR tested positions at the body 2.1 Body worn DUT w/ antenna FAF5259A, battery NNTN8128A, audio HMN4104B and body worn PMLN4651A against the phantom. Same position used for the other offered antenna (see table below) and battery. Antenna kit # Separation Distances (mm) @ bottom surface of the DUT @ antenna’s base @ antenna’s tip FAF5259A 6 28 39 PMAE4065A 6 28 45 SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 6 of 15 DUT w/ antenna FAF5259A battery NNTN8128A, audio cable HMN4104B, and body worn PMLN5950A against the phantom. Same position used for the other offered antenna (see table below), battery and carry strap. Antenna kit # Separation Distances (mm) @ bottom surface of the DUT @ antenna’s base @ antenna’s tip FAF5259A 6 81 116 PMAE4065A 6 84 140 SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 7 of 15 DUT w/ antenna FAF5259A, battery NNTN8128A, audio cable HMN4104B, and body worn PMLN5950A without belt loop against the phantom and attached carry strap NTN5243A. Same position used for the other offered antenna (see table below) and battery. Antenna kit # Separation Distances (mm) @ bottom surface of the DUT @ antenna’s base @ antenna’s tip FAF5259A 0 50 70 PMAE4065A 0 50 88 SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 8 of 15 2.2 Front Side against phantom Not applicable. 2.3 Back side against phantom Not applicable. 2.4 Front 2.5cm separation Not applicable 2.5 Antenna 2.5cm separation Not applicable 2.6 Back 2.5cm separation Not applicable 3.0 Other SAR tested positions at the face 3.1 Back of DUT at 2.5cm separation Not Applicable 4.0 Other SAR tested positions at the head 4.1 Left ear touch Not applicable. 4.2 Left ear tilt Not applicable. 4.3 Right ear touch Not applicable. 4.4 Right ear tilt Not applicable. 5.0 Other SAR tested positions at the hand 5.1 Left side Not applicable. 5.2 Right side Not applicable. 5.3 Top side Not applicable. 5.4 Bottom side Not applicable. 5.5 Back side Not applicable. SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 9 of 15 6.0 DUT and Accessory Photos The purpose of these photos is to illustrate the offered accessories. Refer to Part 1 of 2 section 7.0 for more details. 6.1 Antenna dimension and photo: Antenna Kit # Physical Length (mm) Electrical Length FAF5259A 93 ¼ wave PMAE4065A 150 ¼ wave Left–right: FAF5259A, PMAE4065A SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 10 of 15 6.2 Body worn accessories DUT Back View Belt clip PMLN4651A DUT Side View Belt clip PMLN4651A DUT Back View Belt Clip PMLN7008A DUT Side View Belt Clip PMLN7008A DUT Back View Carry case PMLN5950A DUT Side View Carry case PMLN5950A DUT Front View Carry case PMLN5950A SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 11 of 15 Carry strap NTN5243A with body worn PMLN5950A SR9750 EMS EME Form-SAR-Rpt Ex7B-Rev. 2.00 Page 12 of 15 6.3 Battery accessories: Side view Left – right: Front view Left – right: NNTN8128A, NNTN8129A NNTN8128A, NNTN8129A 6.4 Audio acces…

Text truncated - open the document above for the full version.
