AZ489FT4914Portable 2-Way Radio

M MOTOTRBO XPR TM 7150 Non-Display Portable User Guide 68009677001-A Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: XPR 7150 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this dev ice complies with Part 15 of the FCC Ru les. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the fo llowing two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity English ii Note: This equipment has been tested and found to comply with the li mits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provi de reasonable protection against harmful interference in a residential installation. This equipment generates, us es and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference wi ll not occur in a particular installation. If this equipment does cause harmful interference to radi o or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit differ ent from that to which the receiver is connected. • Consult the dealer or an experienc ed radio/TV technician for help. Contents English iii ContentsThis User Guide contains all the information you need to use the MOTOTRBO XPR 7150 Digital Portable Radio.Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . iImportant Safety Information . . . . . . . . . . . . . . . . . vi RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios . . . . . . . . . . . . . . . . . . .vi Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . viComputer Software Copyrights . . . . . . . . . . . . . . . vii Open Source Software Legal Notices . . . . . . . . . vii Handling Precautions . . . . . . . . . . . . . . . . . . . . . . viiiGetting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . 1What Your Dealer/System Administrator Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Preparing Your Radio for Use . . . . . . . . . . . . . . . . . . 3 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 3 Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 4Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . 4Attaching the Carry Holster . . . . . . . . . . . . . . . . . . . . 5 Attaching the Univer sal Connector Cover (Dust Cover) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Attaching the Accessory Connector . . . . . . . . . . . . . 6Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . 6Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 7 Identifying Radio Controls . . . . . . . . . . . . . . . . . . . . 8 Radio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . 10 Assignable Radio Functions . . . . . . . . . . . . . . . . 10Assignable Settings or Utility Functions . . . . . . . . 11 Push-To-Talk (PTT) Bu tton . . . . . . . . . . . . . . . . . . . 12 Switching Between Conventional Analog and Digital Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 IP Site Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Linked Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . 15 Identifying Status Indicators . . . . . . . . . . . . . . . . . . 16 LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Receiving and Making Calls . . . . . . . . . . . . . . . . . . 19 Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Selecting a Channel . . . . . . . . . . . . . . . . . . . . . . . . 20Receiving and Responding to a Radio Call . . . . . . 20 Receiving and Responding to a Group Call . . . . . 21Receiving and Responding to a Private Call . . . 21 Contents English iv Receiving an All Call . . . . . . . . . . . . . . . . . . . . . . 23Receiving and Responding to a Phone Call . . . 23 Phone Call as a Private Call or Group Call . . . 23Phone Call as an All Call . . . . . . . . . . . . . . . . . 24 Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 24 Making a Call with the Channel Selector Knob . . 25 Making a Group Call . . . . . . . . . . . . . . . . . . . . 25Making a Private Call . . . . . . . . . . . . . . . . . . . 25 Making a Selective Call . . . . . . . . . . . . . . . . . . . 26 Making an All Call . . . . . . . . . . . . . . . . . . . . . . 27 Making a Phone Call with the Programmable Phone Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Stopping a Radio Call . . . . . . . . . . . . . . . . . . . . . . 28Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

1 English RF Energy Exposure and Product Safety for Portable Two-Way Radios RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE:This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high BEFORE USING THIS RADIO, READ THIS GUIDE WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL FOR COMPLIANCE WITH APPLICABLE STANDARDS AND REGULATIONS. ATT ENT ION! LACR-NAG-QRG.fm Page 1 Wednesday, April 24, 2013 11:47 AM 2 English levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth LACR-NAG-QRG.fm Page 2 Wednesday, April 24, 2013 11:47 AM 3 English Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/ controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. LACR-NAG-QRG.fm Page 3 Wednesday, April 24, 2013 11:47 AM 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. • FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 • Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. LACR-NAG-QRG.fm Page 4 Wednesday, April 24, 2013 11:47 AM 5 English Operating Instructions • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To- Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • Private Talk Position (XTS 4000 Only). When placing or receiving a personal message, hold your radio as you would a wireline/wireless telephone. Speak directly into the microphone. Use the PTT as in a normal two-way operation. • Two-Way Radio Operation. In front of the face, hold the radio in a vertical position with the microphone (and other parts of the radio including the antenna) at least one inch (2.5 centimeters) away from the nose or lips. Keeping the radio at a proper distance is important to ensure compliance. NOTE:RF exposures decrease with increasing distance from the antenna. • Body Worn Operation. When worn on t…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT4914 EXHIBIT 13A ________________________________________________________________________________________ Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida May 13 th , 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4914, MOTOTRBO UHF (403 – 512 MHz), 4 Watts Rated Power, 4.8 Watts Max Power Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: 403 – 512 MHz : 1-4 Watts (Nominal) To aid equipment authorization in foreign countries which accept United States FCC Grant for equipment authorization, Motorola Solutions is requesting that the FCC lists 403 – 512 MHz on the FCC Grant for equipment authorization. We are requesting Certification under Part 90.210 and 90.210(e) of the Commission’s Rules to allow operation of this equipment in 403 – 512 MHz. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. In addition, this transmitter is intended for work-related occupational use only under Part 90 of the FCC rules. Additionally, the radio is equipped with a Bluetooth transmitter capable of clear communication with fixed power operating within the following frequency ranges: 2.402-2.480 GHz: 5-10 mW The Bluetooth transmitter complies with the requirements of FCC Part 15 subpart C. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT4914 EXHIBIT 13B ________________________________________________________________________________________ Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida CONFIDENTIALITY REQUEST May 13 th , 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for Transmitter with FCC ID: AZ489FT4914 Dear Sir / Madam, Motorola Solutions Inc is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola Solutions considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

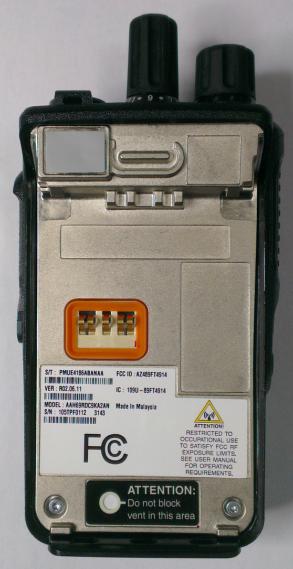

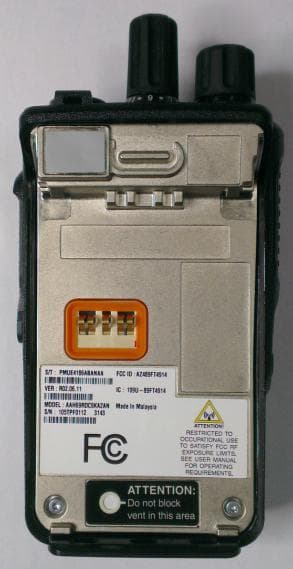

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 1 OF 7 EXHIBIT 3 The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View with Display and Keypad. 3B 3. Back View (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 2 OF 7 Exhibit 3A BACK VIEW WITH BATTERY Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 3 OF 7 Exhibit 3B FRONT VIEW Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 4 OF 7 Exhibit 3C BACK VIEW (FCC LABELS) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 5 OF 7 Exhibit 3D SIDE VIEW (RIGHT) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 6 OF 7 Exhibit 3E SIDE VIEW (LEFT) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-89FT4914 EXHIBIT 3 SHEET 7 OF 7 Exhibit 3F TOP VIEW

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 1 SHEET 1 OF 1 Identification Label LOCATION See the Attached Photograph or Sketch Top of Radio X Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. Figure 1: FCC IC Label for Non Key Pad model (AAH69RDC9KA2AN)

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 1 OF 7 Internal Photographs The following photographs are attached. Exhibit 1. RF board without & with Shields (Top) 9A 2. RF board without & with Shields (Bottom) 9B 3. Chassis and housing (front side) 9C 4. Chassis and housing (back side) 9D 5. GOB board 9E Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 2 OF 7 Exhibits 9A RF board with and without Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 3 OF 7 Exhibit 9B RF board with and without Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 4 OF 7 Exhibit 9C PCB board with chassis and housing (Top) RF Port (For conducted measurement) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 5 OF 7 Exhibit 9D PCB board with chassis and housing (Bottom) Bluetooth Antenna Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 6 OF 7 Exhibit 9E GOB board (Top) GOB board with shield (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4914 / IC: 109U-8 9FT4914 EXHIBIT 9 SHEET 7 OF 7 GOB board without shield (Bottom)

FCC ID: AZ489FT4914/ IC: 109U-89FT4914 SR 11252 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 78 TESTING CERT # 2518.05 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Enterprise Mobility Solutions EME Test Laboratory Motorola Solutions Malaysia Sdn Bhd (455657-H) Customer Solution Center Plot 2, Bayan Lepas Technoplex Industrial Park, Mukim 12 SWD 11900 Bayan Lepas Penang, Malaysia. Date of Report:05/07/2013 Report Revision:O Report ID:SR11252_PMUE4186A Rev O 130507 Responsible Engineer: Veeramani Veerapan (Sr.EME Engineer) Report Author: Veeramani Veerapan (Sr.EME Engineer) Date/s Tested:03/18/13-04/01/13 Manufacturer/Location:Motorola, Penang Sector/Group/Div.:PCR Date submitted for test: 02/20/13 DUT Description: 403-527 MHz 4W NKP GPS BT /GPS BT GOB Test TX mode(s): CW (PTT) for UHF; CW (77 % duty cycle for Bluetooth) Max. Power output: 4.8 W for UHF; 10 mW for Bluetooth Nominal Power: 4.0 W for UHF; 2.5 mW for Bluetooth Tx Frequency Bands:403-527 MHz, 2.402-2.480 GHz (Bluetooth) Signaling type:FM (UHF); FHSS (Bluetooth) Model(s) Tested:PMUE4186A Model(s) Certified: PMUE4186A Serial Number(s):105TPB0013 Classification: Occupational/Controlled FCC ID: AZ489 FT4914 ; Rule Part 90 (406.1-512 MHz) ); Rule Part 15 (2402-2480 MHz). Results outside FCC bands are not applicable for FCC compliance demonstration. IC: 109U-89FT4914; (406.1-430 and 450-470 MHz); Rule Part 15 (2402-2480 MHz). * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. Results outside FCC bands are not applicable for FCC compliance demonstration. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date:5/9/2013 Certification Date: 5/9/2013 Certification No.: L1130407P


       !! "## FCC ID: AZ489FT4914/ IC: 109U-89FT4914 SR 11252 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 78 Part 1 of 2 1.0 Introduction.................................................................................................................................4 2.0 Abbreviations / Definitions.........................................................................................................4 3.0 Referenced Standards and Guidelines ........................................................................................4 4.0 SAR Limits .................................................................................................................................5 5.0 SAR Result Scaling Methodology..............................................................................................6 6.0 Description of Device Under Test (DUT) ..................................................................................6 7.0 Optional Accessories and Test Criteria.......................................................................................7 7.1 Antennas .........................................................................................................................7 7.2 Battery.............................................................................................................................7 7.3 Body worn Accessory.....................................................................................................7 7.4 Audio Accessories ..........................................................................................................7 8.0 Description of Test System.........................................................................................................9 8.1 Descriptions of Robotics/Probes/Readout Electronics ...................................................9 8.2 Description of Phantom(s)............................................................................................10 8.3 Description of Simulated Tissue...................................................................................10 9.0 Additional Test Equipment.......................................................................................................11 10.0 SAR Measurement System Verification...................................................................................11 10.1 Equivalent Tissue Test Results.....................................................................................12 10.2 System Check Test Results...........................................................................................12 11.0 Environmental Test Conditions ................................................................................................13 12.0 DUT Test Methodology............................................................................................................13 12.1 Measurements .............…
