COMMERCIAL DIGITAL TWO-WAY RADIO MOTOTRBO™ SL SERIES SL300 NON-DISPLAY PORTABLE RADIOS USER GUIDE Contents Declaration of Conformity .........................4 Important Safety Information..........6 Software Version..............................7 Consignes de sécurité importantes...................................8 Version logicielle............................. 9 Computer Software Copyrights....10 Handling Precautions....................11 Getting Started...............................12 How to Use This Guide ..................................12 What Your Dealer/System Administrator Can Tell You.............................................12 Preparing Your Radio for Use.......13 Charging the Battery......................................13 Attaching the Battery..................................... 13 Attaching the Antenna................................... 14 Attaching the Earpiece/Audio Accessory.......15 Powering Up the Radio..................................15 Adjusting the Volume.....................................16 Identifying Radio Controls............17 Radio Controls...............................................17 Programmable Buttons..................................17 Assignable Radio Functions............... 18 Assignable Settings or Utility Functions.......................................18 Accessing the Programmed Action List.........18 Push-To-Talk (PTT) Button............................19 On/Off/Information Button..............................20 Contents 1 English Switching Between Conventional Analog and Digital Mode .......................................21 Identifying Status Indicators.........22 LED Indicator.................................................22 Audio Tones...................................................23 Indicator Tones..............................................23 Making and Receiving Calls .........24 Selecting a Channel.......................................24 Receiving and Responding to a Radio Call...24 Receiving and Responding to a Group Call......................................24 Receiving and Responding to a Private Call ................................... 25 Receiving an All Call .......................25 Receiving and Responding to a Selective Call .............................26 Making a Radio Call .......................................26 Making a Group Call...........................26 Making a Private Call ......................27 Making an All Call ...........................28 Making a Selective Call ......................28 Talkaround.....................................................29 Advanced Features........................30 Scan Lists...................................................... 30 Scan...............................................................30 Starting and Stopping Scan................30 Responding to a Transmission During a Scan................................30 Deleting a Nuisance Channel............. 31 Restoring a Nuisance Channel...........31 Vote Scan ..................................................31 Call Indicator Settings....................................32 Escalating Alarm Tone Volume...........32 Call Alert Operation....................................... 32 Receiving and Responding to a Call Alert........................................32 Making a Call Alert with the One Touch Access Button.....................32 Emergency Operation....................................32 Sending an Emergency Alarm............33 Sending an Emergency Alarm with Call.................................................34 Sending an Emergency Alarm with Voice to Follow ............................. 34 Reinitiating an Emergency Mode........35 Contents 2 English Exiting Emergency Mode After Sending the Emergency Alarm ......36 Privacy .......................................................36 Lone Worker..................................................37 Password Lock Features...............................37 Accessing the Radio from Password.......................................37 Utilities...........................................................38 Setting the Squelch Level...................38 Setting the Power Level......................38 Turning the Voice Operating Transmission (VOX) Feature On or Off........................................38 Turning the Radio Tones/Alerts On or Off..............................................39 Voice Announcement..........................39 Authorized Accessories List.........40 Antennas........................................................40 Batteries.........................................................40 Carry Devices................................................40 Chargers........................................................40 Earbuds and Earpieces................................. 40 Batteries and Chargers Warranty...........41 The Workmanship Warranty..........................41 The Capacity Warranty..................................41 Limited Warranty...................................... 42 MOTOROLA COMMUNICATION PRODUCTS............................................. 42 I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:........................... 42 II. GENERAL PROVISIONS:.........................43 III. STATE LAW RIGHTS:..............................43 IV. HOW TO GET WARRANTY SERVICE:...43 V. WHAT THIS WARRANTY DOES NOT COVER:....................................................44 VI. PATENT AND SOFTWARE PROVISIONS:..........................................44 VII. GOVERNING LAW:.................................46 Contents 3 English Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. Declaration of Conformity Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola Solutions, Inc. Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that the product: Model Name: SL300 conforms to the following regulations:…

Text truncated - open the document above for the full version.

COMMERCIAL DIGITAL TWO-WAY RADIO MOTOTRBO™ SL300 PORTABLE RADIOS QUICK REFERENCE GUIDE 1 English Important Safety Information RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios ATTENTION! This radio is restricted to Occupational use only. Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. For a list of Motorola-approved antennas, batteries, and other accessories, visit the following website: http://www.motorolasolutions.com/ MainContent_NAG-LACR.fm Page 1 Friday, September 5, 2014 10:59 AM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE:This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. MainContent_NAG-LACR.fm Page 2 Friday, September 5, 2014 10:59 AM 3 English All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. MainContent_NAG-LACR.fm Page 3 Friday, September 5, 2014 10:59 AM 4 English Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/ controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE: The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) MainContent_NAG-LACR.fm Page 4 Friday, September 5, 2014 10:59 AM 5 English • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To- Talk (PTT) button. To receive calls, release the PTT button. The PTT button may reside on the radio itself or may be hosted on approved wired or wireless (for example, a Bluetooth-enabled remote PTT button) accessories. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). MainContent_NAG-LACR.fm Page 5 Friday, September 5, 2014 10:59 AM 6…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 2 SHEET 1 OF 1 EXHIBIT 2 STATEMENT OF CERTIFICATION – Pursuant to 47 CRF 2.907 & 2.908 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) I received a Bachelor degree of Electronics Majoring in Telecommunication from Multimedia University (MMU), Malaysia. 2) I have 6 years experience in developing, testing, and certifying Land Mobile Communications Products. NAME: Ragavan Krishnamorrthy SIGNATURE: DATE:4 th September 2014 POSITION: Senior Electrical Engineer 3) I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Ong Ming Sooi SIGNATURE: _ DATE: 4 th September 2014 POSITION: Engineering Section Manager

FCC ID: AZ489FT4922 Motorola Solutions Inc. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: September 8, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT4922 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for certification of the subject transmitter: SL300 UHF 1 (403MHz – 470MHz), 1W – 3W Rated Power, Max Power 3.3W This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency range: Frequency Rated Power FCC Rule Parts 403-470 MHz 1.0 – 3.0 W 90, 22 We are requesting certification under Part(s) of the Commission’s Rules listed above to allow operation of this equipment. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ489FT4922 Motorola Solutions Inc. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: September 8, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AZ489FT4922 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Exhibit 4 Block diagrams & Circuit Description Exhibit 5 Schematic Diagrams Exhibit 10 Parts List and Tune Up Procedures Exhibit 12 Operational Description Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ489FT4922 Motorola Solutions Inc. Exhibit 13c 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: September 8, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: AZ489FT4922 Dear Sir or Madam: This transmitter was design to operate in the frequency range of 403-470MHz. To aid equipment authorization in other countries that accept the United States FCC Grant for Certification, Motorola (Motorola Solutions Inc) is requesting that the FCC list the above frequency/frequencies under FCC Rule Parts 22 and 90 on the Grant. For the FCC’s Rule Parts 22 and 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 22 Part 90 Federal Emission Designator 403-406.1 x 7K60F1D 7K60FXD 7K60F1E 7K60FXE 7K60F1W 11K0F3E 16K0F3E (Part 22) 406.1-454 x 454-456* 456-459.025 x 459.025-459.650 x x 459.650-462.5375 x 462.5375-462.7375* 462.7375-467.5375 x 467.5375-467.7375* 467.7375-470 x *Canada Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Tel: (954) 723-5422 E-mail: [email protected]

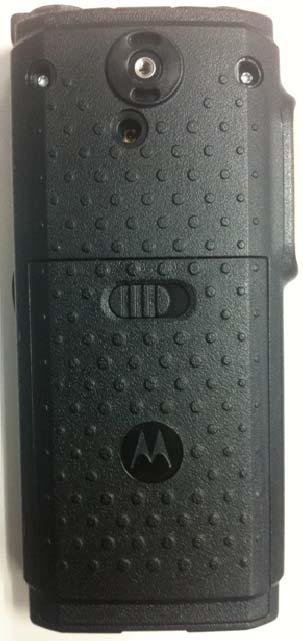

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View with Battery. 3B 3. Back View with FCC label location 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 2 OF 8 Exhibit 3A Back View with Battery (Display and Plain model) Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 3 OF 8 Exhibit 3B Front view with Battery (Display and Plain model) Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 4 OF 8 Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 5 OF 8 Exhibit 3C Display model Plain Model Back View with FCC label location Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 6 OF 8 Exhibit 3D Display model Plain model Side View (Right view) Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 7 OF 8 Exhibit 3E Side View (Left) (Display and Plain Model) Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 3 SHEET 8 OF 8 Exhibit 3F Top View for Display model (Controls) Top View for Plain model (Controls)

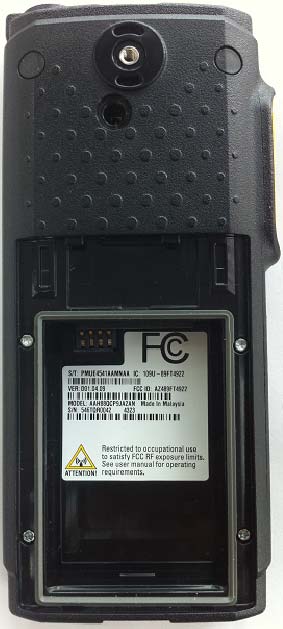

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 1 SHEET 1 OF 2 EXHIBIT 1 Identification Label LOCATION See the Attached Photograph or Sketch Top of Radio X Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. FCC/IC LABEL : SALES MODEL AAH88QCP9JA2AN Applicant: Motorola Solutions Inc FCC ID: AZ489FT4922 / IC: 109U-89FT4922 EXHIBIT 1 SHEET 2 OF 2 FCC/IC LABEL : SALES MODEL AAH88QCC9JA2AN
