AZ489FT4972Consumer Radio 462-467MHz and Weather Band receiver

en-US fr-CA es-LA pt-BR TALKABOUT ® TWO-WAY RADIO T47X SERIES Emergency Preparedness Guidance Talkabout two-way radios with National Oceanic and Atmospheric Administration (NOAA) weather alerts and built-in flashlight are an important addition to an at-home emergency preparedness kit. The next time disaster strikes, you may not have much time to act. Learn how to protect yourself and handle emergency situations by planning ahead Review the use of the Motorola Talkabout radios. Discuss and practice how to communicate with each other and request help from others. It is recommended to discuss with other members of your community to set up a communication network. Discuss how you will get important information during a disaster and practice how to receive the NOAA weather alert updates on your Motorola Talkabout radios. Lastly, make sure your Motorola Talkabout radios and other items are fully charged (we recommend you check every 6 months) and that you keep a set of spare batteries available. "The Motorola Solutions Foundation, the charitable and philanthropic arm of Motorola Solutions, has proudly supported the American Red Cross with more than $5M in donations over the past decade.” The American Red Cross recommends that every household should have an emergency preparedness kit. The American Red Cross name and logo are registered trademarks of the American National Red Cross. motorolasolutions.com/emergencypreparedness 1 SAFETY AND GENERAL INFORMATION Caution Before using this radio, read this booklet that contains important operating instructions. For information on product details, brochures, user manuals, and approved accessories. Please refer to www.motorolasolutions.com. Compliance with RF Exposure Standards National and international regulations require manufacturers to comply with the RF energy exposure limits for portable two-way radios before they can be marketed. Your Motorola Solutions two- way radio is designed, manufactured, and tested to comply with all applicable national and international regulations for human exposure to radio frequency electromagnetic energy. RF Energy Exposure Awareness and Control Information and Operational Instructions for General Population and Uncontrolled Environment Use For more information on what RF energy exposure is, see the following websites: • https://www.fcc.gov/ • http://www.who.int/peh-emf/project/en/ • http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/ sf11467.html • http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/ sf01904.html For additional information, see https://www.motorolasolutions.com/en_us/about/ company-overview/corporate-responsibility/ governance-and-policies.html Operating Instructions • Transmit no more than 50% of the time. To transmit (talk), press the Push-To-Talk (PTT) button. To receive calls, release the PTT button. • Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least 1 in. (2.5 cm) away from the nose or lips. Antenna should be kept away from the eye. • When worn on the body, always place the radio in a Motorola Solutions-approved clip, holder, holster, case, or body harness for this product. • DO NOT hold the antenna when the radio is transmitting. • DO NOT use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result. • To ensure continued compliance with applicable RF exposure limits, use only Motorola Solutions-approved, supplied or replacement antennas, batteries, and accessories. • For a list of Motorola Solutions-approved accessories please refer to your user manual or visit www.motorolasolutions.com English 2 Acoustic Safety Exposure to loud noises from any source for extended periods of time may temporarily or permanently affect your hearing. The louder the volume of the radio, the sooner your hearing will be affected. Hearing damage from loud noise is sometimes undetectable at first, and can have a cumulative effect. To protect your hearing, follow these precautions: • Use the lowest volume necessary to do your job. • Turn up the volume only if you are in noisy surroundings. • Turn down the volume before putting on a headset or headphones. • Limit the amount of time you use a headset or headphones at high volume. • When using the radio without a headset or headphones, do not place the speaker of the radio directly against your ear. Medical Devices If you use a personal medical device, such as a pacemaker or hearing aid, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. Holsters Incorporating Magnets Some Motorola Solutions holsters incorporate strong, neodymium magnets. If you use a personal medical device, such as a pacemaker or hearing aid, consult the manufacturer of your device to determine if it can be used in close proximity to magnets. Your physician may be able to assist you in obtaining this information. Also be aware that magnets can damage other products, including cell phones, computers, hard drives, and other electronic devices, as well as credit cards and magnetic media. Keep the holster away from any mechanical device that could be affected by a magnetic field. Consult the manufacturer of your product to determine if your device or product can be used in close proximity to magnets. English 3 Operational Warnings The following explains the operational warnings: For Vehicle With Air Bags Potentially Explosive Atmospheres Warning: • Refer to vehicle manufacturer's manual prior to installation of electronic equipment to avoid interference with air bag wiring. • DO NOT place a portable radio in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a portable radio is placed in the air bag deployment area and the air bag inflates, the radio may be propelled with great force and cause seri…

Text truncated - open the document above for the full version.

____________________________________________________________________________ Motorola Solutions Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Certification Department Date: 12 December 2022 Subject: Application Authorization for FCC/IC filing To Whom It May Concern: I hereby authorize Arine Lee to apply, on my behalf, the application for the following FCC/IC ID: FCC/IC ID: AZ489FT4972 / 109U-89FT4972 Please contact me if there are any questions or issues. Regards, Deanna Zakharia Regulatory Compliance Manager Tel: (954) 723 4707 Email: [email protected]

FCC ID: AZ489FT4972 ___________________________________________________________________________________________________________ Motorola Solutions Malaysia Sdn Bhd, Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13B Revision 1 (2 Aug 2022) CONFIDENTIALITY REQUEST Date : December 12, 2022 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT4972 Dear Sir / Madam, Motorola Solutions Malaysia Sdn Bhd is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola Solutions considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, Arine Lee FCC/IC Certification Manager E-mail : [email protected]

FCC ID: AZ489FT4972 _______________________________________________________________________________________________________________________ Motorola Solutions Malaysia Sdn Bhd, Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13A Revision 2 (15 Aug 2022) Date: December 12, 2022 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for New Filing Certification of Transmitter with FCC ID: AZ489FT4972 Dear Sir/Madam, Motorola Solutions Malaysia Sdn Bhd herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a portable radio application with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: Product Name Model Numbers Frequency Range RF Power FCC Rules Part T478 T478 FRS: (Chl 1-7) 462.5625 –462.7125MHz (Chl 8-14) 467.5625 – 467.7125MHz (Chl 15-22) 462.5500 – 462.7250MHz Chl 1-7, Chl 15-22 1.9 W (ERP max calculated) Chl 8-14 0.48W (ERP max calculated) 95B NOAA: 161.65 – 162.55 MHz RX Only 15B *Remark: NOAA is short form of National Oceanic and Atmospheric Administration. It is a national weather service in US. We are requesting certification under Part(s) of the Commission’s Rules listed above to allow operation of this equipment. The subject transmitter complies with Section 95.337 and 95.363 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. If you require any additional information, please contact me at +604-2240258. Sincerely, Arine Lee FCC/IC Certification Manager E-mail : [email protected]

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 2 Revision 1 (2 Aug 2022) SHEET 1 OF 1 EXHIBIT 2 Statement of Certification (Pursuant to FCC Part 2.907, 2.908 and RSP 100 Sec 4) 2.1 Statement of Certification Transceiver type described herein (AZ489FT4972/109U-89FT4972) is in compliance with all applicable parts of the FCC rules and ISED RSS standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Racheal Teow SIGNATURE: DATE: 24 th November 2022 TITLE: Engineering Project Lead

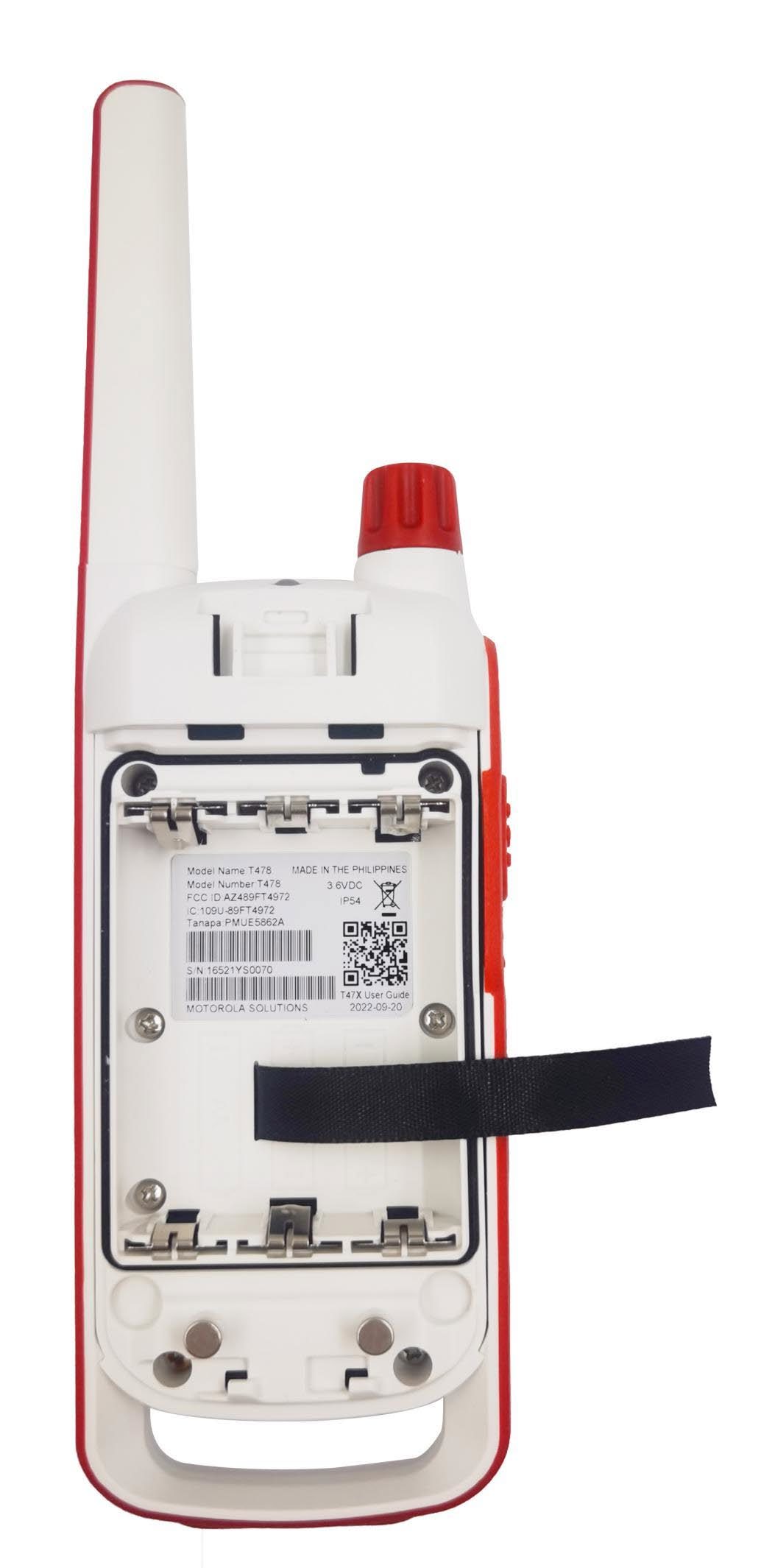

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 1 OF 7 EXHIBIT 3A EXTERNAL PHOTOGRAPHS (Pursuant to FCC Part 2.1033(b)(7) and 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached Exhibit 1. Front View with Battery 3A 2. Back View with Battery . 3B 3. View of FCC/IC label location 3C 4. Side view (Right) with Battery 3D 5. Side view (Left) with Battery 3E 6. Top view with Battery 3F 7. Bottom view with Battery 3G Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 2 OF 7 EXHIBIT 3A – Front View with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 3 OF 7 EXHIBIT 3B – Back View with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 4 OF 7 EXHIBIT 3C – View of FCC/IC label locations Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 5 OF 7 EXHIBIT 3D – Side view (Right) with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 6 OF 7 EXHIBIT 3E – Side view (Left) with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 7 OF 7 EXHIBIT 3F – Top view with Battery EXHIBIT 3G – Bottom view with Battery *** END ***

Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972 / IC: 109U-89FT4972 EXHIBIT 1 Revision 1 (2 Aug 2022) SHEET 1 OF 2 EXHIBIT 1 IDENTIFICATION LABEL (Pursuant to FCC Part 2.1033(c)(11), 2.1033(b)(7) and RSP 100 Annex C and Sec 3) LOCATION ____ See the Attached Photograph or Sketch ____ Bottom of the device ____ Front of the device ____ Back of the device ____ Back of the device under Belt Clip _X__ In the Battery Compartment ____ Electronic labeling: In the user manual (Section: XX) TYPE X The label is a PP film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 40 oz/inch. __ The label is an electronic print accessible in the device. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3 for the actual location of the FCC/IC label on the device. X Label Attached Below. See Attached Drawing. Applicant: Motorola Solutions Inc FCC ID: AZ489FT4972 / IC: 109U-89FT4972 EXHIBIT 1 Revision 1 (2 Aug 2022) SHEET 2 OF 2 Figure 1: FCC/IC Label for T478 *** END ***

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 1 OF 8 EXHIBIT 9 Internal Photographs (Pursuant to FCC Part 2.1033(b)(7), 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached. Exhibit 1. RF board with Shields (Top) 9A 2. RF board without Shields (Top) 9B 3. RF board with Shields (Bottom) 9C 4. RF board without Shields (Bottom) 9D 5. RF boards with chassis and housing for (Front Side) 9E 6. Chassis and housing (Back Side) 9F Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 2 OF 8 EXHIBIT 9A - RF board with Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 3 OF 8 EXHIBIT 9B - RF board without Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 4 OF 8 EXHIBIT 9C - RF board with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 5 OF 8 EXHIBIT 9D - RF board without Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 6 OF 8 EXHIBIT 9E - RF boards with chassis and housing for (Front Side) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 7 OF 8 EXHIBIT 9F - Chassis and housing (Back Side) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT4972/ IC: 109U-89FT4972 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 8 OF 8 *** END ***

Report Template Document Number : FCD-0085 Report ID: 35376-EMC-00009 Report Template Revision Number : Rev. M FCC ID: AZ489FT4972 IC ID: 109U-89FT4972 1 MOTOROLA PENANG ADV. COMM. LABORATORY FCC / ISED TEST REPORT Motorola Solutions Malaysia Sdn Bhd Report Revision : Rev.A Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas Penang, MALAYSIA Date/s Tested : 01-November-2022 to 02-November-2022 Manufacturer/Location : MOTOROLA SOLUTIONS MALAYSIA SDN BHD Manufacturer Address : PLOT 2A, MEDAN BAYAN LEPAS MUKIM 12, S.W.D 11900 BAYAN LEPAS PENANG, MALAYSIA Requestor : TEOW, SOO PEI Product Type : Portable Model Number : T478 Frequency Band : 462-468MHz Applicant Name : Motorola Solutions Inc Applicant Address : 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. ISED Registrations FCC Registrations Remark : : : MY0001 461337 NA The equipment was tested accordance to the requirement listed below: (LMR) FCC 47 CFR Part 15B / RSS Gen / ICES-003 PASS This report shall not be reproduced without written approval from an officially designated representative of the Motorola Penang Adv. Comm. Laboratory. The results and statements contained in this report pertain only to the device(s) evaluated. Prepared By: Approve Signatory: ________________________ ________________________ KHAIRUL AIMAN ZULHAIRUDIN BIN ZULKIFLI Technician Responsible Engineer Report Template Document Number : FCD-0085 Report ID: 35376-EMC-00009 Report Template Revision Number : Rev. M FCC ID: AZ489FT4972 IC ID: 109U-89FT4972 2 Table of Contents 1.0. General Information ................................................................................................................................. 3 2.0. Summary of Test Results ......................................................................................................................... 3 3.0. Measurement Uncertainty ........................................................................................................................ 4 4.0. Equipment List ......................................................................................................................................... 5 5.0. Test Condition .......................................................................................................................................... 6 5.1 Receiver Test Conditions .................................................................................................................. 6 6.0. Receiver Test Parameters ......................................................................................................................... 7 6.1. Conducted Spurious Output Power ................................................................................................. 7 6.1.1. Test Setup ................................................................................................................................ 7 6.1.2. Test Result ............................................................................................................................... 7 6.1.3. Test Limit ................................................................................................................................. 7 6.2. Radiated Spurious Output Power .................................................................................................... 8 6.2.1. Test Setup ................................................................................................................................ 8 6.2.2. Test Result ............................................................................................................................... 9 6.2.3. Test Limit ............................................................................................................................... 11 6.3. AC Power Line Conducted Spur Emissions ................................................................................. 12 6.3.1. Test Setup .............................................................................................................................. 12 6.3.2. Test Results ............................................................................................................................ 13 6.3.3. Test Limits ............................................................................................................................. 20 7.0. Appendix: Test Setup Photo .................................................................................................................. 21 7.1. Conducted Spur Emission ATE Station Setup ........................................................................... 21 7.2. Radiated Spur Emission Station Setup ...................................................................................... 21 7.3. AC Power Line Conducted Emission Station Setup .................................................................. 22 7.4. Photographs – EUT ....................................................................................................................... 23 Report Revision History Revision History Description Date Originator Rev. A Initial Report 08-November-2022 Khairul Aiman Report Template Document Number : FCD-0085 Report ID: 35376-EMC-00009 Report Template Revision Number : Rev. M FCC ID: AZ489FT4972 IC ID: 109U-89FT4972 3 1.0. General Information EUT Description: Technologies LMR Modulation Type FM The EUT was tested with following device/accessory: Item Brand Model or P/N POWER SUPPLY ADAPTOR,SWITCH MODE, 3W, L6, 100 V - 240 V, MICRO USB, US/NOM/JP MOTOROLA PS000228A01 800MAH 3XAA NIMH RECHARGEABLE BATTERY PACK MOTOROLA PMNN4477A T82_T47x_T8xx SERIES DUAL SLOT CHARGING TRAY MOTOROLA PMLN8219A General Description of Applied Standards According to the specifications of the manufacturer, the EUT is to comply with the requirements of the following standards: ANSI C63.4.2014 2.0. Summary of Test Results FCC General Rules Part (47CFR) IC General Rules Part Test Item Result 15.109, 15.111 RSS-…

Text truncated - open the document above for the full version.
