AZ489FT5800iDEN r750plus

Motorola iDEN® Digital Multi-Service Phone r750plus User’s Guide Fifth Review Draft 7/24/00 @NTN9333A@ NTN9333-A Table of Contents iii Table of Contents Welcome................................................................................. 1 TTY Access ....................................................................................... 2 Large-Print Manuals ......................................................................... 2 Features of your r750plus Phone ...................................................... 2 Attaching and Charging the Battery................................................. 4 Attaching the Battery................................................................. 4 Detaching the Battery................................................................ 4 Charging the Battery ................................................................. 4 Battery and Charging Status ...................................................... 4 Turning On Your r750plus Phone ..................................................... 5 Turning Off your r750plus Phone ..................................................... 5 Installing Your Antenna............................................................. 6 Keypad Lock .................................................................................... 6 Activating Keypad Lock.............................................................. 6 Receiving Incoming Calls ........................................................... 6 Receiving New Mail Messages ................................................... 6 Receiving Voice Mail .................................................................. 7 Receiving Private (Two-Way Radio) Calls.................................... 7 Deactivating Keypad Lock.......................................................... 7 Display Icons.................................................................................... 7 About Modes and Menus................................................................. 9 Setting the Time and Date ............................................................... 9 Changing the Display Language .................................................... 11 Selectable Backlight Timer ............................................................. 11 Making Phone Calls.............................................................. 12 Using Other Dialing Methods ........................................................ 12 Scroll ....................................................................................... 12 Speed Dial ............................................................................... 12 Emergency Dial ....................................................................... 13 Automatic Redial ..................................................................... 13 Last Number Redial ................................................................. 13 Turbo Dial® Key ...................................................................... 13 Plus Dialing.............................................................................. 14 Hands-Free Speakerphone ....................................................... 14 Receiving a Phone Call .................................................................. 15 Ending a Phone Call....................................................................... 15 What Is My Phone Number? .......................................................... 15 VibraCall® Alert ............................................................................. 15 iv www.mot.com/iDEN Selecting VibraCall Alert for All Incoming Calls and Messages .. 16 Selecting VibraCall Alert for Individual Services ........................ 17 Setting the Ringer Volume ............................................................. 17 Selecting a Ring Style..................................................................... 17 Setting a Ring Style ............................................................. 18 Setting a Ring Style for the Alternate Line............................ 18 Additional Phone Services .................................................... 19 Call Waiting ................................................................................... 19 Turning Off Call Waiting.......................................................... 19 Call Hold ................................................................................. 19 3-Way Calling.......................................................................... 20 Alternate Phone Line...................................................................... 20 Setting the Active Line ............................................................. 20 Receiving a Call ....................................................................... 21 Receiving a Call on Your Alternate Line .................................... 21 Receiving a Phone Call Using Speakerphone ............................ 21 Missed Call Indicator ..................................................................... 21 Call Forwarding ............................................................................. 22 Unconditional Call Forwarding ................................................ 22 Conditional Call Forwarding .................................................... 22 Creating, Editing, and Using Stored Lists ............................ 24 Combined Phone Number and Private ID List.......................... 24 Entering Numbers............................................................... 24 Entering Names .................................................................. 24 Storing Names and Numbers .............................................. 25 Pause Digit Entry................................................................. 26 Editing and Erasing Phone List Entries ................................. 26 Editing and Erasing Private ID List Entries ............................ 27 Last 10 Calls Received and Sent Lists...............…

Text truncated - open the document above for the full version.

Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 2- 1 Exhibit 2. Statement of Certification ----- 47 CFR 2.911 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: B.Sc. Electrical Engineering, 1997, Ben-Gurion University, Israel M.Sc. Electrical Engineering, 1999, Ben-Gurion University, Israel 4 years of experience in RF measurement techniques; 2 years of Design and Development experience in the field of two-way radio communication. NAME: Shuki Levy SIGNATURE: Shuki Levy DATE:____7/19/2000___ POSITION: RF Development Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Zami Schwartzman SIGNATURE: Zami Schwartzman DATE:____7/19/2000________ POSITION: Engineering Manager

Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 4- 1 Exhibit 4. Circuit Description-----47 CFR. 2.1033(C) 10 This section provides the description of circuits required by subpart 2.1033of the Commissions’ rules. The following are included: 4.1) Carrier Frequency Generation and Stabilization 4.2) Digital Modulation Technique 4.3) Modulation Limiting and Post Limiter Filter 4.4) Means for Output Power Limiting 4.5) Spurious and Harmonic Emissions Suppression Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 4- 2 4.1.Carrier Frequency Generation and Stabilization As shown in Figure 4-1 the synthesizer (U301) reference oscillator employs a crystal controlled Colpitts oscillator running at a frequency of 16.8Mhz. The oscillator transistor, start- up circuit, and temperature compensation circuit are located in the IC (U301) while the oscillator feedback capacitors, crystal, and tuning varactor are external. This oscillator is temperature compensated to an accuracy of +/-2.5PPM from –20 o C to 60 o C. The method of temperature compensation is to apply an inverse Bechmann voltage curve, which matches the crystal's Bechmann curve to a varactor that constantly shifts the oscillator back on frequency. Y300 U301 Figure 4-1: 16.8 MHz Reference Oscillator Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 4- 3 The reference oscillator runs at 16.8 MHz. The signal from this reference oscillator is routed to the synthesizer (U301) and used to control the stability of the main Voltage Controlled Oscillator (VCO) which oscillates at a frequency between 956.9 and 975.9 MHz (see figure 4-2). The synthesizer also buffers the 16.8 MHz signal and provides it to U401, U601 and U501. The PLL inside the U601 uses the 16.8 MHz clock to be used as the reference for the TX offset and RX 2nd VCO. The frequency of the TX offset VCO is 301.8 MHz which is divided by two in U501 and mixed with the main VCO to generate the transmit frequency. The frequency of the RX 2nd VCO is 219.3 MHz which is divided by two in the U601 and mixed with the Intermediate Frequency (IF) to generate the baseband data for the DSP. The frequency control for each VCO is accomplished by a PLL that compares the VCO frequency to the reference frequency thus locking each VCO to the reference oscillator. The transmitter frequency is programmed to a single frequency between 806 - 825 MHz composed by subtracting half of the TX offset VCO frequency (301.8 MHz) from the main VCO transmit frequency range of 956.9 - 975.9 MHz. The subtraction is done by a mixer in the U501 (U501) followed by a band pass filter (FL501) which selects the transmitter frequency of 806 - 825 MHz from the other mixing products and rejects spurious signals. ∏8 Clock Generation 16.8MHz 16.8MHz SYNTHESIZER IC 956.9-971.9 MHz Transceiver Frequency Generation Subsystem Main VCO 956.9-971.9 MHz 16.8MHz Reference Oscillator 16.8MHz ∏8 ∏ 1 150.9 MHz SYNTHESIZER Phase-Detector and Filter ∏ 2 109.65 Mhz U301 U501 U601 ∏ 2 Tx Offset VCO 301.8 MHz Rx 2nd VCO 219.3 MHz 806-821 MHz To FL 501 Figure 4-2 : Transmitter/Receiver Oscillator Line-Up Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 4- 4 4.2.Digital Modulation Techniques The subject radio makes use of 3 different modulation techniques termed Quad-16QAM, Quad-64QAM, and Quad-QPSK. In voice mode, the radio will function in Quad-16QAM mode only. In data mode, the radio will use any one of the three different modulation techniques (Quad-16QAM, Quad-64QAM, and Quad-QPSK) in a given time division multiplexed slot. The following describes each of the modulation techniques. The modulation technique termed Quad-QPSK is a linear digital modulation of a multi- channel variant of a 4-state Quadrature Amplitude Modulation. Data bits to be transmitted are split into four parallel lower rate streams, each of which is QPSK modulated to its own sub carrier frequency at a rate of 4k symbols per second. The four resulting sub channel signals are then combined in frequency division multiplex fashion to produce the composite M-QPSK signal. This spectrally efficient linear modulation can achieve transmission at 32K bits per second in a 25 kHz channel. The transmitter is configured using TDMA time slotting so that up to 6 radio users can simultaneously share the 25 kHz channel. The modulation technique termed Quad-16QAM is a linear digital modulation of a multi- channel variant of a 16-state Quadrature Amplitude Modulation. Data bits to be transmitted are split into four parallel lower rate streams, each of which is 16QAM modulated to its own sub carrier frequency at a rate of 4k symbols per second. The four resulting sub channel signals are then combined in frequency division multiplex fashion to produce the composite M-16QAM signal. This spectrally efficient linear modulation can achieve transmission at 64K bits per second in a 25 kHz channel. The transmitter is configured using TDMA time slotting so that up to 6 radio users can simultaneously share the 25 kHz channel. The modulation technique termed Quad-64QAM is a linear digital modulation of a multi- channel variant of a 64-state Quadrature Amplitude Modulation. Data bits to be transmitted are split into four parallel lower rate streams, each of which is 64QAM modulated to its own sub carrier frequency at a rate of 4k symbols per second. The four resulting sub channel signals are then combined in frequency division multiplex fashion to produce the composite M-64QAM signal. This spectrally efficient linear modulation can achieve transmission at 96K bits per second in a 25 kHz channel. The transmitter is configured using TDMA time slotting so that up …

Text truncated - open the document above for the full version.

Applicant: Motorola Inc FCC ID: AZ489FT5800 www.mot.com/iDEN iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33324 Page: 13- 1 Date: July 24, 2000 Mr. Frank Coperich Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Dear Mr. Coperich; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits it’s application for Certification of the subject transmitter. This variable power (0.2 milliWatt- 1.47 Watt ERP) transmitter is part of a handheld transceiver used in a SMR and EA SMR trunking system operating in the United States 806-821/851-866 MHz frequency band. This transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical And Operational Requirements For Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5792). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. It is expected that this handheld time division multiplexed transceiver marketed in the United States will also be used for itinerant operation with companion Authorized Base Stations by users requesting trunked radio and telephone interconnect service while roaming outside the United States. In some countries the companion base stations are licensed to operate at frequencies in the 821-825/866-870 MHz band in addition to some of those in the 806-821/851-856 MHz band normally used in United States SMR systems. Consequently, this transmitter has been designed to meet FCC requirements for operation in the 806-821 MHz band over the more global band of 806 - 825 MHz when used with a companion Authorized Base Station. Thus, performance data is provided to substantiate FCC compliant operation with a Companion Base Station over the broader 806 to 825 MHz band expected for global use of this handheld transceiver. To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization which states that this ‘receive first’ type of equipment is compliant for transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries which accept a Applicant: Motorola Inc FCC ID: AZ489FT5800 www.mot.com/iDEN iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33324 Page: 13- 2 United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 821 MHz base stations located within the United States. Consequently, upon receipt of Authorization, only those units of this equipment type authorized for marketing in countries outside the United States will also bear a label with the specified FCC identifier. In accordance with 47 CFR 2.1093(c) this transmitter may be used in “covered” SMR service so it has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The subject transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Certification Application comprised of 13 Exhibits. Contact me at (954) 723-5793 if you require any additional information. Regards, Mike Ramnath FCC Liaison Email: [email protected]

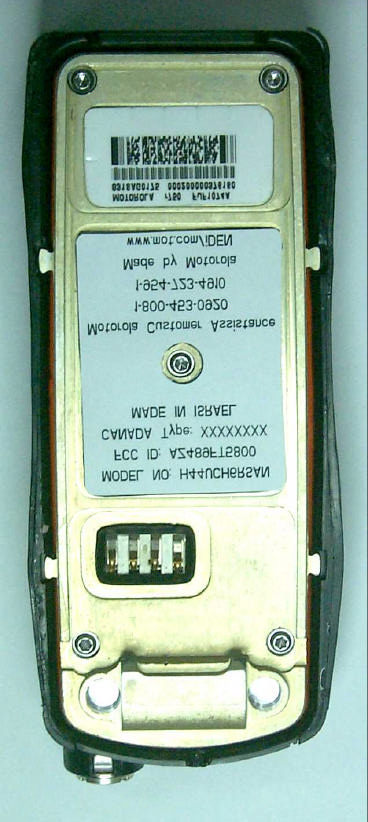

Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3- 1 Exhibit 3. External Photographs--------pursuant 47 CFR 2.1033(c) 12 Photograph 3-1: Front view of the radio with 2 l top load antenna Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3- 2 Photograph 3-2: Side view of the radio with antenna detached Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3- 3 Photograph 3-3: Rear view of the radio, showing FCC label Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3- 4 Photograph 3-4: Rear view of the radio, with battery attached

Applicant: Motorola, Inc.FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page:1- 1 Table of Contents EXHIBIT 1.IDENTIFICATION LABEL-----47 CFR. 2.1033-(C) 11............................................................................ 1-1 EXHIBIT 1A.GENERAL INFORMATION-----47 CFR. 2.1031, 2.1061......................................................................... 1-2 1A.1. Production Plans -- Pursuant 47 CFR 2.1031............................................................................................................. 1-2 1A.2. Application References -- Pursuant 47 CFR 2.1061.................................................................................................. 1-2 1A.3. Data Submittal Procedure.......................................................................................................................................... 1-2 1A.4. Similar, currently Type Accepted Transmitter........................................................................................................... 1-2 EXHIBIT 2.STATEMENT OF CERTIFICATION-----47 CFR. 2.911......................................................................... 2-1 EXHIBIT 3.EXTERNAL PHOTOGRAPHS---47CFR. 2.1033-(C) 12.......................................................................... 3-1 EXHIBIT 4.CIRCUIT DESCRIPTION-----47 CFR. 2.1033-(C)-10............................................................................... 4-1 4.1. Carrier Frequency Generation and Stabilization........................................................................................................... 4-2 4.2. Digital Modulation Techniques.................................................................................................................................... 4-4 4.3. Modulation Limiting and Post Limiter Filter................................................................................................................ 4-4 4.4. Means for Output Power Limiting................................................................................................................................ 4-5 4.5. Spurious and Harmonic Emissions Suppression............................................................................................................ 4-6 EXHIBIT 5.CIRCUIT DIAGRAMS-----47 CFR. 2.1033-(D)-10.................................................................................... 5-1 5.1. Schematic Diagram of Transmitter Block...................................................................................................................... 5-1 EXHIBIT 6.MEASURED DATA-----47 CFR. 2.1033-(C) 14......................................................................................... 6-1 6.1. RF Power Output Data -- Pursuant 47 CFR 2.1046(a), 2.1033(c)(6), 2.1033(c)(7) and 2.1033(c)(8)............................. 6-1 6.2. Modulation Characteristics Data -- Pursuant 47 CFR 2.1047 and 2.1033(c)(13)........................................................... 6-1 6.3. Occupied Bandwidth Data -- Pursuant 47 CFR 2.1049, 90.210(g) and 90.691.............................................................. 6-4 6.4. Radiated Spurious Emissions Data -- Pursuant 47 CFR 2.1053,2.1057, 90.210(g) and 90.691(a)................................ 6-12 6.5. Conducted Spurious Emissions Data -- Pursuant 47 CFR 2.1051, 2.1057, 90.210 (g) and 90.691............................... 6-20 6.6. Frequency Stability Data -- Pursuant 47 CFR 2.1055.................................................................................................. 6-22 6.7. Power Line Conducted Spurious Emissions -- Pursuant 47 CFR 15.107...................................................................... 6-25 EXHIBIT 7.MEASUREMENT PROCEDURES-----47 CFR. 2.1041............................................................................ 7-1 7.1. RF Power Output -- Pursuant 47 CFR 2.1046............................................................................................................... 7-1 7.2. Occupied Bandwidth -- Pursuant 47 CFR 2.1049.......................................................................................................... 7-1 7.3. Radiated Spurious Emissions -- Pursuant 47 CFR 2.1053............................................................................................. 7-2 7.4. Conducted Spurious Emissions -- Pursuant 47 CFR 2.1051.......................................................................................... 7-3 7.5. Frequency Stability -- Pursuant to 47 CFR 2.1055 and 90.213...................................................................................... 7-3 7.6. Power Line Conducted Spurious Emissions -- Pursuant 47 CFR 15.107........................................................................ 7-4 7.7. Measurement Equipment List ---- 47 CFR 2.1041........................................................................................................ 7-5 EXHIBIT 8.INSTRUCTION MANUAL........................................................................................................................ 8-1 EXHIBIT 9.INTERNAL PHOTOGRAPHS.................................................................................................................. 9-1 EXHIBIT 10.SEMICONDUCTOR/ACTIVE DEVICE LIST AND TUNE UP PROCUDURE................................... 10-1 10.1. Semiconductor / Active Device List ---- 47 CFR 2.983-(D)-6.................................................................................... 10-1 10.2. Tune Up Procedure ---- 47 CFR 2.983-(d)-9............................................................................................................. 10-2 EXHIBIT 11.RF EXPOSURE INFORMATION ............................................................................................................11-1 EXHIBIT 12.TRANSMITTER DESCRIPTION-----47 CFR. 2.1033-(C)-4,5,6,7,8....................................................... 12-1 Applicant: Motoro…

Text truncated - open the document above for the full version.

Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9. Internal Photographs: Photograph 9-1: Back side of the radio main Board. Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 2 Photograph 9-2: Front side of the radio main Board. Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 3 Photograph 9-3: Radio rear housing and main board removed, exploring inside of front housing, back side of display module and keypad with speaker. Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 4 Photograph 9-4: Front side of keypad Board. Photograph 9-5: Front side of keypad Board, showing attached speaker.

Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 12- 1 Exhibit 12. Transmitter Description ----- 47 CFR 2.1033 (c) 4,5,6,7,8 12.1 Transmitter Technical Characteristics This handheld trunked radio transceiver is of the receive first type, meaning it must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a compatible base station. Transmission is not possible until acquisition and lock has been achieved, then it is limited to transmission of service request bursts on the digitally modulated reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice, circuit-switched data, or packet-switched data from the set of frequencies for which the trunking system is licensed. The technical capability of the transceiver exceeds FCC emissions requirements for the 806 - 825 MHz range for which companion base stations are authorized in the United States as it is expected that this handheld transceiver marketed in the United States will also be used for itinerant roaming operation outside the United States with companion base stations that may operate anywhere within the broader frequency range 806 - 825 MHz. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 825 MHz base stations located in the United States. Thus performance data is provided to substantiate FCC compliant operation with a companion base station over the broader international 806 to 825 MHz band expected in use of this handheld transceiver outside the United States. In addition to controlling the assigned frequency to which the transceiver will be slaved, the compatible base station frequency serves as an accurate, stable reference for the transceiver local reference oscillator by virtue of a transceiver AFC function inherent in the acquisition and lock process. The trunking system protocol uses a 90ms frame divided into six 15ms time slots. The base station allocates the number of 15ms time division multiplex (TDM) time slots in which the transceiver transmits, depending on the user requested transmission mode. These slot allocations are summarized in Table 12-1. Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 12- 2 Table 12-1: TDM Time Slot Allocation Transmission Service ModeTransmission Time Slots Allocated per Six-Slot Frames 1) Dispatch (push-to-talk) 1 (duty cycle=16.67%) 2) Telephone Interconnect 1 (duty cycle=16.67%) or 2 (duty cycle=33.33%) (base station preset) 3) Circuit-Switched Data* 2 (duty cycle=33.33%) 4) Packet-Switched Data* # up to 81 out of 120 contiguous slots (duty cycle=67.5% max) * Via a peripheral serial port at an input rate of 19,600 bps maximum for circuit-switched data and 115,200 bps maximum for packet-switched data. # Via an internal world wide web browser Variable output power. The RF output power of the transmitter is automatically adjusted in discrete steps over the range from rated power to approximately 34 dB cutback in response to changes in received signal strength. Additionally, the maximum output power level of different models of this radio type is factory programmed to nominally be either 1.1 Watt or 0.6 watts pulse average. No 1.1 Watt radio models will operate with the current limited Factory Mutual approved battery listed in section 12.2. Table 12-2: Mean DC Current into the final RF Amplifier Per Radio Multiplex Factor 81/1202/61/6 COMMENTS 0.2 milliWatts to 1.25 Watt pulse mean power (variable under base station control) 740 mA420 mA240 mA During a 15 ms transmission slot at the maximum power. The standard input test voltage was 4.8 volts DC 12.1.1. Maximum Output Power 1.25 Watt Pulse Average 12.1.2. Minimum Output Power 0.2 milliWatt Pulse Average 12.1.3. Frequency Range806 - 825 MHz # 12.1.4. Frequency Stability£ 1.9 PPM # * 12.1.5. Emission Designator20K0D7W 12.1.6. Spurious Emissions< -15 dBm nominal 12.1.7. Antenna Gain0.7 dBd maximum 12.1.8. Maximum ERP1.47 Watt Pulse Average Multiplex Factor Transmit Power Applicant: Motorola, Inc. FCC ID: AZ489FT5800 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 12- 3 # See Transmitter Technical Characteristics descriptive text in preceding paragraphs * See Exhibit 6.6 12.2. Transmitter Application The …
