AZ489FT5822iDEN i205

Motorola iDEN Digital Multi-service Data-capable Phone i 205 Phone User’s Guide FINAL DRAFT @NNTN4693A@NNTN4693A i ContentsGetting Started .............................................. 1 Locating Your SIM Card....................................... 2Battery.................................................................. 2Activating Service ................................................ 5Powering On and Off ........................................... 5Over-the-Air Programming................................... 5Making a Call ....................................................... 6Phone Basics ....................................................... 6Locking the Keypad ............................................. 9SIM Card Security.............................................. 10Completing Setup .............................................. 13Accessories........................................................ 14For More Information ......................................... 14 Making Calls ................................................ 15 Receiving Calls .................................................. 15Call Icons ........................................................... 15Entering the Number to Call............................... 16Using Speakerphone ......................................... 18Using Mute......................................................... 18Making Emergency Calls ................................... 19 Recent Calls ................................................ 21 Storing Recent Calls to Contacts ....................... 21Deleting Recent Calls......................................... 22 Call Alerts .................................................... 23 Sending Call Alerts............................................. 23Receiving Call Alerts .......................................... 23Using the Call Alert Queue................................. 23 Contacts ...................................................... 25 Viewing Contacts ............................................... 26Creating Entries ................................................. 27Storing Numbers Faster ..................................... 28Editing Entries .................................................... 29Deleting Entries.................................................. 29Checking Capacity ............................................. 29Creating Pauses and Waits................................ 30International Numbers........................................ 30Accessing Contacts with GSM Phones.............. 31 Call Forwarding........................................... 33 Forwarding All Calls ........................................... 33Turning Off Call Forwarding ............................... 34Forwarding Missed Calls.................................... 34 iiRing Tones................................................... 37 Turning Ring Tones Off...................................... 37Assigning Ring Tones to Contacts..................... 38Viewing Ring Tone Assignments ....................... 38Downloading More Ring Tones.......................... 38Managing Memory ............................................. 38Deleting Custom Ring Tones............................. 39 Messages ..................................................... 41 Message Notifications........................................ 41Voice Mail .......................................................... 41Text and Numeric Messages ............................. 42Net Alerts ........................................................... 43 Mobile Originated Text Messaging ............ 45 Setting Up .......................................................... 45Receiving Messages.......................................... 46Reading Messages From the Message Center . 46Creating and Sending Messages....................... 46Managing Memory ............................................. 49 GPS Enabled................................................ 51 IMPORTANT: Things to Keep in Mind ............... 51Making an Emergency Call ................................ 52 Viewing Your Approximate Location .................. 53Enhancing GPS Performance ............................ 54Updating Satellite Almanac Data ....................... 55Setting Privacy Options...................................... 56Using GPS with Map Software ........................... 57 Voice Records ............................................. 61 Creating Voice Records ..................................... 61Playing Voice Records ....................................... 61Labelling Voice Records .................................... 62Deleting Voice Records...................................... 62Locking Voice Records ...................................... 62Managing Memory ............................................. 62 Advanced Calling Features........................ 65 Call Waiting ........................................................ 65Call Hold............................................................. 663-Way Calling..................................................... 66Creating Pauses and Waits While Dialing.......... 67Making International Calls.................................. 67Setting One Touch PTT ..................................... 67Group Calls ........................................................ 68Call Timers ......................................................... 69 iii Using Your Phone as a Modem......................... 70Making TTY Calls............................................... 71 Memo ............................................................ 73Entering Text ............................................... 75 Using Alpha Mode.............................................. 75Using Word Mode .............................................. 75Using Numeric Mode ......................................... 77Using Symbols Mode ......................................... 77 Customizing Your Phone............................ 79 Setting t…

Text truncated - open the document above for the full version.

Applicant: Motorola Inc FCC ID: AZ489FT5822 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 1 5 th May 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its application for Certification of the transmitter with FCC ID: AZ489FT5822. This variable output power (0.088 to 700 milliwatt) transmitter is part of a handheld transceiver used in a SMR and EA SMR trunking system operating in the United States 806-821/851-866MHz and 896-901/935-940 MHz frequency band. Certification is sought for this transceiver, and performance data is provided for that purpose. This transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical And Operational Requirements For Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5792). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. It is expected that this handheld time division multiplexed transceiver marketed in the United States will also be used for itinerant operation with companion Authorized Base Stations by users requesting trunked radio and telephone interconnect service while roaming outside the United States. In some countries the companion base stations are licensed to operate at frequencies in the 821-825/866-870 MHz band in addition to some of those in the 806-821/851- 866 MHz band normally used in United States SMR systems. Consequently, this transmitter has been designed to meet FCC requirements for operation in the 806-821 MHz band over the more global band of 806 - 825 MHz when used with a companion Authorized Base Station. Thus, performance data is provided to substantiate FCC compliant operation with a Companion Base Station over the broader 806 to 825 MHz band expected for global use of this handheld transceiver. To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for Applicant: Motorola Inc FCC ID: AZ489FT5822 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 2 transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 821 MHz base stations located within the United States. Consequently, upon receipt of Authorization, only those units of this equipment type authorized for marketing in countries outside the United States will also bear a label with the specified FCC identifier. In accordance with 47 CFR 2.1093(c) this transmitter may be used in “covered” SMR service so it has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The subject transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. This transceiver can function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable (ref: Exhibit 12.1). For this reason a Declaration of Conformity has been prepared and is provided on Page 5 of the user Manual in the Exhibit 8. Enclosed is a complete Certification Application comprised of 13 Exhibits. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath (signed) Mike Ramnath FCC Liaison Email: [email protected]

FCC ID: AZ489FT5822 Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 Page: 13-2 REQUEST FOR CONFIDENTIALITY 8th May 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Type Acceptance of Transmitter with FCC ID: AZ489FT5822. Gentlemen; Motorola is requesting that Exhibit 4 (Circuit Description), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Semiconductor/Active Device List) and Exhibit 12 not be made routinely available for public inspection. Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below. Please mark Exhibit 4, 5,10 and 12 as Confidential. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath (signed) FCC Liaison Email: [email protected]

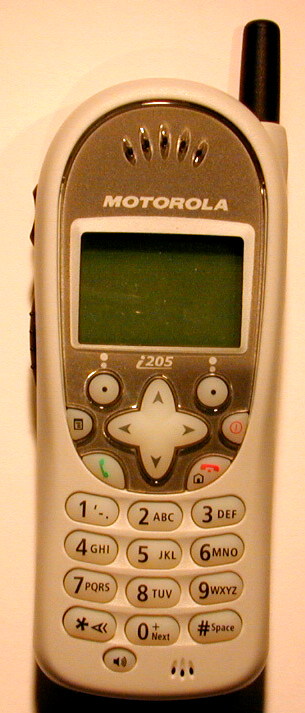

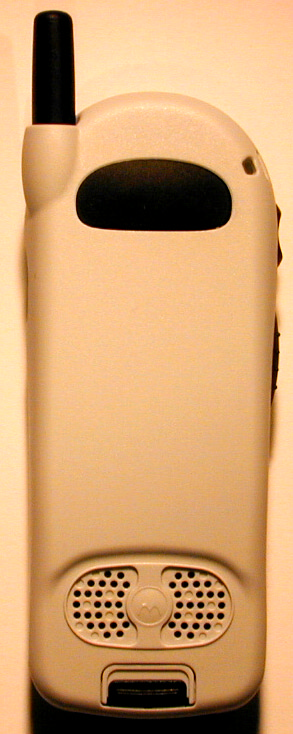

FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)12 The radio product keypad shapes and front housing/bezel colors vary. The battery cover will also vary to accommodate batteries of various capacity. Photograph 3-1: Front view, antenna retracted. Photograph 3-2: Back view, antenna retracted. Note: Housing and bezel color will vary. Note: Keypad colors and shape will vary. Note: Back cover shape will vary to accommodate batteries of various capacity. FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 2 Photograph 3-3: Button side view, antenna retracted. Photograph 3-4: No button side view, antenna retracted. FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 3 Photograph 3-5: Back view, antenna extended. Photograph 3-6: Back view, antenna retracted, battery cover removed.

FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 1- 1 Exhibit 1. Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c)11 1.1 Location Back side of the radio product unit chassis (Photograph 1.1). 1.2 Type The label is a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Enlarged view of label (showing FCC ID and manufacturer type number): Photograph 1.1: Location of label on the unit’s housing (battery cover removed). Figure 1.2: Zoom view of labels containing FCC ID and FCC Logo FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 1- 2 Exhibit 1A. General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Application References -- Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Open Area Test Site “OATS” (FCC Registration: 91932 / Industry of Canada: IC3679) 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with 47CFR2, Sub-part J and Part 90, Sub-parts I and Sub-part S of the Commission’s rules. 1A.4 Similar, currently Certified Transceiver FCC ID: AZ489FT5818 1A.5 Additional Considerations This radio product also integrates a receiver that will receive and process signals from Global Positioning System satellites. The radio product can also function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable accessory (Exhibit 12). A Declaration of Conformity in accordance with 47CFR2.1077(a) is provided in Exhibit 8 as evidence of compliance with Part 15 requirements for these additional Class B digital device functionalities per 47CFR15.101(a). Compliance with Part 15 requirements for the super-heterodyne receiver has been determined by verification in accordance with 47CFR15.1.

FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9. Internal Photographs -- Pursuant to 47 CFR 2.1033(c)12 Photograph 9-1: Front side view of radio PCB. Photograph 9-2: Back side view of radio PCB. FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 2 Photograph 9-3: Front side view of radio PCB without factory applied shields. Photograph 9-4: Back side view of radio PCB without factory applied shields.

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 1 of 2 Date of Report: May 2, 2003 Report Revision: Rev. A Manufacturer: Motorola Product Description: 1:6, 2:6, 81:120 TDM; 64 QAM, 16 QAM & QPSK Modulation; 0.6 W Pulse average FCC ID: AZ489FT5822 Device Model: H62XAH6RR1AN Test Period: 3/28/03-4/10/03 EME Tech: Clint Miller EME Eng.: Stephen Whalen (Sr. EME Eng.) Author: Michael Sailsman Global EME Regulatory Affairs Liaison Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on File 5/2/03 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. Form-SAR-Rpt-Rev. 2.00 Page 1 of 26 TABLE OF CONTENTS 1.0 Introduction 2.0 Reference Standards and Guidelines 3.0 Description of Test Sample 3.1 Test Signal 3.2 Test Output Power 4.0 Description of Test Equipment 4.1 Description of S.A.R Measurement System 4.2 Description of Phantom 4.2.1 Flat Phantom 4.2.2 SAM phantom 4.3 Simulated Tissue Properties 4.3.1 Type of Simulated Tissue 4.3.2 Simulated Tissue Composition 4.4 Test condition 5.0 Description of Test Procedure 5.1 Device Test Positions 5.1.1 Abdomen 5.1.2 Head 5.1.3 Face 5.2 Test Position Photographs 5.3 Probe Scan Procedures 6.0 Measurement Uncertainty 7.0 S.A.R. Test Results 7.1 S.A.R. results 7.2 Peak S.A.R. location 7.3 Highest S.A.R. results calculation methodology 8.0 Conclusion Appendix A: Power Slump Data/Shortened scan Appendix B: Data Results Appendix C: Dipole System Performance Check Results Appendix D: Calibration Certificates Appendix E: Illustration of Body-worn Accessories Appendix F: Accessories and options test status and separation distances Form-SAR-Rpt-Rev. 2.00 Page 2 of 26 REVISION HISTORY Date Revision Comments 4/16/03 O Prototype results 5/2/03 A Incorrect antenna gain corrected in section 3.0 Form-SAR-Rpt-Rev. 2.00 Page 3 of 26 1.0 Introduction This report details the utilization, test setup, test equipment, and test results of the Specific Absorption Rate (S.A.R.) measurements performed at the CGISS EME Test Lab for model number H62XAH6RR1AN, FCC ID: AZ489FT5822. The applicable exposure environment is General Population/Uncontrolled. The test results included herein represent the highest S.A.R. levels applicable to this product and clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 mW/g per the requirements of 47 CFR 2.1093(d). 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and international standards and guidelines. • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Terminal frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Terminal communications (Electromagnetic Radiation - Human Exposure) Standard 2001 • ANATEL, Brazil Regulatory Authority, Resolution 256 (April 11, 2001) "additional requirements for SMR, cellular and PCS product certification." Form-SAR-Rpt-Rev. 2.00 Page 4 of 26 3.0 Description of Test Sample FCC ID: AZ489FT5822 is a digital multi-service data capable device that employs time division multiplexing transmission technology with a duty cycle ranging from 16.67% to 33.33% using 16-QAM modulation for voice or circuit data transmission. There is a Split 3:1 mode that operates using a 16.67% transmission duty cycle. Two 7.5ms pulses occurs during the six time slots within the 90-msec frame format. This mode is available in both the 806-825MHz and 896-902MHz bands in the telephone interconnect mode only. Packet data transmission is also supported up to a maximum duty cycle of 67.5% using quad QPSK modulation. This device will be marketed to and used by the general population. This device may be used while held against the head in voice mode, in front of the face in PTT mode, and against the body in both voice and data modes. FCC ID: AZ489FT5822 is capable of operating in the 806-825 MHz and 896-902MHz bands. Packet data transmission is not available while transmitting in the 896-902 MHz band. The rated power is 0.6 watts pulsed averaged. The maximum output is 0.7 watts pulsed average as defined by the upper limit of the production line final test station. Form-SAR-Rpt-Rev. 2.00 Page 5 of 26 FCC ID: AZ489FT5822 is offered with the following options and accessories: Antenna 8585924E01 Retractable whip ¼ wave antenna; 806-941 MHz; -0.04dBd (extended) to -0.26 dBd (retracted) Batteries SNN5705B 750 mAh Lithium Ion SNN5704A 600 mAh Lithium Ion SNN5706A 1050 mAh Lithium Ion NNTN4655A 1450 mAh Lithium Ion Body-worn Accessories NNTN4681A Holster Applicable attachments NTN8496A Light-weight headset w/ mic SYN7875C Hearing Aid Neck loop (incl. SYN8608C, SNN5536A battery) SYN8390B Privacy Earpiece and Microphone NNTN4033A Privacy earpiece and Mic w/ PTT NSN6066A Remote speaker w/PTT NNTN4877A Mini Keyboard SYN8146C Lightweight Over the Ear headset w/ boom microphone NTN8513B Lightweight headband NNTN4620A Silver Ear Bud NKN6544B RS232 Data cable NKN6540A Dual Port Adaptor cable NNTN4007A USB Data cable N…

Text truncated - open the document above for the full version.

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 2 of 2 Date of Report: April 16, 2003 Report Revision: Rev. O Manufacturer: Motorola Product Description: 1:6, 2:6, 81:120 TDM; 64 QAM, 16 QAM & QPSK Modulation; 0.6 W Pulse average FCC ID: AZ489FT5822 Device Model: H62XAH6RR1AN Form-SAR-Rpt-Rev. 2.00 Page 1 of 55 Test Period: 3/28/03-4/10/03 EME Tech: Clint Miller EME Eng.: Stephen Whalen (Sr. EME Eng.) Author: Michael Sailsman Global EME Regulatory Affairs Liaison Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on File 4/17/03 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. APPENDIX A Power Slump Data/Shortened Scan Form-SAR-Rpt-Rev. 2.00 Page 2 of 55 DUT Power versus time data Form-SAR-Rpt-Rev. 2.00 Page 3 of 55 Shortened Scan Results FCC ID: AZ489FT5822; Test Date: 4/03/03 Motorola CGISS EME Laboratory Run #: CM-FACE-R1-030403-10 Model #: H62XAH6RR1AN SN: 364ADE005N TX Freq: 896.01875 MHz Sim Tissue Temp: 21.6 (Celsius) Start Power = 646 mW Antenna: IN Battery Kit: SNN5704A Carry Accy: None Cable Accy: NONE Shortened scan reflect highest S.A.R. producing configuration; Run time 8 minutes. Representative “normal” scan run time was 28 minutes “Shortened” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 0.11 mW/g; 10-g Avg. = 0.07mW/g “Normal” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 0.10 mW/g; 10-g Avg. = 0.07 mW/g (see section 7.1 run # SW-FACE-R1-030403-04) DUT display facing phantom w/ 2.5 cm separation SAM Phantom; Flat Section; Position: (90°,90°); Probe: ET3DV6R SN1545 (cal date 5-21-02) - SN1545; ConvF(6.10,6.10,6.10); Probe cal date: 21/05/02; Crest factor: 6.0; IEEE Head_899 MHz: σ = 1.01 mho/m ε= 42.1 ρ = 1.00 g/cm3; DAE3: 406-V1 DAE Cal Date: 11/11/02 Cube 5x5x7: SAR (1g): 0.195 mW/g, SAR (10g): 0.137 mW/g, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0; SAR (1g): 0.195 mW/g, SAR (10g): 0.137 mW/g Power Drift: 0.20 dB Form-SAR-Rpt-Rev. 2.00 Page 4 of 55 FCC ID: AZ489FT5822; Test Date: 4/09/03 Motorola CGISS EME Laboratory Run #: CM-Ab-R1-030409-07 Model #: H62XAH6RR1AN SN: 364ADE005N TX Freq: 824.9875 MHz Sim Tissue Temp: 20.7 (Celsius) Start Power = 679 mW Antenna: IN Battery Kit: NNTN4655A Carry Accy: NNTN4681A Cable Accy: NONE Shortened scan reflect highest S.A.R. producing configuration; Run time 7 minutes. Representative “normal” scan run time was 27 minutes “Shortened” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 1.394 mW/g; 10-g Avg. = 0.999 mW/g “Normal” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 1.341 mW/g; 10-g Avg. = 0.976 mW/g (see section 7.1 run # SW-Ab-R1-030408-07) DUT w/ carry case against phantom Flat Phantom; Device Section; Position: (90°,90°); Probe: ET3DV6R SN1545 (cal date 5-21-02) - SN1545; ConvF(6.00,6.00,6.00); Probe cal date: 21/05/02; Crest factor: 1.5; FCC Body_813 MHz: σ= 0.95 mho/m ε = 53.1 ρ = 1.00 g/cm3; DAE3: 406-V1 DAE Cal Date: 11/11/02 Cube 5x5x7: SAR (1g): 1.25 mW/g, SAR (10g): 0.896 mW/g, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0; SAR (1g): 1.25 mW/g, SAR (10g): 0.896 mW/g Power Drift: -0.34 dB Note: This shortened cube scan represents the highest compliance results reported for this FCC ID. Form-SAR-Rpt-Rev. 2.00 Page 5 of 55 APPENDIX B Data Results Form-SAR-Rpt-Rev. 2.00 Page 6 of 55 FCC ID: AZ489FT5822; Test Date: 3/28/03 Motorola CGISS EME Laboratory RUN #: SW-LEAR-R1-030328-04 Model #: H62XAH6RR1AN SN: 364ADE005N TX Freq: 813.5125 MHz Sim Tissue Temp: 22.0 (Celsius) Start Power: 686 mW Antenna: IN Battery Kit: NNTN4655A Carry Accy: NONE Cable Accy: NONE DUT at Left ear; Touch position SAM Phantom; Left Hand Section; Position: (90°,59°); Probe: ET3DV6R SN1545 (cal date 5-21-02) - SN1545; ConvF(6.20,6.20,6.20); Probe cal date: 21/05/02; Crest factor: 3.0; IEEE Head_813 MHz: σ = 0.92 mho/m ε = 43.1 ρ = 1.00 g/cm3; DAE3: 406-V1 DAE Cal Date: 11/11/02 Cube 7x7x7: SAR (1g): 0.919 mW/g, SAR (10g): 0.645 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 100.5, 25.5, 4.7 Power Drift: -0.54 dB Form-SAR-Rpt-Rev. 2.00 Page 7 of 55 FCC ID: AZ489FT5822; Test Date: 4/01/03 Motorola CGISS EME Laboratory RUN #: SW-LEAR-R1-030401-07 Model #: H62XAH6RR1AN SN: 364ADE005N TX Freq: 824.9875 MHz Sim Tissue Temp: 20.9 (Celsius) Start Power: 690 mW Antenna: IN Battery Kit: NNTN4655A Carry Accy: None Cable Accy: NONE DUT at Left ear; Touch position SAM Phantom; Left Hand Section; Position: (90°,59°); Probe: ET3DV6R SN1545 (cal date 5-21-02) - SN1545; ConvF(6.20,6.20,6.20); Probe cal date: 21/05/02; Crest factor: 3.0; IEEE Head_813 MHz: σ = 0.92 mho/m ε = 43.0 ρ = 1.00 g/cm3; DAE3: 406-V1 DAE Cal Date: 11/11/02 Cube 7x7x7: SAR (1g): 1.05 mW/g, SAR (10g): 0.744 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 97.5, 25.5, 4.7 Power Drift: -0.17 dB Form-SAR-Rpt-Rev. 2.00 Page 8 of 55 FCC ID: AZ489FT5822; Test Date: 3/31/03 Motorola CGISS EME Laboratory RUN #: CM- REAR-R1-030331-16 Model #: H62XAH6RR1AN SN: 364ADE005N TX Freq: 813.5125 MHz Sim Tissue Temp: 20.8 (Celsius) Start Power: 688 mW Antenna: IN Battery Kit: NNTN4655A Carry Accy: NONE Cable Accy: NONE DUT at the Right ear; Touch position SAM Phantom; Right Hand Section; Position: (90°,301°); Probe: ET3DV6R SN1545 (cal date 5-21-02) - SN1545; ConvF(6.20,6.20,6.20); Probe cal date: 21/05/02; Crest factor: 3.0; IEEE Head_813 MHz: σ = 0.92 mho/m…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 2- 1 Exhibit 2. Statement of Certification -- Pursuant to 47 CFR 2.907 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: B.S. In Electrical Engineering, 2000, Florida Atlantic University 5 years experience in RF/EMI measurement NAME: Anthony K. Stampalia SIGNATURE: /s/Anthony K. Stampalia (signed) DATE: 05/01/2003 TITLE: Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Humberto Garcia SIGNATURE: /s/ Humberto Garcia (signed) DATE: 05/01/2003 TITLE: Engineer Manager

FCC Filing Package for Motorola i205 Transceiver FCC ID: AZ489FT5822 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 1 Exhibit 6. Measured Data -- Pursuant 47 CFR. 2.1041 6.1 Transmitter Power The transmitter is a variable power type used in a SMR trunking system. Output power (as defined in 47 CFR 90.7) is dynamically controlled as described in Exhibit 12. 6.1.1 Maximum Output Power Rating -- Pursuant 47 CFR 2.1033(c) 7 and 90.635(d)) Maximum output power rating: 700 milliwatts (28.45 dBm), pulse average power Note 1: Nominal output power rating: 600 milliwatts (27.78 dBm) (Pulse average power). Note 2: These ratings are compliant with the FCC maximum of 100 watts (50 dBm) for Mobile stations Note 3: The term pulse average power is used to specify the power that would be measured during the intervals of recurrent TDM transmission pulses by an average responding RF power meter. Power expressed in this manner is independent of the TDM duty cycle, and facilitates RF system coverage analysis. 6.1.2 Operating output power range -- Pursuant 47 CFR 2.1033(c)6 Output power will vary over a range from 0.088 to 700 milliwatts (pulse average power). 6.1.3 DC power used by final amplifier device -- Pursuant 47 CFR 2.1033(c)8) In order to prevent …

Text truncated - open the document above for the full version.
