AZ489FT5825iDEN i530

Motorola iDEN Digital Multi-service Data-capable Phone i 530 Phone User’s Guide SECOND DRAFT @NNTN4881A@NNTN4881A i ContentsGetting Started .............................................. 1 Locating Your SIM Card....................................... 3Battery.................................................................. 3Activating Service ................................................ 6Powering On ........................................................ 6Enabling Over-the-Air Security ............................ 7Finding Your Phone Number ............................... 7Completing Setup ................................................ 8Phone Basics ....................................................... 9SIM Card Security.............................................. 11Locking the Keypad ........................................... 14Accessories........................................................ 15For More Information ......................................... 15 Making Calls ................................................ 17 Receiving Calls .................................................. 17Call Icons ........................................................... 18Entering the Number to Call............................... 18Missed Phone Calls ........................................... 21Using Speakerphone ......................................... 21Using Mute ......................................................... 22 Making Emergency Phone Calls ........................ 22 Call Alerts .................................................... 23 Sending Call Alerts............................................. 23Receiving Call Alerts .......................................... 23Using the Call Alert Queue................................. 23 Recent Calls ................................................ 27 Storing Recent Calls to Contacts ....................... 27Deleting Recent Calls......................................... 28 Contacts ...................................................... 29 Viewing Contacts ............................................... 30Creating Entries ................................................. 31Storing Numbers Faster ..................................... 32Editing Entries .................................................... 33Deleting Entries.................................................. 33Checking Capacity ............................................. 34Creating Pauses and Waits................................ 34International Numbers........................................ 34Accessing Contacts with GSM Phones.............. 35 Call Forwarding........................................... 37 Forwarding All Calls ........................................... 37Turning Off Call Forwarding ............................... 38 ii Forwarding Missed Calls.................................... 38Viewing Call Forwarding Settings ...................... 39 Messages ..................................................... 41 Message Notifications........................................ 41Voice Mail .......................................................... 41Text and Numeric Messages ............................. 42Net Alerts ........................................................... 43 Ring Tones................................................... 45 Using the Vibrate Feature .................................. 45Turning Ring Tones Off...................................... 45Ring and Vibrate ................................................ 46Assigning Ring Tones to Contacts..................... 46Viewing Ring Tone Assignments ....................... 47Downloading More Ring Tones.......................... 47Managing Memory ............................................. 47Deleting Custom Ring Tones............................. 48 Mobile Originated Text Messaging ............ 49 Setting Up .......................................................... 49Receiving Messages.......................................... 49Reading Messages From the Message Center . 50Creating and Sending Messages....................... 50 Managing Memory ............................................. 53 GPS Enabled ............................................... 55 IMPORTANT: Things to Keep in Mind ............... 55Making an Emergency Call ................................ 56Viewing Your Approximate Location .................. 57Enhancing GPS Performance ............................ 58Updating Satellite Almanac Data ....................... 59Setting Privacy Options...................................... 60Using GPS with Map Software ........................... 61 Voice Records............................................. 63 Creating Voice Records ..................................... 63Playing Voice Records ....................................... 63Labelling Voice Records .................................... 64Deleting Voice Records...................................... 64Locking Voice Records ...................................... 64Managing Memory ............................................. 64 Memo ........................................................... 67Advanced Calling Features........................ 69 Call Waiting ........................................................ 69Call Hold............................................................. 70 iii 3-Way Calling..................................................... 70Creating Pauses and Waits While Dialing ......... 71Making International Calls.................................. 71Setting One Touch PTT ..................................... 71Setting Flip Actions ............................................ 72Group Calls........................................................ 72Call Timers......................................................... 73Using Your Phone as a Modem......................... 74Making TTY Calls............................................... 75 Entering Text ............................................... 77 Using Alp…

Text truncated - open the document above for the full version.

______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. Confidentiality Request Date: 12th August 2003 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT5825. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) FCC Liaison Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page 1-2 Exhibit 1. Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c)11 1.1 Location Back side of the radio product unit chassis (Photograph 1.1). 1.2 Type The label is a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Enlarged view of label (showing FCC ID and manufacturer type number): Photograph 1.1: Location of label on back of unit’s housing (battery cover removed). Photograph 1.2: Zoom view of labels containing FCC ID and FCC Logo FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page 1-2 Exhibit 1A. General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Application References -- Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Open Area Test Site “OATS” (FCC Registration: 91932 / Industry of Canada: IC3679) 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with 47CFR2, Sub-part J and Part 90, Sub-parts I and Sub-part S of the Commission’s rules. 1A.4 Similar, currently Certified Transceiver FCC ID: AZ489FT5824 1A.5 Additional Considerations This radio product also integrates a receiver that will receive and process signals from Global Positioning System satellites. The radio product can also function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable accessory (Exhibit 12). A Declaration of Conformity in accordance with 47CFR2.1077(a) is provided in Exhibit 8 as evidence of compliance with Part 15 requirements for these additional Class B digital device functionalities per 47CFR15.101(a). Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47CFR15.1.

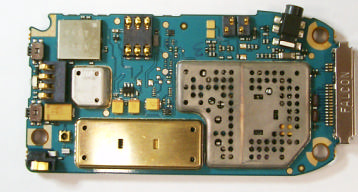

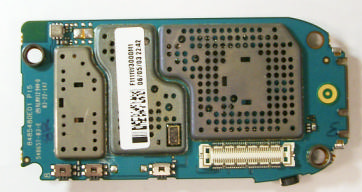

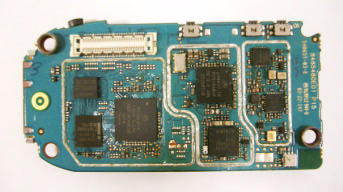

FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9. Internal Photographs -- Pursuant to 47 CFR 2.1033(c)12 Photograph 9-1: Front side view of radio PCB. Photograph 9-2: Back side view of radio PCB. Photograph 9.5: Back side view of keyboard. Photograph 9-3: Front side view of radio PCB without shields. Photograph 9-4: Back side view of radio PCB without shields. Photograph 9.6: Front side view of keyboard.

Form-SAR-Rpt-Rev. 2.00 Page 1 of 74 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 2 of 2 Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on file 8/8/2003 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. Certificate Number: 1449-02 Date of Report: August 8, 2003 Report Revision: Rev. 0 Manufacturer: Motorola Product Description: 1:6, 2:6, 81:120, 1:12 TDMA; 64 QAM, 16 QAM & QPSK Modulation; 0.6 W Pulse average FCC ID: AZ489FT5825 Device Model: H63XAH6RR3AN Test Period: 6/26/03-7/18/03 EME Tech: Clint Miller/Ed Church EME Eng.: Deanna Zakharia (Elect. Principle Staff Eng.) Author: Michael Sailsman Global EME Regulatory Affairs Liaison and Deanna Zakharia (Elect. Principle Staff Eng.) Form-SAR-Rpt-Rev. 2.00 Page 2 of 74 APPENDIX A Power Slump Data/Shortened Scan Form-SAR-Rpt-Rev. 2.00 Page 3 of 74 DUT Power versus time data Form-SAR-Rpt-Rev. 2.00 Page 4 of 74 Shortened Scan Results FCC ID: AZ489FT5825; Test Date: 7/16/03 Motorola CGISS EME Laboratory Run #: CM-REAR-R2-030716-07 Model #: H63XAH6RR3AN SN: 364TOL002L TX Freq: 806.0125 MHz Sim Tissue Temp: 21.1 (Celsius) Start Power: .0.730 W Normal scan (27min) Start Power: 0.707 W Short scan (10min) Antenna: IN Battery Kit: SNN5705B/NNTN4907A Carry Accessories: None Attached Accessories: None This shortened scan reflects the highest S.A.R. producing configuration; Run time 10 minutes. Representative “normal” scan run time was 27 minutes “Shortened” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 1.263 mW/g; 10-g Avg. = 0.864 mW/g “Normal” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 1.370 mW/g; 10-g Avg. = 0.923 mW/g (see section 7.1 run # CM-REAR-R2-030715-07) DUT in cheek touch position Right Ear SAM Phantom; Right Hand Section; Position: (90∞,301∞); Probe: ET3DV6 - SN1547 (Cal Date 09-28-2002); ConvF(6.50,6.50,6.50); Probe cal date: 28/09/02; Crest factor: 3.0; IEEE HEAD 813MHz: σ = 0.92 mho/m ε r = 42.1 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.16 mW/g, SAR (10g): 0.793 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 34.5, 19.5, 4.7 Powerdrift: -0.37 dB Form-SAR-Rpt-Rev. 2.00 Page 5 of 74 APPENDIX B Data Results Form-SAR-Rpt-Rev. 2.00 Page 6 of 74 FCC ID: AZ489FT5825; Test Date: 6/26/03 Motorola CGISS EME Laboratory Run #: CM-LEAR-R2-030626-03 Model #: H63XAH6RR3AN SN: 364TOL002L TX Freq: 813.5125 MHz Sim Tissue Temp: 21.9 (Celsius) Antenna: IN Battery Kit: SNN5705B/NNTN4907A Carry Accessories: None Attached Accessories: None DUT in cheek touch position Left Ear SAM Phantom; Left Hand Section; Probe: ET3DV6 - SN1547 (Cal Date 09-28-2002); ConvF(6.50,6.50,6.50); Probe cal date: 28/09/02; Crest factor: 3.0; IEEE HEAD 813MHz: _ = 0.93 mho/m _ r = 42.4 _ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.03 mW/g, SAR (10g): 0.691 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 42.0, 15.0, 4.0 Powerdrift: -0.43 dB Form-SAR-Rpt-Rev. 2.00 Page 7 of 74 FCC ID: AZ489FT5825; Test Date: 7/15/03 Motorola CGISS EME Laboratory Run #: CM-LEAR-R2-030715-02 Model #: H63XAH6RR3AN SN: 364TOL002L TX Freq: 806.0125 MHz Sim Tissue Temp: 21.5 (Celsius) Antenna: IN Battery Kit: SNN5705B/NNTN4907A Carry Accessories: None Attached Accessories: None DUT in cheek touch position Left Ear SAM Phantom; Left Hand Section; Position: (90∞,59∞); Probe: ET3DV6 - SN1547 (Cal Date 09-28-2002); ConvF(6.50,6.50,6.50); Probe cal date: 28/09/02; Crest factor: 3.0; IEEE HEAD 813MHz: σ = 0.92 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.05 mW/g, SAR (10g): 0.726 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 40.5, 21.0, 4.7 Powerdrift: -0.44 dB Form-SAR-Rpt-Rev. 2.00 Page 8 of 74 FCC ID: AZ489FT5825; Test Date: 7/15/03 Motorola CGISS EME Laboratory Run #: CM-REAR-R2-030715-06 Model #: H63XAH6RR3AN SN: 364TOL002L TX Freq: 813.5125 MHz Sim Tissue Temp: 21.6 (Celsius) Antenna: OUT Battery Kit: SNN5705B/NNTN4907A Carry Accessories: None Attached Accessories: None DUT in cheek touch position Right Ear SAM Phantom; Left Hand Section; Position: (90∞,301∞); Probe: ET3DV6 - SN1547 (Cal Date 09-28-2002); ConvF(6.50,6.50,6.50); Probe cal date: 28/09/02; Crest factor: 3.0; IEEE HEAD 813MHz: σ = 0.92 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.01 mW/g, SAR (10g): 0.681 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 37.5, 18.0, 4.7 Powerdrift: -0.69 dB Form-SAR-Rpt-Rev. 2.00 Page 9 of 74 FCC ID: AZ489FT5825; Test Date: 7/15/03 Motorola CGISS EME Laboratory Run #: CM-REAR-R2-030715-07 Model #: H63XAH6RR3AN SN: 364TOL002L TX Freq: 806.0125 MHz Sim Tissue Temp: 21.6 (Celsius) Antenna: IN Battery Kit: SNN5705B/NNTN4907A Carry Accessories: None Attached Accessories: None DUT in cheek touch position Right Ear SAM Phantom; Right Hand Section; Position: (90∞,301∞); Probe: ET3DV6 - SN1547 (Cal Date 09-28-2002); ConvF(6.50,6.50,6.50); Probe cal date: 28/09/02; Crest factor: 3.0; IEEE HEAD 813MHz: σ = 0.92 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.21 mW/g, SAR (10g): 0.815 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 34.5, 22.5, 4.7 Powerdrift: -0.54 dB Form-SAR-Rpt-Rev. 2.00 Page 10 of 74 FCC ID: AZ489FT5825; Test Date: 7/08/03 Motorola CGISS EME Laboratory Run #: CM-FACE-R2-030708-11 Model #: H63XAH6RR3AN SN: 364TOL002L TX Freq: 813.5125 MHz Sim Tissue Temp: 21.4 (Celsius) Antenna: IN Battery Kit: SNN5705B/NNTN…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 1 Exhibit 6. Measured Data -- Pursuant 47 CFR. 2.1041 6.1 Transmitter Power The transmitter is a variable power type used in a SMR trunking system. Output power (as defined in 47 CFR 90.7) is dynamically controlled as described in Exhibit 12. 6.1.1 Maximum Output Power Rating -- Pursuant 47 CFR 2.1033(c)7 and 90.635(d)) Maximum output power rating: 700 milliwatts (28.45 dBm), pulse average power Note 1: Nominal output power rating: 600 milliwatts (27.78 dBm) (Pulse average power). Note 2: These ratings are compliant with the FCC maximum of 100 watts (50 dBm) for Mobile stations Note 3: The term pulse average power is used to specify the power that would be measured during the intervals of recurrent TDM transmission pulses by an average responding RF power meter. Power expressed in this manner is independent of the TDM duty cycle, and facilitates RF system coverage analysis. 6.1.2 Operating output power range -- Pursuant 47 CFR 2.1033(c)6) Maximum tuned output power will vary over a range of 700 to 500 milliwatts (maximum plus average power) to a minimum power of 39 dB below maximum tuned output power. 6.1.3 DC power used by final amplifier device -- Pursuant 47 CFR 2.1033(c)8) In order to prevent the malfunctions that can occur due to directly measuring the DC characteristics of the final RF amplifying stage, data was obtained by measuring the entire radio DC current and is reported herein for the entire radio. The DC current and the RF output power was measured with a special RF/DC test fixture set to supply the radio with the nominal battery voltage of 4.0 V. The characteristics were measured during a transmission pulse and are listed in the Table 6-1 and Table 6-2: 800MHz band 900MHz band Characteristics At the maximum power setting At the minimum power setting At the maximum power setting At the minimum power setting DC Voltage (Volts) 4 4 4 4 DC Current (A) 1.19 0.63 1.11 0. 63 Output Power (mW) 601 0.054 609 0.048 Table 6-1 Characteristics for 800 and 900 MHz bands with the Primary Source Power Amplifier (U501) FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 2 800MHz band 900MHz band Characteristics At the maximum power setting At the minimum power setting At the maximum power setting At the minimum power setting DC Voltage (Volts) 4 4 4 4 DC Current (A) 1.28 0.56 1.30 0.56 Output Power (mW) 600 0.055 600 0.058 Table 6-2 Characteristics for 800 and 900 MHz bands with Alternate Source Power Amplifier (U501)

FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 3 6.2 Modulation Characteristics and Necessary Bandwidth -- Pursuant 47 CFR 2.1033(c)13, 2.1047(d) & 2.202 Digitally encoded speech or digital data is transmitted in four sub-channels at a 4 kHz rate using M-ary symbols mapped to predetermined fixed magnitude and phase components within 1 of 3 constellations associated with a particular modulation scheme. Figure 6-2 illustrates symbol mapping to one of the four QPSK sub-channels constellations. Figure 6-3 illustrates symbol mapping to one of the four 16QAM sub- channels constellation. Figure 6-4 illustrates symbol mapping to one of the four 64QAM sub-channels constellation. For Quad-QPSK modulation, this mapping adjusts the amplitude and phase variations of the baseband signal to one of 4 points on the constellation. For Quad-16QAM modulation, this mapping adjusts the amplitude and phase variations of the baseband signal to one of 16 points on the constellation. For Quad-64 modulation, this mapping adjusts the amplitude and phase variations of the baseband signal to one of 64 points on the constellation. The bandwidth of the modulating signals is limited by the pair of modulation limiting low pass filters within the modem block function of U801 (see Figure 4-2 in Exhibit 4.3). These filters serve to limit out-of-band and spurious emissions due to modulation. The necessary bandwidth of the sub-channels is limited to 4.8 kHz by the pair of modulation limiting low pass filters. The transfer response of these filters is depicted in Figure 6-1 where the filter excess bandwidth coefficient of 0.2 is shown. This excess bandwidth leads to the necessary bandwidth calculation of (1 + 0.2) x (4 kHz) = 4.8 kHz. Since the sub-channels are spaced 4.5 kHz apart, the necessary bandwidth of the composite 4 sub-channel symbol streams is 4.8 + (3 x 4.5) = 18.3 kHz. FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 4 0.707 02k2.4k-2k H(f)=root raised α =0.2 Modulation Low Pass Filter Res ponse ω o ω where ω o = 2000 and ω = (1+ α ) ω o = 2400Hz 1for |f| <2 ω o - ω cos 2 ( π /4 (|f| + ω - 2 ω o )/( ω - ω o ))for 2 ω o - ω < |f|< ω 0for |f| > ω { H(f)= Figure 6-1: Modulation Low Pass Filter Response x jy +1+3-1-3 +1 +3 -3 -1 θ θθ θ Symbol Mapping onto One of Four QPSK Constellations QAM baseband output ready for impression onto a particular subcarrier. Data Source QPSK Encoder Interleaver Subchannel Formatter Modem Interface Bit Stream Complex Symbol Stream Figure 6-2: Symbol Mapping onto One of Four QPSK Constellations FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 5 x jy +1+3-1-3 +1 +3 -3 -1 θ θθ θ Symbol Mapping onto One of Four 16-QAM Constellations QAM baseband output ready for impression onto a particular subcarrier. Data Source 16QAM Encoder Real to Complex Combiner Interleaver Modem Interface Bit Stream Complex Symbol Stream Subchannel Formatter Real Symbol Stream Figure 6-3: Symbol Mapping onto One of Four 16-QAM Constellations x jy +.5 +3.5-.5-3.5 +.5 +3.5 -3 .5 -.5 θ θθ θ Symbol Mapping onto One of Four 64-QAM Constellations QAM baseband output ready for impression onto a particular subcarrier. Data Source 16QAM Encoder Real to Complex Combiner Interleaver Modem Interface Bit Stream Complex Symbol Stream Subchannel Formatter Real Symbol Stream 0 1 -2.0 +2.0 .5 + Figure 6-4: Symbol Mapping onto One of Four 64-QAM Constellations FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 6 6.3 Emission Mask -- Pursuant 47 CFR 2.1049(h) & 90.210(m) The method described in paragraph 7.2 was employed with the following conditions: For Quad-QPSK Modulation: 32K Bits Per Second Pseudo-Random Digital Modulation. Vertical division: 10 dB/div. Carrier Reference: Carrier Reference 0 dB corresponds to maximum and minimum peak output power settings, respectively. For Quad-16QAM Modulation: 64K Bits Per Second Pseudo-Random Digital Modulation Vertical: 10 dB/div Carrier Reference: Carrier Reference 0 dB corresponds to maximum and minimum peak output power settings, respectively. For Quad-64QAM Modulation: 96K Bits Per Second Pseudo-Random Digital Modulation Vertical: 10 dB/div Carrier Reference: Carrier Reference 0 dB corresponds to maximum and minimum peak output power settings, respectively. In Figures 6-5 through Figure 6-22, one trace was used to capture transmitter performance, measured using a resolution bandwidth of 300 Hz, while the reference level was obtained by another trace, using a resolution bandwidth of 30 kHz. A third trace shows the applicable emission mask. FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 7 6.3.1 800 MHz Band Operation Measured Data FCC Limits - Per 47CFR90.210(g) - Per EA SMR Emission Mask, 47CFR90.691(a) NOTE: References to “Split 3:1” are explained in Exhibit 12, Table 12-1. Figure 6-5: Quad-QPSK Modulation performance relative to mask 47 CFR 90.210(g) (MAXIMUM POWER SETTING) FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 8 Figure 6-6: Quad-QPSK Modulation performance relative to mask 47 CFR 90.210(g) (MINIMUM POWER SETTING) Figure 6-7: Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 9 Figure 6-8: Qu…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 21 6.4. Radiated Spurious Emissions -- Pursuant 47 CFR 2.1053, 2.1057, 90.210(g)(3), 90.691(a)(2) FCC Limits -Per 90.210(g)(3) and 90.691(a)(2), radiated spurious emissions shall be attenuated below the maximum level of emission of the carrier frequency in accordance with the following formula: Spurious attenuation in dB = 43 + 10 log 10 (P) (Thus the effective limit is -13 dBm for any transmitter power level). NOTE 1: Spurious emissions are dependent on the linearity of the Power Amplifier and are independent of modulation type or TDM interleaving. Thus emissions were tested with the radio set to Quad-16QAM at both maximum and minimum radio output power settings. NOTE 2: An asterisk (*) in the data indicates the spurious emission was less than -33 dBm or could not be detected due to noise limitations or ambients. NOTE 3: Spurious emission levels were measured with the non-detachable antenna mounted on the radio product, as in intended use. Measurement setup is described in Exhibit 7.3. FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 22 i5 30 806.0125 MHz SpurFrequency (MHz) FCC Maximum Limit -13 (dBm) 25 kHz Ch. Spac. Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) -13 -13 -13 -13 2XFund1612.0250-13** 3XFund2418.0375-13** 4XFund 3224.0500-13** 5XFund 4030.0625-13** 6XFund 4836.0750-13** 7XFund 5642.0875-13** 8XFund 6448.1000-13** 9XFund 7254.1125-13** 10XFund8060.1250-13** * Indicates the spurious emission was less than -33dBm or could not be detected due to noise limitations or ambients. i5 30 813.5625 MHz SpurFrequency (MHz) FCC Maximum Limit -13 (dBm) 25 kHz Ch. Spac. Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) -13 -13 -13 -13 2XFund1627.1250-13** 3XFund2440.6875-13** 4XFund 3254.2500-13** 5XFund 4067.8125-13** 6XFund4881.3750-13** 7XFund 5694.9375-13** 8XFund 6508.5000-13** 9XFund 7322.0625-13** 10XFund8135.6250-13** * Indicates the spurious emission was less than -33dBm or could not be detected due to noise limitations or ambients. The data presented here was taken using the substitution method as found in the TIA/EIA-603 document. Motorola Plantation EMC Lab – Test Performed by: Frank Baader FCC Registration: 91932 / Industry Canada: IC3679 Transmitter Radiated Spurious Emissions: Transmitter Radiated Spurious Emissions: June 30, 2003 Channel Spacing 25KHz S/N 364TDL002X Channel Spacing 25KHz S/N 364TDL002X Radiated Spurious Emissions -33 -28 -23 -18 -13 -8 -3 2 1612.02502418.03753224.05004030.06254836.07505642.08756448.10007254.11258060.1250 Frequency (MHz) Emission Level dBm Horizontal Measured Emission E quiv. P wr Into Ideal Dipole (dBm ) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm ) FCC Maximum Limit -13 (dBm) 25 kH z Ch. Spac. Radiated Spurious Emissions -33 -28 -23 -18 -13 -8 -3 2 1627.12502440.68753254.25004067.81254881.37505694.93756508.50007322.06258135.6250 Frequency (MHz) Emission Level dBm Horizontal Measured Emission E quiv. Pw r Into Ideal Dipole (dBm ) Vertical Measured Emission E quiv P wr Into Ideal Dipole (dBm ) FCC Maximum Limit -13 (dBm) 25 kH z Ch. Spac. Figure 6-23a: Primary PA (U501) Source Maximum Power Setting Transmitter Spurious Emissions FCC Filing Package for Motorola i530 Transceiver FCC ID: AZ489FT5825 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 23 i530 820.9875 M Hz SpurFrequency (MHz) FCC Maximum Limit -13 (dBm) 25 kHz Ch. Spac. Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) -13 -13 -13 -13 2XFund 1641.9750-13 ** 3XFund 2462.9625-13** 4XFund 3283.9500-13** 5XFund 4104.9375-13** 6XFund 4925.9250-13** 7XFund 5746.9125-13** 8XFund 6567.9000-13** 9XFund 7388.8875-13** 10XFund8209.8750-13** * Indicates the spurious emission was less than -33dBm or could not be detected due to noise limitations or ambients. i530 824.9875 M Hz SpurFrequency (MHz) FCC Maximum Limit -13 (dBm) 25 kHz Ch. Spac. Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) - 13 -13 -13 -13 2XFund 1649.9750-13 ** 3XFund 2474.9625-13** 4XFund 3299.9500-13** 5XFund 4124.9375-13** 6XFund 4949.9250-13** 7XFund 5774.9125-13** 8XFund 6599.9000-13** 9XFund 7424.8875-13** 10XFund8249.8750-13** * Indicates the spurious emission was less than -33dBm or could not be detected due to noise limitations or ambients. The data presented here was taken using the substitution m ethod as found in the TIA/EIA-603 docum ent. Motorola Plantation EMC Lab – Test Performed by: Frank Baader FCC Registration: 91932 / Industry Canada: IC3679 June 30, 2003 Transmitter Radiated Spurious Emissions: Transmitter Radiated Spurious Emissions: Channel Spacing 25KHz S/N 364TDL002X Channel Spacing 25KHz S/N 364TDL002X Radiated Spurious Emissions -33 -28 -23 -18 -13 -8 -3 2 1641.97502462.96253283.95004104.93754925.92505746.91256567.90007388.88758209.8750 Frequency (MHz) Emission Level dBm Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission…

Text truncated - open the document above for the full version.
