AZ489FT5831iDEN i325 with MOTOtalk

FCC Application for Motorola i325 FCC ID: AZ4899FT5831 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 1 EXHIBIT 2: STATEMENT OF CERTIFICATION – Pursuant 47 CFR 2.907 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: B.S. Electrical Engineering, 1983, Iowa State University M.S.E. Microwaves and Communications, 1990 Arizona State University 20 Years Experience in RF/Microwave Design/ Development/ Measurement NAME: John Goshinska SIGNATURE: DATE: February 17, 2004 TITLE: Hardware Lead Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Bob Muszkiewicz SIGNATURE: DATE: February 17, 2004 TITLE: Engineer Manager

Applicant: Motorola Inc FCC ID: AZ489FT5831 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 1 23 rd June 2004 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its application for Certification of the transmitter with FCC ID AZ489FT5831. This variable output power (0.088 to 700 milliwatt) transmitter is part of a handheld transceiver used in a SMR and EA SMR trunking system operating in the United States 806-821/851-866MHz and 896-901/935-940 MHz frequency band. It also possesses a transmitter that operates in the ISM band (902 – 927 MHz). The two transmitters are configured so that only one transmitter can operate at a time. Certification is sought for this transceiver, and performance data is provided for that purpose. This transceiver possesses two distinct modes of operation. The operation mode is selected via the user menu. The two transceivers can only operate independent of each other and only one mode can operate at a time. The first transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical And Operational Requirements For Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5792). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. The second transceiver is frequency hopping spread spectrum operating in the unlicensed ISM (902- 928 MHz) band. It uses an FSK (Frequency Shift Key) modulation, 50KHz spacing with output power less than EIRP 0.983 watt. The protocol is defined to have 10 interleaved hopsets of 50 frequencies each with 500 kHz separation between set members. All 10 hopsets span the entire ISM band. In the ISM transceiver mode, conversations are held only via the speakerphone; the earpiece is disabled. In addition, the ISM transceiver mode does not function while plugged into a wall charger unit. It is expected that this handheld time division multiplexed transceiver marketed in the United States will also be used for itinerant operation with companion Authorized Base Stations by users requesting trunked radio and telephone interconnect service while roaming outside the United States. In some countries the companion base stations are licensed to operate at frequencies in the 821-825/866- 870 MHz band in addition to some of those in the 806-821/851-866 MHz band normally used in United States SMR systems. Consequently, this transmitter has been designed to meet FCC requirements for operation in the 806-821 MHz band over the more global band of 806 - 825 MHz Applicant: Motorola Inc FCC ID: AZ489FT5831 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 2 when used with a companion Authorized Base Station. Thus, performance data is provided to substantiate FCC compliant operation with a Companion Base Station over the broader 806 to 825 MHz band expected for global use of this handheld transceiver. To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 821 MHz base stations located within the United States. Consequently, upon receipt of Authorization, only those units of this equipment type authorized for marketing in countries outside the United States will also bear a label with the specified FCC identifier. In accordance with 47 CFR 2.1093(c) this transmitter may be used in “covered” SMR service so it has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The subject transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. This transceiver can function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable (ref: Exhibit 12.1). For this reason a Declaration of Conformity has been prepared and is provided on Page 5 of the user Manual in the Exhibit 8. Enclosed is a complete Certification Application comprised of 12 Exhibits. Contact me at (954) 723- 5793 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT5831 _____________________________________________________________________________ _ iDEN, Motorola Inc 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5793 CONFIDENTIALITY REQUESTED Date: 23 rd June 2004 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT5831. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected]

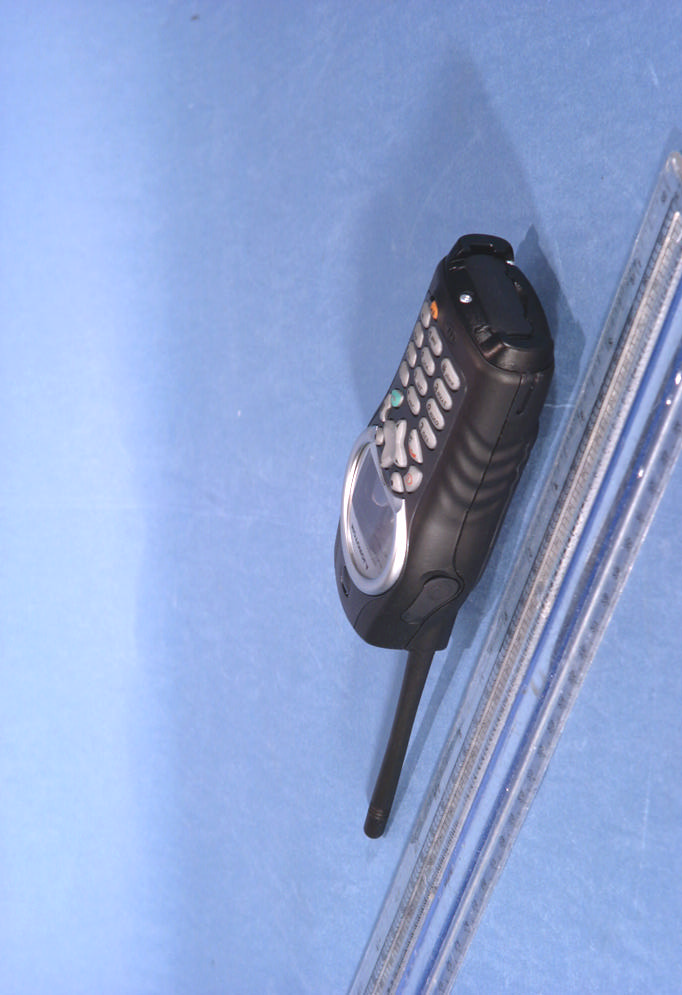

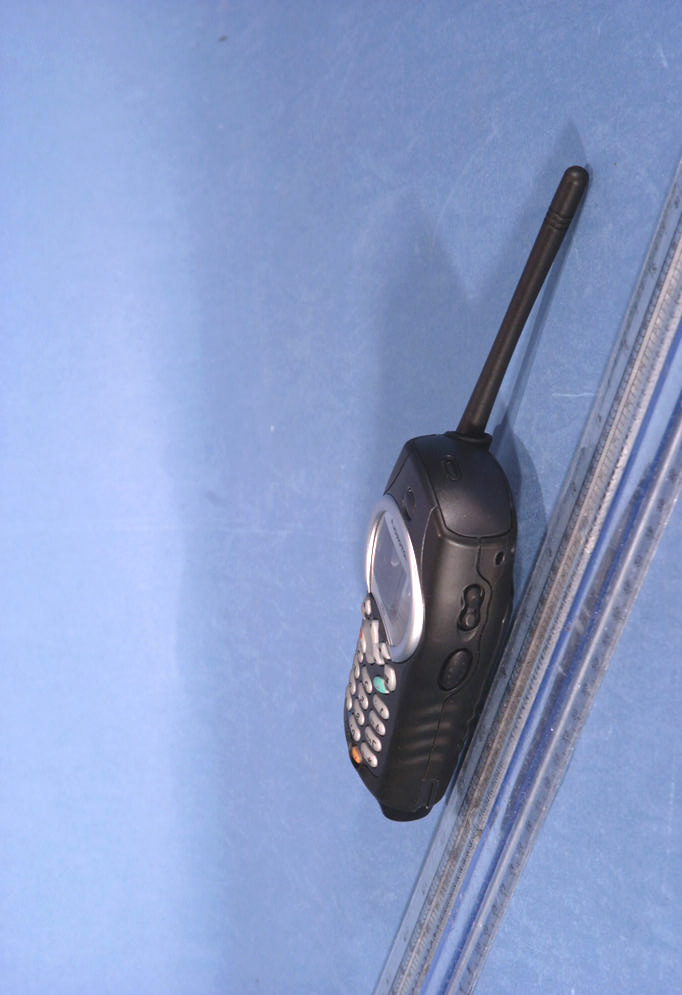

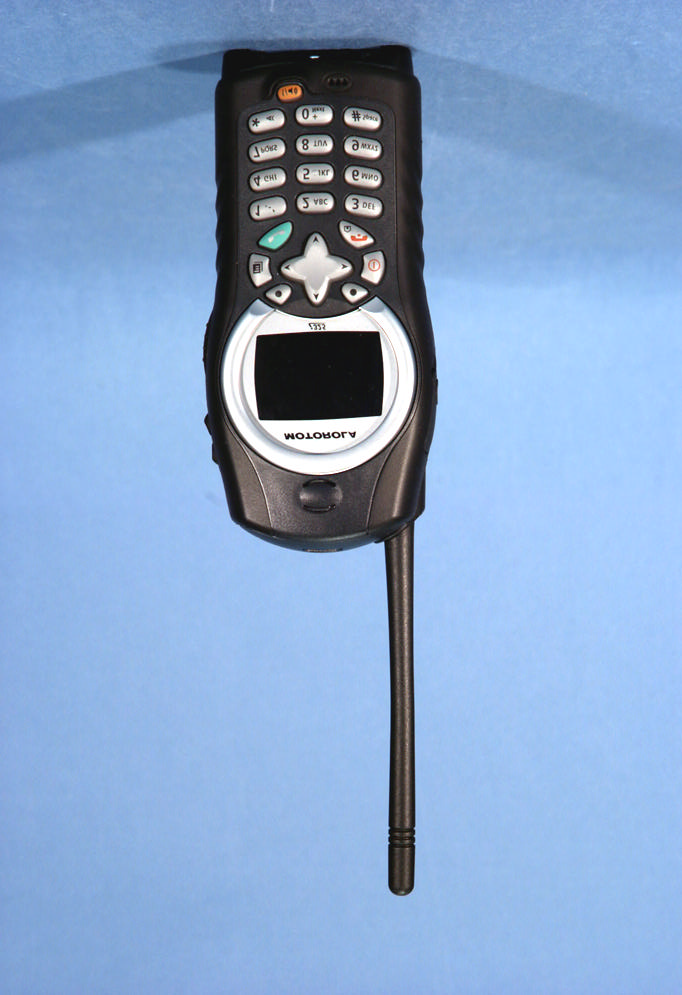

MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN MOTOROLA FCC ID: AZ489FT5831 EUT Photographs © 2004 PCTEST Lab. Dual-Mode PTT Phone (iDEN/ISM) Model: M68XAM6RR1AN

FCC Application for Motorola i325 FCC ID: AZ4899FT5831 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 2 5a Internal Photographs Figure 5-1. Internal photo with shields intact. Figure 5-2. Internal photo with shields intact. Figure 5-3. Internal photo showing the keypad and display. FCC Application for Motorola i325 FCC ID: AZ4899FT5831 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 2 of 2 Figure 5-4. Internal photo of electronic assembly with shields removed. Figure 5-5. Internal photo of electronic assembly with shields removed.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page 1 of 38 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: MOTOROLA, INC. Dates of Tests: March 22-24, 2004 8000 West Sunrise Blvd. Test Report S/N: SAR.240309236.AZ4 Ft. Lauderdale, FL 33322 Test Site: PCTEST Lab, Columbia MD FCC ID: AZ489FT5831 APPLICANT: MOTOROLA, INC. EUT Type: Dual-Mode PTT Phone (iDEN/ISM) Tx Frequency: 806.013 – 824.987 MHz (iDEN/33) / 896.019 – 901.981 MHz (iDEN II/33) 902.525 – 927.475 MHz (ISM) Max. RF Output Power: 28.0 dBm Conducted iDEN/33 28.0 dBm Conducted iDEN II/33 28.0 dBm Conducted ISM Max. SAR Measurement: 0.931 W/kg iDEN/33 Head SAR; 0.585 W/kg iDEN/66 Body SAR; 0.483 W/kg iDEN/16 Face SAR 0.901 W/kg iDEN II/33 Head SAR; 0.582 W/kg iDEN II/33 Body SAR; 0.510 W/kg iDEN II/16 Face SAR: 0.377 W/kg ISM Face SAR; 0.409 W/kg ISM Body SAR Trade Name/Model(s): M68XAM6RR1AN FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #364AEAQKP3] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page 2 of 38 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.......................................................................................5 4. PROBE CALIBRATION PROCESS......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS.............................................................................10 9. TEST CONFIGURATION POSITIONS..............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................14 11. MEASUREMENT UNCERTAINTIES..................................................................................15 12. SYSTEM VERIFICATION.................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................18-35 15. SAR TEST EQUIPMENT..........................................................................................36 16. CONCLUSION..............................................................................................................37 17. REFERENCES.................................................................................................................38 APPENDIX A: SAR TEST DATA ....................................................................A-1 - A-23 APPENDIX B: SAR TEST SETUP PHOTOGRAPHS .............................................B-1 - B-13 APPENDIX C: DIPOLE VALIDATION ..............................................................C-1 - C-4 APPENDIX D: PROBE CALIBRATION ...........................................................D-1 - D22 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page 3 of 38 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially H…

Text truncated - open the document above for the full version.

PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-1 of A-23 © 2004 PCTEST Engineering Laboratory, Inc APPENDIX A: SAR TEST DATA PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-2 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-3 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-4 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-5 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-6 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-7 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-8 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-9 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-10 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-11 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-12 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-13 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-14 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-15 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-16 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-17 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-18 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-19 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-20 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-21 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-22 of A-23 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page A-23 of A-23 © 2004 PCTEST Engineering Laboratory, Inc

PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-1 of D-22 © 2004 PCTEST Engineering Laboratory, Inc APPENDIX D: PROBE CALIBRATION PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-1 of D-22 © 2004 PCTEST Engineering Laboratory, Inc APPENDIX D: PROBE CALIBRATION PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-2 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-3 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-4 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-5 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-6 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-7 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-8 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-9 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-10 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-11 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-12 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-13 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-14 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-15 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-16 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-17 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-18 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-19 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-20 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-21 of D-22 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page D-22 of D-22 © 2004 PCTEST Engineering Laboratory, Inc

PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page C-1 of C-4 © 2004 PCTEST Engineering Laboratory, Inc APPENDIX C: DIPOLE VALIDATION PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page C-2 of C-4 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page C-3 of C-4 © 2004 PCTEST Engineering Laboratory, Inc PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page C-4 of C-4 © 2004 PCTEST Engineering Laboratory, Inc

PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page B-1 of B-13 © 2004 PCTEST Engineering Laboratory, Inc APPENDIX B: SAR TEST SETUP PHOTOGRAPHS Left Head –15° Tilt Position Left Head –15° Tilt Position (Close-up) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page B-2 of B-13 © 2004 PCTEST Engineering Laboratory, Inc Left Head – Cheek Touch Position Left Head – Cheek Touch Position (Close-up) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page B-3 of B-13 © 2004 PCTEST Engineering Laboratory, Inc Right Head – Cheek Touch Position Right Head – Cheek Touch Position (Close-up) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page B-4 of B-13 © 2004 PCTEST Engineering Laboratory, Inc Right Head –15° Tilt Position Right Head –15° Tilt Position (Close-up) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, 2004 Phone Type: Dual-Mode PTT Phone (iDEN/ISM) FCC ID: AZ489FT5831 Page B-5 of B-13 © 2004 PCTEST Engineering Laboratory, Inc Left Head – Cheek Touch Position (Close-up) Left Head –15° Tilt Position (Close-up) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240309236.AZ4 Test Dates: March 22-24, …
