AZ489FT5833iDEN i860

Motorola iDEN Digital Multi-service Data-capable Phone i 860 Phone User’s Guide APPROVAL DRAFT @NNTN5565A@NNTN5565A IMPORTANT NOTICE: PLEASE READPRIOR TO USING YOUR PHONEThe SIM card provided in this kit is intended for use withthe phone provided in this package.Loss of certain features will result when using a SIMcard from one of the following models: i 30 sx , i 35 s , i 50 sx , i 55 sr , i 58 sr , i 60 c , i 80 s , i 85 s , i 88 s , i 90 c , i 95 cl series, and the i 2000 series. For more information on SIM card compatibility, go towww.motorola.com/iden/support.Defects or damage to your Motorola phone that resultfrom the use of non-Motorola branded or certifiedAccessories, including but not limited to replacementhousings and or other peripheral accessories, areexcluded from warranty coverage. Please refer to thetext of Motorola's Limited One Year warranty located inthis user’s guide for complete details. i ContentsGetting Started........................................... 1 Locating Your SIM Card ....................................3Battery ...............................................................3Activating Service ..............................................6Powering On and Off.........................................6Enabling Over-the-Air Security..........................7Phone Programming .........................................7Finding Your Phone Number and Private ID .....7Phone Basics ....................................................8SIM Card Security ...........................................11Accessories .....................................................16For More Information .......................................16 Making Calls ............................................. 17 Phone Calls .....................................................17Private Calls ....................................................17Receiving Calls................................................18Choosing a Number to Call .............................19Missed Phone Calls.........................................20Using Speakerphone .......................................20 Using Mute ......................................................21Making Emergency Phone Calls .....................21 Call Alerts..................................................22 Sending Call Alerts..........................................22Receiving Call Alerts .......................................22Using the Call Alert Queue..............................22 Recent Calls ..............................................24 Calls and Call Alerts ........................................24My Info From Other Phones ............................24Contact Information From Other Phones ........25Viewing the Recent Calls List..........................25Storing Items to Contacts ................................26Deleting Items .................................................26Making Calls From the Recent Calls List ........27 Contacts ....................................................29 Accessing Contacts.........................................30Creating Entries ..............................................30Storing Numbers Faster ..................................32Editing Entries .................................................32Viewing Entries ...............................................33 ii Deleting Entries ...............................................35Checking Capacity ..........................................35Creating Pauses and Waits.............................35International Numbers .....................................36Making Calls From Contacts ...........................36Accessing Contacts with GSM Phones ...........37 Call Forwarding........................................ 38 Forwarding All Calls ........................................38Turning Off Call Forwarding ............................38Forwarding Missed Calls .................................39Viewing Call Forwarding Settings....................39 Advanced Calling Features..................... 40 Call Waiting .....................................................40Switching Between Calls .................................40Putting a Call on Hold......................................41Calling 2 People ..............................................41Creating Pauses and Waits While Dialing.......42Making International Calls ...............................42One Touch PTT ...............................................42Setting Flip Actions..........................................43Group Calls .....................................................44 Call Timers ......................................................45Using Your Phone as a Modem ......................45Making TTY Calls ............................................46 Memo .........................................................49Ring Tones ................................................50 Setting Your Phone to Vibrate.........................50Ring and Vibrate .............................................51Assigning Ring Tones to Contacts ..................51Viewing Ring Tone Assignments ....................51Downloading More Ring Tones .......................52Managing Memory ..........................................52Deleting Custom Ring Tones ..........................52 Entering Text ............................................53 Using Word Mode ...........................................53Special Function Keys.....................................54 Messages ..................................................55 Message Notifications .....................................55Message Center ..............................................56 iii Voice Mail Messages ............................... 57 Receiving a Message ......................................57Accessing Voice Mail From the Message Center ...................................57 Sending Unanswered Calls to Voice Mail .......57 MOSMS Messages ................................... 58 Setting Up...........................…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT5833 ______________________________________________________________________________ iDEN, Motorola Inc 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5793 CONFIDENTIALITY REQUESTED Date: 21st June 2004 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT5833. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9, (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13B

Applicant: Motorola Inc FCC ID: AZ489FT5833 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 1 21 st June 2004 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: AZ489FT5833. Gentlemen; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its application for Certification of the transmitter with FCC ID: AZ489FT5833. This variable output power (0.050 to 700 milliwatt) transmitter is part of a handheld transceiver used in a SMR and EA SMR trunking system operating in the United States 806-821/851-866MHz and 896- 901/935-940 MHz frequency band. Certification is sought for this transceiver, and performance data is provided for that purpose. This transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical And Operational Requirements For Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5792). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. It is expected that this handheld time division multiplexed transceiver marketed in the United States will also be used for itinerant operation with companion Authorized Base Stations by users requesting trunked radio and telephone interconnect service while roaming outside the United States. In some countries the companion base stations are licensed to operate at frequencies in the 821-825/866-870 MHz band in addition to some of those in the 806-821/851- 866 MHz band normally used in United States SMR systems. Consequently, this transmitter has been designed to meet FCC requirements for operation in the 806-821 MHz band over the more global band of 806 - 825 MHz when used with a companion Authorized Base Station. Thus, performance data is provided to substantiate FCC compliant operation with a Companion Base Station over the broader 806 to 825 MHz band expected for global use of this handheld transceiver. To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for Applicant: Motorola Inc FCC ID: AZ489FT5833 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 2 transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 821 MHz base stations located within the United States. Consequently, upon receipt of Authorization, only those units of this equipment type authorized for marketing in countries outside the United States will also bear a label with the specified FCC identifier. In accordance with 47 CFR 2.1093(c) this transmitter may be used in “covered” SMR service so it has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The subject transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. This transceiver can function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable (ref: Exhibit 12.1). For this reason a Declaration of Conformity has been prepared and is provided on Page 5 of the user Manual in the Exhibit 8. Enclosed is a complete Certification Application comprised of 12 Exhibits. Contact me at (954) 723-5793 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Email: [email protected]

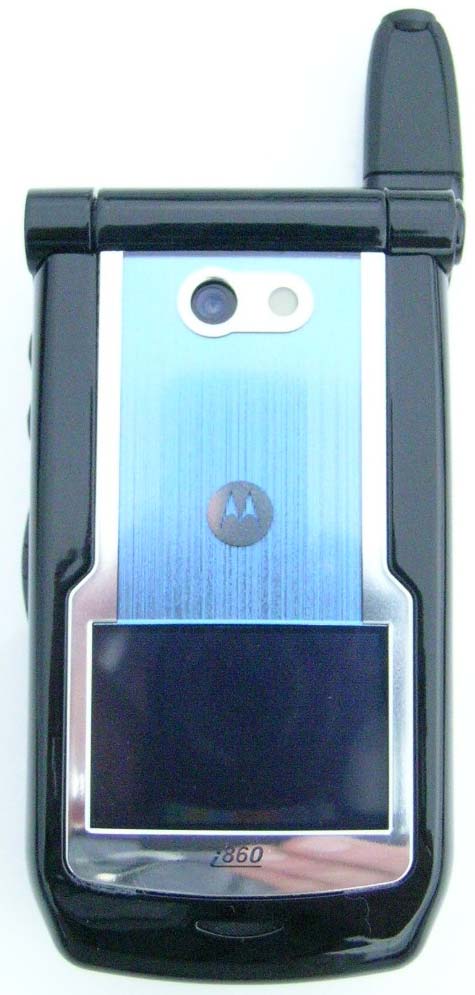

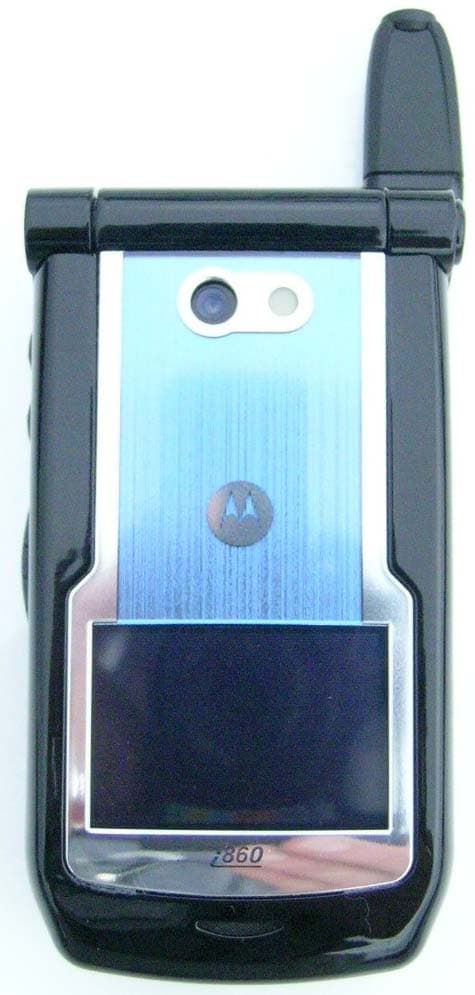

FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested The radio product shapes, colors and housing/bezel vary. Photograph 3-1: Front view, antenna retracted. Photograph 3-2: Back view, antenna retracted, battery cover attached. FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 2 Photograph 3-3: Front view, antenna extended. Photograph 3-4: Front view, antenna extended. FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 3 Photograph 3-5: Button side view, antenna retracted. Photograph 3-6: Antenna side view, antenna retracted. FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 4 Photograph 3-7: Button side view, antenna extended. Photograph 3-8: Antenna side view, antenna extended. FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 5 Photograph 3.9: Location of label on back of unit’s housing (battery cover removed). Photograph 3.10: Zoom view of labels containing FCC ID and FCC Logo. FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 6 Photograph 3.11: Back of unit’s housing (battery cover placed). Photograph 3.12: Front view of unit.

FCC Filing Package for Motorola i860Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page 1-2 Exhibit 1. Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 1.1 Location Back side of the radio product unit chassis (Photograph 1.1). 1.2 Type The label is a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Enlarged view of label (showing FCC ID and manufacturer type number): Photograph 1.1: Location of label on back of unit’s housing (battery cover removed). FCC Filing Package for Motorola i860Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page 2-2 Photograph 1.2: Zoom view of labels containing FCC ID and FCC Logo Exhibit 1A. General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Application References -- Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Open Area Test Site “OATS” (FCC Registration: 95517 and 98377 / Industry of Canada: 2056-A) 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with 47CFR2, Sub-part J and Part 90, Sub-parts I and Sub-part S of the Commission’s rules. FCC Filing Package for Motorola i860Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page 2-2 1A.4 Similar, currently Certified Transceiver FCC ID: AZ489FT5828 1A.5 Additional Considerations This radio product also integrates a receiver that will receive and process signals from Global Positioning System satellites. The radio product can also function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable accessory (Exhibit 12). A Declaration of Conformity in accordance with 47CFR2.1077(a) is provided in Exhibit 8 as evidence of compliance with Part 15 requirements for these additional Class B digital device functionalities per 47CFR15.101(a). Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47CFR15.1.

FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9. Internal Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested Photograph 9-1: Back side view of radio product PCB. Photograph 9-2: Back side view of radio PCB without shields. Photograph 9.3: Front side view of keyboard.

CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 1 of 27 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 1 of 2 Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on File 6/11/04 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. Date of Report: June 11, 2004 Report Revision: Rev. O Manufacturer: Motorola Product Description: iDEN i860; 1:6, 1:3, 81:120, 1:12 TDM; 64 QAM, 16 QAM & QPSK Modulation; 0.6 W Pulse average FCC ID: AZ489FT5833 Device Model: H73XAN6RR4AN/NUF3754A00 Certificate Number: 1449-01 Test Period: 5/24/04-6/3/04 Technician: Clint Miller (EME Technician Electronics II) Responsible Eng: Jim Fortier (Elect. Principle Staff Eng.) Author: Michael Sailsman (Global EME Regulatory Affairs Liaison) CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 2 of 27 TABLE OF CONTENTS Part 1 of 2 1.0 Introduction 2.0 Reference Standards and Guidelines 3.0 Description of Test Sample 3.1 Test Signal 3.2 Test Output Power 4.0 Description of Test Equipment 4.1 Description of S.A.R Measurement System 4.2 Description of Phantom 4.2.1 Flat Phantom 4.2.2 SAM phantom 4.3 Simulated Tissue Properties 4.3.1 Type of Simulated Tissue 4.3.2 Simulated Tissue Composition 4.4 Test conditions 5.0 Probe Scan Procedures 5.1 Shortened scan rationale 5.2 Description of Test Procedure 5.3 Device Test Positions 5.3.1 Body 5.3.2 Head 5.3.3 Face 5.4 Test Position Photographs 6.0 Measurement Uncertainty 7.0 S.A.R. Test Results 7.1 S.A.R. results 7.2 Peak S.A.R. location 7.3 Highest S.A.R. results calculation methodology 8.0 Conclusion Part 2 of 2 Appendix A: Power Slump Data/Shortened scan Appendix B: Data Results Appendix C: Dipole System Performance Check Results Appendix D: Probe/Dipole Calibration Certificates Appendix E: Illustration of Body-worn Accessories Appendix F: Accessories and options test status and separation distances CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 3 of 27 REVISION HISTORY Date Revision Comments 6/11/04 O Release of Prototype results CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 4 of 27 1.0 Introduction This report details the utilization, test setup, test equipment, and test results of the Specific Absorption Rate (S.A.R.) measurements performed at the CGISS EME Test Lab for model number H73XAN6RR4AN/NUF3754A00, FCC ID: AZ489FT5833. The applicable exposure environment is General Population/Uncontrolled. 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and international standards and guidelines. • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • IEEE 1528, 2003 "Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques" • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engi- neers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Terminal frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2003 • ANATEL, Brazil Regulatory Authority, Resolution No. 303 of July 2, 2002 "Regulation of the limitation of exposure to electrical, magnetic, and electromagnetic fields in the radio frequency range between 9KHz and 300 GHz." and “Attachment to resolution # 303 from July 2, 2002” CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 5 of 27 3.0 Description of Test Sample (Horizontal and vertical reference lines intersecting at the acoustic output are marked in white on the DUT) FCC ID: AZ489FT5833 is a digital multi-service data capable device that employs time division multiplexing transmission technology with a duty cycle ranging from 16.67% to 33.33% using 16-QAM modulation for voice or circuit data transmission. There is a Split 1:3 mode that operates using a 16.67% transmission duty cycle. Two 7.5ms pulses occur during the six time slots within the 90-msec frame format. This mode is available in both the 806-825MHz and 896-902MHz bands in the telephone interconnect mode only. Packet data transmission is also supported up to a maximum duty cycle of 67.5% using quad QPSK modulation. This device will be marketed to and used by the general population. This device may be used while held against the head in voice mode, in front of the face in PTT mode, and against the body in voice, PTT and data modes. FCC ID: AZ489FT5833 is capable of operating in the 806-825 MHz and 896-902MHz bands. Packet data transmission is not available while transmitting in the 896-902 MHz band. The rated power is 0.6 watts pulsed averaged. The maximum output is 0.7 watts pulsed average as defined by the upper limit of the production line final test station. CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 6 of 27 FCC ID: AZ489FT5833 is offered with the following options and accessories: Antenna Description 85-85744F01 806 – 941 MHz ¼ wave retractable antenna; 10.1cm Worst case antenna gain -2.4dBd @ 813MHz, -0.6dBd @ 896 MHz Batteries SNN5705B 8-mm 950mAh Lithium Ion battery SNN5704C 5-mm 700mAh Lithium Ion battery NNTN5529A Battery cover (5mm) NNTN5530A Battery cover (8mm) Body-worn Accessories NNTN5003A Black carry holster NN…

Text truncated - open the document above for the full version.

CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 1 of 45 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Part 2 of 2 Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on File 6/11/04 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. Certificate Number: 1449-01 Date of Report: June, 11, 2004 Report Revision: Rev. O Manufacturer: Motorola Product Description: iDEN i860; 1:6, 1:3, 81:120, 1:12 TDM; 64 QAM, 16 QAM & QPSK Modulation; 0.6 W Pulse average FCC ID: AZ489FT5833 Device Model: H73XAN6RR4AN/NUF3754A00 Test Period: 5/24/04-6/3/04 Technician: Clint Miller (EME Technician Electronics II) Responsible Eng: Jim Fortier (Elect. Principle Staff Eng.) Author: Michael Sailsman (Global EME Regulatory Affairs Liaison) CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 2 of 45 APPENDIX A Power Slump Data/Shortened Scan CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 3 of 45 DUT Power versus time data CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 4 of 45 Shortened Scan Results FCC ID: AZ489FT5833; Test Date: 6/03/04 Motorola CGISS EME Laboratory Run #: CM-Ab-R3-040603-07 Model #: H73XAN6RR4AN / NUF3754A00 SN: 364AEJ068N TX Freq: 813.5125 MHz Sim Tissue Temp: 20.0 (Celsius) Start Power: 0.699 W Antenna: Out Battery Kit: SNN5704C/NNTN5529A Body worn: NNTN4747A Audio/Data Acc.: None Shortened scan reflect highest S.A.R. producing configuration; Run time 11minutes. Representative “normal” scan run time was 26 minutes “Shortened” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 1.46mW/g; 10-g Avg. = 1.05mW/g “Normal” scan max calculated S.A.R. using S.A.R. drift: 1-g Avg. = 1.30mW/g; 10-g Avg. = 0.94mW/g (see section 7.1 run # JF-Ab-R3-040603-04) DUT w/ body worn accessory against phantom Flat Phantom; Position: (90°,90°); Probe: ET3DV6 - SN1383(Cal Date 25 Feb 2004); ConvF(5.82,5.82,5.82); Probe cal date: 25/2/04; Crest factor: 1.5; FCC Body 813: σ = 0.94 mho/m ε = 55.6 ρ = 1.00 g/cm3; DAE3: 401V1 DAE Cal Date: 08/21/2003 Cube 5x5x7: SAR (1g): 1.19 mW/g, SAR (10g): 0.865 mW/g, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0; SAR (1g): 1.19 mW/g, SAR (10g): 0.865 mW/g Power Drift: -0.37 dB CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 5 of 45 APPENDIX B Data Results CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 6 of 45 FCC ID: AZ489FT5833; Test Date: 5/27/04 Motorola CGISS EME Laboratory Run #: CM-REAR-R3-040527-03 TX Freq: 824.9875 MHz Sim Tissue Temp: 19.8 (Celsius) Start Power: 0.734 W Antenna: In Battery Kit: SNN5705B/NNTN5530A Body worn: NONE Audio/Data Acc.: NONE DUT at right ear in cheek touch position SAM Phantom; Rigt Head Section; Position: (90°,301°); Probe: ET3DV6 - SN1383(Cal Date 25 Feb 2004); ConvF(6.30,6.30,6.30); Probe cal date: 25/2/04; Crest factor: 3.0; IEEE Head 813 MHz: σ = 0.93 mho/m ε = 41.9 ρ = 1.00 g/cm3; DAE3: 401V1 DAE Cal Date: 08/21/2003 Cube 7x7x7: SAR (1g): 0.900 mW/g, SAR (10g): 0.620 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 37.5, 28.5, 4.7 Power Drift: -0.16 dB CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 7 of 45 FCC ID: AZ489FT5833; Test Date: 5/28/04 Motorola CGISS EME Laboratory Run #: CM-Face-R3-040528-08 Model #: H73XAN6RR4AN / NUF3754A00 SN: 364AEJ068L TX Freq: 813.5125 MHz Sim Tissue Temp: 19.3 (Celsius) Start Power: 0.710 W Antenna: Out Battery Kit: SNN5705B/NNTN5530A Body Worn: NONE Audio/Data Acc.: NONE DUT front towards phantom w/ 2.5 cm separation (Flip Closed) SAM Phantom; Flat Section; Position: (90°,90°); Probe: ET3DV6 - SN1383(Cal Date 25 Feb 2004); ConvF(6.30,6.30,6.30); Probe cal date: 25/2/04; Crest factor: 6.0; IEEE Head 813 MHz: σ = 0.93 mho/m ε = 41.7 ρ = 1.00 g/cm3; DAE3: 401V1 DAE Cal Date: 08/21/2003 Cube 7x7x7: SAR (1g): 0.154 mW/g, SAR (10g): 0.110 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 36.0, 61.5, 4.7 Power drift: -0.32 dB CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 8 of 45 FCC ID: AZ489FT5833; Test Date: 5/25/04 Motorola CGISS EME Laboratory Run #: CM-LEAR-R3-040525-11 Model #: H73XAN6RR4AN / NUF3754A00 SN: 364AEJ068L TX Freq: 896.01875 MHz Sim Tissue Temp: 19.5 (Celsius) Start Power: 0.692 W Antenna: In Battery Kit: SNN5704C/NNTN5529A Body worn: NONE Audio/Data Acc.: NONE DUT at left ear in Cheek Touch position SAM Phantom; Left Head Section; Position: (90°,59°); Probe: ET3DV6 - SN1383(Cal Date 25 Feb 2004); ConvF(6.30,6.30,6.30); Probe cal date: 25/2/04; Crest factor: 3.0; IEEE Head 899: σ = 1.01 mho/m ε = 40.9 ρ = 1.00 g/cm3; DAE3: 401V1 DAE Cal Date: 08/21/2003 Cube 7x7x7: SAR (1g): 0.784 mW/g, SAR (10g): 0.534 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0; Max at 40.5, 27.0, 4.7 Power drift: -0.35 dB Note: “Max outside” has been identified by SPEAG as an unresolved intermittent occurrence with the DASY 3 application even when the entire peak area is captured. CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 9 of 45 FCC ID: AZ489FT5833; Test Date: 5/28/04 Motorola CGISS EME Laboratory Run #: CM-Face-R3-040528-09 Model #: H73XAN6RR4AN / NUF3754A00 SN: 364AEJ068L TX Freq: 899.66875 MHz Sim Tissue Temp: 19.2 (Celsius) Start Power: 0.683 W Antenna: In Battery Kit: SNN5704C/NNTN5529A Body worn: NONE Audio/Data Acc.: NONE DUT front towards phantom w/ 2.5 cm separation distance (Flip closed) SAM Phantom; Flat Section; Position: (90°,90°); Probe: ET3DV6 - SN1383(Cal Date 25 Feb 2004); ConvF(6.30,6.30,6.30); Probe cal date: 25/2/04; Crest factor: 6.0; IEEE Head 899: σ = 1.01 mho/m ε = 40.5 ρ = 1.00 g/cm3; D…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i860 Transceiver FCC ID: AZ489FT5833 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6- 1 Exhibit 6. Measured Data -- Pursuant 47 CFR. 2.1041 6.1 Transmitter Power The transmitter is a variable power type used in a SMR trunking system. Output power (as defined in 47 CFR 90.7) is dynamically controlled as described in Exhibit 12. 6.1.1 Maximum Output Power Rating -- Pursuant 47 CFR 2.1033(c) 7 and 90.635(d)) Maximum output power rating: 700 milliwatts (28.45 dBm), pulse average power Note 1: Nominal output power rating: 600 milliwatts (27.78 dBm) (Pulse average power). Note 2: These ratings are compliant with the FCC maximum of 100 watts (50 dBm) for Mobile stations Note 3: The term pulse average power is used to specify the power that would be measured during the intervals of recurrent TDM transmission pulses by an average responding RF power meter. Power expressed in this manner is independent of the …

Text truncated - open the document above for the full version.
