im240 Wireless Modem User’s Guide for Microsoft ® Windows ® 2000, Windows ME ® , Windows NT ® , Windows ® XP, Pocket PC 2002, and Pocket PC 2003 @NNTN5927A@ NNTN5927A i Contents Getting Started.....................................................................1 im240 Wireless Modem................................................................. 1 Package Contents ......................................................................... 1 Supported operating systems........................................................ 1 Your account and coverage area .................................................. 1 im240 Wireless Modem Software.................................................. 2 Customer Support ......................................................................... 2 SIM Card ...............................................................................3 Inserting and Removing a SIM Card ............................................. 3 SIM Card Personal Identification Number (PIN)............................ 4 Enabling the SIM PIN .................................................................... 4 Invalid PIN ..................................................................................... 4 Valid PIN ....................................................................................... 4 Changing the SIM PIN................................................................... 5 Disabling the SIM PIN ................................................................... 5 Unlocking the SIM PIN .................................................................. 5 Modem Setup .......................................................................6 When to Insert the Modem ............................................................ 6 System Requirements ................................................................... 6 Preparing the Modem for Setup .................................................... 7 Installing on Windows ME ............................................................. 7 Installing on Windows 2000, and XP ............................................ 7 Installing on Windows NT ............................................................. 8 Installing on a Pocket PC ............................................................ 11 Using the Modem...............................................................12 Using the Detachable Antenna.................................................... 13 Using the External Antenna......................................................... 13 Turning on the Modem ................................................................ 14 Compact Mode ............................................................................ 14 ii Internet ...............................................................................16 Connecting to the Internet ...........................................................16 Disconnecting from the Internet...................................................17 Data Connectivity ..............................................................17 Connecting via Packet Data ........................................................18 Connecting via Circuit Data .........................................................18 Modem Status ....................................................................18 Launching the im240 Wireless Modem Dashboard .....................18 The im240 Wireless Modem Dashboard Window........................19 Common Functionality .................................................................19 Getting Status Information ...........................................................20 Status Light..................................................................................20 Uninstalling Modem Software ..........................................21 Laptop..........................................................................................21 Pocket PC....................................................................................21 Troubleshooting ................................................................22 Diagnostics ..................................................................................22 Registration..................................................................................23 Safety and General Information .......................................24 RF Operational Characteristics....................................................24 Portable Radio Product Operation and EME Exposure...............24 Electro Magnetic Interference/Compatibility ................................26 Medical Devices...........................................................................27 Operational Warnings ..................................................................27 Operational Cautions ...................................................................28 MOTOROLA LIMITED WARRANTY ..................................29 Patent and Trademark Information ..................................32 Index ...................................................................................34 iii DECLARATION OF CONFORMITY Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 8000 West Sunrise Boulevard Plantation, FL 33322 USA Phone Number: 1 (800) 453-0920 Hereby declares that the product: Product Name: im240 Model Number: H70UAA9RR1AN Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT5834 ______________________________________________________________________________ iDEN, Motorola Inc , 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED Date: 22 th November 2004 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT5834. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9, (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

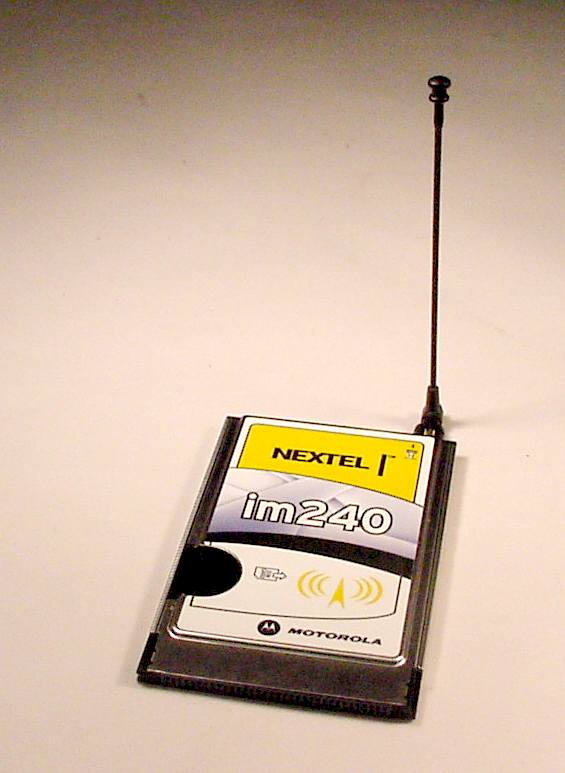

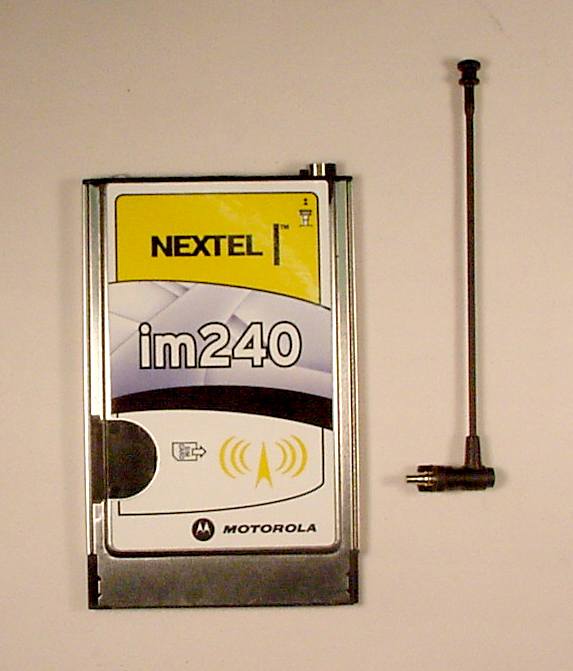

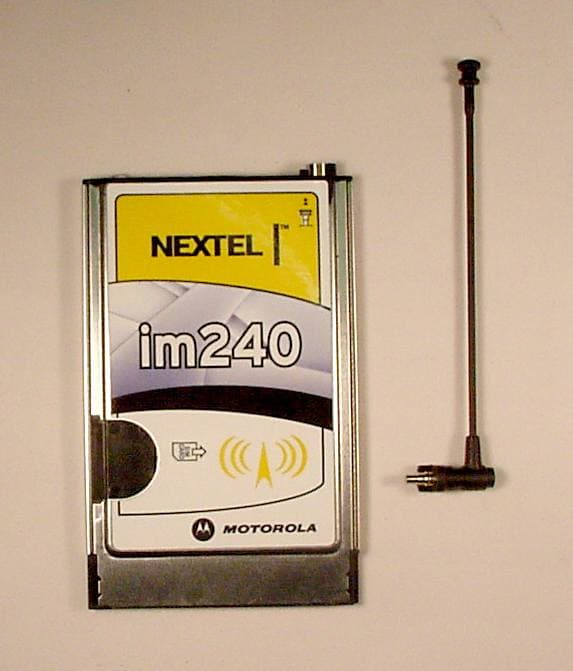

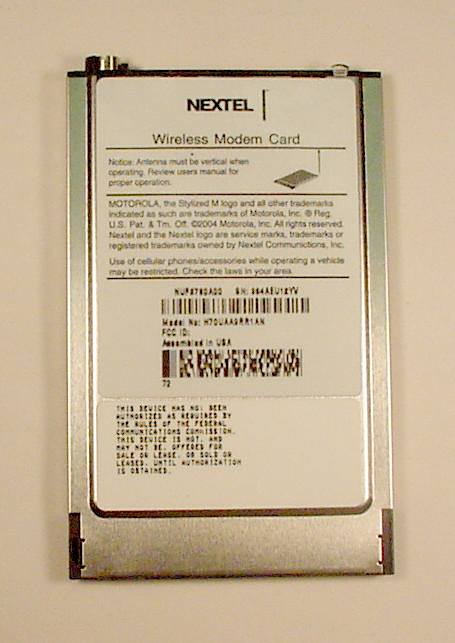

FCC Application for Motorola iM240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 1 EXHIBIT 3: EXTERNAL PHOTOGRAPHS – Pursuant 47 CFR 2.1033(c)12 Figure 3-1. Photograph of Front, antenna not installed. Figure 3-2. Photograph of Front, antenna installed. FCC Application for Motorola iM240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 1 Figure 3-3. Photograph of back showing location of FCC label. Figure 3-4. FCC Label. Figure 3-5. Industry Canada Label.

FCC Application for Motorola iM240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 1 EXHIBIT 1: IDENTIFICATION LABEL – Pursuant 47 CFR 2.925, 2.1065 and 2.1033(c)11 1.1 Location The FCC identification label is applied to the outside case of the PCMCIA card (Figure 1-1) 1.2 Type The label is a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 5 lbs/in. 1.3 Markings (Text) An enlarged photo of the label showing FCC identification is shown in Figure 1-2. Figure 1-1. Location of the FCC label. Figure 1-2. Example of FCC Label FCC Application for Motorola iM240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 1 Figure 1-3 Example of Industry Canada Label FCC Application for Motorola iM240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 1 EXHIBIT 1A: GENERAL INFORMATION – Pursuant 47 CFR 2.948, 2.1061 1A.1 Production Plans Quantity production is planned. 1A.2 Application References – Pursuant 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola “Application References.” 1. Florida Atlantic University EMI Lab (FCC Registration: 90599; Industry Canada: IC46405-4076) 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with Part 2, Sub-part J and Part 90, Sub-part I and Sub-part S of the Commission’s rules. 1A.4 Similar, currently Type Accepted Transmitter FCC ID: ABZ89FC5794 1A.5 Additional Considerations The transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical and Operational Requirements for Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5794). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital packet data or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. A Declaration of Conformity in accordance with 47 CFR 2.1077(a) is provided in Exhibit 8 as evidence of compliance with Part 15 requirements for these additional Class B digital device functionalities per 47 CFR 15.101(a). Compliance with Part 15 requirements for direct-conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47 CFR 15.1.

FCC Application for Motorola im240 FCC ID: AZ489FT5834 EXHIBIT 9: INTERNAL PHOTOGRAPHS – Pursuant 47 CFR 2.1033(c)12 Figure 9-1. Internal photo with shields intact. Figure 9-2. Internal photo with shields intact. IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 2 FCC Application for Motorola im240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 2 of 2 Figure 9-3. Internal photo with shields removed. Figure 9-4. Internal photo of electronic assembly with shields removed.

CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 1 of 55 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 S.A.R. EME Compliance Test Report Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. Signature on file – Ken Enger 11/10/04 ____________________________________________________________ _________________________ Ken Enger Date Approved Senior Resource Manager, Laboratory Director, CGISS EME Lab Note: This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. Date of Report: November 10, 2004 Report Revision: Rev. A Manufacturer: Motorola Product Description: iDEN iM240; TDMA: 236:310 WiDEN (76.1%), 81:120 Packet Data (67.5%); 1:6, 2:6 TDMA Circuit Data/FAX; 64 QAM, 16 QAM, and QPSK Modulations; 0.6 W Pulse Avg. FCC ID: AZ489FT5834 Device Model: H70UAA9RR1AN Certificate Number: 1449-01 Test Period: 11/4/04-11/9/04 Responsible Eng: K. Uong (EME Lead Eng.) Author: K. Uong (EME Lead Eng.) CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 2 of 55 TABLE OF CONTENTS 1.0 Introduction 2.0 Reference Standards and Guidelines 3.0 Description of Test Sample 3.1 Test Signal 3.2 Test Output Power 4.0 Description of Test Equipment 4.1 Description of S.A.R Measurement System 4.2 Description of Phantom 4.2.1 Flat Phantom 4.2.2 SAM phantom 4.3 Simulated Tissue Properties 4.3.1 Type of Simulated Tissue 4.3.2 Simulated Tissue Composition 4.4 Test conditions 5.0 Probe Scan Procedures 5.1 Shortened scan rationale 5.2 Description of Test Procedure 5.3 Device Test Positions 5.3.1 Body 5.3.2 Head 5.3.3 Face 5.4 Test Position Photographs 6.0 Measurement Uncertainty 7.0 S.A.R. Test Results 7.1 S.A.R. results 7.2 Peak S.A.R. location 7.3 Highest S.A.R. results calculation methodology 8.0 Conclusion Appendix A: Power Slump Data/Shortened scan Appendix B: Data Results Appendix C: Dipole System Performance Check Results Appendix D: Probe/Dipole Calibration Certificates Appendix E: Illustration of host devices used CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 3 of 55 REVISION HISTORY Date Revision Comments 9/8/04 O Release of Prototype results 11/10/04 A Disclose the Prototype results for the latest design of the iM240. CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 4 of 55 1.0 Introduction This report details the utilization, test setup, test equipment, and test results of the Specific Absorption Rate (S.A.R.) measurements performed at the CGISS EME Test Lab for model number H70UAA9RR1AN, FCC ID: AZ489FT5834. The DUT for this vintage has a different antenna, the antenna is longer, and there are tuning value changes to adapt the card to the new antenna. The applicable exposure environment is General Population/Uncontrolled. 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and international standards and guidelines. • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • IEEE 1528, 2003 "Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques" • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engi- neers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Terminal frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2003 • ANATEL, Brazil Regulatory Authority, Resolution No. 303 of July 2, 2002 "Regulation of the limitation of exposure to electrical, magnetic, and electromagnetic fields in the radio frequency range between 9KHz and 300 GHz." and “Attachment to resolution # 303 from July 2, 2002” CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 5 of 55 3.0 Description of Test Sample FCC ID: AZ489FT5834 is device that employs circuit data transmissions using quad 16-QAM modulation. Packet Data transmission is also supported with a maximum duty cycle of 67.5% using quad QPSK modulation, quad 16-QAM or quad 64-QAM modulations. The WiDEN mode, which features a wider bandwidth capability (up to 100KHz), uses QPSK, M16-QAM, or M64-QAM modulation modes in 1 to 4 standard 25KHz iDEN channels and has a maximum duty cycle of 76.1%. WiDEN 25KHz mode (WiDEN25) provides the highest duty cycle and uses one standard iDEN channel. WiDEN50, WIDEN75, and WiDEN100 use two, three, and four contiguous channels respectively. This device will be marketed to and used by the general population. This device may be used as a PCMCIA modem within a PC laptop or a PDA while in the above mentioned data modes. FCC ID: AZ489FT5834 is capable of operating in the 806-825 MHz band. The rated power is 0.60 watts pulse average. The maximum output is 0.64 watts pulse average as defined by the upper limit of the production line final test station. CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 6 of 55 FCC ID: AZ489FT5834 is offered with the following options and accessories: Antenna Description NNTN6033A Removable 806-870 MHz 1/4 wave 8.5 cm -2.5 dBi NNTN5861A External mobile antenna 806-870MHz ½ wave antenna; 21.1cm, 3.0dBi 3.1 Test Signal Test Signal mode: Transmission Mode: CW Native Transmission X TDMA X Other 3.2 Test Output Power A table of the characteristic power slump versus time is provided in Appendix A for all tested batteries. Test Mode X Call Simulator Simulator CGISS EME Form-SAR-Rpt-Rev. 3.00 Page 7 of 55 4.0 Description of Test Equipment 4.1 Descriptions of S.A.R. Measuremen…

Text truncated - open the document above for the full version.

FCC Application for Motorola im240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 1 of 32 EXHIBIT 6a: MEASURED DATA – Pursuant 47 CFR 2.1041 6.1 Transmitter Output Power -- Pursuant 47 CFR 2.1033(c)7, 2.1033(c)6) and 90.635(d) The transmitter operating in the 800 MHz band is a variable power type used in a SMR trunking system. Output power (as defined in 47 CFR 90.7) is dynamically controlled as described in Exhibit 12. Maximum output power rating: 640 milliwatts (28.06 dBm), pulse average power. Output power will vary over a range from 0.088 to 640 milliwatts (pulse average power). Note 1: Nominal output power rating: 600 milliwatts (27.78 dBm) (Pulse average power). Note 2: These ratings are compliant with the FCC maximum of 100 watts (50 dBm) for Mobile stations Note 3: The term pulse average power is used to specify the power that would be measured during the intervals of recurrent TDM transmission pulses by an average responding RF power meter. Power expressed in this manner is independent of the TDM duty cycle, and facilitates RF system coverage analysis. 6.2 DC Power Used by Final Amplifier Device -- Pursuant 47 CFR 2.1033(c)8) In order to prevent the malfunctions that can occur due to directly measuring the DC characteristics of the final RF amplifying stage, data was obtained by measuring the entire radio DC current and is reported herein for the entire radio. The DC current and the RF output power was measured with a special RF/DC test fixture set to supply the radio with the nominal voltage of 5.0 V. The characteristics were measured during a transmission pulse and are listed in the Table 6-1: Characteristic s 800 MHz Power Setting maximum minimum DC Voltage (Volts) 5 5 DC Current (A) 0.803 0.430 Output Power (mW) 606 0.0814 Table 6-1 Characteristics for 800 MHz bands FCC Application for Motorola im240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 2 of 32 6.3 Modulation Characteristics and Necessary Bandwidth -- Pursuant 47 CFR 2.1033(c)13, 2.1047(d) & 2.202 Digitally encoded digital data is transmitted in groups of four sub-channels at a 4 kHz rate using M-ary symbols mapped to predetermined fixed magnitude and phase components within 1 of 3 constellations associated with a particular modulation scheme. One to four groups of four sub-channel streams are combined using frequency division multiplexing to form the modulated waveform. Figure 6-3 illustrates symbol mapping to one of the four QPSK sub-channels constellations. Figure 6-4 illustrates symbol mapping to one of the four 16QAM sub-channels constellation. Figure 6-5 illustrates symbol mapping to one of the four 64QAM sub-channels constellation. For Quad-QPSK modulation, this mapping adjusts the amplitude and phase variations of the baseband signal to one of 4 points on the constellation. For Quad- 16QAM modulation, this mapping adjusts the amplitude and phase variations of the baseband signal to one of 16 points on the constellation. For Quad-64 modulation, this mapping adjusts the amplitude and phase variations of the baseband signal to one of 64 points on the constellation. The bandwidth of the modulating signals is limited by the pair of modulation limiting low pass filters within the modem block function of U801 (see Figure 4-2 in Exhibit 4.3). These filters serve to limit out-of-band and spurious emissions due to modulation. The necessary bandwidth of the sub-channels is limited to 4.8 kHz by the pair of modulation limiting low pass filters. The transfer response of these filters is depicted in Figure 6-1 where the filter excess bandwidth coefficient of 0.2 is shown. This excess bandwidth leads to the necessary bandwidth calculation of (1 + 0.2) x (4 kHz) = 4.8 kHz. Since the sub-channels are spaced 4.5 kHz apart, and the groups that each contain 4 sub-channels are spaced apart in integer multiples of 25 kHz, the necessary bandwidth of the composite 4 sub-channel symbol streams (single group) is 4.8 + (3 x 4.5) = 18.3 kHz and the necessary bandwidth of the entire waveform depends on the number and combination of groups transmitted. Figure 6-2 illustrates all group combinations and corresponding bandwidths. Below in Table 6-2 is a description of each waveform case. Case Description (Figure) Number of Groups Number Of Sub-channels Emission Designator Mask Figure 1 When Transmitting Voice, data or fax on one 25kHz channel (6.2.1) 1 4 18K3D7W 6-5 to 6-16 2 When Transmitting data on 2 adjacent 25kHz channels (6-2 (Adjacent)) 2 8 43K3D7D 6-17 to 6-22 3 When Transmitting data on 3 adjacent 25kHz channels (6-3) 3 12 68K3D7D 6-23 to 6-28 When Transmitting data on the 2 outer 25kHz channels of 4 25kHz channels (6-2(outer)) 2 8 93K3D7D 6-35 to 6-40 4 When Transmitting data on 4 adjacent 25kHz channels (6-4) 4 16 93K3D7D 6-29 to 6-34 Table 6-2: Waveform Description of all transmitted cases. The designator for emissions in case 2 and 3 is determined by adding N x 25 to the first 2 digits, when N = the number of channels. The designator for case 4 is determined by adding 3 x 25 to the fist 2 digits because the outer channels are 3 channels apart. “D” is used for the last character when only data is transmitted, not telephony. FCC Application for Motorola im240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 3 of 32 0.707 02k2.4k-2k H(f)=root raised α =0.2 Modulation Low Pass Filter Res ponse ω o ω where ω o = 2000 and ω = (1+ α ) ω o = 2400Hz 1for |f| <2 ω o - ω cos 2 ( π /4 (|f| + ω - 2 ω o )/( ω - ω o ))for 2 ω o - ω < |f|< ω 0for |f| > ω { H(f)= Figure 6-1: Modulation Low Pass Filter Response FCC Application for Motorola im240 FCC ID: AZ489FT5834 IDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 4 of 32 Number of Sub-Channel Groups Bandwidth (kHz) Sub-Channel Group Combination 18.3 43.3 68.3 93.3 93.3 1 2 (adjacent) 2 …

Text truncated - open the document above for the full version.

Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 13 of 32 Figure 6-16: iDEN Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-17: IDEN Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 14 of 32 6.3.2 800 MHz Band WiDEN25 Operation Measured Data FCC Limits - Per 47CFR 90.210(g) - Per EA SMR Emission Mask, 47 CFR 90.691(a) Figure 6-18: WiDEN25 Quad-QPSK Modulation performance relative to mask 47 CFR 90.210(g) (MAXIMUM POWER SETTING) Figure 6-19: WiDEN25 Quad-QPSK Modulation performance relative to mask 47 CFR 90.210(g) (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 15 of 32 Figure 6-20: WIDEN25 Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-21: WiDEN25 Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 16 of 32 Figure 6-22: WiDEN25 Quad-16QAM Modulation performance relative to mask 47 CFR 90.210(g) (MAXIMUM POWER SETTING) Figure 6-23: WiDEN25 Quad-16QAM Modulation performance relative to mask 47 CFR 90.210(g) (MAXIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 17 of 32 Figure 6-24: WiDEN25 Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-25: WiDEN25 Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 18 of 32 Figure 6-26: WiDEN25 Quad-64QAM Modulation performance relative to mask 47 CFR 90.210(g) (MAXIMUM POWER SETTING) Figure 6-27: WiDEN25 Quad-64QAM Modulation performance relative to mask 47 CFR 90.210(g) (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 19 of 32 Figure 6-28: WiDEN25 Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-29: WiDEN 25 Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 20 of 32 6.3.3 800 MHz Band Operation Measured Data – Emission Designator 43K3D7D FCC Limits - Per EA SMR Emission Mask, 47 CFR 90.691(a) Figure 6-30: WIDEN50 continuous Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-31: WiDEN50 Continuous Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 21 of 32 Figure 6-32: WiDEN50 Continuous Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-33: WiDEN50 Continuous Quad-16QAM Modulation performance relative to mask 47 CFR 90.691.(MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 22 of 32 Figure 6-34: WiDEN50 Continuous Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-35: WiDEN 50 Continuous Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 23 of 32 6.3.4 800 MHz Band Operation Measured Data – Emission Designator 68K3D7D FCC Limits - Per EA SMR Emission Mask, 47 CFR 90.691(a) Figure 6-36: WIDEN75 continuous Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-37: WiDEN75 Continuous Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 24 of 32 Figure 6-38: WiDEN75 Continuous Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-39: WiDEN75 Continuous Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 25 of 32 Figure 6-40: WiDEN75 Continuous Quad-64QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-41: WiDEN75 Continuous Quad-64QAM Modulation performance relative to mask 47 CFR 90.691.(MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 26 of 32 6.3.5 800 MHz Band Operation Measured Data – Emission Designator 93K3D7D FCC Limits - Per EA SMR Emission Mask, 47 CFR 90.691(a) Figure 6-42: WIDEN100 continuous Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-43: WiDEN100 Continuous Quad-QPSK Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 27 of 32 Figure 6-44: WiDEN100 Continuous Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MAXIMUM POWER SETTING) Figure 6-45: WiDEN100 Continuous Quad-16QAM Modulation performance relative to mask 47 CFR 90.691. (MINIMUM POWER SETTING) Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 28 …

Text truncated - open the document above for the full version.

Motorola FCC ID: AZ489FT5834 iDEN, Motorola Inc., 8000 W. Sunrise Blvd. Plantation, FL 33322 www.mot.com/iden Page 26 of 32 EXHIBIT 6b: MEASURED DATA – Pursuant 47 CFR 2.1041 6.4 Radiated Spurious Emissions -- Pursuant 47 CFR 2.1053, 2.1057, 90.210(g)(3), 90.691(a)(2), 15.247(c) 6.4.1 Cellular band Limits Per 90.210(g)(3) and 90.691(a)(2), radiated spurious emissions shall be attenuated below the maximum level of em…
