AZ489FT5836PORTABLE 2-WAY RADIO

English Product Safety and RF Exposure for Portable Two-Way Radios The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. For radios that have been approved as intrinsically safe, read the instructions and information on intrinsic safety on page 9 of this booklet. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n © Motorola, Inc. 2002. Commercial, Government and Industrial Solutions Sector 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 07/02. All Rights Reserved.

68P81095C98-O 2 English Federal Communication Commission (FCC) Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from portable two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before portable two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/ controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by the use of labels, or by education and training through appropriate means, such as information and instructions in user manuals or safety booklets. Your Motorola two-way radio has an RF exposure information label in the battery compartment. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty cycle (5% talk–5% listen–90% standby), even though this radio complies with FCC occupational exposure limits at usage factors of up to 50% talk. 3 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” Compliance and Control Guidelines and Operating Instructions for Portable Two-Way Radios To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: •Transmit no more than 50% of the time. To transmit (talk), push the Push- To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). 4 English •Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least one to two inches (2.5 to 5 centimeters) away from the lips. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. •For body-worn operation, always place the radio in a Motorola-approved clip, holder, holster, case, or body harness for this product. Using non– Motorola-approved accessories may result in exposure levels which exceed the FCC’s occupational/controlled environment RF exposure limits. •If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, ensure the antenna and the radio are kept one inch (2.5 centimeters) from the body when transmitting. Keeping the radio at a proper distance is important since RF exposures decrease with distance from the antenna. •Use only Motorola-approved supplied or replacement antennas, batteries, and accessories. Use of non–Motorola-approved antennas, batteries and accessories may exceed FCC RF exposure guidelines. For a list of Motorola- approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/twowayradio.shtml For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . 5 English Electromagnetic Interference/Compatibility NOTE:Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured …

Text truncated - open the document above for the full version.

1 Contents English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . . 3 Radio Overview . . . . . . . . . . . . . . . . . . . . . 5 Parts of the Radio . . . . . . . . . . . . . . . . . . . . 5 HT1250 Full-Keypad Model . . . . . . . . . . 5HT1250 Limited-Keypad Model . . . . . . . 6On/Off/Volume Knob . . . . . . . . . . . . . . . 7Channel Selector Knob . . . . . . . . . . . . . 7LED Indicator . . . . . . . . . . . . . . . . . . . . . 7Programmable Buttons . . . . . . . . . . . . . 7Push-to-Talk (PTT) Button . . . . . . . . . . . 9Microphone . . . . . . . . . . . . . . . . . . . . . . 9Menu Keys . . . . . . . . . . . . . . . . . . . . . . . 9Keypad Keys (For Full-Keypad Radios) . 10LCD Screen . . . . . . . . . . . . . . . . . . . . . 12 Audio Indicators for Programmable Buttons . 14 Getting Started . . . . . . . . . . . . . . . . . . . . 15 Battery Information . . . . . . . . . . . . . . . . . . 15 Charging the Battery . . . . . . . . . . . . . . 15Battery Charge Status . . . . . . . . . . . . . 16Attaching the Battery . . . . . . . . . . . . . . 17Removing the Battery. . . . . . . . . . . . . . 17 Accessory Information. . . . . . . . . . . . . . . . 18 Attaching the Antenna . . . . . . . . . . . . . 18 Removing the Antenna . . . . . . . . . . . . 18Attaching the Belt Clip . . . . . . . . . . . . . 19Removing the Belt Clip . . . . . . . . . . . . 19Attaching the Side Connector Cover . . 20 Turning The Radio On or Off . . . . . . . . . . 20Adjusting the Volume . . . . . . . . . . . . . . . . 21Selecting a Zone. . . . . . . . . . . . . . . . . . . . 21Selecting a Radio Channel . . . . . . . . . . . . 21Sending a Call . . . . . . . . . . . . . . . . . . . . . 22Receiving a Call . . . . . . . . . . . . . . . . . . . . 22 Radio Calls . . . . . . . . . . . . . . . . . . . . . . . 23 Making a Selective Call . . . . . . . . . . . . . . 23Receiving a Selective Call F . . . . . . . . . . . 23 Sending a Call Alert™ Page . . . . . . . . . . . 24Receiving a Call Alert Page . . . . . . . . . . . 24Radio Check . . . . . . . . . . . . . . . . . . . . . . . 25Sending an Emergency Alert E . . . . . . . 25 Editing a Radio Call List K . . . . . . . . . . . 26 Repeater or Talkaround J Mode . . . . . 27 Setting Tight or Normal Squelch. . . . . . . . 27Setting the Power Level B . . . . . . . . . . . 28 Name and Call Tone Tagging. . . . . . . . . . 29 Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Starting or Stopping Scan G . . . . . . . . . 31 Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . 31 #WarisN/APrefUser.book Page 1 Tuesday, November 3, 1998 2:27 PM Contents 2 English CONTENTS Deleting a Nuisance Channel . . . . . . . . . . 32 Restoring a Channel Back to the Scan List . . . . . . . . . . . . . . . . . . . . . . . 32 Editing a Scan List . . . . . . . . . . . . . . . . . . 32 To Add or Delete Channels in a Scan List . . . . . . . . . . . . . . . . . . . . . . . 33Prioritizing a Channel in a Scan List . . 33Setting Priority Channels . . . . . . . . . . . 34 Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Making a Phone Call D . . . . . . . . . . . . . . 35 Modifying The Phone List K . . . . . . . . . . 36 To Add an Entry (for full-keypad radios only) . . . . . . . . . . . . . . . . . . . . . 36To Delete an Entry. . . . . . . . . . . . . . . . 37To Edit an Entry (for full-keypad radios only) . . . . . . . . . . . . . . . . . . . . . 38 Audio/Tone Settings. . . . . . . . . . . . . . . . 39Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Setting the Time . . . . . . . . . . . . . . . . . . . . 43 Safety and Warranty . . . . . . . . . . . . . . . . 45 Safe And Efficient Operation Of Motorola Two-Way Radios . . . . . . . . . . . . . . . . . . . 45 Exposure To Radio Frequency Energy . . 45 Portable Radio Operation and EME Exposure . . . . . . . . . . . . . . . . . . 46 Electromagnetic Interference/Compatibility. . 46Operational Warnings . . . . . . . . . . . . . . . 47 Vehicles With an Air Bag . . . . . . . . . . 47Potentially Explosive Atmospheres . . . 47Batteries . . . . . . . . . . . . . . . . . . . . . . . 47Blasting Caps and Blasting Areas. . . . 47 Operational Cautions . . . . . . . . . . . . . . . . 48 Antennas . . . . . . . . . . . . . . . . . . . . . . . 48Batteries . . . . . . . . . . . . . . . . . . . . . . . 48 Battery Information. . . . . . . . . . . . . . . . . . 48 Charging Batteries . . . . . . . . . . . . . . . 48Recycling of Nickel-Cadmium Batteries . 49 Intrinsically Safe Radio Information . . . . . 49 FMRC Approved Equipment . . . . . . . . 49Repair of FMRC Approved Products . 51 Limited warranty. . . . . . . . . . . . . . . . . . . . 53 Accessories . . . . . . . . . . . . . . . . . . . . . . 57 Carry Cases . . . . . . . . . . . . . . . . . . . . . . . 57Chargers . . . . . . . . . . . . . . . . . . . . . . . . . 57Headsets . . . . . . . . . . . . . . . . . . . . . . . . . 58Remote Speaker Microphones. . . . . . . . . 58Adapters. . . . . . . . . . . . . . . . . . . . . . . . . . 58Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 58Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 58 #WarisN/APrefUser.book Page 2 Tuesday, November 3, 1998 2:27 PM 3 Contents English CONTENTS COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall n…

Text truncated - open the document above for the full version.

EXHIBIT 13A FCC ID: AZ489FT5836 Date: 28 th February 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Application for Certification of Transmitter with FCC ID: AZ489FT5836 Dear Sir / Madam, Motorola Inc., 8000 West Sunrise Blvd., Fort Lauderdale, FL, herein submits application for Certification of the equipment identified by FCC ID number AZ489FT5836. This transmitter is primarily intended for use in a portable radio application with capabilities for conventional communications with a conducted transmit power which is adjustable from 1-2.5 Watts Nominal for the frequency range 806–824 MHz and from 1-2 Watts Nominal for the frequency range 851–869 MHz. The maximum power for 806–824 MHz is 2.95 Watts and for 851–869 MHz is 2.4 Watts. The subject transmitter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

EXHIBIT 13B FCC ID: AZ489FT5836 REQUEST FOR CONFIDENTIALITY Date: 28 th February 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Application for Certification of Transmitter with FCC ID: AZ489FT5836 Dear Sir / Madam, Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Motorola is also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 8 (Users Manual) and Exhibit 9, (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” and Exhibit 3, 8 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

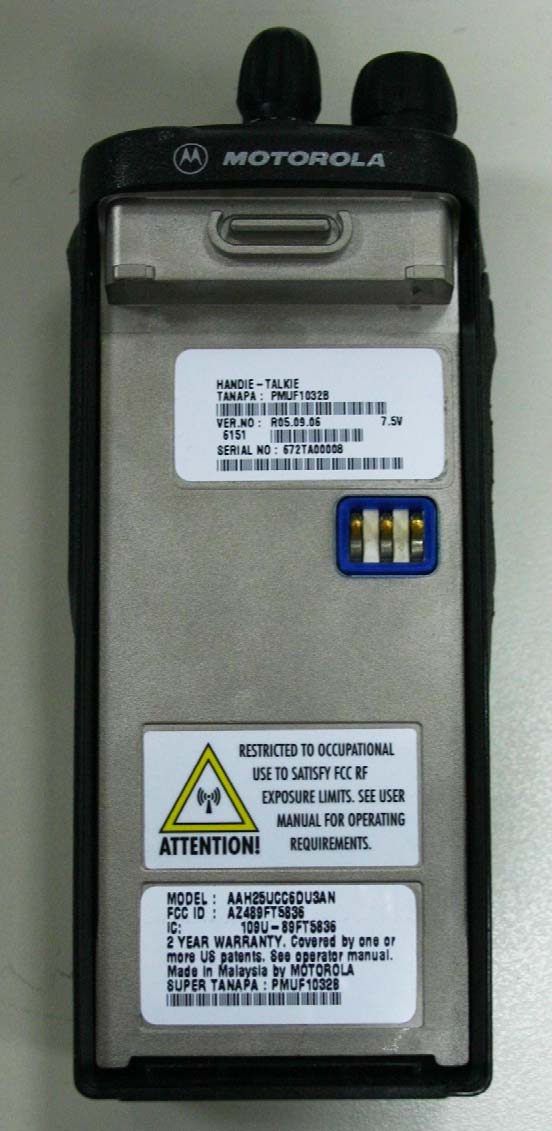

Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 Figure 3-1: Front view of complete radio (Preferred Keypad). Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 2 OF 8 Figure 3-2: Front view of complete radio (Popular Keypad). Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 3 OF 8 Figure 3-3: Back view of complete radio. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 4 OF 8 Figure 3-4: Right side view of complete radio. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 5 OF 8 Figure 3-5: Left side view of complete radio. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 6 OF 8 Figure 3-6: Rear view of complete radio showing FCC Label & RF Safety Label location FCC Label Location Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 7 OF 8 Figure 3-7: Close-up of RF Safety Label Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 3 SHEET 8 OF 8 Whip Stubby Figure 3-8: Type of Antenna

Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 1 SHEET 1 OF 2 EXHIBIT 1 IDENTIFICATION LABEL - Pursuant to 47 CFR 2.925(a), 2.1033(c), 2.0165 EXHIBIT 1A - LABEL LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the bottom of the unit near the front. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. EXHIBIT 1B - LABEL TYPE The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/inch. Figure 1-1: FCC Label Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase. EXHIBIT 1C - GENERAL INFORMATION 1. Application References: TIA/EIA-603B Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057 and Part 90, Section 90.210. 2. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commission’s rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47 and Part 90. Maximum transmitter power shall not be adjustable by the user. 3. Applicable Reference • Reference Certification FCC ID: AZ489FT5836 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. • FCC Federal Regulations Part 47 Sec. 2.1033-2.1057 • FCC Federal Regulations Part 90 Sec.90.210 Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 1 SHEET 2 OF 2 FCC Label Location : FCC Label Location FCC Label Location

Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 9 SHEET 1 OF 5 EXHIBIT 9 INTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 Figure 9-1: Top Side of RF PCB with shields. Figure 9-2: Bottom Side of RF PCB with shields. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 9 SHEET 2 OF 5 Figure 9-3: Top Side of RF PCB without shields Figure 9-4: Bottom Side of RF PCB without shields. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 9 SHEET 3 OF 5 Figure 9-3: Top Side of Controller PCB. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 9 SHEET 4 OF 5 Figure 9-4: Bottom Side of Controller PCB. Applicant: Motorola Inc. FCC ID: AZ489FT5836 EXHIBIT 9 SHEET 5 OF 5 Figure 9-5: Top View of chassis. Figure 9-6: Bottom View of chassis.

FCC ID: AZ489FT5836 SR3765 N&E EME Form-SAR-Rpt-Rev. 5.00 Page 1 of 43 Certificate Number: 1449-01 FCC ID: AZ489FT5836 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Networks & Enterprise EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 06/09/06 Report Revision: Rev O Report ID: FCC rpt_ AAH25UCH6DU6AN_060609_SR3765 Responsible Engineer: Stephen C. Whalen (Sr. Staff Eng.) Date/s Tested: 05/25/2006 – 06/02/2006 Manufacturer/Location: Motorola – Penang Sector/Group/Div.: NE/GTDG Date submitted for test: 05/02/06 DUT Description: MTX8250 LS 800 MHZ 2.5W 16 CH Test TX mode(s): CW Max. Power output: 2.95W (806-825MHz) & 2.40W (851-870MHz) Nominal Power: 2.5W (806-825MHz) & 2.0W (851-870MHz) Tx Frequency Bands: 806-825MHz & 851-870 MHz Signaling type: FM Model(s) Tested: AAH25UCH6DU6AN Model(s) Certified: AAH25UCH6DU6AN Serial Number(s): 672TA00010 Classification: Occupational/Controlled Rule Part(s): 90 Approved Accessories: Antenna(s): PMAF4000A, 806-870MHz, Whip, 1/2 wave, -3dBd, PMAF4001A, 806-941MHz, Stubby, 1/4 wave, -0.15dBd Battery(ies): HNN9008A, NiMH High Capacity Battery, HNN9009A, NiMH Ultra High Capacity Battery, HNN9010A, NiMH Ultra High Capacity Battery Factory Mutual, HNN9011A, NiCd High Capacity Battery Factory Mutual, HNN9012A, NiCd High Capacity Battery, HNN9013D, Li Ion High Capacity Battery, PMNN4045BR, 1400MAH NIMH BATTERY (MAGONE) Body worn accessory(ies): HLN9952A, Belt Clip Carry Holder, HLN9652A, Plain, Belt Loop, Thin Battery, HLN9665A, Plain, Belt Loop, Std. Battery, HLN9670A, Plain, Swivel, Thin Battery, HLN9676A, Plain, Swivel, Std. Battery, HLN9677A, DTMF, Belt Loop, Thin Battery, HLN9689A, DTMF, Belt Loop, Std. Battery, HLN9690A, DTMF, Swivel, Thin Battery, HLN9694A, DTMF, Swivel, Std. Battery, HLN9701B, Plain, Belt Loop, Thin Battery, NTN8039B, Belt Swivel 2.5inch, HLN9714A, Spring Belt Clip, for 2.5inch belt width, HLN9844A, Spring Belt Clip, for 1.5inch belt width, HLN9945A, Limited Keypad, Hard Leather, W/Belt Loop, Thin Battery, HLN9946A, Limited Keypad, Hard Leather, W/Belt Loop, Std. Battery, HLN9955A, Limited Keypad, Hard Leather, W/Swivel, Thin Battery, HLN9998A, Limited Keypad, Hard Leather, W/Swivel, Std. Battery, NTN5243A, Carry Strap, RLN4815A, Fanny Pack Carry Accessory, Universal Radio Pack, PMLN4280A, Carry Case, Full Thin Leather Audio/Data cable accessory(ies): See section 3.0 for list of approved audio acc Max. Calc. 1-g Avg. = 6.40W/kg; 10-g Avg. = 4.64W/kg (Body) Max. Calc. 1-g Avg. = 3.18W/kg; 10-g Avg. = 2.33W/kg (Face) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Ken Enger N&E EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 06/09/06 Certification Date: 06/09/06 Certification No.: FCC ID: AZ489FT5836 SR3765 N&E EME Form-SAR-Rpt-Rev. 5.00 Page 2 of 43 Part 1 of 2 1.0 Introduction and Overview...................................................................................... 3 2.0 Referenced Standards and Guidelines ..................................................................... 3 2.1 SAR Limits ................................................................................................... 4 3.0 Description of Device Under Test (DUT) ............................................................... 4 4.0 Description of Test System ..................................................................................... 7 4.1 Description of Robotics/Probes/Readout Electronics ................................... 7 4.2 Description of Phantom(s) ............................................................................ 7 4.2.1 Flat Phantom................................................................................... 7 4.2.2 SAM Phantom ................................................................................ 8 4.3 Description of Equivalent Tissues ................................................................ 8 5.0 Additional Test Equipment...................................................................................... 9 6.0 SAR Measurement System Verification.................................................................. 9 6.1 Equivalent Tissue Test results ...................................................................... 9 6.2 System Check Test results .......................................................................... 10 7.0 DUT Test Strategy and Methodology ................................................................... 10 7.1 DUT Configuration(s) ................................................................................ 11 7.2 Device Positioning Procedures ................................................................... 12 7.2.1 Body ............................................................................................. 12 7.2.2 Head ............................................................................................. 12 7.2.3 Face .............................................................................................. 12 8.0 Environmental Test Conditions ............................................................................. 12 9.0 Test Results Summary ........................................................................................... 13 9.1 Highest SAR results calculation methodology ........................................... 21 10.0 Conclusion.............................................................…
