Motorola iDEN Digital Multi-service Data-capable Phone i 850 Phone User’s Guide A PPROVAL D RAFT @NNTN6135A@NNTN6135A i ContentsGetting Started........................................... 1 Locating Your SIM Card ....................................3Battery ...............................................................3Activating Service ..............................................6Powering On and Off.........................................6Enabling Over-the-Air Security..........................7Phone Programming .........................................8Finding Your Phone Number.............................8Phone Basics ....................................................8SIM Card Security ...........................................13Antenna ...........................................................18Accessories .....................................................18For More Information .......................................18 Making Calls ............................................. 19 Phone Calls .....................................................19Private Calls ....................................................19Receiving Calls................................................20Choosing a Number to Call .............................21Missed Phone Calls.........................................22 Using Speakerphone.......................................22Using Mute ......................................................23Making Emergency Phone Calls .....................23 MOTOtalk TM ..............................................24 Channels and Codes.......................................25Private MOTOtalk Calls...................................27Emergency Calls Using MOTOtalk .................28Setup Options .................................................28 Call Alerts..................................................30 Sending Call Alerts..........................................30Receiving Call Alerts .......................................30Using the Call Alert Queue..............................30 Recent Calls ..............................................32 Calls and Call Alerts ........................................32My Info From Other Phones ............................32Contact Information From Other Phones ........33Viewing the Recent Calls List..........................33Storing Items to Contacts ................................34Deleting Items .................................................35Making Calls From the Recent Calls List ........35 ii Contacts ................................................... 37 Accessing Contacts.........................................38Creating Entries...............................................38Storing Numbers Faster ..................................40Editing Entries .................................................40Viewing Entries................................................41Deleting Entries ...............................................43Checking Capacity ..........................................43Creating Pauses and Waits.............................44International Numbers .....................................44Making Calls From Contacts ...........................45Accessing Contacts with GSM Phones ...........45 Call Forwarding........................................ 47 Forwarding All Calls ........................................47Turning Off Call Forwarding ............................48Forwarding Missed Calls .................................48Viewing Call Forwarding Settings....................49 Advanced Calling Features..................... 50 Call Waiting .....................................................50Switching Between Calls .................................50Putting a Call on Hold......................................51 Calling 2 People ..............................................51Creating Pauses and Waits While Dialing.......52Making International Calls ...............................52One Touch PTT...............................................52Quick PTT .......................................................53Setting Flip Actions .........................................54Call Timers ......................................................54Using Your Phone as a Modem ......................55Making TTY Calls ............................................56 Group Calls and Selective Dynamic Group Calls ...........................................59 Group Calls .....................................................59Selective Dynamic Group (SDG) Calls ...........61 Memo .........................................................66Ring Tones ................................................67 Setting Your Phone to Vibrate.........................67Ring and Vibrate .............................................68Assigning Ring Tones to Contacts ..................68Viewing Ring Tone Assignments ....................68Downloading More Ring Tones .......................69About DRM Ring Tones ..................................69 iii Managing Memory...........................................69Deleting Custom Ring Tones ..........................69 Entering Text............................................ 70 Using Word Mode............................................70Special Function Keys.....................................71 Messages ................................................. 73 Message Notifications .....................................73Message Center ..............................................74 Voice Mail Messages ............................... 75 Receiving a Message ......................................75Accessing Voice Mail from the Message Center ...................................75 Sending Unanswered Calls to Voice Mail .......75 MOSMS Messages ................................... 76 Setting Up........................................................76Receiving a Message ......................................76Reading from the Message Center .................77Creating and Sending Mess…

Text truncated - open the document above for the full version.

81 CameraThe camera in your i 850 phone takes pictures. You can save these pictures in your phone and view them through the media center.You can send the pictures you take in Private calls, assign them to Contacts entries, or set them as your phone’s wallpaper. Accessing the Camera From the main menu, select Camera . -or- From the idle screen, press c . -or- On your keypad, press the number assigned to the Camera shortcut. -or- Access the camera from the media center. See “Accessing the Camera” on page 90. -or- Access the camera during a Private call. See “Starting a Call by Sending a Picture” on page 96. -or- If you set the camera as a power up application under Settings, then press p to power up your phone. Taking Pictures1 Access the camera. 2 If you want to adjust the zoom, picture quality, picture size, or a timer, set these options. See “Setting Picture Options”. 3 Aim the camera lens on the flip. Use the internal display as the viewfinder. 4 When the image you want to capture is in view, press c or press O or press A under Capture . 5 To save the picture, press c or press O or press A under Store . -or- To discard the picture without saving it, press A under Discard . -or- To choose another action, see “More Actions for Captured Pictures” on page 83. Setting Picture OptionsWhen you take a picture, you can set the zoom, picture quality, and picture size, and set a timer to delay capturing the picture.To set any of these options:1 Press m . 2 Select the option you want. 3 Select the value you want for that option.Tip: You can also set zoom by scrolling up and down and set picture size by scrolling left and right. 82 CameraIf you either discard the picture or save it by either pressing O or selecting Save from the context-sensitive menu, the only picture option that changes is the timer. The timer returns to its default: Off.If you choose any other action, all picture options return to their defaults. ZoomThe Zoom option lets you choose a closer view.The values are:• 1X — no change • 2X — twice as large • 4X — 4 times as large 1X is the default.Picture QualityThe Picture Quality option lets you choose the sharpness the picture will have after it is captured.The values are:• Normal — no change • Fine — higher resolution When you receive your phone, Normal is the default. You can choose a new default for this option. See “Customizing the Camera” on page 84. Pictures taken with this option set to Fine use more memory space. Picture SizeThe Picture Size option lets you choose the size the picture will have after it is captured.From smallest to largest, the values are: Small, Medium, Wallpaper, Large, and XLarge.If you plan to use the image as wallpaper, it is best to select the Wallpaper size.When you receive your phone, Medium is the default. You can choose a new default for this option. See “Customizing the Camera” on page 84.Larger pictures use more memory space.Self-TimerThe Self-Timer option lets you delay capturing the picture for the number of seconds you choose.If you use this option, the timer starts when you perform step 4 in “Taking Pictures” on page 81. The camera captures the picture after the amount of time you chose elapses.To turn off the timer before the picture is captured, press A under Cancel . The values are: Off, 10 seconds, 15 seconds, 20 seconds. 83 More Actions for Captured Pictures Off is the default. More Actions for Captured PicturesAfter you capture a picture as described in “Taking Pictures” on page 81, you can send it in a Private call, assign it to a Contacts entry, or set it as your phone’s wallpaper.You can also access the media center to view and perform actions on the pictures there.Choosing any of these options automatically saves the captured picture.Sending in Private CallsFor information on sending captured pictures in Private calls, see “Starting a Call by Sending a Picture” on page 96.Assigning to Contacts1 After you have captured a picture, press m . 2 Select Set As Caller ID . 3 To store the number as a new entry, select [New Contact] . -or- To store the number to an existing entry, select the entry. Only entries that include phone numbers are displayed. This icon g appears next to entries that have pictures assigned. 4 If you selected an entry with a picture assigned, press O or press A under Yes to overwrite the assigned picture. -or- Press A under No to return to the list of entries without overwriting the assigned picture. Setting as Wallpaper1 After you have captured a picture, press m . 2 Select Set As Wallpaper . Note: If you later set your wallpaper to Auto Cycle , the picture is included and will appear on the idle screen. See “Wallpaper” on page 128. Accessing the Media CenterYou can access the media center from the camera at any time, except when you are or using the Camera Setup menu or viewing the memory screen.1 Press m . 2 Select Media Center . 84 CameraCustomizing the CameraThe Camera Setup menu lets you customize the camera:•Ask for Name — If you set this option to On, you are prompted to enter a name for each picture before you save it. Otherwise, pictures are automatically saved with the date and a number as their names. • Shutter Sound — sets the sound the camera makes as it captures a picture.Note: The volume of the shutter sound is controlled by your phone’s speaker volume. To set your phone’s speaker volume, see “Setting the Volume” on page 128. •Default Size — sets the default value for the Picture Size option. • Default Quality — sets the default value for the Picture Quality option. To access the Camera Setup menu:1 Access the camera. 2 Press m . 3 Select Camera Setup . Tip: This option is available from many context-sensitive menus when you are using the camera. Managing MemoryWhile you are taking pictures, the percentage of free memory appears on the screen.To view your used memory, free memory, and memory capacity:1 Access the camera. 2 Press m . 3 Select Memory Usage . Tip: This option is available from many contex…

Text truncated - open the document above for the full version.

Applicant: Motorola Inc FCC ID: AZ489 FT5844 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 1 14 th April 2005 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: AZ489FT5844. Gentlemen; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its application for Certification of the transmitter with FCC ID: AZ489FT5844. This variable output power (0.088 to 700 milliwatt) transmitter is part of a handheld transceiver used in a SMR and EA SMR trunking system operating in the United States 806-821/851-866MHz and 896- 901/935-940 MHz frequency band. It also possesses a transmitter that operates in the ISM band (902 – 927 MHz). The two transmitters are configured so that only one transmitter can operate independent of each other and only one mode can operate at a time. The operation mode is selected via the user menu. Certification is sought for this transceiver, and performance data is provided for that purpose. The first transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical And Operational Requirements For Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5794). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. The second transceiver is frequency hopping spread spectrum operating in the unlicensed ISM (902-928 MHz) band. It uses an FSK (Frequency Shift Key) modulation, 50 kHz spacing up to 1 watt. The protocol is defined to have 10 interleaved hopsets of 50 frequencies each with 500 kHz separation between set members. All 10 hopsets span the entire ISM band. In the ISM transceiver mode, conversations are held only via the speakerphone; the earpiece is disabled. In addition, the ISM transceiver mode does not function while plugged into a wall charger unit. Applicant: Motorola Inc FCC ID: AZ489 FT5844 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 2 To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 821 MHz base stations located within the United States. Consequently, upon receipt of Authorization, only those units of this equipment type authorized for marketing in countries outside the United States will also bear a label with the specified FCC identifier. In accordance with 47 CFR 2.1093(c) this transmitter may be used in “covered” SMR service so it has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The subject transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. This transceiver can function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable (ref: Exhibit 12.1). For this reason a Declaration of Conformity has been prepared and is provided on Page 5 of the user Manual in the Exhibit 8. Enclosed is a complete Certification Application comprised of 14 Exhibits. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT5844 ______________________________________________________________________________ iDEN, Motorola Inc , 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED Date: 14 th April 2005 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT5844. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9, (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

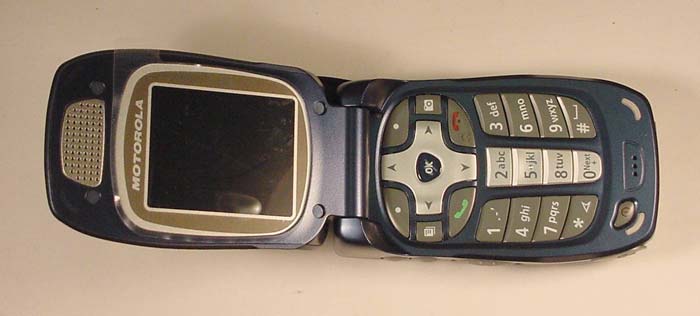

FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 1 Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested The radio product shapes, colors and housing/bezel vary. Figure 3-1. Front of i850 radio, flip closed Figure 3-2. Back of i850 radio, flip closed. Figure 3-3. Front of i850 phone, flip open. Figure 3-4. Back of phone, flip closed. FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 2 Figure 3-5. Back of phone, flip open and antenna extended. Figure 3-6. Side of phone, flip open and antenna extended. Figure 3-7. Button side of phone. Figure 3-8. Antenna side of phone. Figure 3-9. Connector end of phone. Figure 3-10. Top of phone. FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 3 Figure 3-11. Battery Compartment

FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 1 Exhibit 1. Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 1.1 Location Back side of the radio product unit chassis (Photograph 1.1). 1.2 Type The label is a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Enlarged view of label showing FCC ID and manufacturer type number: Photograph 1.1: Location of label on back of unit’s housing (battery cover removed). Photograph 1.2: Zoom view of labels containing FCC ID and FCC Logo FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 2 Photograph 1.2: Zoom view of labels containing Industry Canada ID FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 3 Exhibit 1A. General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Application References -- Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Open Area Test Site “OATS” (FCC Registration: 95517 and 98377 / Industry of Canada: 2056-A) 2. Timco Engineering Lab, 849 NW State Road. 45Newberry, Florida 32669 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with 47CFR2, Subpart J, Part 15 Subparts A, B, and C, and Part 90, Subparts I and S of the Commission’s rules. 1A.4 Similar, currently Certified Transceiver FCC ID: AZ489FT5834, AZ489FT5830 1A.5 Additional Considerations This transceiver possesses two distinct modes of operation. The operation mode is selected via the user menu. The two transceivers can only operate independent of each other and only one mode can operate at a time. The first transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical And Operational Requirements For Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5794). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. The second transceiver is frequency hopping spread spectrum operating in the unlicensed ISM (902-928 MHz) band. It uses an 8FSK (Frequency Shift Key) modulation, 50KHz spacing up to 1 watt. The protocol is defined to have 10 interleaved hopsets of 50 frequencies each with 500 kHz separation between set members. All 10 hopsets span the entire ISM band. In the ISM transceiver mode, conversations are held only via the speakerphone; the earpiece is disabled. In addition, the ISM transceiver mode does not function while plugged into a wall charger unit. This radio product also integrates a receiver that will receive and process signals from Global Positioning System satellites. The radio product can also function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable accessory (Exhibit 12). A Declaration of Conformity in accordance with 47CFR 2.1077(a) is provided in Exhibit 8 as evidence of compliance with Part 15 requirements for these additional Class B digital device functionalities per 47CFR15.101(a). Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47CFR15.1.

FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested Photograph 9-1: Back side view of radio product PCB. Photograph 9-2: Back side view of radio PCB without shields.

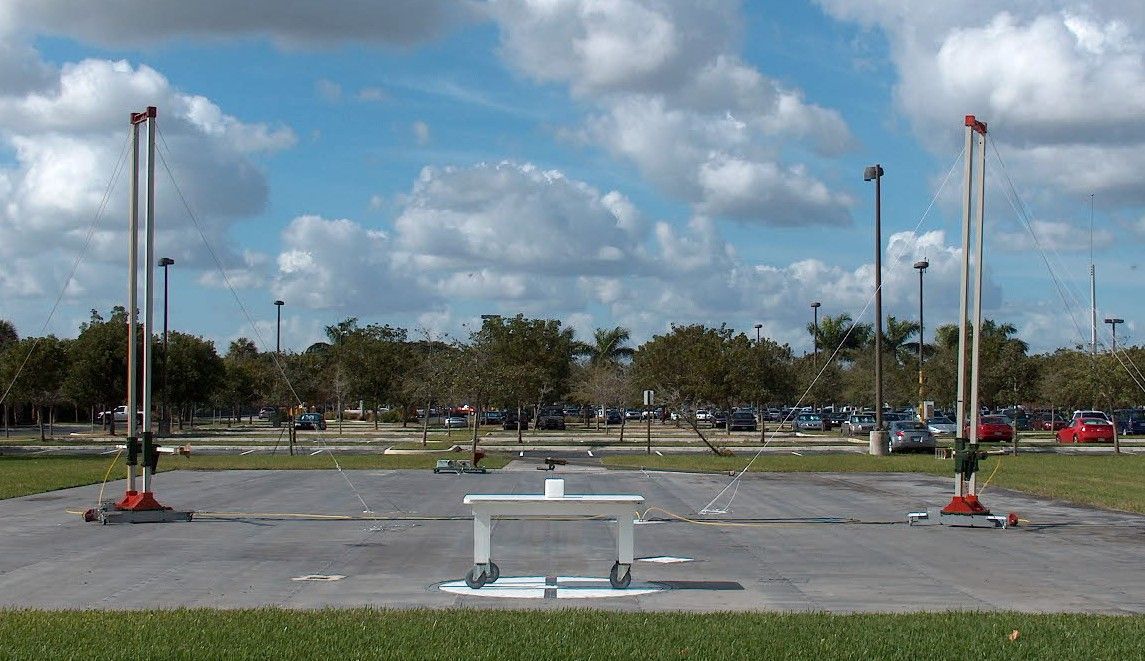

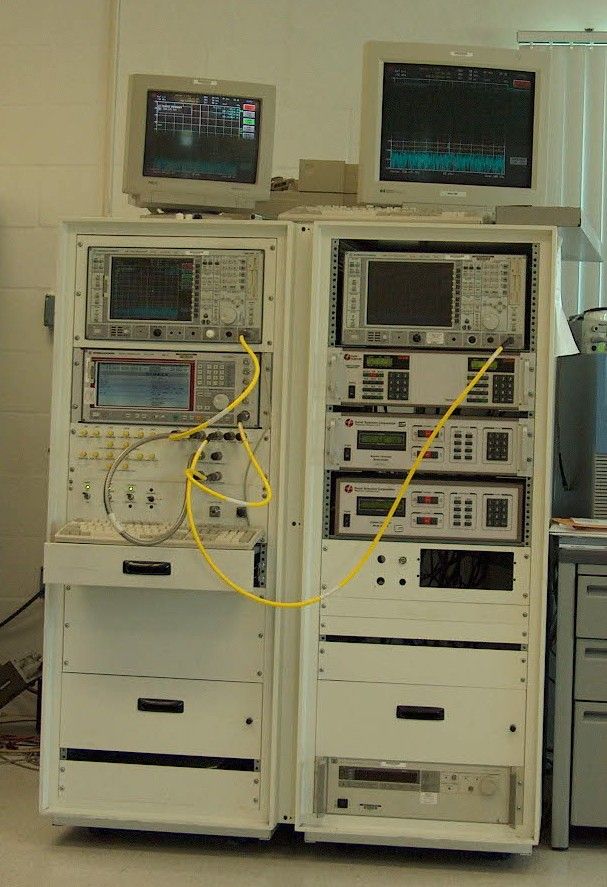

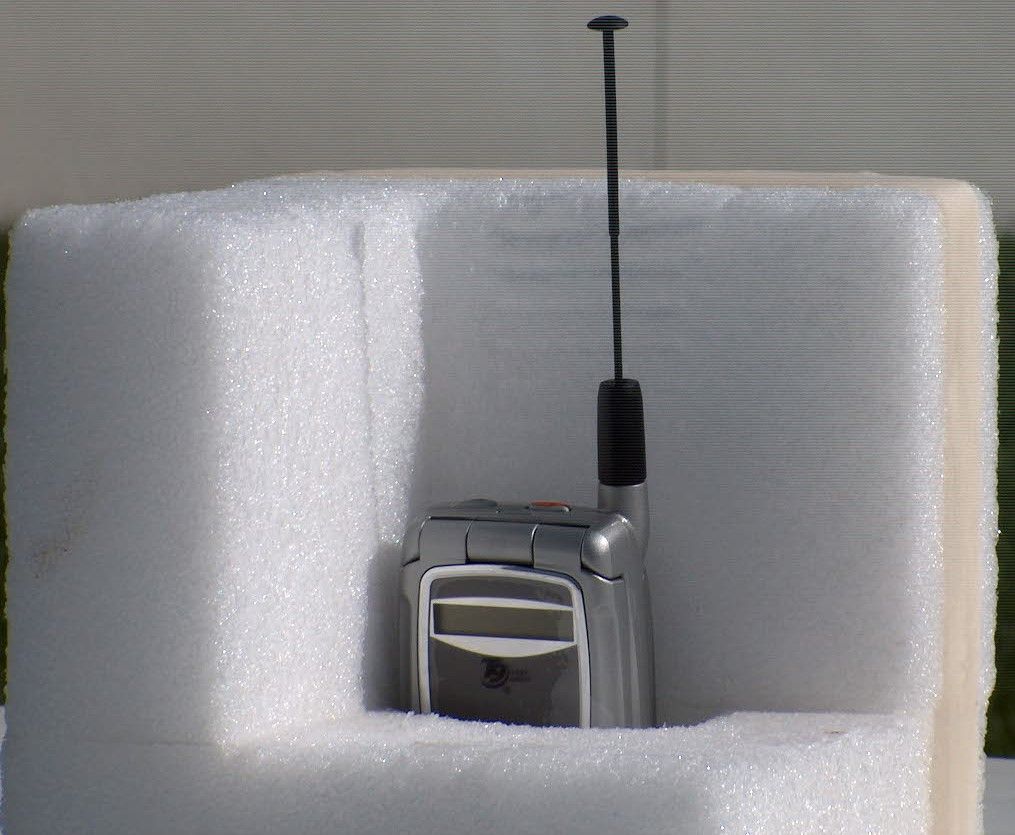

FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6a- 54 6a.4 Power Line Conducted Spurious Voltage -- Pursuant 47 CFR 15.207 Conducted voltage limits: -Per 47 CFR 15.207 This radio product can transmit in 800-900 MHz Band while resting in a battery charger that is connected to the AC power line. Each figure contains two measurement traces in addition to the two applicable limit lines (black traces), the higher being applicable to measurements utilizing a quasi-peak detector and the lower being applicable to measurements utilizing an average detector. The upper data trace (light blue) portrays the amplitude of the voltage measured during sweeping with a peak detector while the lower trace (light green) represents the amplitude of the voltage measured using an average detector. These detectors facilitated the measurement process. Measurements with a quasi-peak detector lie between these bounds. FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6a- 55 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 0.15 5 10 15 20 25 30 Level in dBμ V Frequency in MHz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Figure 6a-90. Mains Voltage with Peak and AverageDetector FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6a- 56 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 150k 300k400500 8001M2M3M4M5M6 810M20M30M Level in dBμ V Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Figure 6a-91: Phase Line Voltage with a Peak and Average Detector (Radio in transmit mode at 806.0625 MHz) N (Green) L1 (Blue) FCC Filing Package for Motorola i850 Transceiver FCC ID: AZ489FT5844 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6a- 57 Frequency All units are dBμV <= 500kHz QP Value QP Limit QP Margin Avg Value Avg Limit Avg Margin Ph 154000 46.20 65.89 19.69 24.70 55.89 31.19 L1 178000 46.60 65.20 18.60 12.70 55.20 42.50 L1 182000 44.60 65.08 20.48 24.50 55.08 30.58 L1 226000 41.80 63.82 22.02 9.90 53.82 43.92 L1 234000 40.60 63.59 22.99 9.20 53.59 44.39 L1 278000 40.10 62.32 22.22 22.40 52.32 29.92 L1 154000 46.40 65.89 19.49 30.40 55.89 25.49 N 178000 45.60 65.20 19.60 22.60 55.20 32.60 N 182000 45.20 65.08 19.88 12.40 55.08 42.68 N 226000 41.00 63.82 22.82 9.70 53.82 44.12 N 234000 40.10 63.59 23.49 9.20 53.59 44.39 N 278000 39.70 62.32 22.62 20.50 52.32 31.82 N Table 6a-15: Line Voltage Data- Quasi-Peak and Average (Radio in transmit mode at 806.0625 MHz)

FCC ID: AZ489FT5844 SR2008 GEMS EME Form-SAR-Rpt-Rev. 4.00 Page 1 of 31 Certificate Number: 1449-01 FCC ID: AZ489FT5844 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 3 Government & Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: March 29, 2005 Report Revision: Rev. O Report ID: FCC rpt_i850_Rev O_050329 SR2008 Responsible Engineer: Kim Uong (EME lead Eng.) Date/s Tested: 3/06/05-3/28/05 Manufacturer/Location: Motorola - Plantation Sector/Group/Div.: iDEN Subscriber Date submitted for test: 2/21/05 DUT Description: i850; TDMA: 236:310 (76.1%), 1:6, 2:6, 81:120, 1:12; 64QAM, 16 QAM & QPSK Modulation; 0.6W Pulse Avg. MOTOtalk (114:120 8FSK; 0.85 W nominal); GPS capable Test TX mode(s): 1:3, 1:6, 114:120, 236:310, 81:120, Max. Power output: Mototalk - 0.891W, iDEN/WiDEN - 0.640W Nominal Power: MOTOtalk - 0.85W, iDEN/WiDEN - 0.60W Tx Frequency Bands: MOTOtalk - 902-928MHz, iDEN/WiDEN – 806-825, 896-902MHz Signaling type: TDMA: iDEN; WiDEN, MOTOtalk - (FHSS 8FSK) Model(s) Tested: H65XAN6RR4AN/NWF1000A Model(s) Certified: H65XAN6RR4AN/NWF1000A Serial Number(s): 364AFA021M Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Approved Accessories: Antenna(s): 8585744F04 (806-825MHz retractable ¼ wave antenna, -2.4dBd; 896-902MHz, -1.1dBd; 902-925MHz, -1.2dBd) Battery(ies): SNN5705C (Hi performance Li Ion); SNN5704C (Slim battery); NNTN5728A (Hi performance battery door); NNTN5727A (Slim battery door) Body worn accessory(ies): NNTN6026A (Holster); NNTN4747A (Belt clip) Audio/Data cable accessory(ies): NSN6066A (Light duty RSM), NNTN5004A (PTT headset over ear), NNTN5005A (PTT headset over head), SYN8390B (Privacy earpiece), SYN8146C (Lightweight headset w/ boom mic), NTN8496A (Lightweight headset w/ mic), NNTN4033A (Privacy Earpiece/mic w/ PTT), NNTN5006A (Silver Earbud), SYN7875C (Hearing Aide Neckloop), NTN8513B (Lightweight headband), NNTN5330A (Ear bud accessory), NNTN4620A (Silver ear bud), NNTN5211A (Falcon Surveillance kit); NKN6559A (USB Cable), NKN6560A (RS232), NNTN5405A (USB cable w/ charging), NNTN5406A (RS-232 data cable w/ charging) Max. Calc. 1-g/10-g Avg. SAR: 1.15/0.84 mW/g (Body) Max. Calc. 1-g/10-g Avg. SAR: 0.43/0.31 mW/g (Face) Max. Calc. 1-g/10-g Avg. SAR: 1.05/0.72 mW/g (Head) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Ken Enger GEMS EME Lab Senior Resource Manager, Laboratory Director, 3/29/05 Approval Date: Certification Date: 3/29/05 Certification No.: L1050365P FCC ID: AZ489FT5844 SR2008 GEMS EME Form-SAR-Rpt-Rev. 4.00 Page 2 of 31 P…
