AZ489FT5848iDEN i580, WiDEN, MOTOtalk, BT

Motorola iDEN Digital Multi-service Data-capable Phone i 580 Phone User’s Guide EME DRAFT FOR FCC SUBMISSION ONLY @NNTNxxxxA IMPORTANT NOTICE: PLEASE READ PRIOR TO USING YOUR PHONEThe SIM card provided in this kit is intended for use with the phone provided in this package. Loss of certain features will result when using a SIM card from one of the following models: i 30 sx , i 35 s , i 50 sx , i 55 sr , i 58 s , i 60 c , i 80 s , i 85 s , i 88 s , i 90 c , i 95 cl series, and the i 2000 series. For more information on SIM card compatibility, go to www.motorola.com/iden/support.Defects or damage to your Motorola phone that result from the use of non-Motorola branded or certified Accessories, including but not limited to replacement housings and or other peripheral accessories, are excluded from warranty coverage. Please refer to the text of Motorola's Limited One Year warranty located in this user’s guide for complete details. i ContentsGetting Started........................................... 1 Locating Your SIM Card ....................................3Battery ...............................................................4Activating Service ..............................................6Powering On and Off.........................................6Phone Programming .........................................8Finding Your Phone Number.............................8Phone Basics ....................................................8Using the Memory Card ..................................13SIM Card Security ...........................................13Antenna ...........................................................18Accessories .....................................................18For More Information .......................................18 Making Calls ............................................. 19 Phone Calls .....................................................19Private Calls ....................................................19Receiving Calls................................................20Choosing a Number to Call .............................21Missed Phone Calls.........................................22 Using Speakerphone.......................................22Using Mute ......................................................23Making Emergency Phone Calls .....................23 MOTOtalk TM .......................................................... 24 Switching to MOTOtalk ...................................24Exiting MOTOtalk ............................................25Channels and Codes.......................................25Private MOTOtalk Calls...................................27Making Emergency Calls while in MOTOtalk TM Mode...........................................................28 Setup Options .................................................28 Call Alerts..................................................30 Sending Call Alerts..........................................30Receiving Call Alerts .......................................30Using the Call Alert Queue..............................30 Recent Calls ..............................................32 Calls and Call Alerts ........................................32My Info From Other Phones ............................32Contact Information From Other Phones ........33Viewing the Recent Calls List..........................33Storing Items to Contacts ................................34 ii Deleting Items .................................................35Making Calls From the Recent Calls List ........35 Contacts ................................................... 37 Accessing Contacts.........................................38Creating Entries...............................................38Storing Numbers Faster ..................................40Editing Entries .................................................41Viewing Entries................................................41Deleting Entries ...............................................43Checking Capacity ..........................................44Creating Pauses and Waits.............................44International Numbers .....................................44Making Calls From Contacts ...........................45Accessing Contacts with GSM Phones ...........45 Call Forwarding........................................ 46 Forwarding All Calls ........................................46Turning Off Call Forwarding ............................46Forwarding Missed Calls .................................47Viewing Call Forwarding Settings....................47 Advanced Calling Features .....................48 Call Waiting .....................................................48Switching Between Calls .................................48Putting a Call on Hold .....................................49Calling 2 People ..............................................49Creating Pauses and Waits While Dialing.......50Making International Calls ...............................50One Touch PTT...............................................50Quick PTT .......................................................51Setting Flip Actions .........................................52Call Timers ......................................................52Using Your Phone as a Modem ......................53Making TTY Calls ............................................54 Group Calls and Selective Dynamic Group Calls .......................................................56 Group Calls .....................................................56Selective Dynamic Group (SDG) Calls ...........58 Memo .........................................................63Ring Tones ................................................64 Setting Your Phone to Vibrate.........................64Ring and Vibrate .............................................65 iii Assigning Ring Tones to Contacts ..................65Viewing Ring Tone Assignments.....................65Downloading More Ring Tones .......................65About DRM Ring Ton…

Text truncated - open the document above for the full version.

88 Camera Tip: You can also set zoom from the viewfinder by scrolling up and down and set picture size by scrolling left and right. ZoomThe Zoom option lets you choose a closer view.The values are:• 1X — no change • 2X — twice as large • 4X — 4 times as large 1X is the default.SpotlightThe Spotlight option turns on or off the camera’s spotlight to provide additional light for close-up videos. Off is the default.Video SizeThe Video Size option lets you choose the size the picture will have after it is recorded.The values are: Min (128 x 96) and Max (176 x 144).Video LengthThe Video Length options let you choose how long you can record video. The values are:• Short (for messages) — limits the video length to 8 seconds. • Maximum — the maximum video length is determined by where you store videos you record. If you store videos you record in phone memory, you can record videos up to 30 seconds long. If you record video onto a memory card, the video length is limited by how much memory is available on the memory card. Changing Storage PreferenceWhile you are using the camera, you can choose whether media items are saved to your phone’s memory or to the memory card.1 Access the camera. 2 Press m . 3 Select Memory Card > Store Media . 4 Select On Phone to set your phone to save media items to the phone’s memory. -or- Select Prefer On Card to set your phone to save media items to the memory card if it is in the phone. If the memory card is not in the phone, even if you choose Prefer On Card , the media items are saved to your phone’s memory. 89 Accessing the Media Center The location that you choose becomes the Store Media option in Settings. Accessing the Media CenterYou can access the media center from the camera at any time, except when you are using the Camera Setup menu or viewing the memory screen.1 Press m . 2 Select Media Center . Customizing the CameraThe Camera Setup menu lets you customize the camera:•Ask for Name — If you set this option to On, you are prompted to enter a name for each picture before you save it. Otherwise, pictures are automatically saved with the date and a number as their names. • Shutter Sound — sets the sound the camera makes as it captures a picture or begins and ends recording a video.Note: This feature may not be offered by your service provider. Note: The volume of the shutter sound is controlled by your phone’s speaker volume.To set your phone’s speaker volume, see “Setting the Volume” on page 153. If the camera is currently ready to take pictures, you can set these picture set-up options:•Default Size — sets the default value for the Picture Size option. • Default Quality — sets the default value for the Picture Quality option. If the camera is currently ready to record video, you can set this video set-up option:• Default Video Size — sets the default value for the Video Size option. To access the Camera Setup menu:1 Access the camera. 2 Press m . 3 Select Camera Setup . Tip: This option is available from many context-sensitive menus when you are using the camera. 90 CameraManaging MemoryWhile you are taking pictures, the percentage of free memory in the default storage location appears on the screen. To view details about memory on either the memory card or your phone, access the Memory Usage screen.To view your used memory, free memory, and memory capacity on your phone and the memory card:1 Access the camera. 2 Press m . 3 Select Memory Usage . Tip: This option is available from many context-sensitive menus when you are using the camera. To free memory on your phone, delete items from the media center, voice records, or Java applications. To free memory on the memory card, delete items from the card’s folders. 91 Media CenterThe media center lets you access pictures, videos, and audio recordings stored in your phone’s memory or on the memory card inserted in your phone.All pictures and videos stored in your phone’s memory can be accessed through the media center.The following audio recordings can be accessed through the media center:• Voice records created when your phone was not in a call • Musical ring tones in the list of ring tones • Audio recordings you downloaded to your phone Because the memory card inserted in your phone may contain files saved to it using a device other than your phone, not all types of pictures, videos, and audio recordings on the memory card may be accessed through your phone’s media center.For information on determining whether the files on the memory card can be accessed through the Media Center, see “Ensuring Files on the Memory Card Are Compatible With Your Phone” on page 77. Pictures in the media center can be sent in Private calls using Send via PTT or via Bluetooth. See “Using Send via PTT” on page 113 and“Sending Contacts, Datebook Events and Pictures” on page 138. Viewing the Media CenterTo access the media center: From the main menu, select Media Center . -or- From the camera, press m . Select Media Center . Scroll to view the items in the media center. Choosing Thumbnail View or List ViewYou can set the media center to show a thumbnail of each picture as you view the list of items or show the list of items without thumbnails.To change views:1 Access the media center. 2 Press m . 3 Select Set View . 4 Select Plain List View or Thumbnail List View . 92 Media CenterFiltering by Media TypeYou can set the media center to show all types of media items, only pictures, only videos, or only audio recordings. If you have the memory card in your phone, the items stored in your phone’s memory are listed separately from the items stored on the memory card.If you do not have the memory card in your phone, you have these filtering options:•All — all items accessible through the media center. •Pictures — all pictures. •Audio — all audio recordings accessible through the media center. •Video — all videos. If you have the memory card in your phone, you have these filtering options:• Phone: All — all items in your phone’s memory tha…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT5848 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 1 2 nd March 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification and HAC Certification of transmitter with FCC ID: AZ489FT5848, iDEN i580. Gentlemen; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its application for Certification of the transmitter with FCC ID: AZ489FT5848. This variable output power (0.24 to 640 milliwatts) transmitter is part of a handheld transceiver used in a SMR and EA SMR trunking system operating in the United States 806-821/851-866MHz and 896-901/935-940 MHz frequency band. It also possesses a transmitter that operates in the ISM band (902 – 928 MHz). The two transmitters are configured so that they can only operate exclusive of each other (i.e. only one mode can operate at a time). The operation mode is selected via the user menu. Certification is also sought for this transceiver, and performance data is provided for that purpose. The first transceiver is of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical and Operational Requirements for Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5794). Transmission is not possible until lock to a base station control channel has been achieved, then transmission is limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter will then assign the transceiver a traffic channel for transmission of digital voice or circuit-switched data from the set of frequencies for which the trunking system is licensed. Attached Exhibit 12.1 provides additional descriptive details. To facilitate global roaming it is kindly requested that a note be provided in the Grant for Equipment Authorization, which states that this ‘receive first’ type of equipment is compliant for transmitter operation over the broader range 806-825 MHz when used with a compatible Authorized Base Station. This will aid equipment authorization in foreign countries, which accept a United States FCC Grant for Equipment Authorization, yet not jeopardize United States public safety or cellular systems licensed to operate in the 821-825 MHz frequency band since no compatible base station may be authorized on those frequencies in the United States. It is also expected that this transceiver type will be marketed outside the United States and brought into the United States for itinerant “roaming” operation on compatible 806 - 821 MHz base stations located within the United States. Consequently, upon receipt of Authorization, only those units of this equipment type authorized for marketing in countries outside the United States will also bear a label with the specified FCC identifier. FCC ID: AZ489FT5848 iDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 www.mot.com/iDEN Page: 13- 2 In accordance with 47 CFR 2.1093(c) this transmitter may be used in “covered” SMR service so it has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The subject transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. This transceiver can function as a Part 15.3(r) computer peripheral device when functioning as an RF modem when connected to a computer via a data cable (ref: Exhibit 12.4). For this reason a Declaration of Conformity has been prepared and is provided on Page 11 of the user Manual in the Exhibit 8. The second transceiver is a frequency hopping spread spectrum type, operating in the unlicensed ISM (902-928 MHz) band. It uses an FSK (Frequency Shift Key) modulation, 50 kHz spacing, up to 1 watt. The protocol is defined to have 10 interleaved hopsets of 50 frequencies each with 500 kHz separation between set members. All 10 hopsets span the entire ISM band. In this transceiver mode, conversations are held only via the speakerphone; the earpiece is disabled. This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. BT Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). It is a class 2 type device, with power rated +4 to –6 dBm (typical 0 dBm). The BT antenna is implemented on the back side, lower corner of the board on the PTT side of the phone. The BT device was tested at TIMCO Engineering Lab at Newberry, FL 32669 and it complies 15.247 (c), 15.205 and 15.209 (b). Also, a sample of the i580 was measured in accordance with industry standard procedures for Hearing Aid Compatibility (HAC). A report of the measurement data is attached as Exhibit 11. The measurement results were compared in the report with the field strength limits in Table 7.4 of the PC63.19-2001 rd 3.6 standard. As a result, Motorola herein declares that the iDEN i580 complies with the near-field strength technical requirements of FCC Rule 47 CFR 20.19. Enclosed is a complete Certification Application. Contact me at (954) 723-5793 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT5848 ______________________________________________________________________________ Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED Date: 2 nd March 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT5848. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos) and Exhibit 9, (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13a

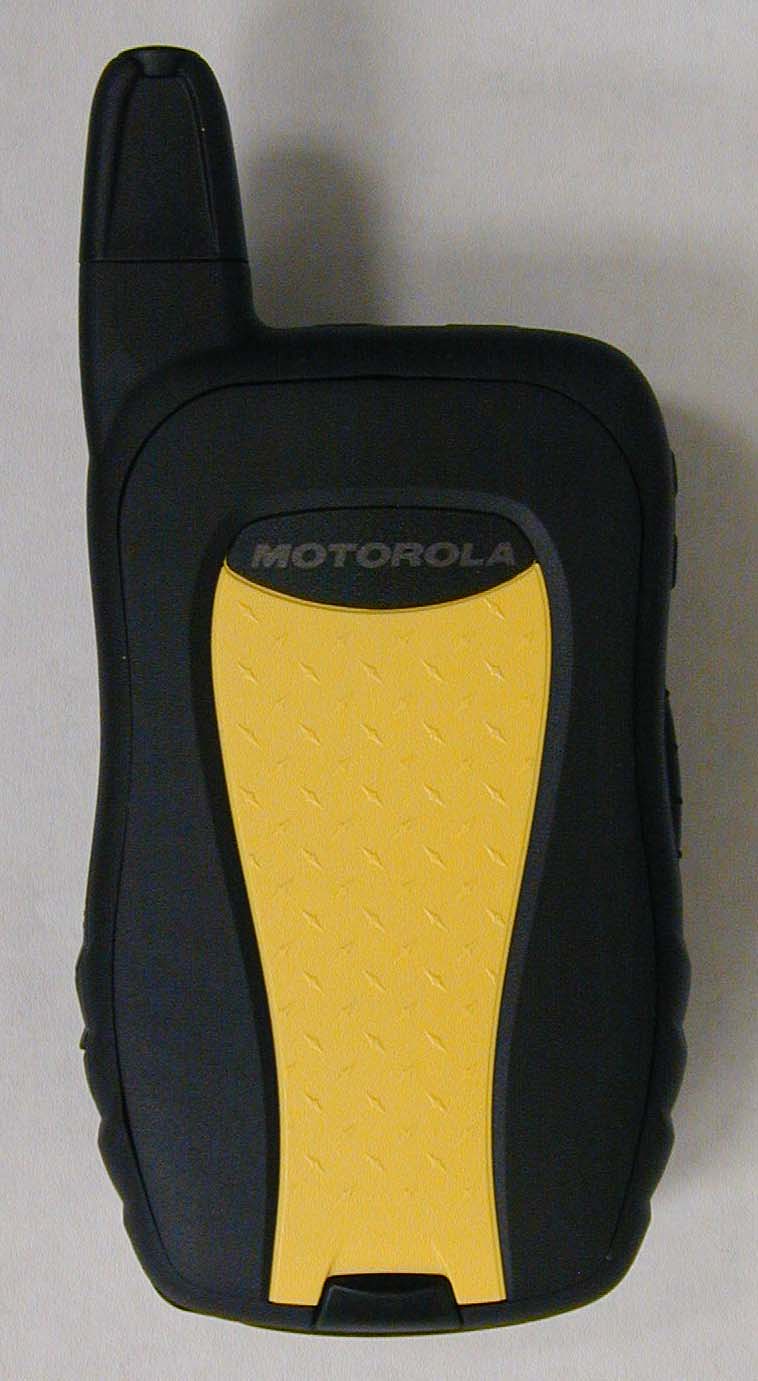

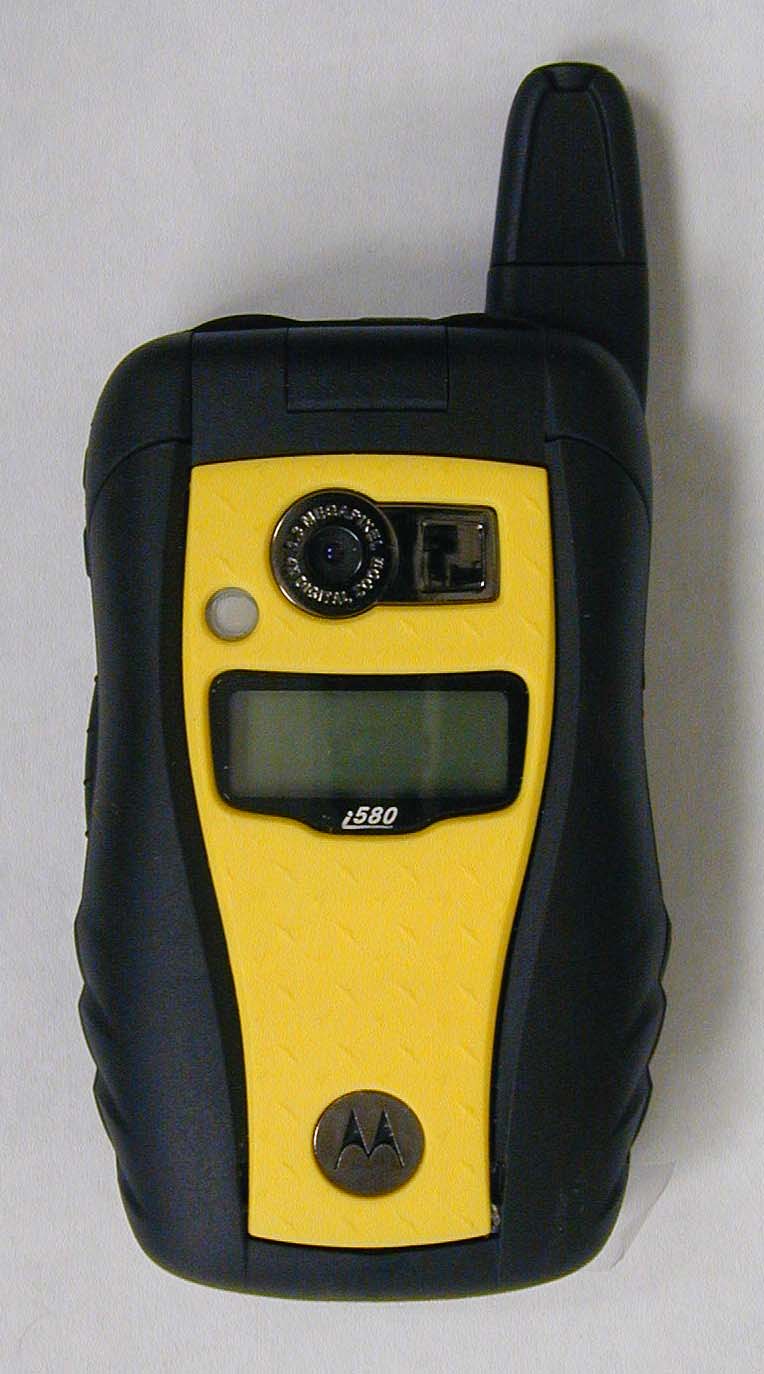

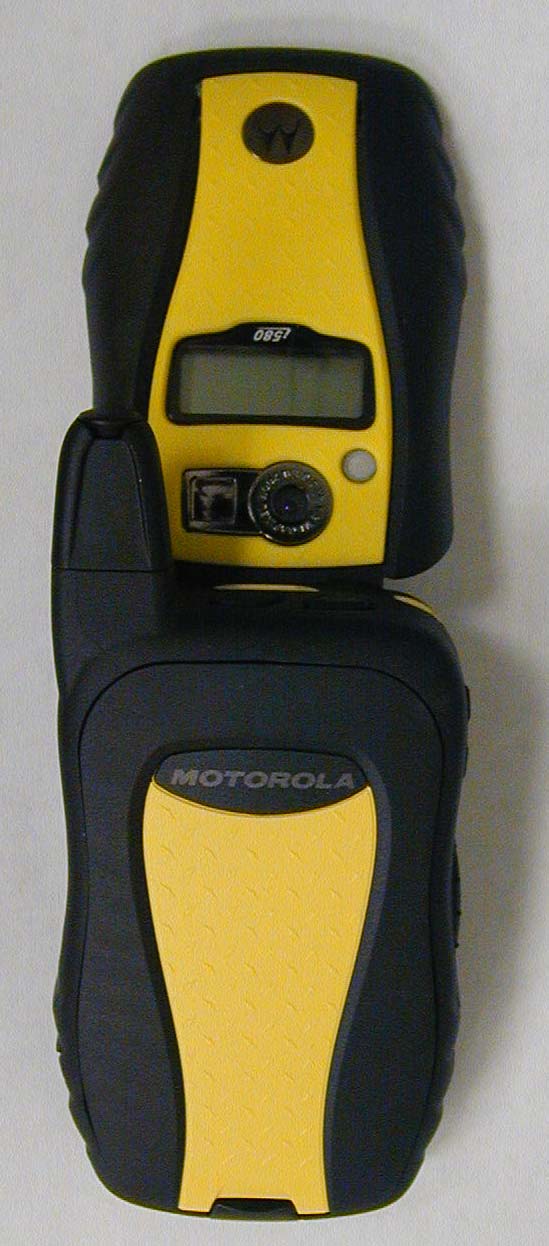

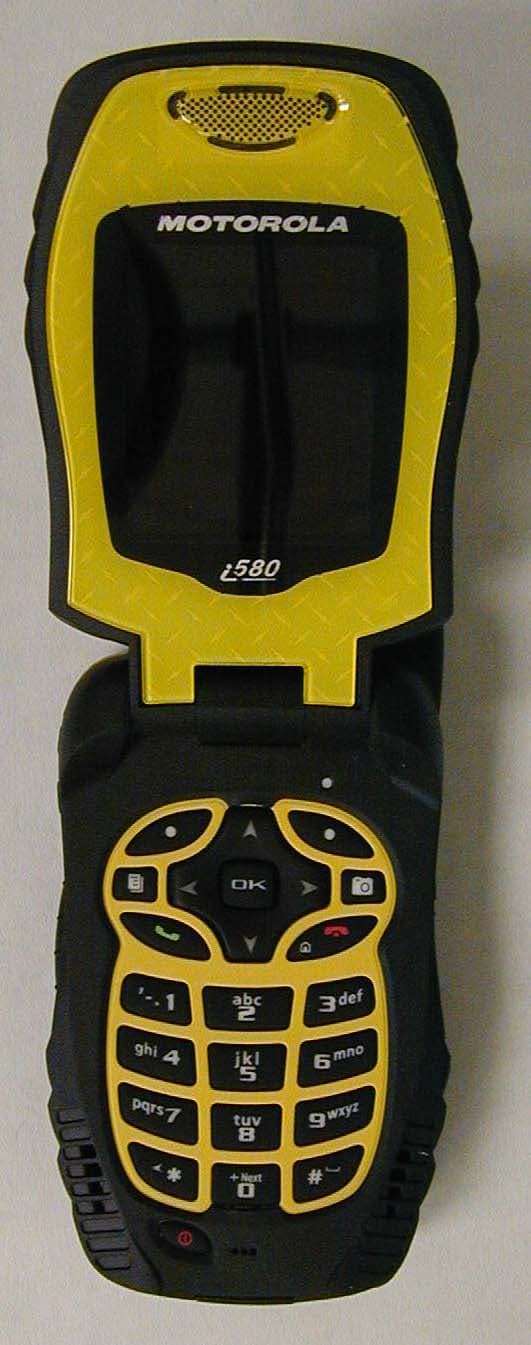

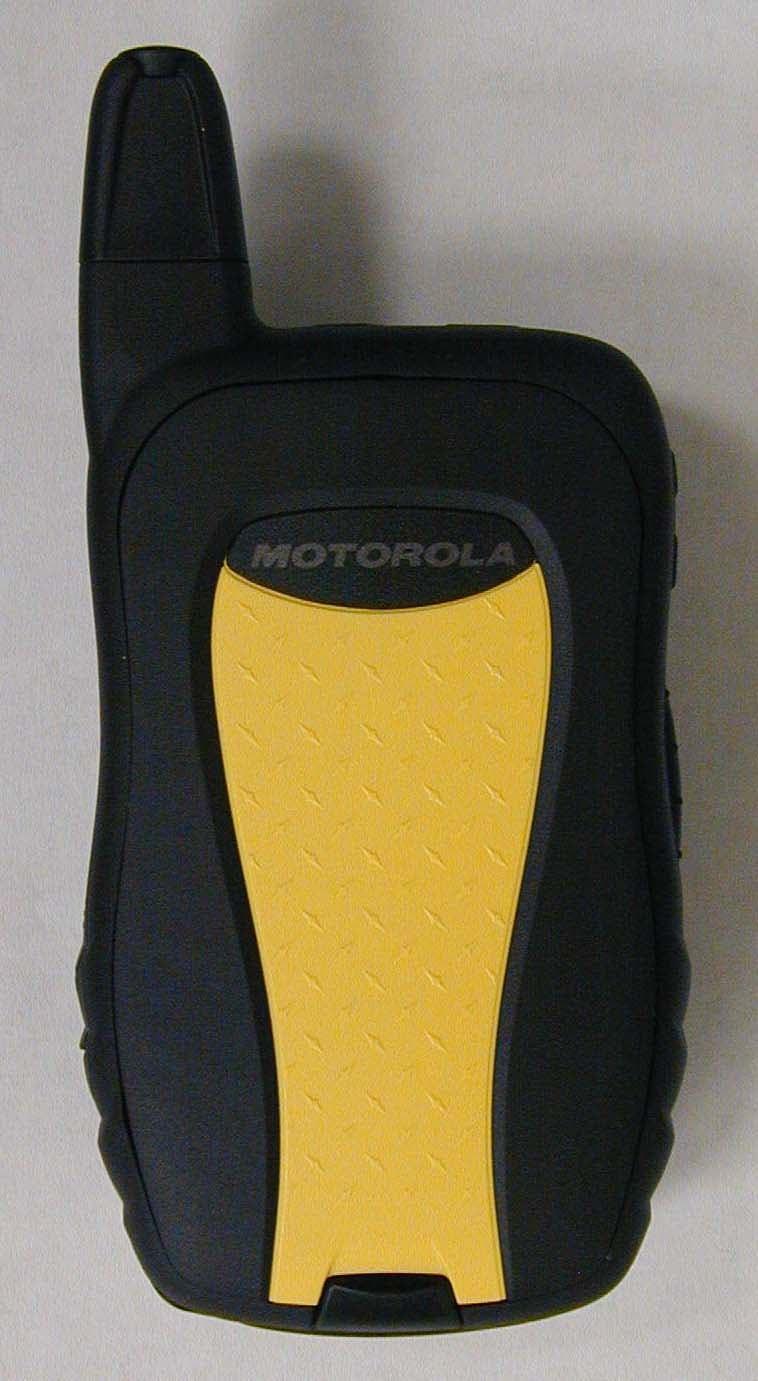

FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 1 Exhibit 3: External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested The radio product shapes, colors and housing/bezel vary. Figure 3-1 Front of i580 radio, flip closed Figure 3-2. Back of i580 radio, flip closed FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 2 Figure 3-3 Front of i580 radio, flip open. Figure 3-4 Back of i580 radio, flip closed. FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 3 Figure 3-5. Back of i580 radio, flip open and antenna extended. Figure 3-6. Side of i580 radio, flip open and Figure 3-7. Side of i580 radio, flip open and Antenna retracted. Antenna retracted. FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 4 Figure 3-8 Connector end of i580 radio. Figure 3-9 Battery Compartment of i580 radio.

FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 1.1 Location Back side of the radio product unit’s chassis (Photograph 1.1). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Enlarged view of label showing FCC ID and manufacturer type number: Photograph 1.1: Zoom view of labels containing FCC ID, FCC Logo and Industry Canada ID FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 2 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Application References -- Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Open Area Test Site “OATS” (FCC Registration: 95517 and 98377 / Industry of Canada: 2056-A) 2. TIMCO Engineering Lab, 849 NW State Road. 45Newberry, Florida 32669 3. FAU EMI Lab, Florida Atlantic University, 3998 N.W. 8th Street (FAU Blvd) Suite #310, Boca Raton, FL 33431. 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with 47CFR2, Subpart J, Part 15 Subparts A, B, and C, and Part 90, Subparts I and S of the Commission’s rules. 1A.4 Similar, currently Certified Transceiver FCC ID: AZ489FT5846

FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested Photograph 9-1: Back side view of radio product PC Board Photograph 9-2: Back side view of radio product flip PC Board FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 2 Photograph 9-3: Back side view of radio PC Board, without shields. Photograph 9-4: Front side view of radio with the keypad.

FCC ID: AZ489FT5848 SR3014 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 1 of 32 Certificate Number: 1449-01 FCC ID: AZ489FT5848 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 3 Government & Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 2/16/06 Report Revision: Rev O Report ID: i580_Rev O_060216_SR3015 Responsible Engineer: Michael Sailsman (Sr. Staff Test Eng.) Date/s Tested: 12/27/05-2/9/06 (19 days) Manufacturer/Location: Motorola – Plantation Sector/Group/Div.: iDEN Subscriber Date submitted for test: 12/02/05 DUT Description: i580; TDMA: 236:310, 1:6, 2:6, 81:120, 1:12; 64QAM, 16 QAM & QPSK Modulation; 0.6W Pulse Avg. MOTOtalk (114:120 8FSK; 0.85 W nominal); GPS & Bluetooth capable Test TX mode(s): 1:3, 1:6, 114:120, 236:310, 81:120 Max. Power output: Mototalk - 0.891W, iDEN/WiDEN - 0.640W Nominal Power: MOTOtalk - 0.85W, iDEN/WiDEN - 0.60W Tx Frequency Bands: MOTOtalk - 902-928MHz, iDEN/WiDEN – 806-825, 896-902MHz Signaling type: TDMA: iDEN; WiDEN, MOTOtalk - (FHSS 8FSK) Model(s) Tested: H83XAH6RR4AN/NWF1019A Model(s) Certified: H83XAH6RR4AN/NWF1019A Serial Number(s): 364AFW00HP, 364AFW00L0, 364AFW00QQ Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Approved Accessories: Antenna(s): 8575868A01 (retractable ¼ wave antenna, Gain in/out: 806-825MHz: -1.16/2.15dBd; 896-902MHz: -1.22/2.15dBd; 902-925MHz: 0.39/2.15dBd) Battery(ies): SNN5765A (High performance Li Ion); NNTN2332A (Max capacity battery cover); SNN5744A (Slim Li Ion); NNTN2331A (High capacity battery cover) Body worn accessory(ies): NNTN6653A (Holster); NNTN4747A (Belt clip) Audio/Data cable accessory(ies): NNTN5211A(Surveillance earpiece); NNTN5004A(PTT headset); NNTN5005A(PTT headset); NNTN5006A(PTT headset); NNTN5330A(PTT headset); NNTN5774A(PTT stereo headset); NNTN5751A(Stereo mixing headset w/ PTT); NNTN5752A(Stereo mixing headset); NNTN6312A(3-wire surveillance earpiece); NSN6066A(RSM); NNTN4033A(Privacy earpiece & mic w/PTT); SYN8390B(Privacy earpiece & mic); NNTN4620A(Silver ear bud); SYN8146C(lightweight over the ear headset w/ boom mic); SYN7875C(hearing aid neckloop); NTN8496A(lightweight headset w/ mic); NTN8513B(lightweight headband); NKN6559A(USB cable); NKN6560A(RS232 cable); NNTN5405A(USB data cable w/ charging); NNTN5406A(RS232 data cable w/ charging); NTN2074A (Qwerty keyboard: NNTN5491A/NNTN5863A/NNTN5496A/NNTN5715A) Max. Calc. 1-g/10-g Avg. SAR: 1.30/0.89 W/kg (Body) Max. Calc. 1-g/10-g Avg. SAR: 0.58/0.41 W/kg (Face) Max. Calc. 1-g/10-g Avg. SAR: 1.02/0.70 W/kg (Head) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Ken Enger GEMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 2/17/06 Certification Date: 2/17/06 Certification No.: L1060201P FCC ID: AZ489FT5848 SR3014 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 2 of 32 Part 1 of 2 1.0 Introduction and Overview...................................................................................... 3 2.0 References, Standards, and Guidelines ................................................................... 3 2.1 SAR Limits ................................................................................................... 3 3.0 Description of Device Under Test (DUT) ............................................................... 4 4.0 Description of Test System ..................................................................................... 5 4.1 Description of Robotics/Probes/Readout Electronics ................................... 5 4.2 Description of Phantom(s) ............................................................................ 5 4.2.1 Flat Phantom................................................................................... 5 4.2.2 SAM Phantom ................................................................................ 5 4.3 Description of Equivalent Tissues ................................................................ 6 5.0 Additional Test Equipment...................................................................................... 6 6.0 SAR Measurement System Verification.................................................................. 6 6.1 Equivalent Tissue Test results ...................................................................... 7 6.2 System Check Test results ............................................................................ 7 7.0 DUT Test Strategy and Methodology ..................................................................... 8 7.1 Test Plan ....................................................................................................... 8 7.2 Device Positioning Procedures ................................................................... 10 7.2.1 Body ............................................................................................. 10 7.2.2 Head ............................................................................................. 10 7.2.3 Face .............................................................................................. 10 8.0 Environmental Test Conditions ............................................................................. 10 9.0 Test Results Summary ........................................................................................... 11 9.1 Highest S.A.R. results calculation methodology ........................................ 21 10.0 Conclusion..........…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i580 Transceiver FCC ID: AZ489FT5848 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 6-1 Exhibit 6a: Part 90 Measured Data -- Pursuant 47 CFR. 2.1041 6a.1 Land Mobile Transmitter Power The transmitter is a variable power type used in a SMR trunking system. Output power (as defined in 47 CFR 90.7) is dynamically controlled as described in Exhibit 12. 6a.1.1 Maximum Output Power Rating -- Pursuant 47 CFR 2.1033(c) (7) and 90.635(d) Maximum output power rating: 640 milliwatts (28.06 dBm), pulse average power. Output power will vary from 0.2385 to 640 milliwatts (pulse average power). Note 1: Nominal output power rating: 600 milliwatts (27.78 dBm) (Pulse average power). Note 2: These ratings are compliant with the FCC maximum of 100 watts (50 dBm) for Mobile stations Note 3: The term pulse average power is used to specify the power that would be measured during the intervals of recurrent TDM transmission pulses by an average responding RF power meter. Power expressed in this manner is independent of the TDM duty cycle, and facilitates RF system coverage analysis. 6a.1.2 Operating output power range -- Pursuant 47 CFR 2.1033(c) (6) Maximum tuned output power will vary over a range of 500 to 640 milliwatts (maximum …
