AZ489FT5849PORTABLE 2-WAY RADIO

ASTRO ® XTS 2500/XTS 2500 I Digital Portable Radio Quick Reference CardProduct Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed wit h your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits. Write your radio’s programmed features on the dotted lines. Select a Zone Using the MenuSelect a ChannelMethod 1: Using the Select KnobAfter selecting the desired zone, turn the 16-position Select Knob to the desired channel.Method 2: Using the MenuSend an Emergency Alarm Send Silent Emergency AlarmAnswer a Phone CallSend a Phone Call Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. 16-Position Select Knob Speaker/Mic Top Button _ _ _ _ _ _ _ 3-Position Rotary Switch _ _ _ _ _ _ Display Home Button Menu Select Buttons Top Side Button _ _ _ _ _ _ _On/Off/Volume Knob Side Button 1 _ _ _ _ _ _ _Side Button 2 _ _ _ _ _ _ _ PTT Button 4-Way Navigation Button App Button (TMS Button) Keypad 1 Press U until 2 Press D , E , or F directly below ZONE . 3 Press U until the zone you desire is shown OR Use the keypad directly to dial the zone number. 4 Press h to confirm, or press PTT to transmit. 1 Press U until 2 Press D , E , or F directly below CHAN . 3 Press U until channel you desire is shown 4 Press h to confirm, or press PTT to transmit. 1 Radio on and press Emergency button. You see red LED; you hear short, medium-pitched tone. 2 Display shows . 3 When acknowledgment is received, you hear four tones;alarm ends;radio exits emergency. ZONECHAN EMERGENCY 1 Radio on and press Emergency button. You see no LED; you hear no tone. 2 Press PTT . 3 Alarm continues until you exit by:• Press and hold Emergency button for one second. OR•Press PTT again. 1 Phone-like ringing, LED blinks GREEN, PHONE CALL and m are displayed. 2 Press Call Response button. 3 Press PTT button to talk; release to listen. 4 Press h to hang up. 1 Press U until 2 Press D , E , or F directly below PHON . 3 Press U or V to scroll to phone number. 4 Press PTT (or Quick Access button, if programmed) to talk, release to listen. PHON Display Status Symbols Menu Entries (Use With Menu Navigation)*Available at a future date. Call Received . Receivin g an individual callView/Program Mode . The radio is in the view or program mode; On Steady = view mode; Blinking = program mode s Received Signal Strength Indication (RSSI) . Received signal strength for the current site (trunking only). The more stripes in the symbol, the stronger the signal. b Battery• Conventional = Blinks when the battery is low. • Smart = The number of bars (0-3) shown indicates the charge remaining in your battery. Note: Smart battery will be available at a future date. r Talkaround . You are talking directly to another radio or through a repeater; On = direct; Off = repeater C Monitor (Carrier Squelch) . This channel is being monitored. T Scan. The radio is scanning a scan list m pp Entry Menu Selection Page BATT *Smart Battery 19 CALL Private Call 58 CHAN Select a Channel 27 CLCK Edit Time and Date 74 DIR Repeater/Direct 64 MUTE Keypad Mute 35 NAME Text Select 47 NUM Number Select 45 PAGE Call Alert Page 60 PHON Phone 53 Entry Menu Selection Page PROG Editing 45 PSWD Password 34 RPGM Reprogram Request 67 SCAN Scan On/Off 49 SITE Site Lock 71 TGRP Talkgroup Call 63 TMS Text Messaging 85 USER User Login 79 VIEW Viewing a List 43 ZONE Select a Zone 26 Menu Navigation U to find Menu Entry D , or E , or F directly below Menu Entry to select h to exit V or U to scroll through sub-list D , or E , or F directly below Menu Entry to select ASTRO ® XTS™ 2500 / XTS™ 2500I Digital Portable Radio Model III User Guide 6816981H01-C MOTOROLA, the Stylized M Logo, ASTRO, and CommPort are registered in the U.S. Patent & Trademark Office. All other product or service names are the property of their respective owners. P25 radios contain technology patented by Digital Voice Systems, Inc. © Motorola, Inc. 2005, 2006. All Rights Reserved. Printed in the U.S.A. Motorola, Inc. 1301 E. Algonquin Rd. Schaumburg, IL 60196-1078 U.S.A. ii Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits. For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/governmentandenterprise Computer Software Copyrights The Motorola products described in this manual may include co pyrig hted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse- engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product…

Text truncated - open the document above for the full version.

English Product Safety and RF Energy Exposure Booklet for Portable Two-Way Radios The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ALSO READ THE OPERATIONAL INSTRUCTIONS FOR SAFE USAGE. FOR RADIOS THAT HAVE BEEN APPROVED AS INTRINSICALLY SAFE, READ THE INSTRUCTIONS AND INFORMATION ON INTRINSIC SAFETY ON PAGE 10 OF THIS BOOKLET. ! C a u t i o n © Motorola, Inc. 2003 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 7/04. 68P81095C98 68P81095C98-C 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission (FCC) Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard, 2003 • ANATEL ANNEX to Resolution No. 303 of July 2, 2002 "Regulation of limitation of exposure to electrical, magnetic and electromagnetic fields in the radio frequency range between 9 KHz and 300 GHz" and "Attachment to resolution # 303 from July 2, 2002" RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. Guidelines: • Do not remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. • Do not use this device if the operational requirements described herein are …

Text truncated - open the document above for the full version.

EXHIBIT 13A SHEET 1 FCC ID: AZ489FT5849 Date: 17 th May 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT5849 Dear Sir / Madam, Motorola Inc., 8000 West Sunrise Blvd., Fort Lauderdale, FL, herein submits application for Certification of the equipment identified by FCC ID number AZ489FT5849. This transmitter is primarily intended for use in a portable radio application with capabilities for conventional communications with a conducted transmit power which is variable from 1--2.5 Watts, Rated Power. The maximum Power is 2.8 Watts. The subject transmitter complies with CFR Title 47, Section 90.203, in that the operator cannot directly program the transmit frequencies using only the normally accessible external controls of the unit. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

EXHIBIT 13B SHEET 1 FCC ID: AZ489FT5849 REQUEST FOR CONFIDENTIALITY Date: 17 th May 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT5849 Dear Sir / Madam, Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Motorola is also requesting that the FCC mark Exhibit 3 (External Photos), Exhibit 8 (Users Manual) and Exhibit 9 (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3, 8 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

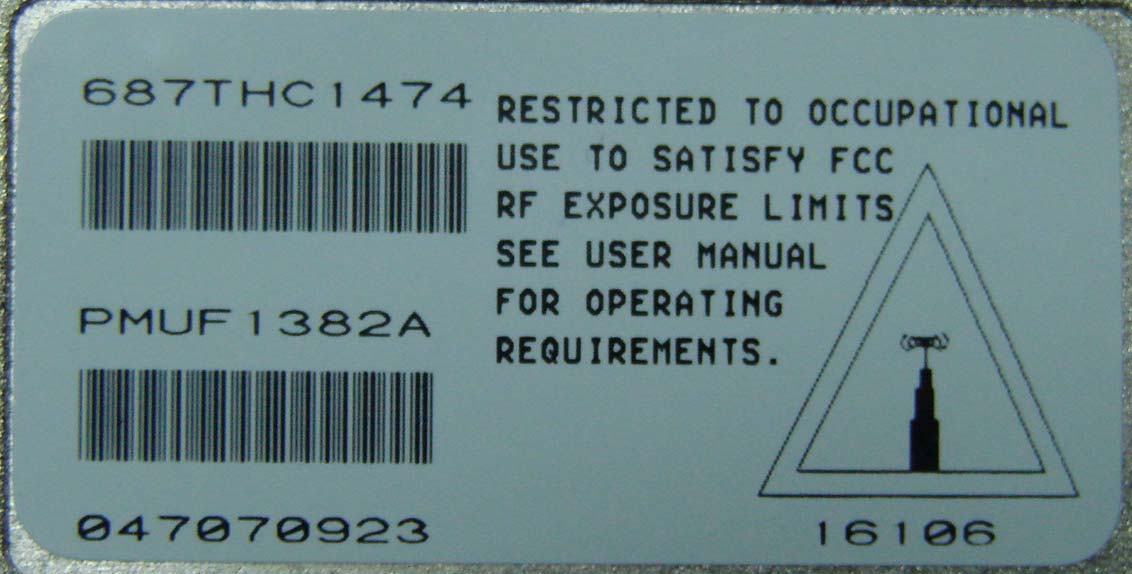

Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 3 SHEET 1 OF 6 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 Figure 3-1: Front view of complete radio (Preferred Keypad). Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 3 SHEET 2 OF 6 Figure 3-2: Front view of complete radio (Popular Keypad). Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 3 SHEET 3 OF 6 Figure 3-3: Back view of complete radio. Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 3 SHEET 4 OF 6 Figure 3-5: Right view of complete radio. Figure 3-6: Types of antenna. NAF5038 OMNI DIRECTIONAL ½ WAVE NAF5040 DIRECTIONA L DIPOLE 896-941MHz NAF5042 896-941MHz ¼ WAVE STUBBY Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 3 SHEET 5 OF 6 Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 3 SHEET 6 OF 6 Figure 3-7: Rear view of complete radio showing FCC Label Figure 3-8: RF Safety Label RF Safety Label Location

Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 1 SHEET 1 OF 1 EXHIBIT 1 IDENTIFICATION LABEL - Pursuant to 47 CFR 2.925(a), 2.1033(c), 2.0165 EXHIBIT 1A - LABEL LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the bottom of the unit near the front. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the user at the time of purchase. EXHIBIT 1B - LABEL TYPE The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/inch. Figure 1-1: FCC Label EXHIBIT 1C - GENERAL INFORMATION 1. Application References: TIA/EIA-603B Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057 and Part 90, Section 90.210. 2. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commission’s rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47 and Part 90. Maximum transmitter power shall not be adjustable by the user. 3. Applicable Reference • Reference Certification FCC ID: AZ489FT5849 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. • FCC Federal Regulations Part 47 Sec. 2.1033-2.1057 • FCC Federal Regulations Part 90 Sec.90.210

Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 9 SHEET 1 OF 2 EXHIBIT 9 INTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 Figure 9-1: Top Side of PCB with shields Figure 9-2: Bottom Side of PCB with shields Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 9 SHEET 2 OF 2 Figure 9-3: Top Side of PCB without shields Figure 9-4: Bottom Side of PCB without shields

FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 1 of 41 TESTING CERT # 2518.01 FCC ID: AZ489FT5849 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Networks & Enterprise EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 4/10/07 Report Revision: O Report ID: XTS2500_900_Rev O_070410 SR4696 Responsible Engineer: Kim Uong (EME Engineer) Date/s Tested: 2/8/07-3/20/07; 4/4/07 Manufacturer/Location: Penang, Malaysia Sector/Group/Div.: CGISS/GTDG Date submitted for test: 1/12/07 DUT Description: 896-940 MHz 1.0-2.5 Watt, 512 Channels / 3 X 6 Keypad / 6 line Display Test TX mode(s): CW Max. Power output: 2.8 Watts Nominal Power: 2.5 Watts Tx Frequency Bands: 896-901MHz; 935-940MHz Signaling type: FM Model(s) Tested: H46WCH9PW7BN Model(s) Certified: H46WCH9PW7BN Serial Number(s): 408TGL0004, 408TGL0007 Classification: Controlled/Occupational Rule Part(s): 90 Approved Accessories: Antenna(s): NAF5038AR (1/2 Wave whip 896-941 MHz -0.85dBi); NAF5042AR (1/4 Wave stubby 806-941 MHz -2.3dBi); NAF5040AR (Dipole 896-941 MHz -0.85dBi) Battery(ies): NTN9815B (NICD, 1525 MAH); NTN9816B (NICAD FM 1525MAH); NTN9858C (IMPRES HIGH CAPACITY 1800 NIMH); NTN9857C( IMPRES NIMH FM 1700MAH); NNTN6263A (JedRay NiMH FM, , IMPRES) Body worn accessory(ies): HLN9844A (2 inch belt clip); HLN6853A (2.25 inch belt clip); NNTN4115A (Bonded case 3 inch loop with swivel); NNTN4116A (Bonded case 2.5 inch loop with swivel); NNTN4117A (Bonded case belt loop 3 inch); TDN9675B (Wrist Strap); NTN5243A (Shoulder Strap); NLN6349A (Shoulder Strap). Audio/Data cable accessory(ies): See section 3.0 for list of approved audio accessories. Max. Calc. : 1-g Avg. SAR: 7.61 W/kg (Body); 10-g Avg. SAR: 5.26 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 2.49 W/kg (Face); 10-g Avg. SAR: 1.79 W/kg (Face) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file – Stephen Whalen for Deanna Zakharia Deanna Zakharia N&E EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 4/10/07 Certification Date: 4/10/07 Certification No.: L1070410P FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 2 of 41 Part 1 of 2 1.0 Introduction and Overview...................................................................................... 3 2.0 Referenced Standards and Guidelines ..................................................................... 3 2.1 SAR Limits ................................................................................................... 4 3.0 Description of Device Under Test (DUT) ............................................................... 4 4.0 Description of Test System ..................................................................................... 6 4.1 Description of Robotics/Probes/Readout Electronics ................................... 6 4.2 Description of Phantom(s) ............................................................................ 6 4.2.1 Flat Phantom................................................................................... 6 4.2.2 SAM Phantom ................................................................................ 6 4.3 Description of Equivalent Tissues ................................................................ 6 5.0 Additional Test Equipment...................................................................................... 7 6.0 SAR Measurement System Verification.................................................................. 7 6.1 Equivalent Tissue Test results ...................................................................... 8 6.2 System Check Test results ............................................................................ 8 7.0 DUT Test Strategy and Methodology ..................................................................... 9 7.1 DUT Configuration(s) .................................................................................. 9 7.2 Device Positioning Procedures ................................................................... 10 7.2.1 Body ............................................................................................. 10 7.2.2 Head ............................................................................................. 10 7.2.3 Face .............................................................................................. 11 8.0 Environmental Test Conditions ............................................................................. 11 9.0 Test Results Summary ........................................................................................... 11 9.1 Highest SAR results calculation methodology ........................................... 19 10.0 Conclusion............................................................................................................. 19 APPENDICES A Measurement Uncertainty ..................................................................................... 20 B Probe Calibration Certificates ............................................................................... 23 C Dipole Calibration Certificates.............................................................................. 35 Part 2 of 2 D Test System Verification Scans E DUT Scans (Shortened Scans and Highest SAR configurations) F DUT Supplementary Data (e.g. Power Slump) G DUT Test Position Photos H DUT and Body-worn Accessory Photos I DUT Antenna Separation Distances and Offered Accessory…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 1 of 35 TESTING CERT # 2518.01 FCC ID: AZ489FT5849 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Networks & Enterprise EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 4/10/07 Report Revision: O Report ID: XTS2500_900_Rev O_070410 SR4696 Responsible Engineer: Kim Uong (EME Engineer) Date/s Tested: 2/8/07-3/20/07; 4/4/07 Manufacturer/Location: Penang, Malaysia Sector/Group/Div.: CGISS/GTDG Date submitted for test: 1/12/07 DUT Description: 896-940 MHz 1.0-2.5 Watt, 512 Channels / 3 X 6 Keypad / 6 line Display Test TX mode(s): CW Max. Power output: 2.8 Watts Nominal Power: 2.5 Watts Tx Frequency Bands: 896-901MHz; 935-940MHz Signaling type: FM Model(s) Tested: H46WCH9PW7BN Model(s) Certified: H46WCH9PW7BN Serial Number(s): 408TGL0004, 408TGL0007 Classification: Controlled/Occupational Rule Part(s): 90 Approved Accessories: Antenna(s): NAF5038AR (1/2 Wave whip 896-941 MHz -0.85dBi); NAF5042AR (1/4 Wave stubby 806-941 MHz -2.3dBi); NAF5040AR (Dipole 896-941 MHz -0.85dBi) Battery(ies): NTN9815B (NICD, 1525 MAH); NTN9816B (NICAD FM 1525MAH); NTN9858C (IMPRES HIGH CAPACITY 1800 NIMH); NTN9857C( IMPRES NIMH FM 1700MAH); NNTN6263A (JedRay NiMH FM, , IMPRES) Body worn accessory(ies): HLN9844A (2 inch belt clip); HLN6853A (2.25 inch belt clip); NNTN4115A (Bonded case 3 inch loop with swivel); NNTN4116A (Bonded case 2.5 inch loop with swivel); NNTN4117A (Bonded case belt loop 3 inch); TDN9675B (Wrist Strap); NTN5243A (Shoulder Strap); NLN6349A (Shoulder Strap). Audio/Data cable accessory(ies): See section 3.0 for list of approved audio accessories. Max. Calc. : 1-g Avg. SAR: 7.61 W/kg (Body); 10-g Avg. SAR: 5.26 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 2.49 W/kg (Face); 10-g Avg. SAR: 1.79 W/kg (Face) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file – Stephen Whalen for Deanna Zakharia Deanna Zakharia N&E EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 4/10/07 Certification Date: 4/10/07 Certification No.: L1070410P FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 2 of 35 Appendix D Test System Verification Scans Dipole validation scans at the head from SPEAG are provided in APPENDIX C. NE’s EME lab validates its’ dipole(s) to the applicable IEEE system performance targets. A system validation was performed using FCC body tissue parameters to generate the system performance target values for body at the applicable frequency. Dipoles are assessed using multiple probes and measurements were performed using the isotropic assessment procedure mentioned below. To assess the isotropic characteristics of the measurement probe, two system performance zoom scans (0 and 90 degrees) were measured. The results were averaged together and adjusted to account for the power drift in order to obtain the final calculated 1 and 10 gram results. The results obtained from each probe were then averaged together to determine the new measured SAR target. FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 3 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 4 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 5 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 6 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 7 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 8 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 9 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 10 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 11 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 12 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 13 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 14 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 15 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 16 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 17 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 18 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 19 of 35 FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 20 of 35 Appendix E DUT Scans (Shortened Scans and Highest SAR configurations) FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 21 of 35 Motorola N&E EME Laboratory Test Date: 2/17/07 Robot# / Run#: DASY4-FL-3 / MeC-Ab-070217-11 Phantom# / Tissue Temp.: 80302002B-S8 / 20.2 (C) DUT Model# / Serial#: H46WCH9PW7BN / 408TGL0007 Antenna / TX Freq.: NAF5040AR / 898.5125 (MHz) Battery: NNTN6263A Carry Acc. / Cable Acc.: None / RMN4049A Start Power: 2.80 (W) Comments: Back of radio antenna @ 2.5 cm. SHORTENED SCAN Comments: Short Scan at the body w/ back of radio facing phantom and antenna @ 2.5 cm Shortened scan reflect highest SAR producing configuration; Run time 7 minutes. Representative “normal” scan run time was 32 minutes “Shortened” scan max calculated SAR using SAR drift: 1-g Avg. = 7.01 mW/g; 10-g Avg. = 4.84mW/g “Normal” scan max calculated SAR using SAR drift: 1-g Avg. = 6.95mW/g; 10-g Avg. = 4.83mW/g (See part 1 of 2 section 9.0 run # MeC-Ab-R2-070217-10) FCC ID: AZ489FT5849 SR4696 N&E EME Form-SAR-Rpt-Rev. 5.06 Page 22 of 35 Highest SAR Configuration at the Body Motorola N&E EME Labor…

Text truncated - open the document above for the full version.

Applicant: Motorola Inc. FCC ID: AZ489FT5849 EXHIBIT 6 SHEET 1 OF 31 EXHIBIT 6 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A – RF Power Output (Table) EXHIBIT 6B – Audio Frequency Response (2 Graphs) 6B-1 –12.5 kHz Channel Spacing, 898.5 MHz 6B-2 –12.5 kHz Channel Spacing, 937.5 MHz EXHIBIT 6C – Audio Low Pass Filter Response (2 Graphs) 6C-1 –12.5 kHz Channel Spacing, 898.5 MHz 6C-2 –12.5 kHz Channel Spacing, 937.5 MHz EXHIBIT 6D – Modulation Limiting (6 Graphs) 6D-1 –12.5 kHz Channel Spacing, 898.5 MHz, Carrier Squelch (CSQ) Mode 6D-2 –12.5 kHz Channel Spacing, 937.5 MHz, Carrier Squelch (CS…
