AZ489FT5864Portable 2-Way Radio

English RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. *6881095C98* 6881095C98-G *NNTN7223D* NNTN7223D MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2007 – 2011 Motorola Solutions, Inc. All rights reserved. ATTENTION! 6881095C98-G_SafetyP_Eng.fm Page 1 Thursday, February 9, 2012 4:05 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-G_SafetyP_Eng.fm Page 2 Thursday, February 9, 2012 4:05 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-G_SafetyP_Eng.fm Page 3 Thursday, February 9, 2012 4:05 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. 6881095C98-G_SafetyP_Eng.fm Page 4 Thursday, February 9, 2012 4:05 PM 5 English Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • Private Talk Position (XTS 4000 Only). When placing or receiving a personal message, hold your radio as you would a wireline/wireless telephone. Speak directly into the…

Text truncated - open the document above for the full version.

APX 4000 User Guide Model 3 68012004058- E English mASTRO ® APX™ 4000 Series Digital Portable RadiosQuick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits. Radio Controls Radio On/OffZones and Channels Receiving and TransmittingSending an Emergency Alarm * Default emergency button press timer is set to 1 second. This timer is programmable, see page 66 in the user guide for details.To exit emergency at any time, press and hold the Emergency button. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n Battery Multi Function Knob (MFK):Primary Feature:_________________Secondary Feature:_________________ Accessory Connector Microphone Antenna • On – Press and hold the MFK until the display lights up. • Off – Press and hold the MFK until you see Power off? , then press Menu Select button below Yes . • Zone – Zone scroll to desired zone. • Channel – Channel scroll to desired channel. Data Feature Button Side Button 1__________ Side Button 2__________PTT Button MicrophoneTop Lightbar IndicatorTop Side (Select) Button__________ Main Speaker Main Display Top (Orange) Button___________ Bluetooth ® Pairing Indicator LED Keypad Menu Select Buttons 4-Way Navigation Button Home Button 1 Select zone/channel. 2 Listen for a transmission.ORPress and hold Volume Set button. ORPress Monitor button and listen for activity. 3 Adjust volume, if necessary. 4 Press the PTT button to transmit; release to receive. 1 Press and hold the Emergency button*. 2 The display shows Emergency and the current zone/channel. Radio sounds a short, medium-pitched tone, and the LED blinks red momentarily. 3 When acknowledgment is received, you hear four beeps; alarm ends; and radio exits emergency. *PMLN6070C* PMLN6070C MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are tr ademarks or registered trademarks of Motorola Trademark Holdin gs, LLC and are used under license. All other trademarks are the property of their respective owners. © 2011 by Motorola Solutions, Inc. All Rights Reserved. 05/12 1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A. English Sending an Emergency Call To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Call To exit emergency at any time, press and hold the Emergency button. Display Status Icons 1 Press the Emergency button. 2 Press and hold the PTT button. Speak clearly into the microphone. 3 Release the PTT button to end call. 4 Press and hold Emergency button to exit emergency. 1 Press the Emergency button. 2 The display does not change; the LED does not light up, and there is no tone. 3 Silent emergency c ontinues until you: Press and hold the Emergency button to exit emergency state.ORPress and release the PTT button to exit the Silent Emergency Alarm mode and enter regular dispatch or Emergency Call mode. Receiving a call or data.Transmitting a call or data. u t Blinks when the battery is low.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio to radio communication or connected through a repeater.On = Direct Off = Repeater This channel is being monitored.L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority-Two Channel during scan. 8 v O M H OR . i j The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call.On = Location feature enabled, and location signal available. Off = Location feature disabled. Blinking = Location feature enabled, but location signal unavailable.On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin.Data activity is present.Bluetooth is ready.Bluetooth is connected to the device. k m l G no b a Menu Navigation < or > to Menu Entry. { , | , or } directly below Menu Entry to select. H to exit. U or D to scroll through sub-list. { , | , or } directly below Menu Entry to select. Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: 1303, East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: APX 4000 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this device complies with Part 15 of the FC C Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity English ii Note: This equipment has been tested and found to comply with the li mits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provi de reasonable protection against harmful interference in a residential installation. This equipment generates, us es and can radiate radio frequency energy and, if no…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT5864 EXHIBIT 13A SHEET 1 September 17 th , 2012 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT5864, APX4000. Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency range: 896 - 940 MHz: 1-2.5 Watts (Nominal) Additionally, the radio is equipped with a Bluetooth transmitter capable of clear communication with fixed power operating within the following frequency ranges: 2.402-2.480 GHz: 10 mW (Nominal) The Bluetooth transmitter complies with the requirements of FCC Part 15 subpart C. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. In addition, this transmitter is intended for work-related occupational use only under Part 90 of the FCC rules. We are requesting Certification under Part 15c, 90 and 90.210(e) of the Commission’s Rules to allow operation of this equipment. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT5864 EXHIBIT 13B SHEET 1 REQUEST FOR CONFIDENTIALITY September 17 th , 2012 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for Transmitter with FCC ID: AZ489FT5864 Dear Sir / Madam, Motorola Solutions is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected]

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View with Display and Keypad. 3B 3. Back View (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F A Applicant: Mootorola Soluttions Inc. BACK VIE W WITH BA T TTERY FCC C ID: AZ489F EXHIB SHEET 2 FT5864 BIT 3A 2 OF 8 A Applicant: Mo otorola Solut FRO tions Inc. NT VIEW WI T TH DISPLAY Y AND KEYPA AD (Model 3 FCC and Model 2 C ID: AZ489F EXHIB SHEET 3 2) FT5864 BIT 3B 3 OF 8 A Applicant: Mootorola Soluttions Inc. BACK VI EW (FCC L A ABELS) (Mod del 3 and Mod FCC del 2) C ID: AZ489F EXHIB SHEET 4 FT5864 BIT 3C 4 OF 8 A Applicant: Mootorola Soluttions Inc. SIDE VIEW (RIGH T) FCC C ID: AZ489F EXHIB SHEET 5 FT5864 BIT 3D 5 OF 8 A Applicant: Mootorola Soluttions Inc. SID E E VIEW (LEFT T) FCC C ID: AZ489F EXHIB SHEET 6 FT5864 BIT 3E 6 OF 8 Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 3F SHEET 7 OF 8 TOP VIEW

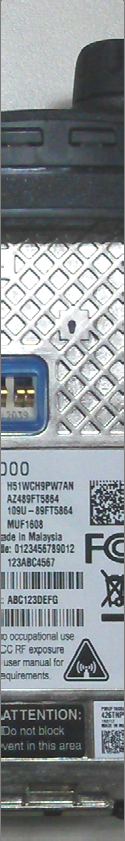

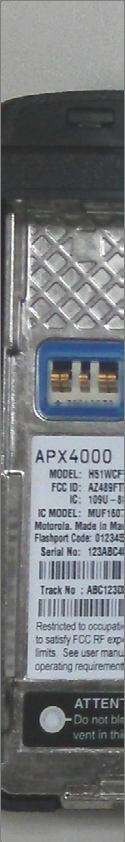

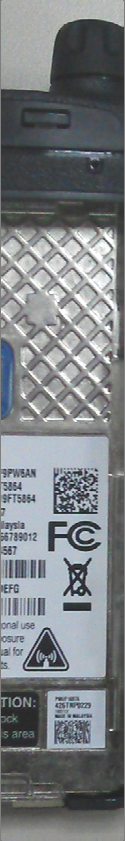

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 1 SHEET 1 OF 1 Identification Label LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure Sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. FCC IC Label Model 3 Full Keypad FCC IC Label Model 2 Limited Keypad

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9 SHEET 1 OF 8 EXHIBIT 9 Internal Photographs The following photographs are attached. Exhibit 1. RF board without & with Shields (Top). 9A 2. RF board without & with Shields (Bottom). 9B 3. Keypad Board without shield (Bottom). 9C 4. Keypad Board with Shields (Bottom). 9D 5. Keypad Board (Top). 9E 6. RF board with chassis and housing (front side). 9F 7. RF Board with chassis and housing (back side). 9G Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9A SHEET 2 OF 8 RF board without & with Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9B SHEET 3 OF 8 RF board without & with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9C SHEET 4 OF 8 Keypad board without Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9D SHEET 5 OF 8 Keypad board with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9E SHEET 6 OF 8 Keypad Board (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9F SHEET 7 OF 8 RF board with chassis and housing (front side) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 9G SHEET 8 OF 8 Chassis and Housing (back side)

FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 49 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 8/31/2012 Report Revision: O Report ID: SR10571 APX4000 900 Rev O 1208031 Responsible Engineer: Michael Sailsman( Senior Staff EME Engineer) Report Author: Michael Sailsman (Senior Staff EME Engineer) Date/s Tested: 7/25/2012-8/29/2012 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: AESS – Astro Engineering Subscriber Solutions Date submitted for test: 7/19/2012 DUT Description: 896-940MHz 1-3W 6.25K/12.5K, Single Display Model full keypad. Capable of digital and analog FM transmission. Also capable of TDMA transmission. This radio is Bluetooth equipped. Test TX mode(s): CW (PTT); CW (Bluetooth) Max. Power output: 3.0 W; 10 mW (Bluetooth) Nominal Power: 2.5W; 10 mW (Bluetooth) Tx Frequency Bands: 896- 901 MHz, 935-940 MHz,; 2.402-2.480 GHz (Bluetooth) Signaling type: FM, TDMA, FHSS (Bluetooth) Model(s) Tested: H51WCH9PW7AN (MUF1608) Model(s) Certified: H51WCH9PW7AN (MUF1608) Serial Number(s): 426TNP0238 Classification: Occupational/Controlled FCC ID: AZ489FT5864; Rule Part 90 (896-901MHz & 935-940MHz); Rule Part 15 (2402 – 2480 MHz) Results outside FCC bands are not applicable for FCC compliance demonstration. IC: 109U-89FT5864 * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 8/31/2012 Certification Date: 8/31/2012 Certification No.: L1120812P FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 Motorola Solutions EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 49 Part 1 of 2 1.0 Introduction ................................................................................................................................. 4 2.0 Abbreviations / Definitions ......................................................................................................... 4 3.0 Referenced Standards and Guidelines ........................................................................................ 4 4.0 SAR Limits ................................................................................................................................. 5 5.0 SAR Result Scaling Methodology .............................................................................................. 6 6.0 Description of Device Under Test (DUT) .................................................................................. 6 7.0 Optional Accessories and Test Criteria....................................................................................... 7 7.1 Antennas ......................................................................................................................... 7 7.2 Batteries .......................................................................................................................... 7 7.3 Body worn Accessories ................................................................................................... 7 7.4 Audio Accessories .......................................................................................................... 8 8.0 Description of Test System ......................................................................................................... 9 8.1 Descriptions of Robotics/Probes/Readout Electronics ................................................... 9 8.2 Description of Phantom(s) ............................................................................................ 10 8.3 Description of Simulated Tissue ................................................................................... 10 9.0 Additional Test Equipment ....................................................................................................... 11 *Calibration is not required by the OEM. The dielectric probe kit is used in conjunction with a calibrated network analyzer. The dielectric probe kit is calibrated for short, open, and load using the calibrated network analyzer. A saline solution is routinely measured as an additional check point. ............................................................................................................................... 11 10.0 SAR Measurement System Verification ................................................................................... 11 10.1 Equivalent Tissue Test Results ..................................................................................... 11 10.2 System Check Test Results ........................................................................................... 12 11.0 Environment…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 1 of 30 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Motorola Solutions Inc. EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 8/31/2012 Report Revision: O Report ID: SR10571 APX4000 900 Rev O 1208031 Responsible Engineer: Michael Sailsman( Senior Staff EME Engineer) Report Author: Michael Sailsman (Senior Staff EME Engineer) Date/s Tested: 7/25/2012-8/29/2012 Manufacturer/Location: Motorola, Penang Sector/Group/Div.: AESS – Astro Engineering Subscriber Solutions Date submitted for test: 7/19/2012 DUT Description: 896-940MHz 1-3W 6.25K/12.5K, Single Display Model full keypad. Capable of digital and analog FM transmission. Also capable of TDMA transmission. This radio is Bluetooth equipped. Test TX mode(s): CW (PTT); CW (Bluetooth) Max. Power output: 3.0 W; 10 mW (Bluetooth) Nominal Power: 2.5W; 10 mW (Bluetooth) Tx Frequency Bands: 896- 901 MHz, 935-940 MHz,; 2.402-2.480 GHz (Bluetooth) Signaling type: FM, TDMA, FHSS (Bluetooth) Model(s) Tested: H51WCH9PW7AN (MUF1608) Model(s) Certified: H51WCH9PW7AN (MUF1608) Serial Number(s): 426TNP0238 Classification: Occupational/Controlled FCC ID: AZ489FT5864; Rule Part 90 (896-901MHz & 935-940MHz); Rule Part 15 (2402 – 2480 MHz) Results outside FCC bands are not applicable for FCC compliance demonstration. IC: 109U-89FT5864 * Refer to section 15 of part 1 for highest SAR summary results. The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. Results outside FCC bands are not applicable for FCC compliance demonstration. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 8/31/2012 Certification Date: 8/31/2012 Certification No.: L1120812P FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 2 of 30 APPENDIX D System Check Scans FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 3 of 30 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 4 of 30 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 5 of 30 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 6 of 30 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 7 of 30 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 8 of 30 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 9 of 30 APPENDIX E DUT Scans (Shortened Scan and Highest SAR configurations) FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 10 of 30 Shortened Scan Result Table 29 Shortened scan reflect highest SAR producing configuration; approximate run time is 7 minutes. Representative full scan run time was 26 minutes. “Shortened” scan max calculated SAR using SAR drift: 1-g Avg. = 1.88 mW/g; 10-g Avg. = 1.36 mW/g. Zoom scan max calculated SAR using SAR drift (see part 1 table 18): 1-g Avg. = 1.95 mW/g; 10-g Avg. = 1.41 mW/g. FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 11 of 30 Body - Highest SAR Configuration Result Table 29 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 12 of 30 Face - Highest SAR Configuration Result Table 26 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 13 of 30 APPENDIX F DUT Scans - FCC Part 90 (896-901 & 935-940 MHz bands) FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 14 of 30 896-901MHz Band Assessments at the Body with Body worn PMLN4651A Table 14 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 15 of 30 Assessments at the Body with Body worn PMLN7008A Table 15 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 16 of 30 Assessments at the body with Body worn PMLN6085A Table 16 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 17 of 30 Assessment at the Body with Body worn PMLN6085A (no belt loop)/NTN5243A Table 17 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 18 of 30 Assessment at the Body with other audio accessories Assessment per “KDB 643646 D01 Body SAR Test Consideration for Audio Accessories without Built-in Antenna; Sec 1, A. when overall < 4.0 W/kg, SAR tested for that audio accessory is not necessary.” This was applicable to all remaining accessories. FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Form-SAR-Rpt-Rev. 12.01 Page 19 of 30 Assessment of wireless BT configuration Table 18 FCC ID: AZ489FT5864/ IC: 109U-89FT5864 SR 10571 EMS EME Fo…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT5864 EXHIBIT 6 SHEET 1 OF 28 EXHIBIT 6 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A – RF Power Output (Table) EXHIBIT 6B – Audio Frequency Response 6B-1 –896.0125 MHz, 12.5 kHz Channel Spacing 6B-2 –900.9875 MHz, 12.5 kHz Channel Spacing 6B-3 –935.0125 MHz, 12.5 kHz Channel Spacing ` 6B-4 –93…
