AZ489FT6009Mission Critical Wireless Remote Speaker Microphone

LONG RANGEWIRELESS SOLUTIONSUSER GUIDE ACCESSORIES WIRELESS REMOTE SPEAKER MICROPHONE PMMN4095_MOBILE MICROPHONE WITH BLUETOOTH GATEWAY PMMN4097_DUAL-UNIT CHARGER PMLN6714_VEHICULAR CHARGER PMLN6716_WIRELESS REMOTE SPEAKER MICROPHONE BATTERY PMNN4461_ en es-CO pt-BR fr-CA ko de-DE fr-FR es-ES it-IT pt-PT nl-NL ru FOREWORD English i CHAPTER 1: FOREWORDRF Energy Exposure and Product Safety Guide for Mobile Two-Way Radios ATTENTION! The microphone is restricted to occupational use only to satisfy ICNIRP/FCC RF energy exposure requirements. Before using this product, read the RF Energy Exposure and Product Safety Guide that ships with the radio which contains instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulation.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Motorola may void the user’s authority to operate this device.Under Industry Canada regulations, this microphone transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Ca nada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. Battery Information : Battery is shipped with a nominal charge between 30% and 50%. Battery should be stored between -10 °C (14 °F) and 30 °C (86 °F) to minimize permanent capacity loss.CAUTION : Storing your fully charged accessory in high-temperature conditions may permanently reduce the life of the internal battery. Important Information: • Hold the microphone in a vertical position with the microphone at  least  inch (2.5 centimeters) away from the nose or lips. • Body Worn Operation. When microphone is worn on the body, always use Motorola-approved clip for this product. Using approved body-worn accessories is important because the use of non-Motorola-approved accessories may result in exposure levels, which exceedthe FCC occupational/controlled environment RF exposure limits. • Use only Motorola-approved supplied or replacement batteries. Useof non-Motorola-approved batteries may exceed the applicable RFexposure guidelines (iEEE, ICNIRP or FCC). • DO NOT charge your accessory in temperatures below 0 °C (32 °F)or above 45 °C (113 °F). DO NOT store your accessory in directsunlight or where expected temperatures can exceed this range such as inside a parked car. • Storing your fully charged accessory in high-temperature conditionsmay permanently reduce the life of the internal battery. • Battery life may temporarily shorten in low-temperature conditions. FOREWORD English ii Acoustic SafetyExposure to loud noises from any source for extended periods of time may temporarily or permanently affect your hearing. The louder the radio's volume, the less time is required before your hearing could be affected. Hearing damage from loud noise is sometimes undetectable at first and can have a cumulative effect.To protect your hearing:• Use the lowest volume necessary to do your job. • Turn up the volume only if you are in noisy surroundings. • Turn down the volume before adding headset or earpiece. • Limit the amount of time you use headsets or earpieces at high volume. • When using the radio without a headset or earpiece, do not place the radio's speaker directly against your ear. CHARGERS SAFETY INFORMATIONImportant Safety InformationThis document contains important safety and operating instructions. Please read these instructions carefully and save them for future reference.Before using the battery charger, read all the instructions and cautionary markings on (1) the Dual-Unit Charger / Vehicular Charger, (2) the battery, and (3) on the Wireless Remote Speaker Microphone (WRSM). WARNINGS ! W A R N I N G ! 2. Use of accessories not recommended by Motorola may result in risk of fire, electric shock, or injury. 3. To reduce risk of damage to the electric plug and cord of the DUC, pull by the plug rather than the cord when disconnecting the charger. 4. To reduce risk of damage to the CLA and cord of the Vehicular Charger, pull by the CLA rather than the cord when disconnecting the charger. 5. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in risk of fire and electric shock. If an extension cord must be used, make sure that the cord size is 18 AWG for lengths of up to 100 feet (30.48 m), and 16 AWG for lengths up to 150 feet (45.72 m). 6. To reduce risk of fire, electric shock, or injury, DO NOT operate the charger if it has been broken or damaged in any way. Take it to a qualified Motorola service representative. 7. DO NOT disassemble the charger – it is not repairable and replacement parts are not available. Disassembly of the charger may result in risk of electric shock or fire. 8. To reduce risk of electric shock of the DUC, unplug the charger from the AC outlet before attempting any maintenance or cleaning. 9. To reduce risk of electric shock of the Vehicular Charger, unplug the Vehicular Charger from the CLA power source before attempting any maintenance or cleaning. 10. This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 1. To reduce risk of injury, charge only the rechargeable Motoro…

Text truncated - open the document above for the full version.

English RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. *NNTN7223G* NNTN7223G MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2007 – 2013 Motorola Solutions, Inc. All rights reserved. ATTENTION! *6881095C98* 6881095C98-K 6881095C98-K_SafetyP.book Page 1 Tuesday, September 3, 2013 3:56 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-K_SafetyP.book Page 2 Tuesday, September 3, 2013 3:56 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-K_SafetyP.book Page 3 Tuesday, September 3, 2013 3:56 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. 6881095C98-K_SafetyP.book Page 4 Tuesday, September 3, 2013 3:56 PM 5 English Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. The PTT button may reside on the radio itself or may be hosted on approved wired or wireless (for example, a Bluetooth enabled remote Push-to-Talk button) accessories. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • In front…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT6009 Motorola Solutions Inc. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 May 7, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT6009 Dear Sir or Madam, Motorola Solutions Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter, Mission Critical Wireless Remote Speaker Microphone (RSM), is primarily intended for use in a Class 1 Bluetooth application. This Bluetooth transmitter is capable of clear communication with fixed power operating within the following frequency ranges: 2402-2480 MHz; 63 mW (Nominal); 100 mW (Max) The Bluetooth transmitter complies with the requirements of FCC Part 15 subpart C. A complete certification application is enclosed. Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison Motorola Solutions Inc. 8000 West Sunrise Blvd. Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ489FT6009 Motorola Solutions Inc. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: May 7, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AZ489FT6009 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Exhibit 4 Block diagrams Exhibit 5 Schematic Diagrams Exhibit 10 Parts List Exhibit 12 Circuit Descriptions Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison Motorola Solutions Inc. 8000 West Sunrise Blvd Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

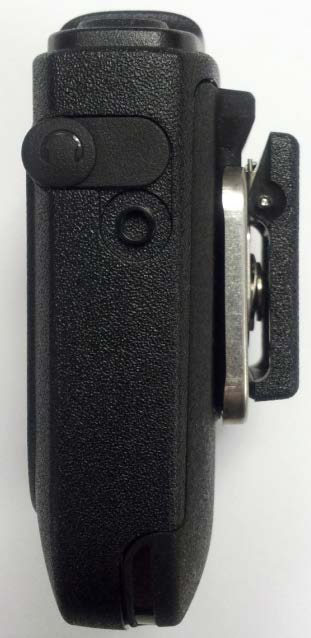

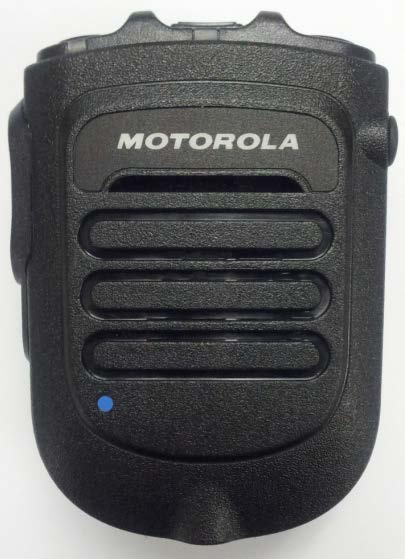

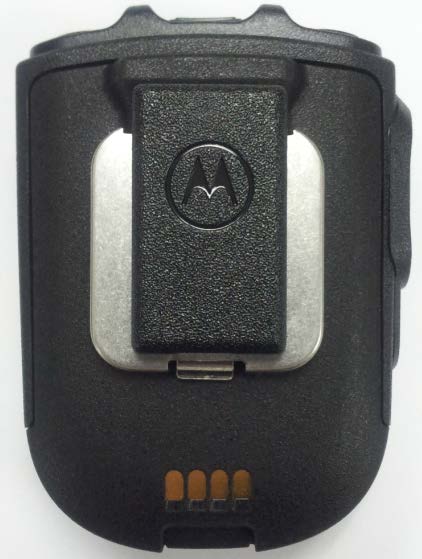

Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 1 OF 7 EXHIBIT 3 EXTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. Back View with Battery 3A 2. Front View 3B 3. Back View (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view. 3F 7. Bottom view 3G Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 2 OF 7 Exhibit 3A BACK VIEW WITH BATTERY Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 3 OF 7 Exhibit 3B FRONT VIEW Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 4 OF 7 Exhibit 3C BACK VIEW (FCC LABELS) Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 5 OF 7 Exhibit 3D SIDE VIEW (RIGHT) Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 6 OF 7 Exhibit 3E SIDE VIEW (LEFT) Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 3 SHEET 7 OF 7 Exhibit 3F TOP VIEW Exhibit 3G BOTTOM VIEW

Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 1 SHEET 1 OF 1 EXHIBIT 1 IDENTIFICATION LABEL LOCATION See the Attached Photograph or Sketch Top of Radio X Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. X Label Attached Below. See Attached Drawing. FIGURE 1-1: FCC/IC LABEL

Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 9 SHEET 1 OF 4 EXHIBIT 9 INTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. PCB Bottom with shield 9A 2. PCB Bottom without Shield 9B 3. PCB Top with shield 9C 4. PCB Top without Shield 9D 5. Overall Internal Assembly with housing 9E Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 9 SHEET 2 OF 4 Exhibits 9A PCB Bottom with shield Exhibit 9B PCB Bottom without Shield Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 9 SHEET 3 OF 4 Exhibit 9C PCB Top with shield Exhibit 9D PCB Top without Shield Motorola Solutions Inc FCC ID: AZ489FT6009 / IC: 109U-89FT6009 EXHIBIT 9 SHEET 4 OF 4 Exhibit 9E Overall Internal Assembly with housing

FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 1 of 42 TESTING CERT # 2518.05 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 2 Motorola Solutions, Inc EME Test Laboratory Motorola Solutions Malaysia Sdn. Bhd. (455657-H) Plot 2, Bayan Lepas Technoplex Industrial Park, Mukim 12, S.W.D. 11900 Bayan Lepas, Penang, Malaysia. Date of Report: 05/14/2014 Report Revision: B Report ID: SR12079 & SR12020_ PMMN4095A Rev B 140514 Responsible Engineer: Tan CheeChin (EME Section Manager) Report Author: Tan CheeChin (EME Section Manager) & Veeramani (Sr.EME Engineer) Date/s Tested: 01/24/14-02/05/14 Manufacturer/Location: Motorola Solutions, Inc, Penang Sector/Group/Div.: EMS Date submitted for test: 01/08/14 DUT Description: Mission Critical Wireless Remote Speaker Microphone Test TX mode(s): CW (Bluetooth) Max. Power output: 100mW (Bluetooth) Nominal Power: 63.0mW (Bluetooth) Tx Frequency Bands: 2.402GHz - 2.48GHz Bluetooth Signaling type: FHSS (Bluetooth) Model(s) Tested: PMMN4095A Model(s) Certified: PMMN4095A Serial Number(s): 1 Classification: Occupational/Controlled FCC ID: AZ489FT6009; Rule Part 15 (2402-2480MHz) IC : 109U-89FT6009 The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 5/14/2014 Certification Date: 5/6/2014 Certification No.: L1140421P FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 2 of 42 Part 1 of 2 1.0 Introduction .................................................................................................................................. 4 2.0 FCC SAR Summary ..................................................................................................................... 4 3.0 Abbreviations / Definitions .......................................................................................................... 4 4.0 Referenced Standards and Guidelines ......................................................................................... 4 5.0 SAR Limits .................................................................................................................................. 6 6.0 Description of Device Under Test (DUT) ................................................................................... 6 7.0 Optional Accessories and Test Criteria ....................................................................................... 6 7.1 Antenna ............................................................................................................................... 6 7.2 Battery ................................................................................................................................. 7 7.3 Body worn Accessory ......................................................................................................... 7 7.4 Audio cable Accessories ..................................................................................................... 7 8.0 Description of Test System ......................................................................................................... 8 8.1 Descriptions of Robotics/Probes/Readout Electronics ...................................................... 8 8.2 Description of Phantom(s) .................................................................................................. 9 8.3 Description of Simulated Tissue ......................................................................................... 9 9.0 Additional Test Equipment ...................................................................................................... 10 10.0 SAR Measurement System Validation and Verification ......................................................... 10 10.1 System Validation ........................................................................................................... 10 10.2 System Verification ........................................................................................................ 11 10.3 Equivalent Tissue Test Results ....................................................................................... 11 11.0 Environmental Test Conditions ............................................................................................... 12 12.0 DUT Test Setup and Methodology ......................................................................................... 12 12.1 Measurements ................................................................................................................. 12 12.2 DUT Configuration(s) .................................................................................................... 13 12.3 DUT Positioning Procedures ......…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 TESTING CERT # 2518.05 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 2 Motorola Solutions, Inc EME Test Laboratory Motorola Solutions Malaysia Sdn. Bhd. (455657-H) Plot 2, Bayan Lepas Technoplex Industrial Park, Mukim 12, S.W.D. 11900 Bayan Lepas, Penang, Malaysia. Date of Report: 05/14/2014 Report Revision: B Report ID: SR12079 & SR12020 _ PMMN4095A Rev B 140514 Responsible Engineer: Tan CheeChin (EME Section Manager) Report Author: Tan CheeChin (EME Section Manager) & Veeramani (Sr.EME Engineer) Date/s Tested: 01/24/14-02/05/14 Manufacturer/Location: Motorola Solutions, Inc, Penang Sector/Group/Div.: EMS Date submitted for test: 01/08/14 DUT Description: Mission Critical Wireless Remote Speaker Microphone Test TX mode(s): CW (Bluetooth) Max. Power output: 100mW (Bluetooth) Nominal Power: 63.0mW (Bluetooth) Tx Frequency Bands: 2.402GHz - 2.48GHz Bluetooth Signaling type: FHSS (Bluetooth) Model(s) Tested: PMMN4095A Model(s) Certified: PMMN4095A Serial Number(s): 1 Classification: Occupational/Controlled FCC ID: AZ489FT6009; Rule Part 15 (2402-2480MHz) IC: 109U-89FT6009 The test results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits of 8 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams result is not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 10 W/kg averaged over 10grams of contiguous tissue. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 5/14/2014 Certification Date: 5/6/2014 Certification No.: L1140421P Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 1 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Appendix D System Verification Check Scans Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 2 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 3 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 4 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Appendix E DUT Scans Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 5 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Assessments at the Body with B ody worn accessories Table 17 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 6 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Assessments at the Face Table 19 Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 7 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Appendix F DUT Test Position Photos Photos available in Exhibit 7B Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 8 of 9 FCC ID: AZ489FT6009/ IC: 109U-89FT6009 SR12079 & SR12020 Appendix G DUT, Body worn and audio accessories Photos Photos available in Exhibit 7B Motorola Solutions Inc. EME Form-SAR-Rpt-Rev. 13.4 Page 9 of 9

Certification Test Report FCC ID: AZ489FT6009 IC: 109U-89FT6009 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 13-2168.W06.1A Manufacturer: Motorola Solutions SDNBHD Model: PMMN4095A Test Begin Date: January 10, 2014 Test End Date: February 14, 2014 Report Issue Date: March 18, 2014 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Project Manager: Reviewed by: Thierry Jean-Charles Kirby Munroe EMC Engineer Director, Wireless Certifications Advanced Compliance Solutions, Inc. Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 69 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose ........................................................................................................................................ 3 1.2 Product Description .................................................................................................................... 3 1.3 Manufacturer Information ......................................................................................................... 3 1.4 Test Methodology and Considerations........................................................................................ 4 2 TEST FACILITIES .......................................................................................... 5 2.1 Location ....................................................................................................................................... 5 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................. 5 2.3 Radiated & Conducted Emissions Test Site Description ............................................................ 6 3 APPLICABLE STANDARD REFERENCES ................................................... 8 4 LIST OF TEST EQUIPMENT .......................................................................... 9 5 SUPPORT EQUIPMENT .............................................................................. 10 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ............................ 10 7 SUMMARY OF TESTS ................................................................................. 12 7.1 Antenna Requirement – FCC: Section 15.203 .......................................................................... 12 7.2 Power Line Conducted Emissions – FCC: Section 15.207 IC: RSS-Gen 7.2.4 ......................... 12 7.3 Peak Output Power - FCC Section 15.247(b)(1) IC: RSS-210 A8.4(2) ..................................... 15 7.4 Channel Usage Requirements ................................................................................................... 21 7.5 Band-Edge Compliance and Spurious Emissions-FCC 15.247(d) IC: RSS-210 A8.5 …

Text truncated - open the document above for the full version.
