AZ489FT7020NNTN6402A, DONGLE/CONTROLLER

Wireless Wheels User’s Guide @NNTN6704A@NNTN6704A DRAFT i ContentsSafety and General Information ............... ii Electromagnetic Interference/Compatibility....... iiIndustry Canada Notice to Users ..................... iiiFCC Notice to Users ........................................ iii Getting Started........................................... 1 Package Contents .............................................2Battery Requirements........................................2Customer Service..............................................3Technical Support .............................................3 Running the Wireless Wheels Java Application 6 Battery Installation ....... ..............................9 Joystick Controller .............................................9Vehicle ..............................................................9 Motorola Wireless Remote Control Adapter Installation ..............................11 Operating Your Vehicle............................15 Using The Joystick Controller .........................15Adjusting Steering Alignment ..........................19 Patent and Trademark Information .........20 Index ..........................................................21 ii Safety and General InformationProduct Name: Wireless Wheels Kit Number NASCAR : NNTN6401A Kit Number Maserati : NNTN6402A IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE.Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by t he party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subj ect to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. FacilitiesTo avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any facility where postednotices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.AircraftWhen instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in accordance wi th applicable regulations per airline crew instructions.Medical DevicesHearing AidsSome devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. iii Other Medical DevicesIf you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.Industry Canada Notice to UsersOperation is subject to t he following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device Ref IC RSS 210 Sec. 5.11. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. See Ref IC Self-Marking 6(f) and RSP-100 Sec. 4.FCC Notice to UsersThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 1 Getting Started Recommended: For ages 6 and up. • Custom Car Name• You can assign your car a unique name so it stands out on the Car Select List. • Long Distance Control• Car and Transmitter have a range of up to 100 feet* which is double the range of traditional RC cars! 2 Getting StartedPackage ContentsYour Wireless Wheels R/ C car package contains the following:• 1-9V battery • 4-AA alkaline batteries(1.5V) • Wireless Wheels remote control car • Wireless Wheels joystick controller • Motorola Wireless Remote Control Adapter Battery Requirements• Vehicle : 4 x AA alkaline(1.5V) • Transmitter : 1 x 9V battery 3 Customer Service Customer ServiceFor customer service, contact Nikko Customer Service toll-free at 1-800-736-4556.Additional information can be found on the Nikko America web site at: http://www.nikkoamerica.com Technical SupportFor technical support, contact Nikko Technical Support toll-free at 1-800-736-4556. Before you call, make a note of the exact problems and error messages you encountered.Additional information can be found on the Nikko America web site at: http://www.nikkoamerica.com 9 Battery InstallationJoystick ControllerInstall batteries making sure that the + and - poles of…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT7020 ______________________________________________________________________________ iDEN, Motorola Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED Date: 5thDecember 2005 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT7020. Dear Sir or Madam: Motorola is requesting that Exhibit 4, Block Diagrams, Exhibit 5 (Schematic Diagrams) and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5 and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] FCC ID: AZ489FT7020 ______________________________________________________________________________ iDEN, Motorola Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. EXHIBIT 13B

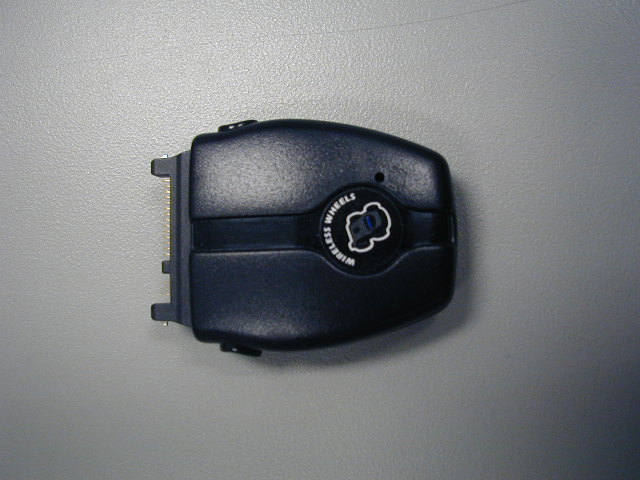

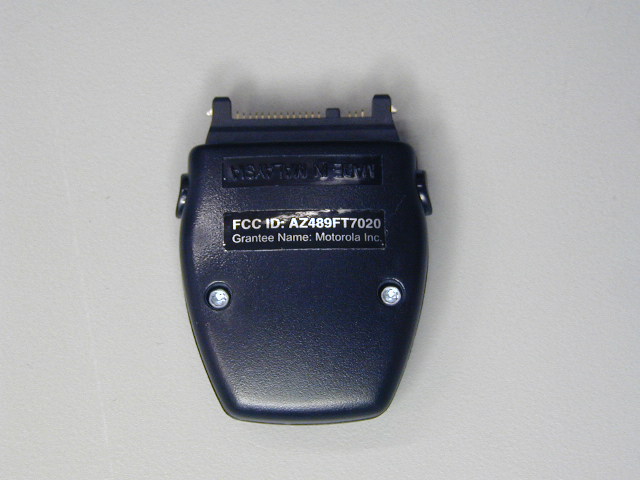

Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 1 Exhibit 3: External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 The product shapes, colors and housing/bezel vary. Figure 3-1. Dongle, Front Figure 3-2. Dongle, Rear Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 2 Figure 3-3. Controller, Front. Figure 3-4. Controller, Rear Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 3 Figure 3-5. FCC ID Label

Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 1.1 Location Back side of the dongle housing (Photograph 1.1). 1.2 Type The label is of a black polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Enlarged view of label showing FCC ID and manufacturer type number: Photograph 1.1: Zoom view of labels containing FCC ID. Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 2 Photograph 1.2: Zoom view of label.

Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 1 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Photograph 9-1: Front side view of Dongle PC Board Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 2 Photograph 9-2: Back side view of Dongle PC Board Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 3 Photograph 9-3: Top view of Handheld Controller PC Board. Applicant: Motorola FCC ID: AZ489FT7020 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 9- 2 Photograph 9-4: Bottom view of Handheld Controller PC Board.

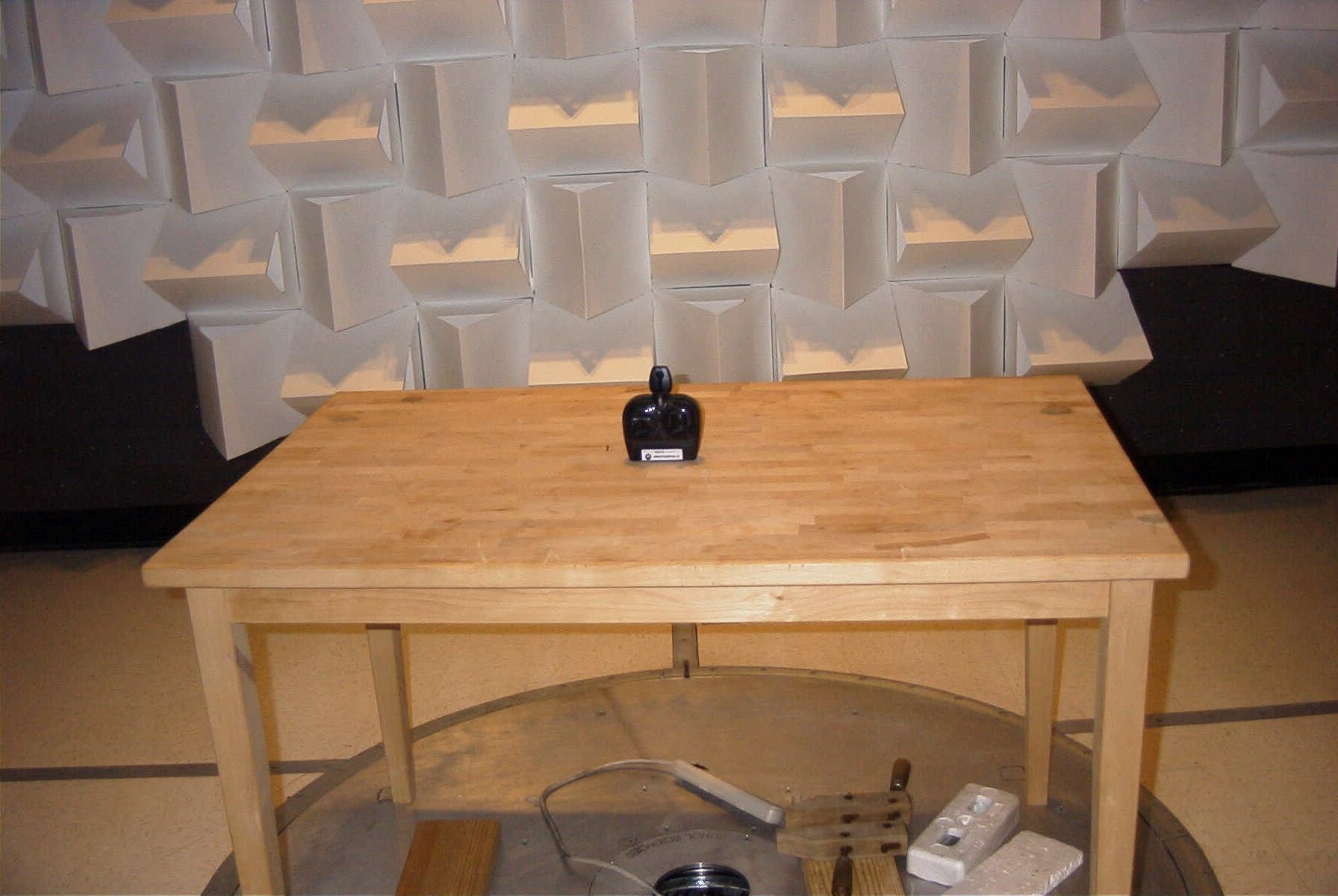

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 Test Report Product Name: DONGLE FCC ID: AZ489FT7020 Applicant: MOTOROLA, INC. 8000 WEST SUNRISE BLVD, MD: 1309 FT. LAUDERDALE FL 33322-9947 USA REPORT #: U:\M\MOTOROLA_Florida\2523AUT5\2523AUT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 TABLE OF CONTENTS APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-4.........RADIATION INTERFERENCE TEST DATA PAGE 5...........CALCULATION OF DUTY CYCLE PAGE 6-7.........DUTY CYCLE PLOTS PAGE 8-9.........OCCUPIED BANDWIDTH PAGE 10-11.......BANDEDGE PLOTS EXHIBIT INCLUDED: CONFIDENTIALITY REQUEST LETTER BLOCK DIAGRAM SCEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH REPORT #: U:\M\MOTOROLA_Florida\2523AUT5\2523AUT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 12/29/04 12/29/06 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 REPORT #: U:\M\MOTOROLA_Florida\2523AUT5\2523AUT5TestReport.doc Page 1 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmitting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 74.3°F with a humidity of 69%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. REPORT #: U:\M\MOTOROLA_Florida\2523AUT5\2523AUT5TestReport.doc Page 2 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7020 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: Field Strength Field Strength S15.209: of Fundamental: of Harmonics: 30 - 88 MHz 40 dBuV/m @3M 902-928 MHz 88 - 216 MHz 43.5 2.4-2.4835 GHz 216 - 960 MHz 46 94 dBuV/m @3m 54 dBuV/m @3m ABOVE 960 MHz 54dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Pol. Coax Loss dB Correction Factor dB Duty Cycle Factor dB Field Strength dBuV/m Margin dB 2,405.0 2,405.00 49.2 V 3.18 32.33 20 64.71 29.29 2,405.0 2,405.00 53.7 H 3.18 32.33 20 69.21 24.79 2,405.0 4,810.00 18.6 V 4.91 34.35 20 37.86 16.14 2,405.0 4,810.00 20.0 H 4.91 34.35 20 39.36 14.64 2,405.0 7,215.00 18.8 V 5.73 36.16 20 40.69 13.31 2,405.0 7,215.00 27.4 H 5.73 36.16 20 49.29 4.71 2,445.0 2,445.00 52.5 V 3.21 32.45 20 68.16 25.84 2,445.0 2,445.00 56.1 H 3.21 32.45 20 71.76 22.24 2,445.0 4,890.00 17.7 V 4.95 34.41 20 37.06 16.94 2,445.0 4,890.00 19.6 H 4.95 34.41 20 38.96 15.04 2,445.0 7,335.00 24.3 V 5.80 36.30 20 46.40 7.60 2,445.0 7,335.00 25.3 H 5.80 36.30 20 47.40 6.60 2,480.0 2,480.00 54.6 V 3.24 32.54 20 70.38 23.62 2,480.0 2,480.00 60.2 H 3.24 32.54 20 75.98 18.02 2,480.0 4,960.00 14.1 H 4.98 34.47 20 33.55 20.45 2,480.0 4,960.00 14.4 V 4.98 34.47 20 33.85 20.15 2,480.0 7,440.00 26.2 V 5.86 36.43 20 48.49 5.51 2,480.0 7,440.00 30.3 H 5.86 36.43 20 52.59 1.41 REPORT #: U:\M\MOTOROLA_Florida\2523AUT5\2523AUT5TestReport.doc Page 3 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT:…
