AZ489FT7038Portable VoWLAN Transceiver with Bluetooth

Total Enterprise Access & Mobility (TEAM) Business Smartphone Draft EWP1000 EWP2000 & EWP3000 SeriesQuick Start Guide a T oll quality mobile PBX telephony Complete push-to-talk services over WiFi Integrated data services English 1 Welcome Greetings upon receiving your new Enterprise WiFi Phone (EWP). This state-of-the-art Windows Mobile ® 6.1 / 6.5 based business smartphone delivers the features and benefits of your enterprise TEAM solution, enabling enhanced communication on the move.Meet the smartphoneYour EWP is designed to operate throughout the wireless network coverage of your enterprise environment. You can use the smartphone as you would any normal office phone. This means that you can dial local office phone extensions just as you could with a wired desk phone, using abbreviated extension phone numbers. The EWP smartphone also includes voice recognition for hands-free dialing, group and individual push-to-talk (PTT), text messaging, email, contacts, calendar, tasks and many other built-in tools to help you manage your busy work style. The EWP can also access server based enterprise applications, a standard mobile Internet browser, and has the ability to pair with Bluetooth ® headsets and other Bluetooth devices such as personal computers.The EWP is available in three models; the semi-rugged EWP2000 and EWP3000 series and the professional EWP1000 series. All models have identical functional and operational features and differ in ruggedness and outward appearance. The EWP3000 series incudes a camera. For detailed information on the EWP features, refer to the EWP1000/2000/3000 Series User’s Guide P/N 6802987C36, at: www.motorola.com/enterprisemobility/manuals . BEFORE USING THIS smartphone, READ the Product Regulatory, Safety & RF Exposure Guide (P/N 6802987C35) included with this smartphone. 2 English EWP1000 Anatomy1. Speaker key a 2. Volume up/down3. PTT button4. Programmable key5. Rapid Travel Charger jack/USB cable port6. Earpiece7. Navigation key S 8. Select key s 9. Left soft key10. Home key11. Call/Answer key N 12. Lower microphone13. Speakerphone14. Upper microphone15. Right soft key16. Back key17. Power/End key O 18. Lanyard point19. Headset Jack (supports PTT) 1 13 2345 14 10 7 89 15 16 17 11 6 12 19 18 English 3 EWP2000 Anatomy 1. Speaker key a 2. Holster latches3. Volume up/down4. PTT button5. Programmable key6. Rapid Travel Charger jack/USB cable port7. Desktop Charger Contacts8. Earpiece/Upper Microphone9. Navigation key S 10. Select key s 11. Left soft key12. Home key13. Call/Answer key N 14. Speakerphone/Lower Microphone15. Right soft key16. Back key17. Power/End key O 18. Lanyard point19. Headset Jack (supports PTT) 1 8 14 15 34567 1617 19 7 18 2 9 1110 1213 4 English EWP3000 Anatomy1. Speaker key a 2. Holster latches3. Volume up/down4. PTT button5. Scan key6. Rapid Travel Charger jack/USB cable port 7. Desktop Charger Contacts 8. Earpiece/Upper Microphone 9. Navigation key S 10. Select key s 11. Left soft key12. Home key13. Call/Answer key N 14. Speakerphone/Lower Microphone 15. Right soft key16. Back key 1 8 14 15 34567 1617 19 7 18 2 9 1110 1213 17. Power/End key O 18. Lanyard point19. Headset Jack (supports PTT) 20. Camera Lens (EWP 3100 only) 21. Camera Aimer (EWP 3100 only) 22. Camera Flash (EWP 3100 only) 21 22 20 QRC-English-3100.fm Page 4 Monday, March 8, 2010 2:03 PM English 5 Getting Started Battery Installation Charge the battery Battery status indications:Rapid travel charger1. Plug the Rapid Travel Charger into the smartphone’s USB port and plug into a standard 110/220 VAC wall outlet. 2. When charging is completed, remove the charger from the wall outlet. Using a PC to charge 1. Plug the USB cable into the smartphone and the PC. 2. When charging is completed, remove the cable from the computer USB port. 1342 EWP 2000/2100/3100 only N Low battery L Battery level O Charging in progress ^ Charging completed a R 6 English BasicsPower onPress and hold O for 1-2 seconds. Allow a few seconds for Home screen to appear.Power offPress and hold O for 1-2 seconds. First time network connectionPress: Start > Settings > Connections > Wireless manager > Menu > Wifi Settings. Enter password and press Go to access. Enter your network name, encryption method (AES), authentication method (EAP-TLS) and press Save . Wait until “ Full Service ” shows on the screen. View your smartphone numberPress: Start > Settings > Phone > Call Options . Home screenUse the Navigation key S to scroll and move between the screen items. Press the Select key s to access. Open programsFrom the Home screen, press: Start to access recently used programs. Use the Navigation key S to scroll and press the Select key s to open. To see all programs, press: Start > All Programs . Contacts (phonebook)From the Home screen, press: Contacts to access a contact registry. Use the Navigation key S to scroll, press the Select key s to open and press N to call. To add a new contact, press: Contacts > New > Outlook Contact . Important status indicatorsOn the top of the Home screen, you may find the following status indicators: 0 Full wireless service w New Voicemail 5 No wireless service Q Silent mode 6 Wireless is turned off < Vibrate mode A New email/text message h Bluetooth on English 7 Basics Phone Screen Time outYour screen turns off to save battery power. To set the screen time out, press: Start > Settings > More > Power Management > Display time out . Lock & unlock keypadTo lock, press and hold X for a second. Press Lock . To unlock, press: Unlock > * . Make a callEnter phone number and press N . Answer/End a callPress: N to answer a call. Press: O to end a call. Make a PTT callEnter PTT number. Press and hold the PTT button. Begin talking after hearing a chirping sound. Release PTT to listen. RedialPress: N to see last calls and Contacts. Highlight entry and press N or PTT. Request PTT callRequest PTT call let the recipient know you want to talk on a PTT call. Enter phone number. Select: Start > Cont…

Text truncated - open the document above for the full version.

6802983C1 6 -A @6802983C16@ Ab Mobile Office VoWLAN Single Mode Smartphone Product Safet y and RF Exposure for VoWLAN Smartphone. BEFORE USING T H IS VoWLAN SMARTPHONE, READ THIS BOOKLET WHICH CONTAINS IMPO RT AN T OPER ATI N G I N ST R U C TIO N S F O R SAFE US AG E AN D RF ENERG Y AW ARE NESS AN D CO NTR O L IN FO RM ATIO N AN D OPERA T IONA L IN STRUCTION S FOR CO MPLI AN CE WIT H R F ENERGY EX POSURE LIMITS IN APPLICABLE NATIONAL AND INTER NATI O N A L ST AN DA R D S. ALS O RE AD TH E OPERA T IONA L IN STRUCTION S FOR SA FE US AGE. RF Energy Exposur e This Vo WLAN Sma r tpho ne is intended fo r use in gener a l p o pul ati o n/unc on tr olled en viron ment. This VoWL AN Sm artphone uses electrom a gnetic e n ergy i n t h e ra di o fre que ncy (R F) s p ect r u m t o pr o v i d e com m uni cat i ons bet w ee n t w o or m o re use r s o v er a di st ance. It use s ra di o fre q u en cy (R F) ene r gy o r ra di o wave s to send and recei ve cal ls. RF e n ergy i s one form of el ect rom a gnet i c ene r gy . Ot he r f o rm s i n cl ude , b u t a r e not l i m i t e d t o , s u nl i ght a n d x -ray s . R F e n er gy , h o we ve r, sho u l d not be c o n f used wi t h t h ese ot he r fo r m s of el ect rom a gnet i c ene r gy , w h i c h whe n use d i m properl y , ca n cause bi ol ogi c a l dam a ge. Ve r y hi g h l e vel s o f x- ray s , fo r exam ple, can da m a ge tissues and ge netic m a terial. Experts i n sci e nce , e n g i neeri n g, m e dici ne, heal t h , an d i n d u st ry wo rk wi t h or ga ni zat i ons t o de vel o p st a nda rd s f o r safe exp o s u re t o R F ene r gy . The s e st anda rd s pr ovi de recom m ended l e vel s o f R F ex pos u r e fo r bot h w o r k ers a n d t h e ge ne ral p u b l i c . T h ese rec o m m e nded R F ex po su re lev e ls in clud e su bstan tial m a r g in s of p r o t ectio n. All Mo toro la rad i o produ cts a r e designed, manufactured, and tested t o e n sure t h ey m e e t gove rnm e nt-e stablished RF exp o s u re l e vel s . I n a d di t i on, m a nufact ure r s al so recomm end specific operating instru ction s to u s ers of pr o duct s wi t h r a di os . These i n st r u ct i ons are i m port a nt beca use t h e y i n f o rm users abo u t R F ene r gy ex p o s u re a n d pr o v i d e si m p l e pr oce d u r es o n how to con t ro l it. Please re fer t o the f o llo win g websites f o r m o re inf o rm ation on w h at R F en ergy e x pos u r e i s an d ho w t o c ont rol y o u r ex po su re to assu re co m p lian ce with estab lished RF ex po su re li m its : http://www.fcc .gov/ oet/rfsa f et y/rf-fa qs .htm l h ttp ://www.o sh a.g o v / SLTC/rad iofreq u e n c yrad iatio n / i nde x. ht m l Compliance with RF Exposure Standards Yo ur M o t o r o l a V o WLA N Sm art p ho ne i s des i gne d a n d tested to co m p ly with a nu m b er o f n a tion a l an d In tern ation a l st an d a rd s an d guid e lin es (listed b e low) fo r hum an ex p o s u r e t o radi o f r e q u e ncy el ect rom a gnet i c energy. This Vo WLAN Sma r tpho ne co mplies with the IEEE (FCC) and ICNIRP ex po sure limits fo r g e nera l po pula ti o n /unco n tro lled enviro nments. Your M o torola VoWLAN Smartphone complies with the following RF energy exposure standards and guidelines: • Uni t e d St at es Fede ral C o m m uni cat i ons C o m m i ssi on, C ode o f Fe de r a l R e gul at i o ns; 4 7 C F R pa rt 2 su b- pa rt J • Am erican Natio n a l Stand a rds In stitu te (ANSI) / In stitu te of Electrical and El ect r oni c E ngi neers ( I EEE ) C 9 5. 1 - 19 9 2 • In stitu te o f El ectrical an d El ectron i c En g i neers (IEEE) C9 5.1- 199 9 Editio n • In stitu te o f El ectrical an d El ectron i c En g i neers (IEEE) C9 5.1- 200 5 Editio n • Int e r n at i o nal C o m m i ssi on o n No n- I o ni zi n g R a di at i on Protectio n (IC NIRP ) 19 9 8 • M i ni st ry of H eal t h (C an ada ) Safet y C o de 6. Li m i t s of Hum a n E x p o s u re t o R a di o fr eque ncy El ect r o m a gnet i c Fi el ds i n t h e Fr eque ncy R a nge fr om 3 k H z t o 30 0 G H z, 1 999 • Aust ral i a n C o m m uni cat i ons A u t h ori t y R a di oc om m uni cat i ons ( E l ect r o m a gnet i c R a d i at i on – Hum a n E x p o s u re ) St a nda r d , 20 0 3 • AN ATE L A NNE X t o Res o lution N o . 3 0 3 of July 2, 2 0 0 2 "Reg u l ation o f li mitatio n o f ex po su re to electrical, m a gnet i c an d e l ect rom a gnet i c fi el ds i n t h e ra di o fre q u ency range betwee n 9 KHz and 300 GHz" a n d "At t achm e nt to r e so l u tio n # 303 f r o m Ju ly 2 , 2 002 " RF E x pos u re O p er ating I n st ructions To con t ro l y o ur ex po su re and en su re co m p lian ce with th e gene ral po p u l a t i on/ u n co nt r o l l e d e nvi ro nm ent exp o s u re li mits, always ad h e re t o th e fo llo wi n g pro c ed ures: Operating Instructions • W h en wo rn on th e bod y, al w a ys p l ace th e V o W L A N Sm artp h o n e in a Mo toro la-app rov e d clip , hold e r, ho lster, case, or b ody h a rnes s f o r t h i s pr o duct . Usi n g ap pr o v ed bo dy - w o r n acc essori es i s i m port a nt beca use t h e u s e of non-Motorola-approve d acces sori es m a y result in e x pos u re levels, whic h e x ceed the IEE E /ICNIR P general po p u l a t i on/ unc ont rol l e d en vi r onm ent R F e x pos u r e l i m i t s . • If y o u are not usi n g a body -worn access o ry and are not usi n g t h e Vo W L AN Sm art p h one i n t h e i n t e nde d use p o s ition , alon g sid e t h e h ead in th e pho n e mo d e , in fron t o f your face in t h e ha nd hel d m ode, t h en ensure the Vo WL AN Sm art p ho ne i s ke p t 2. 5 cm (o ne i n ch ) fr om t h e bo dy whe n t r a n sm i t t i ng. Kee p i n g t h e V o W L AN Sm artphone at a proper dist a n ce i s i m port a nt beca use R F expos u re s decrease with incr e a si ng di st anc e fr om t h e Vo WL AN Sm artp ho ne. Phone M o de - Ope r ating Ins t ructions • W h e n placing or receivi ng a phone call, hold t h e product as you wou…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7038 Exhibit 2 Exhibit 2: Statement of Certification — Pursuant to 47 CFR 2.907 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: B.Sc in Electrical Engineering, TECHNION, HAIFA, ISRAEL 22 years experience in RF design and measurement techniques NAME: Eli Basri SIGNATURE: /s/ Eli Basri (signed) DATE: 20 Jan 2010 POSITION: Senior RF Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Gadi Shirazi SIGNATURE: /s/ Gadi Shirazi (signed) DATE: 20 Jan 2010 POSITION: Senior HW Development Manager

8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA FCC ID: AZ489FT7038 Date: 18 th March 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of the Transmitter with FCC ID: AZ489FT7038 VoWLAN Zebra Model: EWP3100 Dear Sir or Madam: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits its application for Certification of the subject transmitter. Please find the attached application for Certification of the VoWLAN: Voice over Wireless LAN semi- rugged Smartphone, which contains Bluetooth and WLAN 802.11a/b/g transmitters, operating with a maximum transmit power from 2.51 to 79.3 mW for the various frequency ranges. QualitiTech Laboratories performed the product testing, which is listed by the FCC under Registration Numbers 102724 and IC 46405-4808. Also, the A2LA Certification number is 1633.01. A complete Certification application is enclosed; contact Mike Ramnath at (954) 723-5793, if you require any additional information Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13a

8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA Date: 18 th March 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitters with FCC ID: AZ489FT7038, EWP3100 Dear Sir: Motorola is requesting that Exhibit 4 (Block Diagram), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Active Components List), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

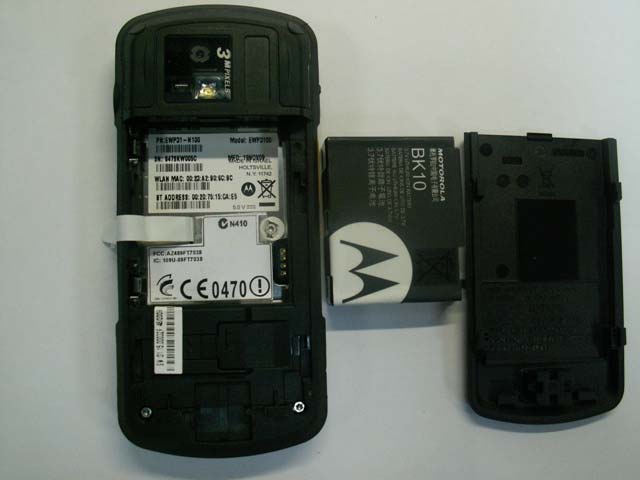

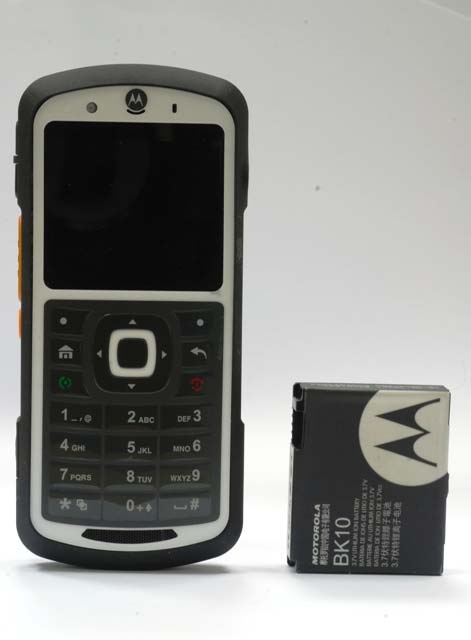

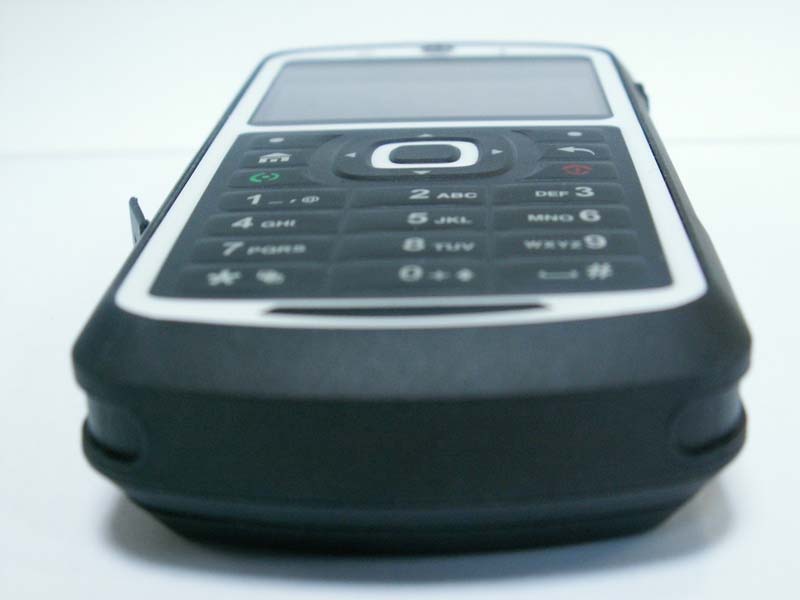

APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 1 of 7 Exhibit 3 External Photographs of the EWP3100 This document contains 8 photographes APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 2 of 7 Photograph No. 1 - EWP3100 Front View APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 3 of 7 Photograph No. 2 - EWP3100 Rear View APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 4 of 7 Photograph No. 3 - EWP3100 Rear View without cover APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 5 of 7 Photograph No. 4 - EWP3100 Rear View with the battery removed APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 6 of 7 Photograph No. 5 - EWP3100 Side View showing buttons side Photograph No. 6 - EWP3100 Side View showing audio jack side APPLICANT: MOTOROLA, INC FCC ID: AZ489FT7038 Exhibit 3 Page 7 of 7 Photograph No. 7 - EWP3100 Top View Photograph No. 8 - EWP3100 Bottom View Applicant: Motorola, Inc. FCC ID: AZ489FT7038 Exhibit 1 Label Location: Back side of the radio under battery

Applicant: Motorola, Inc. FCC ID: AZ489FT7038 Exhibit 1 EXHIBIT 1: FCC IDENTIFICATION LABEL Required Under Section: 47 CFR 2.1033(b)(7), 2.1033(c) 11 FCC ID: AZ489FT7038 Identifier label for the model: EWP3100. Please note that Motorola complies with FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase. Applicant: Motorola, Inc. FCC ID: AZ489FT7038 Exhibit 1 EXHIBIT 1A: General Information --- 47 CFR 2.1031 1A.1. Production Plans -- Pursuant 47 CFR 2.1031 Quantity production is planned. 1A.2. Application References: Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1A.4. Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with Part 2, Subpart J and Part 15, subpart C of the Commissions’ rules and will be submitted electronically. 1A.5. Application References: Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" The product testing was performed by QualiTech Laboratories, which is Located at; 30 Hasivim St, Petah-Tikva, 49517, Israel QualiTech Lab. is listed by the - FCC under Registration Numbers 102724 - IC 46405-4808. - A2LA Certification number 1633.01.

Motorola, Inc FCC ID:AZ489FT7038 Page 1 of 4 Internal Photographs of the EWP3100 This document contains 5 photographs Motorola, Inc FCC ID:AZ489FT7038 Page 2 of 4 Photograph No. 1 - EWP3100 - Top Side with Shields Photograph No. 2 - EWP3100 – Bottom Side with Shields Motorola, Inc FCC ID:AZ489FT7038 Page 3 of 4 Photograph No. 3 - EWP3100 – Top Side no Shields Photograph No. 4 - EWP3100 – Bottom Side no Shields Motorola, Inc FCC ID:AZ489FT7038 Page 4 of 4 Photograph No. 7 - EWP3100 Antennas View

FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 82 TESTING CERT # 2518.01 FCC ID: AZ489FT7038 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 3 Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 3/05/10 Report Revision: O Report ID: SAR rpt_EWP3100_Rev O_100305_SR7854 DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) Max. Calc. : 1-g Avg. SAR: 0.31 W/kg (Body); 10-g Avg. SAR: 0.14 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 0.09 W/kg (Face); 10-g Avg. SAR: 0.05 W/kg (Face) Max. Calc. : 1-g Avg. SAR: 1.00 W/kg (Head); 10-g Avg. SAR: 0.38 W/kg (Head) The test results clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams results are not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2 W/kg averaged over 10 grams of contiguous tissue. Responsible Engineer: Michael Sailsman (Sr. Staff EME Engineer) Report Author: Michael Sailsman (Sr. Staff EME Engineer) Date/s Tested: 1/14/10-1/16/10, 1/21/10-1/27/10, 2/4/10-2/17/10 & 2/24/10 Manufacturer/Location: Motorola Israel South Sector/Group/Div.: EMS Date submitted for test: 12/7/09 DUT Description: VoWLAN is a VoIP phone based on WLAN a/b/g. It also includes a Bluetooth - transceiver. (including camera) Test TX mode(s): 50% (802.11a/b/g); 95% (BT) Max. Power output: BT(2.51mW); 802.11b (79.3mW); 802.11g (70.8mW); 802.11a mid and upper band (79.3mW); 802.11a low band (39.8mW) Nominal Power: BT(1.0mW); 802.11b (63.0mW); 802.11g (17.8mW); 802.11a mid and upper band (56.2mW); 802.11a low band (28.2mW) Tx Frequency Bands: BT: 2402-2480MHz; WLAN: b/g: 2412-2462MHz, a: 5.18-5.24 GHz; 5.26-5.32 GHz; 5.50 -5.70 GHz and 5.745-5.805 GHz Signaling type: BT(GFSK/FHSS), 802.11a/b/g (DSSS/OFDM) Model(s) Tested: EWP3100 Model(s) Certified: EWP3100 Serial Number(s): 847SKW002L, 847SKW002N Classification: General Population/Uncontrolled Environment Rule Part(s): 15 Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 3/8/10 Certification Date: 3/8/10 Certification No.: L1100247P FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 2 of 82 APPENDIX B Probe Calibration Certificates FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 3 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 4 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 5 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 6 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 7 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 8 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 9 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 10 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 11 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 12 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 13 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 14 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 15 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 16 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 17 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 18 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 19 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 20 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 21 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 22 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 23 of 82 APPENDIX C Dipole Calibration Certificates FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 24 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 25 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 26 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 27 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 28 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 29 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 30 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 31 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 32 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 33 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 34 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 35 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 36 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 37 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 38 of 82 FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 1…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 41 TESTING CERT # 2518.01 FCC ID: AZ489FT7038 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 3 Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322. Date of Report: 3/05/10 Report Revision: O Report ID: SAR rpt_EWP3100_Rev O_100305_SR7854 DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) Max. Calc. : 1-g Avg. SAR: 0.31 W/kg (Body); 10-g Avg. SAR: 0.14 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 0.09 W/kg (Face); 10-g Avg. SAR: 0.05 W/kg (Face) Max. Calc. : 1-g Avg. SAR: 1.00 W/kg (Head); 10-g Avg. SAR: 0.38 W/kg (Head) The test results clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 W/kg averaged over 1 gram per the requirements of 47 CFR 2.1093(d). The 10 grams results are not applicable to FCC filing. The test results clearly demonstrate compliance with ICNIRP (1998) Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics 74, 494-522 RF Exposure limits of 2 W/kg averaged over 10 grams of contiguous tissue. Responsible Engineer: Michael Sailsman (Sr. Staff EME Engineer) Report Author: Michael Sailsman (Sr. Staff EME Engineer) Date/s Tested: 1/14/10-1/16/10, 1/21/10-1/27/10, 2/4/10-2/17/10 & 2/24/10 Manufacturer/Location: Motorola Israel South Sector/Group/Div.: EMS Date submitted for test: 12/7/09 DUT Description: VoWLAN is a VoIP phone based on WLAN a/b/g. It also includes a Bluetooth - transceiver. (including camera) Test TX mode(s): 50% (802.11a/b/g); 95% (BT) Max. Power output: BT(2.51mW); 802.11b (79.3mW); 802.11g (70.8mW); 802.11a mid and upper band (79.3mW); 802.11a low band (39.8mW) Nominal Power: BT(1.0mW); 802.11b (63.0mW); 802.11g (17.8mW); 802.11a mid and upper band (56.2mW); 802.11a low band (28.2mW) Tx Frequency Bands: BT: 2402-2480MHz; WLAN: b/g: 2412-2462MHz, a: 5.18-5.24 GHz; 5.26-5.32 GHz; 5.50 -5.70 GHz and 5.745-5.805 GHz Signaling type: BT(GFSK/FHSS), 802.11a/b/g (DSSS/OFDM) Model(s) Tested: EWP3100 Model(s) Certified: EWP3100 Serial Number(s): 847SKW002L, 847SKW002N Classification: General Population/Uncontrolled Environment Rule Part(s): 15 Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-150 December 2004. The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director Approval Date: 3/8/10 Certification Date: 3/8/10 Certification No.: L1100247P FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 2 of 41 Part 1 of 3 1.0 Introduction.........................................................................................4 2.0 Abbreviations / Definitions.................................................................4 3.0 Referenced Standards and Guidelines ................................................4 4.0 SAR Limits .........................................................................................5 5.0 SAR Result Scaling Methodology ......................................................5 6.0 Description of Device Under Test (DUT) ..........................................6 7.0 Optional Accessories and Test Criteria ..............................................6 7.1 Antennas ....................................................................................6 7.2 Batteries .....................................................................................7 7.3 Body worn Accessories .............................................................7 7.4 Audio Accessories .....................................................................8 8.0 Description of Test System.................................................................8 8.1 Description of Robotics/Probes/Readout Electronics................8 8.2 Description of Phantom(s) .........................................................8 8.2.1 Dual Flat Phantom .........................................................8 8.2.2 SAM Phantom................................................................9 8.2.3 Elliptical Phantom..........................................................9 8.3 Description of Simulated Tissue ................................................9 9.0 Additional Test Equipment ...............................................................10 10.0 SAR Measurement System Verification ...........................................11 10.1 Equivalent Tissue Test Results ................................................11 10.2 System Check Test Results ......................................................13 11.0 Environmental Test Conditions ........................................................14 12.0 DUT Test Methodology ....................................................................14 12.1 Measurements ..........................................................................14 12.2 DUT Configuration(s)..............................................................14 12.3 Device Positioning Procedures ................................................14 12.3.1 Body .............................................................................14 12.3.2 Head .............................................................................15 12.3.3 Face ..............................................................................15 12.4 …

Text truncated - open the document above for the full version.

FCC ID: AZ489FT7038 SR7854 EMS EME Form-SAR-Rpt-Rev. 10.00 Page 1 of 3…
