English RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. *NNTN7223G* NNTN7223G MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2007 – 2013 Motorola Solutions, Inc. All rights reserved. ATTENTION! *6881095C98* 6881095C98-K 6881095C98-K_SafetyP.book Page 1 Tuesday, September 3, 2013 3:56 PM 2 English RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C98-K_SafetyP.book Page 2 Tuesday, September 3, 2013 3:56 PM 3 English Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.fcc.gov/oet/rfsafety/rf-faqs.html www.who.int/en/ www.motorolasolutions.com/rfhealth Federal Communication Commission (FCC) Regulations When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Motorola two-way radio has a RF Exposure Product Label. Also, your Motorola user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standards Your Motorola two-way radio is designed and tested to comply with a number of national and International standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk-50% listen and is approved for occupational use only. In terms of measuring RF energy for compliance with these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C98-K_SafetyP.book Page 3 Tuesday, September 3, 2013 3:56 PM 4 English NOTE:The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk-5% listen-90% standby) even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50% talk. Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. & FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 & Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions for Two-Way Radio Operations To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures. • DO NOT remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. 6881095C98-K_SafetyP.book Page 4 Tuesday, September 3, 2013 3:56 PM 5 English Two-Way Radio Operation • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. The PTT button may reside on the radio itself or may be hosted on approved wired or wireless (for example, a Bluetooth enabled remote Push-to-Talk button) accessories. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • In front…

Text truncated - open the document above for the full version.

APX 7000/APX 7000L User Guide Dual Display 6875945M01-M English mASTRO ® APX™ 7000/APX 7000L Series Digital Portable RadiosQuick Reference Card RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios ATTENTION! This radio is restricted to Occupational use only. Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. Radio Controls Radio On/OffZones and Channels Receiving and TransmittingSending an Emergency Alarm * Default emergency button press timer is set to 1 second. This timer is programmable, see page 68 in the user guide for details.To exit emergency at any time, press and hold the Emergency button. Secondary Speaker Top (Orange) Button__________ 2-Position Concentric Switch__________ Main Display Keypad Menu Select Buttons 3-Position A/B/C Switch __________ 4-Way Navigation Button Accessory Connector Home Button Microphone Data Feature Button • On – On/Off/Volume knob clockwise. • Off – On/Off/Volume knob counterclockwise. • Zone – Zone switch to desired zone. • Channel – Channel switch to desired channel. Battery Side Button 1__________Side Button 2__________ PTT Button On/Off/Volume Control Knob 16-Position Select Knob __________ Top Side (Select) Button__________ Main Speaker Top Display Antenna Bluetooth Pairing Indicator 1 Select zone/channel. 2 Listen for a transmission.ORPress and hold Volume Set button. ORPress Monitor button and listen for activity. 3 Adjust volume, if necessary. 4 Press the PTT button to transmit; release to receive. 1 Press and hold the Emergency button*. 2 The display shows Emergency and the current zone/channel. Radio sounds a short, medium-pitched tone, and the LED blinks red momentarily. 3 When acknowledgment is received, you hear four beeps; alarm ends; and radio exits emergency. *68007024034* 68007024034-G MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdin gs, LLC and are used under license. All other trademarks are the property of their respective owners. © 2009–20142014 by Motorola Solutions, Inc. All Rights Reserved. 05/14 1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A. English Sending an Emergency Call To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Call To exit emergency at any time, press and hold the Emergency button. Display Status Icons 1 Press the Emergency button. 2 Press and hold the PTT button. Speak clearly into the microphone. 3 Release the PTT button to end call. 4 Press and hold Emergency button to exit emergency. 1 Press the Emergency button. 2 The display does not change; the LED does not light up, and there is no tone. 3 Silent emergency continues until you:Press and hold the Emergency button to exit emergency state.ORPress and release the PTT button to exit the Silent Emergency Alarm mode and enter regular dispatch or Emergency Call mode. Receiving a call or data.Transmitting a call or data. u t Blinks when the battery is low.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio to radio communication or connected through a repeater.On = Direct Off = Repeater This channel is being monitored.L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority-Two Channel during scan. The vote scan feature is enabled. 8 v O M H OR . i j k On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On steady = View mode Blinking = Program mode On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = feature enabled, and signal available. Off = feature disabled. Blinking = feature enabled, but signal unavailable. On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin. Data activity is present.Bluetooth is ready.Bluetooth is connected to the device. m l G no b a Menu Navigation < or > to Menu Entry. { , | , or } directly below Menu Entry to select. H to exit. U or D to scroll through sub-list. { , | , or } directly below Menu Entry to select. Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: 1303, East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: APX 7000/APX 7000L conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity English ii Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particul…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions FCC ID: AZ489FT7059 IC: 109U-89FT7059 Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BSEE Clemson University MBA University of Florida 2) 14 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Spencer Farland SIGNATURE: (signed) DATE: 7 July 2014 POSITION: Electrical Engineering Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Carlos Camps SIGNATURE: (signed) DATE: 7 July 2014 POSITION: Senior Engineering Manager EXHIBIT 2

FCC ID: AZ489FT7059 Motorola Solutions Inc. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: July 3, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT7059 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for certification of the subject transmitter. This transmitter is intended for use in a Portable Radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: Trade Name Frequency Rated Power FCC Rule Parts APX7000 LTE 136-174 MHz 1.0 – 6.0 W 90, 80, 74D, 22 764-776 MHz, 794-806 MHz 1 - 2.65 W 90 806-824 MHz, 851-869 MHz 1 -3.0 W 90 788-798 MHz 0.2 W 90 777-787 MHz 0.2 W 27 2402-2480 MHz 12 mW 15C We are requesting certification under Part(s) of the Commission’s Rules listed above to allow operation of this equipment. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Motorola Solutions Inc. Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ489FT7059 Motorola Solutions Inc. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: July 3, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AZ489FT7059 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Exhibit 4 Block diagrams and Circuit Description Exhibit 5 Schematic Diagrams Exhibit 10 Parts List and Tune Up Procedures Exhibit 12 Operational Description Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Motorola Solutions Inc. Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ489FT7059 Motorola Solutions Inc. Exhibit 13c 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: July 8, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: AZ489FT7059 Dear Sir or Madam: This transmitter was design to operate in the following frequency ranges: To aid equipment authorization in other countries that accept the United States FCC Grant for Certification, Motorola (Motorola Solutions Inc) is requesting that the FCC list the above frequency/frequencies under FCC Rule Parts 90, 80, 74D, 27, 22 on the Grant. For the FCC’s Rule Parts 90, 80, 74D, 27 and 22 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB-634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Part 80 Part 74D Part 22 Part 27 Federal Emission Designator 138-150.8* x 8K10F1D/F1E/F1W, 11K0F3E, 16K0F3E, 20K0F1E 150.8-152.855 x x 152.855-156.2475 x x x 156.2475-157.1875 x 157.1875-157.45 x x 157.45-161.625 x x x x 161.625-161.775 x x 161.775-161.9625 x x 161.9625-162.0375 x 162.0375-173.4 x x 173.4-174* 769-775 x 799-805 x 806-824 x 851-869 x 777-787 x 4M51G7D, 4M50W7D, 8M97G7D, 9M00W7D 788-798 x 4M54G7D, 4M53W7D, 8M94G7D, 8M95W7D *Canada Please contact me if you require any additional information. Sincerely, Kim Uong Regulatory Compliance Engineer Motorola Solutions Inc. Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ489FT7059 Motorola Solutions Inc. Page 1 of 3 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: October 7, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Att: Tim Harrington Subject: Response to Audit Correspondence number 182615 for transmitter with FCC ID AZ489FT7059 (Form 731 Confirmation Number TC579491) Dear Mr. Harrington, The followings are our responses for the subject correspondent: 1) For FCC equipment records, especially for filings where RF exposure compliance is addressed using SAR measurements, it is requested that internal photos exhibits show component placements with/within chassis assembly, i.e., also showing enclosure/housing. From 2.1033(c)(12), “chassis assembly” and "internal construction" generally means "exploded" view internal photos including all (major) parts and pieces of the final product; it is requested to also show antenna connections / cables / tracks and metal structures proximate to those. Response: Enclose is the addendum to Exhibit 9 (Exhibit 9A) to include the photos of the back side and front side of the chassis. 2) Form 731 lists rule parts 22, 74, 80; however unless we missed it we did not see the required compliance information and test data for 22, 74, 80 service rules. 2.915(a)(1) permits grant of an equipment application that demonstrates compliance of the equipment with the pertinent technical standards of the radio service rule(s) governing its operations. 2.911(b) requires equipment authorization applications to contain compliance information and test data per the radio service rules governing operation of the equipment, in addition to containing compliance information and test data per 2.1033. Please OMIT 22, 74, 80 from Form 731; alternatively please amend filing to provide compliance information and test data and with listing the associated EXPLICIT rule section and paragraph numbers for the intended and qualified 22, 74, 80 licensed station equipment operations. Response: The emission data for 22, 74, and 80 service rules are indicated in the Exhibit 6 LMR Test report that is currently on filed with FCC: - Part 22: page 30 and 31 - Part 74: page 27. However, there is a typo in the label, the plot should be labeled as “Rule part 74” instead of “Rule part 80” - Part 80: page 7 The Exhibit 6 -LMR test report has been revised to correct the label for rule part 74 data plot. Please note that the pages referenced above have changed since the revised test report is now including the cover page. FCC ID: AZ489FT7059 Motorola Solutions Inc. Page 2 of 3 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 3) Form 731 part 90 listings include 775-776/805-806 MHz. Per 90.20(c)(3), 90.521, 90.531 first paragraph, etc., routine licensing and governing technical standards for Public Safety operations are not defined for 775-776/805-806 MHz. Actually that is CMRS Part 27 Upper 700 MHz Band B Block, not allocated nor licensable for part 90; therefore not qualified for part 90 equipment authorization. Please omit 775-776/805-806 MHz part 90 from this Form 731 [KDB pubs. 634817, 149672; 2.962(f)(1)]. Response: The TCB (TUV SUV BABT) has revised the 731 form to include the applicable frequency ranges for Rule part 90 for the 700 MHz band (769-775MHz, 799-805MHz). 4) Form 731 part 90 listings include 764-775/794-805 MHz. Service rule technical standards governing U.S. non-Federal (FCC) Upper 700 MHz Band Public Safety Narrowband operations and associated transmitting equipment include sections: 90.20(c)(3), 90.20(d)(77), 90.175(e), 90.203(m), 90.203(n), 90.205(j), 90.521, 90.523 first paragraph, 90.525, 90.531 first paragraph, 90.531(b), 90.531(b)(1), 90.531(b)(3) to 90.531(b)(7), 90.531(d), 90.531(e), 90.535, 90.537, 90.539(a) to 90.539(c), 90.541, 90.543(a) to 90.543(d), 90.545, 90.547, 90.548 [amended July 10, 2014], 90.553, 90.557(d), 90.559. Per 90.20(c)(3), 90.521, 90.531 first paragraph, etc., routine licensing and governing technical standards for Public Safety Narrowband operations are not presently specified for 764-769 MHz [i.e., FirstNet spectrum; FCC-13-137, DA-12-1462, etc.]. Therefore 764-769/794-799 MHz (or 758-769/788-799 MHz) should not be listed on a Form 731 for Part 90 Public Safety Narrowband equipment (or such emissions/modes) absent specific justification in the filing [see KDB pub. 634817; TCB provision 2.962(c)(5) along with Jan. 2014 FCC-TCB conference notes; TCB provision 2.962(f)(1)]. Where listing of narrowband operations in 763-769/793-799 MHz qualifies and is supported by appropriate information in the filing, please use grant remark: "This filing includes compliance information and test data for incumbent public safety narrowband operations in Public Safety Broadband (FirstNet) spectrum." Consistent with KDB pub. 634817, in this case also at minimum test data must be provided for channels within the Public Safety Narrowband spectrum (769-775 MHz). Response: - The TCB (TUV SUV BABT) has revised the 731 form to include the applicable frequency ranges for Rule part 90 for the 700 MHz band (769-775MHz, 799-805MHz) and LTE band 14 (788-798MHz). - The Exhibit 6 LMR test report has been revised to include Adjacent Channel Coupled Power Ratio for the 769-775MHz band. 5a) We note this filing indicates an associated KDB inquiry number (Note: KDB inquiry tracking numbers are not publicly disclosed, per KDB pubs 388624, 726920). That KDB inquiry contained in essence statement of applicant's intent to address SAR compliance under the 2.1093(d)(1) occupational / controlled limits, notwithstanding the KDB pub 447498 D01 v05r02 item 3. 5) provision: "Occupational exposure limits do not apply to consumer devices and radio services supporting public networks and Part 15 unlicensed operations." Per consultation with OET Laboratory Division staff, this correspondence affirms that o…

Text truncated - open the document above for the full version.

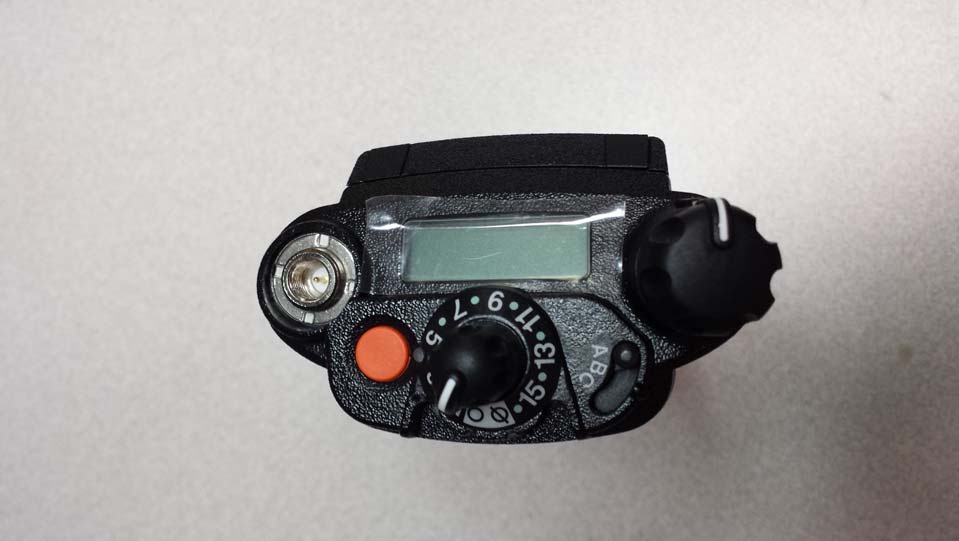

Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT #3 EXTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. Front view with battery. 3A 2. Back view 3B 3. Front view (FCC label location). 3C 4. Side view (Right). 3D 5. Side view (Left). 3E 6. Top view (Controls). 3F Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 3 Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 FRONT VIEW WITH BATTERY EXHIBIT 3A Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 BACK VIEW WITH BATTERY MODEL 3.5 BACK VIEW WITH BATTERY MODEL 1.5 EXHIBIT 3B Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 FRONT VIEW (FCC LABELS) EXHIBIT 3C Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 SIDE VIEW (RIGHT) EXHIBIT 3D Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 SIDE VIEW (LEFT) EXHIBIT 3E Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 TOP VIEW EXHIBIT 3F

Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT #1 IDENTIFICATION LABEL LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3C for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. IC Model: NUR1065A for Model 3.5 IC Model: NUR1066A for Model 1.5 EXHIBIT 1 Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 GENERAL INFORMATION I. Production Plans -- Pursuant 2.907 (b) Quantity production is planned only after approval. The data taken for the device is identical to the production vintage. II. Application References Reference is made to the following Motorola "Application References". The device is pursuant to 2.1033. 1. Portable Products and their application. 2. Portable Products Transmitter Modulations Methods. 3. Motorola EMC Laboratory-Plantation, Florida III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. IV. Applicable References:  Reference Certification FCC ID: AZ489FT7059, IC: 109U-89FT7059  EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards  FCC Federal Regulation 47CFR Part 2.1033-2.1055, 90, 90.210, 80, 27, 22 and 15C  IC standards RSS-119 Issue 11 (Jun 2011), RSS-130 Issue 1 (Oct 2013), and RSS-210 Issue 8 (Dec 2010), RSS-182 Issue 5 (Jan 2012) EXHIBIT 1A

Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT #9 INTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Vocon board with Shields (Top). 9E 6. Vocon board without Shields (Top). 9F 7. Vocon board with Shields (Bottom). 9G 8. Vocon board without Shields (Bottom). 9H 9. LTE Module board with Shields (Top). 9I 10. LTE Module board without Shields (Top). 9J 11. LTE Module board with Shields (Bottom). 9K 12. LTE Module board without Shields (Bottom). 9L Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9 Top Side RF board with Shields Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9A Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 Top Side RF board without Shields EXHIBIT 9B Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 Bottom Side RF board with Shields EXHIBIT 9C Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 Bottom Side RF board without Shields EXHIBIT 9D Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 Top Side Vocon board with Shields Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9E Top Side Vocon board without Shields Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9F Bottom Side Vocon board with shields board Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9G Bottom Side Vocon board without shields board Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9H LTE Module board with shields board (Top) Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 EXHIBIT 9I LTE Module Board without shields (Top) EXHIBIT 9J Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 LTE Module Board with shields (Bottom) EXHIBIT 9K Applicant: Motorola Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 LTE Module Board without shields (Bottom) EXHIBIT 9L

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7059 IC: 109U-89FT7059 Test Performed by Motorola Plantation EMC and ATE P25 Compliance Labs Exhibit 6 page 1 8000 West Sunrise Blvd Fort Lauderdale, FL 33322 Exhibit 6 Test Report FCC: Pursuant 2.1033 (c), 90, 80, 74, 22 IC: RSS-Gen, RSS 119, and RSS-182 Applicant: Motorola Solutions FCC ID: AZ489FT7059 IC: 109U-89FT7059 Test Performed by Motorola Plantation EMC and ATE P25 Compliance Labs Exhibit 6 page 2 8000 West Sunrise Blvd Fort Lauderdale, FL 33322 INDEX OF SUBMITTED MEASURED DATA MEASUREMENT EXHIBIT Page Number of pages 1. RF Output Power (conducted) 6A 3 1 2. Occupied Bandwidth 6B 4 28 3. Radiated Spurious Emissions 6C 33 31 4. Effective Radiated Power 5. Conducted Spurious Emissions 6D 6E 64 66 2 14 6. Adjacent Channel Coupled Power Ratio 6F 80 4 7. Transient Frequency Behavior 6G 84 3 8. Frequency Stability 6H 87 4 9. Modulation Limiting 6I 91 5 10. Audio Frequency Response 6J 96 1 Applicant: Motorola Solutions FCC ID: AZ489FT7059 IC: 109U-89FT7059 Test Performed by Motorola Plantation EMC and ATE P25 Compliance Labs Exhibit 6 page 3 8000 West Sunrise Blvd Fort Lauderdale, FL 33322 Exhibit 6A 1. RF Output Power (conducted) The RF output power was measured with the indicated voltage and current applied into the final RF amplifying device. -- Pursuant 47 CFR 2.1046(a), 2.1033(c)(6), 2.1033(c)(7) and 2.1033(c)(8) APX7000L VHF / 7-800 MHz TIA-603, TX Output Power and TX DC Current ( Nominal DC Voltage 7.5V, Primary Supply Voltage 7.5V, Temp 25°C) Low Power Rea…
