AZ489FT71492-way Portable Radio with BT, BTLE, WIFI, NFC and LTE

APX N70 User Guide APX ™ Two-Way Radios Model 4.5 SEPTEMBER 2024 © 2024 Motorola Solutions, Inc. All Rights Reserved. *MN009207A01* MN009207A01-AF Contents List of Figures......................................................................................................................9 List of Tables......................................................................................................................10 Legal and Support............................................................................................................. 11 Intellectual Property and Regulatory Notices.........................................................................................11 Legal and Compliance Statements........................................................................................................12 Disclaimer................................................................................................................................... 12 Declaration of Conformity............................................................................................................12 Notice to Users (FCC).................................................................................................................13 FCC Licensing Information...............................................................................................13 Applying for Canadian License................................................................................................... 14 ISED WLAN Statement...............................................................................................................14 Important Safety Information.......................................................................................................15 Limited Warranty....................................................................................................................................15 MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS.....................................................15 I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:.................................................15 II. GENERAL PROVISIONS:.......................................................................................................16 III. STATE LAW RIGHTS:............................................................................................................16 IV. HOW TO GET WARRANTY SERVICE:.................................................................................16 V. WHAT THIS WARRANTY DOES NOT COVER:.....................................................................17 VI. PATENT AND SOFTWARE PROVISIONS:...........................................................................17 VII. GOVERNING LAW:..............................................................................................................18 VIII. For Australia Only................................................................................................................18 Maritime Radio Use in the VHF Frequency Range......................................................... 19 Special Channel Assignments...............................................................................................................19 Emergency Channel....................................................................................................................19 Non-Commercial Call Channel....................................................................................................19 Operating Frequency Requirements......................................................................................................19 Declaration of Compliance for the Use of Distress and Safety Frequencies.........................................22 Read Me First.....................................................................................................................23 Software Version....................................................................................................................................23 Touchscreen Navigation.........................................................................................................................24 Chapter 1: Radio Care........................................................................................................26 1.1 Cleaning Your Radio........................................................................................................................27 1.2 Radio Service and Repair................................................................................................................27 1.3 Battery Recycling and Disposal.......................................................................................................27 MN009207A01-AF Contents 2 Chapter 2: Radio Overview................................................................................................28 2.1 Programmable Radio Functions...................................................................................................... 30 2.2 ViQi..................................................................................................................................................32 2.2.1 Using ViQi..........................................................................................................................35 Chapter 3: Getting Started.................................................................................................37 3.1 Attaching and Removing the Battery............................................................................................... 37 Attaching the Battery...................................................................................................................37 Removing the Battery..................................................................................................................37 3.2 Attaching and Removing the Antenna............................................................................................. 37 …

Text truncated - open the document above for the full version.

en-US es-LA fr-CA pt-BR RF Energy Exposure Training and Product Safety Information for Portable Two-Way Radios Formation sur l’exposition aux RF et information sur la sécurité du produit pour radios bidirectionnelles portatives Capacitación sobre la exposición a energía de radiofrecuencia e información de protección del producto para radios de dos vías portátiles Treinamento sobre a Exposição à Energia de RF e Informações de Segurança do Produto para Rádios Portáteis Bidirecionais https://learning.motorolasolutions.com/User_Documentation Caution Before using this radio, read this booklet which contains important operating instructions. For information on product details, brochures, user manuals and approved accessories. Please refer to www.motorolasolutions.com. For Australia and New Zealand users, please visit https:// www.motorolasolutions.com/en_xa/products.html Compliance with RF Exposure Standards National and international regulations require manufacturers to comply with the RF energy exposure limits for portable two-way radios before they can be marketed. Your Motorola Solutions two-way radio is designed, manufactured, and tested to comply with all applicable national and international regulations for human exposure to radio frequency electromagnetic energy . When two-way radios are used as a consequence of employment, applicable regulations may require users to be fully aware of and able to control their exposure to meet occupational requirements. RF Energy Exposure Awareness and Control Information and Operational Instructions for Occupational Use NOTE: This radio is intended for use in occupational/controlled conditions where users are aware of their exposure and can exercise control over their exposure to meet the requirements in national and international regulations. This radio device is not authorized for general population, consumer use. For more information on what RF energy exposure is, and how to control your exposure to ensure compliance with established RF exposure limits, consult the following websites: ●https://www.fcc.gov/ ●https://www.osha.gov/ ●https://osha.europa.eu/en ●https://www.who.int/health-topics/electromagnetic-fields/ ●http://www .ic.gc.ca/eic/site/smt-gst.nsf/eng/sf11467.html ●http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01904.html For additional user training information on exposure requirements, consult the following websites: ●http://responsibility.motorolasolutions.com/index.php/ourapproach/ wirelesscommhealth/ ●http://learning.motorolasolutions.com/ RF Exposure Compliance and Control Guidelines To control your exposure, and ensure compliance with the relevant RF exposure limits, always adhere to the following guidelines: ●Do not remove any of the RF Exposure Labels if present from this device or its related accessories. ●Attach these instructions to the device when you transfer it to other users. ●Do not use this device if the operational requirements described herein are not met. Notice to Users (FCC) This device complies with Part 15 of the FCC rules per the following conditions: ●This device may not cause harmful interference. ●The device must accept any interference received, including interference that may cause undesired operation. ●Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment. Operating Instructions ●Transmit no more than 50% of the time. T o transmit (talk), press the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting more than 50% of the time may cause RF exposure compliance requirements to be exceeded. ●Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least 1 in. (2.5 cm) away from the nose or lips. Antenna should be kept away from the eye. English 1 ●When worn on the body, always place the radio in a Motorola Solutions-approved clip, holder, holster, case, or body harness for this product. ●DO NOT hold the antenna when the radio is transmitting. ●DO NOT use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result. ●T o ensure continued compliance with applicable RF exposure limits, use only Motorola Solutions approved, supplied or replacement antennas, batteries, and accessories. ●For a list of Motorola Solutions approved accessories please refer to your user manual or visit www.motorolasolutions.com. Acoustic Safety Exposure to loud noises from any source for extended periods of time may temporarily or permanently affect your hearing. The louder the volume of the radio, the sooner your hearing will be affected. Hearing damage from loud noise is sometimes undetectable at first, and can have a cumulative effect. To protect your hearing: ●Use the lowest volume necessary to do your job. ●Turn up the volume only if you are in noisy surroundings. ●Turn down the volume before adding headset or earpiece. ●Limit the amount of time you use headsets or earpieces at high volume. ●When using the radio without a headset or earpiece, do not place the radio's speaker directly against your ear. Medical Devices If you use a personal medical device, such as a pacemaker or hearing aid, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. Holsters Incorporating Magnets Some Motorola Solutions holsters incorporate strong, neodymium magnets. If you use a personal medical device, such as a pacemaker or hearing aid, consult the manufacturer of your device to determine if it can be used in close proximity to magnets. Your physician may be able to assist you in obtaining this information. Also be aware that magnets can damage other products, including cell phones, computers, hard drives, and other electronic devices, as well as credit cards and magnetic …

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 2a Template Revision 9 (1 July 2024) SHEET 1 OF 3 EXHIBIT 2 Attestation and Product Family Declaration (Pursuant to FCC Part 2.907, 2.908 and RSP 100 Sec 4) 2.1 Statement of Certification Transceiver type described herein (AZ489FT7149/109U-89FT7149) is in compliance with all applicable parts of the FCC rules and ISED RSS standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Sean Cadogan SIGNATURE: DATE: 5th August 2024 TITLE: Engineering Manager Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 2a Template Revision 9 (1 July 2024) SHEET 2 OF 3 2.2 Spectrum Efficiency Declaration The device supports TDMA (F2) transmission with 12.5 kHz spacing. Each transmit slot is 30 ms long and it is followed by 30 ms standby / receive. Transmission in digital TDMA mode (according to 6.25e efficiency standard) allows improved spectrum utilization whereby, the existing 12.5 kHz channel now allows two voice conversations to take place instead of one. Furthermore, the portable radio has integrated voice & data feature that extends the capability of the system to send & receive data through conventional infrastructure. This device is also capable of supporting a minimum data rate of 4800 bits per second per 6.25kHz channel bandwidth. NAME: Sean Cadogan SIGNATURE: DATE: 5th August 2024 TITLE: Engineering Manager Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 2a Template Revision 9 (1 July 2024) SHEET 3 OF 3 2.3 Product Family Declaration FCC Model Number Hardware Version Identification Number (HVIN) Product Marketing Name (PMN) Software Version (FVIN) Description H35KET9PW8AN H35KET9PW8AN APX N70 D03.75.21/ D03.75.46/ D03.75.58 APX N70 VHF Portable, Model 4.5 H35KET9PW8AN-H H35KET9PW8AN-H APX N70 D03.75.21/ D03.75.46/ D03.75.58 APX N70 VHF Portable, Model 4.5 (UL model) Differences of the models offered Note: 1) Wifi 2.4GHz and BT do not transmit at the same time as it is limited by Wifi/BT coexistence. 2) Wifi 5GHz and 2.4GHz do not transmit at the same time as it is limited by Chip architecture. 3) LTE and WiFi 5GHz and 2.4GHz will transmit at the same time. 4) LTE and BT will transmit at the same time. 5) H35KET9PW8AN model is electrically and mechanically identical to H35KET9PW8AN-H 6) The SW version differences are due to changes in the radio SW for platform and app fixes. There is no modem (LTE) or BT or WLAN performance changes between this SW versions. NAME: Sean Cadogan SIGNATURE: DATE: 5th August 2024 TITLE: Engineering Manager

EXHIBIT 2b Template Revision 2 (3 April 2024) SHEET 1 OF 4 Attestation Statement (Equipment Class DTS and DSS – Bluetooth/WiFi) This device contains an embedded Bluetooth device and WiFi device that are compliant with the applicable FCC Part 15C and ISED RSS 247 regulations. Part 15.247 (a)(1) / RSS 247 Section 5.1 ● The hopping sequence must be pseudo random. ● Each frequency must be used equally on the average by each transmitter ● The receivers input bandwidth is approximately equal to the transmit bandwidth ● The receiver hops in sequence with the transmitted signal Part 15.247 (g) / RSS 247 Section 5.1 ● The system is designed to comply with all of the regulations in this section when the transmitter is presented with a continuous data (or information) Part 15.247(h) / RSS 247 Section 5.1 ● The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. ---------------------------------------------------- Name: Ross Ripley Title: Engineering Manager Tel: (847) 219-1130 E-mail: [email protected] Date: 7/31/2024 EXHIBIT 2b Template Revision 2 (3 April 2024) SHEET 2 OF 4 BT and WIFI 2.4GHz / 5GHz Declaration To whom it may concern, This is a Bluetooth/WIFI 2.4GHz / 5GHz combination antenna with FCC/IC ID: AZ489FT7149/109U- 89FT7149. This Bluetooth/WIFI 2.4GHz / 5GHz co-existence mechanism is to ensure that the Bluetooth and WIFI 2.4GHz / 5GHz transmitters would not simultaneously operate. Therefore, Bluetooth and WIFI 2.4GHz / 5GHz antennas in FCC/IC ID:AZ489FT7149/109U-89FT7149 should not be considered to be able to transmit simultaneously. Though the users can use Bluetooth and WIFI 2.4GHz / 5GHz simultaneously, the real situation is that Bluetooth and WIFI 2.4GHz / 5GHz are used by time sharing and no overlap transmission. Should you have any questions, please have my best attention. Sincerely yours, ---------------------------------------------------- Name: Sean Cadogan Title: Engineering Manager Tel: (954) 605-3798 E-mail: [email protected] Date: 7/31/2024 EXHIBIT 2b Template Revision 2 (3 April 2024) SHEET 3 OF 4 WLAN Channels and Mode Declaration We, Motorola Solutions, Inc., declare that the device, FCC ID: AZ489FT7149, does not support any non- US channels in the operational mode in the US market. All non-US frequencies, US 2.4G channel 12-13 and Country code selection are disabled through proprietary software and are not user changeable. For ISED with IC: 109U-89FT7149, the device operating in 5600-5650MHz band shall be disabled. Should you have any question or comment regarding this matter, please do not hesitate to contact me. Sincerely yours, ---------------------------------------------------- Name: Ross Ripley Title: Engineering Manager Tel: (847) 219-1130 E-mail: [email protected] Date: 7/31/2024 EXHIBIT 2b Template Revision 2 (3 April 2024) SHEET 4 OF 4 DTS-UNII Device Declaration Letter To whom it may concern, We have declared below featured for FCC equipment authorization, Device FCC ID: AZ489FT7149 (1) DFS Device -- ☐ Master ☐ Client with Radar detection capability , ☒ Client without radar detection capability ☐ N/A (2) Active / Passive Scanning , ad-hoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 5150-5250 ☒ Yes , ☐ No ☒ Yes , ☐ No ☒ Yes , ☐ No ☒ Yes , ☐ No 5250-5350 ☐ Yes , ☒ No ☒ Yes , ☐ No ☐ Yes , ☒ No ☐ Yes , ☒ No 5470-5725 ☐ Yes , ☒ No ☒ Yes , ☐ No ☐ Yes , ☒ No ☐ Yes , ☒ No 5725-5850 ☒ Yes , ☐ No ☒ Yes , ☐ No ☒ Yes , ☐ No ☒ Yes , ☐ No (3) Country code selection ability - ☐ Yes , ☒ No If yes, please explain how it was implemented: (please also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - ☒ Yes, ☐ No, ☐A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices ☒A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. ☐ Apply, ☒ No Apply, (If apply, please help to provide explanation on it was implement, and how software was controlled) ---------------------------------------------------- Name: Sean Cadogan Title: Engineering Manager Tel: (954) 605-3798 E-mail: [email protected] Date: 7/31/2024

FCC ID: AZ489FT7149 _______________________________________________________________________________________________________________________ Motorola Solutions, Inc., Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13e Template Revision 3 (3 May 2024) Date: 30 August 2024 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements pursuant to Part 2.911 (d)(5)(i) with FCC ID: AZ489FT7149 Dear Sir/Madam, According to FCC 22-84 and KDB 986446, Motorola Solutions, Inc., certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Arine Lee FCC/IC Certification Manager E-mail : [email protected] FCC ID: AZ489FT7149 _______________________________________________________________________________________________________________________ Motorola Solutions, Inc., Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13e Template Revision 3 (3 May 2024) Date: 30 August 2024 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements pursuant to Part 2.911 (d)(5)(ii) with FCC ID: AZ489FT7149 Dear Sir/Madam, According to FCC 22-84 and KDB 986446, Motorola Solutions, Inc., certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Arine Lee FCC/IC Certification Manager E-mail : [email protected]

_______________________________________________________________________________________________________________________ Motorola Solutions Inc, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13f Template Revision 5 (7 May 2024) Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements pursuant to Part 2.911 (d)(7) Dear Sir/Madam, This letter is to confirm that Motorola’s Solutions Inc has a US Representative on behalf of for all future FCC certification/registrations. As the FCC Representative, we are aware of the requirements involved as outlined in US applicable document (FCC 22-84 and KDB 986446). US Representative Company Name: Motorola Solutions, Inc FRN Number: 0003778479 Company Grantee Code: AZ4 Contact Name: Mary Sampson Address: 2000 Progress Pkwy, Schaumburg, IL. 60196 Telephone Number: (770) 338-3464 E-mail: [email protected] Applicant Company Name: Motorola Solutions, Inc Company Grantee Code: AZ4 Applicant FRN: 0003778479 Contact Name: Arine Lee Address: Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia Telephone Number: +6042240258 Signed by the Applicant, Signed by the Agent, Name: Arine Lee Name: Mary Sampson Email: [email protected] E-mail: [email protected] Mary Sampson

FCC ID: AZ489FT7149 _______________________________________________________________________________________________________________________ Motorola Solutions, Inc., Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13A Template Revision 5 (3 May 2024) Date: August 30, 2024 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for New Filing Certification of Transmitter with FCC ID: AZ489FT7149 Dear Sir/Madam, Motorola Solutions, Inc., herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a portable radio application with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: Product Name Model Numbers Frequency Range RF Power FCC Rules Part LMR: 136 - 174 MHz 6.6 W (Max declared) 22, 74, 80, 90 APX N70 H35KET9PW8AN H35KET9PW8AN-H LTE B2 1850 - 1910 MHz 282 mW (EIRP max measured) 24E LTE B4 1710 - 1755 MHz 372 mW (EIRP max measured) 27 LTE B12 699-716 MHz 70 mW (ERP max measured) 27 LTE B13 777-787 MHz 104 mW (ERP max measured) 27 LTE B14 788-798 MHz 95 mW (ERP max measured) 90R LTE B17 704-716 MHz 53 mW (ERP max measured) 27 BT: 2402-2480 MHz 16 mW (max measured conducted peak) 15C BTLE 4.0: 2402-2480MHz 4.73 mW (max measured conducted peak) 15C BTLE 5.0: 2402-2480MHz 4.97 mW (max measured conducted peak) 15C WLAN 802.11 b/g/n: 2412- 2462 MHz 267.61 mW (max measured conducted peak) 15C WLAN 802.11 a/n/ac: 5180- 5825 MHz 67.50 mW (max measured conducted average) 15E NFC: 13.56MHz 18.60 dBuV/m (max measured field strength) 15C We are requesting certification under Part(s) of the Commission’s Rules listed above to allow operation of this equipment. The subject transmitter complies with Section 90.203 and 80.203 (b) of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. If you require any additional information, please contact me at +604- 2240258. Sincerely, Arine Lee FCC/IC Certification Manager E-mail : [email protected]

FCC ID: AZ489FT7149 _______________________________________________________________________________________________________________________ Motorola Solutions, Inc., Plot 2A, Medan Bayan Lepas, Mukim 12 SWD, 11900 Bayan Lepas, Penang, Malaysia EXHIBIT 13b(i) Template Revision 3 (3 May 2024) CONFIDENTIALITY REQUEST 30 August 2024 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT7149 Dear Sir / Madam, Motorola Solutions, Inc., is requesting that Exhibit 4 (Block Diagram), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola Solutions considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, Arine Lee FCC/IC Certification Manager E-mail : [email protected]

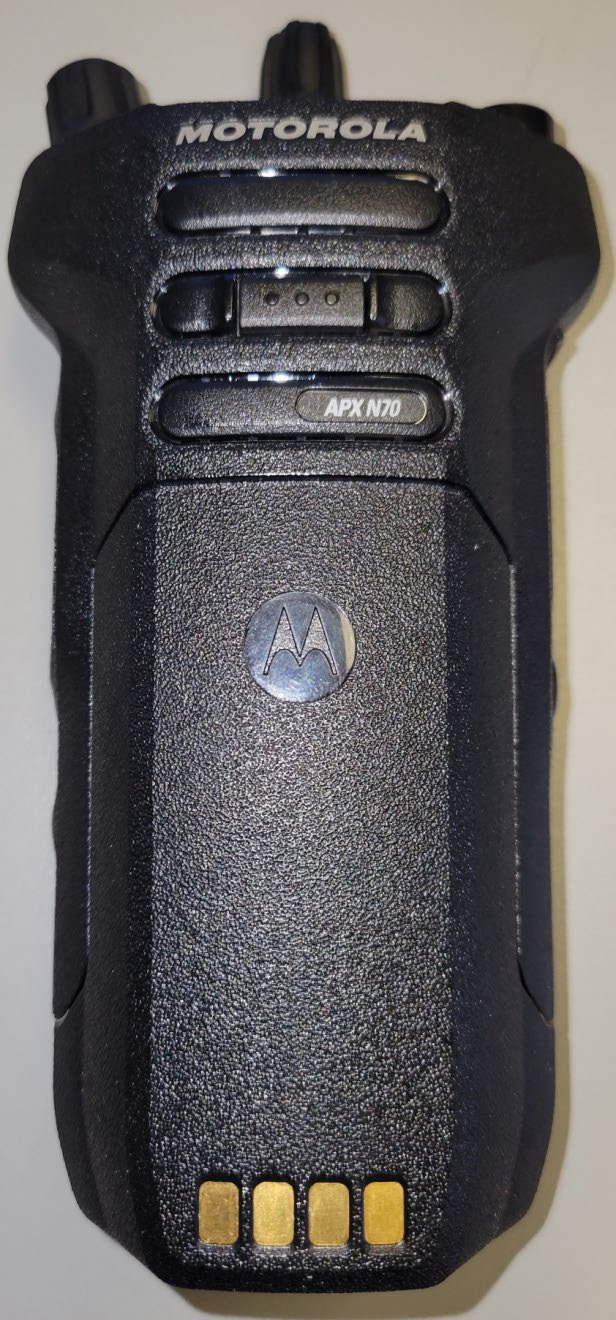

Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 1 OF 8 EXHIBIT 3A EXTERNAL PHOTOGRAPHS (Pursuant to FCC Part 2.1033(b)(7) and 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached. Exhibit 1. Front View with Battery 3A 2. Back View with Battery . 3B 3. View of FCC/IC label location 3C 4. Side view (Right) with Battery 3D 5. Side view (Left) with Battery 3E 6. Top view with Battery 3F 7. Bottom view with Battery 3G NOTE: Both H35KET9PW8AN & H35KET9PW8AN-H models look exactly identical in all photographs except for the battery security for the battery security screw and FCC/IC Label. Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 2 OF 8 Exhibit 3A – Front View with Battery Front view with battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 3 OF 8 Exhibit 3B – Back View with Battery Back View with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 4 OF 8 Exhibit 3C – View of FCC/IC Label Location Back View (FCC/IC label) location (Model : H35KET9PW8AN) Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 5 OF 8 Back View (FCC/IC label) location (Model : H35KET9PW8AN-H ) Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 6 OF 8 Exhibit 3D – Side View (Right) with Battery Side View (Right) with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 7 OF 8 Exhibit 3E – Side View (Left) with Battery Side View (Left) with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 3A Template Revision 1 (16 Nov 2022) SHEET 8 OF 8 Exhibit 3F – Top View with Battery Top View with Battery Exhibit 3G – Bottom View with Battery Bottom View with Battery *** END ***

Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149 / IC: 109U-89FT7149 EXHIBIT 1 Template Revision 4 (29 Aug 2023) SHEET 1 OF 2 EXHIBIT 1 IDENTIFICATION LABEL (Pursuant to FCC Part 2.1033(c)(11), 2.1033(b)(7) and RSP 100 Annex C and Sec 3) MARKINGS (TEXT) X See Exhibit 3 for the actual location of the FCC/IC label on the device. X Label Attached Below. Figure 1: FCC/IC Label for APX N70 Applicant: Motorola Solutions Inc FCC ID: AZ489FT7149 / IC: 109U-89FT7149 EXHIBIT 1 Template Revision 4 (29 Aug 2023) SHEET 2 OF 2 Figure 2: FCC/IC Label for APX N70 Hazloc *** END ***

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7149/ IC: 109U-89FT7149 EXHIBIT 9A Template Revision 3 (20 June 2024) SHEET 1 OF 9 EXHIBIT 9 Internal Photographs (Pursuant to FCC Part 2.1033(b)(7), 2.1033(c)(12) and RSP 100 Annex C) The following ph…
