AZ489FT7173Audio Accessory, Remote Speaker Microphone, WM800 IP68

No.Description 8Microphone 9Speaker 10Task Light Button 11Charging Contact 12Near-field communication (NFC) Tag 13Blue Dot 14Audio Jack 15Battery Latch 16Swivel Clip 17Task Light 18USB-C Port 19Power Indicator 20Audio or Bluetooth Indicator 2.1 Getting Started The chapter provides basic information on how to use your WM800 RSM. 2.1.1 Attaching the Battery Perform the following actions to attach the battery to the WM800 RSM body. 1 2 Procedure: 1.Align the bottom part of the battery to the WM800 RSM body. MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 21 2.Push the battery towards the WM800 RSM body. NOTE: Press firmly in the middle to ensure both latches snap in place and fully locked. 2.1.2 Detaching the Battery Perform the following actions to detach the battery from the WM800 RSM body. 2 1 1 Procedure: 1.Pinch the battery latch simultaneously . 2.Detach the battery from the WM800 RSM body . MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 22 2.1.3 Recommended Wearing Positions Figure 1: Recommended W earing Positions Figure 2: Recommended Wearing Positions—Using Tethering Kit Accessory with Lanyard MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 23 Figure 3: Recommended Wearing Positions—Using Tethering Kit Accessory with Velcro and Lanyard 2.1.3.1 Locking the Tethering Kit Accessory Perform the following actions to lock the tethering kit accessory. Figure 4: Locking the T ethering Kit Accessory 1 2 Procedure: 1.Align and mate the two connector ends. You will feel a loaded spring force during insertion. 2.Rotate clockwise until the two connector ends are locked. 2.1.3.2 Unlocking the T ethering Kit Accessory Perform the following actions to unlock the tethering kit accessory. MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 24 Figure 5: Unlocking the Tethering Kit Accessory 2 1 Procedure: 1.Rotate counterclockwise to unlock the tethering kit accessory . 2.Pull and disconnect the connector ends. 2.2 Status Indications Refer to the following tables to understand your WM800 RSM status indication. 2.2.1 Power LED Indications T able 6: Power Indication Power IndicatorDescription Blinking green for one second Power On Blinking green twicePower Off Blinking red twicePower Up Error NOTE: Press the Power button once to get the battery status when WM800 RSM is not charging. Table 7: Battery Indication Power IndicatorDescription OffBattery is at medium or high level. Blinking green twiceBattery at high level. Blinking amber twiceBattery at medium level. Blinking red Battery at low level. NOTE: Voice and Tone Prompt are an- nounced every two minutes until the de- vice starts charging. MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 25 Power IndicatorDescription Rapid blinking redBattery at critical level. Charge the RSM immedi- ately to prevent flat-battery. NOTE: Voice and Tone Prompt are an- nounced every 30 seconds until the device starts charging. Table 8: Charging Indication Power IndicatorDescription Solid redDevice is charging. Blinking green Device is charged up to 90% or more. Solid greenDevice is nearly charged or fully charged. Blinking Amber Battery is waiting to charge. (Either the battery voltage is too low or the battery temperature is too low or too high to allow charging. When this condition is corrected, the battery will automatically begin charging.) Blinking redCharging Error. 2.2.2 Audio and Bluetooth LED Indication Table 9: Audio and Bluetooth LED Indication Audio/Bluetooth IndicatorStatus Continuous blinking blue Pairing Mode Solid blue ● Connecting ● Reconnecting ● Disconnected OffConnected NOTE: Refer to Table 10: Bluetooth or Audio LED Indication on page 27 for more information about the connection status. MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 26 2.2.3 Sign of Life Indication 2.2.3.1 Device in On or Connected State Prerequisites: Ensure your WM800 RSM in idle and powered up. Procedure: Press the Power Button for less than one second. When checking the Sign of Life, observe the following indications: Table 10: Bluetooth or Audio LED Indication Audio/Bluetooth IndicatorStatus Continuous blinking blue Pairing Mode Solid blue ● Connecting ● Reconnecting ●Disconnected Fast blinking blue twice (Once) Connected Result: You hear the following voice prompts or tone: ●You hear the following voice prompts: “RSM Battery <STATUS>" and <Connection Status>” (if the WM800 RSM is set to Voice Prompt). ● “Battery <STATUS> " tone and “Connection Status” tone plays (if the WM800 RSM is set to Tone) 2.2.3.2 Device in Charging State Prerequisites: Ensure your WM800 RSM in idle state and charging. Procedure: Press the Power button for less than one second. When checking the Sign of Life, observe the following indications: Table 11: Power or Battery LED Indication Power IndicatorStatus Solid red Battery is charged to less than 90% capacity. Blinking greenBattery is charged to 90% or greater capacity. Solid greenBattery is fully charged. MN010200A01-AA Chapter 2: WM800 Remote Speaker Microphone 27 Power IndicatorStatus Blinking AmberBattery is waiting to charge. (Either the battery voltage is too low or the battery temperature is too low or too high to allow charging. When this condition is correct- ed, the battery will automatically begin charging.) Rapid Blinking RedCharging Error. Table 12: Bluetooth or Audio LED Indication Audio/Bluetooth IndicatorStatus Continuous blinking bluePairing Mode Solid blue ● Connecting ● Reconnecting ● Disconnected Rapid blinking blue twice Connected Result: ● Y ou hear the following voice prompts or tone: ○ “RSM Battery <STATUS> and <Connection Status>” (if the WM800 RSM is set to Voice Prompt). ○ “Battery <STATUS>" tone and “Connection Status” play (if the WM800 RSM is set to Tone). 2.3 WM800 RSM General Operations 2.3.1 Powering the WM800 RSM On or Off Procedure: 1.To turn on the WM800 RSM, press and hold the Power button until you hear the "Power On" voice prompt. 2.To turn off the WM800 RSM…

Text truncated - open the document above for the full version.

WM800 Wireless Solutions Wireless RSM PMMN4156_/ PMMN4158_, W ireless RSM Battery PMNN4846_, Dual-Unit Charger Base PMPN4652_ User Guide NOVEMBER 2023 © 2023 Motorola Solutions, Inc. All Rights Reserved. *MN010200A01* MN010200A01-AA Safety and Legal This section provides the safety and legal information for this product. Intellectual Property and Regulatory Notices Copyrights The Motorola Solutions products described in this document may include copyrighted Motorola Solutions computer programs. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola Solutions computer programs contained in the Motorola Solutions products described in this document may not be copied or reproduced in any manner without the express written permission of Motorola Solutions. No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of Motorola Solutions, Inc. Trademarks MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Open Source Content This product may contain Open Source software used under license. Refer to the product installation media for full Open Source Legal Notices and Attribution content. European Union (EU) and United Kingdom (UK) Waste of Electrical and Electronic Equipment (WEEE) Directive The European Union's WEEE directive and the UK's WEEE regulation require that products sold into EU countries and the UK must have the crossed-out wheelie bin label on the product (or the package in some cases). As defined by the WEEE directive, this crossed-out wheelie bin label means that customers and end-users in EU and UK countries should not dispose of electronic and electrical equipment or accessories in household waste. Customers or end-users in EU and UK countries should contact their local equipment supplier representative or service centre for information about the waste collection system in their country. Disclaimer Please note that certain features, facilities, and capabilities described in this document may not be applicable to or licensed for use on a specific system, or may be dependent upon the characteristics of a specific mobile MN010200A01-AA Safety and Legal 2 subscriber unit or configuration of certain parameters. Please refer to your Motorola Solutions contact for further information. © 2023 Motorola Solutions, Inc. All Rights Reserved Notice to Users (FCC and Industry Canada) This device complies with Part 15 of the FCC rules and Industry Canada's license-exempt RSS's per the following conditions: ● This device may not cause harmful interference. ● This device must accept any interference received, including interference that may cause undesired operation. ● Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment. Supplier's Declaration of Conformity Supplier's Declaration of Conformity Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola Solutions, Inc. Address: 2000 Progress Pkwy, Schaumburg, IL. 60196 Phone Number: 1-800-927-2744 Hereby declares that the product: Model Name: WM800 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d), and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and MN010200A01-AA Safety and Legal 3 2.This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that in- terference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio or TV technician for help. Avis aux utilisateurs (FCC et Industrie Canada) Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence et à la partie 15 des règlements de la FCC : ● Cet appareil ne doit pas causer d'interférence nuisible. ● Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable. ● Toute modification effectuée à cet appareil sans l'autorisation explicite de Motorola Solutions peut annuler l'autorisation d'utiliser cet appareil. Déclaration de conformité…

Text truncated - open the document above for the full version.

m WM800 WIRELESS SOLUTIONS Wireless RSM PMMN4156_/PMMN4158_ Wireless RSM Battery PMNN4846_ Dual-Unit Charger Base PMPN4652_ User Leaflet *MN009955A01* MN009955A01-AA FCC: AZ489FT7173 IC: 109U-89FT7173 For other WM800 manuals, refer to our Learning eXperience Portal: https://learning.motorolasolutions.com MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC, and are used under license. All other trademarks are the property of their respective owners. © 2023 Motorola Solutions, Inc. All rights reserved. Printed in Accessory Manager App Introduction Download and Install Accessory Manager application for future software upgrades and new feature releases. You are recommended to install Accessory Manager to upgrade accessory firmware to the latest version for the first time before use. Notice to Users (FCC and Industry Canada) This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following conditions: •This device may not cause harmful interference. •This device must accept any interference received, including interference that may cause undesired opera- tion. •Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment. Supplier’s Declaration of Conformity Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola Solutions, Inc. Address: 2000 Progress Pkwy, Schaumburg, IL 60196, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that the product: Model Name: WM800 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d), and section 15.109(a). Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, includ- ing interference that may cause undesired operation. Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or TV techni- cian for help. Avis aux utilisateurs (FCC et Industrie Canada) Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence et à la partie 15 des règlements de la FCC : • Cet appareil ne doit pas causer d'interférence nuisible. • Cet appareil doit accepter toute interférence reçue, y com- pris les interférences pouvant entraîner un fonctionnement indésirable. • Toute modification effectuée à cet appareil sans l'autorisa- tion explicite de Motorola Solutions peut annuler l'autorisation d'utiliser cet appareil. Déclaration de conformité du fourmisseur Règlement CFR 47 partie 2 section 2.1077(a) de la FCC Partie responsable Nom: Motorola Solutions, Inc. Adresse: 2000 Progress Pkwy, Schaumburg, IL 60196, U.S.A. Numéro de téléphone: 1-800-927-2744 Déclare par les présentes que le produit : Nom de modèle: WM800 sont conformes aux réglementations suivantes: Partie 15, sous-partie B, section 15.107(a), 15.107(d) et section 15.109(a) des règlements de la FCC Appareil numérique de Classe B En tant que périphérique d'ordinateur personnel, cet appareil est conforme aux stipulations de la partie 15 des règlements de la FCC. Cet appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. Son utilisation est assujettie aux deux conditions suivantes : 1. Cet appareil ne doit pas causer d'interférence nuisible. 2. Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable. AVIS: Cet équipement a fait l'objet de tests et a été déclaré conforme aux limites établies pour un appareil numérique de classe B, conformément à la section 15 des règlements de la FCC. Ces limites sont fixées afin d'offrir une protection suffisante contre des interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie de radiofréquence et, s'il n'est pas installé ou utilisé conformément aux instructions, il peut provoquer un brouillage nuisible aux communications radio. Cependant, il est impossible de garantir qu'il n'y aura aucune interférence dans une installation particulière. Si cet appareil cause une interférence nuisible à la réception de la radio ou de la télévision, ce qui peut être déterminé en éteignant et en allumant l'appareil, vous êtes encouragé à remédier à la situation en prenant une ou plusieurs des mesures suivantes : • Réorienter ou déplacer l'antenne réceptrice. • Augmenter la distance entre l'équipement et le récepteur. • Brancher l'appareil dans une autre prise sur un circuit dif- férent de celui du récepteur. Consulter un revendeur ou un technicien de radio ou de télévi- sion chevronné pour obtenir de l'aide. Caution …

Text truncated - open the document above for the full version.

FCC ID: AZ489FT7173 _______________________________________________________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 EXHIBIT 13f Revision 2 (24 Februray 2023) Date: September 20, 2023 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements pursuant to Part 2.911 (d)(7) with FCC ID: AZ489FT7173 Dear Sir/Madam, This letter is to confirm that Motorola’s Solutions Inc has a US Representative on behalf of for all future FCC certification/registrations. As the FCC Representative, we are aware of the requirements involved as outlined in US applicable document (FCC 22-84 and KDB 986446). US Representative Company Name: Motorola Solutions FRN Number: 0003778479 Company Grantee Code: AZ4 Contact Name: Deanna Zakharia Address: 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Telephone Number: (954) 723-4707 E-mail: [email protected] Applicant Company Name: Motorola Solutions Company Grantee Code: AZ4 Contact Name: Deanna Zakharia Address: 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Telephone Number: (954) 723-4707 Sincerely, ____________________ Deanna Zakharia Regulatory Compliance Manager E-mail: [email protected]

FCC ID: AZ489FT7173 _______________________________________________________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 EXHIBIT 13e Revision 1 (30 Jan 2023) Date : September 26, 2023 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements pursuant to Part 2.911 (d)(5)(i) with FCC ID: AZ489FT7173 Dear Sir/Madam, According to FCC 22-84 and KDB 986446, Motorola Solutions, Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ____________________ Deanna Zakharia Regulatory Compliance Manager E-mail: [email protected] FCC ID: AZ489FT7173 _______________________________________________________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 EXHIBIT 13e Revision 1 (30 Jan 2023) Date: September 26, 2023 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements pursuant to Part 2.911 (d)(5)(ii) with FCC ID: AZ489FT7173 Dear Sir/Madam, According to FCC 22-84 and KDB 986446, Motorola Solutions, Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as a specifically named entity or any of its subsidiaries or affiliates producing “covered” equipment. Sincerely, ____________________ Deanna Zakharia Regulatory Compliance Manager E-mail: [email protected]

FCC ID: AZ489FT7173 _______________________________________________________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 EXHIBIT 13b(i) Revision 1 (2 Aug 2022) CONFIDENTIALITY REQUEST September 20, 2023 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT7173 Dear Sir / Madam, Motorola Solutions Inc is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola Solutions Inc considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 0.459 and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, ____________________ Deanna Zakharia Regulatory Compliance Manager E-mail: [email protected]

FCC ID: AZ489FT7173 _______________________________________________________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 EXHIBIT 13A Revision 3 (9 Sept 2022) Date: September 20, 2023 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for New Filing Certification of Transmitter with FCC ID: AZ489FT7173 Dear Sir/Madam, Motorola Solutions, Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Bluetooth application with capabilities for clear and coded communications with a transmit power operating within the following frequency ranges: Product Name Model Numbers Frequency Range RF Power FCC Rules Part WM800 PMMN4156A BT: 2402-2480 MHz 15.49 mW (max measured conducted peak for GFSK) 14.59 mW (max measured conducted peak for π/4 DQPSK, 8DPSK) 15C BTLE 4.0: 2402-2480MHz 4.544 mW (max measured conducted peak) 15C BTLE 5.0: 2402-2480MHz 4.645 mW (max measured conducted peak) 15C MPP: 125kHz 42.79 dbuV/m (max measured Field Strength) 15C We are requesting certification under Part(s) of the Commission’s Rules listed above to allow operation of this equipment. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-4707. Sincerely, ____________________ Deanna Zakharia Regulatory Compliance Manager E-mail: [email protected]

EXHIBIT 2d Revision 1 (30 Jun 2023) SHEET 1 OF 1 Certification Department Date: September 20, 2023 Subject: Authorization for FCC and IC filing To Whom It May Concern: I hereby authorize Trukesh Nadarajan and Liong Kooi Hao to apply to sign Ex02a_Statement_of_Certification, on my behalf, for the following FCC and IC: FCC ID: AZ489FT7173 IC: 109U-89FT7173 Please contact me if there are any questions or issues. Regards, ____________________ Deanna Zakharia Regulatory Compliance Manager Tel: (954) 723 4707 Email: [email protected]

Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 2a Revision 1 (2 Aug 2022) SHEET 1 OF 2 EXHIBIT 2 Statement of Certification (Pursuant to FCC Part 2.907, 2.908 and RSP 100 Sec 4) 2.1 Statement of Certification Transceiver type described herein (AZ489FT7173/109U-89FT7173) is in compliance with all applicable parts of the FCC rules and ISED RSS standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Trukesh Nadarajan SIGNATURE: DATE: 9 th August 2023 TITLE: Engineering Manager Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 2a Revision 1 (2 Aug 2022) SHEET 2 OF 2 2.2 Attestation Statement (Equipment Class DTS and DSS – Bluetooth) This device contains an embedded Bluetooth device that compliant with the applicable FCC Part 15C and ISED RSS 247 regulations. Part 15.247 (a)(1) / RSS 247 Section 5.1 ● The hopping sequence must be pseudo random. ● Each frequency must be used equally on the average by each transmitter ● The receivers input bandwidth is approximately equal to the transmit bandwidth ● The receiver hops in sequence with the transmitted signal Part 15.247 (g) / RSS 247 Section 5.1 ● The system is designed to comply with all of the regulations in this section when the transmitter is presented with a continuous data (or information) Part 15.247(h) / RSS 247 Section 5.1 ● The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Liong Kooi Hao SIGNATURE: DATE: 9 th August 2023 TITLE: Electrical Engineer

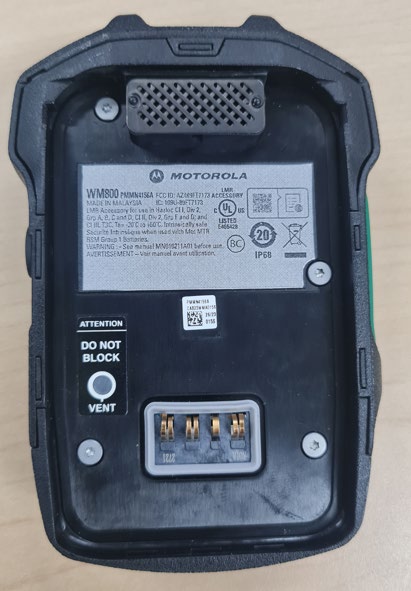

Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 1 OF 5 EXHIBIT 3A EXTERNAL PHOTOGRAPHS (Pursuant to FCC Part 2.1033(b)(7) and 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached. Exhibit 1. Front View 3A 2. Back View with battery 3B 3. Back View with FCC/IC label 3C 4. Side view (Right) with MPP and NFC tag location 3D 5. Side view (Left) 3E 6. Top view 3F 7. Bottom view 3G Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 2 OF 5 Exhibit 3A Front View Exhibit 3B Back View with Battery Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 3 OF 5 Exhibit 3C Back View with FCC/IC label Exhibit 3D Side view (Right) with MPP and NFC tag location Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 4 OF 5 Exhibit 3E Side view (Left) Exhibit 3F Top view Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 3A Revision 1 (16 Nov 2022) SHEET 5 OF 5 Exhibit 3G Bottom view *** END ***

Applicant: Motorola Solutions Inc FCC ID: AZ489FT7173 / IC: 109U-89FT7173 EXHIBIT 1 Revision 3 (8 Aug 2023) SHEET 1 OF 1 EXHIBIT 1 IDENTIFICATION LABEL (Pursuant to FCC Part 2.1033(c)(11), 2.1033(b)(7) and RSP 100 Annex C and Sec 3) MARKINGS (TEXT) X See Exhibit 3 for the actual location of the FCC/IC label on the device. X Label Attached Below. Figure 1: FCC/IC Label for PMMN4156A *** END ***

Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 1 OF 5 EXHIBIT 9 Internal Photographs (Pursuant to FCC Part 2.1033(b)(7), 2.1033(c)(12) and RSP 100 Annex C) The following photographs are attached. Exhibit 1. PCB with Shields (Top) 9A 2. PCB without Shields (Top) 9B 3. PCB with Shields (Bottom) 9C 4. PCB without Shields (Bottom) 9D 5. PCB Microphone (Top) 9E 6. PCB Microphone (Bottom) 9F 7. Overall Internal Assembly with housing (Front) 9G 8. Overall Internal Assembly with housing (Back) 9H Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 2 OF 5 Exhibits 9A PCB with Shields (Top) Exhibits 9B PCB without Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 3 OF 5 Exhibits 9C PCB with Shields (Bottom) Exhibits 9D PCB without Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 4 OF 5 Exhibits 9E PCB Microphone (Top) Exhibits 9F PCB Microphone (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ489FT7173/ IC: 109U-89FT7173 EXHIBIT 9 Revision 1 (2 Aug 2022) SHEET 5 OF 5 Exhibits 9G Overall Internal Assembly with housing (Front) Exhibits 9H Overall Internal Assembly with housing (Back) *** END **
