AZ492FT3796Mobile Transmitter

CDM1550™Mobile RadioRadio Mobile User GuideGuide de l ́usager contact control Professional Radio As Dedicated As You Are CA , Motorola, Professional Radio, PRO Series, CDM1550, As Dedicated As You Are, and Call Alert are trademarks of Motorola, Inc.© 1999 Motorola, Inc. All rights reserved. Printed in U.S.A.A , Motorola, Radio Professionnelle, Série PRO, CDM1550, Aussi spécial- isée que vous l’êtes, et Call Alert sont des marques de Motorola, Inc.© 1999 Motorola, Inc. Tous droits réservés. Imprimé aux États-Unis. *6881091C56*68P81091C56-0 contact control CDM1550 i English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . .iii Radio Overview . . . . . . . . . . . . . . . . . . . . . 1 Parts of the Radio . . . . . . . . . . . . . . . . . . . . 1 Optional Enhanced Keypad Microphone (RMN4026) . . . . . . . . . . . 2 On/Off/Volume Knob . . . . . . . . . . . . . . . 3Channel Selector/Menu Navigation Buttons . . . . . . . . . . . . . . . . . . . . . . . . 3 LED Indicators . . . . . . . . . . . . . . . . . . . . 3Programmable Buttons . . . . . . . . . . . . . 3Push-to-Talk (PTT) Button . . . . . . . . . . . 6Microphone . . . . . . . . . . . . . . . . . . . . . . 6Menu Keys . . . . . . . . . . . . . . . . . . . . . . . 6Use with Enhanced Keypad Microphone (RMN4026) . . . . . . . . . . . 7 LCD Screen . . . . . . . . . . . . . . . . . . . . . . 9 Audio Indicators for Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Getting Started . . . . . . . . . . . . . . . . . . . . 11 Turning the Radio On or Off . . . . . . . . . . . 11Adjusting the Volume . . . . . . . . . . . . . . . . 11Selecting a Zone . . . . . . . . . . . . . . . . . . . . 12Selecting a Radio Channel . . . . . . . . . . . . 12 Sending a Call . . . . . . . . . . . . . . . . . . . . . 13Receiving a Call . . . . . . . . . . . . . . . . . . . . 13 Radio Calls . . . . . . . . . . . . . . . . . . . . . . . 15 Making a Selective Call . . . . . . . . . . . . . . 15Receiving a Selective Call . . . . . . . . . . . . 15Sending a Call Alert™ Page . . . . . . . . . . . 16Receiving a Call Alert Page . . . . . . . . . . . 16Radio Check . . . . . . . . . . . . . . . . . . . . . . . 17Sending a Status . . . . . . . . . . . . . . . . . . . 17Sending a Message . . . . . . . . . . . . . . . . . 18Receiving a Message . . . . . . . . . . . . . . . . 19Sending an Emergency Alert . . . . . . . . . . 19Selective Radio Inhibit . . . . . . . . . . . . . . . 20Editing a Radio Call List . . . . . . . . . . . . . . 20Repeater or Talkaround Mode . . . . . . . . . 21Setting the Power Level . . . . . . . . . . . . . . 21Name and Call/Message Tone Tagging . . 22 Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Starting or Stopping Scan. . . . . . . . . . . . . 25Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . 26Deleting a Nuisance Channel . . . . . . . . . . 26 Restoring a Channel to the Scan List . 26 Editing a Scan List . . . . . . . . . . . . . . . . . . 26 Adding or Deleting Channels in a Scan List . . . . . . . . . . . . . . . . . . 27 English.book Page i Thursday, August 12, 1999 10:09 AM ii English CONTENTS Prioritizing a Channel in a Scan List . . 28Setting Priority Channels . . . . . . . . . . . 28 Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Making a Phone Call . . . . . . . . . . . . . . . . 31Modifying the Phone List . . . . . . . . . . . . . 32 Adding an Entry (when using the enhanced keypad microphone only) . . . . . . . . . . . . . . . 32 Deleting an Entry . . . . . . . . . . . . . . . . . 33Editing an Entry (when using the enhanced keypad microphone only) . . . . . . . . . . . . . . . 34 Editing an Access/Deaccess Code (when using the enhanced keypad microphone only) . . . . . . . . . . . . . . . 35 Audio/Tone Settings. . . . . . . . . . . . . . . . 37Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Setting the Time . . . . . . . . . . . . . . . . . . . . 41Displaying the Time . . . . . . . . . . . . . . . . . 42Selecting the Display Language . . . . . . . . 42 Safety and Warranty . . . . . . . . . . . . . . . . 43 Safe and Efficient Operation of Motorola Two-Way Radios . . . . . . . . . . . . . . . . . . 43 Exposure to Radio Frequency Energy . . . . . . . . . . . . . . . . . . . . . . . 43 Mobile Radio Operation and EME Exposure. . . . . . . . . . . . . . . . . 44 Electromagnetic Interference/ Compatibility . . . . . . . . . . . . . . . . . . 44 Operational Warnings . . . . . . . . . . . . . . . 45 Vehicles with an Air Bag . . . . . . . . . . . 45Potentially Explosive Atmospheres . . . 45Blasting Caps and Blasting Areas. . . . 45 Mobile Antenna Installation . . . . . . . . . . . 46Control Station Operation. . . . . . . . . . . . . 46Limited Warranty . . . . . . . . . . . . . . . . . . . 47 Accessories . . . . . . . . . . . . . . . . . . . . . . 51 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51Mounting . . . . . . . . . . . . . . . . . . . . . . . . . 51Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 52Control Station . . . . . . . . . . . . . . . . . . . . . 52 English.book Page ii Thursday, August 12, 1999 10:09 AM iii English CONTENTS COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel…

Text truncated - open the document above for the full version.

MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 3 SHEET 1 OF 1 CERTIFICATION OF DATA The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) I have received a BSEE degree in Electrical Engineering from FH Darmstadt. 2) I have 15 years experience in developing, testing and certifying Land Mobile Communications Products. NAME: Ralf Gregory SIGNATURE: Ralf Gregory DATE:: November 04, 1999 POSITION: Group leader I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Ruediger Maurer SIGNATURE:Ruediger Maurer DATE:November 04, 1999 POSITION: Director Engineering HW

MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 5 SHEET 1 OF 2 CIRCUIT DESCRIPTIONS EXHIBIT 5A – MEANS FOR FREQUENCY STABILIZATION Frequency stability is maintained by a reference oscillator/programmable temperature compensation circuit located in the frequency synthesizer IC U3201. The oscillator is a Colpitts design with an amplifier in the IC. The 16.8 MHz crystal Y3261, varactor D3261, and feedback capacitors are external circuitry. A control voltage applied to the varactor via the programmable compensation circuit within U3201maintains the frequency stability to within +/-2.5 ppm over the specified operating temperature range. Frequency tuning, also from the programmable compensation circuit, has 128 steps of resolution. Each 16.8 MHz crystal is numerically coded providing its unique characteristic over the operating temperature range. With the crystal temperature characteristic known, a computed compensation characteristic is programmed into the compensation algorithm. EXHIBIT 5B – MEANS FOR LIMITING MODULATION Modulation limiting is accomplished within the custom IC, U0221. The limiting action itself occurs at the rails (i.e., 5V and ground). Using an opamp with feedback, very hard limiting is obtained. The limited modulation signal is then applied to a low-pass splatter filter, and then to an electronic attenuator within U0221 in order to adjust for variations in modulation sensitivities of the frequency synthesizer. The electronic attenuator is controlled by the radio’s microprocessor, U0101. To keep the deviation constant over the RF frequency range & channel bandwidth, the microcomputer adds the proper correction factor to the attenuator. EXHIBIT 5C – MEANS FOR ATTENUATION OF HIGHER AUDIO FREQUENCIES The output of the limiter is applied to a low-pass splatter filter. This filter is a fifth-order switched capacitor filter with the roll-off corner located at 3000 Hz. The output of the low-pass filter is applied to the electronic attenuator before being routed to the modulator. EXHIBIT 5D – MEANS FOR ATTENUATION OF SPURIOUS EMISSIONS The final stage of the RF power amplifier circuit feeds a low-pass filter in order to attenuate harmonics of the carrier frequency as well as any spurious signals. The filter is a seven-pole Chebychev design using LC lumped elements. The cast metal chassis forms a compartmentalized shielded enclosure upon which the main circuit board is mounted. A second cast metal compartmentalized shielded enclosure is placed over the main circuit board and secured to the chassis with screws. A conductive elastomeric coating is bonded to the edges of the metal chassis and shield enclosure walls, which come in contact with gold-plated areas of the circuit board when the circuit board and shield are assembled to the chassis. This technique provides very effective and reliable shielding of the various circuits on the main board from each other and from the external environment, minimizing spurious RF radiated emissions. MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 5 SHEET 2 OF 2 EXHIBIT 5E – MEANS FOR LIMITING OUTPUT POWER Output power is regulated through the use of a forward power detection ALC loop. A directional coupler samples a portion of the forward RF power. The sampled RF is rectified by diode D3451, and the resulting dc voltage is routed to the Power Control IC U3501. This signal is then compared to the preprogrammed reference and the error signal is amplified and used to generate a control voltage to control the bias of the first transmitter stage, U3401. EXHIBIT 5F – MODULATION TECHNIQUES The transmitter is capable of the following types of modulation: i) Modulation of PL (Private Line) - Direct FM tone modulation of 67 Hz to 250.3 Hz at 15% of full system deviation. ii) Modulation of DPL (Digital Private Line) - Direct FM modulation at 134 BPS at 15% of full system deviation. iii) Modulation of DTMF tones at nominally 60% of full system deviation. The Carson’s Rule calculations for necessary bandwidth, Bn = 2M + 2DK, where M = maximum modulating frequency in Hz, D = peak deviation in Hz, and K = 1, are as follows: For 25 kHz Channel Spacing, Bn = 2(3000) + 2(5000)(1) = 16000 Hz (16K0 designator). For 12.5 kHz Channel Spacing, Bn = 2(3000) + 2(2500)(1) = 11000 Hz (11K0 designator). Direct FM of PL or DPL is generated by a 6-bit D/A converter contained within U0221. The frequency-determining clock signal is generated by the radio microcomputer. The modulation signal is processed through a five pole switched capacitor filter. The output of the filter is input to the electronic attenuator circuit. The microcomputer adjusts the attenuator to compensate for modulation sensitivity variations of the synthesizer & channel bandwidth ensuring 15% of full system deviation for PL and DPL. DTMF tones are generated by the audio processing IC, U0221. The tones are routed and processed in the same manner as the voice signals. EXHIBIT 5G – MEANS FOR CONTROLLING TRANSIENT FREQUENCY BEHAVIOR The effects of VCO frequency shifts due to transmitter key-up and de-key impedance variations are minimized through the use of a multiple-stage transmitter lineup with resistive isolation pads between various stages, including a pad between the output of the VCO/buffer IC and the input of the transmitter circuit. Additionally, the value of the DAC which controls output power is gradually raised during transmitter key-up and lowered during de-key, shaping the transmitter attack and decay characteristics by gradually changing the power control voltage. Finally, a pre-bias voltage is applied to the RF detector diode in the directional coupler so that the power control circuit does not react to a zero-power condition at transmitter key-up by attempting to increase the power output instantaneously to a high level.

FCC ID: AZ492FT3796 LIST OF EXHIBITS DESCRIPTION EXHIBIT REFERENCE I. List of Exhibits & Cover Letter12.1033 II. Identification Label Information2 General Information2A 1. Production Plans 2. Application References 3. Data Submittal Procedure III.Certification of Data3 IV.External Photographs4, 4a V.Circuit Descriptions/Block Diagrams5 1. Means for Frequency Stabilization5A 2. Means for Limiting Modulation5B 3. Means for Attenuation of Higher Audio Frequencies5C 4. Means for Attenuation of Spurious Emissions5D 5. Means for Limiting Power Output5E 6. Modulation Techniques5F 7. Means for Controlling Transient Frequency Behavior5G VI. Schematic Diagrams6 VII. Test Report7 1. Data Index7 2. RF Output Data7A 3. Modulation Characteristics A. Audio Response & Low Pass Filter Response7B, 7C B. Modulation Limiting7D 4. Occupied Bandwidth7E 5. Conducted Spurious Emissions 7F 6. Radiated Spurious Emissions7G 7. Frequency Stability A. Frequency Stability vs. Temperature7H-1 B. Frequency Stability vs. Voltage7H-2 8. Transient Frequency Behavior7I VIII.Test Set-up Procedures8 IX. Instruction Manual9 X. Internal Photographs10 FCC ID: AZ492FT3796 LIST OF EXHIBITS (CONTINUED) DESCRIPTION EXHIBIT REFERENCE XI.Parts List and Tune-up Procedures11 1. Function of RF Semiconductors & Active Devices 11A 2. List of Recommended Test Equipment for Servicing11B 3. Tune-up Information11C XII.RF Exposure Information12 XIII.Operational Description13 1. Technical Characteristics 2. Application FCC ID: AZ492FT3796 Date:December 15, 1999. Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT3796. Attention: Frank Coperich. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits it’s application for Certification of the subject transmitter. This transmitter is primarily intended for use in a mobile radio application with capabilities for communications with a transmit power of 1--30 Watt. The Power is variable 3% of the value listed (1--30 Watt). The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Certification application. Contact me at (954) 723-5793 if you require any additional information. Sincerely, Mike Ramnath FCC Liaison Email: [email protected] Fax (954) 723-4794

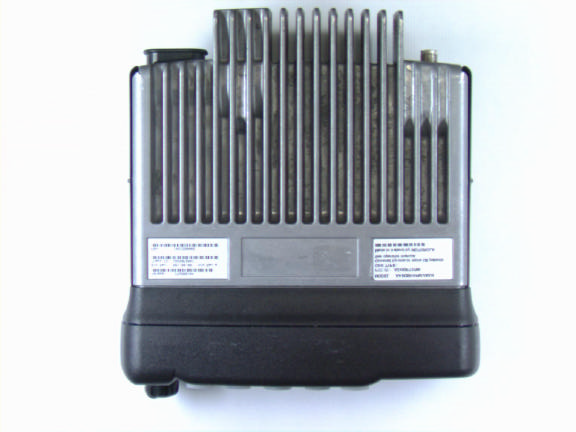

MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 4 SHEET 1 OF 4 GENERAL VIEW, 128 CHANNEL MODEL MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 4 SHEET 2 OF 4 FRONT VIEW, 128 CHANNEL MODEL (TOP) FRONT VIEW, 64 CHANNEL MODEL (MIDDLE) FRONT VIEW, 4 CHANNEL MODEL (BOTTOM) MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 4 SHEET 3 OF 4 FRONT VIEW, 160 CHANNEL MODEL MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 4 SHEET 4 OF 4 BOTTOM VIEW, SHOWING FCC ID LABEL Copy of label with FCC identifier as shown in the above photo.

MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 2 SHEET 1 OF 2 IDENTIFICATION LABEL LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the outside of the housing at the bottom back of the transmitter. TYPE The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 2 SHEET 2 OF 2 EXHIBIT 2A - GENERAL INFORMATION 1. Production Plans -- Pursuant 2.981 (c) Quantity production is planned. 2. Application References: EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.983-2.999 and Part 90, Sec.90.210 3. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Parts 22, 74, and 90. 4. Similar, FCC approved transmitter with FCC ID: AZ492FT4829.

MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 10 SHEET 1 OF 3 TOP VIEW, WITH DECORATIVE PLASTIC COVER REMOVED MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 10 SHEET 2 OF 3 TOP VIEW, WITH METAL SHIELD COVER REMOVED (TOP SIDE OF CIRCUIT BOARD VISIBLE) MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 10 SHEET 3 OF 3 TOP VIEW OF CHASSIS, WITH CIRCUIT BOARD REMOVED (BOTTOM SIDE OF CIRCUIT BOARD VISIBLE)

MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 13 SHEET 1 OF 4 OPERATIONAL DESCRIPTION I. Transmitter Technical Characteristics -- Pursuant 2.983 (d) A. Specific Operating Power Levels: RATED: 1 to 30 Watts, variable MEASURED: Refer to Exhibit 7A Maximum Power Rating: 30 Watts Means provided for variation of operating power: Output power is continuously variable over the range of 1 to 30 Watts. The output power isfield programmable to any power level within this range. B. Frequency Range: 136 to 174 MHz C. Frequency Stability: RATED: ± 0.00025% (± 2.5 ppm) MEASURED: Refer to Exhibits 7H-1 and 7H-2. D. Types of Emissions: 16K0F3E or 11K0F3E, programmable per channel. E. Spurious Emissions: RATED: 1 mW (-30 dBm) maximum, which corresponds to – 60dBc at the 1 Watt setting, and –75 dBc at the 30 Watt setting. MEASURED: Refer to Exhibits 7F and 7G F. DC Operating Voltages and Currents of the Final Stage: Refer to Exhibit 7A. II. Transmitter Application The following features, options, accessories, and installations characterize the transmitter. A. Power Supply: Vehicular battery, or AC-DC Converter B. Antenna: Whip, roof top, 1/4 wave, or other external 50-ohm antenna C. Squelch Types: 1. Carrier Squelch (CSQ) 2. Tone Private Line (TPL) 3. Digital Private Line (DPL) MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 13 SHEET 2 OF 4 Description (continued) D. Microphones Available: 1. Hand-held conventional 2. Hand-held conventional with DTMF 3. Base Station Desk Top 4. Telephone Style Handset E. Maximum Transmit Channel Capability: 4 to 160 channels, depending on model. F. Housing Style: The transmitter is enclosed in a metal, shielded chassis as shown in the accompanying photographs. The transmitter circuitry is contained on a single printed circuit board that is mounted to a cast metal chassis that also serves as a heatsink. A cast metal shield cover is placed over the printed circuit board and secured to the chassis with screws. Interior walls in both the chassis and shield cover form compartments that provide isolation between various circuit blocks. The frequency synthesizer, vco/buffers, transmitter stages, and low-pass harmonic filter are each contained in individual, isolated compartments. A conductive elastomeric coating is bonded to the edges of the metal chassis and shield enclosure walls, which come in contact with gold-plated areas of the circuit board when the circuit board and shield are assembled to the chassis. A decorative plastic housing encloses the top and sides of the chassis. The operating controls, indicators and supporting circuitry are contained in a separate plastic housing which is mounted to the front of the chassis. G. Available Accessories: ENKN4000BMAP27 cable RKN4077A3m Remote Mount cable RKN4078A5m Remote Mount cable RKN4079A7m Remote Mount cable RKN4081AMobile Programming RIB Cable RKN4083AMobile Programming RIBless cable RLN4756ATelephone style handset RLN4779AKey lock mount (UHF/VHF) RLN4780AHigh profile mounting trunnion RLN4782ADIN mounting kit RLN4801ARemote Mount Control head A RLN4802ARemote Mount Control head B/C RLN4829AConv Control head A Button Kit (no manual) RLN4830AConv Control head BCD Button Kit (no manual) RLN4836AExternal PTT w/Emergency Footswitch RLN4853A10 pin Mic/20 pin DIN Adaptor RMN4025AEnhanced compact mic RMN4026ASmart mic RMN4027AVisor mounted mic RMN4038AHeavy Duty mic MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 13 SHEET 3 OF 4 RMN4041AFootswitch with Remote PTT RMN4042APushbutton with Remote PTT RMN4043AGooseneck PTT RSN4001AExternal speaker 13W 8180384J60Housing Eliminator 45W AARLN4832AModem Option Board (w/NA/LA manual) RLN4832AModem Option Board (w/o Manual) GKN6272AExternal alarm relay GLN7318ADesktop mounting tray w/out speaker GLN7323AExternal PTT/ emergency footswitch GLN7324ALow profile mounting trunnion GLN7326ADesktop mounting tray w/spkr GTF347BMobile Programming Cable HAD4006AMini-U 136-144 MHz, 1/4 Wave Roof Mount HAD4007AMini-U 146-150.8 MHz, 1/4 Wave Roof Mount HAD4008AMini-U 150.8-162 MHz, 1/4 Wave Roof Mount HAD4009AMini-U 162-174 MHz, 1/4 Wave Roof Mount HAD4014AMini-U 146-172 MHz, 3dB Gain Roof Mount HKN4137A12V Battery Power Cable 1-25W HKN9019BEnhanced connector HKN9402A12V Battery Power Cable 25-45W HKN9557AMini-UHF to PL259 cable HLN3333B RICK with Mounting Bracket HLN3948BRICK with Mounting Tray HLN8097ARemovable slide mount HLN9457AAccessory connector Kit HLN9725BVoice Storage Option Board HLN9742AAdaptor Flashing HMN3000BBlack Desk Microphone HPN4001BDesktop power supply, 25-60W HSN8145AExternal speaker 7.5W L3144AC200 Basic Extended Local Control (Eng Manual) L3145AC200 Basic DC Remote Control (Eng Manual) L3146AC200 Basic Tone Remote Control (Eng Manual) L3147AC200 Advanced Extended Local Control (Eng Manual) L3148AC200 Advanced DC Remote Control (Eng Manual) L3149AC200 Advanced Tone Remote Control (Eng Manual) NTN7373ARUS linecord (3060665A04) packaged NTN7374ARUS linecord (3060665A05) packaged NTN7375ARUS linecord (3002120F02) packaged 0902105F01BNC Connector AAHLN9725BVoice Storage Option Bd (w/NA/LA Manual) HLN9725AVoice Storage Option Bd (w/o Manual) AAHLN9729ADTMF Decode Option Bd (w/NA/LA Manual) HLN9729ADTMF Decode Option Bd (w/o Manual) AAHLN9726ATranscrypt Option Bd (w/NA/LA Manual) HLN9726ATranscrypt Option Bd (w/o Manual) AAHLN9727AScrambler Option Bd (w/NA/LA Manual) MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 13 SHEET 4 OF 4 HLN9727AScrambler Option Bd (w/o Manual) AAHLN9728ASmartrunk Option Bd (w/NA/LA Manual) MDHLN9728ASmartrunk Option Bd (w/o Manual) H. Programmability: Programming is accomplished by the use of an IBM PC computer or equivalent, a Radio Interface Box, and Radio Service Software. Adjustment of the transmitter, including programming of the channel frequencies, output power adjustment, frequency adjustment, and deviation adjustment are performed in this manner. NOTE: The transmitter is NOT programmable by the operator.

MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 11 SHEET 1 OF 1 PARTS LIST / TUNE UP INFORMATION This exhibit contains a list of the semiconductor devices used in the transceiver and the test equipment and tuning procedures for maintaining the transceiver. EXHIBIT 11AFunction of RF Semiconductors and Other Active Devices EXHIBIT 11BList of Recommended Test Equipment for Servicing EXHIBIT 11CTune Up Information MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 11A Exhibit 11A - Function of RF Semiconductors & Other Active Devices REFPARTCIRCUITOPERATINGINDUSTRY NO. NUMBER APPLICATION FREQUENCY EQUIVALENT D01014880236E05DATA SWITCH230 kHz MMBD301 D01514813833C02DC SWITCHDC MMBD6100 D01794813833C02CLAMP DC MMBD6100 D06214813833C02DC SWITCHDCMMBD6100 D06514813833C02DC SWITCHDCMMBD6100 D06604813833C02DC SWITCHDCMMBD6100 D06614813833C02DC SWITCH DCMMBD6100 D30004813833C02DC SWITCHDC MMBD6100 D30014805649Q13FRONT END FILTER TUNING136-174 MHz1SV228 D30034880154K03CLIPPER136-174 MHzMMBD353 D30044805649Q13FRONT END FILTER TUNING136-174 MHz1SV228 D30114880142L01 D30314886143B01DOUBLE BALANCED MIXER44.85-218.85 MHzSMS3927-99 D31014880154K03CLIPPER44.85 MHzMMBD353 D32014802233J09VOLTAGE MULTIPLIER1.05 MHzIMN10 D32214880236E05DATA SWITCHMMBD301 D32614802245J22REF OSC FREQ CONTROL16.8 MHz 1T363 D33414805649Q13RX VCO FREQ CONTROL180.85-218.85 MHz1SV228 D33614805649Q13TX VCO FREQ CONTROL136-174 MHz1SV228 D33624862824C01TX VCO MODULATOR136-174 MHz1SV229 D34014813833C02DC SWITCHDCMMBD6100 D34514880236E05FORWARD POWER DETECTOR136-174 MHzMMBD301 D34714802482J02RF PIN SWITCH 136-174 MHz MA4P959 D34724802482J02RF PIN SWITCH136-174 MHzMA4P959 Q01104880048M01DC SWITCH DC DTC144EKA Q01514880048M01DC SWITCHDCDTC144EKA Q01714880048M01DC SWITCHDCDTC144EKA Q01734880052M01DC SWITCH DCRXT-A28 Q01774880048M01DC SWITCHDCDTC144EKA Q01814880048M01DC SWITCHDC DTC144EKA Q01834880048M01DC SWITCHDCDTC144EKA Q01854880048M01DC SWITCHDC DTC144EKA Q02714813824A10DC SWITCHDCMMBT3904 Q06414880048M01DC SWITCH DCDTC144EKA Q06614805921T02DC SWITCH DCFMC2A Q06624813824A10DC SWITCHDCMMBT3904 Q06634880048M01 DC SWITCHDCDTC144EK Q06814880052M01DC SWITCH DCRXT-A28 MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 11A REFPARTCIRCUITOPERATINGINDUSTRY NO. NUMBER APPLICATION FREQUENCY EQUIVALENT Q30014813827A07RF AMPLIFIER136-174 MHzMMBR941 Q30024813824A17RF AMPLIFIER BIAS CONTROLDCMMBT3906 Q30214805921T02DC SWITCH DCFMC2A Q31014813827A07I-F AMPLIFIER44.85 MHz MMBR941 Q31024813827A07I-F AMPLIFIER44.85 MHzMMBR941 Q31514880048M01DC SWITCHDCDTC144EKA Q31524880048M01DC SWITCHDCDTC144EKA Q32214880048M01AUDIO SWITCHAUDIODTC144EKA Q33014813827A07RX VCO BUFFER180.85-218.85 MHzMMBR941 Q33034802245J50DC SWITCHDCUMC5N Q33044805218N63RX VCO180.85-218.85 MHzBFQ67W Q34114805921T02DC SWITCH DCFMC2A Q34215105385Y70TX PRE-DRIVER STAGE136-174 MHz MRF1507 Q34224880048M01DC SWITCHDCDTC144EKA Q34414886136B01TX FINAL POWER AMPLIFIER136-174 MHzMRF1565 Q34424880048M01DC SWITCHDCDTC144EKA Q34714880048M01DC SWITCHDCDTC144EKA Q34724805128M27CONSTANT CURRENT SINKDC BSR33 U01015102226J56MICROPROCESSOR38.4 kHz-7.4 MHzMC68HC11FL0 U01115102463J64EEPROM 1 MHzX25128_2.7V U01215186137B01FLASH ROM1.85 MHzAT49F040 U01225185963A21SRAM 1.85 MHz63A21 U01415113805A30DECODER/DEMUX5 kHzMC74HC138A U02115183222M49AUDIO AMPLIFIERAUDIOMC3403 U02215185963A53AUDIO FILTER 16.8 MHz63A53 U02515113806A20AUDIO GATE AUDIOMC14053B U02715109699X01AUDIO POWER AMPLIFIER AUDIOTDA1519C U03015102463J53VOICE STORAGE1 MHzISD33000 U03415180932W01AUDIO AMPLIFIER AUDIOLM2904 U03425105750U28AUDIO GATEAUDIO TC4S66F U03515102463J40VOLTAGE REGULATOR DCLP2951ACMM-3.3 U06115183308X01VOLTAGE REGULATORDCLM2941 U06415183308X01VOLTAGE REGULATORDCLM2941 U06515113816A07VOLTAGE REGULATORDCMC78M05 U06525113815A02RESET MONITOR DCMC33064 U31015186144B01RECEIVER SYSTEM455 kHz-44.85 MHzSA616 U31115113805A86RF SWITCH455 kHzMC74HC4066 U31155113805A86RF SWITCH 455 kHzMC74HC4066 MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 11A SHEET 3 OF 3 REFPARTCIRCUITOPERATINGINDUSTRY NO. NUMBER APPLICATION FREQUENCY EQUIVALENT U32015185963A27FREQUENCY SYNTHESIZER1.05-218.95 MHz63A27 U32115185963A33VOLTAGE REGULATORDC LP2951 U33015105750U54TX VCO/RX BUFFER/TX BUFFER136-218.95 MHz50U54 U34015105109Z67GAIN CONTROLLED AMPLIFIER136-174 MHz09Z67 U34025113818A03 U35015185765B01TX POWER CONTROL1 MHzH99S-4 U35025185963A15TEMPERATURE SENSORDCLM50 VR01514813830A15DC LEVEL-SENSING SWITCH DCMMBZ5232B VR05014805656W09ESD PROTECTION DCMMQA20VT1 VR05034805656W09ESD PROTECTION DCMMQA20VT1 VR05044813830A40ESD PROTECTIONDCMMBZ5257B VR05054805656W09ESD PROTECTION DCMMQA20VT1 VR05094813830A40ESD PROTECTIONDCMMBZ5257B VR05104813830A40ESD PROTECTIONDCMMBZ5257B VR05374813830A15ESD PROTECTIONDCMMBZ5232B VR05414813830A27ESD PROTECTIONDCMMBZ5244B VR06014813832C77TRANSIENT SUPPRESSORDCMR2835S VR06214813830A15VOLTAGE REGULATOR DCMMBZ5232B VR34714813830A15CURRENT SINK REFERENCEDCMMBZ5232B COMMENTS: The Motorola designators are special code numbers for active devices used in Motorola radios. These devices are either identical or derived from the device family listed under Industry Equivalent, by the manufacturer or are proprietary to Motorola. Service people do not have access to any cross-references or given any information on proprietary devices and are prevented from making unauthorized substitution. MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 11B SHEET 1 OF 1 Exhibit 11B - List of Recommended Test Equipment for Servicing Instrument Recommended Type Application RF Signal Generator *HP 8656B or equivalentReceiver Measurements Modulation Analyzer *HP 8901B or equivalentFrequency and Deviation Measurements Audio Analyzer *HP 8903A or equivalentReceiver Measurements Power Meter *HP 438A or equivalentTransmitter Power Output Power Sensor *HP 8482A or equivalentTransmitter Power Output DC Power Supply0-20 volts at 15 amps Attenuator Pad *50 W, 75 Watts, 30 dBTransmitter Measurements DC Ammeter30 mA to 20 ACurrent Drain Measurements ComputerIBM PC, PC/XT or PC/ATRadio Alignment Radio Interface BoxHLN9214Comput…

Text truncated - open the document above for the full version.

MOTOROLA INCFCC ID: AZ492FT3796 EXHIBIT 12 SHEET 1 OF 1 RF EXPOSURE INFORMATION In accordance with 47 CFR 2.1091 (c), this transmitter has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1091 (d).

MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 6 SCHEMATIC DIAGRAMS This exhibit contains the schematic diagrams of the transmitter circuits. EXHIBIT 6ATransmitter Audio Path, PL/DPL Generation EXHIBIT 6BMicroprocessor/Controller EXHIBIT 6CFractional-N Frequency Synthesizer, Reference Oscillator EXHIBIT 6DVoltage Controlled Oscillators and Buffers EXHIBIT 6ERF Power Amplifier, Harmonic Filter, Antenna Switch, Power Control MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 6A MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 6B MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 6C MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 6D MOTOROLA INC.FCC ID: AZ492FT3796 EXHIBIT 6E
