Commercial SeriesTwo-Way Radio User GuideCM200 MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. All rights reserved. Printed in U.S.A.Motorola, Le logo stylisé M, et intelligence universelle sont des marques de Motorola, Inc.© 2002 Motorola, Inc. Tous droits réservés. Imprimé aux États-Unis. *6802966C30*6802966C30-O 66C30-O_cvr.qxd 9/11/2002 3:49 PM Page 1 1 English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . . . 2Safety and Warranty . . . . . . . . . . . . . . . . . . 3Product Safety and RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 3 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . 4Radio Overview . . . . . . . . . . . . . . . . . . . . . . 9Parts of the Radio . . . . . . . . . . . . . . . . . . . . . 9 On/Off/Volume Knob . . . . . . . . . . . . . . . 10Seven Segment Display. . . . . . . . . . . . . 10Channel Selector Buttons . . . . . . . . . . . 10LED Indicators . . . . . . . . . . . . . . . . . . . . 10Programmable Buttons . . . . . . . . . . . . . 11Push-to-Talk (PTT) Button . . . . . . . . . . . 11Microphone . . . . . . . . . . . . . . . . . . . . . . 11 Indicator Tones . . . . . . . . . . . . . . . . . . . . . . 13Improved Audio Features . . . . . . . . . . . . . . 13 Low Level Expansion (LLE) . . . . . . . . . . 13Companding. . . . . . . . . . . . . . . . . . . . . . 13 Getting Started . . . . . . . . . . . . . . . . . . . . . 15Turning the Radio On or Off . . . . . . . . . . . . 15Adjusting the Volume . . . . . . . . . . . . . . . . . 15Selecting a Radio Channel . . . . . . . . . . . . . 15Sending a Call . . . . . . . . . . . . . . . . . . . . . . . 16 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . 16Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Radio Calls . . . . . . . . . . . . . . . . . . . . . . . . . 17Selective Radio Inhibit . . . . . . . . . . . . . . . . . 17Repeater or Talkaround Mode . . . . . . . . . . . 17Setting the Power Level . . . . . . . . . . . . . . . . 17Setting Tight or Normal Squelch. . . . . . . . . . 18Receiving a Selective Call . . . . . . . . . . . . . . 18Receiving a Call Alert Page . . . . . . . . . . . . . 18Setting Local or Distance Mode . . . . . . . . . . 18Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Starting or Stopping Scan. . . . . . . . . . . . . . . 19Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Deleting a Nuisance Channel . . . . . . . . . . . . 20 Restoring a Channel to the Scan List . . .20 Accessories . . . . . . . . . . . . . . . . . . . . . . . . 21Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Alarm and Accessories . . . . . . . . . . . . . . . . . 21Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Control Station . . . . . . . . . . . . . . . . . . . . . . . 22Public Address . . . . . . . . . . . . . . . . . . . . . . . 22Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Line Cords . . . . . . . . . . . . . . . . . . . . . . . . . . 22Consoles. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . 23 EnglishTOC.fm Page 1 Thursd ay, September 26, 2002 10:08 AM 2 English CONTENTS COMPUTER SOFTWARE COPYRIGHTSThe Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. EnglishTOC.fm Page 2 Thursd ay, September 26, 2002 10:08 AM 3 English SAFETY AND WARRANTY SAFETY AND WARRANTY PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81095C99) to ensure compliance with RF energy exposure limits. For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/index.shtml. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n 08_SafetyNA.fm Page 3 Wednesd ay, September 25, 2002 10:20 AM 4 English SAFETY AND WARRANTY LIMITED WARRANTY MOTOROLA COMMUNICATION PRODUCTS I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG: MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication Products listed below (“P roduct”) against defects in material and workmanship under normal use and service for a period of time from the date of purchase as scheduled below:CM200 Mobile Units Two (2) Years Product Accessories One (1) Year Mag One Six (6) Months Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or recondi…

Text truncated - open the document above for the full version.

Commercial SeriesTwo-Way Radio User GuideCM200 MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. All rights reserved. Printed in U.S.A.Motorola, Le logo stylisé M, et intelligence universelle sont des marques de Motorola, Inc.© 2002 Motorola, Inc. Tous droits réservés. Imprimé aux États-Unis. *6802966C30*6802966C30-O 66C30-O_cvr.qxd 9/11/2002 3:49 PM Page 1 1 English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . . . 2Safety and Warranty . . . . . . . . . . . . . . . . . . 3Product Safety and RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 3 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . 4Radio Overview . . . . . . . . . . . . . . . . . . . . . . 9Parts of the Radio . . . . . . . . . . . . . . . . . . . . . 9 Optional Enhanced Keypad Microphone (RMN4026) . . . . . . . . . . . . . . . . . . . . . 10 On/Off/Volume Knob . . . . . . . . . . . . . . . 11Seven Segment Display. . . . . . . . . . . . . 11Channel Selector Buttons . . . . . . . . . . . 11LED Indicators . . . . . . . . . . . . . . . . . . . . 11Programmable Buttons . . . . . . . . . . . . . 12Push-to-Talk (PTT) Button . . . . . . . . . . . 12Microphone . . . . . . . . . . . . . . . . . . . . . . 12Use with Enhanced Keypad Microphone (RMN4026) . . . . . . . . . . . . . . . . . . . . . 12 Indicator Tones . . . . . . . . . . . . . . . . . . . . . . 14Improved Audio Features . . . . . . . . . . . . . . 14 Low Level Expansion (LLE) . . . . . . . . . . 14Companding. . . . . . . . . . . . . . . . . . . . . . 14 Getting Started . . . . . . . . . . . . . . . . . . . . . . 15Turning the Radio On or Off . . . . . . . . . . . . . 15Adjusting the Volume . . . . . . . . . . . . . . . . . . 15Selecting a Radio Channel . . . . . . . . . . . . . . 15Sending a Call . . . . . . . . . . . . . . . . . . . . . . . 16Receiving a Call . . . . . . . . . . . . . . . . . . . . . . 16Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . 16VOX Operation . . . . . . . . . . . . . . . . . . . . . . . 17Radio Calls . . . . . . . . . . . . . . . . . . . . . . . . . 19Selective Radio Inhibit . . . . . . . . . . . . . . . . . 19Repeater or Talkaround Mode . . . . . . . . . . . 19Setting the Power Level . . . . . . . . . . . . . . . . 19Setting Tight or Normal Squelch. . . . . . . . . . 20Receiving a Selective Call . . . . . . . . . . . . . . 20Receiving a Call Alert Page . . . . . . . . . . . . . 20Setting Local or Distance Mode . . . . . . . . . . 20Sending DTMF Tones . . . . . . . . . . . . . . . . . 21Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Starting or Stopping Scan. . . . . . . . . . . . . . . 23Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Deleting a Nuisance Channel . . . . . . . . . . . . 24 Restoring a Channel to the Scan List . . .24 EnglishTOC.fm Page 1 Monday, October 28, 2002 4:35 PM 2 English CONTENTS Accessories . . . . . . . . . . . . . . . . . . . . . . . .25Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Alarm and Accessories . . . . . . . . . . . . . . . . .25Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . .26Control Station . . . . . . . . . . . . . . . . . . . . . . .26Public Address . . . . . . . . . . . . . . . . . . . . . . .26Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26Line Cords . . . . . . . . . . . . . . . . . . . . . . . . . .26Consoles. . . . . . . . . . . . . . . . . . . . . . . . . . . .27Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . .27Data - CES . . . . . . . . . . . . . . . . . . . . . . . . . .27 COMPUTER SOFTWARE COPYRIGHTSThe Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. EnglishTOC.fm Page 2 Monday, October 28, 2002 4:35 PM 3 English SAFETY AND WARRANTY SAFETY AND WARRANTY PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81095C99) to ensure compliance with RF energy exposure limits. For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/index.shtml. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n 08_SafetyNA.fm Page 3 Monday, October 28, 2002 4:41 PM 4 English SAFETY AND WARRANTY LIMITED WARRANTY MOTOROLA COMMUNICATION PRODUCTS I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG: MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication Products listed below (“P roduct”) against defects in materia…

Text truncated - open the document above for the full version.

English Product Safety and RF Exposure for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n © Motorola, Inc. 2002 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 7/02.

68P81095C99-O 95C99-O.book Page 1 Tuesday, July 16, 2002 12:45 PM 2 English Federal Communication Commission Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from mobile two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before mobile two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by education or training through appropriate means such as information and instructions in user manuals or safety booklets, or other appropriate means. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 95C99-O.book Page 2 Tuesday, July 16, 2002 12:45 PM 3 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” 95C99-O.book Page 3 Tuesday, July 16, 2002 12:45 PM 4 English Compliance and Control Guidelines and Operating Instructions for Mobile Two-Way Radios Installed in Vehicles To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: •To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. Transmit only when people outside the vehicle are at least the minimum lateral distance away (as shown in the table below) from a properly installed, externally-mounted antenna. The table below lists the minimum lateral distance for bystanders in an uncontrolled environment from the transmitting antenna at several different ranges of rated radio power for mobile radios installed in a vehicle. • Install mobile antennas at the center of the roof or the center of the trunk deck. These mobile antenna installation guidelines are limited to metal body vehicles. The antenna installation must additionally be in accordance with: - The requirements of the antenna manufacturer/supplier - Instructions in the Radio Installation Manual Rated Power of Vehicle-Installed Mobile Two-way Radio Minimum Lateral Distance from Transmitting Antenna Less than 7 watts8 inches (20 centimeters) 7 to 15 watts1 foot (30 centimeters) 16 to 50 watts2 feet (60 centimeters) 51 to 110 watts3 feet (90 centimeters) 95C99-O.book Page 4 Tuesday, July 16, 2002 12:45 PM 5 English Use only the Motorola-approved, supplied antenna or a Motorola- approved replacement antenna. Use of non–Motorola-approved antennas, modifications, or attachments could damage the radio and may violate FCC regulations. • For a list of Motorola-approved antennas, visit the following web site: http://www.motorola.com/cgiss/index.shtml . For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . Compliance and Control Guidelines and Operating Instructions for Mobile Two-Way Radios Installed as Fixed Site Control Stations If mobile radio equipment is installed at a fixed location and operated as a control station or as a fixed unit, the antenna installation must comply with the following requirements in order to ensure optimal performance and compliance with the RF energy exposure limits in the standards and guidelines listed on page 3: • The antenna should be mounted outside the building on the roof or a tower if at all possible. • As with all fixed site antenna installations, it is the responsibility of the licensee to manage the site in ac…

Text truncated - open the document above for the full version.

Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 2 SHEET 1 OF 1 Certification of Data Pursuant to 47 CFR 2.1517(g) The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) I received a BSEE degree from the University of Miami, Miami, Florida. 2) I have 9 years experience in developing, testing, and certifying Land Mobile Communications Products. NAME: Jon Dellon SIGNATURE: /s/ Jon Dellon DATE: October 28, 2002 POSITION: Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Zami Schwartzman SIGNATURE: /s/ Zami Schwartzman DATE: October 28, 2002 POSITION: Engineering Manager

FCC ID: AZ492FT3805 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. Date: 11 th November 2002 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT3805. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Mobile Radio environment with capabilities for clear communications with a variable transmit power of 1 to 28 Watt operating within the following frequency ranges: 146 to 174 MHz. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. Contact Mike Ramnath at (954) 723- 5793 if you require any additional information. Sincerely, /s/ Mike Ramnath Mike Ramnath FCC Liaison Email: [email protected] EXHIBIT 13

FCC ID: AZ492FT3805 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. Confidentiality Request Date: 11 th November 2002 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT3805. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath FCC Liaison Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

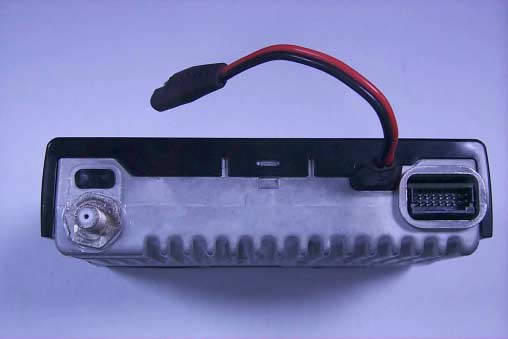

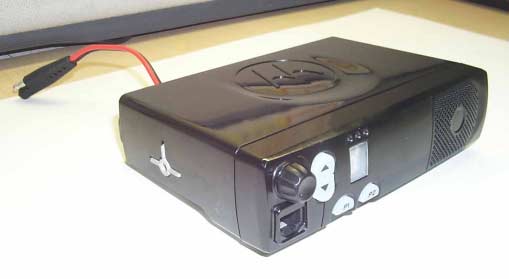

Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 3 SHEET 1 OF 4 External Photographs Pursuant to 47 CFR 2.1033(c)12 Figure 3-1: Front and side views of complete radio. Figure 3-2: Front view of complete radio. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 3 SHEET 2 OF 4 Figure 3-3: Rear view of complete radio showing antenna connector, DC cable, and accessory connector. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 3 SHEET 3 OF 4 Figure 3-4: Rear view of complete radio showing FCC Label location. Figure 3-5: Close up of FCC Label. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 3 SHEET 4 OF 4 Figure 3-6: Close-up views of the BNC (left) and mini-UHF (right) antenna connectors.

Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 1 SHEET 1 OF 2 IDENTIFICATION LABEL Pursuant to 47 CFR 2.925(a), 2.1033(c), 2.0165 LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the bottom of the unit near the front. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. TYPE The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 1 SHEET 2 OF 2 EXHIBIT 1A – GENERAL INFORMATION 1. Application References: TIA/EIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057, Part 80, and Part 90, Section 90.210. 2. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commission’s rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 90. Maximum transmitter power shall not be adjustable by the user. 3. Similar to “Currently Certified Transmitter Type”: FCC ID: ABZ99FT3081

Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 1 OF 7 Internal Photographs Pursuant to 47 CFR 2.1033(c)12 Figure 9-1: Top Side of PCB without shields. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 2 OF 7 Figure 9-2: Bottom Side of PCB without shields. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 3 OF 7 Figure 9-3: Top Side of PCB with shields. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 4 OF 7 Figure 9-4: Bottom Side of PCB with shields. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 5 OF 7 Figure 9-5: Top View of PCB placed in chassis. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 6 OF 7 Figure 9-6: Top View of PCB placed in chassis with shield covering transmitter section. Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 9 SHEET 7 OF 7 Figure 9-7: Top view of chassis with main shield in place.

Applicant: Motorola Inc. FCC ID: AZ492FT3805 EXHIBIT 11A SHEET 1 OF 1 RF EXPOSURE INFORMATION Pursuant 47 CFR 2.1091 In accordance with 47CFR 2.1091(c) this transmitter has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1091(d) for mobile devices, using measurements per methods stated in 47 CFR 2.1091(d)(1). The complete MPE EME Compliance Test Report is attached as Exhibit 11B.

Certificate Number: 1449-02 CGISS EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 EME Compliance Test Report Attention: Federal Communication Commission Date of Report: September 30, 2002 Report Revision(s): Rev. O Device Manufacturer: Motorola Device Description: Mobile VHF analog radio 1-25 Watts; 4/8 Ch. Mini UHF Classification: Occupational/Controlled Exposure FCC ID: AZ492FT3805 Device Model: FUD1182A Test Period: Test Engineer: Author: 9/6/02 Michael Sailsman EME Regulatory Affairs Liaison Jim Fortier Sr. Staff Engineer Note: Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with all applicable national and international reference standards and guidelines. /s/ Ken Enger 10/10/02 ____________________________________________________________ _________________________ Senior Resource Manager, Laboratory Director, CGISS EME Lab Date Approved Phone: 954-723-6299 Fax: 954-723-3803 Note: This report shall not be reproduced in part without written approval from an authorized representative of the Motorola CGISS EME Laboratory. Form-MPE rpt. Rev 1.00 Page 1 of 15 TABLE OF CONTENTS 1.0 Product Description 2.0 Offered Options and Accessories 3.0 Measurement Standards 4.0 Data Collection Consideration 5.0 Measurement System Uncertainty Levels 6.0 Method of Measurement 6.1 EME measurements made on trunk mounted antennas 6.1.1 External vehicle EME measurement 6.1.2 Internal vehicle EME measurement 6.2 EME Measurements made on center roof mounted antennas 6.2.1 External vehicle EME measurements 6.2.2 Internal vehicle EME measurement 7.0 Test Site 8.0 Measurement System/Equipment 9.0 Test Unit Description 10.0 Test Set-Up Description 11.0 Test Results 12.0 Conclusion Appendix A. Antenna Location Drawing Form-MPE rpt. Rev 1.00 Page 2 of 15 REVISION HISTORY Date Revision Comments 9/30/02 O Initial release Prototype results Form-MPE rpt. Rev 1.00 Page 3 of 15 1.0 Product Description FCC ID: AZ492FT3805, model FUD1182A is a mobile transceiver that utilizes frequency modulation (FM) half duplex transmission technology. The intended use of the radio is Push-To-Talk (PTT) while the device is properly installed in a vehicle with an external antenna mounted at the center of the roof or trunk. This device is marketed to Commercial, Government, and Industrial Users and therefore is classified as Occupational/Controlled Exposure. The intended users of this device are informed and aware professionals operating this device in accordance with the User Manual instructions including maintaining a maximum operational transmit duty cycle of 50%. In accordance with FCC requirements, the passengers inside the vehicle and the bystanders external to the vehicle are evaluated to the General Population/Uncontrolled Exposure Limits. The transmit frequency band is 146-174 MHz. The rated power of the device is 1 to 25 watts with a maximum conducted power output of 28 watts. 2.0 Offered Options and Accessories Antenna HAD4007A 144-150.8 MHz ¼ wave 0dBi; 48.1cm HAD4008A 150.8 -162 MHz ¼ wave 0dBi; 44.6cm HAD4009A 162-174 MHz ¼ wave 0dBi; 41.8cm HAD4014AR 140-174 MHz 3dBi gain ; 1.2m 3.0 Measurement Standards Measurements were performed according to FCC Limits Per 47 CFR 2.1091 (b) for General Population/Uncontrolled RF Exposure. For frequencies ranging from 146-174 MHz the MPE (Maximum Permissible Exposure) limit to electromagnetic energy in equivalent plane wave free-space power density is 0.20 mW/cm 2 . 4.0 Data Collection Consideration Power density testing was performed with DUT installed in a 1991 Ford Taurus (4-door). Measurement data was taken with the vehicle running at idle and the vehicle battery measuring 14.0 volts. Form-MPE rpt. Rev 1.00 Page 4 of 15 5.0 Measurement System Uncertainty Levels The information below presents an estimate of the possible errors that are associated with the measurement system. Description Error NARDA Survey Meter ± 3% Repeatability Accuracy ± 7% 6.0 Method of Measurement 6.1 EME measurements made on trunk mounted antennas (for reference, see Antenna Location Layout drawings in Appendix) 6.1.1 External vehicle EME measurement (Antenna mounted in trunk center) With the survey meter and probe, take ten (10) measurements, at the standard test distance of 60 cm to the antenna, from the back of the vehicle in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters; this would be representative of a person standing behind a vehicle during a mobile radio transmission. 6.1.2 Internal vehicle EME measurement (Antenna mounted in trunk center) While rotating survey meter probe through 180 degrees to ensure that the highest level is found, scan the inside of the vehicle, both front and back seating areas, for the highest level in each location. After the highest level is found, scan vertically making two (2) additional measurements within an area approximately 40 cm wide (representing the width of a person) so as to have a total of three (3) measured points as indicated below that will be averaged. a) Head area b) Chest area c) Lower Trunk area 6.2 EME measurements made on center roof mounted antennas (for reference, see Antenna Location Layout drawings in Appendix) 6.2.1 External vehicle EME measurement With the survey meter and probe, take ten …
