AZ492FT4835Mobile Transmitter

1 English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . . 3 Radio Overview . . . . . . . . . . . . . . . . . . . . . 5 Parts of the Radio . . . . . . . . . . . . . . . . . . . . 5 Optional Enhanced DTMF (Keypad) Microphone (RMN4026). . . . . . . . . . . . . 6On/Off/Volume Knob . . . . . . . . . . . . . . . 7Channel Selector/Menu Navigation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 7LED Indicators . . . . . . . . . . . . . . . . . . . . 7Programmable Buttons . . . . . . . . . . . . . 7Push-to-Talk (PTT) Button . . . . . . . . . . 10Microphone . . . . . . . . . . . . . . . . . . . . . 10Menu Keys . . . . . . . . . . . . . . . . . . . . . . 10Use with Enhanced DTMF Microphone (RMN4026). . . . . . . . . . . . . . . . . . . . . . 11LCD Screen . . . . . . . . . . . . . . . . . . . . . 13 Audio Indicators for Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Getting Started . . . . . . . . . . . . . . . . . . . . 15 Turning the Radio On or Off . . . . . . . . . . . 15Adjusting the Volume . . . . . . . . . . . . . . . . 15Selecting a Zone . . . . . . . . . . . . . . . . . . . . 16Selecting a Radio Channel . . . . . . . . . . . . 16 Sending a Call . . . . . . . . . . . . . . . . . . . . . 17Receiving a Call . . . . . . . . . . . . . . . . . . . . 17 Radio Calls . . . . . . . . . . . . . . . . . . . . . . . 19 Making a Selective Call . . . . . . . . . . . . . . 19Receiving a Selective Call . . . . . . . . . . . . 19Sending a Call Alert™ Page . . . . . . . . . . . 20Receiving a Call Alert Page . . . . . . . . . . . 20Radio Check . . . . . . . . . . . . . . . . . . . . . . . 21Sending a Status . . . . . . . . . . . . . . . . . . . 21Sending a Message . . . . . . . . . . . . . . . . . 22Receiving a Message . . . . . . . . . . . . . . . . 23Sending an Emergency Alert . . . . . . . . . . 23Receiving Selective Radio Inhibit . . . . . . . 24Editing a Radio Call List . . . . . . . . . . . . . . 24Repeater or Talkaround Mode . . . . . . . . . 25Setting the Power Level . . . . . . . . . . . . . . 25Name and Call/Message Tone Tagging . . 26 Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Starting or Stopping Scan. . . . . . . . . . . . . 29Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . 30Deleting a Nuisance Channel . . . . . . . . . . 30 Restoring a Channel to the Scan List . . . . . . . . . . . . . . . . . . . . . . . 30 88C37_English.book Page 1 Wednesday, April 21, 1999 10:49 PM 2 English CONTENTS Editing a Scan List . . . . . . . . . . . . . . . . . . 30 Adding or Deleting Channels in a Scan List. . . . . . . . . . . . . . . . . . . . . . 31Prioritizing a Channel in a Scan List . . 32Setting Priority Channels . . . . . . . . . . . 32 Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Making a Phone Call . . . . . . . . . . . . . . . . 35Modifying the Phone List . . . . . . . . . . . . . 36 Adding an Entry (when using the keypad microphone only) . . . . . . . . . . 36Deleting an Entry . . . . . . . . . . . . . . . . . 37Editing an Entry (when using the keypad microphone only) . . . . . . . . . . 38Editing an Access/Deaccess Code (when using the keypad microphone only). . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Audio/Tone Settings. . . . . . . . . . . . . . . . 41Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Setting the Time . . . . . . . . . . . . . . . . . . . . 45Displaying the Time . . . . . . . . . . . . . . . . . 46Selecting the Display Language . . . . . . . . 46 Safety and Warranty . . . . . . . . . . . . . . . 47 Safe and Efficient Operation of Motorola Two-Way Radios. . . . . . . . . . . . 47 Exposure to Radio Frequency Energy. . . . . . . . . . . . . . . . . . . . . . . . . 47 Electromagnetic Interference/Compatibility. . . . . . . . . . . . . . . . . . . . . . . 48Operational Warnings . . . . . . . . . . . . . . . 48 Vehicles with an Air Bag . . . . . . . . . . . 48Potentially Explosive Atmospheres . . . 48Blasting Caps and Blasting Areas. . . . 49Mobile Radio Operation and EME Exposure . . . . . . . . . . . . . . . . . . 49Mobile Antenna Installation . . . . . . . . . 50 Control Station Operation. . . . . . . . . . . . . 50Limited Warranty . . . . . . . . . . . . . . . . . . . 50 Accessories . . . . . . . . . . . . . . . . . . . . . . 55 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Mounting . . . . . . . . . . . . . . . . . . . . . . . . . 55Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 56Control Station . . . . . . . . . . . . . . . . . . . . . 56 88C37_English.book Page 2 Wednesday, April 21, 1999 10:49 PM 3 English CONTENTS COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. 88C37_English.book Page 3 Wednesday, April 21, 1999 10:49 PM 4 English CONTENTS Notes 88C37_English.book Page 4 Wednesday, April 21, 1999 10:49 PM 5 English RADIO OVERVIEW RADIO OVERVIEW PARTS OF THE RADIO Editing Buttons Menu Enter/Select Button (Interchangeable) Programmable Button 2 (P2) (Interchangeable) Programma…

Text truncated - open the document above for the full version.

i English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . .iii Radio Overview . . . . . . . . . . . . . . . . . . . . . 1 Parts of the Radio . . . . . . . . . . . . . . . . . . . . 1 Optional Enhanced Keypad Microphone (RMN4026) . . . . . . . . . . . 2 On/Off/Volume Knob . . . . . . . . . . . . . . . 3Channel Selector/Menu Navigation Buttons . . . . . . . . . . . . . . . . . . . . . . . . 3 LED Indicators . . . . . . . . . . . . . . . . . . . . 3Programmable Buttons . . . . . . . . . . . . . 3Push-to-Talk (PTT) Button . . . . . . . . . . . 6Microphone . . . . . . . . . . . . . . . . . . . . . . 6Menu Keys . . . . . . . . . . . . . . . . . . . . . . . 6Use with Enhanced Keypad Microphone (RMN4026) . . . . . . . . . . . 7 LCD Screen . . . . . . . . . . . . . . . . . . . . . . 9 Audio Indicators for Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Getting Started . . . . . . . . . . . . . . . . . . . . 11 Turning the Radio On or Off . . . . . . . . . . . 11Adjusting the Volume . . . . . . . . . . . . . . . . 11Selecting a Zone . . . . . . . . . . . . . . . . . . . . 12Selecting a Radio Channel . . . . . . . . . . . . 12 Sending a Call . . . . . . . . . . . . . . . . . . . . . 13Receiving a Call . . . . . . . . . . . . . . . . . . . . 13 Radio Calls . . . . . . . . . . . . . . . . . . . . . . . 15 Making a Selective Call . . . . . . . . . . . . . . 15Receiving a Selective Call F . . . . . . . . . . . 15 Sending a Call Alert™ Page . . . . . . . . . . . 16Receiving a Call Alert Page . . . . . . . . . . . 16Radio Check . . . . . . . . . . . . . . . . . . . . . . . 17Sending a Status . . . . . . . . . . . . . . . . . . . 17Sending a Message . . . . . . . . . . . . . . . . . 18Receiving a Message . . . . . . . . . . . . . . . . 19Responding to Emergency Alerts E . . . . 19 Decoding an Emergency Alarm. . . . . . 20Multiple Queued Emergencies . . . . . . 20Three Minute Timer . . . . . . . . . . . . . . . 20After the Timer Expires . . . . . . . . . . . . 21 Clearing an Emergency Alert E . . . . . . . 21 Sending an Emergency Remote Monitor . 21Sending an Emergency Alert . . . . . . . . . . 22Sending a Remote Monitor . . . . . . . . . . . . 22Selective Radio Inhibit . . . . . . . . . . . . . . . 23Editing a Radio Call List K . . . . . . . . . . . 23 Repeater or Talkaround J Mode . . . . . 24 Setting the Power Level B . . . . . . . . . . . 25 Name and Call/Message Tone Tagging . . 25 ii English CONTENTS Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Starting or Stopping Scan G . . . . . . . . . 29 Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . 30Deleting a Nuisance Channel . . . . . . . . . . 30 Restoring a Channel to the Scan List . 30 Editing a Scan List . . . . . . . . . . . . . . . . . . 30 Adding or Deleting Channels in a Scan List . . . . . . . . . . . . . . . . . . 31 Prioritizing a Channel in a Scan List . . 32Setting Priority Channels . . . . . . . . . . . 32 Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Making a Phone Call D . . . . . . . . . . . . . . 35 Modifying the Phone List K . . . . . . . . . . 36 Adding an Entry (when using the enhanced keypad microphone only). . . . . . . . . . . . . . . 36 Deleting an Entry . . . . . . . . . . . . . . . . . 37Editing an Entry (when using the enhanced keypad microphone only) . . . . . . . . . . . . . . . 38 Editing an Access/Deaccess Code (when using the enhanced keypad microphone only). . . . . . . . . . . . . . . 39 Audio/Tone Settings. . . . . . . . . . . . . . . . 41Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Setting the Time . . . . . . . . . . . . . . . . . . . . 45Displaying the Time . . . . . . . . . . . . . . . . . 46Selecting the Display Language. . . . . . . . 46 Safety and Warranty . . . . . . . . . . . . . . . 47 Safe and Efficient Operation of Motorola Two-Way Radios . . . . . . . . . . . . . . . . . . 47 Exposure to Radio Frequency Energy . . . . . . . . . . . . . . . . . . . . . . . 47 Mobile Radio Operation and EME Exposure. . . . . . . . . . . . . . . . . 48 Electromagnetic Interference/ Compatibility . . . . . . . . . . . . . . . . . . 48 Operational Warnings . . . . . . . . . . . . . . . 49 Vehicles with an Air Bag . . . . . . . . . . . 49Potentially Explosive Atmospheres . . . 49Blasting Caps and Blasting Areas. . . . 49 ANTENNA INSTALLATION . . . . . . . . . . . 50 MOBILE ANTENNAS . . . . . . . . . . . . . 50FIXED SITE ANTENNAS . . . . . . . . . . 50 Limited Warranty . . . . . . . . . . . . . . . . . . . 51 Accessories . . . . . . . . . . . . . . . . . . . . . . 55 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Mounting . . . . . . . . . . . . . . . . . . . . . . . . . 55Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 56Control Station . . . . . . . . . . . . . . . . . . . . . 56 iii English CONTENTS COMPUTER SOFTWARE COPYRIGHTS The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. iv English CONTENTS Notes 1 English RADIO OVERVIEW RADIO OVERVIEW PARTS OF THE RADIO Editing Buttons Menu …

Text truncated - open the document above for the full version.

MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) I have received a B. Eng degree in Computer & Communication Engineering from University Science of Malaysia. 2) I have 5 years experience in developing, testing and certifying Land Mobile Communications Products. NAME: Samsun Zaini Basri SIGNATURE: Samsun Zaini Basri DATE: 14 th April 2000 POSITION: Senior Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Azanor Muhammad SIGNATURE: Azanor Muhammad DATE: 14 th April 2000 POSITION: Engineering Section Manager

MOTOROLA INC FCC ID: AZ492FT4835 EXHIBIT 11 RF EXPOSURE INFORMATION In accordance with 47 CFR 2.1091(c) this transmitter has been subjected to routine environmental evaluation for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1091(d) using measurements per methods stated in 47 CFR 2.1091(d)(4).

MOTOROLA INC FCC ID:AZ492FT4835 EXHIBIT 4 CIRCUIT DESCRIPTION A general description of the overall circuit is covered in the instruction manual. This section provides the description of circuits required by subpart 2.983 of the Commissions’ rules. The following are included: 1) Means for Frequency Stabilization 2) Means for Modulation Limiting 3) Means for Attenuation of Higher Audio Frequencies 4) Means for Attenuation of Spurious Emissions 5) Means for Limiting Output Power 6) Means for Modulation Techniques 7) Means for Transient Frequency Behavior MOTOROLA INC FCC ID:AZ492FT4835 EXHIBIT 4 1) Means For Frequency Stabilization Frequency stability is maintained by a reference oscillator/programmable temperature compensation circuit located in the frequency synthesizer IC U4201. The oscillator is a Colpitts design with an amplifier in the IC. The 16.8 MHz crystal Y4261, varactor D4261, and feedback capacitors are external circuitry. A control voltage applied to the varactor via the programmable compensation circuit within U4201maintains the frequency stability to within +/-2.5 ppm over the specified operating temperature range. Frequency tuning, also from the programmable compensation circuit, has 128 steps of resolution. Each 16.8 MHz crystal is numerically coded providing its unique characteristic over the operating temperature range. With the crystal temperature characteristic known, a computed compensation characteristic is programmed into the compensation algorithm. For applications requiring higher frequency stability, an external TCXO module, Y4262, replaces crystal Y4261 and varactor D4261, with the frequency-determining control voltage applied to the frequency adjust pin of the TCXO module. 2) Means for Limiting Modulation Modulation limiting is accomplished within the custom IC, U0221. The limiting action itself occurs at the rails (i.e., 5V and ground). Using an op-amp with feedback, very hard limiting is obtained. The limited modulation signal is then applied to a low-pass splatter filter, and then to an electronic attenuator within U0221 in order to adjust for variations in modulation sensitivities of the frequency synthesizer. The electronic attenuator is controlled by the radio’s microprocessor, U0101. To keep the deviation constant over the RF frequency range & channel bandwidth, the microcomputer adds the proper correction factor to the attenuator. 3) Means for Attenuation Of Higher Audio Frequencies The output of the limiter is applied to a low-pass splatter filter. This filter is a fifth-order switched capacitor filter with the roll-off corner located at 3000 Hz. The output of the low-pass filter is applied to the electronic attenuator before being routed to the modulator. 4) Means For Attenuation Of Spurious Emissions The final stage of the RF power amplifier circuit feeds a low-pass filter in order to attenuate harmonics of the carrier frequency as well as any spurious signals. The filter is a five-pole elliptic design using LC lumped elements. The cast metal chassis forms a compartmentalized shielded enclosure upon which the main circuit board is mounted. A second cast metal compartmentalized shielded enclosure is placed over the main circuit board and secured to the chassis with screws. A conductive elastomeric coating is bonded to the edges of the metal chassis and shield enclosure walls, which come in contact with gold-plated areas of the circuit board when the circuit board and shield are assembled to the chassis. This technique provides very effective and reliable shielding of the various circuits on the main board from each other and from the external environment, minimizing spurious RF radiated emissions. 5) Means For Limiting Output Power Output power is regulated through the use of a forward power detection ALC loop. A directional coupler samples a portion of the forward RF power. The sampled RF is rectified by diode D4451, and the resulting dc voltage is routed to the Power Control IC U4501. This signal is then compared to the preprogrammed reference and the error signal is amplified and used to generate a control voltage to control the bias of the first and second transmitter stages, U4401 and Q4421 respectively. 6) Means For Modulation The transmitter is capable of the following types of modulation: i) Modulation of PL (Private Line) - Direct FM tone modulation of 67 Hz to 250.3 Hz at 15% of full system deviation. ii) Modulation of DPL (Digital Private Line) - Direct FM modulation at 134 BPS at 15% of full system deviation. iii) Modulation of DTMF tones at nominally 60% of full system deviation. MOTOROLA INC FCC ID:AZ492FT4835 EXHIBIT 4 Direct FM of PL or DPL is generated by a 6-bit D/A converter contained within U0221. The frequency-determining clock signal is generated by the radio microcomputer. The modulation signal is processed through a five pole switched capacitor filter. The output of the filter is input to the electronic attenuator circuit. The microcomputer adjusts the attenuator to compensate for modulation sensitivity variations of the synthesizer & channel bandwidth ensuring 15% of full system deviation for PL and DPL. DTMF tones are generated by the audio processing IC, U0221. The tones are routed and processed in the same manner as the voice signals. 7) Transient Frequency Behavior The effects of VCO frequency shifts due to transmitter key-up and de-key impedance variations are minimized through the use of a multiple-stage transmitter lineup with resistive isolation pads between various stages, including a pad between the output of the VCO/buffer IC and the input of the transmitter circuit. Additionally, the value of the DAC which controls output power is gradually raised during transmitter key-up and lowered during de-key, shaping the transmitter attack and decay characteristics by gradually changing the power control voltage. Finally, a pre-bias voltage is applied to the RF detector diode in the directional coupler so that the power cont…

Text truncated - open the document above for the full version.

FCC ID: AZ492FT4835 ______________________________________________________________________________ Radio Products Group 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5000 Date:May 08, 2000 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT4835. Attention: Frank Coperich, George Tannahill. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Mobile Radio environment with capabilities for clear communications with a variable transmit power of 1-30 Watt. The power is variable 3 % of the value listed. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed, contact Mike Ramnath at (954) 723-5793 or Fax (954) 723-4794 if you require any additional information. Sincerely, Mike Ramnath FCC Liaison Email: [email protected] EXHIBIT 13

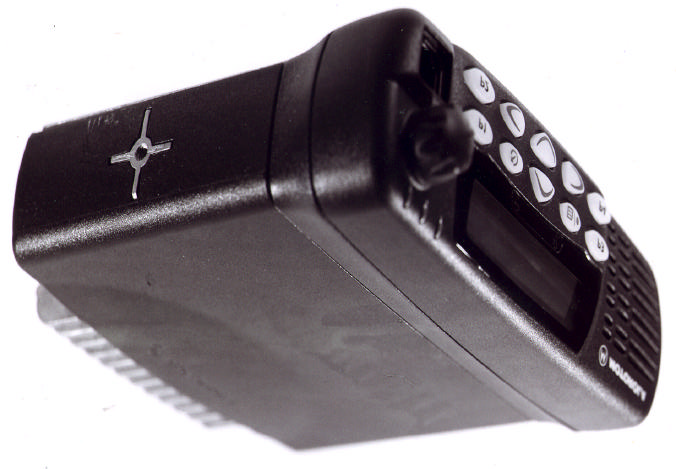

MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 3 EXTERNAL PHOTOGRAPHS This exhibit contains the photographs of this equipment as follows: 1EXHIBIT 3ATransceiver General View, Version 3 “Preferred” Control Head 2EXHIBIT 3BModel-Dependent Control Head Configurations 3EXHIBIT 3CTransceiver Bottom View showing FCC Label 4EXHIBIT 3D Model Description MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 3A Transceiver General View, Version 3 “Preferred” Control Head MOTOROLA INC.FCC ID : AZ492FT4835 EXHIBIT 3 “ Plain ” Control Head MOTOROLA INC.FCC ID : AZ492FT4835 EXHIBIT 3 “ Prime ” Control Head MOTOROLA INC.FCC ID : AZ492FT4835 EXHIBIT 3 Transceiver Bottom View showing FCC Label FCC Label Location Exploded View of FCC Label MOTOROLA INC.FCC ID : AZ492FT4835 EXHIBIT 3D MODEL DESCRIPTION Model NumberNameplateDescription AZM25RHC9AA1AN-Plain MDM25RHC9AA1AN-Plain LAM25RHC9AA1AN-Plain AAM25RHC9AA1ANCDM 750Plain AZM25RHD9AA2AN-Popular MDM25RHD9AA2AN-Popular LAM25RHD9AA2AN-Popular AAM25RHD9AA2ANCDM 1250Popular AZM25RHF9AA5AN-Preferred MDM25RHF9AA5AN-Preferred LAM25RHF9AA5AN-Preferred AAM25RHF9AA5ANCDM 1550Preferred AZM25RHN9AA8AN-Prime MDM25RHN9AA8AN-Prime LAM25RHN9AA8AN-Prime AAM25RHN9AA8AN-Prime

MOTOROLA INC.FCC ID: AZ492FT4835 LIST OF EXHIBITS DESCRIPTIONEXHIBITFCC REFERENCE lIdentification label information12.983-(f) & General Information1A2.981-(c) & 2.1061 1. Production Plans 2. Application References 3. Data Submittal Procedures IICertification Of Data22.907 IIIExternal Photographs32.983-(g) IVBlock Diagrams or Circuit Descriptions42.983-(d)-10,11 1. Frequency Stabilization 2. Modulation Limiting 3. Attenuation Of Higher Audio Frequencies 4. Attenuation Of Spurious Emissions 5. Limiting Output Power 6. Modulation Techniques 7. Transient Frequency Behavior VSchematic Diagrams52.983-(d)-7 VITest Report6 1. Data Index6 2. RF Output Data6A2.985 (a) 3. Modulation Characteristics2.987 (a) a) Audio Response6B b) Low Pass Filter Response6C c) Modulation Limiting6D 4. Occupied Bandwidth6E2.989 5. Conducted Spurious Emissions6F2.991 6. Radiated Spurious Emissions6G2.993 7. Frequency Stability (Temp. & Supply Volt) 6H & 6I2.995 8. Transient Frequency Behavior 6J2.2.19(EIA/TIA SP-2218) VIITest Set-Up Procedures7 a) Test Equipment Used b) Method of Measurements c) Emission Designator Information VIIIInstruction Manual8 IXInternal Photograph(s)92.983-(g) XParts List & Tune-up Procedures10 & 10A2.983-(d)-6 & 2.983-(d)-9 XIRF Exposure Information11 XIIOperational Description12 a) Technical Characteristics2.983-(d)-1,2,3,4,5 b) Application XIIICover Letter132.1033 MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 1 IDENTIFICATION LABEL LOCATION XSee the attached Photograph or Sketch Back of Radio Back of Radio under Belt Clip TYPE XThe label is a paper polyester firm laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inches. The label is laser etched into the Urethane paint, exposing the Nickel plating on the Zamak casting substrate. Since no adhesive Is required, the label is permanent and tamper-proof. (**-NOTE- The label attached below is a paper polyester film laminate, as described above. This is just for sample purposes, as the actual label is laser etched into the casting) MARKINGS (TEXT) See the attached Photograph XLabel attached below See attached Drawing MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 1a GENERAL INFORMATION l.Production Plans -- Pursuant 2.981 ( c ) Quantity production is planned ll.Application References -- Pursuant 2.1061 EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.983-2.999 and Part 90, Sec.90.210 lll.Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ Rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Parts 22, 74, and 90.

MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 9 INTERNAL PHOTOGRAPHS Index To Photographs This exhibit contains, on the following 3 pages, photographs of this equipment as follows: 1EXHIBIT 9-ATransceiver Top View (with decorative housing cover removed, control head attached) 2EXHIBIT 9-BTransceiver Top View with Top Shield Removed (top shield placed along-side the chassis, solder-side of board showing, control head attached). 3EXHIBIT 9-CTransceiver Top View with Circuit Board and Control Head Removed (circuit board placed along side the chassis, component-side of board showing). MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 9A Transceiver Top View (with decorative housing cover removed, control head attached) MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 9A Transceiver Top View with Top Shield Removed (top shield placed along-side the chassis, solder-side of board showing, control head attached). MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 9A Transceiver Top View with Circuit Board and Control Head Removed (circuit board placed along side the chassis, component-side of boad showing)

MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 12 OPERATIONAL DESCRIPTION A.Transmitter Technical Characteristics -- Pursuant 2.983 (d) a. RF Power Output :1W to 30W (Variable Power) b. Transmit Frequency Range:403 –470 MHz c. Receive Frequency Range:403 – 470 MHz d. Frequency Stability:+/- 2.0 PPM e. Emissions16K0F3E & 11K0F3E (See Exhibit 7-5) f. Spurious Emissions-74dBc (1.2W) & -76.8dBc (30W) g. DC Voltage and Current into13.6 VDC the final RF amplifier stage/stages7.5A B.Transmitter Application This transmitter is primarily intended for use in a mobile environment. It is characterized by the following features, options, and accessories. a. Power Supply Available: i. Vehicular battery, or AC-DC Converter b. Antenna Available: i. Whip Antenna ii. Roof Top Antenna iii. ¼ wave Antenna iv. Other External 50-ohm Antenna c. Squelch Type Available: i. Carrier Squelch ii. Tone “Private Line” iii. Digital “Private Line” iv. DTMF d. Microphone - Control: i. Hand-held Microphone ii. Hand-held Conventional with DTMF iii. Base Station Desk Top iv. Telephone Style Handset e. Maximum Transmit Channel Capability: i. 4 to 160 Channels, depending on model. f. Housing: The transmitter is enclosed in a metal, shielded chassis as shown in the accompanying photographs. The transmitter circuitry is contained on a single printed circuit board that is mounted to a cast metal chassis that also serves as a heatsink. A cast metal shield cover is placed over the printed circuit board and secured to the chassis with screws. Interior walls in both the chassis and shield cover form compartments that provide isolation between various circuit blocks. The frequency synthesizer, vco/buffers, transmitter stages, and low-pass harmonic filter are each contained in individual, isolated compartments. A conductive elastomeric coating is bonded to the edges MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 12 of the metal chassis and shield enclosure walls, which come in contact with gold-plated areas of the circuit board when the circuit board and shield are assembled to the chassis. A decorative plastic housing encloses the top and sides of the chassis. The operating controls, indicators and supporting circuitry are contained in a separate plastic housing which is mounted to the front of the chassis. g. Other Options: i. Time out Timer h. Available Accessories: ELN4570ATRICK ELN4607ATRICK housing kit GKN6272AExternal alarm relay GKN6266AMini-UHF/BNC to PL259 cable GLN7318ADesktop mounting tray w/out speaker GLN7323AExternal PTT/ emergency foot switch GLN7324ALow profile mounting trunnion GLN7317AHigh profile mounting trunnion GLN7326ADesktop mounting tray w/speaker GTF347BMobile Programming Cable HAE4002AMini-U 403-430 MHz, 1/4 Wave Roof Mount HAE4003AMini-U 450-470 MHz, 1/4 Wave Roof Mount HAE4004AMini-U 406-420 MHz, 3.5Db Gain Roof Mount HAE4010AMini-U 450-470 MHz, 3.5Db Gain Roof Mount HAE4011AMini-U 450-470 MHz, 5Db Gain Roof Mount HKN9019BEnhanced connector HKN4137A Power Cable 1-25W HKN4192BA20ft Power Cable 1-45W HKN9402APower Cable 25-45W HKN9557AMini-UHF to PL259 cable HLN3333B RICK with Mounting Bracket HLN3948BRICK with Mounting Tray HLN8097ARemovable slide mount HLN9457AAccessory connector Kit HLN9725BVoice Storage Option Board HLN9742AAdaptor Flashing HMN3000BBlack Desk Microphone HPN4001BDesktop power supply, 25-60W HSN8145AExternal speaker 7.5W L3144AC200 Basic Extended Local Control (Eng Manual) L3145AC200 Basic DC Remote Control (Eng Manual) L3146AC200 Basic Tone Remote Control (Eng Manual) L3147AC200 Advanced Extended Local Control (Eng Manual) L3148AC200 Advanced DC Remote Control (Eng Manual) L3149AC200 Advanced Tone Remote Control (Eng Manual) NTN7373ARLinecord (3060665A04) packaged NTN7374ARUS linecord (3060665A05) packaged MOTOROLA INC.FCC ID: AZ492FT4835 EXHIBIT 12 NTN7375ARUS linecord (3002120F02) packaged 0902105F01BNC Connector AAHLN9725BVoice Storage Option Bd (w/NA/LA Manual) HLN9725AVoice Storage Option Bd (w/o Manual) HLN9729ADTMF Decode Option Bd (w/o Manual) AAHLN9726ATranscrypt Option Bd (w/NA/LA Manual) HLN9726ATranscrypt Option Bd (w/o Manual) AAHLN9727AScrambler Option Bd (w/NA/LA Manual) HLN9727AScrambler Option Bd (w/o Manual) AAHLN9728ASmartrunk Option Bd (w/NA/LA Manual) MDHLN9728ASmartrunk Option Bd (w/o Manual) j. Programmability: Programming is accomplished by the use of an IBM PC computer or equivalent, a Radio Interface Box, and Radio Service Software. Adjustment of the transmitter, including programming of the channel fr…
