AZ492FT4847PDR3500 Portable Repeater

Motorola, Inc. FCC ID: AZ492FT4847 INSTRUCTION MANUAL Pursuant to 47CFR 2.1033(c) 3 X Preliminary Manual Attached Complete Manual Attached EXHIBIT 8

1 PDR 3500 Transportable Repeater Basic Service Manual 2 68P81093C75-OJanuary 31, 2001 i Table of Contents 1 - Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Manual Revisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Computer Software Copyrights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Replacement Parts Ordering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Parts Ordering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Motorola Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Related Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 2 - Safety and General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 RF Operational Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Exposure to Radio Frequency Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Electromagnetic Interference/Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 3 - Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Compact Mechanical Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 State-of-the-Art Electrical Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Transmitter Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Receiver Circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Station Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Wireline Circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Switching Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Optional Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 4 - System Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Local Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 External Duplexer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Repeater RA or Cross Band Repeater Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 5 - Models and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Model Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Maintenance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 6 - Approved Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 A , Motorola, AST…

Text truncated - open the document above for the full version.

Motorola, Inc. FCC ID: AZ492FT4847 STATEMENT OF CERTIFICATION Pursuant to CFR47 2.1517(g) The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: Bachelor's of Science in Computer Engineering -- Georgia Institute of Technology. 2 years of Design and Development experience in the field of two-way radio communication. NAME: Charles Lail, Jr. SIGNATURE: /s/ Charles Lail, Jr. DATE: September 4, 2001 POSITION: Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Carl Anderson SIGNATURE: /s/ Carl Anderson DATE: September 4, 2001 POSITION: Lead Engineer EXHIBIT 2

FCC ID: AZ492FT4847 11 th September 2001 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: AZ492FT4847. Gentlemen: Motorola Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is primarily intended for use in a Repeater application as a transportable Fixed (Base) Station with capabilities for clear and encrypted communications with a variable transmit power of 5-25 Watts. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Certification application. Contact me (954) 723-5793, if you require any additional information. Sincerely, /s/ Mike Ramnath FCC Liaison Email: [email protected] EXHIBIT 13

Applicant: Motorola Inc. FCC ID: AZ492FT4847 Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322 Page: 13-2 REQUEST FOR CONFIDENTIALITY 11th September 2001 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Type Acceptance of Transmitter with FCC ID: AZ492FT4847. Gentlemen; Motorola is requesting that Exhibit 4 (Circuit Description), Exhibit 5 (Schematic Diagrams), and Exhibit 10 (Semiconductor/Active Device List) not be made routinely available for public inspection. Motorola is in the process of licensing the technology and has a number of Patent applications pending. Please mark Exhibit 4, 5 and 10 as Confidential. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath FCC Liaison Email: [email protected]

FCC ID: AZ492FT4847 28 th November 2001 Mr. Stan Lyles Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Re: Form 731 Confirmation Number: EA102370 with FCC ID: AZ492FT4847. Dear Mr. Lyles; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its response to the 31 st October 2001 request for information in Correspondence Number 21101. Q1) The Modulation Limiting plots you have submitted, pages 6B-3 and 6B-4 of test report, are not acceptable. Please send plots showing the transmitter deviation as a function of input level for several different modulating tones - per Section 2.1047(b). R1) Transmitter deviation is presented as a function of modulation frequency in the plots in 6B-3 (Modulation Limiting versus Frequency). In those graphs, the modulating tone is swept from 100 Hz to 10 kHz. The frequency from 6B-3 which causes the greatest deviation (in this case, a 1 kHz audio tone) is used as the modulating tone in 6B-4, in which the audio input level is swept. Since other audio frequencies would generate lower deviation levels (as shown in 6B-3), the graphs in 6B-4 illustrate Modulation versus Audio Level results for the worst-case input frequency. Q2) Strong and specific justification for certification of this unit under CFR 47 parts 22 and 74. R2) Certification is requested for the PDR 3500 as an Emergency Broadcast Transmitter under CFR 47 part 74.21(a). Being transportable in nature, this unit may, in situations of emergency, be deployed in place of damaged or destroyed communications equipment, or in addition to existing equipment. In such a situation, the station would be used to provide or augment communications necessary for coordinating emergency rescue, relief, and/or law enforcement operations. Motorola Inc. hereby withdraws its request for the certification of the PDR 3500 unit as a mobile transmitter under CFR 47 part 22. Q3) FYI: Pages 6C-1, 6C-2, 6C-3, 6C-4, and 6C5 of test report under occupied bandwith high power shows 30.0 W and your data plots shows carrier power 25.0 W. Please clarify in the future. R3) This error will be corrected in the future. The high-power Occupied Bandwith tests were, in fact, run at 25 Watt. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath FCC Liaison Email: [email protected]

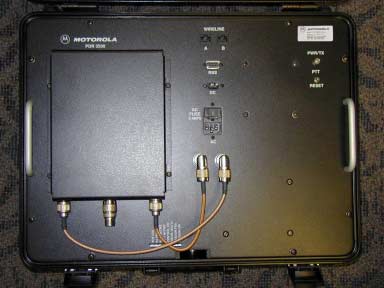

Motorola, Inc. FCC ID: AZ492FT4847 EXTERNAL PHOTOGRAPHS Pursuant to 47CFR 2.1033(c) 12 INDEX OF PHOTOGRAPHS EXHIBIT DESCRIPTION 3A TOP PANEL VIEW (CONTROLS) 3B UNIT IN CLOSED CASE EXHIBIT 3 Motorola, Inc. FCC ID: AZ492FT4847 TOP PANEL SHOWING FCC LABEL LOCATION EXHIBIT 3A Motorola, Inc. FCC ID: AZ492FT4847 UNIT IN CLOSED CASE EXHIBIT 3B

Motorola, Inc. FCC ID: AZ492FT4847 LIST OF EXHIBITS FCC DESCRIPTION EXHIBIT REFERENCE I. Identification Label Information & 1A 2.925(a), 2.1033(c)11, 2.1065 General Information 1B A. Production Plans B. Application References 2.948, 2.1061 C. Data Submittal Procedure II. Certification of Data 2 2.1517(g) III. External Photographs 3 2.1033(c)12 IV. Circuit Description 4 2.1033(c)10 V. Schematic Diagrams 5 2.1033(c)10 A. RF PA 5A B. Exciter 5B VI. Test Report 6 A. Data Index 6 2.1033(c), 2.1041 B. RF Output Data 6A 2.1033(c)8, 2.1046(a) C. Modulation Characteristics 2.1047 1. Audio Response 6B-1 2.1047(a) 2. Low Pass Filter Response 6B-2 2.1047(a) 3. Modulation Limiting vs. Frequency 6B-3 2.1047(b) 4. Modulation Limiting vs. Audio Level 6B-4 2.1047(b) D. Occupied Bandwidth 6C 2.1049 1. 25 kHz Audio (Voice) 6C-1 2.1049(c)1 2. 12.5 kHz Audio (Voice) 6C-2 2.1049(c)1 3. 25/12.5 kHz 9600 bps Digital Voice 6C-3 2.1049(h) 4. 25/12.5 kHz 9600 bps Digital Data 6C-4 2.1049(h) 5. 25 kHz 12000 baud Digital Voice Encryption 6C-5 2.1049(h) E. Conducted Spurious Emissions 6D 2.1051 F. Radiated Spurious Emissions 6E 2.1053 G. Frequency Stability 2.1055, 90.213 1. Temperature 6F-1 2.1055(a)1, 2.1055(b) 2. Supply Voltage 6F-2 2.1055(d)1 H. Transient Frequency Behavior 6G 90.214 I. Power Line Conducted Emissions 6H 15.107 VII. Test Set-up Procedures 7 2.1033(c)14 VIII. Instruction Manual 8 2.1033(c)3 IX. Internal Photographs 9 2.1033(c)12 X. Parts List and Tune-Up Procedures 10 2.1033(c)9,10 XI. RF Exposure Information 11 2.1091 XII. Operational Description 12 2.1033(c)10 1. Technical Characteristics and Application XIII. Cover Letter 13 Motorola, Inc. FCC ID: AZ492FT4847 IDENTIFICATION LABEL Pursuant to 47CFR 2.925(a), 2.1033(c), 2.1065 Location Top right corner of unit operating panel. (See attached photograph in Exhibit 3A) Type The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. Markings (TEXT) Sketch of label showing FCC ID. Also shown in Exhibit 1A is an enlarged photograph of label. EXHIBIT 1 Motorola, Inc. FCC ID: AZ492FT4847 INDENTIFICATION LABEL EXHIBIT 1A Motorola, Inc. FCC ID: AZ492FT4847 GENERAL INFORMATION I. Production Plans Quantity production is planned II. Application References -- Pursuant to 47CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Open Area Test Site "OATS" (FCC Registration 91932/ Industry of Canada IC3679). III. Data Submittal Procedure Data in Exhibit 6 is supplied in accordance with Part 2, Sub-part J and Part 90, Sub-part I and Sub- part S of the Commissions’ rules. IV. Applicable References Similar Type Accepted Transmitter FCC ID: AZ492FT4843 TIA/EIA-603-1 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards TIA/EIA-102.CAAB and TIA/EIA-IS-102.CAAA Code of Federal Regulations Title 47 Rule Parts 2, 15, and 90 EXHIBIT 1B

Motorola, Inc. FCC ID: AZ492FT4847 INTERNAL PHOTOGRAPHS Pursuant to 47CFR 2.1033(c) 12 INDEX OF PHOTOGRAPHS EXHIBIT DESCRIPTION 9A FRONT VIEW 9B REAR VIEW 9C CONTROL MODULE 9D EXCITER MODULE 9E RF PA MODULE EXHIBIT 9 Motorola, Inc. FCC ID: AZ492FT4847 FRONT VIEW WITH COVERS REMOVED EXHIBIT 9A Motorola, Inc. FCC ID: AZ492FT4847 REAR VIEW OUT OF CASE EXHIBIT 9B Motorola, Inc. FCC ID: AZ492FT4847 CONTROL MODULE EXHIBIT 9C Motorola, Inc. FCC ID: AZ492FT4847 EXCITER MODULE EXHIBIT 9D Motorola, Inc. FCC ID: AZ492FT4847 RF PA MODULE EXHIBIT 9E

Motorola, Inc. FCC ID: AZ492FT4847 OPERATIONAL DESCRIPTION I. Transmitter Technical Characteristics -- Pursuant 2.1033(c) A. RF Power Output 5 - 25 Watts Variable Power B. Frequency Range 494-512 MHz C. Frequency Stability 0.00010% D. Emissions 16K0F3E, 11K0F3E, 8K10F1E, 8K10F1D, 20K0F1E E. Spurious Emissions -79.4 dBc F. DC Voltage and Current into 13.8 Volts the final RF amplifier stage/stages 10 A max II. Transmitter Application This transmitter is primarily intended for use as a portable suitcase Repeater (Fixed) station. The station is characterized by the following features, options, and accessories. A. Power Supply Available 1. NiCad Battery , DC X , Alkaline Battery , AC X , Lead Acid Battery . B. Antenna Available 1. Helical , Telescopic , Whip , Dipole , Dribble External , External X . C. Squelch Types Available 1. Carrier Squelch X . 2. Tone "Private Line" X . 3. Digital "Private Line" X . D. Microphone - Control 1. Handset/Palm Microphone X . 2. 600 Ohm wireline control X . E. Maximum Transmit Channel Capability 1 . F. Housing The transmitter will be housed as shown in the accompanying photographs. G. Other Options 1. Single Tone Encoder 2. Multiple Single Tone Encoder 3. Touch Code Encoder 4. Unit ID Encoder 5. EMS Telemetry Encoder 6. Time out Timer X 7. Voice Encryption 8. Digital Signaling 9. Sel-Call Decode 10. Trunking EXHIBIT 12

Motorola, Inc. FCC ID: AZ492FT4847 RF EXPOSURE INFORMATION Pursuant to 47CFR 1.1307 This transmitter is intended for use as a transportable Base Station only, and is not to be marketed for Mobile use. As such, under Section 1.1307 of the FCC Rules, the transmitter is not currently subject to the Commission's environmental rules pertaining to the routine evaluation for RF exposure prior to equipment authorization. EXHIBIT 11

Motorola, Inc. FCC ID: AZ492FT4847 EXHIBIT 6. Transmitter Measured Data – Pursuant 47 CFR 2.1033(c), 2.1041 MEASUREMENT EXHIBIT REFERENCE I. RF Power Output 6A 2.1033(c) 8, 2.1046(a) II. Modulation Characteristics 2.1047 1. Audio Response 6B-1 2.1047(a) 2. Low Pass Filter Response 6B-2 2.1047(a) 3. Modulation Limiting vs. Frequency 6B-3 2.1047(b) 4. Modulation Limiting vs. Audio Level 6B-4 2.1047(b) III. Occupied Bandwidth 6C 2.1049 1. 25 kHz Audio (Voice) 6C-1 2.1049(c)(1) 2. 12.5 kHz Audio (Voice) 6C-2 2.1049(c)(1) 3. 25/12.5 kHz 9600 bps Digital Voice 6C-3 2.1049(h) 4. 25/12.5 kHz 9600 bps Digital Data 6C-4 2.1049(h) 5. 25 kHz 12000 baud Digital Voice Encryption 6C-5 2.1049(h) IV. Conducted Spurious Emissions 6D 2.1051 V. Radiated Spurious Emissions 6E 2.1053 VI. Frequency Stability 2.1055, 90.213 A. Temperature 6F-1 2.1055(a)(1), 2.1055(b) B. Supply Voltage 6F-2 2.1055(d)(1) VII. Transient Frequency Behavior 6G 90.214 VIII. Power Line Conducted Emissions 6H 15.107 EXHIBIT 6 Motorola, Inc. FCC ID: AZ492FT4847 6A. RF Power Output Data – Pursuant 47 CFR 2.1033(c)8, 2.1046(a) The RF power output was measured with the indicated voltage applied to, current into, and RF power into the final RF power amplifier. Measured at 494.0125 MHz. At the minimum power setting: Measured RF Output 5.00 Watts Normal DC Voltage 13.8 Volts Normal DC Current 2.38 Amps Measured RF Input 11.7 dBm At the maximum power setting: Measured RF output 25.0 Watts Normal DC Voltage 13.8 Volts Normal DC Current 4.82 Amps Measured RF Input 11.7 dBm Measured at 511.9875 MHz. At the minimum power setting: Measured RF Output 5.00 Watts Normal DC Voltage 13.8 Volts Normal DC Current 2.08 Amps Measured RF Input 11.6 dBm At the maximum power setting: Measured RF output 25.0 Watts Normal DC Voltage 13.8 Volts Normal DC Current 4.36 Amps Measured RF Input 11.6 dBm EXHIBIT 6A Motorola, Inc. FCC ID: AZ492FT4847 6B-1. Audio Response – Pursuant 47 CFR 2.1033(c) 14, 2.1047(a) 25 kHz channel spacing. Measured at 511.9875 MHz. 12.5 kHz channel spacing. Measured at 511.9875 MHz. EXHIBIT 6B-1 TIA 603 TX AUDIO RESPONSE -40 -30 -20 -10 0 10 100100010000 Dev. (dB)UpperSpecLowerSpec Frequency (Hz) D e v i a t i o n Channel : 1 Temperature (°C) : 25 Voltage (VDC) : 13.799999 Channel Spacing (kHz) : 12.5 System ID : Mobile System 1-2 Radio Names: 1131 C L R# U4 TX 12. 5 H TIA 603 TX AUDIO RESPONSE -40 -30 -20 -10 0 10 100100010000 Dev. (dB)UpperSpecLowerSpec Frequency (Hz) D e v i a t i o n Channel : 1 Temperature (°C) : 25 Voltage (VDC) : 13.799999 Channel Spacing (kHz) : 25 System ID : Mobile System 1-2 Radio Names: 1131 C L R#U4 TX HF 2 Motorola, Inc. FCC ID: AZ492FT4847 6B-2. Low Pass Filter Response – Pursuant 47 CFR 2.1033(c) 14, 2.1047(a) Measured at 511.9875 MHz. EXHIBIT 6B-2 TIA 603 TX AUDIO RESP. >3K -60 -50 -40 -30 -20 -10 0 100010000100000 Level (dB)UpperSpec Frequency (Hz) A u d i o L e v e l Channel : 1 Temperature (°C) : 25 Voltage (VDC) : 13.799999 Channel Spacing (kHz) : 25 System ID : Mobile System 1-1 Radio Names: 1205 C L R#U4 TX LF 2 5 LP Motorola, Inc. FCC ID: AZ492FT4847 6B-3. Modulation Limiting versus Frequency – Pursuant 47 CFR 2.1033(c) 14, 2.1047(b) 25 kHz channel spacing. Measured at 511.9875 MHz. 12.5 kHz channel spacing. Measured at 511.9875 MHz. EXHIBIT 6B-3 TIA 603 TX MODULATION LIM. 300-3K 0 1000 2000 3000 4000 5000 6000 100100010000 Dev. - (Hz)Dev. + (Hz)UpperSpec Frequency (Hz) D e v i a t i o n Channel : 1 Temperature (°C) : 25 Voltage (VDC) : 13.799999 Channel Spacing (kHz) : 25 System ID : Mobile System 1-1 Radio Names: 1205 CH R#U4TX HF 2 5 HP TIA 603 TX MODULATION LIM. 300-3K 0 500 1000 1500 2000 2500 3000 100100010000 Dev. - (Hz)Dev. + (Hz)UpperSpec Frequency (Hz) D e v i a t i o n Channel : 1 Temperature (°C) : 25 Voltage (VDC) : 13.799999 Channel Spacing (kHz) : 12.5 System ID : Mobile System 1-1 Radio Names: 1205 CL R#U4 TX HF 1 2 HP Motorola, Inc. FCC ID: AZ492FT4847 6B-4. Modulation Limiting vs. Audio Level – Pursuant 47 CFR 2.1033(c) 14, 2.1047(b) 25 kHz channel spacing. Measured at 501.0125 MHz. 12.5 kHz channel spacing. Measured at 501.0125 MHz. EXHIBIT 6B-4 Mod Limiting vs. Audio Level -- 25kHz Channel 0 1 2 3 4 5 6 02004006008001000120014001600 Audio Input Level (mV) TX Deviation (kHz) Mod Limiting vs. Audio Level -- 12.5kHz Channel 0 0.5 1 1.5 2 2.5 3 02004006008001000120014001600 Audio Input Level (mV) TX Deviation (kHz) Motorola, Inc. FCC ID: AZ492FT4847 6C. Occupied Bandwidth – Pursuant 47 CFR 2.1033(c),14 , 2.1049 Bandwidth Calculations Carson’s Rule for FM modulation is utilized to compute the bandwidth shown in the FCC emission designator for each type of modulation employed by the product. Carson’s Rule is BW = 2 * (M+D) where BW = Required bandwidth M = Maximum modulating frequency D = Deviation Shown below are the calculations required for FCC ID: AZ492FT4847. EXHIBIT 6C-1 : 25 kHz Channel Spacing, Voice (2500 Hz Audio Tone) Emission Designator: 16K0F3E This modulation represents voice and so is band-limited to below 3 kHz by a bandpass filter. Therefore the maximum modulating frequency is 3 kHz with a 5 kHz deviation. BW = 2 * (M + D) = 2 * (3 kHz + 5 kHz) = 16 kHz ! 16K0 The modulation is a single FM voice channel, so the rest of the designator is F3E. Therefore, the entire designator for 25 kHz channelization analog voice is 16K0F3E. EXHIBIT 6C-2 : 12.5 kHz Channel Spacing, Voice (2500 Hz Audio Tone) Emission Designator: 11K0F3E This modulation represents voice and so is band-limited to below 3 kHz by a bandpass filter. Therefore the maximum modulating frequency is 3 kHz with a 2.5 kHz deviation. BW = 2 * (M + D) = 2 * (3 kHz + 2.5 kHz) = 11 kHz ! 11K0 The modulation is a single FM voice channel, so the rest of the designator is F3E. Therefore, the entire designator for 25 kHz channelization analog voice is 11K0F3E. EXHIBIT 6C-3 : 25/12.5 kHz Channel Spacing, Digital Voice (Digitized 2500 Hz Audio Tone) Emission Designator: 8K10F1E Calculation of the necessary bandwidth with the …

Text truncated - open the document above for the full version.

Motorola, Inc. FCC ID: AZ492FT4847 EXHIBIT 6 ADDENDUM EXHIBIT 6 ADDENDUM. Transmitter Measured Data – Pursuant 47 CFR 2.1033(c), 2.1041 SECTION MEASUREMENT ORIGINAL EXHIBIT REFERENCE I. Modulation Limiting vs. Audio Level 6B-4 2.1047(b) Motorola, Inc. FCC ID: AZ492FT4847 EXHIBIT 6 ADDENDUM SECTION I (1/3) I. Modulation Limiting vs. Audio Level – Pursuant 47 CFR 2.1033(c)14, 2.1047(b) 300 Hz test tone. 25 kHz channel spacing. Measured at 503.0125 MHz. 300 Hz test tone. 12.5 kHz channel spacing. Measured at 503.0125 MHz. Mod Limiting vs. Audio Level -- 25kHz Channel -- 300Hz Tone UHF Range 4, Tested at 503.0125 MHz 0 1 2 3 4 5 6 0500100015002000 Audio Input Level (mV) TX Deviation (kHz) PosNegFCC Limit Mod Limiting vs. Audio Level -- 12.5kHz Channel -- 300Hz Tone UHF Range 4, Tested at 503.0125 MHz 0 0.5 1 1.5 2 2.5 3 0500100015002000 Audio Input Level (mV) TX Deviation (kHz) PosNegFCC Limit Motorola, Inc. FCC ID: AZ492FT4847 EXHIBIT 6 ADDENDUM SECTION I (2/3) I. Modulation Limiting vs. Audio Level (cont'd) 1 kHz test tone. 25 kHz channel spacing. Measured at 503.0125 MHz. 1 kHz test tone. 12.5 kHz channel spacing. Measured at 503.0125 MHz. Mod Limiting vs. Audio Level -- 25kHz Channel -- 1kHz Tone UHF Range 4, Tested at 503.0125 MHz 0 1 2 3 4 5 6 0500100015002000 Audio Input Level (mV) TX Deviation (kHz) PosNegFCC Limit Mod Limiting vs. Audio Level -- 12.5kHz Channel -- 1kHz Tone UHF Range 4, Tested at 503.0125 MHz 0 0.5 1 1.5 2 2.5 3 0500100015002000 Audio Input Level (mV) TX Deviation (kHz) PosNegFCC Limit Motorola, Inc. FCC ID: AZ492FT4847 EXHIBIT 6 ADDENDUM SECTION I (3/3) I. Modulation Limiting vs. Audio Level (cont'd) 3 kHz test tone. 25 kHz channel spacing. Measured at 503.0125 MHz. 3 kHz test tone. 12.5 kHz channel spacing. Measured at 503.0125 MHz. Mod Limiting vs. Audio Level -- 25kHz Channel -- 3kHz Tone UHF Range 4, Tested at 503.0125 MHz 0 1 2 3 4 5 6 0500100015002000 Audio Input Level (mV) TX Deviation (kHz) PosNegFCC Limit Mod Limiting vs. Audio Level -- 12.5kHz Channel -- 3kHz Tone UHF Range 4, Tested at 503.0125 MHz 0 0.5 1 1.5 2 2.5 3 0500100015002000 Audio Input Level (mV) TX Deviation (kHz) PosNegFCC Limit

Motorola, Inc. FCC ID: AZ492FT4847 MEASUREMENT PROCEDURES AND TEST EQUIPMENT USED Pursuant to 47CFR 2.947 7A RF Power Out – Pursuant to 47 CFR 2.1046(a) Method of Measurement: Per TIA/EIA-603-1 2.2.1 Before measuring the RF output power, the transmitter is adjusted in accordance with the tune-up procedure outlined in Exhibit 10 to give the value of voltage and current as specified in Exhibit 6. The transmitter antenna port is then connected through an RF attenuator of the proper power rating to an HP 8901B Modulation Analyzer. 7B Occupied Bandwidth – Pursuant to 47 CFR 2.1049(b) Method of Measurement: Per TIA/EIA-603-1 2.2.11, TIA-EIA-102.CAAB 3.2.5 Data on occupied bandwidth is shown in the form of a spectrum analyzer display, clearly illustrating the transmitter sidebands. For analog signals, the reference line is the peak of the unmodulated carrier, over which is superimposed the sideband display generated by modulating the carrier with a 2500 Hz tone at a level 16 dB greater than that required to produce 50 percent of rated modulation. For digital voice and data, the reference line is also that of the peak value of the unmodulated carrier, the modulation is a continuously repeating 511 bit pseudo random bit sequence based on the Standard Transmitter Test Pattern from the TIA/EIA IS-102.CAAA. If tone or digital coded squelch is indicated, both the 2500 Hz tone and the indicated squelch signal are used to modulate the transmitter. During these tests, the maximum deviation is set for ±5 kHz for 25 kHz channelization and ±2.5 kHz for 12.5 kHz channelization. The limits used for the masks are those set forth in 90.210. Mask B for analog transmission: At least 25 dB down on any frequency removed from the assigned frequency by more than 50% up to 100% of the authorized bandwidth. At least 35 dB down on any frequency removed from the assigned frequency by more than 100% but not more than 250% of the authorized bandwidth. At least 43 + log 10 (RFOP) dB for any frequency removed from the assigned frequency by more than 250% of the authorized bandwidth. Mask D for digital 25 kHz and 12.5 kHz transmission: At least 7.27(f d - 2.88 kHz) dB down on any frequency removed from the assigned frequency by 5.625 kHz < f d ≤ 12.5 kHz where f d is the magnitude in kHz of the difference between the assigned operating frequency and the emission component frequency. For f d > 12.5 kHz, either 50 + 10log 10 (RFOP) or 70 dB, whichever is the lesser attenuation. RFOP is the transmitter's RF Output power in Watts. 7C Radiated Spurious Emissions – Pursuant to 47 CFR 2.1053 Test Site: The site, located at Plantation, Florida, is in a region reasonably free from RF interference and has been approved by the Commission for Spurious Measurements. Method of Measurement: Per TIA/EIA-603-1 2.2.12 The equipment is adjusted to obtain peak reading of received signals wherever they occur in the spectrum by: 1. Rotating the transmitter under test 2. Adjusting the antenna height The testing procedure is repeated for both horizontal and vertical polarization of the receiving EXHIBIT 7 Motorola, Inc. FCC ID: AZ492FT4847 antenna. Relative strength is indicated on the spectrum analyzer connected to the receiving antenna. To obtain actual radiated signal strength for each spurious and harmonic frequency observed, a standard signal generator with calibrated output is connected to a dipole antenna adjusted to that particular frequency. This dipole antenna is substituted for the transmitter under test. The signal generator is adjusted in output level until a reading identical to that obtained with the actual transmitter is observed on the spectrum analyzer. Signal strength is then read directly from the generator. Actual measurements are recorded on the attached graphs. The applied limits are those from FCC 90.210, radiated spurious emissions must be 43 + 10log 10 (Power out in Watts) dB down from unmodulated carrier or equivalently less than -13 dBm (50 μW) absolute level. 7D Frequency Stability – Pursuant to 47 CFR 2.1055 Method of Measurement: Per TIA/EIA-603-1 2.2.2 Temperature (non-heated crystal oscillator): Frequency measurements are made at the extremes of the temperature range -30 to +60°C and at intervals of not more than 10°C throughout the range. Sufficient time is allowed prior to each measurement for the circuit components to stabilize. Power Supply Voltage: The primary voltage was varied from 80% to 20% of the nominal supply voltage. Voltage is measured at the input to the cable normally provided with the equipment. The limits are those from FCC 90.213, ± 1.5 PPM. The results for this equipment are: Stability vs. Temperature: ±1 PPM Stability vs. Power Supply Voltage: ±1 PPM 7E Modulation Limiting -- Pursuant to 47 CFR 2.1047 Method of Measurement: Per TIA/EIA-603-1 2.2.3 The transmitter shall be adjust…
