CM200 ™ Commercial SeriesTwo-Way Radio User GuideGuide de l'utilisateurde l'appareil radio émetteur-récepteur MOTOROLA, the Stylized M Logo, and Radius are registered in the US Patent & Trademark Office.All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. All rights reserved. Printed in U.S.A.Motorola, Le logo stylisé M, et Radius sont des marques de Motorola, Inc.© 2002 Motorola, Inc. Tous droits réservés. Imprimé aux États-Unis. *6802966C30*6802966C30-O 66C30-O_cvr.qxd 12/2/2002 3:57 PM Page 1 1 English CONTENTS CONTENTS Computer Software Copyrights . . . . . . . . . . . 2Safety and Warranty . . . . . . . . . . . . . . . . . . 3Product Safety and RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 3 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . 4Radio Overview . . . . . . . . . . . . . . . . . . . . . . 9Parts of the Radio . . . . . . . . . . . . . . . . . . . . . 9 Optional Enhanced Keypad Microphone (RMN5029) . . . . . . . . . . . . . . . . . . . . . 10 On/Off/Volume Knob . . . . . . . . . . . . . . . 11Seven Segment Display. . . . . . . . . . . . . 11Channel Selector Buttons . . . . . . . . . . . 11LED Indicators . . . . . . . . . . . . . . . . . . . . 11Programmable Buttons . . . . . . . . . . . . . 12Push-to-Talk (PTT) Button . . . . . . . . . . . 12Microphone . . . . . . . . . . . . . . . . . . . . . . 12Use with Enhanced Keypad Microphone (RMN5029) . . . . . . . . . . . . . . . . . . . . . 12 Indicator Tones . . . . . . . . . . . . . . . . . . . . . . 14Improved Audio Features . . . . . . . . . . . . . . 14 Companding. . . . . . . . . . . . . . . . . . . . . . 14 Getting Started . . . . . . . . . . . . . . . . . . . . . . 15Turning the Radio On or Off . . . . . . . . . . . . . 15Adjusting the Volume . . . . . . . . . . . . . . . . . . 15Selecting a Radio Channel . . . . . . . . . . . . . . 15Sending a Call . . . . . . . . . . . . . . . . . . . . . . . 16Receiving a Call . . . . . . . . . . . . . . . . . . . . . . 16Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . 16VOX Operation . . . . . . . . . . . . . . . . . . . . . . . 17Radio Calls . . . . . . . . . . . . . . . . . . . . . . . . . 19Selective Radio Inhibit . . . . . . . . . . . . . . . . . 19Repeater or Talkaround Mode . . . . . . . . . . . 19Setting the Power Level . . . . . . . . . . . . . . . . 19Setting Tight or Normal Squelch. . . . . . . . . . 20Receiving a Selective Call . . . . . . . . . . . . . . 20Receiving a Call Alert Page . . . . . . . . . . . . . 20Setting Local or Distance Mode . . . . . . . . . . 20Sending DTMF Tones . . . . . . . . . . . . . . . . . 21Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Starting or Stopping Scan. . . . . . . . . . . . . . . 23Talkback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Deleting a Nuisance Channel . . . . . . . . . . . . 24 Restoring a Channel to the Scan List . . .24 EnglishTOC.fm Page 1 Thursday, December 12, 2002 2:12 PM 2 English CONTENTS Accessories . . . . . . . . . . . . . . . . . . . . . . . .25Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Alarm and Accessories . . . . . . . . . . . . . . . . .25Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . .26Control Station . . . . . . . . . . . . . . . . . . . . . . .26Public Address . . . . . . . . . . . . . . . . . . . . . . .26Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . .27Data - CES . . . . . . . . . . . . . . . . . . . . . . . . . .27 COMPUTER SOFTWARE COPYRIGHTSThe Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product. EnglishTOC.fm Page 2 Thursday, December 12, 2002 2:12 PM 3 English SAFETY AND WARRANTY SAFETY AND WARRANTY PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 68P81095C99) to ensure compliance with RF energy exposure limits. For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: http://www.motorola.com/cgiss/index.shtml. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n 08_SafetyNA.fm Page 3 Tuesday, December 3, 2002 11:25 AM 4 English SAFETY AND WARRANTY LIMITED WARRANTY MOTOROLA COMMUNICATION PRODUCTS I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG: MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication Products listed below (“P roduct”) against defects in material and workmanship under normal use and service for a period of time from the date of purchase as scheduled below:CM2…

Text truncated - open the document above for the full version.

English Product Safety and RF Exposure for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. ! C a u t i o n © Motorola, Inc. 2002 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 Printed in U.S.A. 7/02.

68P81095C99-O 95C99-O.book Page 1 Tuesday, July 16, 2002 12:45 PM 2 English Federal Communication Commission Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from mobile two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before mobile two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by education or training through appropriate means such as information and instructions in user manuals or safety booklets, or other appropriate means. This user safety booklet includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at usage factors of up to 50% talk–50% listen. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 95C99-O.book Page 2 Tuesday, July 16, 2002 12:45 PM 3 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2001 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular and PCS product certification.” 95C99-O.book Page 3 Tuesday, July 16, 2002 12:45 PM 4 English Compliance and Control Guidelines and Operating Instructions for Mobile Two-Way Radios Installed in Vehicles To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits, always adhere to the following procedures: •To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. Transmit only when people outside the vehicle are at least the minimum lateral distance away (as shown in the table below) from a properly installed, externally-mounted antenna. The table below lists the minimum lateral distance for bystanders in an uncontrolled environment from the transmitting antenna at several different ranges of rated radio power for mobile radios installed in a vehicle. • Install mobile antennas at the center of the roof or the center of the trunk deck. These mobile antenna installation guidelines are limited to metal body vehicles. The antenna installation must additionally be in accordance with: - The requirements of the antenna manufacturer/supplier - Instructions in the Radio Installation Manual Rated Power of Vehicle-Installed Mobile Two-way Radio Minimum Lateral Distance from Transmitting Antenna Less than 7 watts8 inches (20 centimeters) 7 to 15 watts1 foot (30 centimeters) 16 to 50 watts2 feet (60 centimeters) 51 to 110 watts3 feet (90 centimeters) 95C99-O.book Page 4 Tuesday, July 16, 2002 12:45 PM 5 English Use only the Motorola-approved, supplied antenna or a Motorola- approved replacement antenna. Use of non–Motorola-approved antennas, modifications, or attachments could damage the radio and may violate FCC regulations. • For a list of Motorola-approved antennas, visit the following web site: http://www.motorola.com/cgiss/index.shtml . For additional information on exposure requirements or other training information, visit http://www.motorola.com/rfhealth . Compliance and Control Guidelines and Operating Instructions for Mobile Two-Way Radios Installed as Fixed Site Control Stations If mobile radio equipment is installed at a fixed location and operated as a control station or as a fixed unit, the antenna installation must comply with the following requirements in order to ensure optimal performance and compliance with the RF energy exposure limits in the standards and guidelines listed on page 3: • The antenna should be mounted outside the building on the roof or a tower if at all possible. • As with all fixed site antenna installations, it is the responsibility of the licensee to manage the site in ac…

Text truncated - open the document above for the full version.

Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 2 SHEET 1 OF 1 Certification of Data Pursuant to 47 CFR 2.1517(g) The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) I received a BSEE degree from the University of Miami, Miami, Florida. 2) I have 9 years experience in developing, testing, and certifying Land Mobile Communications Products. NAME: Jon Dellon SIGNATURE: /s/ Jon Dellon DATE: December 3, 2002 POSITION: Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Zami Schwartzman SIGNATURE: /s/ Zami Schwartzman DATE: December 3, 2002 POSITION: Engineering Manager

FCC ID: AZ492FT4856 ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. Confidentiality Request 23 rd December 2002 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT4856. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential.” Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath FCC Liaison Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

Applicant: Motorola Inc FCC ID: AZ492FT4856 EXHIBIT 0 Table of Contents EXHIBIT 1. IDENTIFICATION LABEL -- 47 CFR. 2.925, 2.1065 & 2.1033(C) (11)....................................... 1-1 EXHIBIT 1A. GENERAL INFORMATION.............................................................................................. 1-2 1A.1. Application References.................................................................................................................. 1-2 1A.2. Data Submittal Procedure............................................................................................................... 1-2 1A.3. Similar, currently Type Accepted Transmitter...................................................................................... 1-2 EXHIBIT 2. STATEMENT OF CERTIFICATION -- 47 CFR. 2.907 .........................................................................2-1 EXHIBIT 3. EXTERNAL PHOTOGRAPHS -- Pursuant 47 CFR 2.1033 (C )12 ......................................................3-1 EXHIBIT 4. CIRCUIT DESCRIPTION-----47 CFR. 2.1033(C)10 .............................................................................4-1 4A. Carrier Frequency Generation and Stabilization..................................................................................... 4-1 4B. Means for Limiting Modulation ........................................................................................................... 4-1 4C. Means of Attenuation of Higher Audio Frequencies................................................................................ 4-1 4D. Means for Attenuation of Spurious Emissions....................................................................................... 4-1 4E. Means for Limiting Output Power........................................................................................................ 4-1 4F. Modulation Techniques..................................................................................................................... 4-2 4G. Means for Controlling Transient Frequency Behavior.............................................................................. 4-2 4H. Block Diagrams.............................................................................................................................. 4-3 EXHIBIT 5. CIRCUIT DIAGRAMS-- Pursuant 47 CFR 2.1033(C)10 ......................................................................5-1 EXHIBIT 6. MEASURED DATA-----47 CFR. 2.1041 & 2.1033 (c) (14) .................................................................. 6-1 6A. RF Power -- Pursuant 47 CFR 2.1046(a) & 2.1033(c)8 .......................................................................... 6-3 6B. Transmit Audio Frequency Response-- Pursuant to 47 CFR 2.1047(a)...................................................... 6-4 6C. Transmit Audio Post Limiter Lowpass Filter Response-- Pursuant to 47 CFR 2.1047(a)................................ 6-5 6D. Modulation Characteristics Data -- Pursuant 47 CFR 2.1047 (d)............................................................... 6-6 6E. Occupied Bandwidth Data -- Pursuant 47 CFR 2.1049(i), 90.210(b) (d)..................................................... 6-9 6F. Conducted Spurious Emissions Data-- Pursuant 47 CFR 2.1051, 2.1057................................................... 6-19 6G. Radiated Spurious Emissions Data -- Pursuant 47 CFR 2.1053, 2.1057.................................................... 6-21 6H. Frequency Stability Data -- Pursuant 47 CFR 2.1055(a)(d)..................................................................... 6-26 6I. Transient Frequency Behavior -- Pursuant to 47 CFR 90.214.................................................................. 6-27 EXHIBIT 7. MEASUREMENT PROCEDURES-----47 CFR. 2.947.......................................................... 7-1 7A. RF Power -- Pursuant to 47 CFR 2.1046............................................................................................. 7-1 7B. Transmit Audio Frequency Response-- Pursuant to 47 CFR 2.1047(a)...................................................... 7-1 7C. Transmit Audio Post Limiter Lowpass Filter Response-- Pursuant to 47 CFR 2.1047(a)................................ 7-1 7D. Modulation Characteristics Data -- Pursuant 47 CFR 2.1047 (d)............................................................... 7-1 7E. Occupied Bandwidth -- Pursuant to 47 CFR 2.1049(c)(i)......................................................................... 7-1 7F. Conducted Spurious Emissions--Pursuant to 47 CFR 2.1051................................................................... 7-2 7G. Radiated Spurious Emissions -- Pursuant to 47 CFR 2.1053................................................................... 7-2 7H. Frequency Stability -- Pursuant to 47 CFR 2.1055(a)(d).......................................................................... 7-3 7I. Transient Frequency Behavior -- Pursuant to 47 CFR 90.214 and TIA 603 Section 2.2.19.............................. 7-3 7J. Measurement Equipment List -- Pursuant to 47 CFR 2.947(d).................................................................. 7-4 EXHIBIT 8. USER INSTRUCTION MANUAL-- Pursuant 47 CFR 2.1033(C)3...................................................... 8-1 EXHIBIT 9. INTERNAL PHOTOGRAPHS-- Pursuant 47 CFR 2.1033(C)12 ........................................................ 9-1 EXHIBIT 10. SEMICONDUCTOR/ACTIVE DEVICE LIST AND TUNE UP PROCEDURE................................... 10-1 10A. Semiconductor / Active Device List -- 47 CFR 2.1033(c)(10) 10-1 Applicant: Motorola Inc FCC ID: AZ492FT4856 EXHIBIT 0 10B. List of Recommended Test Equipment for Servicing -- 47 CFR 2.1033(c)(10)......................................... 10-4 10C. Tune Up Procedure -- 47 CFR 2.1033-(c)(9).................................................................................... 10-5 EXHIBIT 11. RF EXPOSURE INFORMATION-- Pursuant 47 CFR 2.1091 .......................................................... 11…

Text truncated - open the document above for the full version.

FCC ID: AZ492FT4856 13 th February 2003 Mr. Tim Harrington Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 TCB Audit: TC468226 with FCC ID: AZ492FT4856. Dear Mr. Harrington; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its response to the 5 th February 2003 for information in Correspondence Number TC468226. Q1) MPE report says nominal output 25W, max output 28W. Add grant note "Nominal output power is 25W." R1) We concur with the Grant notes. Q2) Veh. spec. limit - is that same as gen. pop. MPE limit? If yes please use conventional terminology in future filings. R2) Yes. Q3) MPE report sec. 6 - what is distance from veh. to MPE vert. line? R3) See the “Note” under sections 6.1.1 and 6.2.1 of the attached MPE report which states the requested distances. Q4) Vehicle-internal MPE - FCC and TCB guidelines do not define how to obtain "S.A.R. calculated." Please revise. R4) MPE report was revised. Q5) In future filings, please use table-numbering and list-of-tables for MPE results to allow easier referencing. R5) See amended MPE Report for table numbering. Q7) Please add grant note similar to: Output power is conducted maximum. Nominal output power is vv W. RF exposure compliance was evaluated at vv W only using x dBi, y dBi, z dBi vehicle-mount antennas only. Qualified end- users of this device must have the knowledge to control the exposure conditions of vehicle passengers, and of bystanders to ensure a minimum separation distance of xx cm is maintained between the antenna and persons outside of the vehicle for satisfying MPE compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least xx cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device must be used with a maximum transmitting duty factor not exceeding 50% for satisfying RF exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work related use FCC ID: AZ492FT4856 only. End-users must be provided with specific training instructions for meeting Occupational/Controlled Exposure Environment requirements. R7) We concur with the Grant notes. Contact me at (954) 723-5793 if you require any additional information. Regards, /s/ Mike Ramnath FCC Liaison Email: [email protected]

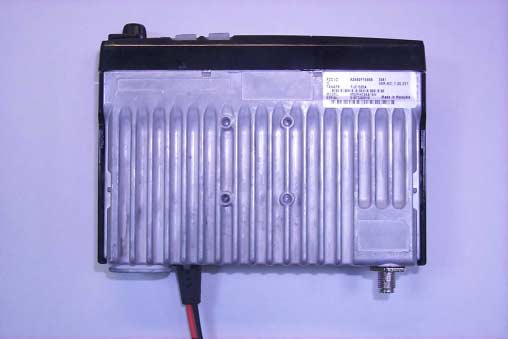

Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 3 SHEET 1 OF 4 External Photographs Pursuant to 47 CFR 2.1033(c)12 Figure 3-1: Front and side views of complete radio. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 3 SHEET 2 OF 4 Figure 3-2: Front view of complete radio. Figure 3-3: Rear view of complete radio showing antenna connector, DC cable, and accessory connector. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 3 SHEET 3 OF 4 Figure 3-4: Rear view of complete radio showing FCC Label location. Figure 3-5: Close up of FCC Label. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 3 SHEET 4 OF 4 Figure 3-6: Antenna connector options, BNC on left, mini-UHF on right.

Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 1 SHEET 1 OF 2 IDENTIFICATION LABEL Pursuant to 47 CFR 2.925(a), 2.1033(c), 2.0165 LOCATION A nameplate of the type presented below will be affixed to every transmitter. It will be placed on the bottom of the unit near the front. Shown below is a photo of the actual label affixed to the cast chassis of the transmitter. TYPE The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 oz/inch. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 1 SHEET 2 OF 2 EXHIBIT 1A – GENERAL INFORMATION 1. Application References: TIA/EIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Code of Federal Regulations Title 47, Part 2, Sec. 2.1033-2.1057, Part 22, Part 74 and Part 90, Section 90.210. 2. Data Submittal Procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commission’s rules. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 22, 74 and 90. Maximum transmitter power shall not be adjustable by the user. 3. Similar to “Currently Certified Transmitter Type” FCC ID: AZ492FT3805.

Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 1 OF 7 Internal Photographs Pursuant to 47 CFR 2.1033(c)12 Figure 9-1: Top Side of PCB without shields. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 2 OF 7 Figure 9-2: Bottom Side of PCB without shields. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 3 OF 7 Figure 9-3: Top Side of PCB with shields. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 4 OF 7 Figure 9-4: Bottom Side of PCB with shields. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 5 OF 7 Figure 9-5: Top View of PCB placed in chassis. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 6 OF 7 Figure 9-6: Top View of PCB placed in chassis with shield covering transmitter section. Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 9 SHEET 7 OF 7 Figure 9-7: Top view of chassis with main shield in place.

Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 10 SHEET 1 OF 15 PARTS LIST AND TUNE UP PROCEDURES (CONFIDENTIALITY REQUESTED) This exhibit contains a list of the semiconductor devices used in the transceiver and the test equipment and tuning procedures for maintaining the transceiver. EXHIBIT 10A Function of RF Semiconductors and Other Active Devices EXHIBIT 10B List of Recommended Test Equipment for Servicing EXHIBIT 10C Tune Up Procedure Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 10 SHEET 2 OF 15 Exhibit 10A – Function of RF Semiconductors and Other Active Devices Pursuant to 47 CFR 2.1033(c)(10) Reference # Part # Circuit Application Operating Freq. Industry Equivalent D100 4813833C02 DC Switch DC MMBD6100 D101 4813833C02 DC Switch DC MMBD6100 D102 4813833C02 DC Switch DC MMBD6100 D103 4802482J02 Antenna Switch 438-470MHz MA4P959 D104 4802482J02 Antenna Switch 438-470MHz MA4P959 D105 4805218N57 Reverse Volt. Peak Detector DC RB715F D106 4805218N57 Reverse Volt. Peak Detector DC RB715F D107 4805218N57 Forward Volt. Peak Detector DC RB715F D108 4805218N57 Forward Volt. Peak Detector DC RB715F D200 4802233J09 Voltage Multiplier 1.05MHz IMN10 D201 4802233J09 Voltage Multiplier 1.05MHz IMN10 D202 4862824C03 Crystal Warp DC 1SV232 D203 4805649Q13 RX VCO Frequency Control 393-425MHz 1SV228 D204 4805649Q13 TX VCO Frequency Control 438-470MHz 1SV228 D205 4862824C01 TX VCO Modulator Audio-470MHz 1SV229 D400 4813833C07 Steering Diode DC MMBD7000 D401 4813833C02 Steering Diode DC MMBD6100 Q100 4886163B01 TX RF Power Amplifier 438-470MHz MRF1535 Q101 4813824A10 DC Switch DC MMBT3904 Q102 4813824A10 DC Switch DC MMBT3904 Q103 4813824A10 DC Switch DC MMBT3904 Q105 4886212B01 TX Driver Stage 438-470MHz MRF1518 Q106 4805128M27 Current Source DC BSR33 Q200 4802245J95 RX Injection Amplifier 393-425MHz BFS540 Q201 4809939C04 DC Switch DC UMC3 UM5 Q400 4809940E02 DC Switch DC DTC114YE Q403 4809940E02 DC Switch DC DTC114YE Q404 4809940E02 DC Switch DC DTC114YE Q405 4809940E02 DC Switch DC DTC114YE Q406 4809940E02 DC Switch DC DTC114YE Q407 4809940E02 DC Switch DC DTC114YE Q408 4880048M01 DC Switch DC DTC144EKA Q409 4880048M01 DC Switch DC DTC144EKA Q410 4880048M01 DC Switch DC DTC144EKA Q411 4880048M01 DC Switch DC DTC144EKA Q412 4880048M01 DC Switch DC DTC144EKA Q413 4813824A10 DC Switch DC MMBT3904 Q414 4813824A10 DC Switch DC MMBT3904 Q415 4813824A10 DC Switch DC MMBT3904 Q500 4809940E02 DC Switch DC DTC114YE Q502 4809940E02 DC Switch DC DTC114YE Q503 4809940E02 DC Switch DC DTC114YE Q504 4880048M01 DC Switch DC DTC144EKA Q505 4813824A10 DC Switch DC MMBT3904 Q506 4813824A10 DC Switch DC MMBT3904 U100 5180932W01 Power Control DC LM2904 U101 5185130C65 TX Pre-Driver Stage 438-470MHz 30C65 U102 5180932W01 Power Control DC LM2904 U103 5113819A04 Power Control DC MC3303 Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 10 SHEET 3 OF 15 U200 5185963A27 Frequency Synthesizer 1-470MHz FRACN_63A27 U201 5105750U54 VCO Buffer IC 393-470MHz 50U54 U400 5102463J64 EEPROM 1MHz X25128-2.7 U402 5102463J36 SRAM 3.78MHz SRM2B256 U403 5102226J56 Microprocessor 7.56MHz MC68HC11FL0 U404 5189233U02 FLASH 3.78MHz AT49LV002N_70VI U405 5113805B58 Shift Register DC MC74VHC1GT66 U500 4813833C02 Wired OR DC MMBD6100 U501 5102190C33 Voltage Regulator DC LM2941T U503 5105469E65 Voltage Regulator DC LP2951C U504 5185130C53 Audio and Signaling IC DC 30C53 U508 5113816A30 Voltage Regulator DC MC33269D U510 5104187K94 Voltage Regulator DC LP2986ILDX U511 4813833C02 Wired OR DC MMBD6100 U512 4813833C02 Wired OR DC MMBD6100 U513 4813833C02 Reverse Protection DC MMBD6100 U514 4802393L66 DC Switch DC SI3455ADV VR101 4813830A15 Power Control Loop Protection DC MMBZ5232B VR102 4813830A15 Current Source DC MMBZ5232B VR400 4813830A18 DC Switch DC MMBZ5235B VR401 4813830G12 Over voltage Protection DC MMSZ4687T1 VR402 4813830A09 DC Switch DC MMBZ5226B VR500 4813832C77 Reverse Protection DC MR2835S VR501 4813830A14 Reverse Protection DC MMBZ5231B VR502 4813830G11 Reverse Protection DC MMSZ4686T1 VR503 4813830G09 Reverse Protection DC MMSZ4684 VR504 4813830G09 Reverse Protection DC MMSZ4684 VR692 4813830A75 ESD Protection DC MMBZ20VAL VR693 4813830A77 ESD Protection DC MMBZ33VAL VR694 4813830A75 ESD Protection DC MMBZ20VAL VR695 4813830A75 ESD Protection DC MMBZ20VAL VR696 4813830A75 ESD Protection DC MMBZ20VAL VR697 4813830A75 ESD Protection DC MMBZ20VAL VR698 4813830A75 ESD Protection DC MMBZ20VAL VR699 4813830A75 ESD Protection DC MMBZ20VAL Y201 4880114R06 16.8MHz Crystal 16.8MHz 114R06 Applicant: Motorola Inc. FCC ID: AZ492FT4856 EXHIBIT 10 SHEET 4 OF 15 Exhibit 10B – List of Recommended Test Equipment for Servicing Instrument Recommende…
