AZ492FT58622-Way Mobile Radio

English Product Safety and RF Energy Exposure Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to January 2008. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. © 2005 – 2009 by Motorola, Inc. All rights reserved. 12/09 1301 E. Algonquin Rd., Schaumburg, IL 60196-1078, U.S.A. *6881095C99* 6881095C99-G *NNTN7851B* NNTN7851C 6881095C99-G.book Page 1 Monday, December 21, 2009 3:33 PM 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C99-G.book Page 2 Monday, December 21, 2009 3:33 PM 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola two-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C99-G.book Page 3 Monday, December 21, 2009 3:33 PM 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • Institute of Electrical and Electronic Engineers (IEEE) C95.1-2005 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2003 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular, and PCS product certification” RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • DO NOT use this device if the operational requirements described herein are not met. 6881095C99-G.book Page 4 Monday, December 21, 2009 3:33 PM 5 English Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button or, for radios equipped with VOX, speak into the microphone. The red LED will illuminate when the radio is transmitting. To r…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 Statement of Certification Pursuant to 2.907, 2.908 The technical data supplied with this application, having been taken under my supervision, is hereby duly certified. The following is a statement of my qualifications: 1) I have received a BSEE degree in Microwave Engineering from the University of Electronic Science and Technology of China, Chengdu, Sichuan Province, China and a MSEE degree in Radio Physics from the University of Electronic Science and Technology of China, Chengdu, Sichuan Province, China. 2) I have 12 years experience in developing, testing, and certifying Land Mobile Communications Products. NAME: MegaStone Du SIGNATURE: DATE: April 30, 2014 POSITION: Senior Electronics Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Steven Man SIGNATURE: DATE: April 30, 2014 POSITION: Engineering Hardware Manager EXHIBIT 2

FCC ID: AZ492FT5862 Motorola Solutions Inc. Exhibit 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: May 8, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT5862 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) herein submits application for certification of the subject transmitter (XPR5380/XPR5580). This transmitter is intended for use in a Mobile radio environment with capabilities for clear and coded communications with a variable transmit power operating within the following frequency ranges: Frequency Rated Power FCC Rule Parts 806 - 824 MHz & 851 – 870 MHz 10 – 35 W 90 896 - 901 MHz & 935 – 940 MHz 10 – 30 W 90 901 - 902 MHz & 940 – 941 MHz 7W 24 2402-2480 MHz 10 mW 15C We are requesting certification under Parts of the Commission’s Rules listed above to allow operation of this equipment. In addition, this transmitter is intended for work-related occupational use only. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. Enclosed is a complete Certification Application. Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison Motorola Solutions Inc. 8000 West Sunrise Blvd. Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

FCC ID: AZ492FT5862 Motorola Solutions Inc. Exhibit 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 CONFIDENTIALITY REQUESTED Date: May 9, 2014 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Transmitter with FCC ID: AZ492FT5862 Dear Sir or Madam: Motorola Solutions Inc (8000 West Sunrise Boulevard, Fort Lauderdale, Florida) is requesting for the following Exhibits be held as Permanently Confidential, and not be made routinely available for public inspection: Exhibit 4 Circuit Descriptions Exhibit 5 Schematic Diagrams Exhibit 10 Parts List and Tune Up Procedures Exhibit 12 Operational Description Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Sections 0.457(d), 0.459 and 552(b)(4) of the Freedom of Information Act. Please mark these Exhibits as “Confidential.” Please contact me if you require any additional information. Sincerely, Kim Uong FCC/IC Liaison Motorola Solutions Inc. 8000 West Sunrise Blvd Fort Lauderdale, FL33322 Tel: (954) 723-5422 E-mail: [email protected]

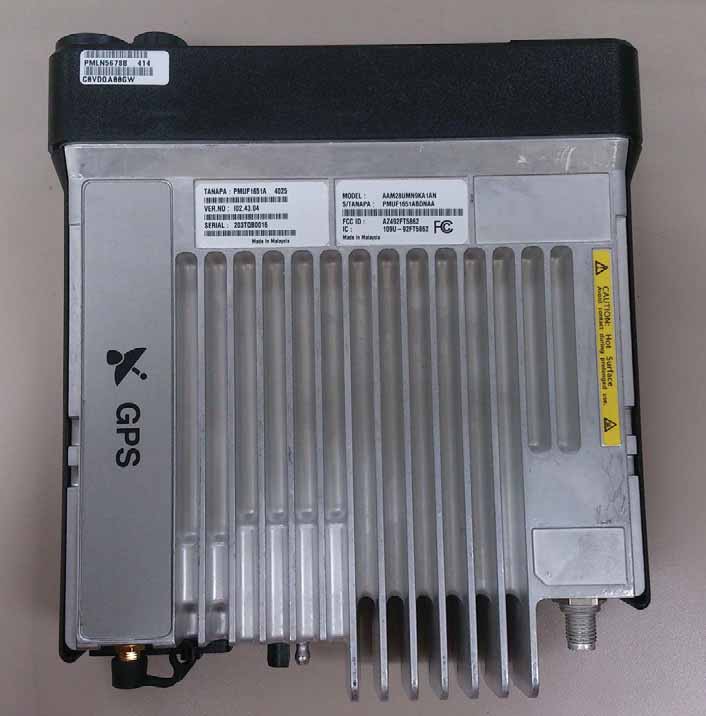

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 1 OF 7 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 The following photographs are attached. Exhibit 1. Front view (Color Display and Numeric Display) 3A 2. Back view 3B 3. Top view 3C 4. Bottom View (FCC label location) 3D 5. FCC label (Close view) 3E 6. RF exposure label (Close view) 3F 7. Side view (Left) 3G 8. Side view (Right) 3H 9. Top view with microphone and rear accessory cable 3I Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 2 OF 7 Ex 3A-1 - Front view (Color Display) Ex 3A-2 - Front view (Numeric Display) Ex 3B - Back view Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 3 OF 7 Ex 3C - Top view Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 4 OF 7 Ex 3D - Bottom view (FCC Label Location) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 5 OF 7 Ex 3E - APX4500 FCC label (Close View) Ex 3F - RF Exposure Label (Close View) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 6 OF 7 Ex 3G - Left view Ex 3H - Right view Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 3 SHEET 7 OF 7 Ex 3I - Top view with microphone and rear accessory cable Note : 1. Cables from the connector are wrapped and placed on the radio. 2. RF exposure label placed at the end of the Microphone cable.

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 Exhibit 1 Identification Label LOCATION See the Attached Photograph or Sketch _ Top of Radio _ X Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3D for the actual location of the FCC label on the device. X _ Label Attached Below. See Attached Drawing. FCC and IC Label for XPR 5580 FCC and IC Label for XPR 5380

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 1 OF 6 EXHIBIT 9 INTERNAL PHOTOGRAPHS The following photographs are attached. Exhibit 1. RF board with and without shields (Top) 9A 2. RF board with and without shields (Bottom) 9B 3. Chassis and control heads (Top) 9C 4. Chassis and control heads (Bottom) 9D 5. GOB board with and without shields 9E 6. GPS/BT board with and without shields 9F Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 2 OF 6 Exhibits 9A RF board with and without shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 3 OF 6 Exhibits 9B RF board with and without shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 4 OF 6 Exhibits 9C Chassis and control heads (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 5 OF 6 Exhibits 9D Chassis and control heads (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 6 OF 6 Exhibits 9E GOB board (Top) GOB board with shield (Bottom) GOB board without shield (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 9 SHEET 7 OF 6 Exhibits 9F GPS/BT board (Top) GPS/BT board with shield (Bottom) GPS/BT board without shield (Bottom)

FCC ID: AZ492FT5862 / IC: 109U-92FT5862 SR12023 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE: MPE ASSESSMENT EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: May 13, 2014 Report Revision: B Responsible Engineer: William Elliott (Principal Staff EME Test Engineer) Report author: William Elliott (Principal Staff EME Test Engineer) Date(s) Tested: 02/05/2014 – 02/10/2014; 3/21/2014; 3/24/2014; 3/26/2014 Manufacturer/Location: Motorola Solutions Inc., Penang Malaysia Date submitted for test: 01/20/2014 DUT Description: XPR5580 Dual band 800/900 Vehicular Mobile Radio with GOB BT/GPS using a Color Display control head and a BNC connector. Power for 800 MHz band is 10W to 35W. Power for 900 MHz band is 10W to 30W. Power for 901-902 MHz and 940-941 MHz is limited to 7W ERP. Test TX mode(s): CW Max. Power output: 42W (800MHz), 36W (900MHz), 9W for 901-902 MHz and 940-941 MHz, 10mW (Bluetooth) TX Frequency Bands: 806-825MHz; 851-870MHz; 896-901MHz; 935-940MHz ; 901-902 MHz; 940-941 MHz; 2.402-2.480 GHz (Bluetooth) Signaling type: FM; Analog, APCO 25, and TDMA 1:2 (F2) Model(s) Tested: PMUF1651A Model(s) Certified: PMUF1651A, AAM28UMN9KA1AN, AAM28UMC9KA1AN Serial Number(s): 203TQB0009 / 203TQB0000 Classification: Occupational/Controlled Environment FCC ID: AZ492FT5862 Part 90 (806-824MHz) (851-869MHz) (896-901MHz) & (935-940MHz) ; Part 24 (901-902MHz) & (940-941MHz) IC: 109U-92FT5862 IC bands; (806-824MHz) (851-869MHz) (896-901MHz) (901-902MHz) (935-940MHz) & (940-941MHz) The MPE results clearly demonstrate compliance with FCC Occupational/Controlled RF Exposure limits. FCC rules require compliance for Passengers and Bystanders to the FCC General Population/Uncontrolled limits. The test results clearly demonstrate compliance with ICNIRP Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz). Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc. EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 5/14/2014 Certification Date: 5/14/2014 Certification No.: L1140515P Form-MPE Auto Vehicle rpt. Rev 7.6 Page 1 of 66 FCC ID: AZ492FT5862 / IC: 109U-92FT5862 SR12023 Document Revision History Date Revision Comments 03/28/2014 O Initial release 05/01/2014 A Added sales models AAM28UMN9KA1AN and AAM28UMC9KA1AN 05/14/2014 B Added correct BT antenna gain info Form-MPE Auto Vehicle rpt. Rev 7.6 Page 2 of 66 FCC ID: AZ492FT5862 / IC: 109U-92FT5862 SR12023 Table of Contents 1.0 Introduction ....................................................................................................................................... 4 2.0 FCC MPE Summary ......................................................................................................................... 4 3.0 Abbreviations / Definitions ............................................................................................................... 4 4.0 Referenced Standards and Guidelines ............................................................................................... 5 5.0 Power Density Limits ........................................................................................................................ 5 6.0 N c Test Channels ............................................................................................................................... 6 7.0 Measurement Equipment .................................................................................................................. 6 8.0 Measurement System Uncertainty Levels ......................................................................................... 7 9.0 Product and System Description ....................................................................................................... 7 10.0 Additional Options and Accessories ................................................................................................. 8 11.0 Test Set-Up Description .................................................................................................................... 9 12.0 Method of Measurement with trunk mounted antenna(s) ................................................................. 9 12.1 External/Bystander vehicle MPE measurements .............................................................. 9 12.2 Internal/Passenger vehicle MPE measurements ............................................................... 9 13.0 Method of Measurement with roof mounted antenna(s) ................................................................. 10 13.1 External/Bystander vehicle MPE measurements ............................................................ 10 13.2 Internal/Passenger vehicle MPE measurements ............................................................. 11 14.0 MPE Calculations ........................................................................................................................... 11 15.0 Antenna Summary ........................................................................................................................... 12 16.0 Test Results Summary .................................................................................................................... 13 17.0 Conclusion ............................…

Text truncated - open the document above for the full version.

Applicant Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 6A SHEET 1 OF 108 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A - RF Power Output (Table) EXHIBIT 6B - Transmit Audio Response (3 Graphs) 6B-1 – 12.5 kHz Channel Spacing 6B-2 – 25 kHz Channel Spacing EXHIBIT 6C - Transmit Audio Post Limiter Lowpass Filter Response (3 Graphs) 6C-1 – 12.5 kHz Post Limiter Lowpass Filter Response 6C-2 – 25 kHz Post Limiter Lowpass Filter Response EXHIBIT 6D - Modulation Limiting Characteristics (2 Graphs) 6D-1 – 12.5 kHz Carrier Squelch Mode 6D-2 – 25 kHz Carrier Squelch Mode EXHIBIT 6E – Modulation Techniques and Occupied Bandwidth (72 Spectrum Analyzer Plots) Figure 6E-1: 815.0125 MHz, 25 kHz Channel Spacing, 2500Hz Audio and DPL Tone Modulation, 16K0F3E Mask B Figure 6E-2: 815.0125 MHz, 25 kHz Channel Spacing, 2500Hz Audio and TPL Tone Modulation, 16K0F3E Mask B Figure 6E-3: 815.0125 MHz, 25 kHz Channel Spacing, 2500Hz Audio Modulation only, Modulation, 16K0F3E Mask B Figure 6E-4: 859.9875MHz, 25 kHz Channel Spacing, 2500Hz Audio and DPL Tone Modulation, 16K0F3E Mask B Figure 6E-5: 859.9875MHz, 25 kHz Channel Spacing, 2500Hz Audio and TPL Tone Modulation, 16K0F3E Mask B Figure 6E-6: 859.9875MHz, 25 kHz Channel Spacing, 2500Hz Audio Modulation only, Modulation, 16K0F3E Mask B Figure 6E-7: 815.0125 MHz, 25 kHz Channel Spacing, DTMF and DPL Tone Modulation,16K0F3E Mask B Figure 6E-8: 815.0125 MHz, 25 kHz Channel Spacing, DTMF and TPL Tone Modulation,16K0F3E Mask B Figure 6E-9: 815.0125 MHz, 25 kHz Channel Spacing, DTMF Modulation only,16K0F3E Mask B Figure 6E-10: 859.9875 MHz, 25 kHz Channel Spacing, DTMF and DPL Tone Modulation,16K0F3E Mask B Figure 6E-11: 859.9875 MHz, 25 kHz Channel Spacing, DTMF and TPL Tone Modulation,16K0F3E Mask B Figure 6E-12: 859.9875 MHz, 25 kHz Channel Spacing, DTMF Modulation only,16K0F3E Mask B Figure 6E-13: 815.0125 MHz, 25 kHz Channel Spacing, 2000/3000 Hz FSK Data and DPL Tone Modulation, 16K0F3E Mask B Figure 6E-14: 815.0125 MHz, 25 kHz Channel Spacing, 2000/3000 Hz FSK Data and TPL Tone Modulation, 16K0F3E Mask B Figure 6E-15: 815.0125 MHz, 25 kHz Channel Spacing, 2000/3000 Hz FSK Data Modulation Only, 16K0F3E Mask B Figure 6E-16: 859.9875 MHz, 25 kHz Channel Spacing, 2000/3000 Hz FSK Data and DPL Tone Modulation, 16K0F3E Mask B Figure 6E-17: 859.9875 MHz, 25 kHz Channel Spacing, 2000/3000 Hz FSK Data and TPL Tone Modulation, 16K0F3E Mask B Figure 6E-18: 859.9875 MHz, 25 kHz Channel Spacing, 2000/3000 Hz FSK Data Modulation Only, 16K0F3E Mask B Figure 6E-19: 815.0125 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio Modulation only, 11K0F3E Mask D Figure 6E-20: 815.0125 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and DPL Tone Modulation, 11K0F3E Mask D Figure 6E-21: 815.0125 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and TPL Tone Modulation, 11K0F3E Mask D Figure 6E-22: 859.9875MHz, 12.5 kHz Channel Spacing, 2500Hz Audio Modulation only, 11K0F3E Mask D Figure 6E-23: 859.9875MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and DPL Tone Modulation, 11K0F3E Mask D Figure 6E-24: 859.9875MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and TPL Tone Modulation, 11K0F3E Mask D Figure 6E-25: 815.0125 MHz, 12.5 kHz Channel Spacing, DTMF Modulation only,11K0F3E Mask D Figure 6E-26: 815.0125 MHz, 12.5 kHz Channel Spacing, DTMF and DPL Tone Modulation,11K0F3E Mask D Figure 6E-27: 815.0125 MHz, 12.5 kHz Channel Spacing, DTMF and TPL Tone Modulation,11K0F3E Mask D Figure 6E-28: 859.9875 MHz, 12.5 kHz Channel Spacing, DTMF Modulation only,11K0F3E Mask D Figure 6E-29: 859.9875 MHz, 12.5 kHz Channel Spacing, DTMF and DPL Tone Modulation,11K0F3E Mask D Figure 6E-30: 859.9875 MHz, 12.5 kHz Channel Spacing, DTMF and TPL Tone Modulation,11K0F3E Mask D Figure 6E-31: 815.0125 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data Modulation Only, 11K0F3E Mask D Figure 6E-32: 815.0125 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data and DPL Tone Modulation, 11K0F3E Mask D Figure 6E-33: 815.0125 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data and TPL Tone Modulation, 11K0F3E Mask D Figure 6E-34: 859.9875 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data Modulation Only, 11K0F3E Mask D Figure 6E-35: 859.9875 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data and DPL Tone Modulation, 11K0F3E Mask D Figure 6E-36: 859.9875 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data and TPL Tone Modulation, 11K0F3E Mask D Figure 6E-37: 900.9875 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio Modulation only, 11K0F3E Mask I Figure 6E-38: 900.9875 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and DPL Tone Modulation, 11K0F3E Mask I Figure 6E-39: 900.9875 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and TPL Tone Modulation, 11K0F3E Mask I Figure 6E-40: 939.9875 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio Modulation only, 11K0F3E Mask I Figure 6E-41: 939.9875 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and DPL Tone Modulation, 11K0F3E Mask I Figure 6E-42: 939.9875 MHz, 12.5 kHz Channel Spacing, 2500Hz Audio and TPL Tone Modulation, 11K0F3E Mask I Applicant Motorola Solutions Inc. FCC ID: AZ492FT5862 / IC: 109U-92FT5862 EXHIBIT 6A SHEET 2 OF 108 Figure 6E-43: 900.9875 MHz, 12.5 kHz Channel Spacing, DTMF Modulation only,11K0F3E Mask I Figure 6E-44: 900.9875 MHz, 12.5 kHz Channel Spacing, DTMF and DPL Tone Modulation,11K0F3E Mask I Figure 6E-45: 900.9875 MHz, 12.5 kHz Channel Spacing, DTMF and TPL Tone Modulation,11K0F3E Mask I Figure 6E-46: 939.9875 MHz, 12.5 kHz Channel Spacing, DTMF Modulation only,11K0F3E Mask I Figure 6E-47: 939.9875 MHz, 12.5 kHz Channel Spacing, DTMF and DPL Tone Modulation,11K0F3E Mask I Figure 6E-48: 939.9875 MHz, 12.5 kHz Channel Spacing, DTMF and TPL Tone Modulation,11K0F3E Mask I Figure 6E-49: 900.9875 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data Modulation Only, 11K0F3E Mask I Figure 6E-50: 900.9875 MHz, 12.5 kHz Channel Spacing, 2000/3000 Hz FSK Data and DPL Tone Modulation, 11K0F3E Mask I…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 7 Measurement Procedure & Test Equipment Used Except where otherwise stated, all measurements are made following the Electronic Industries Association (EIA) Minimum Standard for Portable/Personal Land Mobile Communications FM or PM Equipment 25- 1000 MHz-(EIA/TIA-603-D). This exhibit presents a brief summary of how the measurements were made, the required limits, and the test equipment used. The following procedures are presented with this application. 1. Test Equipment List x 2. RF Power Output Data x 3. Audio Frequency Response x 4. Audio Low Pass Filter Response x 5. Modulation Limiting x 6. Occupied Bandwidth x 7. Radiated Spurious Emissions x 8. Conducted Spurious Emissions x 9. Frequency Stability (Volt/Temp) x 10. Transient Frequency Behavior _ Applicant: Motorola Solutions Inc FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 7 Test Equipment List Pursuant To FCC Rules 2.947 (d) Equipment S/N Calibration Date (next due) HP 6033A Power Supply MY41000900 09‐May‐14 Agilent U8903A Audio Analyzer MY49370006 12‐Dec‐14 Agilent 3458A Digit Multimeter MY45044025 13‐Dec‐15 HP 8901B Modulation Analyzer 2920A02186 13‐Dec‐14 Agilent E4416A Power Meter with N8482A Power Sensor GB41293783 16‐Dec‐14 Agilent Technologies MXA Signal Analyzer N9020A (20 Hz – 3.6 GHz) MY51160262 13‐Dec‐15 Agilent E4440A PSA Spectrum Analyzer (3 Hz – 26.5 GHz) MY46115186 11‐Jun‐14 Agilent 778D, Bi directional coupler MY48220199 *Calibration not required* Rhode & Schwarz, FSU Spectrum Analyzer 200382 4‐Sep‐14 HP 35670A Dynamic Signal Analyzer MY42507215 24‐Sep‐14 THERMOTRON Temperature Chamber 35440 25‐Jun‐14 Signal Generator, SMP22 100015 3‐Jun‐14 Spectrum Analyzer/ESI Test Receiver, ESI 26 827769/009 2‐May‐14 EMI Test Receiver, ESI 26 100017 4‐Sep‐14 System controller , SC99V 110901‐1 No Cal. Reqired Turntable. Flush Mount 2M Part# 15284, FM2011VS 60811 No Cal. Reqired Antenna Positioning Tower, TLT2 122313‐5A No Cal. Reqired Antenna Positioning Tower, TLT2 122313‐5B No Cal. Reqired OATS RF Tray, 2000 NA No Cal. Reqired Power Supply, 6032A 3542A12712 19‐Dec‐14 DRG Horn Freq. 700MHZ‐18GHZ, SAS‐571 512 5‐Sep‐14 DRG Horn Freq. 700MHZ‐18GHZ, SAS‐571 511 13‐Jun‐14 Bilog Antenna 30MHz to 2GHz, CBL 6112D 36015 4‐Sep‐14 Biconilog. Freq. 30MHZ‐2GHZ, 3141 9703‐1047 17‐Mar‐2015 Bilog Antenna 30MHz to 2GHz, CBL 6112 30991 26‐Sep‐14 Table 1: List of equipments used Applicant: Motorola Solutions Inc FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 7 Test Name FCC Rules Part (47 CFR) IC Rules RF Power Output Data 2.1046(a), 2.1033(c)(6), 2.1033(c)(7) and 2.1033(c)(8) * 90.545(b)(4) (700 MHz) * 22.565(f) (VHF & UHF), 24.132 (900 MHz) * 74.402 (VHF & UHF) RSS-Gen Sec 4.8, RSS-119 Sec 5.4.1, RSS 134 (900 MHz) TX Audio Frequency Response 2.1047 and 2.1033(c)(13) * 74.402 (VHF & UHF) - TX Audio Low Pass Filter Response 2.1047 * 74.402 (VHF & UHF) - Modulation Limiting 2.1047 * 74.402 (VHF & UHF) - Occupied Bandwidth 2.1049, 90.210, 90.691 (800 MHz), * 22.359 (VHF,UHF), 24.133 (900 MHz), * 74.402 (VHF & UHF) RSS GEN Sec 4.6, RSS 119 Sec 5.5, RSS 134 (900 MHz) TX Conducted Spurious Emissions 2.1051, 90.210, * 22.359 (VHF,UHF), * 80.211(c) (VHF), * 74.402 (VHF & UHF) RSS GEN Sec 6.2, RSS 119, * RSS 182 (VHF) TX Radiated Spurious Emissions 2.1053, 90.210, * 22.359 (VHF,UHF) * 74.402 (VHF & UHF) RSS GEN Sec 4.9, RSS 119 Sec 4.2, 5.8 Frequency Stability (Temp / Supply Voltage) 2.1055, 90.213, * 74.402 (VHF & UHF) RSS GEN Sec 4.7 RSS 119 Sec 5.3 Transient Frequency Behavior 90.214 * 74.402 (VHF & UHF) RSS 119 Sec 5.9 Table 2: List of FCC and IC reference Applicant: Motorola Solutions Inc FCC ID: AZ492FT5862/ IC: 109U-92FT5862 EXHIBIT 7 RF Power Output Pursuant to FCC Rules 2.1046 (a) Method of Measurement The RF power output is measured with the transmitter adjusted in accordance with the tune-up procedure outlined in Exhibit 10 to give the value of voltage and current as specified in Exhibit 12 as required by 2.1033(c) (8). A 50-ohm RF attenuator of proper power rating was used as a load for making these measurements. The power measurements are made using an RF power meter and 30 dB attenuator. Audio Frequency Response Pursuant FCC Rules 2.1047 (a) Method of Measurement Operate the transmitter under standard test conditions and monitor the output with a frequency deviation meter or calibrated test receiver. With 1000 Hz sine wave a…
