AZ492FT7021NNTN6402A, NNTN6401A (CARS)

FCC ID: AZ492FT7021 ______________________________________________________________________________ iDEN, Motorola Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUESTED Date: 5thDecember 2005 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ492FT7021. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Block Diagrams), 5 (Schematic Diagrams) and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5 and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13B

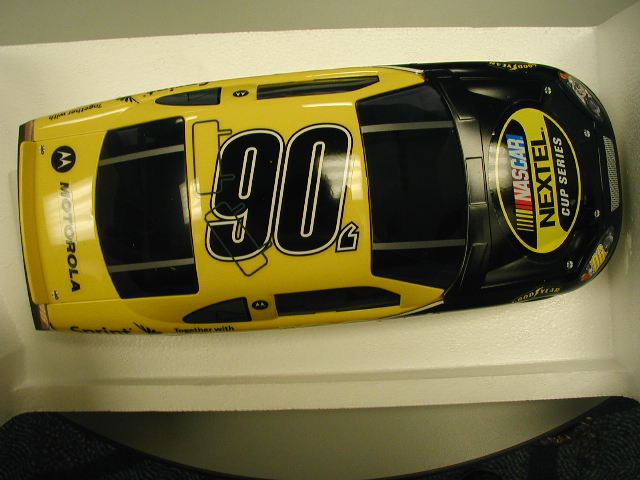

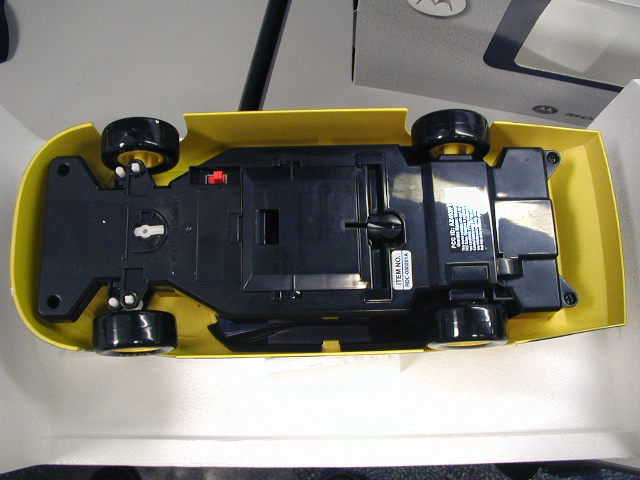

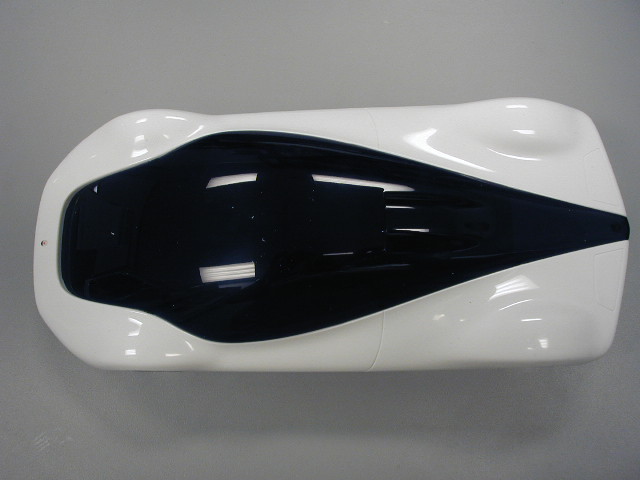

Applicant: Motorola FCC ID: AZ492FT7021 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 1 Exhibit 3: External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 The product shapes, colors and housing/bezel vary. Figure 3-1: NASCAR Car, Top View Applicant: Motorola FCC ID: AZ492FT7021 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 2 Figure 3-2: NASCAR Car, Bottom View Applicant: Motorola FCC ID: AZ492FT7021 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 3 Figure 3-3: Maserati Car, Top View Applicant: Motorola FCC ID: AZ492FT7021 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Page: 3 - 4 Figure 3-4: Maserati Car, Bottom View

Applicant: Motorola FCC ID: AZ492FT7021 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 1.1 Location Back side of the housing (Photograph 1.1) 1.2 Type The label is of a black polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) Bottom view of product, showing label location: Photograph 1.1: View of label containing FCC ID. Applicant: Motorola FCC ID: AZ492FT7021 IDEN, Motorola Inc., 8000 W. Sunrise Blvd., Plantation, FL 33322, USA WWW.MOT.COM/iDEN Pag e 1 - 2 Photograph 1.2: Zoom view of label. Photograph 1.3: Zoom view of label.

Applicant: Motorola FCC ID: AZ492FT7021 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Photograph 9-1: Top side view of Car PC Board Applicant: Motorola FCC ID: AZ492FT7021 Photograph 9-2: Back side view of PC Board

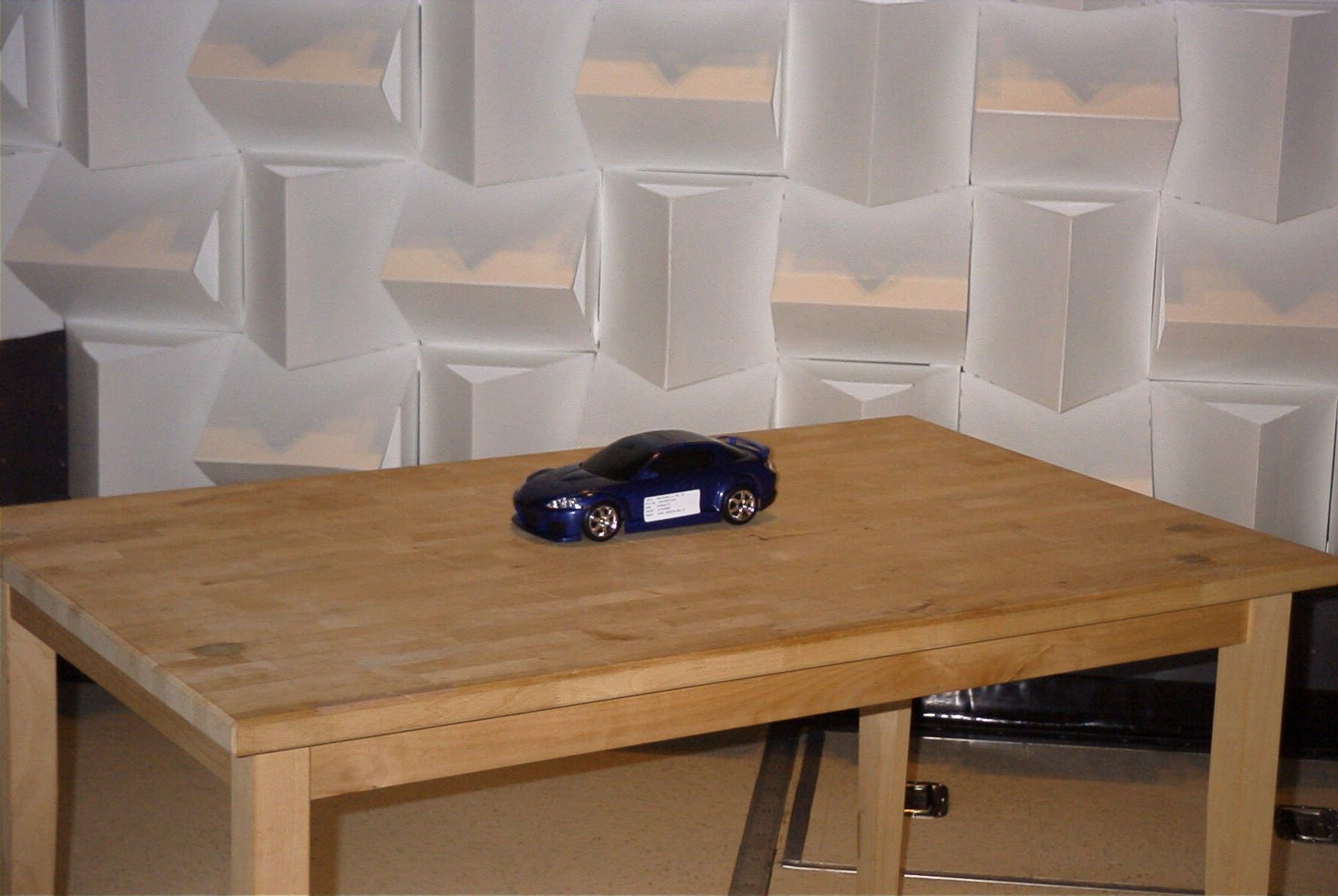

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 Test Report Product Name: REMOTE CONTROL CAR FCC ID: AZ492FT7021 Applicant: MOTOROLA, INC. 8000 WEST SUNRISE BLVD, MD: 1309 FT. LAUDERDALE FL 33322-9947 USA REPORT #: U:\M\MOTOROLA_Florida\2509AUT5\2509AUT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 TABLE OF CONTENTS APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-4.........RADIATION INTERFERENCE TEST DATA PAGE 5...........CALCULATION OF DUTY CYCLE PAGE 6-7.........DUTY CYCLE PLOTS PAGE 8-9.........OCCUPIED BANDWIDTH PAGE 10-11.......BANDEDGE PLOTS EXHIBIT INCLUDED: CONFIDENTIALITY REQUEST LETTER BLOCK DIAGRAM SCEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH REPORT #: U:\M\MOTOROLA_Florida\2509AUT5\2509AUT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 12/29/04 12/29/06 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 REPORT #: U:\M\MOTOROLA_Florida\2509AUT5\2509AUT5TestReport.doc Page 1 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmitting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 74.3°F with a humidity of 69%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. REPORT #: U:\M\MOTOROLA_Florida\2509AUT5\2509AUT5TestReport.doc Page 2 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 APPLICANT: MOTOROLA, INC. FCC ID: AZ492FT7021 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: Field Strength Field Strength S15.209: of Fundamental: of Harmonics: 30 - 88 MHz 40 dBuV/m @3M 902-928 MHz 88 - 216 MHz 43.5 2.4-2.4835 GHz 216 - 960 MHz 46 94 dBuV/m @3m 54 dBuV/m @3m ABOVE 960 MHz 54dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Pol. Coax Loss dB Correction Factor dB Duty Cycle Factor dB Field Strength dBuV/m Margin dB 2,405.0 2,405.00 51.3 V 3.18 32.33 20 66.81 27.19 2,405.0 2,405.00 52.6 H 3.18 32.33 20 68.11 25.89 2,405.0 4,810.00 R 19.2 V 4.91 34.35 20 38.46 15.54 2,405.0 4,810.00 R 19.9 H 4.91 34.35 20 39.16 14.84 2,405.0 7,215.00 21.1 V 5.73 36.16 20 42.99 11.01 2,405.0 7,215.00 22.7 H 5.73 36.16 20 44.59 9.41 2,445.0 2,445.00 51.7 V 3.21 32.45 20 67.36 26.64 2,445.0 2,445.00 58.4 H 3.21 32.45 20 74.06 19.94 2,445.0 4,890.00 R 20.8 H 4.95 34.41 20 40.16 13.84 2,445.0 4,890.00 R 22.3 V 4.95 34.41 20 41.66 12.34 2,445.0 7,335.00 R 20.9 H 5.80 36.30 20 43.00 11.00 2,445.0 7,335.00 R 21.2 V 5.80 36.30 20 43.30 10.70 2,480.0 2,480.00 51.9 V 3.24 32.54 20 67.68 26.32 2,480.0 2,480.00 61.5 H 3.24 32.54 20 77.28 16.72 2,480.0 4,960.00 R 20.4 H 4.98 34.47 20 39.85 14.15 2,480.0 4,960.00 R 22.2 V 4.98 34.47 20 41.65 12.35 2,480.0 7,440.00 R 20.6 V 5.86 36.43 20 42.89 11.11 2,480.0 7,440.00 R 20.8 H 5.86 36.43 20 43.09 10.91 REPORT #: U:\M\MOTOROLA_Florida\2509AUT5\2509AUT5TestReport.doc Page 3 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030…

Text truncated - open the document above for the full version.

Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Mar gin dB 2,405.0 2,405.00 49.2 V 3.18 32.33 84.71 0.00 2,405.0 2,405.00 53.7 H 3.18 32.33 89.21 0.00 2,405.0 4,810.00 18.6 V 4.91 34.35 57.86 0.00 2,405.0 4,810.00 20.0 H 4.91 34.35 59.26 0.00 2,405.0 7,215.00 18.8 V 5.73 36.16 60.69 0.00 2,405.0 7,215.00 27.4 H 5.73 36.16 69.29 0.00 2,445.0 2,445.00 52.5 V 3.21 32.45 88.16 0.00 2,445.0 2,445.00 56.1 H 3.21 32.45 91.76 0.00 2,445.0 4,890.00 17.7 V 4.95 34.41 57.06 0.00 2,445.0 4,890.00 19.6 H 4.95 34.41 58.96 0.00 2,445.0 7,335.00 24.3 V 5.80 36.30 66.40 0.00 2,445.0 7,335.00 25.3 H 5.80 36.30 67.40 0.00 2,480.0 2,480.00 54.6 V 3.24 32.54 90.38 0.00 2,480.0 2,480.00 60.2 H 3.24 32.54 95.98 0.00 2,480.0 4,960.00 14.1 H 4.98 34.47 53.55 0.00 2,480.0 4,960.00 14.4 V 4.98 34.47 53.85 0.00 2,480.0 7,440.00 26.2 V 5.86 36.43 68.49 0.00 2,480.0 7,440.00 34.4 H 5.86 36.43 76.69 0.00
