AZ492FT7043MOBILE 2-WAY RADIO

APX 7500 User Guide O9 Control Head 68007024014-A English mASTRO ® APX™ 7500 Series Digital Mobile RadiosQuick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits. Radio On/OffAdjusting VolumeSelecting a Zone Selecting a ChannelRadio Controls Receiving and Transmitting Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. Press the Power On/Off button to toggle the power on or off. Turn the Volume knob clockwise to increase volume or counterclockwise to decrease the volume. 1 > or < to Zone . Press the Menu Select button directly under the Zone . 2 U or D button until the desired zone is displayed. 3 Press the Menu Select button directly below Select to confirm the displayed zone. 4 Press the PTT button to begin transmitting on the displayed zone channel. !  1 > or < to Channel . Press the Menu Select button directly under the Channel . 2 U or D button until the desired channel is displayed. 3 Press the Menu Select button directly below Select to confirm the selected channel. 4 Press the PTT button to begin transmitting on the displayed zone channel. 1 Turn the Mode Knob to scroll to the required channel. 2 Press PTT button to transmit on the selected zone channel. 5 4 1 2 3 6789 11 10 12 13 14 15 16 17 18 Siren Control ButtonsProgrammable Buttons (Top)Response SelectorDirectional ButtonsOrange ButtonPublic Address ButtonKeypadData Feature ButtonMode Knob4-Way Navigation ButtonHome ButtonSatus IconsProgrammable Buttons (Bottom)Menu Select ButtonsVolume KnobDisplay Backlight Control ButtonsLED IndicatorsPower On/Off Button 1 Take the microphone off hook. 2 Select zone/channel. 3 Listen for a transmission.ORTurn the Volume Knob . OR> or < to Monitor then press the Menu Select button directly below Monitor and listen for activity. 4 Adjust volume, if necessary. 5 Press the PTT button to transmit; release to receive. 12 3 456789 10 11 12131415161718 *68007024034* 68007024034-A © 2010 by Motorola, Inc. All Rights Reserved. 05/101301 E. Algonquin Rd., Schaumburg,IL 60196-1078, U.S.A. English Sending an Emergency Alarm To exit emergency at any time, press and hold the Emergency button. Sending an Emergency Call (Trunking Only) To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Alarm If silent emergency alarm is used with emergency call, pressing the PTT button exits the silent mode and initiates the emergency call. Display Status Icons 1 Press the Emergency button. A tone sounds and the display shows EMERGENCY and the current zone or channel. 2 A dispatcher acknowledgment ACK RECEIVED display follows. AND, Trunking Only:A high-pitched tone indicates that the alarm has been received by the trunked system’s central controller. 3 Press and hold the emergency button or the PTT button to return to normal operation. 1 Press the Emergency button. 1 A tone sounds and the display shows EMERGENCY and the current zone or channel. ORA talk prohibited tone sounds when the selected channel does not support emergency. 2 Press and hold the PTT button. Speak clearly into the microphone. 3 Release the PTT to end the transmission. 1 Press the Emergency button to activate the silent alarm feature. 2 The display does not change; the LED does not light up, and there is no tone. Receiving a call or dataTransmitting a call or dataReceived an Individual Call.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio to radio communication or connected through a repeater.On = Direct Off = Repeater This channel is being monitored.Voice muting the affiliated trunking talkgroup or selected conventional channel.On = Enabled Off = Disabled L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority-Two Channel during scan. F O M K H OR . i Radio is in the view or program mode.On steady = View mode. Blinking = Program mode. The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = Location feature enabled, and location signal available. Off = Location feature disabled. Blinking = Location feature enabled, but location signal unavailable. On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin. Data activity is present.Indicates that the text entry is currently in hexadecimal mode.Alternates between red and blue when the lightbar is on. k m l G no Menu Navigation < or > to Menu Entry. - directly below Menu Entry to select. U or D to scroll through sub-list. - directly below Menu Entry to select. H to exit. Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola, Inc.Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.Phone Number: 1-800-927-2744Hereby declares that the product: Model Name: APX 7500 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this device compli…

Text truncated - open the document above for the full version.

Applicant: Motorola FCC ID: AZ492FT7043 Attestation Statement The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BEng Universiti Tun Hussien Onn 2) 7 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Kang Boon Wei SIGNATURE: /s/ bwkang (signed) DATE: 24 th September 2010 POSITION: Senior Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Peter Keh SIGNATURE: /s/ PeterKeh (signed) DATE: 24 th September 2010 POSITION: Engineering Manager EXHIBIT 2

FCC ID: AZ492FT7043 Exhibit 13A ______________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 15 th October 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: AZ492FT7043, APX7500. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Mobile environment with capabilities for clear and coded communications with a variable transmit power of 4-40 Watts in the frequency ranges of 380-406.1, 406.1-470 MHz and transmit power of 2-35 Watts in the frequency ranges of 764-775, 793-805, 806-824, and 851-869 MHz. The APX7500 unit is designed for conventional and digital voice, and data applications in 6.25e kHz, 12.5 kHz and 25 kHz system applications. We are requesting Certification under Part 22, 74, and 90 of the Commission’s Rules to allow operation of this equipment in UHF Range 1 bands and Part 22, 74 and 90 of the Commission’s Rules to allow operation of this equipment in 7/800 MHz bands. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ492FT7043 ______________________________________________________________________________ Motorola Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUEST Date: 15th October 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ492FT7043. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954)723-5793 E-mail: [email protected] Exhibit 13b

FCC ID: AZ492FT7043 _________________________________________________________________________________ 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 15 th October 2010 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification. Gentlemen: The APX7500 Mobile 2-Way radio was designed to operate in the frequency bands 380-470 764-775, 793-805, 806-824, and 851-869 MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Motorola is requesting that the FCC lists the frequencies 380-406, 401.1-470 MHz and 764-775 MHz, 793-805 MHz, 806-824 MHz, and 851-869 MHz under FCC Rule Parts 22, 74 and 90 on the FCC Grant. For the FCC’s Rule Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, “as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Part 22 Part 74 Part 80 Federa l Grant Notes Emission Designator Rule Part 80 & 90 380- 406* x x EF, BE 8K10F1D/F1E/F1W, 11/16K0F3E, 20K0F1E 406.1-454 x EF, BE “”” 454- 456* x x x EF, BE “”” 456-470 x x x EF, BE “”” 764- 770/794-800* 769- 775 x x x EF, BE “”” 793- 805 x EF, BE “”” 806- 824 x x EF, BE “”” 851- 869 x x EF, BE “”” * Canada Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected] EXHIBIT 13c

Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 1 OF 8 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 The following photographs are attached. 1. Front view (Controls) 2. Back view 3. Top view (FCC label location) 4. FCC label (Close view) 5. RF exposure label (Close view) 6. Bottom View 7. Side view (Left) 8. Side view (Right) 9. Top view with microphone and rear accessory cable Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 2 OF 8 Front view (Controls) Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 3 OF 8 Back view Top View (FCC Label Location) Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 4 OF 8 FCC Label (Close View) Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 5 OF 8 RF Exposure Label (Close View) Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 6 OF 8 Bottom View Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 7 OF 8 Side View (Left) Side View (Right) Applicant: Motorola FCC ID: AZ492FT7043 EXHIBIT 3 SHEET 8 OF 8 TOP VIEW WITH MICROPHONE AND REAR ACCESSORY CABLE Note : 1. Cables from the connector are wrapped and placed on the radio. 2. RF exposure label placed at the end of the Microphone cable.

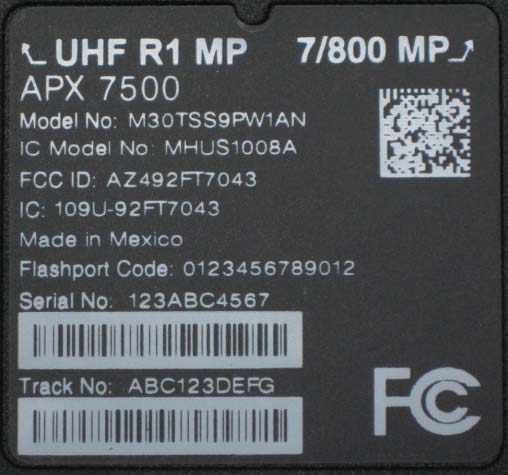

Applicant: Motorola FCC ID: AZ492FT7043 Identification Label LOCATION See the Attached Photograph or Sketch X Top of Radio Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3-5 for the actual location of the FCC label on the device. Label Attached Below. See Attached Drawing. EXHIBIT 1

Applicant: Motorola FCC ID: AZ492FT7043 Internal Photographs The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Controller board with Shields (Top). 9E 6. Controller board with Shields (Bottom). 9F 7. Controller board without Shields (Bottom). 9G EXHIBIT 9 Applicant: Motorola FCC ID: AZ492FT7043 RF board with Shields (Top) EXHIBIT 9A Applicant: Motorola FCC ID: AZ492FT7043 RF board without Shields (Top) EXHIBIT 9B Applicant: Motorola FCC ID: AZ492FT7043 RF board with Shields (Bottom) EXHIBIT 9C Applicant: Motorola FCC ID: AZ492FT7043 RF board without Shields (Bottom) EXHIBIT 9D Applicant: Motorola FCC ID: AZ492FT7043 Controller board with Shields (Top) EXHIBIT 9E Controller board with Shields (Bottom) EXHIBIT 9F Applicant: Motorola FCC ID: AZ492FT7043 Controller board without Shields (Bottom) EXHIBIT 9G

English Product Safety and RF Energy Exposure Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to February 2002. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. © Motorola, Inc. 2005 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 *6881095C99* 68P81095C99-E 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This 2-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola 2-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of 2-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile 2-way radios before they can be marketed in the U.S. When 2-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola 2-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2003 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular, and PCS product certification.” RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • Do not use this device if the operational requirements described herein are not met. Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button or, for radios equipped with VOX, speak into the microphone. The red LED will illuminate when the radio is 5 English transmitting. To receive calls, release the PTT button, or, for radios equipped with VOX, stop talking. The red LED will extinguish when the radio stops transmitting. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). •Transmit only when people outside the vehicle are at l…

Text truncated - open the document above for the full version.

SR8723 Form-MPE Motorcycle rpt. Rev 3.00 Page 1 of 16 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE MPE ASSESSMENT Part 1 of 2 Enterprise Mobility Solution (EMS) EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: October 25, 2010 Report Revision: Rev. O Report ID: SR8723_ MPE rpt_APX7500_UHFR1 and 7/800_Motorcycle_Rev O _101025 Responsible Engineer: Stephen C. Whalen (Principle Staff EME Eng.) Date/s Tested: 6/24/2010 & 9/25/09-10/15/09 Manufacturer/Location: Motorola, Penang Date submitted for test: 9/02/2010 DUT Description: APX7500 Dual Band Mobile UHFR1 (15 Watts) & 700/800 MHz (15 Watts) Motorcycle Mount option Test TX mode(s): CW Max. Power output: 18W TX Frequency Bands: UHFR1 380-470 MHz; 700MHz bands: 764-776MHz (talk around); 794-806MHz (Trunked); 800MHz bands: 806-824MHz (Trunked); 851-870MHz (talk around) Signaling type: Analog, APCO 25, and F2 (TDMA) Model(s) Tested: M30QSS9PW1AN (UHF) with G67 motorcycle option and M30URS9PW1AN (7/800MHz) with G67 motorcycle option Model(s) Certified: M30TSS9PW1AN(MHUS1008A) with G67 Motorcycle option Serial Number(s): 123ABC4567 (M30QSS9PW1AN with G67 motorcycle option), 173 (M30URS9PW1AN with G67 motorcycle option) Classification: Occupational/Controlled Environment Regulatory Identifications FCC ID AZ492FT7043 – Part 22 & 90 (406.1-470 MHz & 763-775MHz; 793-805MHz; 806-824MHz; 851-869MHz), MPE results outside of Part 90 are not applicable for FCC compliance demonstration. IC 109U-92FT7043 – RSS102 Approved Accessories: Antenna(s): Antennas for UHFR1 band Antennas for 700/800MHz bands HAE6014A (Motorcycle Mount, 380 - 433 MHz, 1/4 Wave, 2.15 dBi) HAE6032A (Motorcycle Mount, 425 - 470 MHz, 1/4 Wave, 2.15 dBi) HAF4015A (Motorcycle Mount, 764-870 MHz, 1/4 wave, 5.15dBi) HAF4018A ( Motorcycle Mount, 764-870 MHz, 1/4 wave, 5.15dBi) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 4.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Signature on file – Kim Uong for Deanna Zakharia Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 10/26/2010 Certification Date: Certification No.: DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) SR8723 Form-MPE Motorcycle rpt. Rev 3.00 Page 2 of 16 TABLE OF CONTENTS Part 1 of 2: MPE Assessment for 380-470MHz band Part 2 of 2: MPE Assessment for the 764-870MHz band Part 1 of 2 1.0 Product and System Description 2.0 Abbreviations / Definitions 3.0 Additional Options and Accessories 4.0 Measurement and Limit Standards 5.0 Measurement System Uncertainty Levels 6.0 Method of Measurement 6.1 MPE assessments for motorcycle mounted antennas 6.1.1 Bystander MPE assessment 6.1.2 Operator MPE assessment 7.0 Test Site 8.0 Measurement System/Equipment 9.0 DUT Output Power and Test Frequencies 10.0 Test Set-Up Description 11.0 Test Results Summary 12.0 Conclusion APPENDIX A: Illustration of Antenna Location and Test Positions APPENDIX B: Meter/Probe Calibration Certificates APPENDIX C: DUT Photos REVISION HISTORY Date Revision Comments 10/25/2010 O Initial release SR8723 Form-MPE Motorcycle rpt. Rev 3.00 Page 3 of 16 1.0 Product and System Description Model M30TSS9PW1AN (MHUS1008A) with G67 motorcycle option is a mobile transceiver that utilizes analog, APCO 25 & F2 digital two-way radio communications. The analog modulation scheme uses Frequency Modulation (FM). APCO 25 & F2 digital modes use C4FM of CQPSK family of modulation (Compatible 4-Level Frequency Modulation of Compatible Quadrature Phase Shift Keying). F2 is a TDMA protocol that allocates portions of the RF signal by dividing time into two slots (2 slots TDMA). Transmission from a unit or base station is accommodated in time- slot lengths of 30 milliseconds and frame lengths of 60 milliseconds. This product supports voice in analog mode, and both voice and data modes in digital mode. The maximum duty cycle for TDMA is 1:2 (50%) and is controlled by software. The FM signal is continuous. However, because of hand shaking or Push-To-Talk (PTT) between users and/or base stations a conservative 50% duty cycle is applied. The TDMA mode was not tested because its duty cycle is inherently 50% and would include an additional 50% duty cycle for PTT. The intended use of the radio is Push-To-Talk (PTT) while the device is properly installed on a motorcycle. This device will be marketed to and used by employees solely for work-related operations, such as public safety agencies, e.g. police, fire and emergency medical. User training is the responsibility of these agencies which can be expected to employ the usage instructions, safety information and operational cautions set forth in the user's manual, instructional sessions or other means. Accordingly this product is classified as Occupational/Controlled Exposure. However, in accordance with FCC requirements, the bystanders are evaluated to the General Population/ Uncontrolled Exposure Limits, and the operator is evaluated to the Occupational/Controlled Exposure Limits. (Note that “Bystanders” as used herein mean people other than operator) 2.0 Abbreviations / Definitions APCO: Association of Public-Safety Communications Officials C4FM: Compatible 4-Level Frequency Modulation CNR: Calibration Not Required CQPSK: Compatible Quadrature Phase Shift Keying CW: Continues Wave DUT: Device Under Test F2: 2 sl…

Text truncated - open the document above for the full version.

SR8723 Form-MPE Motorcycle rpt. Rev 3.00 Page 1 of 17 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE MPE ASSESSMENT Part 2 of 2 Enterprise Mobility Solution (EMS) EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: October 25, 2010 Report Revision: Rev. O Report ID: SR8723_ MPE rpt_APX7500_UHFR1 and 7/800_Motorcycle_Rev O _101025 Responsible Engineer: Stephen C. Whalen (Principle Staff EME Eng.) Date/s Tested: 6/24/2010 & 9/25/09-10/15/09 Manufacturer/Location: Motorola, Penang Date submitted for test: 9/02/2010 DUT Description: Mackinaw Mobile UHFR1 (15 Watts) & 700/800 MHz (15 Watts) Motorcycle Mount option Test TX mode(s): CW Max. Power output: 18W TX Frequency Bands: UHFR1 380-470 MHz; 700MHz bands: 764-776MHz (talk around); 794-806MHz (Trunked); 800MHz bands: 806-824MHz (Trunked); 851-870MHz (talk around) Signaling type: Analog, APCO 25, and F2 (TDMA) Model(s) Tested: M30QSS9PW1AN (UHF) with G67 motorcycle option and M30URS9PW1AN (7/800MHz) with G67 motorcycle option Model(s) Certified: M30TSS9PW1AN(MHUS1008A) with G67 Motorcycle option Serial Number(s): 123ABC4567 (M30QSS9PW1AN with G67 motorcycle option), 173 (M30URS9PW1AN with G67 motorcycle option) Classification: Occupational/Controlled Environment Regulatory Identifications FCC ID AZ492FT7043 – Part 22 & 90 (406.1-470 MHz & 763-775MHz; 793-805MHz; 806-824MHz; 851-869MHz), MPE results outside of Part 90 are not applicable for FCC compliance demonstration. IC 109U-92FT7043 – RSS102 Approved Accessories: Antenna(s): Antennas for UHFR1 band Antennas for 700/800MHz bands HAE6014A (Motorcycle Mount, 380 - 433 MHz, 1/4 Wave, 2.15 dBi) HAE6032A (Motorcycle Mount, 425 - 470 MHz, 1/4 Wave, 2.15 dBi) HAF4015A (Motorcycle Mount, 764-870 MHz, 1/4 wave, 5.15dBi) HAF4018A ( Motorcycle Mount ,764-870 MHz, 1/4 wave, 5.15dBi) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 4.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Signature on file – Kim Uong for Deanna Zakharia Deanna Zakharia EMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 10/26/2010 Certification Date: Certification No.: DUT P hot o (R ef er t o E xh ib i t 7B) DUT P hot o (R ef er t o E xh ib i t 7B) SR8723 Form-MPE Motorcycle rpt. Rev 3.00 Page 2 of 17 TABLE OF CONTENTS Part 1 of 2: MPE Assessment for 380-470MHz band Part 2 of 2: MPE Assessment for the 764-870MHz band Part 2 of 2 1.0 Product and System Description 2.0 Abbreviations / Definitions 3.0 Additional Options and Accessories 4.0 Measurement and Limit Standards 5.0 Measurement System Uncertainty Levels 6.0 Method of Measurement 6.1 MPE assessment for motorcycle mounted antennas 6.1.1 Bystander MPE assessment 6.1.2 Operator MPE assessment 7.0 Test Site 8.0 Measurement System/Equipment 9.0 DUT Output Power and Test Frequencies 10.0 Test Set-Up Description 11.0 Test Results Summary 12.0 Conclusion APPENDIX A: Illustration of Antenna Location and Test Distances APPENDIX B: Meter/Probe Calibration Certificates APPENDIX C: DUT Photos REVISION HISTORY Date Revision Comments 10/25/2010 O Initial release SR8723 Form-MPE Motorcycle rpt. Rev 3.00 Page 3 of 17 …

Text truncated - open the document above for the full version.
