APX 7500 User Guide O9 Control Head 68007024014-B O9Head_68007024014_b.book Page 1 Wedn esday, October 20, 2010 2:28 PM O9Head_68007024014_b.book Page 2 Wedn esday, October 20, 2010 2:28 PM English mASTRO ® APX™ 7500 Series Digital Mobile RadiosQuick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C9 9 ) to ensure compliance with RF energy exposure limits. Radio On/OffAdjusting VolumeSelecting a Zone Selecting a ChannelRadio Controls Receiving and Transmitting Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. Press the Power On/Off button to toggle the power on or off. Turn the Volume knob clockwise to increase volume or counterclockwise to decrease the volume. 1 > or < to Zone . Press the Menu Select button directly under the Zone . 2 U or D button until the desired zone is displayed. 3 Press the Menu Select button directly below Select to confirm the displayed zone. 4 Press the PTT button to begin transmitting on the displayed zone channel. ! C a u t i o n 1 > or < to Channel . Press the Menu Select button directly under the Channel . 2 U or D button until the desired channel is displayed. 3 Press the Menu Select button directly below Select to confirm the selected channel. 4 Press the PTT button to begin transmitting on the displayed zone channel. 1 Turn the Mode Knob to scroll to the required channel. 2 Press PTT button to transmit on the selected zone channel. 5 4 1 2 3 6789 11 10 12 13 14 15 16 17 18 Siren Control ButtonsProgrammable Buttons (Top)Response SelectorDirectional ButtonsOrange ButtonPublic Address ButtonKeypadData Feature ButtonMode Knob4-Way Navigation ButtonHome ButtonSatus IconsProgrammable Buttons (Bottom)Menu Select ButtonsVolume KnobDisplay Backlight Control ButtonsLED IndicatorsPower On/Off Button 1 Take the microphone off hook. 2 Select zone/channel. 3 Listen for a transmission.ORTurn the Volume Knob . OR> or < to Monitor then press the Menu Select button directly below Monitor and listen for activity. 4 Adjust volume, if necessary. 5 Press the PTT button to transmit; release to receive. 12 3 456789 10 11 12131415161718 © 2010 by Motorola, Inc. All Rights Reserved. 06/101301 E. Algonquin Rd., Schaumburg,IL 60196-1078, U.S.A. *PMLN5711A* PMLN5711A O9Head_68007024014_b.book Page 3 Wedn esday, October 20, 2010 2:28 PM English Sending an Emergency Alarm To exit emergency at any time, press and hold the Emergency button. Sending an Emergency Call (Trunking Only) To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Alarm If silent emergency alarm is used with emergency call, pressing the PTT button exits the silent mode and initiates the emergency call. Display Status Icons 1 Press the Emergency button. A tone sounds and the display shows EMERGENCY and the current zone or channel. 2 A dispatcher acknowledgment ACK RECEIVED display follows. AND, Trunking Only:A high-pitched tone indicates that the alarm has been received by the trunked system’s central controller. 3 Press and hold the emergency button or the PTT button to return to normal operation. 1 Press the Emergency button. 1 A tone sounds and the display shows EMERGENCY and the current zone or channel. ORA talk prohibited tone sounds when the selected channel does not support emergency. 2 Press and hold the PTT button. Speak clearly into the microphone. 3 Release the PTT to end the transmission. 1 Press the Emergency button to activate the silent alarm feature. 2 The display does not change; the LED does not light up, and there is no tone. Receiving a call or dataTransmitting a call or dataReceived an Individual Call.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio to radio communication or connected through a repeater.On = Direct Off = Repeater This channel is being monitored.Voice muting the affiliated trunking talkgroup or selected conventional channel.On = Enabled Off = Disabled L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority-Two Channel during scan. F O M K H OR . i Radio is in the view or program mode.On steady = View mode. Blinking = Program mode. The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = Location feature enabled, and location signal available. Off = Location feature disabled. Blinking = Location feature enabled, but location signal unavailable. On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin. Data activity is present.Indicates that the text entry is currently in hexadecimal mode.Alternates between red and blue when the lightbar is on. k m l G no Menu Navigation < or > to Menu Entry. - directly below Menu Entry to select. U or D to scroll through sub-list. - directly below Menu Entry to select. H to exit. O9Head_68007024014_b.book Page 4 Wedn esday, October 20, 2010 2:28 PM Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola, Inc.Address: 1301 East Algonquin Road, Schaumburg, IL 60196-10…

Text truncated - open the document above for the full version.

English Product Safety and RF Energy Exposure Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to January 2008. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. © 2005 – 2009 by Motorola, Inc. All rights reserved. 10/09 1301 E. Algonquin Rd., Schaumburg, IL 60196-1078, U.S.A. *6881095C99* 6881095C99-G *NNTN7851B* NNTN7851B 6881095C99-G.book Page 1 Tuesday, October 27, 2009 1:25 PM 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C99-G.book Page 2 Tuesday, October 27, 2009 1:25 PM 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola two-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C99-G.book Page 3 Tuesday, October 27, 2009 1:25 PM 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • Institute of Electrical and Electronic Engineers (IEEE) C95.1-2005 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard, 2003 • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2001) “additional requirements for SMR, cellular, and PCS product certification” RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • DO NOT use this device if the operational requirements described herein are not met. 6881095C99-G.book Page 4 Tuesday, October 27, 2009 1:25 PM 5 English Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button or, for radios equipped with VOX, speak into the microphone. The red LED will illuminate when the radio is transmitting. To r…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 2 Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BEng. Universiti Tun Hussien Onn 2) 7 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Kang Boon Wei SIGNATURE: /s/ bwkang (signed) DATE: 5 th February 2011 POSITION: Senior Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Peter Keh SIGNATURE: /s/ PeterKeh (signed) DATE: 5 th February 2011 POSITION: Engineering Manager

FCC ID: AZ492FT7044 EXHIBIT 13A _____________________________________________________________________________ Motorola Solutions Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: 22 nd February 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT7044, APX7500. Gentlemen: Motorola, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits application for Certification of the subject transmitter. This transmitter is intended for use in a Mobile Transmitter environment with capabilities for clear and coded communications with a variable transmit power of 4-45 Watts (Nominal) in the frequency ranges of 450-520 MHz and transmit power of 2-35 Watts in the frequency ranges of 764-775 MHz, 793-805 MHz, 806-824 MHz, and 851-869 MHz. We are requesting Certification under Part 22, 74, 90, and 90.210 of the Commission’s Rules. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ492FT7044 EXHIBIT 13C ______________________________________________________________________________ Motorola Solutions Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322 Date: 22 nd February 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification. Gentlemen: The APX7500 Mobile 2-Way radio was designed to operate in the frequency bands 450 -520 764-775 MHz, 793-805 MHz, 806-824 MHz, and 851-869 MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Motorola is requesting that the FCC lists the frequencies 450-520 MHz and 764-775 MHz, 793-805 MHz, 806-824 MHz, and 851-869 MHz on the FCC Grant. This radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC-OET KDB Publication 634817guidance, the grantee acknowledges that devices operating on unauthorized frequencies are a violation of the FCC Rules. Frequency Range (MHz) Part 90 Part 22 Part 74 Federal Grant Notes Emission Designator Rule Part 90 450-454* x x EF, BC 8K10F1D/F1E/F1W, 16K/11K0F3E/20K0FE 454-455* x EF, BC “”” 455-456* x EF, BC “”” 456-460* x x EF, BC “”” 460-462.5375* x EF, BC “”” 462.7375-467.5375* x EF, BC “”” 467.7375-470* x EF, BC “”” 470-512 x x x EF, BC “”” 512-520 x EF, BC “”” 764- 775 x x x EF, BC “”” 793- 805 x x x EF, BC “”” 806- 824 x EF, BC “”” 851- 869 x EF, BC “”” * Canada Sincerely, /s/ Mike Ramnath (signed) Mike Ramnath Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ492FT7044 EXHIBIT 13B ______________________________________________________________________________ Motorola Solutions Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUEST Date: 25 th February 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ492FT7044. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 10, and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected]

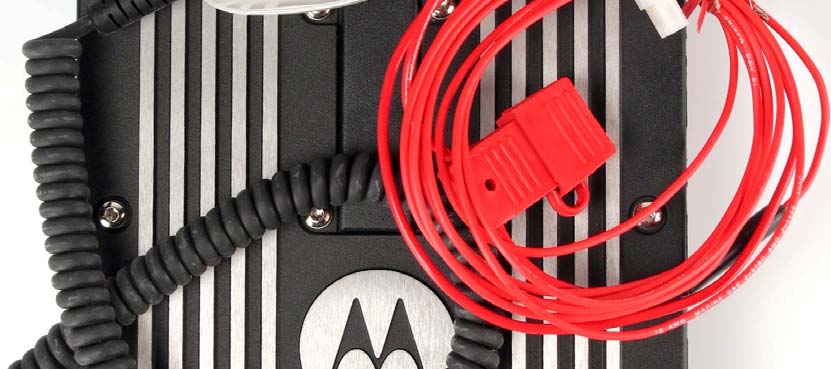

APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 1 OF 8 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 The following photographs are attached. 1. Front view (Controls) 2. Back view 3. Top view (FCC label location) 4. FCC label (Close view) 5. RF exposure label (Close view) 6. Bottom View 7. Side view (Left) 8. Side view (Right) 9. Top view with microphone and rear accessory cable APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 2 OF 8 Front view (Controls) Back view. APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 3 OF 8 Top View (FCC Label Location) APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 4 OF 8 FCC Label (Close View) APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 5 OF 8 RF Exposure Label (Close View) APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 6 OF 8 Bottom View APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 7 OF 8 Side View (Left) Side View (Right) APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 8 OF 8 Top View With Microphone And Rear Accessory Cable Note : 1. Cables from the connector are wrapped and placed on the radio. 2. RF exposure label placed at the end of the Microphone cable.

APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 1 Identification Label LOCATION See the Attached Photograph or Sketch X Back of Radio Back of Radio under Belt Clip TYPE X The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 40 oz/inch. MARKINGS (TEXT) X See the Attached Photograph for the actual location of the FCC/IC label on the device. Label Attached Below. See Attached Drawing. APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 1A General Information I. Production Plans Quantity production is planned. II. Application References Reference is made to the following Motorola "Application References" 1. Mobile Products and their application. 2. Mobile Products Transmitter Modulations Methods. 3. Motorola EMC Laboratory-Plantation, Florida III. Data Submittal Procedure: Data is supplied in accordance with Part 2, Subpart J of the Commissions’ rules. IV. Applicable References: • Reference Certification(s): IC: 109U-92FT7044, FCC ID: AZ492FT7044 • RSS Gen, RSS102, RSS 119 • EIA/TIA-603 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards • TIA-102.CAAA Digital C4FM/CQPSK Transceiver Measurement Methods • TIA/EIA-102.CAAB Land Mobile Radio Transceiver Recommendations, Project 25 - Digital Radio Technology, C4FM/ CQPSK Modulation • CFR 47, Rule Parts 2, 15, 22, 74, and 90

APPLICANT: MOTOROLA SOLUTIONS INC. FCC ID: AZ492FT7044 EXHIBIT 3 SHEET 3 OF 8 Top View (FCC Label Location)

Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9A Internal Photographs The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Controller board (Top) 9E 6. Controller board with Shields (Bottom) 9F 7. Controller board without Shields (Bottom) 9F Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9A RF board with Shields (Top) Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9B RF board without Shields (Top) Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9C RF board with Shields (Bottom) Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9D RF board without Shields (Bottom) Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9E Controller board with Shields (Top) Motorola Solutions Inc FCC ID: AZ492FT7044 EXHIBIT 9F Controller board with Shields (Bottom) Controller board without Shields (Bottom)

CONFIDENTIALITY REQUESTED DESCRIPTION FOR UHF RANGE 2 Transmitter Technical Characteristics -- Pursuant 2.1033 (c) A. RF Power Output: 450 – 485 MHz: Variable (4-45 Watts Nominal or Rated) Max: 54 Watts 485 – 520 MHz: Variable (4-40 Watts Nominal) Max: 48 Watts B. Frequency Range: 450 - 520 MHz C. Frequency Stability: 0.0002 % D. Emissions: 8K10F1D, 8K10F1E, 8K10F1W, 11K0F3E E. Spurious Emissions: - 85 dBc F. DC Voltage and Current into 13.4 Volts the RF power amplifier: 7.87 Amps DESCRIPTION FOR 7/800 I. Transmitter Technical Characteristics -- Pursuant 2.1033 (c) A. RF Power Output: 700 MHz: Variable (3.5-30 Watts Nominal or Rated) Max: 36 Watts 800 MHz: Variable (3.5-35 Watts Nominal) Max: 42 Watts 2-3 Watts (700 MHz Itinerant) B. Frequency Range: 764–775, 793-805, 806-824, 851-869 MHz C. Frequency Stability: 0.00015 % D. Emissions: 8K10F1D, 8K10F1E, 8K10F1W, 11K0F3E, 16K0F3E, 20K0F1E E. Spurious Emissions: - 70 dBc F. DC Voltage and Current into 13.6 Volts the RF power amplifier: 7.95 Amps (700 MHz) 8.95 Amps (800 MHz) II. Transmitter Application: This transmitter is primarily intended for use as a mobile radio. The transmitter is characterized by the following features, options and accessories. A. Power Supply Available Ni-Cad Battery , Mercury Battery , Alkaline Battery , AC , Lead Acid Battery X , Ni-MH Battery ,Li-Ion_____. B. Antenna Available (All External) Quarter Wave X , Collinear (3 dB) X , Low Profile (3 dB) X , Elevated Feed (3dB) X . C. Squelch Types Available 1. Carrier Squelch X . 2. Tone "Private Line" X . 3. Digital "Private Line" X . D. Microphone - Control 1. Handset/Palm Microphone X 2. Wireline control X . E. Maximum Transmit Channel Capability 1250 . F. Housing The transmitter will be housed in the housing shown in the accompanying photographs. G. Other Options 1. Single Tone Encoder X 2. Multiple Single Tone Encoder 3. Touch Code Encoder 4. Unit ID Encoder X 5. EMS Telemetry Encoder 6. Time out Timer X 7. Voice Encryption X 8. Digital Signaling X 9. Sel-Call Decode X 10. Trunking X 11. Conventional X 12. Digital Voice X _ MODEL NUMBERS: DESCRIPTION: M30TSS9PW1AN APX 7500/ 1250 Channels 4-45 Watts (450 – 485 MHz) 4-40 Watts (485 – 512 MHz) 4-25 Watts (512 – 520 MHz 3.5-36 Watts (764-806 MHz) 3.5-42 Watts (806-870 MHz) 2-3 Watts (700 MHz Itinerant

SR9121 Form-MPE MC Vehicle rpt. Rev 7.1 Page 1 of 22 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE: MPE ASSESSMENT Part 1 of 2 EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: February 23, 2011 Report Revision: A Report ID: SR9121_MPE rpt_APX7500_UHF R2 & 7/800_15W Motorcycle_Rev A_02232011 Responsible Engineer: Stephen C. Whalen (Principal Staff EME Test Engineer) Report author: Stephen C. Whalen (Principal Staff EME Test Engineer) Date(s) Tested: UHFR2 - 11/12/2010 & 1/28/2011; 7/800 - 10/15/2009 & 2/4/2011 Manufacturer/Location: Motorola, Schaumburg, IL Date submitted for test: 12/09/2010 DUT Description: APX7500 Dual Band UHF R2 15W (450 - 520MHz) & 7/800MHz 15W Motorcycle Mount Option Test TX mode(s): CW Max. Power output: 18W TX Frequency Bands: 450-520MHz & 7/800MHz (Talkaround: 764-776MHz & 851- 870MHz, Trunked: 794-824MHz) Signaling type: Analog, APCO 25, and TDMA 1:2 (F2) Model(s) Tested M30SSS9PW1AN with G67 motorcycle option Model(s) Certified: M30TSS9PW1AN (MHUS1006A) with G67 motorcycle option Serial Number(s): QMKNJ030 Classification: Occupational/Controlled Environment FCC ID: AZ492FT7044 Part 22 & 90 UHF (450-512MHz) & 7/800MHz (764-775MHz, 794-824MHz & 851-869MHz) MPE results outside of Part 90 are not applicable for FCC compliance demonstration. IC: 109U-92FT7044 UHF (450-470MHz) & 7/800MHz (764-776MHz, 794-824MHz & 851-870MHz) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Deanna Zakharia Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 2/23/2011 Certification Date: Certification No.: SR9121 Form-MPE MC Vehicle rpt. Rev 7.1 Page 2 of 22 Document Revision History Date Revision Comments 02/14/2011 O Initial release 02/23/2011 A Revised FCC bands from 764-776MHz to 764-775MHz and 851- 870MHz to 851-869MHz. SR9121 Form-MPE MC Vehicle rpt. Rev 7.1 Page 3 of 22 Part 1 of 2: MPE Assessment for 450-520MHz Part 2 of 2: MPE Assessment for 7/800MHz Part 1 of 2 Table of Contents 1.0 Introduction ....................................................................................................................................... 4 2.0 Abbreviations / Definitions ............................................................................................................... 4 3.0 Referenced Standards and Guidelines .............................................................................................. 4 4.0 Power Density Limits ....................................................................................................................... 5 5.0 N c Test Channels ............................................................................................................................... 6 6.0 Measurement Equipment .................................................................................................................. 6 7.0 Measurement System Uncertainty Levels ........................................................................................ 6 8.0 Product and System Description ....................................................................................................... 7 9.0 Additional Options and Accessories ................................................................................................. 7 10.0 Test Set-Up Description .................................................................................................................... 7 11.0 Method of Measurement for motorcycle mounted antenna(s) .......................................................... 8 11.1 Bystander vehicle MPE measurements ............................................................................ 8 11.2 Operator vehicle MPE measurements .............................................................................. 8 12.0 MPE Calculations ............................................................................................................................. 9 13.0 Antenna Summary .......................................................................................................................... 10 14.0 Test Results Summary .................................................................................................................... 10 15.0 Conclusion ...................................................................................................................................... 11 Appendix A - Illustration of Antenna Location and Test Distances............................................ 12 Appendix B - Probe Calibration Certificates ............................................................................... 14 Appendix C - Photos of Assessed Antennas ................................................................................ 19 Appendix D – MPE Measurement Results .................................................................................. 20 SR9121 Form-MPE MC Vehicle rpt. Rev 7.1 Page 4 of 22 1.0 Introduction This report details the test setup, test equipment and test results of Maximum Permissible Exposure (MPE) performed at Motorola’s outside test site for product model M30TSS9PW1AN with G67 motorcycle option. 2.0 Abbreviations / Definitions APCO: Association of Public-Safety Communications Officials BS: Bystander C4FM: Compatible 4-Level Frequency Modulation …
