AZ492FT7048UHF1_7/800 MHz Mobile Radio

m APX O5 Control Head Mobile Radio User Guide O5Head_6875947M01_C.book Page 1 We dnesday, October 20, 2010 12:13 PM O5Head_6875947M01_C.book Page 2 We dnesday, October 20, 2010 12:13 PM English mASTRO ® APX™ O5 Control Head Mobile RadioQuick Reference Card Product Safety and RF Exposure Compliance ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C9 9 ) to ensure compliance with RF energy exposure limits. Radio Controls Radio On/OffAdjusting VolumeSelecting a ZoneSelecting a Channel Receiving and TransmittingSending an Emergency Alarm To exit emergency at any time, press and hold the Emergency button. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. !  Volume Knob Accessory Port (Microphone) Menu Select Button Menu Entries LED Indicators Dim Button Home Button Navigation Button Power On/Off Button Indicators Mode Knob Orange Button ______ _ Press the Power On/Off button to toggle the power on or off. Turn the Volume Knob clockwise to increase volume or counterclockwise to decrease the volume. 1 > or < to ZONE . 2 > or < button until the desired zone is displayed. 3 Press H or the PTT button to confirm the selected zone number. 4 Press the PTT button to begin transmitting on the displayed zone channel. 1 Press and hold > to scroll to CHAN and press the Menu Select button directly below CHAN . The display shows the current zone and channel. 2 Rotate the Mode knob to the desired channel. 3 Press H or the PTT button to confirm the channel. 4 Press the PTT button to transmit on the displayed zone channel. 1 Take the microphone off hook. 2 Select zone/channel. 3 Listen for a transmission. ORTurn the Volume Knob. OR > or < to MON then press the Menu Select button directly below MON and listen for activity. 4 Adjust volume, if necessary. 5 Press the PTT button to transmit; release to receive. 1 Press the Emergency button. A tone sounds and the display alternates EMERGENCY and the home display. 2 A dispatcher acknowledgment ACK RECEIVED display follows.AND, Trunking Only:A high-pitched tone indicates that the alarm has been received by the trunked system’s central controller. 3 Press and hold the emergency button or the PTT button to return to normal operation. *PMLN5592B* PMLN5592B © 2009, 2010 by Motorola, Inc. All Rights Reserved. 10/101301 E. Algonquin Rd., Schaumburg,IL 60196-1078, U.S.A. O5Head_6875947M01_C.book Page 3 We dnesday, October 20, 2010 12:13 PM English Sending an Emergency Call (Trunking Only) To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Alarm If silent emergency alarm is used with emergency call, pressing the PTT button exits the silent mode and initiates the emergency call. Display Status Icons 1 Press Emergency button. 2 A tone sounds and the display alternates EMERGENCY and the home display. ORA talk prohibited tone sounds when the selected channel does not support emergency. 3 Press and hold the PTT button. Speak clearly into the microphone. 4 Release the PTT to end the transmission. 1 Press the preprogrammed Emergency button to activate the silent alarm feature. 2 The display does not change; the LED does not light up, and there is no tone. Receiving a call or data.Transmitting a call or data.Received an Individual Call.The more stripes, the stronger the signal strength for the current site (trunking only). u t F V Direct radio-to-radio communication or communication through a repeater.On = Direct Off = Repeater This channel is being monitored.Voice muting the affiliated trunking talkgroup or selected conventional channel.On = Enabled Off = Disabled L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority- Two Channel during scan. Radio is in the view or program mode.On steady = View mode. Blinking = Program mode. O M K H OR . i j The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = Location feature enabled, and location signal available. Off = Location feature disabled. Blinking = Location feature enabled, but location signal unavailable. On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin. Data activity is present. k m l G no Menu Navigation < or > to Menu Entry. g directly below Menu Entry to select. H to exit. < or > to scroll through sub-list. g directly below Menu Entry to select. O5Head_6875947M01_C.book Page 4 We dnesday, October 20, 2010 12:13 PM Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola, Inc.Address: Motorola, Inc. 1301 E. Algonquin Rd.Schaumburg, IL60196-1078, U.S.A.Phone Number: 1-800-927-2744 Hereby declares that the product: Model Name: APX 7500 / APX 6500 conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital DeviceAs a personal computer peripheral, this device complies with Part 15 of the FC C Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including i…

Text truncated - open the document above for the full version.

English Product Safety and RF Energy Exposure Booklet for Mobile Two-Way Radios Installed in Vehicles or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to January 2008. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. *6881095C99* 6881095C99-H *NNTN7851B* NNTN7851C Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2005 – 2011 Motorola Solutions, Inc. All rights reserved. 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola two-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/ controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. • FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 • Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • DO NOT use this device if the operational requirements described herein are not met. 5 English Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button or, for radios equipped with VOX, speak into the microphone. The red LED will illuminate when the radio is transmitting. To receive calls, release the PTT button, or, for radios equipped with VOX, stop talking. The red LED will extinguish when the radio stops transmitting. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). •Transmit only when people outside the vehicle are at least the recommend…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: 1) BEng University Technology of Malaysia 2) 3 years experience in the development, testing and certification of Land Mobile Communications Products NAME: Rajamannan Sabasivam SIGNATURE: DATE: September 2011 POSITION: Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Peter Keh SIGNATURE: DATE: September 2011 POSITION: Engineering Manager EXHIBIT 2

FCC ID: AZ492FT7048 EXHIBIT 13a ______________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 3 rd October 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ492FT7048, APX7500. Gentlemen: Motorola Solutions, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits its application for Certification of the subject transmitter. This transmitter is intended for use in a Mobile Transmitter environment with capabilities for clear and coded communications with a variable transmit power of 25-100 Watts (max power: 120 Watts) in the frequency ranges of 380-470 MHz, 764-775 MHz, 793-805 MHz, 806-824 MHz, and 851-869 MHz. We are requesting Certification under Part 22, 74 and 90 of the Commission’s Rules to allow operation of this equipment in UHF Range 1 bands and Part 22, 74 and 90 of the Commission’s Rules to allow operation of this equipment in 7/800 MHz bands. The subject transmitter complies with Section 90.203 of the Rules in that the operator cannot directly program transmit frequencies using the unit's normally accessible external controls. A complete Certification application is enclosed. If you require any additional information, please contact me at (954) 723-5793. Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ492FT7048 ______________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. CONFIDENTIALITY REQUEST Date: 30 th September 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ492FT7048. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d), 47 CFR 0.459, and Section 552(b)(4) of the Freedom of Information Act. Please mark Exhibits 4, 5, 5a, 10, and 12 as “Confidential”. Please contact me if you require any additional information. Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] Exhibit 13b

FCC ID: AZ492FT7048 ____________________________________________________________________________ Motorola Solutions Inc. 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. 3 rd October 2011 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification. Gentlemen: The APX7500 Mobile 2-Way radio was designed to operate in the frequency bands 380-470 MHz, 764-775 MHz, 794-805 MHz, 806-824 MHz, and 851-869 MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Motorola is requesting that the FCC lists the frequencies 380-470 MHz and 764-775 MHz, 794-805 MHz, 806-824 MHz, and 851-869 MHz under FCC Rule Parts 22, 74 and 90 on the FCC Grant For the FCC’s Rule Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Part 90 Part 22 Part 74 Federa l Grant Notes Emission Designator Rule Part 80 & 90 380-406 x EF, BE 8K10F1D/F1E/F1W, 11K0F3E 406.1-454 x x EF, BE “”” 454- 456 x x EF, BE “”” 467.7375- 470 x EF, BE “”” 764- 775 x x x EF, BE 8K10F1D/F1E/F1W,11/16K0F3E, 20K0F1E 794- 805 x x x EF, BE “”” 806- 824 x EF, BE “”” 851- 869 x EF, BE “”” Sincerely, Mike Ramnath (signed above) Manager, Regulatory Compliance Email: [email protected] EXHIBIT 13c

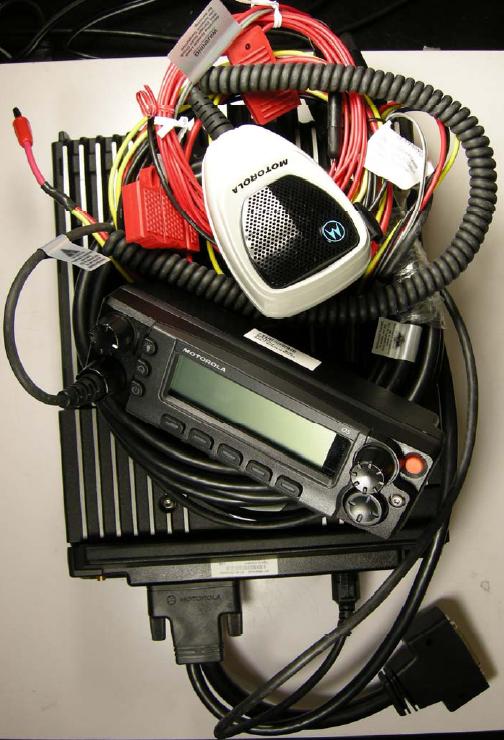

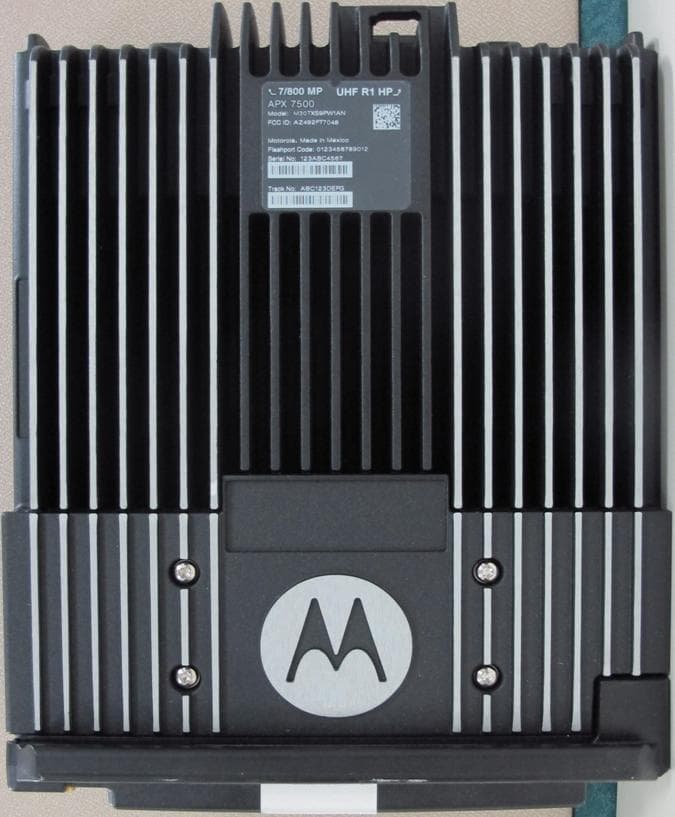

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 1 OF 7 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 The following photographs are attached. 1. Front view (Controls) 2. Back view 3. Top view (FCC label location) 4. FCC label (Close view) 5. RF exposure label (Close view) 6. Bottom View 7. Side view (Left) 8. Side view (Right) 9. Top view with microphone and rear accessory cable Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 2 OF 7 Front view (Controls) Back view Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 3 OF 7 Top View (FCC Label Location) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 4 OF 7 FCC Label (Close View) RF Exposure Label (Close View) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 5 OF 7 Bottom View Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 6 OF 7 Side View (Left) Side View (Right) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 EXHIBIT 3 SHEET 7 OF 7 TOP VIEW WITH MICROPHONE AND REAR ACCESSORY CABLE Note: 1. Cables from the connector are wrapped and placed on the radio. 2. RF exposure label placed at the end of the Microphone cable.

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 Identification Label LOCATION See the Attached Photograph or Sketch X Bottom of Radio Top of Radio Back of Radio Back of Radio under Belt Clip TYPE X The label is a polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with the minimum peel strength of 32 oz/inch. MARKINGS (TEXT) X See the Attached Photograph and Exhibit 3-5 for the actual location of the FCC label on the device. X Label Attached Below. See Attached Drawing. EXHIBIT 1

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 Internal Photographs The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Controller board with Shields (Top). 9E 6. Controller board with Shields (Bottom). 9F 7. Controller board without Shields (Bottom). 9G EXHIBIT 9 Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 RF board with Shields (Top) EXHIBIT 9A Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 RF board without Shields (Top) EXHIBIT 9B Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 RF board with Shields (Bottom) EXHIBIT 9C Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 RF board without Shields (Bottom) EXHIBIT 9D Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 Controller board with Shields (Top) EXHIBIT 9E Controller board with Shields (Bottom) EXHIBIT 9F Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7048 Controller board without Shields (Bottom) EXHIBIT 9G

SR9341 Form-Mobile Ex7B rpt. Rev 8.1 Page 1 of 5 TESTING CERT # 2518.01 Exhibit 7B MPE Test Report Photographs EME Test Laboratory 8000 West Sunrise Blvd. Fort Lauderdale, FL. 33322 Radio W/ Control head Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 09/29/2011 SR9341 Form-Mobile Ex7B rpt. Rev 8.1 Page 2 of 5 Document Revision History Date Revision Comments 09/29/2011 O Initial release SR9341 Form-Mobile Ex7B rpt. Rev 8.1 Page 3 of 5 1.0 Antenna Photograph(s) UHF Antenna kit numbers, from left to right: HAE6010A, HAE6011A, HAE4011A, HAE6013A, HAE6031A, HAE6012A & HAE4003A SR9341 Form-Mobile Ex7B rpt. Rev 8.1 Page 4 of 5 Note: Antennas were trimmed per test frequency. UHF Antenna kit numbers, from left to right: RAE4014A SR9341 Form-Mobile Ex7B rpt. Rev 8.1 Page 5 of 5 7/800MHz Antenna kit numbers, from left to right; HAF4017A, RRA4914B, HAF4014A, HAF4013A, HAF4002A, HAF4016A

SR9341 Form-MPE Auto Vehicle rpt. Rev 7.3 Page 1 of 48 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE: MPE/SAR ASSESSMENT Part 1 of 2 EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: Sept 29, 2011 Report Revision: O Report ID: SR9341 MPE Auto rpt APX7500 UHF R1 (HP) & 7/800 Rev O 110929 Responsible Engineer: Stephen C. Whalen (Principal Staff EME Test Engineer) Report author: Stephen C. Whalen (Principal Staff EME Test Engineer) Date(s) Tested: UHF R1 test dates - 5/26/2010, 6/2/2010, 6/3/2010; 6/25/2010, 7/14/2010, 8/3/2011 & 8/4/2011 Manufacturer/Location: Motorola, Schaumburg, IL Date submitted for test: 07/29/2011 DUT Description: APX7500 Dual Band UHF R1 100W & 700 band (30W)/800 band (35W) Test TX mode(s): CW Max. Power output: 120W (380-470MHz) and 36W (700MHz band), 42W (800MHz band) TX Frequency Bands: 380-470MHz & 7/800MHz (Talkaround: 764-776MHz & 851- 870MHz, Trunked: 794-824MHz) Signaling type: Analog, APCO 25, and TDMA 1:2 (F2) Model(s) Tested M30QTS9PW1AN Model(s) Certified: M30TXS9PW1AN (MHUS1009A) Serial Number(s): 123ABC4567 Classification: Occupational/Controlled Environment FCC ID: AZ492FT7048 Part 22 & 90 UHF (406.1-470MHz) & 7/800MHz (764-775MHz, 794-824MHz & 851-869MHz) Results outside of FCC bands are not applicable for FCC compliance demonstration. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc. EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 09/29/2011 Certification Date: 9/29/2011 Certification No.: L1110904P SR9341 Form-MPE Auto Vehicle rpt. Rev 7.3 Page 2 of 48 Document Revision History Date Revision Comments 09/29/2011 O Initial release SR9341 Form-MPE Auto Vehicle rpt. Rev 7.3 Page 3 of 48 Part 1 of 2: MPE Assessment for 380-470MHz Part 2 of 2: MPE Assessment for 7/800MHz Part 1 of 2 Table of Contents 1.0 Introduction ....................................................................................................................................... 4 2.0 Abbreviations / Definitions ............................................................................................................... 4 3.0 Referenced Standards and Guidelines ............................................................................................... 4 4.0 Power Density Limits ........................................................................................................................ 5 5.0 N c Test Channels ............................................................................................................................... 6 6.0 Measurement Equipment .................................................................................................................. 6 7.0 Measurement System Uncertainty Levels ......................................................................................... 6 8.0 Product and System Description ....................................................................................................... 7 9.0 Additional Options and Accessories ................................................................................................. 7 10.0 Test Set-Up Description .................................................................................................................... 7 11.0 Method of Measurement with trunk mounted antenna(s) ................................................................. 8 11.1 External/Bystander vehicle MPE measurements .............................................................. 8 11.2 Internal/Passenger vehicle MPE measurements ............................................................... 8 12.0 Method of Measurement with roof mounted antenna(s) ................................................................... 9 12.1 External/Bystander vehicle MPE measurements .............................................................. 9 12.2 Internal/Passenger vehicle MPE measurements ............................................................... 9 13.0 MPE Calculations ........................................................................................................................... 10 14.0 Antenna Summary ........................................................................................................................... 11 15.0 Test Results Summary .................................................................................................................... 11 16.0 Conclusion ...................................................................................................................................... 18 Appendix A - Illustration of Antenna Locations and Test Distances .......................................... 19 Appendix B - Probe Calibration Certificates ............................................................................... 22 Appendix C - Photos of Assessed Antennas ................................................................................ 33 Appendix D – MPE Measurement Results .................................................................................. 34 Appendix E - SAR Simulation Report ......................................................................................... 48 Appx E-1 XFDTD™ v7.1, by Remcom Inc Appx E-2 XFDTD™ v6.4, by Remcom Inc SR9341 Form-MPE Auto V…

Text truncated - open the document above for the full version.

SR9341 Form-MPE Auto Vehicle rpt. Rev 7.3 Page 1 of 54 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE: MPE/SAR ASSESSMENT Part 2 of 2 EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: Sept 29, 2011 Report Revision: O Report ID: SR9341 MPE Auto rpt APX7500 UHF R1 (HP) & 7/800 Rev O 110929 Responsible Engineer: Stephen C. Whalen (Principal Staff EME Test Engineer) Report author: Stephen C. Whalen (Principal Staff EME Test Engineer) Date(s) Tested: 7/800 test dates - 4/4/2008 – 4/11/2008, 4/21/2008 Manufacturer/Location: Motorola, Schaumburg, IL Date submitted for test: 07/29/2011 DUT Description: APX7500 Dual Band UHF R1 100W & 700 band (30W)/800 band (35W) Test TX mode(s): CW Max. Power output: 120W (380-470MHz) and 36W (700MHz band), 42W (800MHz band) TX Frequency Bands: 380-470MHz & 7/800MHz (Talkaround: 764-776MHz & 851- 870MHz, Trunked: 794-824MHz) Signaling type: Analog, APCO 25, and TDMA 1:2 (F2) Model(s) Tested M30URS9PW1AN Model(s) Certified: M30TXS9PW1AN (MHUS1009A) Serial Number(s): 174 Classification: Occupational/Controlled Environment FCC ID: AZ492FT7048 Part 22 & 90 UHF (406.1-470MHz) & 7/800MHz (764-775MHz, 794-824MHz & 851-869MHz) Results outside of FCC bands are not applicable for FCC compliance demonstration. Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc. EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 09/29/2011 Certification Date: 9/29/2011 Certification No.: L1110904P SR9341 Form-MPE Auto Vehicle rpt. Rev 7.3 Page 2 of 54 Document Revision History Date Revision Comments 09/29/2011 O Initial release SR9341 Form-MPE Auto Vehicle rpt. Rev 7.3 Page 3 of 54 Part 1 of 2: MPE Assessment for 380-470MHz Part 2 of 2: MPE Assessment for 7/800MHz Part 2 of 2 Table of Contents 1.0 Introduction ....................................................................................................................................... 4 2.0 Abbreviations / Definitions .............................…

Text truncated - open the document above for the full version.
