AZ492FT7055Mobile 2-Way Radio

English RF Energy Exposure and Product Safety Guide for Mobile Two-Way Radios Installed in Vehicles, Vessels or as Fixed Site Control Stations ATTENTION! The information provided in this document supersedes the general safety information contained in user guides published prior to January 2008. BEFORE USING THIS RADIO, READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. *6881095C99* 6881095C99-J *NNTN7851D* NNTN7851D Motorola Solutions, Inc. 1303 E. Algonquin Rd., Schaumburg, IL 60196, U.S.A. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2005 – 2012 Motorola Solutions, Inc. All rights reserved. 6881095C99_SafetyM_Eng.fm Page 1 Tuesday, March 20, 2012 2:43 PM 2 English RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All Motorola two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. 6881095C99_SafetyM_Eng.fm Page 2 Tuesday, March 20, 2012 2:43 PM 3 English Please refer to the following Web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/index.html Federal Communication Commission Regulations The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your Motorola two-way radio has a RF exposure product label. Also, your Motorola user manual, or separate safety booklet, includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. Compliance with RF Exposure Standard Your Motorola two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/ controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. 6881095C99_SafetyM_Eng.fm Page 3 Tuesday, March 20, 2012 2:43 PM 4 English Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR et seq. • FCC, OET Bulletin 65 • Institute of Electrical and Electronic Engineers (IEEE) C95.1 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) • Ministry of Health (Canada) Safety Code 6 • Industry Canada RSS-102 • Australian Communications Authority Radiocommunications Standard et seq. • ANATEL ANNEX to Resolution No. 303 et seq. RF Exposure Compliance and Control Guidelines and Operating Instructions To control exposure to yourself and others and to ensure compliance with the RF exposure limits, always adhere to the following procedures. Guidelines: • User awareness instructions should accompany device when transferred to other users. • DO NOT use this device if the operational requirements described herein are not met. 6881095C99_SafetyM_Eng.fm Page 4 Tuesday, March 20, 2012 2:43 PM 5 English Instructions: •Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button or, for radios equipped with VOX, speak into the microphone. The red LED will illuminate when the radio is transmitting. To receive calls, release the PTT button, or, for radios equipped with VOX, stop talking. The red LED will extinguish when the radio stops tran…

Text truncated - open the document above for the full version.

APX™ TWO-WAY RADIOS Draft 1c Draft 1c English mASTRO ® APX™ O3 Control Head Mobile RadioQuick Reference Card RF Energy Exposure and Product Safety Guide for Mobile Two-way Radios ATTENTION! This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the guide enclosed with your radio which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. Radio Controls Radio On/OffAdjusting VolumeSelecting a ZoneSelecting a Channel Receiving and Transmitting (Conventional Mode) Receiving and Transmitting (Trunked Mode) Sending an Emergency Alarm To exit emergency at any time, press and hold the Emergency button. Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio. ! C a u t i o n Press the Power On/Off button to toggle the power on or off. Press the Up arrow on the Volume Rocker to increase volume. ORPress the Down arrow on the Volume Rocker to decrease the volume. 1 f or a to ZONE . 2 Press the Menu Select button directly below Zone The display shows the current zone and channel. 3 f or a until the desired zone is displayed. 4 Press H or the PTT button to confirm the selected zone number. 5 Press the PTT button to begin transmitting on the displayed zone channel. 1 Press the Mode Rocker Up or Down to the desired channel.OR f or a to Chan and press the Menu Select button directly below Chan . The display shows the current zone and channel. 2 Press the Mode Rocker Up or Down to the desired channel. 3 Press H or the PTT button to confirm the channel. 4 Press the PTT button to transmit on the displayed zone channel. 1 Listen for a transmission. 2 Adjust the Volume Rocker if necessary. 3 If you hear no activity, press and hold the PTT button to start your conversation. 1 Press the PTT button. 2 If you hear two, short, high-pitched tones, or if you hear no tone and the red t indicator lights steadily, then proceed with your message. 3 Release the PTT button to receive (listen). 1 Press the preprogrammed Emergency button. A tone sounds and the display shows Emergency . 2 A dispatcher acknowledgment Ack Received display follows.AND, Trunking Only:A high-pitched tone indicates that the alarm has been received by the trunked system’s central controller. 3 Press and hold the emergency button or the PTT button to return to normal operation. *PMLN5591E* PMLN5591E Programmable Button (Top) Orange Button Power On/Off Button Programmable Button (Purple) Programmable Button (1-Dot) Push-to-Talk (PTT) Button Programmable Button (2-Dot) Volume Rocker Home Button Keypad Data Feature Button 4-Way Navigation Button Mode Rocker Menu Select Button LED Indicator Microphone Draft 1c English Sending an Emergency Call (Trunking Only) To exit emergency at any time, press and hold the Emergency button. Sending a Silent Emergency Alarm If silent emergency alarm is used with emergency call, pressing the PTT button exits the silent mode and initiates the emergency call.. Display Status Icons 1 Press preprogrammed Emergency button. 2 A tone sounds and the display shows Emergency . ORA short low-pitched tone sounds when the selected channel does not support emergency. 3 Press and hold the PTT button. Speak clearly into the microphone. 4 Release the PTT to end the transmission. 1 Press the preprogrammed Emergency button to activate the silent alarm feature. 2 The display does not change; the LED does not light up, and there is no tone. Receiving a call or data.Transmitting a call or data.The more stripes, the stronger the signal strength for the current site (trunking only).Direct radio-to-radio communication or communication through a repeater.On = Direct Off = Repeater O This channel is being monitored.Voice muting the affiliated trunking talkgroup or selected conventional channel.On = Enabled Off = Disabled L = Radio is set at Low power. H = Radio is set at High power. Scanning a scan list.Blinking dot = Detects activity on the Priority-One Channel during scan. Steady dot = Detects activity on the Priority- Two Channel during scan.The vote scan feature is enabled.On = Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. On = AES Secure operation. Off = Clear operation. Blinking = Receiving an encrypted voice call. M K H OR . i k m l On = Location feature enabled, and location signal available. Off = Location feature disabled. Blinking = Location feature enabled, but location signal unavailable. On = User is currently associated with the radio. Off = User is currently not associated with the radio. Blinking = Device registration or user registration with the server failed due to an invalid username or pin. Data activity is present.Indicates that the text entry is currently in hexadecimal mode. G no { Menu Navigation f or a to Menu Entry. o directly below Menu Entry to select. H to exit. f or a to scroll through sub-list. o directly below Menu Entry to select. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.© 2009, 2011 – 2012 by Motorola Solutions, Inc. All Rights Reserved. 09/121303 East Algonquin Road, Schaumburg,Illinous 60196, U.S.A. Draft 1c Declaration of Conformity English i Declaration of Conformity This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below. DECLARATION OF CONFORMITYPer FCC CFR 47 Part 2 Section 2.1077(a)Responsible Party Name: Motorola Solutions, Inc.Address: Motorola Solutions, Inc. 1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that the product: Model Name: APX Mobile conforms to the following regulations: FCC Part 15, subpart…

Text truncated - open the document above for the full version.

Appli Th e here 1) 2) I h e of m data icant: Motoro e technical da eby duly certi BEng 7 years exp e Communicat ereby certify th my knowledge a are true and ola Solutions ata supplied w ified. The follo University of erience in the tions Product NAME SIGN A DATE POSIT hat the above e and belief, d correct: NAME SIGN A DATE POSIT s Inc. Stateme n with this app owing is a sta Sheffield Hal developmen s : T e ATURE :___ : Oc ION : Se e application w the facts set : Pe ATURE :___ : Oc ION :Eng nt of Certific plication, havi atement of my lam t, testing and eoh Yee Teng ___________ ctober, 15, 20 enior Electrica was prepared t forth in the a eter Keh ___________ ctober, 15, 20 gineering Ma F ation ng been tak e y qualification certification o g ___________ 012 al Engineer d under my d application an ___________ 012 nager FCC ID: AZ en under my s: of Land Mobi ____ irection and t nd accompan ___ Z492FT705 supervision le that to the bes nying technic EXHIBIT 5 is st al 2

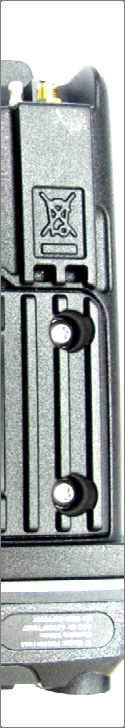

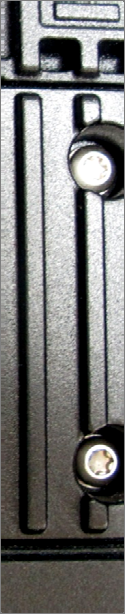

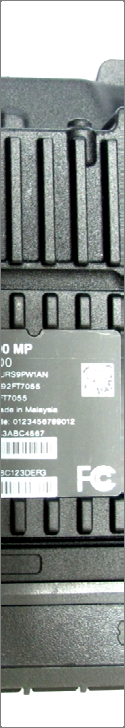

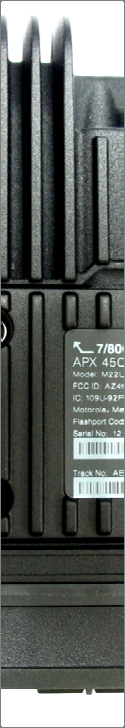

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 EXHIBIT 3 SHEET 1 OF 7 EXHIBIT 3 EXTERNAL PHOTOGRAPHS - Pursuant to 47 CFR 2.1033(c) 12 The following photographs are attached. 1. Front view (Controls) 2. Back view 3. Top view 4. Bottom View (FCC label location) 5. FCC label (Close view) 6. RF exposure label (Close view) 7. Side view (Left) 8. Side view (Right) 9. Top view with microphone and rear accessory cable A Applicant: Mootorola Soluttions Inc. Front v B view (Contro Back view ols) FCC ID: AZ492F EXH SHEET 2 FT7055 HIBIT 3 2 OF 7 Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 EXHIBIT 3 SHEET 3 OF 7 Top view A Applicant: Mootorola Soluttions Inc. B Bottom view (FCC Label Location) FCC ID: AZ492F EXH SHEET 4 FT7055 HIBIT 3 4 OF 7 A Applicant: Mootorola Soluttions Inc. APX4500 F C APX2500 FC CC label (Clo CC label (Clo se View) se View) FCC ID: AZ492F EXH SHEET 5 FT7055 HIBIT 3 5 OF 7 A Applicant: Mootorola Soluttions Inc. RF Exposu r L re Label (Clos Left view se View) FCC ID: AZ492F EXH SHEET 6 FT7055 HIBIT 3 6 OF 7 A N Applicant: Mo Note: 1. Cable 2. RF e x otorola Solut s from the co xposure label tions Inc. Top view w nnector are w placed at the R with microph wrapped and end of the M Right view hone and rea placed on the Microphone ca ar accessory e radio. able. FCC y cable ID: AZ492F EXH SHEET 7 FT7055 HIBIT 3 7 OF 7

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9 Internal Photographs The following photographs are attached. Exhibit 1. RF board with Shields (Top). 9A 2. RF board without Shields (Top). 9B 3. RF board with Shields (Bottom). 9C 4. RF board without Shields (Bottom). 9D 5. Controller board (Top). 9E 6. Controller board with Shields (Bottom). 9F 7. Controller board without Shields (Bottom). 9G Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9A RF board with Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9B RF board without Shields (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9C RF board with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9D RF board without Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9E Controller board (Top) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9F Controller board with Shields (Bottom) Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 Exhibit 9G Controller board without Shields (Bottom)

SR10193 Form-MPE Auto Vehicle rpt. Rev 7.5 Page 1 of 46 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE: MPE ASSESSMENT EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: July 17, 2012 Report Revision: O Report ID: SR10193 MPE Auto rpt APX4500 7/800MHz Rev_O 120717 Responsible Engineer: Kim Uong (Principal Staff EME Test Engineer) Report author: Stephen C. Whalen (Principal Staff EME Test Engineer) Date(s) Tested: 6/26/2012, 7/3/2012, 7/5/2012 &7/6/2012 Manufacturer/Location: Motorola Solutions, Schaumburg, IL Date submitted for test: 06/11/2012 DUT Description: APX4500 7/800MHz (764-806MHz & 806-870MHz) 35W Mobile Test TX mode(s): CW Max. Power output: 36W (764-806MHz), and 42W (806-824MHz, 851-870MHz) TX Frequency Bands: 764-776MHz & 851-870MHz (talk around); 794-806MHz & 806-824MHz (Trunked) Signaling type: Analog, APCO 25, and TDMA 1:2 (F2) Model(s) Tested: M22URS9PW1AN (MUF1597) Model(s) Certified: M22URS9PW1AN (MUF1597) Serial Number(s): WKE0NK03ME Classification: Occupational/Controlled Environment FCC ID: AZ492FT7055 Part 22 & 90 7/800MHz (764-775MHz, 794-824MHz & 851-869MHz) IC: 109U-92FT7055 7/800MHz (764-776MHz, 794-824MHz & 851-870MHz) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc. EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 7/17/2012 Certification Date: 7/17/2012 Certification No.: L1120706P SR10193 Form-MPE Auto Vehicle rpt. Rev 7.5 Page 2 of 46 Document Revision History Date Revision Comments 07/17/2012 O Initial release SR10193 Form-MPE Auto Vehicle rpt. Rev 7.5 Page 3 of 46 Table of Contents 1.0 Introduction ....................................................................................................................................... 4 2.0 Abbreviations / Definitions ............................................................................................................... 4 3.0 Referenced Standards and Guidelines ............................................................................................... 4 4.0 Power Density Limits ........................................................................................................................ 5 5.0 N c Test Channels ............................................................................................................................... 6 6.0 Measurement Equipment .................................................................................................................. 6 7.0 Measurement System Uncertainty Levels ......................................................................................... 6 8.0 Product and System Description ....................................................................................................... 7 9.0 Additional Options and Accessories ................................................................................................. 7 10.0 Test Set-Up Description .................................................................................................................... 7 11.0 Method of Measurement with trunk mounted antenna(s) ................................................................. 8 11.1 External/Bystander vehicle MPE measurements .............................................................. 8 11.2 Internal/Passenger vehicle MPE measurements ............................................................... 8 12.0 Method of Measurement with roof mounted antenna(s) ................................................................... 9 12.1 External/Bystander vehicle MPE measurements .............................................................. 9 12.2 Internal/Passenger vehicle MPE measurements ............................................................... 9 13.0 MPE Calculations ........................................................................................................................... 10 14.0 Antenna Summary ........................................................................................................................... 11 15.0 Test Results Summary .................................................................................................................... 11 16.0 Conclusion ...................................................................................................................................... 18 Appendix A - Illustration of Antenna Locations and Test Distances .......................................... 19 Appendix B - Probe Calibration Certificates ............................................................................... 22 Appendix C - Photos of Assessed Antennas ................................................................................ 27 Appendix D – MPE Measurement Results .................................................................................. 28 SR10193 Form-MPE Auto Vehicle rpt. Rev 7.5 Page 4 of 46 1.0 Introduction This report details the test setup, test equipment and test results of Maximum Permissible Exposure (MPE) performed at Motorola Solutions’ outside test site for product model M22URS9PW1AN (MUF1597). 2.0 Abbreviations / Definitions APCO: Association of Public-Safety Communications Officials BS: Bystander C4FM: Compatible 4-Level Frequency Modulation CNR: Calibration Not Req…

Text truncated - open the document above for the full version.

SR10619 Form-MPE MC Vehicle rpt. Rev 7.4 Page 1 of 22 TESTING CERT # 2518.01 DECLARATION OF COMPLIANCE: MPE ASSESSMENT EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: July 17, 2012 Report Revision: O Report ID: SR10619 MPE MC rpt APX4500 7/800MHz Rev O 120717 Responsible Engineer: Kim Uong (Principal Staff EME Test Engineer) Report author: Stephen C. Whalen (Principal Staff EME Test Engineer) Date(s) Tested: 6/28/2012 Manufacturer/Location: Motorola Solutions, Schaumburg, IL Date submitted for test: 06/11/2012 DUT Description: APX4500 7/800MHz (764-806MHz & 806-870MHz) 15W Motorcycle Mount Option Test TX mode(s): CW Max. Power output: 18W TX Frequency Bands: 764-776MHz & 851-870MHz (talk around); 794-806MHz & 806-824MHz (Trunked) Signaling type: Analog, APCO 25, and TDMA 1:2 (F2) Model(s) Tested: M22URS9PW1AN (MUF1597, Motorcycle option) Model(s) Certified: M22URS9PW1AN (MUF1597, Motorcycle option) Serial Number(s): KSoQDDON Classification: Occupational/Controlled Environment FCC ID: AZ492FT7055 Part 22 & 90: 7/800MHz (764-775MHz, 794-824MHz & 851-869MHz) IC: 109U-92FT7055 7/800MHz (764-776MHz, 794-824MHz & 851-870MHz) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 3.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola Solutions Inc. EME Laboratory. I attest to the accuracy of the data and assume full responsibility for the completeness of these measurements. This reporting format is consistent with the suggested guidelines of the TIA TSB-159 April 2006 The results and statements contained in this report pertain only to the device(s) evaluated herein. Deanna Zakharia EME Lab Senior Resource Manager and Laboratory Director Approval Date: 7/17/2012 Certification Date: 7/17/2012 Certification No.: L1120707P SR10619 Form-MPE MC Vehicle rpt. Rev 7.4 Page 2 of 22 Document Revision History Date Revision Comments 07/17/2012 O Initial release SR10619 Form-MPE MC Vehicle rpt. Rev 7.4 Page 3 of 22 Table of Contents 1.0 Introduction ....................................................................................................................................... 4 2.0 Abbreviations / Definitions ............................................................................................................... 4 3.0 Referenced Standards and Guidelines ............................................................................................... 4 4.0 Power Density Limits ........................................................................................................................ 5 5.0 N c Test Channels ............................................................................................................................... 6 6.0 Measurement Equipment .................................................................................................................. 6 7.0 Measurement System Uncertainty Levels ......................................................................................... 6 8.0 Product and System Description ....................................................................................................... 7 9.0 Additional Options and Accessories ................................................................................................. 7 10.0 Test Set-Up Description .................................................................................................................... 7 11.0 Method of Measurement for motorcycle mounted antenna(s) .......................................................... 8 11.1 Bystander vehicle MPE measurements ............................................................................ 8 11.2 Operator vehicle MPE measurements .............................................................................. 8 12.0 MPE Calculations ............................................................................................................................. 9 13.0 Antenna Summary ........................................................................................................................... 10 14.0 Test Results Summary .................................................................................................................... 10 15.0 Conclusion ...................................................................................................................................... 11 Appendix A - Illustration of Antenna Location and Test Distances ............................................ 12 Appendix B - Probe Calibration Certificates ............................................................................... 14 Appendix C - Photos of Assessed Antennas ................................................................................ 19 Appendix D – MPE Measurement Results .................................................................................. 20 SR10619 Form-MPE MC Vehicle rpt. Rev 7.4 Page 4 of 22 1.0 Introduction This report details the test setup, test equipment and test results of Maximum Permissible Exposure (MPE) performed at Motorola Solutions’ outside test site for product model M22URS9PW1AN (MUF1597, Motorcycle option). 2.0 Abbreviations / Definitions APCO: Association of Public-Safety Communications Officials BS: Bystander C4FM: Compatible 4-Level Frequency Modulation CNR: Calibration Not Required CQPSK: Compatible Quadrature Phase Shift Keying CW: Continuous Wave DUT: Device Under Test EME: Electromagnetic Energy F2: 2 slot Time Division Multiple Access FM: Frequency Modulation MPE: Maximum Permissible Exposure NA: Not Applicable OP: Operator PTT: Push to Talk TDMA: Time Division Multiple Access 3.0 Referenced Standards and Guidelines This prod…

Text truncated - open the document above for the full version.

Applicant: Motorola Solutions Inc. FCC ID: AZ492FT7055 EXHIBIT 6 SHEET 1 OF 45 EXHIBIT 6 INDEX OF SUBMITTED MEASURED DATA This exhibit contains the measured data for this equipment as follows: EXHIBIT 6A – RF Power Output (Table) EXHIBIT 6B – Audio Frequency Response 6B-1 –814.9875 MHz, 12.5 kHz Channel Spacing 6B-2 –814.9875 MHz, 25 kHz Channel Spacing EXHIBIT 6C – Audio Low Pass Filter Response 6C-1 – 814.9875 MHz, 12.5 kHz Channel Spacing 6C-2 – 814.9875 MHz, 25 kHz Channel Spacing EXHIBIT 6D – Modulation Limiting 6D-1 –814.9875 MHz, 12.5 kHz Channel Spacing 6D-2 –814.9875 MHz, 25 kHz Channel Spacing EXHIBIT 6E – Occupied Bandwidth 6E-1 –806.0125 MHz, 12.5 kHz Channel Spacing (Analog Voice – Mask D) 6E-2 –806.0125 MHz, 12.5 kHz Channel Spacing (Analog Voice – Mask H) 6E-3 –814.9875 MHz, 25 kHz Channel Spacing (Analog Voice – Mask B) 6E-4 –814.9875 MHz, 25 kHz Channel Spacing (Analog Voice – Mask G) 6E-5 –806.0125 MHz, 12.5 kHz Channel Spacing (APCO Digital Data – Mask D) 6E-6 –806.0125 MHz, 12.5 kHz Channel Spacing (APCO Digital Data – Mask H) 6E-7 –806.0125 MHz, 12.5 kHz Channel Spacing (APCO Digital Voice – Mask D) 6E-8 –806.0125 MHz, 12.5 kHz Channel Spacing (APCO Digital Voice – Mask H) 6E-9 –806.0125 MHz, 12.5 kHz Channel Spacing (Phase II (TDMA) – Mask D) 6E-10 –806.0125 MHz, 12.5 kHz Channel Spacing (Phase II (TDMA) – Mask H) 6E-11 –814.9875 MHz, (Analog Voice Encryption – Mask B) 6E-12 –814.9875 MHz, (Analog Voice Encryption – Mask G) 6E-13 –806.0125 MHz, (APCO Digital Voice Encryption – Mask D) 6E-14 –806.0125 MHz, (APCO Digital Voice Encryption – Mask H) EXHIBIT 6F – Conducted Spurious Emissions 6F-1 – 764.0125 MHz, 25 kHz Channel Spacing (Analog Mode) 6F-2 – 769.0875 MHz, 25 kHz Channel Spacing (Analog Mode) 6F-3 – 804.9125 MHz, 25 kHz Channel Spacing (Analog Mode) 6F-4 – 814.9875 MHz, 25 kHz Channel Spacing (Analog Mode) 6F-5 – 868.9875 MHz, 25 kHz Channel Spacing (Analog Mode) 6F-6 – 764.0125 MHz, 12.5 kHz Channel Spacing (APCO Digital Mode) 6F-7 – 769.0875 MHz, 12.5 kHz Channel Spacing (APCO Digital Mode) 6F-8 – 804.9125 MHz, 12.5 kHz Channel Spacing (APCO Digital Mode) 6F-9 – 814.9875 MHz, 12.5 kHz Channel Spacing (APCO Digital Mode) 6F-10 – 868.9875 MHz, 12.5 kHz Channel Spacing (APCO Digital Mode) 6F-11 - 764.0125 MHz, 12.5 kHz Channel Spacing (Phase II (TDMA) Mode) 6F-12 – 769.0875 MHz, 12.5 kHz Channel Spacing (Phase II (TDMA) Mode) 6F-13 – 804.9125 MHz, 12.5 kHz Channel Spacing (Phase II (TDMA) Mode) 6F-14 – 814.9875 MHz, 12.5 kHz Channel Spacing (Phase II (TDMA) Mode) 6F-15 – 868.9875 MHz, …

Text truncated - open the document above for the full version.
