Wireless File Transmitter WFT-E1A E INSTRUCTION MANUAL 2 Thank you for purchasing a Canon product. Wireless File Transmitter WFT-E1A enable your EOS digital camera to send the captured images to an FTP server via a wireless or wired LAN. It works with IEEE 802.11b and IEEE 802.11g wireless LANs and 100 Base-TX Ether net wired LANs. EOS digital cameras compatible with the WFT-E1A are listed on Canon’s Web site. Or you can inquire at a Canon Service Center. Image Transfer Overview FTP server FTP server FTP server Wireless LAN adapter (Commercially available) Wireless LAN access point (Commercially available) Ethernet port Ethernet port Wireless LAN-1 Images are directly transmitted (ad hoc) to an FTP server equipped with a wireless LAN adapter. Wired LAN The camera is connected via a LAN cable to transmit images to the FTP server. Wireless LAN-2 Images are transmitted (infrastructure) to an FTP server via a wireless LAN access point. 3 Introduction Check that all the following items have been included with the WFT-E1A. If anything is missing, contact your dealer. * Battery Pack and Battery Charger are not included. If necessary, purchase them separately (p.18). * Be careful not to lose any of the items included with the WFT-E1A. ¡Canon and EOS are trademarks of Canon Inc. ¡Windows is a trademark or registered trademark of Microsoft Corporation in the United States and other countries. ¡Macintosh is a registered trademark of Apple Corporation in the United States and other countries. ¡All other corporate names and trademarks mentioned in this manual are the property of their respective owners. Item Check List ¢Wireless File Transmitter WFT-E1A ¢Normal Antenna NA-E1 ¢Interface Cable IFC-15D4 Cable approx. 15 cm/0.5 ft long (dust- and water-resistant) to connect to the IEEE 1394 port. Used when the WFT-E1A is attached to the camera’s tripod socket. ¢Interface Cable IFC-150D4 Cable approx. 1.5 m/4.9 ft long (dust- and water-resistant) to connect to the IEEE 1394 port. Used when the WFT-E1A is placed some distance away from the camera. ¢Tripod socket (with anti-rotation rubber pad) Used when the WFT-E1A is attached to the camera’s tripod socket. ¢Case Case for the WFT-E1A. Can be mounted on a belt. Strap also provided. ¢WFT-E1/ WFT-E1A Utility Disk Contains the instruction manual (what you are reading now) and software for creating the settings file. ¢Warranty card 4 ¡The instructions in this manual assume that the proper settings for the wireless LAN or wired LAN and FTP server have been completed. For details on how to set these settings, consult the manufacturer of the respective equipment. ¡The menu screens are based on the EOS-1Ds Mark II’s. ¡Terms in brackets [ ] indicate the button name, icon name, camera menu item, etc. ¡The number in parentheses indicate the number of the page where you can find more information. ¡This manual assumes that you have read the camera’s instruction manual and are familiar with camera operation procedures. ¡This manual uses the following alert symbols: : The Caution symbol indicates a warning to prevent mishaps. : The Note symbol gives supplemental information. ¡In this manual, “Windows XP” refers to Windows XP Home Edition/Professional, and “Windows 2000” refers to Windows 2000 Professional. Conventions Used in this Manual 5 1 2 3 4 5 Introduction Item Check List ....................................................................................................................... 3 Conventions Used in this Manual ............................................................................................ 4 Safety Warnings ...................................................................................................................... 7 Handling Precautions .............................................................................................................. 8 1 Creating the Settings File 9 TCP/IP Settings ..................................................................................................................... 10 FTP Settings ......................................................................................................................... 11 Wireless LAN Settings ..........................................................................................................12 Saving the Settings ............................................................................................................... 14 2Setting Up the WFT-E1A 15 Nomenclature ........................................................................................................................ 16 Installing and Removing the Battery ..................................................................................... 18 Using a Household Power Outlet .......................................................................................... 20 Attaching the Antenna ........................................................................................................... 21 Attaching to the Camera .......................................................................................................22 Setting the LAN ..................................................................................................................... 23 Selecting the LAN Type ........................................................................................................25 Checking the Connection Status ........................................................................................... 26 3Transferring Images 29 Automatic Image Transfer After Each Shot ........................................................................... 30 Image Batch Transfer After Shooting .................................................................................... 32 Transferring RAW+JPEG Images ......................................................................................... 36 4Changing the LAN Settings with the Camera 37 Setting TCP/IP ................................…

Text truncated - open the document above for the full version.

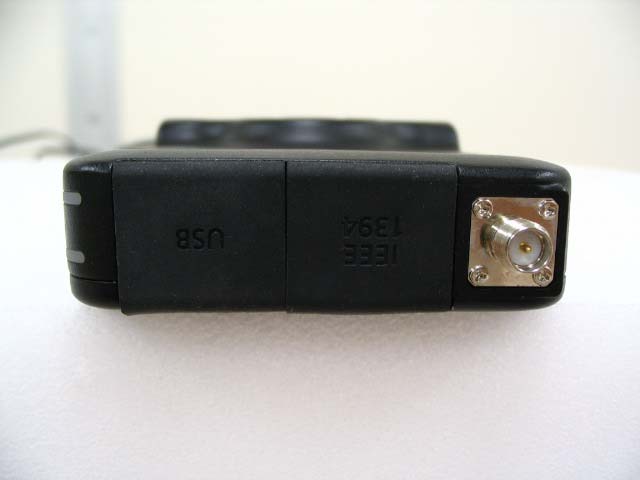

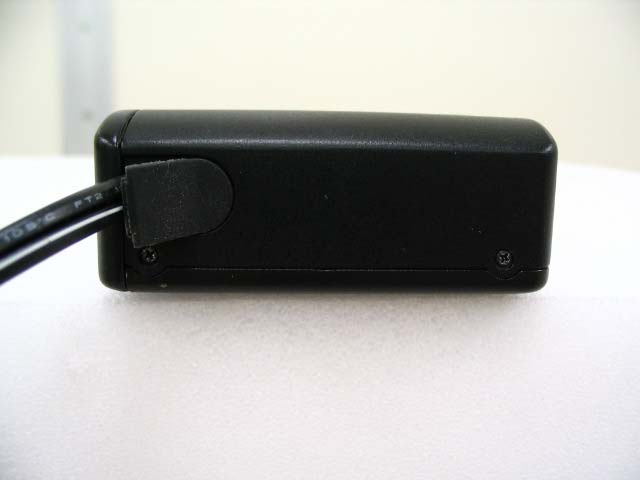

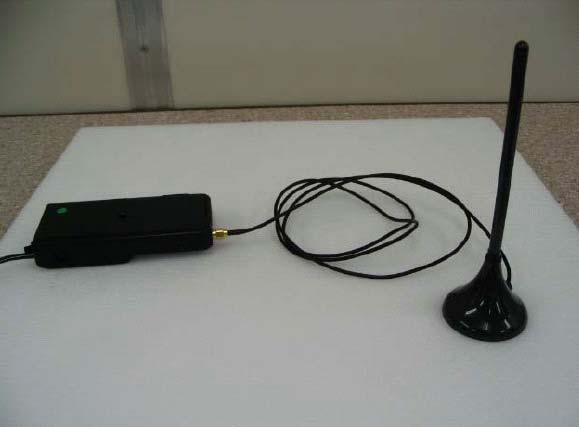

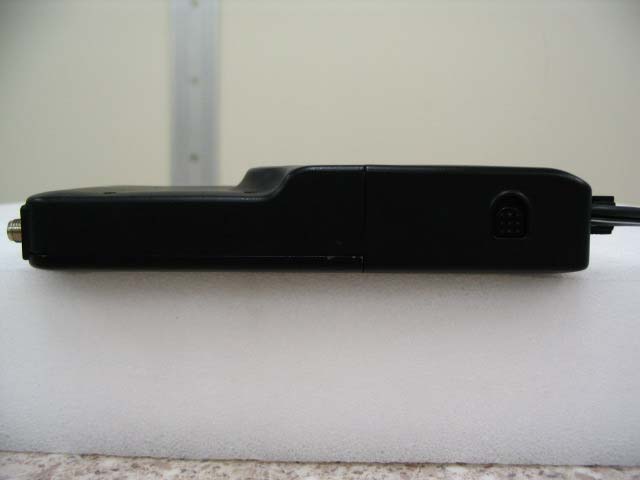

External Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 EUT-Top EUT-Bottom External Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 EUT-Front EUT-Rear External Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 EUT-Right EUT Left External Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 Antenna Normal(NA-E1) Antenna Option(ERA-E1) External Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 EUT with Normal Antenna EUT with Option Antenna

FCC ID : AZD-DS508152 IC : 498C-DS508152 DS508152 2.4 DS / OF 4 CANON INC. MADE IN JAPAN 0560 50mm EPS File: C50-8152-000-DB01-01 PDF File: C50-8152-000-DA01-01

Internal Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 WLAN module Top with Shield WLAN module Top Shield off Internal Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 WLAN module Bottom EUT Cover off Top with WLAN Module Internal Photo CANON INC. Wireless File Transmitter FCC ID: AZD-DS508152 IC Number: 498C-DS508152 EUT Cover off Bottom EUT Cover off Bottom2

Test report No. : 24JE0169-HO Page : 2 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ................................................................................................................. 3 SECTION 2 : Equipment under test (E.U.T.) ............................................................................................. 4 SECTION 3 : Requirements for compliance testing defined by the FCC ................................................ 6 SECTION 4 : Dosimetry assessment setup .................................................................................................. 6 SECTION 5 : Test system specifications.................................................................................................... 10 SECTION 6 : Camera and Transmitter .................................................................................................... 11 SECTION 7 : Test setup of EUT ................................................................................................................ 12 SECTION 8 : Measurement uncertainty ................................................................................................... 16 SECTION 9 : Simulated tissue liquid parameter...................................................................................... 17 SECTION 10 : System validation data ...................................................................................................... 19 SECTION 11 : Evaluation procedure ........................................................................................................ 20 SECTION 12 : Exposure limit .................................................................................................................... 21 SECTION 13 : SAR Measurement results................................................................................................. 22 SECTION 14 : Equipment & calibration information ............................................................................. 26 SECTION 15 : References........................................................................................................................... 27 APPENDIX 1 : Photographs of test setup................................................................................................ 28 APPENDIX 2 : SAR Measurement data .................................................................................................. 35 APPENDIX 3 : Validation Measurement data ........................................................................................85 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)............................................................. 88 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) ...................................... 97 Test report No. : 24JE0169-HO Page : 3 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : CANON INC. Brand Name : CANON Address : 30-2, Shimomaruko 3-Chome, Ohta-ku, Tokyo 146-8501, Japan Telephone Number : +81-3-3758-2111/+81-3-3757-6798(Direct) Facsimile Number : +81-3-3757-8838 Contact Person : Tanaka Kuniaki Test report No. : 24JE0169-HO Page : 4 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Applicant : CANON INC. Type of Equipment : Wireless File Transmitter Model No. : DS508152 Serial No. : 11001 Country of Manufacture : JAPAN Receipt Date of Sample : August 12, 2004 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Battery option : Only one model with EUT Model No. : BP-511A V / Ah : 7.4V 1390 mAh Rating : DC 8.1 V / 0.5 A Category Identified : Portable device Test report No. : 24JE0169-HO Page : 5 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2.2 Product Description of Wireless LAN Tx Frequency : 2412MHz~2462MHz Modulation : DSSS, OFDM Max.Output Power Tested : 15.0 dBm Peak Conducted Rating : DC 3.3V Antenna Type : 1/2λ Dipole Antenna Position of Antenna : See photograph of following Antenna Antenna Test report No. : 24JE0169-HO Page : 6 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak perfo…

Text truncated - open the document above for the full version.

Test report No. : 24JE0169-HO Page : 88 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713) Test report No. : 24JE0169-HO Page : 89 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 90 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 91 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 92 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 93 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 94 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 95 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 96 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 97 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) Test report No. : 24JE0169-HO Page : 98 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 99 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 100 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 101 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 102 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 103 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 104 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 105 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 106 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 107 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 108 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24JE0169-HO Page : 109 of 109 Issued date : September 02, 2004 FCC ID : AZD-DS508152 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124

FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 1 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) EMI TEST REPORT Test Report No. : 24JE0164-YK-1 Applicant : Canon Inc. Type of Equipment : Wireless File Transmitter Model No. : DS508152 FCC ID : AZD-DS508152 Test standard : FCC Part15 Subpart C, Section 15.247: 2004 Test Result : Complied 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. Date of test: July 28-30 and August 4, 7-9, 2004 Tested by: & Toyokazu Imamura Akira Sato Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 2 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 6 4 MEASUREMENT UNCERTAINTY 8 5 SUMMARY OF TESTS 9 5.1 §15.207 Conducted Emissions 9 5.2 §15.247 (a)(2) 6dB Bandwidth (Antenna Port Conducted) 9 5.3 §15.247 (b)(3) Maximum Peak Output Power (Antenna port Conducted) 9 5.4 §15.247 (c) Out of Band Emissions (Radiated) 10 5.5 §15.247 (c) Out of Band Emissions (Antenna Port Conducted) 10 5.6 §15.247 (d) Power Density (Antenna Port Conducted) 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test Data 17 APPENDIX 3: Test instruments 104 FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 3 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 1 GENERAL INFORMATION Applicant Company Name : Canon Inc. Brand Name : CANON Address : 3-30-2 Shimomaruko, Ohta-ku, Tokyo, 146-8501 JAPAN Telephone Number : +81 3 3758 2111 / +81 3 3757 6798 (Direct) Facsimile Number : +81 3 3757 8838 Contact Person : Kuniaki Tanaka ([email protected]) Type of Equipment : Wireless File Transmitter Model No. : DS508152 Serial No. : 11001 Rating : DC8.1V, 0.5A (AC adapter: AC100-240V, 50/60Hz) Receipt Date of Sample : July 27, 2004 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Regulation(s) : FCC Part15 Subpart C, Section 15.247: 2004 Test Site : UL Apex Yamakita EMC lab. 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2003). These tests were also referred to FCC 97-114 “Guidance on Measurement for Direct Spread Spectrum Systems”. 1.2 Test Facility No. 2 test site has been fully described in a report submitted to FCC office, and accepted on December 8, 2000 (Registration No.: 99354). IC Registration No. : IC3489-2 No. 1 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on November 8, 2002 (Registration No.: 95967). IC Registration No. : IC3489-B Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 shielded room 8.0 x 5.0 x 2.5 10.0 x 7.5 x 5.7 No.2 shielded room 5.0 x 4.0 x 2.5 No.1 EMS lab. (Semi-anechoic chamber) No.3 shielded room 4.0 x 5.0 x 2.7 FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 4 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 2 PRODUCT DESCRIPTION Canon Inc., Model: DS508152 (referred to as the EUT in this report) is a Wireless File Transmitter use for digital camera. This equipment transfers a picture data from the camera to the FTP server using the wireless LAN (IEEE 802.11b/g) or Ethernet LAN (100 Base-T). The clock frequencies used in EUT: 32.768kHz, 10MHz, 20MHz, 24.576MHz, 25MHz, 30MHz, 33MHz [Wireless LAN μ-PCI CARD] Equipment type : Transmitter Frequency of operation : 2412 - 2462 MHz Channel spacing : 5 MHz Channel number : 11 channels Type of modulation : DSSS, OFDM Antenna type : 1/2λ Dipole, 3/2λ Co-liner Antenna connector type : Reverse SMA Antenna gain : Dipole: 2.14dBi Co-liner: 3.5dBi (including 0.5dB cable loss) Mode of operation : Simplex Emission Designation : D1D, G1D Operation temperature range: -20 ~ 45 deg. C. Operation voltage (inner) : DC3.3V *FCC Part15.31 (e) DS508152 (Wireless File Transmitter) provides the Wireless LAN μ-PCI CARD with stable power supply (DC3.3V), and the power is not changed when voltage of the Wireless File Transmitter is varied. Therefore, the equipment complies power supply regulation. *FCC Part15.203 The antenna of DS508152 doesn’t use a standard antenna jack or electrical connector, therefore the Wireless File Transmitter complies FCC Part15.203 Antenna requirement. *The Wireless File Transmitter has ports of USB 2.0 and IEEE1394. Measurement was performed with IEEE1394 cable, because these ports have the same shield characteristic and it is assured they have the same result. These ports are not used for connection at the same time. *Test for Ethernet LAN (100 Base-T) was performed in accordance with the specification of FCC Part 15, Subpart B. (D.o.C.) Refer to the Test Report: 24JE0165-YK-3. FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 5 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 3 SYSTEM TEST CONFIGURATION 3.1 Just…

Text truncated - open the document above for the full version.

FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 12 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission (Part 1, Antenna model: NA-E1) FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 13 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission (Part 2, Antenna model: ERA-E1) FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 14 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission (Part 1, Antenna model: NA-E1) FCC ID : AZD-DS508152 Test report No. : 24JE0164-YK-1 Page : 15 of 104 Issued date : August 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission (Part 2, Antenna model: ERA-E1)
