AZD248Wireless Module

Integration Instructions for ES205 2.1 General This is Limited modular approval as this module is limited to installation by the grantee into our host systems. This user manual describes the integration procedure per Sec. 2.2 to 2.12 of KDB 996369 D03. 2.2 List of applicable FCC rules This device complies with below part 15 of the FCC Rules. Part 15 Subpart C,FCCPart15SubpartE 2.3 Summarize the specific operational use conditions Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. The straddle channels for 5725MHz shall be disabled by the software of the host device. 5.15-5.35GHz band is restricted to indoor operations only. The trace design from the module to the U.FL connector must be designed with the shape and impedance specified by Canon. Please see Clause 2.5 for detail. This is Limited modular approval as this module is limited to installation by the grantee into our host systems. This module is certified as limited modular approval as it does not have its own power supply regulator, Therefore regulated 3.3V/1.8V must be supplied by a host device using voltage regulator, e.g. MAX77540AAWV+ or equivalent. Mobile –20 cm from a person’s body Use in portable RF exposure conditions is limited to the specific product and antenna configuration. To be used in any other way them granted, such as mobile to portable or with other transmitters simultaneously, requires additional evaluation, testing, or testing and Class 2 permissive change. ・Client device (per definition in 47 CFR §15.202) is limited to indoor locations, does notconnect directly to the internet nor to other clients. ・No vehicular use, except large aircrafts above 10000 ft. 2.4Limited Modular procedures This module is certified as limited modular approval as it does not have its own power supply regulator, therefore regulated 3.3V/1.8V must be supplied by a host device using voltage regulator, e.g. MAX77540AAWV+ or equivalent. Integration Instructions for ES205 2.5 Trace antenna designs <RF PCB> The PCB thickness is 0.9 mm. Parts list 12.5mm 9.4mm IC7001 pin GND60121BT_I2S_CLK101GND3181SDIO_DATA_261GPIO_1_WL_DEV_WAKE41GND521PCIE_PERST_L1 GND61122BT_I2S_DI102GND3282SDIO_DATA_062GND1342BT_OUT22PCIE_CLKREQ_L2 GND62123GND47103GND3383SDIO_DATA_163GPIO_0_WL_HOST_WAKE43GND623PCIE_PME_L3 GND63124GND48104GND3484SDIO_CMD64GPIO_744BT_IN24GND14 LHL_GPIO2125DMIC_DATA105GND3585SDIO_CLK65BT_REG_ON45GND725BT_PCM_SYNC5 LHL_GPIO3126DMIC_CLK106GND3686SDIO_DATA_366GND1446BT_DEV_WAKE26BT_PCM_IN6 LHL_GPIO0127GND49107GND3787GND2367GND1547BT_HOST_WAKE27BT_PCM_CLK7 RF_SW_CTRL16128GND50108GND3888PCIE_RDP68GND1648BT_CLK_REQ28BT_PCM_OUT8 RF_SW_CTRL14129BT_GPIO_2109GND3989PCIE_RDN69GND1749GND829GND29 RF_SW_CTRL15130BT_GPIO_9110GND4090GND2470GND1850ANT030I2S_DI10 GPIO_12131GND51111GND4191PCIE_TDP71LPO_IN51GND931I2S_MCK11 GND64132GND52112GND4292PCIE_TDN72GND1952LHL_GPIO132I2S_SCK12 GND65133GND53113GND4393GNS2573VDDOUT_RF3P353GPIO_10_WL_UART33I2S_LRCK13 NC134BT_GPIO_11114GND4494PCIE_REFCLKP74GND2054GPIO_11_WL_UART34I2S_DO14 GND66-130135-199GND54115GND4595PCIE_REFCLKN75VDDIO55GPIO_9_WL_UART35GND315 GND55116MIC_P96GND2676GND2156GND1036BT_UART_RXD16 GND56117MIC_N97GND2777VBAT_157ANT137BT_UART_RTS_N17 GND57118GND4698GND2878VBAT_258GND1138BT_UART_TXD18 GND58119BT_T2S_DO99GND2979GND2259GND1239BT_UART_CTS_N19 GND59120BT_T2S_WS100GND3080WL_REG_ON60GPIO_8_WL_UART40GND420 Fine tuning of return loss etc. can be performed using a matching network. However, it is required to check "Class1 change" and "Class2 change" which the authorities define then. 2.6 RF exposure considerations 1) Mobile –20 cm from a person’s body Use in portable RF exposure conditions is limited to the specific product and antenna configuration. To be used in any other way them granted, such as mobile to portable or with other transmitters simultaneously, requires additional evaluation, testing, or testing and Class 2 permissive change. 2)The following statements must be described on the user manual of the host device of this module; This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment must be installed and operated keeping the radiator at least 20cm or more away from person’s body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Use in portable RF exposure conditions is limited to the specific product and antenna configuration. To be used in any other way them granted, such as mobile to portable or with other transmitters simultaneously, requires additional evaluation, testing, or testing and Class 2 permissive change. 2.7 Antennas The device is designed to use the antenna below. Do not modify the antenna or any other part of the module. Any modifications will invalidate the modular certifications and require new approvals for the host system. Model No.19AA-10-tmp Antenna Type : monopole Antenna Gain：2400-2484MHz:2.67dBi@2484MHz 5150-5350MHz:5.14dBi@5150MHz 5470-5725MHz:3.53dBi@5470MHz 5725-5850MHz:3.05dBi@5725MHz 5900-6525MHz:1.61dBi@5950MHz 6525-7150MHz:0.60dBi@7150MHz Connection: RF Connector(CN7001, CN7002). Please see clause 2.5 for reference. 2.8 Label and compliance information Following information must be indicated on the device of this module. Contains FCC ID:AZD248 2.9 Information on test modes and additional testing requirements Test modes should take into consideration different operational conditions for a stand-alone modular transmitter in a host, as well as for multiple simultaneously transmitting modules or other transmitters in a host product. For the evaluation to Host device, please contact CANON INC. We will provide the instruments for test. 2.10 Additional testing, Part 15 Subpart B disclaimer The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant (FC…

Text truncated - open the document above for the full version.

User Manual for ES205 This product has a function as an IEEE802.11a/b/g/n/ac/ax and Bluetooth Product Name:Communication module Model Name:ES205 (= LBEE5XV2EA-044 = Type2EA) Purpose of the equipment :Communication Product Size:12.5x9.4x1.2mm ReferenceClock:37.4MHz Crystal Oscillator embedded Frequency Tolerance :20ppm ImputVoltage to RF part :3.3V/1.8V typ. Bluetooth Ver. :Ver5.3 Tune-up tolerance Limit :Maximum transmission output considering Note individual differences : The straddle channels for 5725MHz are disabled by the software of the host device. FCC NOTICE This device complies with part 15 of FCC Rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitterexcept Canon accessories supplied or designated for this product. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heatingeffects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This model has been tested with Digital Camera(DS126918) and found to comply with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets FCC Radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules. 5.15-5.35GHz band is restricted to indoor operations only. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5725-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Frequency Tolerance:20 ppm Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on onlywhile one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. FCC ID:AZD248 FCC Notice for model: ES205 IC Notice for model: DS126918 The end product must be labeled “Contains FCC ID: AZD248” and “IC: 498J-248” This module is limited to installation by the grantee (Canon) into our host systems. It is installed into the speficiedend product as described in the integration instruction so that full complaianceof the end product is always ensured.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Contact Person: Hiroshi Shinagawa Company Name: Canon USA,lnc. FRN:0033431024 Company Address: One Canon Park ttlelville, NY 11747 United States Email: hshinagawa@cusa. canon.com This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Canon lnc. ("the applicant") for the above referenced FCC lD. We are aware of the requirements and responsibilities of the applicant's agent for service of process as outlined in the FCC section 52.911(dX7) and Report and Order FCC 22-84 paragraph 63. Sincerely yours, Signature:

Confidential 7\SH($ 3DUWV/D\RXW   WK )HE 7RS %RWWRP ,QWHUQDOSKRWR Copyright © Murata Manufacturing Co., Ltd. All rights reserved. ([WHUQDOSKRWR

ＥＳ205 ■ Labeldesign It cannot be listed on the modulebecause the module size is too small, so it should be listed in the manual and box. Manual DS126918(IC:498J-248 including wireless module ES205/FCC ID:AZD248)) 5.15-5.35GHz band is restricted to indoor operations only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host device due to the size, please describe in the user's manual and also either describe on the device packaging or on a removable label attached to the device. Box ES205 (FCC ID:AZD248)

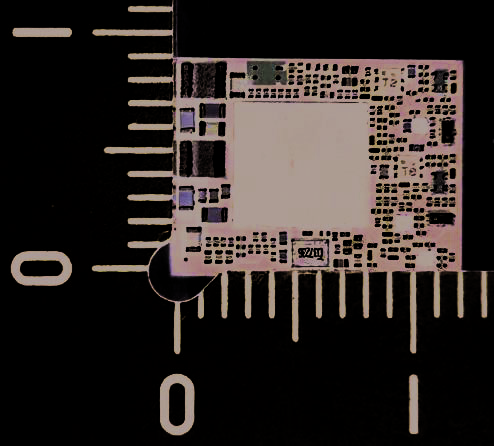

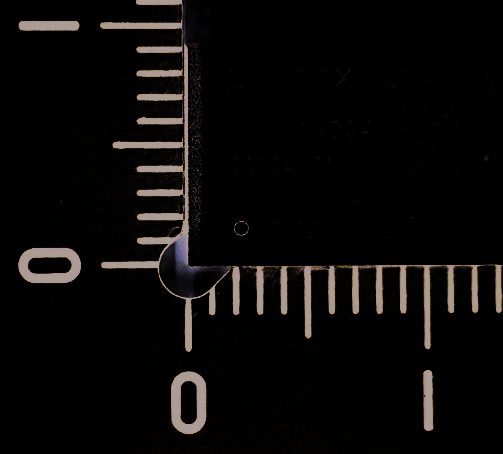

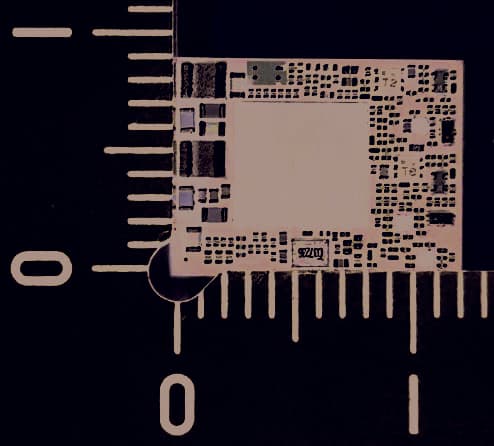

internal photo2024/04/18 Confidential

Test Report No. 14781156S- A-R2 Page 1 of 59 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN / Telephone: +81 463 50 6400 SAR & PD Test Report Test Report No. 14781156S-A-R2 Customer Canon Inc. Description of EUT Communication Module Model Number of EUT ES205 FCC ID AZD248 Test Regulation FCC 47CFR 2.1093 Test Result Complied Issue Date July 4, 2024 Remarks - Representative Test Engineer Approved By Hiroshi Naka Engineer Toyokazu Imamura Engineer CERTIFICATE 1266.03 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page -Form-ULID-003532 (DCS:13-EM-F0429) Issue# 23.0 (SAR Revision- v23.8sar240524) Test Report No. 14781156S- A-R2 Page 2 of 59 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN / Telephone: +81 463 50 6400 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14781156S-A This report is a revised version of 14781156S-A. 14781156S-A is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 14781156S-A April 8, 2024 - -R1 14781156S-A-R1 June 21, 2024 (p7 and other pages) Corrected a typo in SMD to SDM. (P5,6,11) Corrected WLAN 7GHz upper frequency from 7115 MHz to 7095 MHz (p8,3.3) Added additional TCB Workshop content to the procedure, as well as SEPAG's instruction manual and application note regarding 6~10 GHz PD. (p11) For the "SAR tested frequency" column, an asterisk (*3) was added for those actually tested. (p13, 4.2) Corrected threshold power for Antenna 1 at 12 mm (from 8 to 9 mW at WLAN 5.2&5.3 GHz). (p17, 5.1) Corrected error. (was)(new) (p14,22) The duty cycle and scaled factor for BT LE were corrected to 64.2% and 1.56, respectively. (p23, 7.1.2) (WLAN 5.2GHz band) The duty cycle and scaled factor for 11ax (SDM) at 5210 MHz were corrected to 98.5% and 1.02, respectively. (p26, 7.1.5) Top, 11ax(SDM), 5985 MHz measured APD was revised from 1.71 to 1.72 W/m 2 and reported APD from 2.041 to 2.053 W/m 2 . (p26, 7.1.5) The bottom of the Test setup column in the table was corrected from “Top-Left” to “Top-Right”. (p42) The title of Plot 6-1 was corrected to Antenna1. The title of Plot 6-2 was corrected to Antenna2. (p20, 56, 57) The deviation of the liquid's electrical characteristic value was changed to 10%, and the uncertainty table was also changed. (p58) Corrects the "CAL: Calibration Repeatability” of the PD measurement to calibration. -R2 14781156S-A-R2 July 4, 2024 (p13, 4.2) Corrected threshold power for Antenna 1 at 12 mm (from 8 to 9 mW at 5.6&5.8GHz). (p17) The max power of 11ax40 OFDMA CDD at 5755 and 5795 MHz were corrected to 6 dBm from 5 dBm. (p18) The max power of 11ax40 OFDMA SDM at 5755 and 5795 MHz were corrected to 6 dBm from 5 dBm. The typical power of 11ac80 CDD&SDM, 11ax80 CDD&SDM at 5775 MHz were corrected to 5 dBm from 7 dBm. The max power of 11ac80 CDD&SDM, 11ax80 CDD&SDM at 5775 MHz were corrected to 7 dBm from 9 dBm.  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report apply only to the sample tested.  This sample tested is in compliance with the limits of the above regulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted by UL Japan, Inc. Shonan EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the applicant for this report is identified in Section 1.  The laboratory is not responsible for information provided by the customer which can impact the validity of the results.  For test report(s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14781156S- A-R2 Page 3 of 59 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN / Telephone: +81 463 50 6400 Reference : Abbreviations (Including words undescribed in this report) (R15v240501S08v240520) A2LA The American Association for Laboratory Accreditation JAB Japan Accreditation Board AC Alternating Current LAN Local Area Network AFH Adaptive Frequency Hopping LIMS Laboratory Information Management System AM Amplitude Modulation MCS Modulation and Coding Scheme Amp, AMP Amplifier MIMO Multiple Input Multiple Output (Radio) ANSI American National Standards Institute MPE Maximum Permissible Exposure Ant, ANT Antenna MRA Mutual Recognition Arrangement AP Access Point MU-MIMO Multi-User Multiple Input Multiple Output (Radio) APD Absorbed Power Density N/A Not Applicable, Not Applied ASK Amplitude Shift Keying NII National Information Infrastructure (Radio) Atten., ATT Attenuator NIST National Institute of Standards and Technology AV Average NR New Radio BPSK Binar y Phase-Shift Keying NS Nerve Stimulation B R Bluetooth Basic Rate NSA Normalized Site Attenuation BT Bluetoot h NVLAP National Voluntary Laboratory Accreditation Program BT L E Bluetooth Low Energy OBW Occupied Band Width BW BandWidt h OFDM Orthogonal Frequency Division Multiplexing Cal In t Calibration Interval PD Power Density CCK Complementar y Code Keying P/M Power meter CDD C yclic Delay Diversity PCB Printed Circuit Board CF R Code of Federal Regulations PER Packet Error Rate Ch., CH Channel PH Y Physical Layer CISP R Comite International Special des Perturbations Radioelectriques PK Peak CW Continuous Wav e PN Pseudo random Noise DBPSK Differential BPSK PRB S Pseu…

Text truncated - open the document above for the full version.

Test Report No. 14781156S-A-R2 Page 59 of 59 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN / Telephone: +81 463 50 6400 Appendix 3-4: Calibration certificates LIMS ID Description Type/Model Serial Number Manufacture Calibration Certificate Note 146235 Dosimetric E-Field Probe EX3DV4 3907SPEAG - 145090 Dipole Antenna (2.45 GHz) D2450V2 822SPEAG *1 145091 Dipole Antenna (5 GHz) D5GHzV21070SPEAG*1 230872 RF Power Source POWERSORCE1 4300 SPEAG - 243049 Dipole Antenna (6.5 GHz) D6.5GHzV21108SPEAG*1 227150 mmWave Probe EUmmWV49668SPEAG- 238558 Patch Antenna (6.5 GHz) RP6500V11012SPEAG- *1: As stated on page 2 of the certificate, the calibration was performed in accordance with the latest standard IEC/IEEE 62209-1528. Therefore, the reported SAR values are valid for any system that complies with IEC/IEEE 62209-1528 including all new versions of DASY such as DASY6 and DASY8. -E nd of report-

Confidential ⚫Antenna Model Name：19AA-10-tmp ⚫Antenna type：monopole ⚫Cable length：10-200 mm ⚫Frequency：2400-2483.5 MHz, 5150-5850 MHz, 5900-7150 MHz ⚫Maximum Peak Antenna Gain (Cable length: 10 mm) •2.4 GHz band •2400-2484 MHz：2.67dBi @ 2484 MHz •5 GHz band •5150-5350 MHz：5.14 dBi@ 5150 MHz •5470-5725 MHz：3.53 dBi@ 5470 MHz •5725-5850 MHz：3.05 dBi@ 5725 MHz •6 GHz band •5900-6525 MHz : 1.61 dBi@ 5950 MHz •6525-7150 MHz : 0.60 dBi@ 7150 MHz Antenna Specification Confidential ⚫Minimum Peak Antenna Gain (Cable length: 10 mm) •2.4 GHz band •2400-2484 MHz：1.84 dBi@ 2437 MHz •5 GHz band •5150-5350 MHz：3.63 dBi@ 5350 MHz •5470-5725 MHz：3.05 dBi@ 5725 MHz •5725-5850 MHz：2.01 dBi@ 5850 MHz •6 GHz band •5900-6525 MHz : -0.33 dBi@ 6465 MHz •6525-7150 MHz : -0.81 dBi@ 6855 MHz Antenna Specification Confidential ⚫Minimum Peak Antenna Gain (Cable length: 200 mm)* •2.4 GHz band •2400-2484 MHz：1.10 dBi@ 2437 MHz •5 GHz band •5150-5350 MHz：2.53 dBi@ 5350 MHz •5470-5725 MHz：1.95 dBi@ 5725 MHz •5725-5850 MHz：0.91 dBi@ 5850 MHz •6 GHz band •5900-6525 MHz : -1.55 dBi@ 6465 MHz •6525-7150 MHz : -2.03 dBi@ 6855 MHz Antenna Specification * This minimum peak antenna gain data is calculated by subtracting the increased insertion loss (the difference between the insertion loss for cable lengths 200 mm and 10 mm, as shown in the table on the right) from the minimum peak antenna gain data for the cable length of 10 mm. Frequency bandIncreased insertion loss [dB] 2.4 GHz0.74 5 GHz1.10 6 GHz1.22 Confidential Antenna Data ：19AA-10-tmp＜2.4GHz 2400-2484MHz＞ Liniar Polarization XY-PlaneYZ-PlaneZX-Plane Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] 2400MHzMAX 0.72 -17.55 0.09 0.06 -2.07 1.95 AVG -3.59 -22.02 -4.95 -4.29 -7.53 -2.61 2437MHzMAX 1.13 -17.94 -0.56 0.30 -2.46 1.84 AVG -3.19 -22.42 -5.49 -3.83 -7.77 -2.41 2442MHzMAX0.97 -18.04 -0.49 0.41 -2.44 2.10 AVG -3.33 -22.32 -5.44 -3.71 -7.70 -2.33 2484MHzMAX 1.10 -15.82 -0.08 0.80 -2.86 2.67 AVG -3.10 -20.58 -5.61 -3.32 -7.85 -2.09 Max. peak gain frequency -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XY Radiation Pattern 2484MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 YZ Radiation Pattern 2484MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XZ Radiation Pattern 2484MHz H V H+V Min. peak gain frequency Bold numbers: Peak gain at each frequency Cable length: 10 mm Confidential Liniar Polarization XY-PlaneYZ-PlaneZX-Plane Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] 5150MHzMAX 3.86 -11.23 4.96 2.34 2.34 5.14 AVG -2.06 -16.40 -3.08 -5.02 -5.51 -4.14 5250MHzMAX 3.28 -11.32 4.34 2.41 2.41 4.48 AVG -2.42 -17.19 -3.62 -5.26 -5.55 -4.58 5350MHzMAX 2.51 -11.05 3.37 1.72 1.72 3.63 AVG -2.96 -17.58 -4.05 -6.11 -6.01 -5.15 Antenna Data ：19AA-10-tmp＜5GHz 5150-5350MHz＞ -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XY Radiation Pattern 5150MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 YZ Radiation Pattern 5150MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XZ Radiation Pattern 5150MHz H V H+V Max. peak gain frequency Min. peak gain frequency Bold numbers: Peak gain at each frequency Cable length: 10 mm Confidential Liniar Polarization XY-PlaneYZ-PlaneZX-Plane Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] 5470MHzMAX 2.44 -9.69 3.15 1.41 1.41 3.53 AVG -3.15 -17.33 -3.67 -6.06 -6.13 -5.21 5600MHzMAX 3.18 -9.25 3.00 1.83 1.10 3.39 AVG -3.55 -16.96 -3.45 -5.35 -7.08 -5.68 5725MHzMAX 3.05 -10.18 2.88 2.86 0.17 1.95 AVG -3.64 -17.11 -3.58 -4.49 -7.96 -5.93 Antenna Data ：19AA-10-tmp＜5GHz 5470-5725MHz＞ Max. peak gain frequency -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XZ Radiation Pattern 5470MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 YZ Radiation Pattern 5470MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XY Radiation Pattern 5470MHz H V H+V Min. peak gain frequency Bold numbers: Peak gain at each frequency Cable length: 10 mm Confidential Liniar Polarization XY-PlaneYZ-PlaneZX-Plane Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] 5725MHzMAX 3.05 -10.18 2.88 2.86 0.17 1.95 AVG -3.64 -17.11 -3.58 -4.49 -7.96 -5.93 5785MHzMAX 2.78 -10.71 2.49 2.68 -0.19 1.52 AVG -3.61 -18.12 -4.14 -4.75 -8.34 -5.87 5850MHzMAX 1.62 -11.84 2.01 2.01 -1.29 1.15 AVG -4.19 -18.68 -4.61 -5.28 -8.21 -5.98 Antenna Data ：19AA-10-tmp＜5GHz 5725-5850MHz＞ Max. peak gain frequency -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XZ Radiation Pattern 5725MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 YZ Radiation Pattern 5725MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XY Radiation Pattern 5725MHz H V H+V Min. peak gain frequency Bold numbers: Peak gain at each frequency Cable length: 10 mm Confidential Antenna Data ：19AA-10-tmp＜6GHz 5900-6525MHz＞ Liniar Polarization XY-PlaneYZ-PlaneZX-Plane Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] 5900MHzMAX 1.34 -12.36 1.37 1.59-1.68 0.67 AVG -4.13 -19.17 -5.15 -5.60 -8.58 -6.02 5950MHzMAX 1.17 -12.35 1.61 1.61 -2.31 -0.17 AVG-4.27 -19.03 -5.14 -5.71 -8.33 -5.85 6465MHzMAX -0.33 -13.99 -0.81 -1.07 -5.11 -3.68 AVG -6.54 -20.92 -8.13 -7.23 -10.62 -7.91 6525MHzMAX -0.20 -13.74 -0.13-0.66 -4.84 -2.77 AVG -6.16 -20.46 -7.42 -6.86 -9.91 -7.50 -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XY Radiation Pattern 5950MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 YZ Radiation Pattern 5950MHz H V H+V -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 XZ Radiation Pattern 5950MHz H V H+V Max. peak gain frequency Min. peak gain frequency Bold numbers: Peak gain at each frequency Cable length: 10 mm Confidential Antenna Data ：19AA-10-tmp＜6GHz 6525-7150MHz＞ Liniar Polarization XY-PlaneYZ-PlaneZX-Plane Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] Hor. [dBi] Ver. [dBi] 6525MHzMAX -0.20 -13.74 -0.13 -0.66 -4.84 -2.77 AVG -6.16 -20.46 -7.42 -6.86 -9.91 -7.50 6800MHzMAX -2.26 -14.70 -0.09 -2.03 -5.76 -2.30 AVG-6.68 -20.74 -7.63 -8.42 -11.02 -7.23 6855MHzMAX -2.81 -15.53 -0.81 -2.73 -6.27 -2.81 AVG -7.11 -21.53 -8.24 -8.95 -11.70 -7.82 7150MHzMAX 0.60-11.74 0.60-0.42 -4.79 -1.84 AVG -5.24 -18.21 -6.32…

Text truncated - open the document above for the full version.

Test Report No. 14781152S-B-R3 Page 1 of 184 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 RADIO TEST REPORT Test Report No. 14781152S-B-R3 Customer Canon Inc. Description of EUT Wireless Module Model Number of EUT ES205 FCC ID AZD248 Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date July 5, 2024 Remarks WLAN (2.4 GHz band), BT LE parts Representative Test Engineer Approved By Makoto Hosaka Engineer Toyokazu Imamura Engineer CERTIFICATE 1266.03 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 23.0 Test Report No. 14781152S-B-R3 Page 2 of 184 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14781152S-B This report is a revised version of 14781152S-B-R2. 14781152S-B-R2 is replaced with this report. Revision Test Report No. Date Revised Contents - (Original) 14781152S-B June 7, 2024 - 1 14781152S-B-R1 June 13, 2024 Section 2 Added rating: DC 1.8 V 2 14781152S-B-R2 June 26, 2024 Cover page Corrected FCC ID: AZD 248 to AZD248 Section 2.2 Addition of the value and explanation of the Directional Gain. Section 3 Modification of FCC Part 15.31 (e) From: The RF Module has its own regulator. The RF Module is constantly provided voltage through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. To: The module is constantly provided the stable voltage (DC 3.3 V / 1.8 V) from the host device regardless of input voltage. Therefore, this EUT complies with the requirement. P14 to 16 Modification of cable length for No.1, No.2: 0.01 => 0.02 P22 to 28 Correction of Limit2(AV) line. 3 14781152S-B-R3 July 5, 2024 Section 2.2 Adjusted table for the antenna gain This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. The results in this report apply only to the sample tested. (Laboratory was not involved in sampling.) This sample tested is in compliance with the limits of the above regulation. The test results in this test report are traceable to the national or international standards. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) The all test items in this test report are conducted by UL Japan, Inc. Shonan EMC Lab. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited. The information provided from the customer for this report is identified in Section 1. For test report(s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14781152S-B-R3 Page 3 of 184 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Program CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave…

Text truncated - open the document above for the full version.
