AZD215Wireless Module

J " # $ E English  Areas of Use and Restrictions for WFT-E6 and WFT-E7 To comply with local radio wave regulations in various areas around the world, Canon offers region-speci c versions of the transmitter (WFT-E6 and WFT-E7) as described below. Please do not use your model (version) of transmitter in regions it was not designed for. For information on other areas where the transmitter can be used, contact Canon’s Customer Service Center. ModelArea of Use Wireless LAN Speci cation and Supported Channels WFT-E6A or WFT-E7A Singapore, Vietnam, Canada, United States IEEE 802.11a/n 36–64ch 149–165ch IEEE 802.11b/g/n1–11ch WFT-E6B or WFT-E7B Japan, Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Russia, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom, Turkey IEEE 802.11a/n 36–64ch 100–140ch IEEE 802.11b/g/n1–13ch WFT-E6C or WFT-E7C China, India IEEE 802.11a/n149–161ch IEEE 802.11b/g/n1–13ch WFT-E6D or WFT-E7D Taiwan, Hong Kong, Macao, Mongolia IEEE 802.11a/n 56–64ch 100–140ch IEEE 802.11b/g/n1–11ch WFT-E6E or WFT-E7E Cayman Islands (British Territory), Colombia, Ecuador, El Salvador, Guatemala, Netherlands Antilles, Saint Martin (French), U.S. Virgin Islands, Australia, New Zealand IEEE 802.11a/n 36–64ch 100–140ch 149–165ch IEEE 802.11b/g/n1–13ch  In France, outdoor use is prohibited.  In mainland China, outdoor use requires a permit in some areas.  IEEE 802.11a/n Restrictions When IEEE 802.11a/n wireless networking is used, channels in gray in the following table cannot be used. These restrictions are established by local regulations, which must be upheld. Although the other channels can be used, some restrictions apply to certain channels, as noted. Wireless LAN Connection MethodChannel WFT-E6A or WFT-E7A Indoors Infrastructure36–4852–64149–165 Ad hoc36–4852–64149–165 Outdoors Infrastructure36–4852–64149–165 Ad hoc36–4852–64149–165 WFT-E6B or WFT-E7B Indoors Infrastructure36–4852–64100–140 Ad hoc36–4852–64100–140 Outdoors Infrastructure36–4852–64* 1 100–140 Ad hoc36–4852–64100–140 WFT-E6C or WFT-E7C Indoors Infrastructure149–161 Ad hoc149–161 Outdoors Infrastructure149–161* 2 Ad hoc149–161* 2 WFT-E6D or WFT-E7D Indoors Infrastructure56–64100–140 Ad hoc56–64100–140 Outdoors Infrastructure56–64100–140 Ad hoc56–64100–140 WFT-E6E or WFT-E7E Indoors Infrastructure36–4852–64100–140149–165 Ad hoc36–4852–64100–140149–165 Outdoors Infrastructure36–4852–64100–140149–165 Ad hoc36–4852–64100–140149–165 * 1 In Japan, outdoor use on channels 52–64 is prohibited. * 2 In mainland China, outdoor use requires a permit in some areas. These models incorporate wireless module CH9-1214: WFT-E6A, WFT-E6B, WFT-E6C, WFT-E6D, and WFT-E6E. These models incorporate wireless module CH9-1225: WFT-E7A, WFT-E7B, WFT-E7C, WFT-E7D, and WFT-E7E. Model Number WFT-E6 A : DS585862 WFT-E6 B : DS585861 WFT-E6 C : DS585863 WFT-E6 D : DS585864 WFT-E6 E : DS585865 Model Number WFT-E7 A : DS585882 WFT-E7 B : DS585881 WFT-E7 C : DS585883 WFT-E7 D : DS585884 WFT-E7 E : DS585885 Authorized wireless LAN module is incorporated. FCC/IC NOTICE Model: DS585862 (including WLAN Module Model CH9-1214, FCC ID:AZD215) Model: DS585882 (including WLAN Module Model CH9-1225, FCC ID:AZD214) This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Do not make any changes or modi cations to the equipment unless otherwise speci ed in the manual. If such changes or modi cations should be made, you could be required to stop operation of the equipment. Use a Category 5 or higher STP LAN cable. (WFT-E7A only) (STP: Shielded Twisted Pair) This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter except Canon accessories supplied or designated for this product. The available scienti c evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such  ndings have not been con rmed by additional resear…

Text truncated - open the document above for the full version.

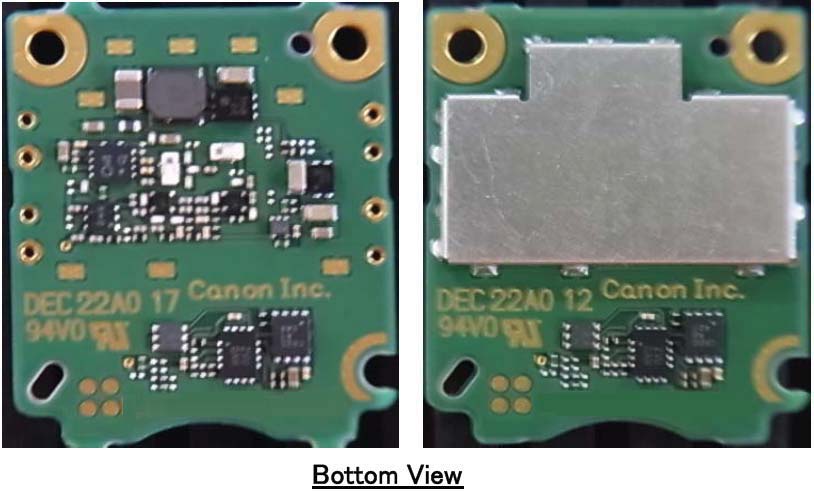

External view of CH9-1214/CH9-1225

2011/01/14 page 4/ 1. Measurement Specification 1.2 Measurement Antenna ・ Model ； Dual Band WLAN Antenna Cable Assembly 2011 (2174096-1) ・ Antenna Type ; PIFA ・ Connector Type ; Coax connector Fig1. Dual Band WLAN Antenna Assembly Appearance Connector Antenna Element (FPC) Cable Adhesive Tape

㪚㪟㪐㪄㪈㪉㪈㪋 䊤䊔䊦࿑ 䊤䊔䊦虫䉍ઃ䈔࿑ Label Location of CH9-1214

External view of CH9-1214/CH9-1225

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 November 25, 2011 UL Japan, Inc. Ise Head Office 4383-326 Asama-cho Ise-shi, Mie 516-0021 Japan FCC ID: AZD215 To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless Module, model: CH9-1214 (FCC ID: AZD215) of CANON INC. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Toyokazu Imamura Leader of WiSE Japan, UL Verification Service UL Japan, Inc.

Test report No. : 31CE0052-HO-01-A Page : 2 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 3 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ....................................................................................... 10 SECTION 6: Carrier frequency separation ........................................................................ 10 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 10 SECTION 8: Number of hopping frequency ...................................................................... 11 SECTION 9: Dwell time ...................................................................................................... 11 SECTION 10: Maximum peak output power ..................................................................... 11 SECTION 11: Spurious emissions (Antenna port conducted) ........................................... 11 SECTION 12: Radiated emission ........................................................................................ 12 Contents of appendixes ......................................................................................................... 14 APPENDIX 1: Photographs of test setup ............................................................................ 15 APPENDIX 2: Test data ...................................................................................................... 18 APPENDIX 3: Test instruments .......................................................................................... 59 Test report No. : 31CE0052-HO-01-A Page : 3 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Canon Inc. Address : 30-2, Shimomaruko, 3-chome, Ohta-ku, Tokyo, 146-8501 Japan Telephone Number : +81 3 3757 6798 Facsimile Number : +81 3 3757 8431 Contact Person : Kiyoshi Sahoyama SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model No. : CH9-1214 Serial No. : Refer to 4.2 in this report. Rating : DC3.3V Receipt Date of Sample : May 9, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Test report No. : 31CE0052-HO-01-A Page : 4 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 2.2 Product description Model: CH9-1214 (referred to as the EUT in this report) is a Wireless Module. General specification Clock frequency(ies) in the system : 38.4MHz, 32.768kHz Radio specification Equipment type : Transceiver Antenna type : Planar Inverted F Antenna Antenna connector type : U.FL Operation temperature range : -20 to +70 deg.C. Bluetooth Frequency of operation : 2402-2480MHz Bandwidth / Channel spacing : 79MHz & 1MHz Type of modulation : FHSS Antenna gain with cable loss : 1.95dBi ITU code : F1D, G1D Wireless LAN* Frequency of operation : 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) 2422-2452MHz (IEEE 802.11n-HT40) 5180-5320MHz (IEEE 802.11a, 11n-HT20) 5190-5310MHz (IEEE 802.11n-HT40) 5745-5825MHz (IEEE 802.11a, 11n-HT20) 5755-5795MHz (IEEE 802.11n-HT40) Bandwidth & channel spacing : Bandwidth : 20MHz (IEEE 802.11b, 11g, 11a, 11n-HT20), 40MHz (IEEE 802.11n-HT40) Channel spacing : 5MHz (2.4GHz), 20MHz (5GHz) Type of modulation : DSSS (IEEE 802.11b) OFDM (IEEE 802.11a/g/n) Antenna gain with cable loss : +1.95 dBi (2400/2450/2500MHz) -1.32 dBi (5160/5250/5340MHz) -0.43 dBi (5725/5785/5845MHz) ITU code : D1D, G1D * Refer to the test report 31CE0052-HO-01-B/C/D for this function. FCC Part15.31 (e) The Wireless Module is provided with stable power supply DC 3.3V from the host device and has power supply regulator which provides DC 2.85V and DC 1.8V, therefore, the equipment complies power supply regulation. FCC Part15.203 The EUT has a unique coupling/antenna connector (U.FL). Therefore the equipment complies with the requirement of 15.203. Test report No. : 31CE0052-HO-01-A Page : 5 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2011, final revised on July 8, 2011 and effective August 8, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz *The revision on July 8, 2011 does not affect the test specification applied to the EUT. The EUT has been tested for compliance with FCC Part 15 Subpart B: 2011. Refer to the test report 31CE0052-SH-01-B. 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section 15.207 - N/A 21.2dB Freq.: 0.40233MHz Detect…

Text truncated - open the document above for the full version.

DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/06/25 Company: CANON INC.Mode: Tx DH5 2402MHz Kind of EUT: Wireless Module Report No. :31CE0052-HO-01-A Model No.: CH9-1214 Power :DC3.3V(AC120V/60Hz) Serial No.: ES4101Temp./Humi.: 27deg.C. / 56%RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Akio Hayashi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac( LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80  DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/06/25 Company: CANON INC.Mode: Tx DH5 2441MHz Kind of EUT: Wireless Module Report No. :31CE0052-HO-01-A Model No.: CH9-1214 Power :DC3.3V(AC120V/60Hz) Serial No.: ES4101Temp./Humi.: 27deg.C. / 56%RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Akio Hayashi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac( LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.2325026.1-0.912.638.711.762.352.323.640.6N 20.3064025.3-5.412.738.07.360.050.022.042.7N 30.4020223.8-6.812.736.55.957.847.821.341.9N 40.5018022.0-8.212.734.74.556.046.021.341.5N 51.5905510.6-12.712.823.40.156.046.032.645.9N 66.242100.3-18.413.113.4-5.360.050.046.655.3N 70.2325026.1-1.412.638.711.262.352.323.641.1L1 80.3043025.3-5.312.738.07.460.150.122.142.7L1 90.4051023.7-6.612.736.46.157.747.721.341.6L1 100.5015022.0-8.112.734.74.656.046.021.341.4L1 111.5982013.1-12.412.825.90.456.046.030.145.6L1 126.20400-1.3-18.813.111.8-5.760.050.048.255.7L1 19 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/06/25 Company: CANON INC.Mode: Tx DH5 2480MHz Kind of EUT: Wireless Module Report No. :31CE0052-HO-01-A Model No.: CH9-1214 Power :DC3.3V(AC120V/60Hz) Serial No.: ES4101Temp./Humi.: 27deg.C. / 56%RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Akio Hayashi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac( LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80  DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/06/25 Company: CANON INC.Mode: Tx 3DH5 2402MHz Kind of EUT: Wireless Module Report No. :31CE0052-HO-01-A Model No.: CH9-1214 Power :DC3.3V(AC120V/60Hz) Serial No.: ES4101Temp./Humi.: 27deg.C. / 56%RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Akio Hayashi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac( LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80  DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/06/25 Company: CANON INC.Mode: Tx 3DH5 2441MHz Kind of EUT: Wireless Module Report No. :31CE0052-HO-01-A Model No.: CH9-1214 Power :DC3.3V(AC120V/60Hz) Serial No.: ES4101Temp./Humi.: 27deg.C. / 56%RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Akio Hayashi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac( LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.2322426.2-1.512.638.811.162.352.323.541.2N 20.3459424.9-4.912.737.67.859.049.021.441.2N 30.4023323.9-6.712.736.66.057.847.821.241.8N 40.5041122.0-8.112.734.74.656.046.021.341.4N 51.5713010.8-14.612.823.6-1.856.046.032.447.8N 66.271000.4-18.413.113.5-5.360.050.046.555.3N 70.2307026.1-2.212.638.710.462.452.423.742.0L1 80.3054225.4-5.412.738.17.360.050.021.942.7L1 90.4064423.7-6.312.736.46.457.747.721.341.3L1 100.5013022.0-8.112.734.74.656.046.021.341.4L1 111.6001013.2-13.412.826.0-0.656.046.030.046.6L1 126.24520-1.1-18.713.112.0-5.660.050.048.055.6L1 22 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/06/25 Company: CANON INC.Mode: Tx 3DH5 2480MHz Kind of EUT: Wireless Module Report No. :31CE0052-HO-01-A Model No.: CH9-1214 Power :DC3.3V(AC120V/60Hz) Serial No.: ES4101Temp./Humi.: 27deg.C. / 56%RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Akio Hayashi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac( LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 -10 0 10 20 30 40 50 60 70 80  Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room Date2011/6/10 Temperature / Humidity27deg.C63% RH Enginee rWataru Kojima ModeTx ModeFreq.20dBCarrierLimit for BandwidthFrequenc yCarrier SeparationFrequenc y Separation [MHz][MHz][MHz][MHz] DH52402.00.9651.000>= 0.643 DH52441.00.9651.000>= 0.643 DH52480.00.9651.000>= 0.643 3DH52402.01.3251.008>= 0.883 3DH52441.01.3181.003>= 0.878 3DH52480.01.3251.008>= 0.883 Inquir y2441.00.8002.000>= 0.533 Limit: Two-thirds of 20dB Bandwid…

Text truncated - open the document above for the full version.

Test report No. : 31CE0052-HO-01-A Page : 15 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Conducted emission Front view Side view Test report No. : 31CE0052-HO-01-A Page : 16 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 31CE0052-HO-01-A Page : 17 of 60 Issued date : September 29, 2011 FCC ID : AZD215 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position Antenna Module X-axis X-axis Y-axis Y-axis Z-axis Z-axis
