AZD220Wireless Module

FCC Notice for model:ZC-ST Following statement must be included in the user manual of host device. The end product must be labeled ''Contains FCC ID: AZD220'' FCC/IC NOTICE Model:DS126401/DS126402 (including WLAN Module Model ZC‐ST, FCC ID: AZD220) This device complies with Part 15 of FCC Rules and Industry Canada licence‐exempt RSS standard(s). FCC/IC NOTICE Model:DS126401/DS126402 (including WLAN Module Model ZC‐ST, FCC ID: AZD220) This device complies with Part 15 of FCC Rules and Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. FCC/IC NOTICE Model:DS126401/DS126402 (including WLAN Module Model ZC‐ST, FCC ID: AZD220) This device complies with Part 15 of FCC Rules and Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. This transmitter must not be co‐located or operated in conjunction with any other antenna or transmitter except Canon accessories supplied or designated for this product. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low‐level RF that does not produce heating effects causes no known adverse health effects. Many studies of low‐level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This model has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and FCC/IC NOTICE Model:DS126401/DS126402 (including WLAN Module Model ZC‐ST, FCC ID: AZD220) This device complies with Part 15 of FCC Rules and Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. This transmitter must not be co‐located or operated in conjunction with any other antenna or transmitter except Canon accessories supplied or designated for this product. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low‐level RF that does not produce heating effects causes no known adverse health effects. Many studies of low‐level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This model has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS‐102 of the IC radio frequency (RF) Exposure rules.

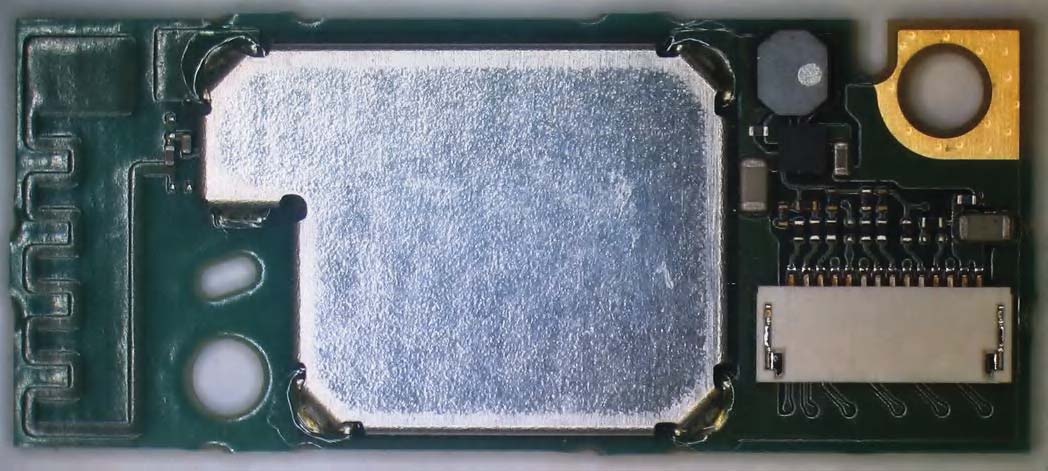

㪱㪚㪶㪪㪫 㪫㫆㫇㩷㫍㫀㪼㫎㩷㫎㫀㫋㪿㩷㪚㫆㫍㪼㫉 㪙㫆㫋㫋㫆㫄㩷㫍㫀㪼㫎 㪫㫆㫇㩷㫍㫀㪼㫎㩷㫎㫀㫋㪿㫆㫌㫋㩷㪚㫆㫍㪼㫉 Patternantenna

Label of ZC-ST Label location of ZC-ST

㪱㪚㪶㪪㪫 㪫㫆㫇㩷㫍㫀㪼㫎㩷㫎㫀㫋㪿㩷㪚㫆㫍㪼㫉 㪙㫆㫋㫋㫆㫄㩷㫍㫀㪼㫎 㪫㫆㫇㩷㫍㫀㪼㫎㩷㫎㫀㫋㪿㫆㫌㫋㩷㪚㫆㫍㪼㫉 Patternantenna

Test report No. : 32AE0317-SH-02-D Page : 1 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 SAR TEST REPORT Test Report No.: 32AE0317-SH-02-D Applicant : Canon Inc. Type of Equipment : Wireless Module Model No. : ZC-ST FCC ID : AZD220 Test Standard : FCC 47CFR §2.1093, Supplement C (Edition 01-01) to OET Bulletin 65 Test Result : Complied Maximum SAR(1g) Value Platform # Platform typePlatform modelRemarks 0.44 W/kg Platform (1) Digital camera (1) DS126401 (DTS) 2462MHz, IEEE 802.11b, (1Mbps, DBPSK/DSSS)) *. Highest SAR(1g) across exposure conditions = 0.44 W/kg = grant listing. *. The SAR(1g) was <0.8W/kg. Therefore according to the KDB447498 D01, this EUT was approved for used in multi-platform.. 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: June 20, 2012 Test engineer: Hiroshi Naka Engineer of WiSE Japan, UL Verification Service Approved by: Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32AE0317-SH-02-D Page : 2 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information .................................................................................... 3 SECTION 2: Equipment under test (EUT) ......................................................................... 3 SECTION 3: Test specification, procedures and results .................................................... 4 3.1 Test specification ................................................................................................................. 4 3.2 Exposure limit ..................................................................................................................... 4 3.3 Procedure and result ............................................................................................................ 4 3.4 Test location ........................................................................................................................ 5 3.5 Confirmation before SAR testing ........................................................................................ 5 3.6 Confirmation after SAR testing ........................................................................................... 5 3.7 Test setup of EUT and SAR measurement procedure ......................................................... 6 SECTION 4: Operation of EUT during testing .................................................................. 6 SECTION 5: Uncertainty assessment (SAR measurement) .............................................. 7 SECTION 6: Confirmation before testing........................................................................... 8 SECTION 7: SAR Measurement results ............................................................................. 9 Contents of appendixes APPENDIX 1: Photographs of test setup ............................................................................... 10 Appendix 1-1 Photograph of Wireless module, antenna and platform(1) .................................................. 10 Appendix 1-2 Difference of Platform(1) and Platform(2) .......................................................................... 11 Appendix 1-3 EUT and support equipment ................................................................................................ 11 Appendix 1-4 Photograph of SAR test setup .............................................................................................. 12 APPENDIX 2: SAR Measurement data ................................................................................. 14 Appendix 2-1 Evaluation procedure ........................................................................................................... 14 Appendix 2-2 Measurement data ................................................................................................................ 15 APPENDIX 3: Test instruments ............................................................................................. 26 Appendix 3-1 Equipment used ................................................................................................................... 26 Appendix 3-2 Dosimetry assessment setup ................................................................................................ 27 Appendix 3-3 Configuration and peripherals ............................................................................................. 27 Appendix 3-4 System components ............................................................................................................. 28 Appendix 3-5 Test system specification ..................................................................................................... 29 Appendix 3-6 Simulated tissues composition ............................................................................................. 29 Appendix 3-7 Simulated tissues parameter confir…

Text truncated - open the document above for the full version.

Test report No. : 32AE0317-SH-02-D Page : 14 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 APPENDIX 2: SAR Measurement data Appendix 2-1: Evaluation procedure The SAR evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and suitable horizontal grid spacing of EUT. Based on these data, the area of the maximum absorption was determined by splines interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 30mm(X axis)30mm(Y axis)30mm(Z axis) was assessed by measuring 777 points under 3GHz. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1) The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 2mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z- axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2) The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (101010) were interpolated to calculate the average. (3) All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1 for the assessment of the power drift. Step 5: Repeat Step 1-Step 4 with other condition or/and setup of EUT. Test report No. : 32AE0317-SH-02-D Page : 15 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: Measurement data / Platform(1): DS126401 Step 1: Worst position search Step 1-1: Top-left & touch (separation distance=0mm) / 11b(1Mbps), 2437MHz EUT: Wireless module in Platform(1) ; Type: ZC-ST (Platform(1): DS126401); Serial: ES40197 (Platform(1): 559) Communication System: IEEE 802.11b(1Mbps, DBPSK/DSSS); Frequency: 2437 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2437 MHz; σ = 1.91 S/m; ε r = 51; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.64, 7.64, 7.64); Calibrated: 2011/07/21 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn626; Calibrated: 2012/02/15 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 fcc5(re#1),top(1)&touch(d0mm),11b(1m,set12d),m2437/ Area Scan:90x90,15 (7x7x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (measured) = 0.430 mW/g Area Scan:90x90,15 (61x61x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (interpolated) = 0.635 mW/g Z Scan:160,5 (1x1x33): Measurement grid: dx=20mm, dy=20mm, dz=5mm; Maximum value of SAR (measured) = 0.559 mW/g Zoom Scan:30x30x30,5 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm; Reference Value = 18.1 V/m; Power Drift = 0.122 dB, Maximum value of SAR (measured) = 0.563 mW/g Peak SAR (extrapolated) = 0.800 W/kg SAR(1 g) = 0.353 mW/g; SAR(10 g) = 0.154 mW/g Remarks: *. Date tested: 2012/06/20; Tested by: Hiroshi Naka; Tested place:No.7 shielded room, *.liquid depth: 155mm; Position: distance of EUT to phantom: 0mm (2mm to liquid); ambient: 24.9deg.C. / 58 %RH, *.liquid temperature: 23.5(start)/23.5(end)/23.5(in check) deg.C.; *.White cubic: zoom scan area, Red cubic: big=SAR(10g )/small=SAR(1g) Test report No. : 32AE0317-SH-02-D Page : 16 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: Measurement data / Platform(1): DS126401 (cont’d) Step 1: Worst position search (cont’d) Step 1-2: Front & touch (separation distance=0mm) / 11b(1Mbps), 2437MHz EUT: Wireless module in Platform(1) ; Type: ZC-ST (Platform(1): DS126401); Serial: ES40197 (Platform(1): 559) Communication System: IEEE 802.11b(1Mbps, DBPSK/DSSS); Frequency: 2437 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2437 MHz; σ = 1.91 S/m; ε r = 51; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.64, 7.64, 7.64); Calibrated: 2011/07/21 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn626; Calibrated: 2012/02/15 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 fcc2,front(1)&touch(d0mm),11b(1m,set12d),m2437/ Area Scan:105x90,15 (8x7x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (measured) = 0.067 mW/g Area Scan:105x90,15 (71x61x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (interpolated) = 0.101 mW/g Z Scan:160,5 (1x1x3…

Text truncated - open the document above for the full version.

Test report No. : 32AE0317-SH-02-D Page : 32 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) Test report No. : 32AE0317-SH-02-D Page : 33 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 34 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 35 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 36 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 37 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 38 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 39 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 40 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) Test report No. : 32AE0317-SH-02-D Page : 41 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 42 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 43 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 44 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 45 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 46 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 47 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test report No. : 32AE0317-SH-02-D Page : 48 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3540) (cont’d) Test …

Text truncated - open the document above for the full version.

Test report No. : 32AE0317-SH-02-A Page : 1 of 90 Issued date : May 22, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No. : 32AE0317-SH-02-A Applicant : Canon Inc. Type of Equipment : Wireless Module Model No. : ZC-ST FCC ID : AZD220 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: March 30 to April 14, 2012 Representative test engineer: ______________________________ Akio Hayashi Engineer of WiSE Japan, UL Verification Service Approved by : ______________________________ Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32AE0317-SH-02-A Page : 2 of 90 Issued date : May 22, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32AE0317-SH-02-A Revision Test report No. Date Page revised Contents - (Original) 32AE0317-SH-02-A May 22, 2012 - - 1 32AE0317-SH-02-A August 6, 2012 1-2 4 P1-2: Update P4: Correction: Serial No. and Receipt Date of Sample Test report No. : 32AE0317-SH-02-A Page : 3 of 90 Issued date : May 22, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ......................................................................................... 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ............................................. 9 SECTION 7: Maximum peak output power ....................................................................... 10 SECTION 8: Spurious emission (Antenna port conducted) .............................................. 10 SECTION 9: Radiated emission .......................................................................................... 11 SECTION 10: Peak Power density ...................................................................................... 12 Contents of APPENDIXES ................................................................................................... 13 APPENDIX 1: Data of radio tests ....................................................................................... 14 APPENDIX 2: Test instruments .......................................................................................... 86 APPENDIX 3: Photographs of test setup ............................................................................ 88 Test report No. : 32AE0317-SH-02-A Page : 4 of 90 Issued date : May 22, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Canon Inc. Address : 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo, 146-8501 JAPAN Telephone Number : +81-3-3757-6798 Facsimile Number : +81-3-3757-8431 Contact Person : Takato Matsuura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model No. : ZC-ST Serial No. : Refer to 4.2 in this report. Rating : DC3.3V Receipt Date of Sample : March 30, 2012 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: ZC-ST (referred to as the EUT in this report) is a Wireless Module. Clock frequency(ies) in the system : 32.768kHz, 38.4MHz Radio specification Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : Bandwidth: 20MHz (IEEE 802.11b, 11g, 11n-HT20) / 40MHz (IEEE 802.11n-HT40) Channel spacing: 5MHz Type of modulation : DSSS: CCK,DQPSK, DBPSK OFDM: 64QAM, 16QAM, QPSK, BPSK Antenna type : /4 Monopole Antenna connector type : None Antenna gain with cable loss : -0.4 dBi ITU code : D1D, G1D Operation temperature range : 0 to +60 deg.C. FCC 15.31 (e) The host device provides the RF module with stable power supply (DC3.3V), therefore, the equipment complies with the requirement. FCC 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 32AE0317-SH-02-A Page : 5 of 90 Issued date : May 22, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone :…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front view Side view 88 Test report No.: 32AE0317-SH-02-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) 89 Test report No.: 32AE0317-SH-02-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis 90/90 Test report No.: 32AE0317-SH-02-A

Test report No. : 32AE0317-SH-02-D Page : 10 of 51 Issued date : July 3, 2012 Revised date : August 6, 2012 FCC ID : AZD220 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 APPENDIX 1: Photographs of EUT and SAR test setup Appendix 1-1: Photograph of Wireless module, antenna and Platform(1) (model: DS126401) Minimum distance to top cover surface. [unit: mm] Rear (LCD) Top Front (Lens) Bottom Left Right antenna antenna antenna 33mm 115mm 40mm 11mm 90mm 11mm 53…
