AZD227Wireless Module

FCC/IC NOTICE Model: PCXXXX (including WLAN Module Model WM227, FCC ID: AZD227/IC:498J ‐ 227) This device complies with Part 15 of FCC Rules and Industry Canada licence ‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. This transmitter must not be co ‐ located or operated in conjunction with any other antenna or transmitter except Canon accessories supplied or designated for this product. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low ‐ level RF that does not produce heating effects causes no known adverse health effects. Many studies of low ‐ level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This model has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS ‐ 102 of the IC radio frequency (RF) Exposure rules. FCC/IC Notice for model: WM227 Following statement must be included in the user manual of host device. The end product must be labeled “Contains FCC ID: AZD227” and “Contains IC: 498J ‐ 227” Model: PCXXXX is the host device of WM227. We don't prepare the User Manual for the module because it is not sold to the end user directly. Please refer to the Specification Sheet for more details about the module. For the module installation to the host equipment, please follow the interface specification (installation procedure).

WM227 Label Design and Location ラベルデザインおよび位置 BOTTOM SIDE 14mm 10mm 22.5mm 11.5mm

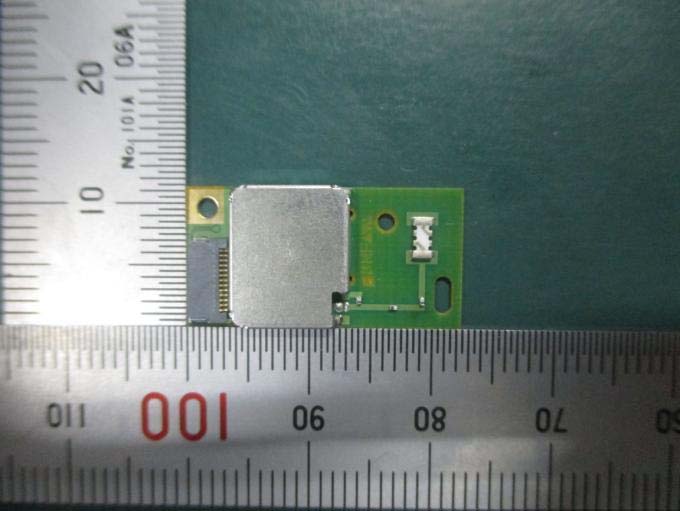

WM227 Internal Photo s, Antenna Location 内部写真, アンテナ取り付け位置TOP VIEW INTERNAL VIEW(TOP) Antenna

Test report No. : 10407964S-A Page : 15 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 APPENDIX 2: SAR Measurement data Appendix 2-1: Evaluation procedure The SAR evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and suitable horizontal grid spacing of EUT. Based on these data, the area of the maximum absorption was determined by splines interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 30mm(X axis)30mm(Y axis)30mm(Z axis) (or more) was assessed by measuring 777 points (or more) under 3GHz. And for any secondary peaks found in the Step2 which are within 2dB of the SAR limit (1.6W/kg), this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1) The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 2mm. The extrapolation was based on a least square algorithm. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2) The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions). The volume was integrated with the trapezoidal-algorithm. One thousand points (101010) were interpolated to calculate the average. (3) All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1 for the assessment of the power drift. Step 5: Repeat Step 1-Step 4 with other condition or/and setup of EUT. Test report No. : 10407964S-A Page : 16 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: SAR measurement data Step 1: Change the setup positions Plot 1-1: Top&touch (separation distance=0mm) / 11b(1Mbps), 2437MHz (*. 6ch, max.power channel of 11b) ->Highest reported SAR(1g) of this platform EUT: Wireless module(in digital camera); Type: WM227(camera:PC2241); Serial: 42D(camera:48) Communication System: 11b(1Mbps, DBPSK/DSSS) (*.Frame Length in ms: 0; PAR: 0; PMF: 1); Frequency: 2437 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2437 MHz; σ = 1.994 S/m; ε r = 51.21; ρ = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: -Probe: EX3DV4 - SN3540; ConvF(7.73, 7.73, 7.73); Calibrated: 2014/05/09; -DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) -Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0, 161.0 -Electronics: DAE4 Sn626; Calibrated: 2013/09/17 -Phantom: ELI v4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section portable(body-touch),wm227+dc2/m1,top(flat)&touch(d0mm),11b(1m),m2437/ Area Scan:60x120,12 (6x11x1): Measurement grid: dx=12mm, dy=12mm; Maximum value of SAR (measured) = 0.649 W/kg Area Scan:60x120,12 (51x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm; Maximum value of SAR (interpolated) = 0.826 W/kg Z Scan:160,5 (1x1x33): Measurement grid: dx=20mm, dy=20mm, dz=5mm; Maximum value of SAR (measured) = 0.872 W/kg Zoom Scan:30x30x30,st5(mm) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm; Reference Value = 22.131 V/m; Power Drift = -0.20 dB; Maximum value of SAR (measured) = 0.878 W/kg Peak SAR (extrapolated) = 1.381 mW/g SAR(1 g) = 0.512 mW/g (->Reported SAR(1 g) = 0.59W/kg) ->Highest reported SAR(1g) of platform(1); SAR(10 g) = 0.190 mW/g Remarks: *. Date tested: 2014/08/08; Tested by: Hiroshi Naka; Tested place:No.7 shielded room, *.liquid depth: 155mm; Position: distance of EUT to phantom: 0mm (2mm to liquid); ambient: 23.5  1deg.C. / 55  10 %RH, *.liquid temperature: 22.1(start)/22.1(end)/22.2(in check) deg.C.; *.White cubic: zoom scan area, Red cubic: big=SAR(10g )/small=SAR(1g) Test report No. : 10407964S-A Page : 17 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: SAR measurement data / Step 1: Change the setup positions (cont'd) Plot 1-2: Rear-top(tilt)&touch (separation distance=0mm) / 11b(1Mbps), 2437MHz (*. 6ch, max.power channel of 11b) EUT: Wireless module(in digital camera); Type: WM227(camera:PC2241); Serial: 42D(camera:48) Communication System: 11b(1Mbps, DBPSK/DSSS) (*.Frame Length in ms: 0; PAR: 0; PMF: 1); Frequency: 2437 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2437 MHz; σ = 1.994 S/m; ε r = 51.21; ρ = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: -Probe: EX3DV4 - SN3540; ConvF(7.73, 7.73, 7.73); Calibrated: 2014/05/09; -DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) -Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0 -Electronics: DAE4 Sn626; Calibrated: 2013/09/17 -Phantom: ELI v4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section portable(body-touch),wm227+dc2/m4,rear-top(tilt)&touch(d0mm),11b(1m),m2437/ Area…

Text truncated - open the document above for the full version.

Test report No. : 10407964S-A Page : 1 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 SAR TEST REPORT Test Report No.: 10407964S-A Applicant : Canon Inc. Type of Equipment : Wireless Module Model No. : WM227 (*. Installed into the WM227’s platform (1)) FCC ID : AZD227 Test Standard : FCC 47CFR §2.1093 Test Result : Complied Highest Reported SAR(1 g) Value Platform # Platform type Platform mode l Remarks 0.59 W/kg (*1) Platform(1) Digital cameraPC2241 (DTS) 2 437MHz, IEEE 802.11b(1Mbps, DBPSK/DSSS) *1. This ha da highest measured SAR(1g) value: 0.512 W/kg (output power: 13.35dBm). *. The highest reported SAR (1g) value for body-touch condition is "0.59 W/kg” = grant listing. *. Since highest reported SAR (1g): 0.59 W/kg on this platforms with WM227 (EUT) which obtained in accordance with KDB447498 (v05) was kept under 0.8 W/kg, this EUT was approved to operate multi-platform. 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: July 24 and August 8, 2014 Test engineer: Hiroshi Naka Engineer, Consumer Technology Division Approved by: Toyokazu Imamura Leader, Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". RTL02610 13-EM-F0429 Test report No. : 10407964S-A Page : 2 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 REVISION HISTORY Revision Test report No.Date Page revisedContents Original 10407964S-AAugust 28, 2014- - *. By issue of new revision report, the report of an old revision becomes invalid. CONTENTS PAGE REVISION HISTORY ................................................................................................................................................... 2 CONTENTS .................................................................................................................................................... 2 SECTION 1: Customer information ................................................................................... 3 SECTION 2: Equipment under test (EUT) ......................................................................... 3 2.1 Identification of EUT .......................................................................................................... 3 2.2 Product Description ............................................................................................................. 3 2.3 Tx output power specification (antenna port terminal conducted) ...................................... 4 2.4 Maximum output power which may possible ...................................................................... 4 SECTION 3: Test specification, procedures and results ................................................... 5 3.1 Test specification ................................................................................................................. 5 3.2 Exposure limit ..................................................................................................................... 5 3.3 Procedure and result ............................................................................................................ 5 3.4 Test location ........................................................................................................................ 5 3.5 Confirmation before SAR testing ........................................................................................ 6 3.6 Confirmation after SAR testing ........................................................................................... 6 3.7 Test setup of EUT and SAR measurement procedure ......................................................... 7 SECTION 4: Operation of EUT during testing .................................................................. 8 SECTION 5: Uncertainty assessment (SAR measurement) .............................................. 8 SECTION 6: Confirmation before testing .......................................................................... 9 6.1 SAR reference power measurement (antenna terminal conducted average power of EUT) ................ 9 6.2 Comparison of power of EMC sample........................................................................................ 9 SECTION 7: Measurement results ...................................................................................... 10 7.1 SAR test results of platform (1) .......................................................................................... 10 Contents of appendixes APPENDIX 1: Photographs of test setup .............................................................................. 11 Appendix 1-1 Photograph of Platform (1) and antenna position ................................................................ 11 Appendix 1-2 EUT and support equipment ................................................................................................ 12 Appendix 1-3 Photograph of test setup / Platform (1)................................................................................ 13 APPENDIX 2: SAR Measurement data ....................................…

Text truncated - open the document above for the full version.

Test report No. : 10407961S-A Page : 1 of 91 Issued date : September 10, 2014 Revised date : October 16, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10407961S-A Applicant : Canon Inc. Type of Equipment : Wireless Module Model No. : WM227 FCC ID : AZD227 Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: August 19 to October 15, 2014 Representative test engineer: Akio Hayashi Engineer Consumer Technology Division Approved by : Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10407961S-A Page : 2 of 91 Issued date : September 10, 2014 Revised date : October 16, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10407961S-A Revision Test report No. Date Page revised Contents - (Original) 10407961S-A September 10, 2014 - - 1 10407961S-A October 14, 2014 28, 77, 79, 81 Correction of error 2 10407961S-A October 15, 2014 5 Correction of error in 3.2 8 Addition of remarks in 4.1 17, 77 Update of data 3 10407961S-A October 16, 2014 8 Correction of worst data rate in 4.1 Test report No. : 10407961S-A Page : 3 of 91 Issued date : September 10, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ........................................................................................ 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ........................................... 10 SECTION 7: Maximum peak conducted output power..................................................... 10 SECTION 8: Out of band emissions (Antenna port conducted) ....................................... 10 SECTION 9: Peak power density........................................................................................ 10 SECTION 10: Radiated emission........................................................................................ 11 Contents of APPENDIXES ................................................................................................... 13 APPENDIX 1: Data of Radio tests ...................................................................................... 14 APPENDIX 2: Test instruments ......................................................................................... 88 APPENDIX 3: Photographs of test setup ........................................................................... 89 Test report No. : 10407961S-A Page : 4 of 91 Issued date : September 10, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Canon Inc. Address : 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo, 146-8501 Japan Telephone Number : +81-3-5482-8070 Facsimile Number : +81-3-3757-8431 Contact Person : Hironobu Saida SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model No. : WM227 Serial No. : Refer to 4.1 Rating : DC3.3V, DC1.8V Receipt Date of Sample : July 25, 2014 Country of Mass-production : Philippines Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: WM227 (referred to as the EUT in this report) is a Wireless Module. Clock frequency(ies) in the system : 38.4MHz Radio specification: Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth : 20MHz Channel spacing : 5MHz Type of modulation : DSSS (IEEE 802.11b), OFDM (IEEE 802.11g/n) Antenna type : Monopole type chip Antenna connector type : None Antenna gain : -3.10 dBi (2442MHz) ITU code : D1D, G1D Operation temperature range : -20 to +85 deg.C FCC 15.31 (e) / 212 The host device provides stable voltage (DC3.3V and DC1.8V) constantly to the EUT regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 / 212 The antenna is not removable from the EUT. Therefore, the equipment complies with the requirement. Test report No. : 10407961S-A Page : 5 of 91 Issued date : September 10, 2014 Revised date : October 15, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +…

Text truncated - open the document above for the full version.

Test report No. : 10407964S-A Page : 11 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 APPENDIX 1: Photographs of EUT and SAR test setup Appendix 1-1: Photograph of Platform (1)-Digital camera (model: PC2241) and antenna position <Antenna location> (*.It was mounted in the inside of a platform.) Top Right WM227 Bottom Left Rear (LCD) Antenna Front (Lens) Wireless module (WM227) and antenna Front Rear Antenna Antenna Test report No. : 10407964S-A Page : 12 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 1-2: EUT and support equipment Description of EUT and Support Equipment No. Item Model number Serial number ManufacturerRemark A Wireless Module WM227 F48139F1C42D Canon EUT. B Digital Camera PC2241 48 Canon (WM227’s) Platform (1). C1 Battery Pack for Digital camera / DC3.7V, 1060mAh, 4.0Wh (Li-ion) NB-6LH 01 Canon Accessory of PC2241, Battery No. #1 C2 02 Accessory of PC2241, Battery No. #2 C3 03 Accessory of PC2241, Battery No. #3 D Battery Charger CB-2LY 01 Canon Accessory of PC2241. *. The following equipment was used for the antenna terminal port conducted power measurement. E Digital Camera (Host) PC2052 821060038906 Canon Support equipment. (*.Ribbon cable=150mm) - DC Coupler DR-90 - Canon Support equipment. With DC cable: 0.15m, Unshielded. - AC Adaptor CA-DC10N - Canon Support equipment. With DC cable: 1.9m, Unshielded. With AC cable: 1.9m, Unshielded. B: Platform (Digital camera) C1 C2 A: EUT(WM227) *.It was mounted in the inside of a platform. SAR test D C3 Antenna terminal port conducted power measurement A: EUT(WM227) E: Host Test report No. : 10407964S-A Page : 13 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 1-3: Photograph of test setup / Platform(1) Position Setup photographs Top (Touch) Rear-top (Touch) Front-top (Touch) Test report No. : 10407964S-A Page : 14 of 44 Issued date : August 28, 2014 FCC ID : AZD227 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 1-3: Photograph of test setup / Platform(1) (cont'd) Position Setup photographs Rear (LCD) (Touch) Front (Lens) (Touch) Right -hand (Touch) Left -hand (Touch) Bottom (Touch)

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test Report No 10407961S-A 89 of 91 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test Report No 10407961S-A 90 of 91 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test Report No 10407961S-A 91 of 91
