AZD247Z-Wave PCB Unit

For the module installation to host systems, please follow the instruction below. 1. Insert the FPCor FFCinto the connector on the board. The contact of the connector is the bottom contact (board side). Please refer to the circuit diagram for the pin arrangement of the connector. 2. Align the two holes on the board with the two holes on the main unit side. 3. Tighten the board and the main body together using two screws. Use M2screws for the screws. Note: This module is certified as limited modular approval as it does not have its own power supply regulator, therefore regulated 3.3V must be supplied by a host device using voltage regulator, e.g.TLV62084ADSG(Vout3.3V+- 0.12V/Iout>= 0.25A) or equivalent. This is a user manual for host product manufacturers to use when integrating the module in a host product. The device shall be installed as described above and is designed to use an integrated antenna. Do not modify the antenna or any other part of the module. Any modifications will invalidate the modular certifications and require new approvals for the host system. This device complies with below part 15 of the FCC Rules. Part 15 Subpart C The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant (FCC Part 15.249), and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. FCC/ISED NOTICE Model:ZWAVEModule Model NCA01A, FCC ID: AZD247/IC:498J-247) This device complies with part 15 of FCC Rules and Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. FCC/ISED Notice for model: NCA01A The end productmust be labeled “Contains FCC ID: AZD247” and “Contains ISED Certification Number: 498J-247” Following statement must be included in the user manual of host device.

1 KDB996369 Check List FCC ID: AZD247 Applicant: Canon Inc This transmitter complies with KDB996369 D03 as indicated below: Modular approval requirement Applicable Not Applicable 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required. Please refer to User Manual. 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to -point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements. a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part of the information to the host product manufacturer. The antenna list shall also identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-directional antenna” is not considered to be a specific “antenna type”)). For situations where the host product manufacturer is responsible for an external connector, for example with an RF pin and antenna trace design, the integration instructions shall inform the installer that unique antenna connector must be used on the Part 15 authorized transmitters used in the host product. The module manufacturers sha…

Text truncated - open the document above for the full version.

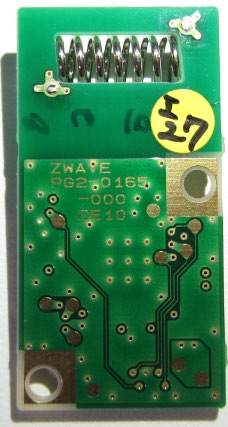

Appearance To p with shield Bottom

●①‘FCC ID：XXXXXYYY(§2.925) Permanently display the following FCC and Canada IDs with a character size of at least 4 points (Approx. 1.4 mm). NCP01A FCC ID: AZD247 IC: 498J-247 6mm Displayinthisrange US/CA model NCP01A FCC ID: AZD247 IC: 498J-247

To p without shield Appearance

Test report No. : 13707587S-A-R3 Page: 1 of 27 Issued date: April 26, 2021 F CC ID : AZD247 UL Japan, Inc. Shonan EM C Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401Report Cover Page - 13-EM-F0429 Issue # 18.0 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13707587S-A-R3 Applicant : Canon Inc. Type of EUT : Z-Wave PCB Unit Model Number of EUT : NCP01A FCC ID : AZD247 Test regulation : FCC Part 1 5 Subpart C: 2021 Test Result : Complied (Refer to SECTION 3) 1.This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2.The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the li mits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorseme nt by the A2LA accreditation bod y. 6. This test report covers Radio te chnical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirement s. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab. 8.The opinions and the interpretations to the result of the description in this report are outside scopes wh ere UL Japan has been accredit ed. 9. The information provided from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13707587S-A-R2. 13707587S-A-R2 is replaced with this re port. Da te of test: March 20 to 22, 2021 Representative test engineer: Hiromasa Sato Engineer Consumer Technology Division Appr oved by: Toyokazu Imamura Leader Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13707587S-A-R3 Page : 2 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 13707587S-A Revision Test report No. Date Page revised Contents - (Original) 13707587S-A April 2, 2021 - - 1 13707587S-A-R1 April 7, 2021 P 15 Corrected the average limit line from a solid line to a dashed line. P 21 Added spurious emission data of 1 GHz or less to the plot data. 2 13707587S-A-R2 April 12, 2021 P 15 Corrected the average limit line from a solid line to a dashed line. 3 13707587S-A-R3 April 26, 2021 P 25-26 Replace of photos Test report No. : 13707587S-A-R3 Page : 3 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13707587S-A-R3 Page : 4 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information .......................................................................................................…

Text truncated - open the document above for the full version.

Test report No. : 13707587S-A-R3 Page : 24 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted Emission Test report No. : 13707587S-A-R3 Page : 25 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated Spurious Emission Front Rear (below 30 MHz Horizontal) Rear (below 30 MHz Vertical) Rear (30 MHz - 1000 MHz) Rear (Above 1 GHz) Test report No. : 13707587S-A-R3 Page : 26 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-Check Worst Case Position X-axis Y-axis Z-axis Test report No. : 13707587S-A-R3 Page : 27 of 27 Issued date : April 26, 2021 FCC ID : AZD247 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna Terminal Conducted Tests End of Report
